TURBO SET 200

Products

TURBO SET

TURBO SET 200

TURBO SET 200

Small kits with great success for gas welding with disposable cylinders and cartridges.


TURBO SET 200, SMALL AND POWERFUL


The most professional amongst small autogenous welding systems with non-rechargeable cylinders. Com- pact and in a stylish metal support, for powerful welding. This Turbo Set allows great flexibility in welding, brazing and heating with a choice of 5 different tips. It is the best choice for installers in thermo-hydraulics, conditioning and refrigeration. Product safety is guaranteed by 4 dual-protection flashback arrestor valves positioned on regulators and inside the torch. Suitable for brazing thicknesses from 0.7 to 3.0 mm.


ATTENTION TO DETAIL
A very compact kit: 27 cm high, an inclination of 30° to avoid overturning with fixing brackets for disposable cylinders. The presence of pressure gauges on regulators enables continued monitoring of oxygen cylinder pressure and optimisation of gas cylinder regulator regulation.


EQUIPPED WITH:


- 1 L 110 bar OXYGEN cylinder
- TURBO GAS PRO 400g CGA600 cylinder
- MIGNON oxygen and gas regulatorswith pressure gauge and dual-protection flashback arrestor valves
- Handle with adjusting taps and no-return integrated oxygen and gas valves
- 160 L lance and tip (tip in two components)
- 2 m hoses with connections
- Set of 4 tips 63-100-250-315 L (in two components)
- Protective goggles

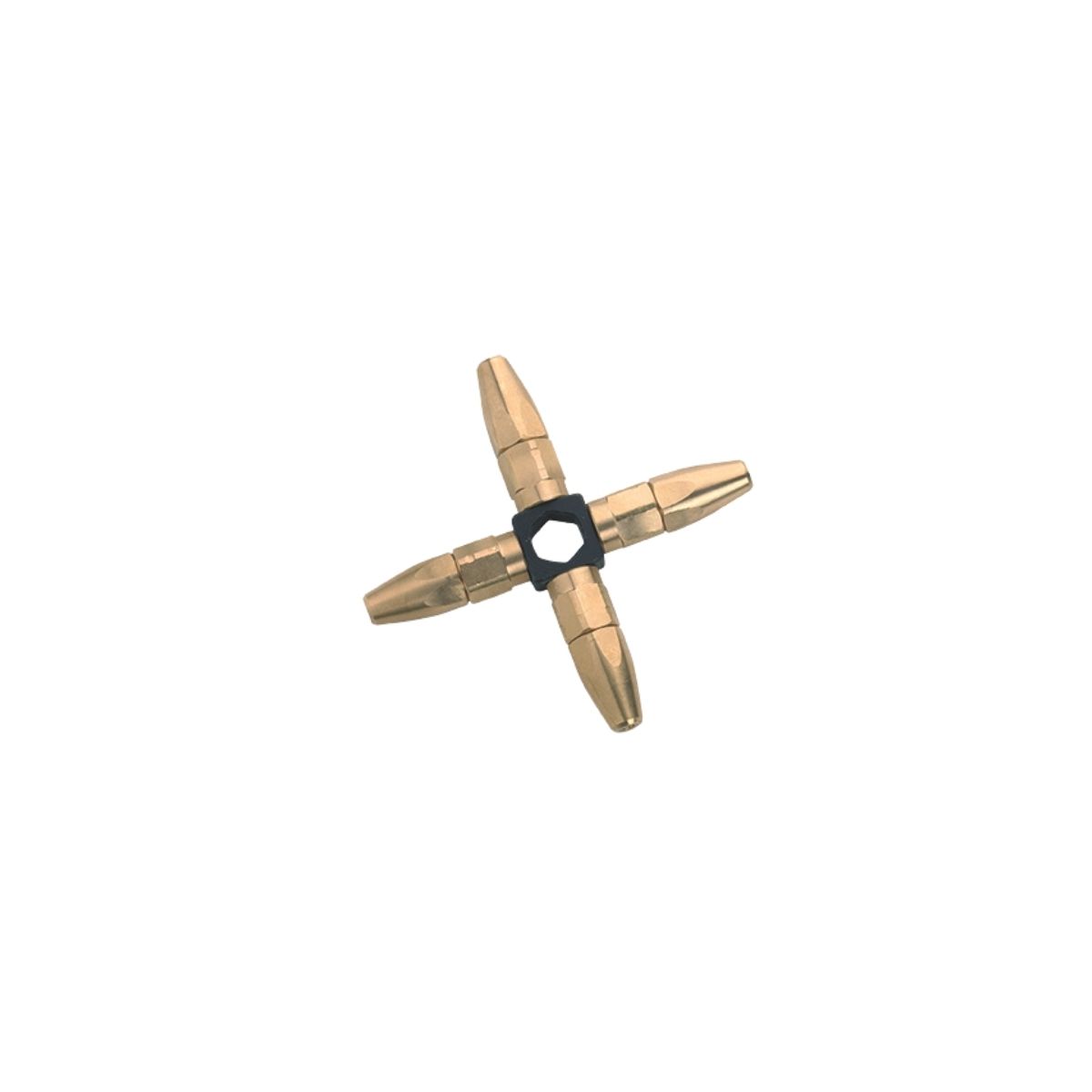

- 2 multi-purpose wrenches
- Igniter
- Filler metal with de-oxidant


GAS CONSUMPTION
(normal regulation and 160 L tip)
GAS CONSUMPTION117 g/h ENDURANCE OF THE O2 CYLINDER 0.30 h
ENDURANCE OF THE PRO//MAX CYLINDER 3.40h

TURBO SET - TURBO SET 200

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Availability Weight (kg) No. of pcs Product sheet

111010

Request information
TURBO SET 200
 TURBO SET 200 D 6 1
--

TURBO SET 200 SPARE PARTS

TURBO SET - TURBO SET 200 - TURBO SET 200 SPARE PARTS

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Inlet Availability Weight (kg) No. of pcs Product sheet

220650

Request information
TURBO SET 200

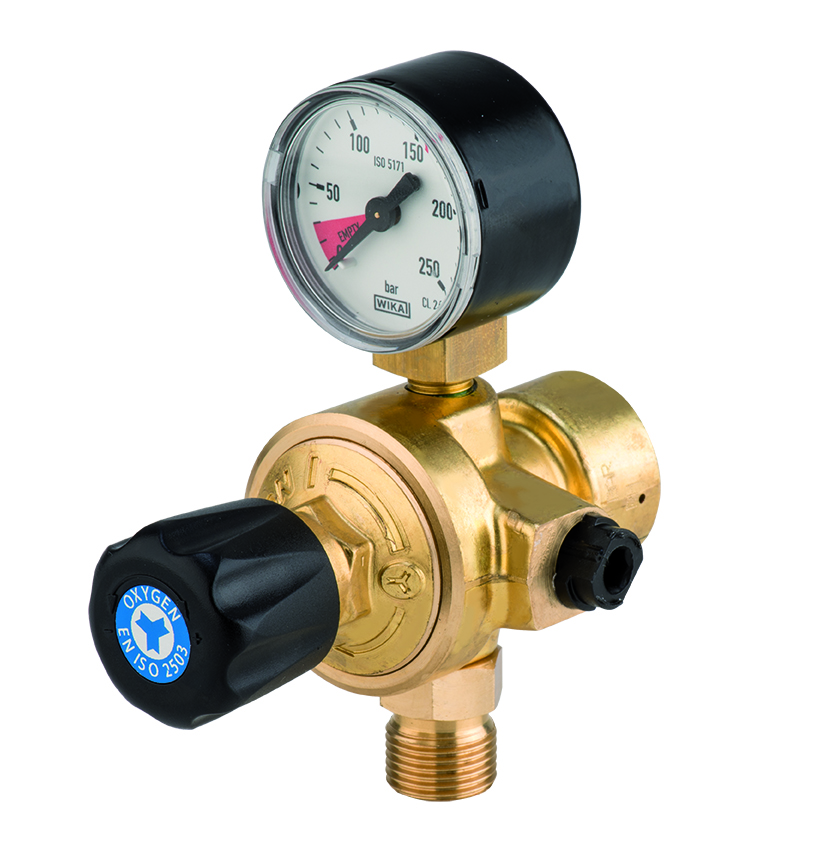

 Pressure regulator mignon O2 with H.P. Gauge M12X1 RH-IT D 0 1
--

223855

Request information
TURBO SET 200

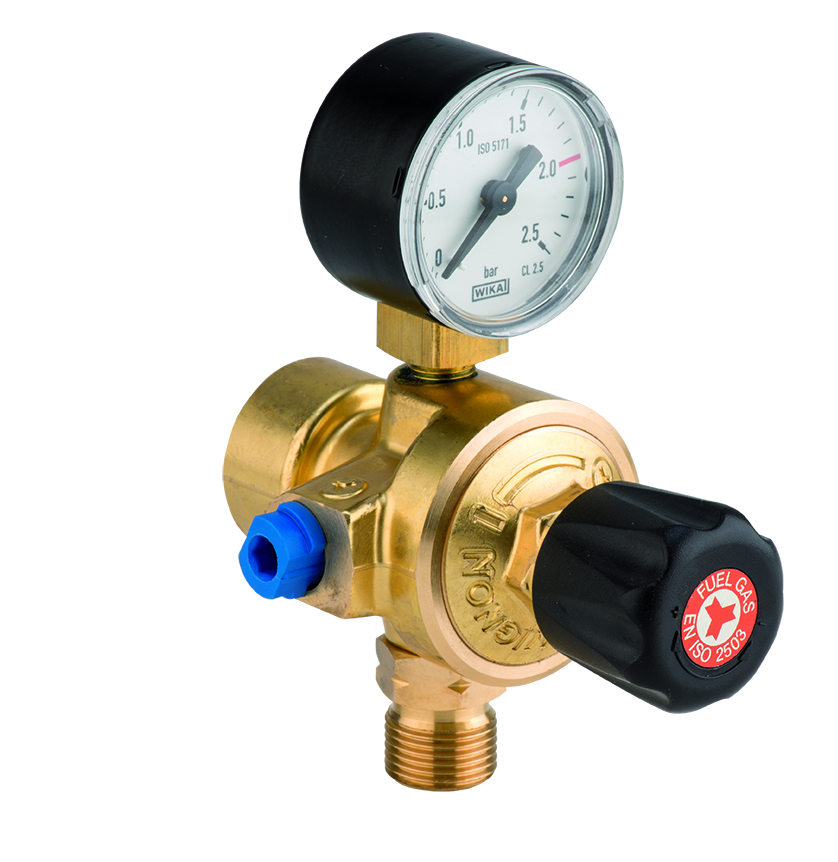

 Pressure regulator mignon gas with L.P. Gauge CGA600 D 0 1
223855_ENG.pdf

110010

Request information
TURBO SET 200

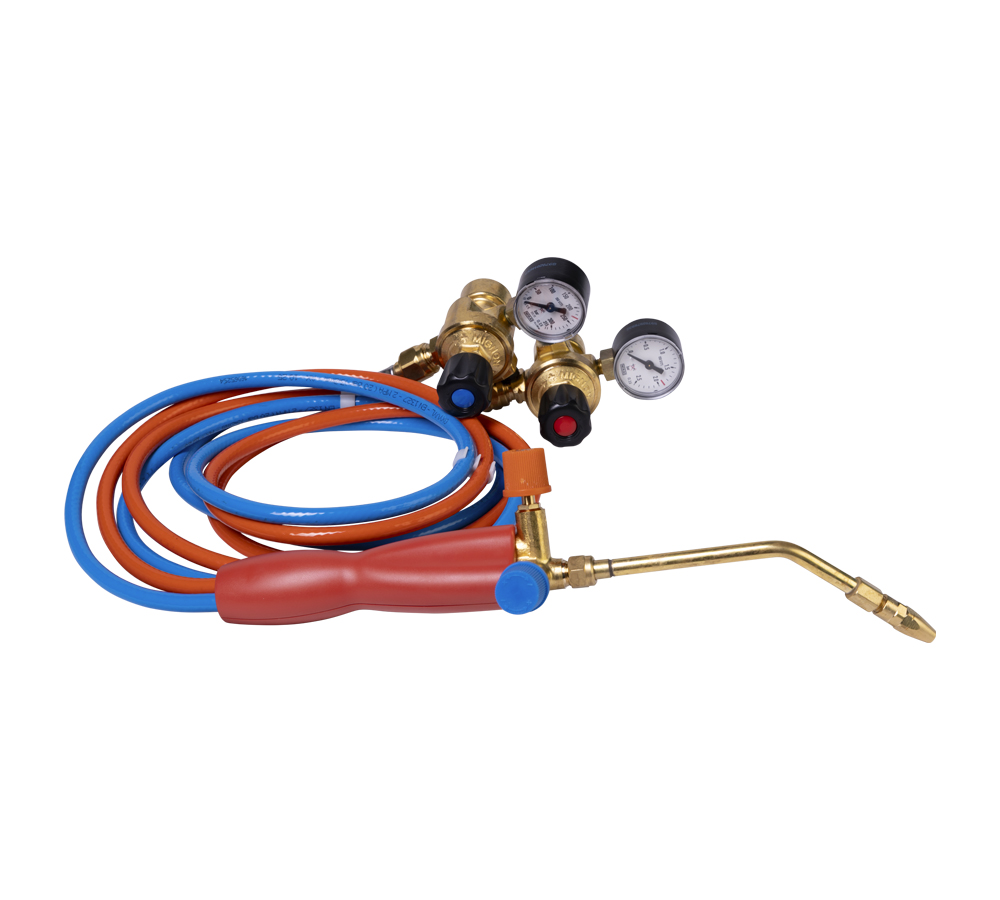

 Welding assembly kit complete with pressure regulators - R 1 1
--

110011

Request information
TURBO SET 200

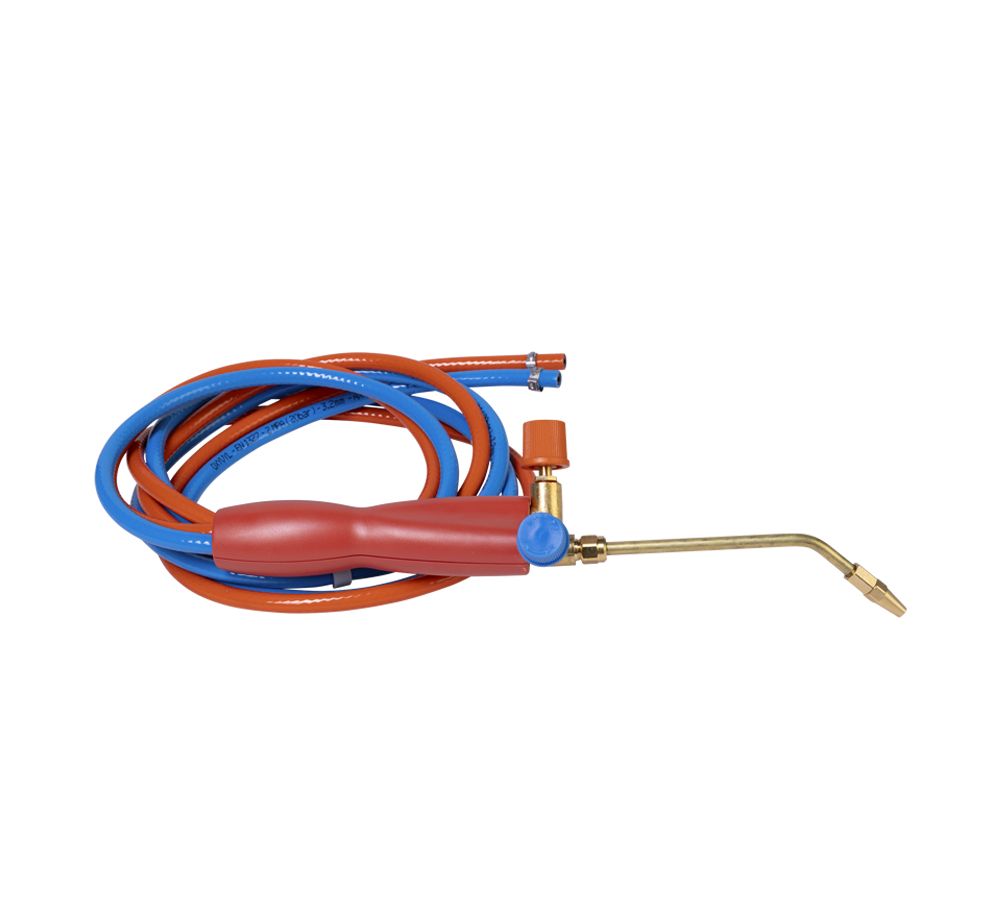

 Welding assembly kit without pressure regulators - R 1 1
--

110601

Request information
TURBO SET 200

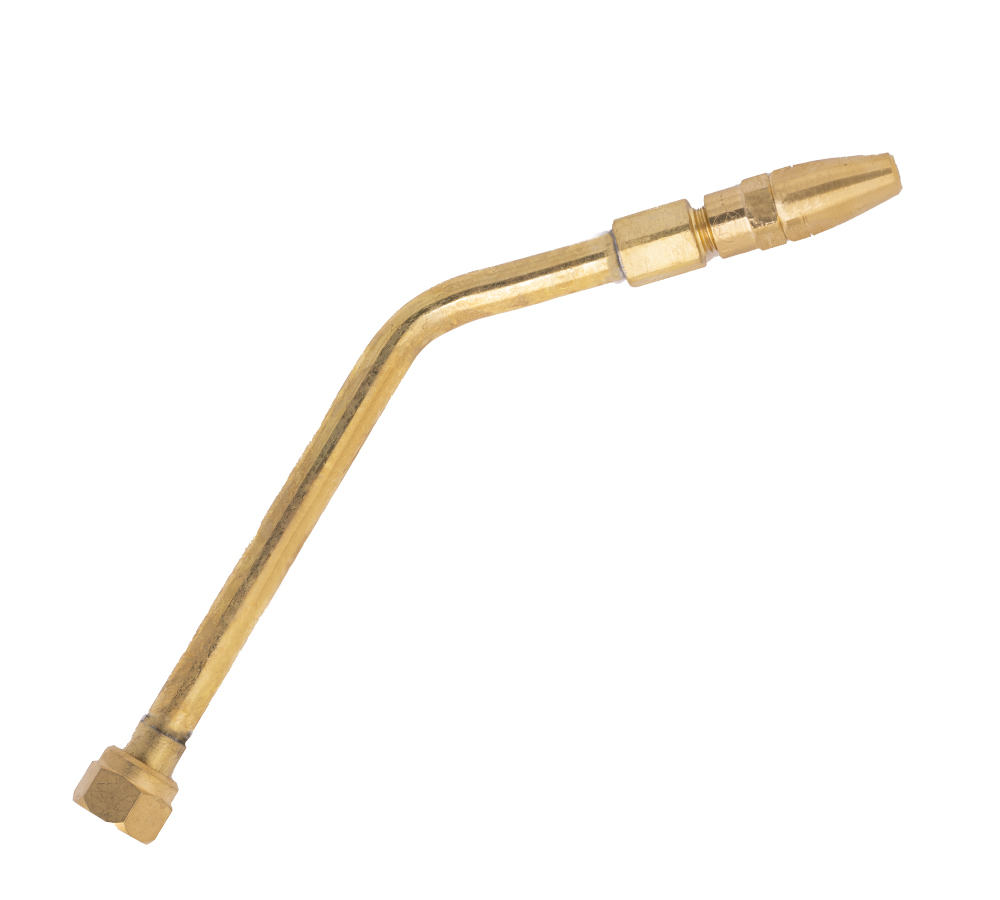

 Lance and tip M12X1 R 0 1
--

110802

Request information
TURBO SET 200
 Malleable lance M12X1-M8X1 D 0 1
--

110710.ESP

Request information
TURBO SET 200
 Set of 4 tips 63 - 100 - 250 - 315 L M8X1 D 0 1
--

B5910003.KIT

Request information
TURBO SET 200
 Spare parts kit 3 oxygen cylinder gaskets - D 0 1
--

S6208011.KIT

Request information
TURBO SET 200
 Turbo Set 90-110-200 Handle Support Kit - D 0 1
--

Technical questions and evidence

How can I compare the available variants?

Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.

Which supporting documents are available?

The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.

How do I verify compatibility with my application?

Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.

The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
