TIG WELDING
WP 9 - WP 20 TORCHES

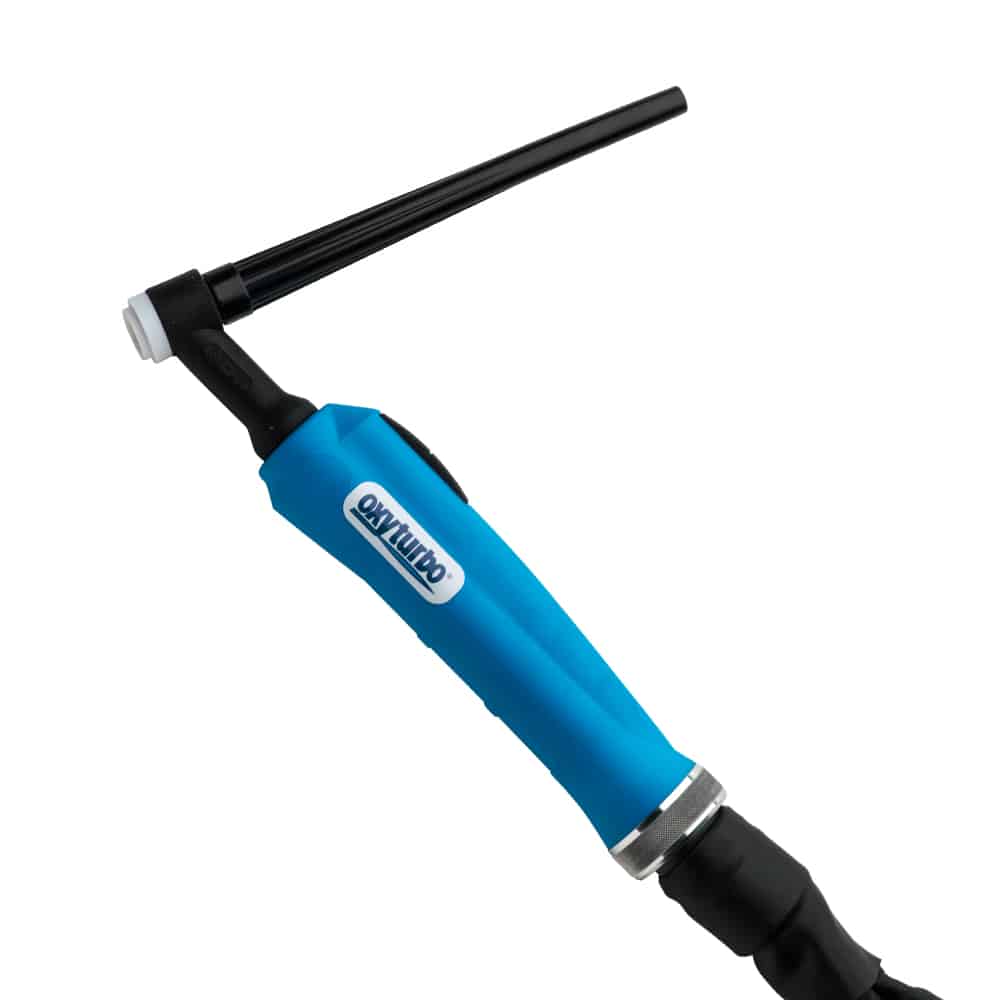

WP 9 - WP 20 TORCHES
Compact and easy to handle, for all welding needs.
Equipped with a sturdy but lightweight handgrip. The SuperFlex version comes with a switch that can be activated for greater handling and practicality of use. In addition, the first section of the cable is in leather for further protection. Models with flywheels are equipped with a knob for opening and gas flow adjustment.
Available with 3 different cables measurements: 4 or 8 metres.
All the torches of the series are completed with a DINSE adapter.
Characteristics
Use
Product Sectors
WP 9 TORCHES - WP 9 - WP 20 TORCHES
WP 20 TORCHES - WP 9 - WP 20 TORCHES
WP9 AND WP20 TORCHES COMMON SPARE PARTS - WP 9 - WP 20 TORCHES
WP9 SUPER FLEX - WP 9 - WP 20 TORCHES

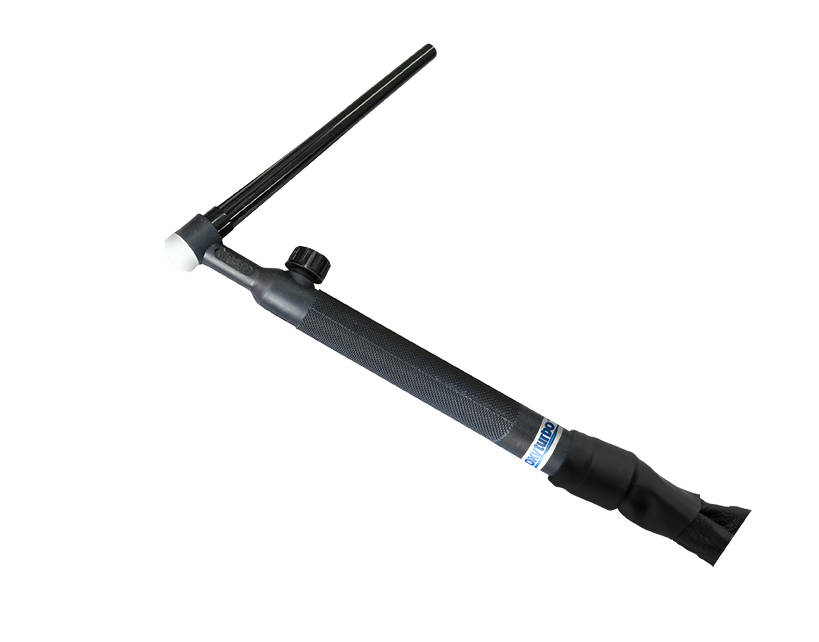

WP9 TORCH WITH FLYWHEEL - WP 9 - WP 20 TORCHES
WP20 SUPERFLEX TORCH SPECIFIC SPARE PARTS - WP 9 - WP 20 TORCHES
WP 9 TORCHES
TIG WELDING - WP 9 - WP 20 TORCHES - WP 9 TORCHES
Ideal for light carpentry for tungsten electrodes ø 0.5 - 1.6 mm.
| Code | Image | Description | Dinse connector (mm²) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
9TWP912RSF Request information | | Torch WP9 SuperFlex 4 m M12x1 with Dinse adapter | 50 | R | 1 | 1 | -- |
9TWP912RSF+D25 Request information |  | Torch WP9 SuperFlex 4 m M12x1 with Dinse adapter | 25 | R | 1 | 1 | -- |
9TWP925RSF Request information |  | Torch WP9 SuperFlex 8 m M12x1 with Dinse adapter | 50 | R | 2 | 1 | -- |
9TWP925RSF+D25 Request information |  | Torch WP9 SuperFlex 8 m M12x1 with Dinse adapter | 25 | R | 2 | 1 | -- |
9TWP9V12 Request information |  | Torch WP9 w/FLYWHEEL 4 m M12x1 with Dinse adapter | 50 | R | 1 | 1 | -- |
9TWP9V12+D25 Request information |  | Torch WP9 w/FLYWHEEL 4 m M12x1 with Dinse adapter | 25 | R | 1 | 1 | -- |
9TWP9V25 Request information |  | Torch WP9 w/FLYWHEEL 8 m M12x1 with Dinse adapter | 50 | R | 2 | 1 | -- |
9TWP9V25+D25 Request information |  | Torch WP9 w/FLYWHEEL 8 m M12x1 with Dinse adapter | 25 | R | 2 | 1 | -- |
WP 20 TORCHES
TIG WELDING - WP 9 - WP 20 TORCHES - WP 20 TORCHES
Ideal for medium carpentry, for tungsten electrodes ø 0.5 - 3.2 mm.
| Code | Image | Description | Dinse connector (mm²) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
9TWP2012RSF Request information |  | Torch WP20 SuperFlex 4 m M12x1 with Dinse adapter | 50 | R | 1 | 1 | -- |
9TWP2012RSF+D25 Request information |  | Torch WP20 SuperFlex 4 m M12x1 with Dinse adapter | 25 | R | 1 | 1 | -- |
9TWP2025RSF Request information |  | Torch WP20 SuperFlex 8 m M12x1 with Dinse adapte | 50 | R | 1 | 1 | -- |
9TWP2025RSF+D25 Request information |  | Torch WP20 SuperFlex 8 m M12x1 with Dinse adapte | 25 | R | 2 | 1 | -- |
WP9 AND WP20 TORCHES COMMON SPARE PARTS
TIG WELDING - WP 9 - WP 20 TORCHES - WP9 AND WP20 TORCHES COMMON SPARE PARTS
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
9TTGADS25TR Request information |  | Tig Dinse 25 mm2 adapter | 1 | D | 1 | -- |
9TTGADS50TR Request information |  | Tig Dinse 50 mm2 adapter | 1 | D | 1 | -- |

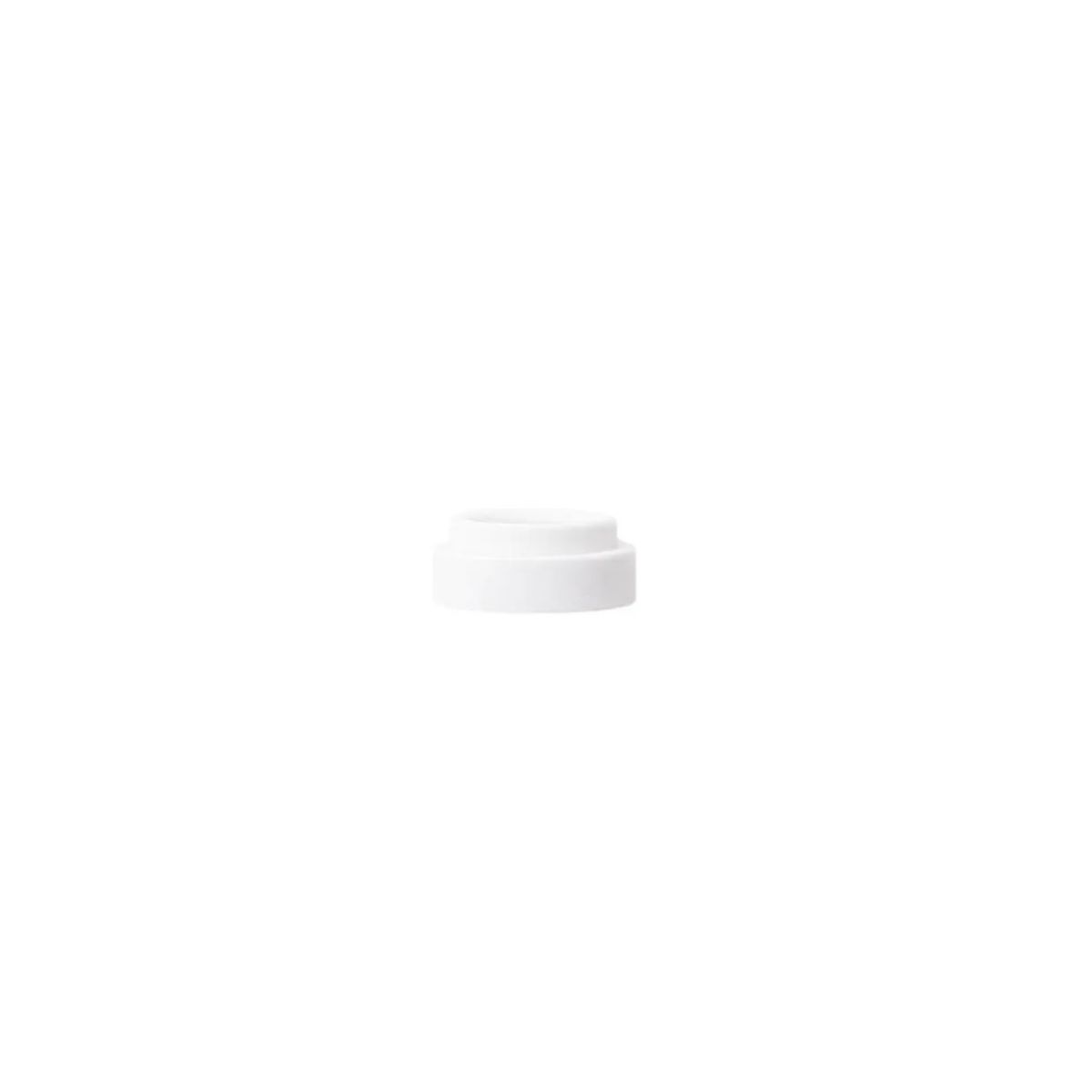

9T0598882 Request information |  | Heat shield WP9 - WP20 | 2 | D | 1 | -- |
9T98W77 Request information |  | O-ring for bag cap | 3 | D | 10 | -- |

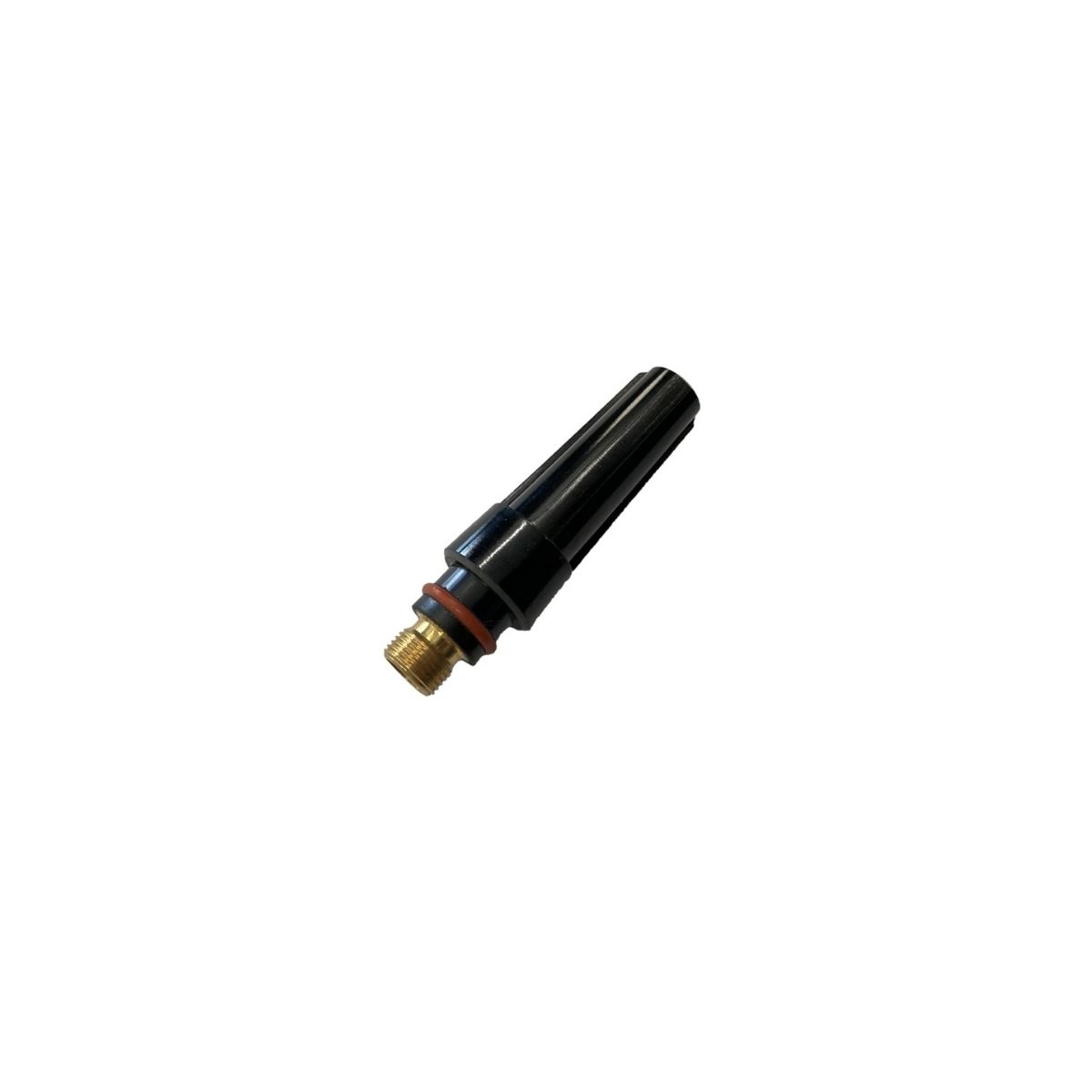

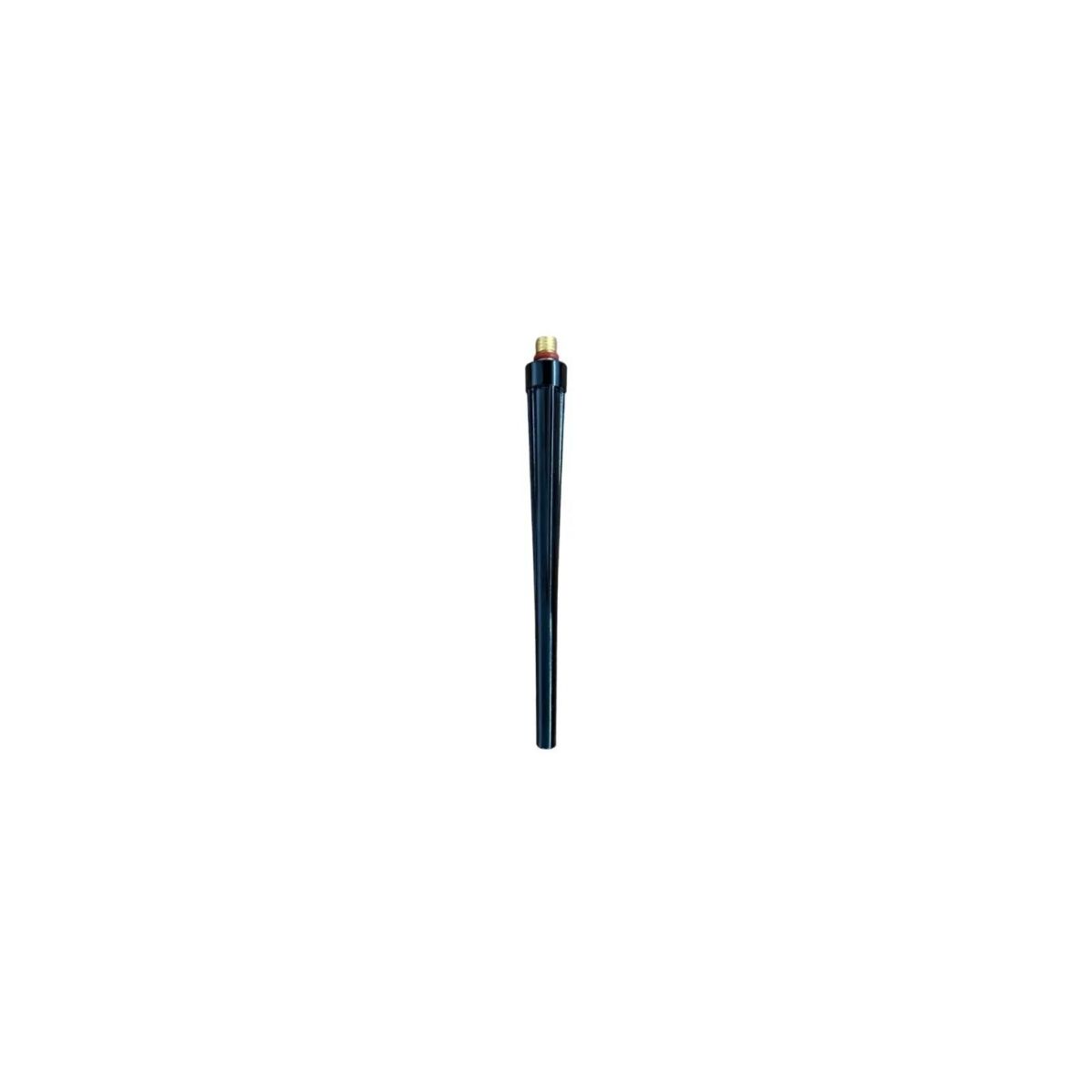

9T41V24 Request information |  | Long black cap | 4 | D | 10 | -- |

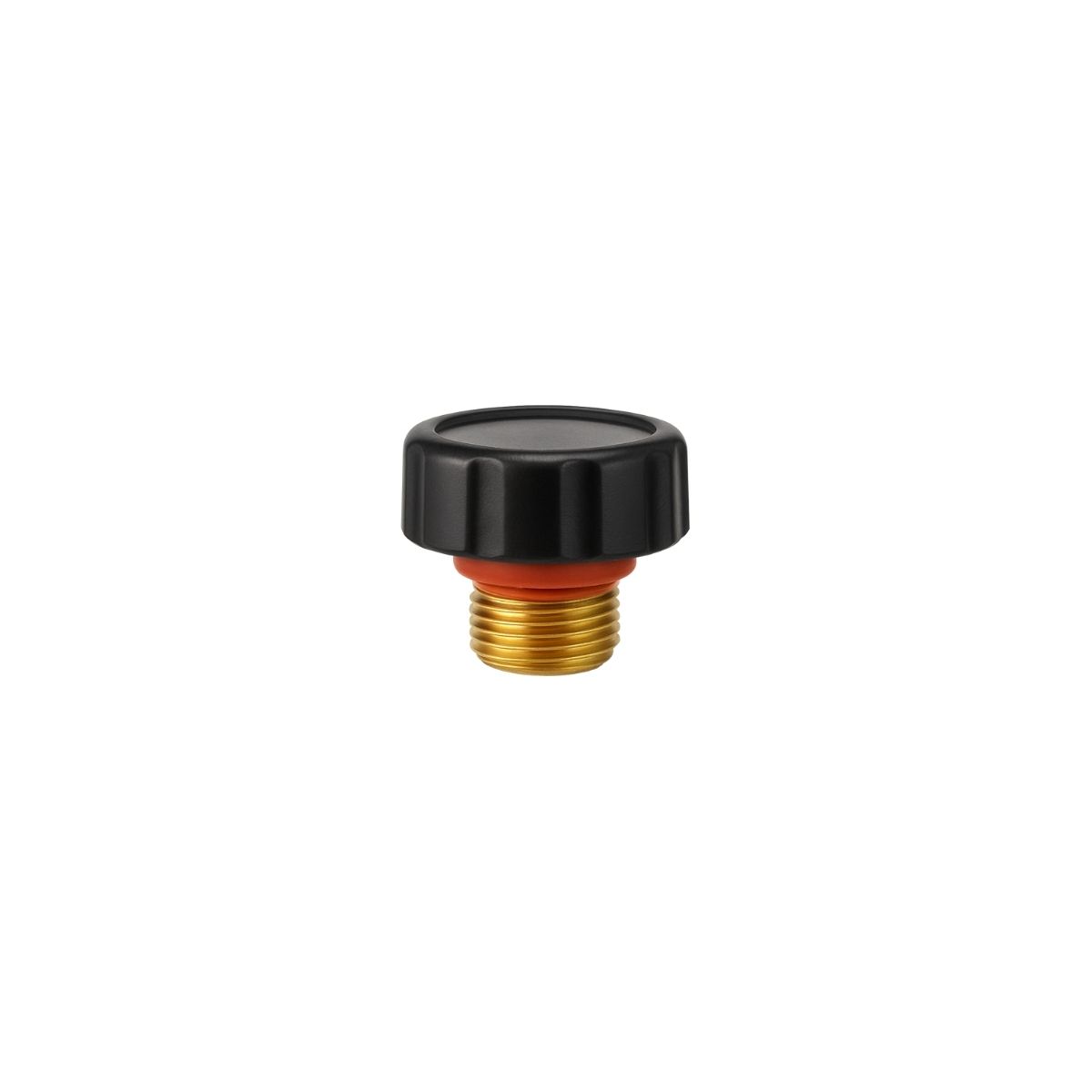

9T41V35 Request information |  | Medium black cap | 4A | D | 10 | -- |

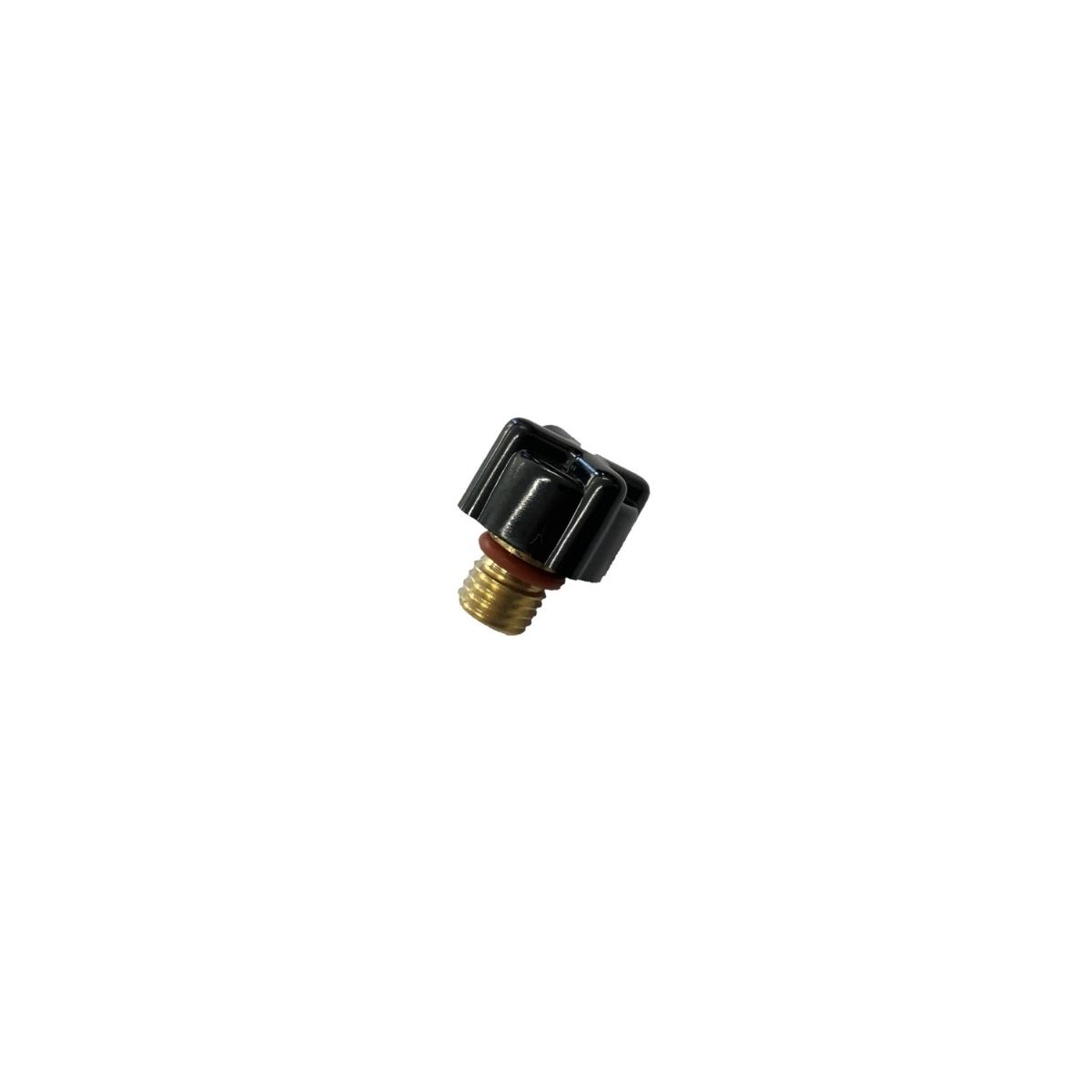

9T41V33 Request information |  | Short back cap | 4B | D | 10 | -- |

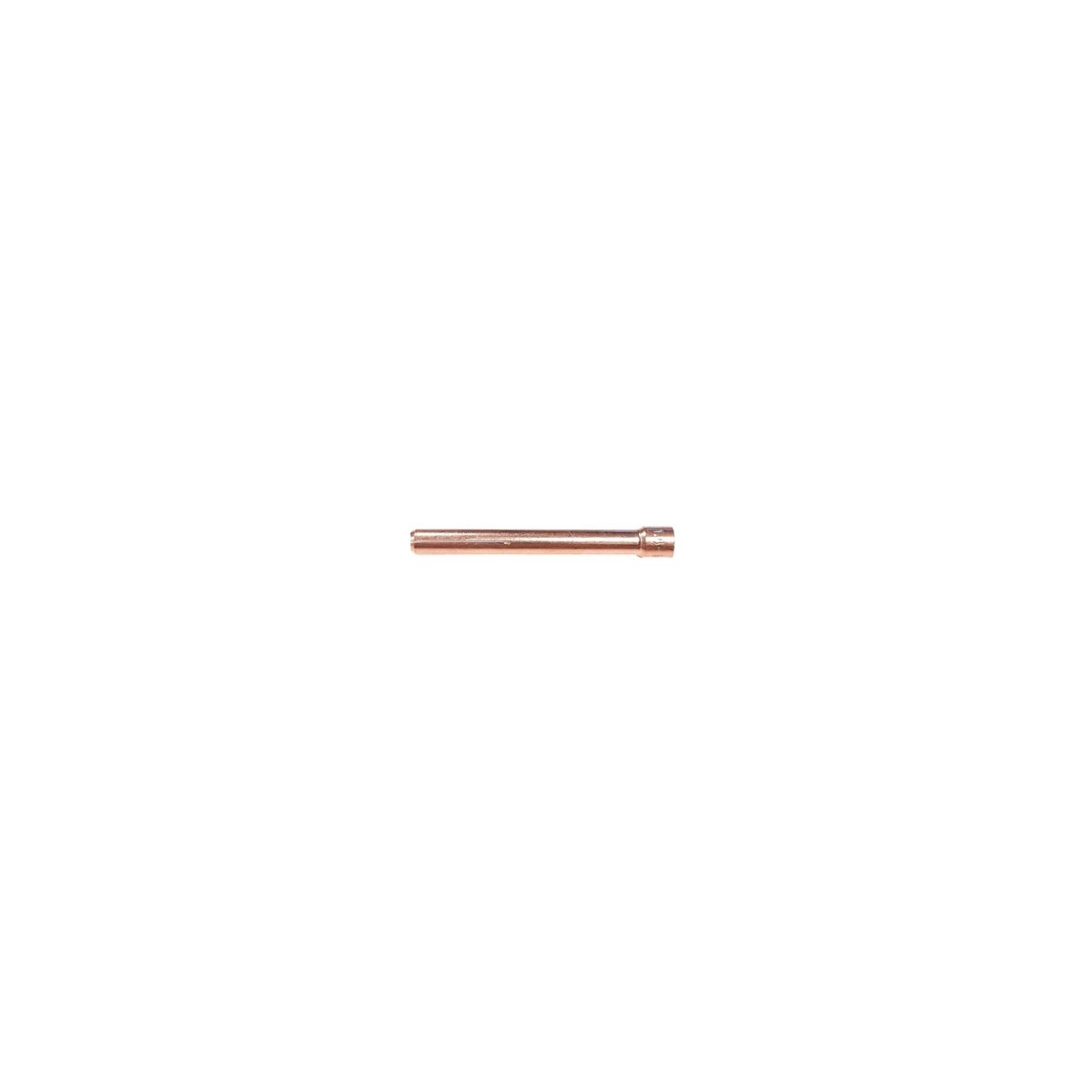

9T13N20 Request information |  | Collet ø 0.5 mm | 5 | D | 10 | -- |
9T13N21 Request information |  | Collet ø 1.0 mm | 5 | D | 10 | -- |
9T13N22 Request information |  | Collet ø 1.6 mm | 5 | D | 10 | -- |
9T70066WT Request information |  | Collet ø 2.0 mm | 5 | D | 10 | -- |
9T13N23 Request information |  | Collet ø 2.4 mm | 5 | D | 10 | -- |
9T13N24 Request information |  | Collet ø 3.2 mm | 5 | D | 10 | -- |

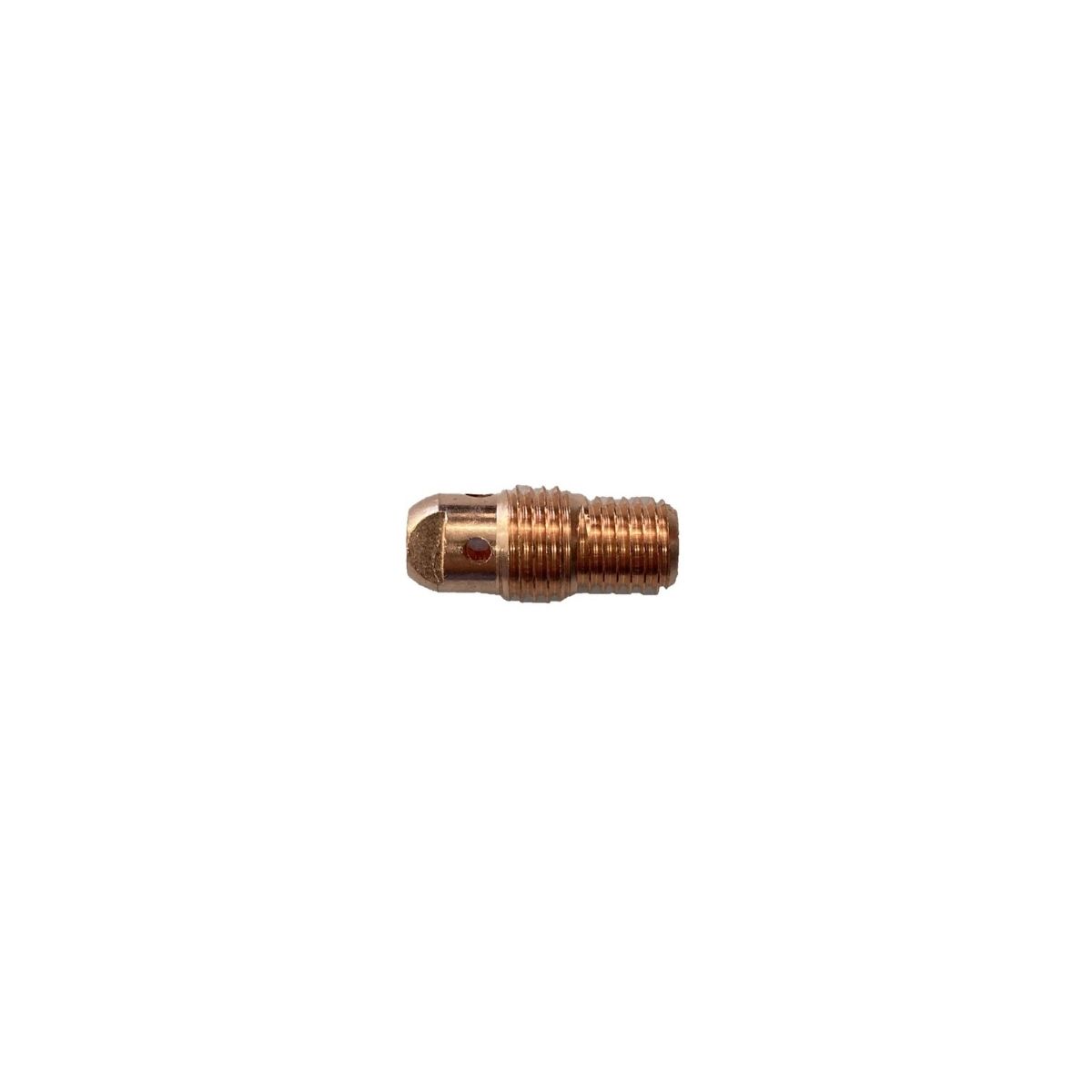

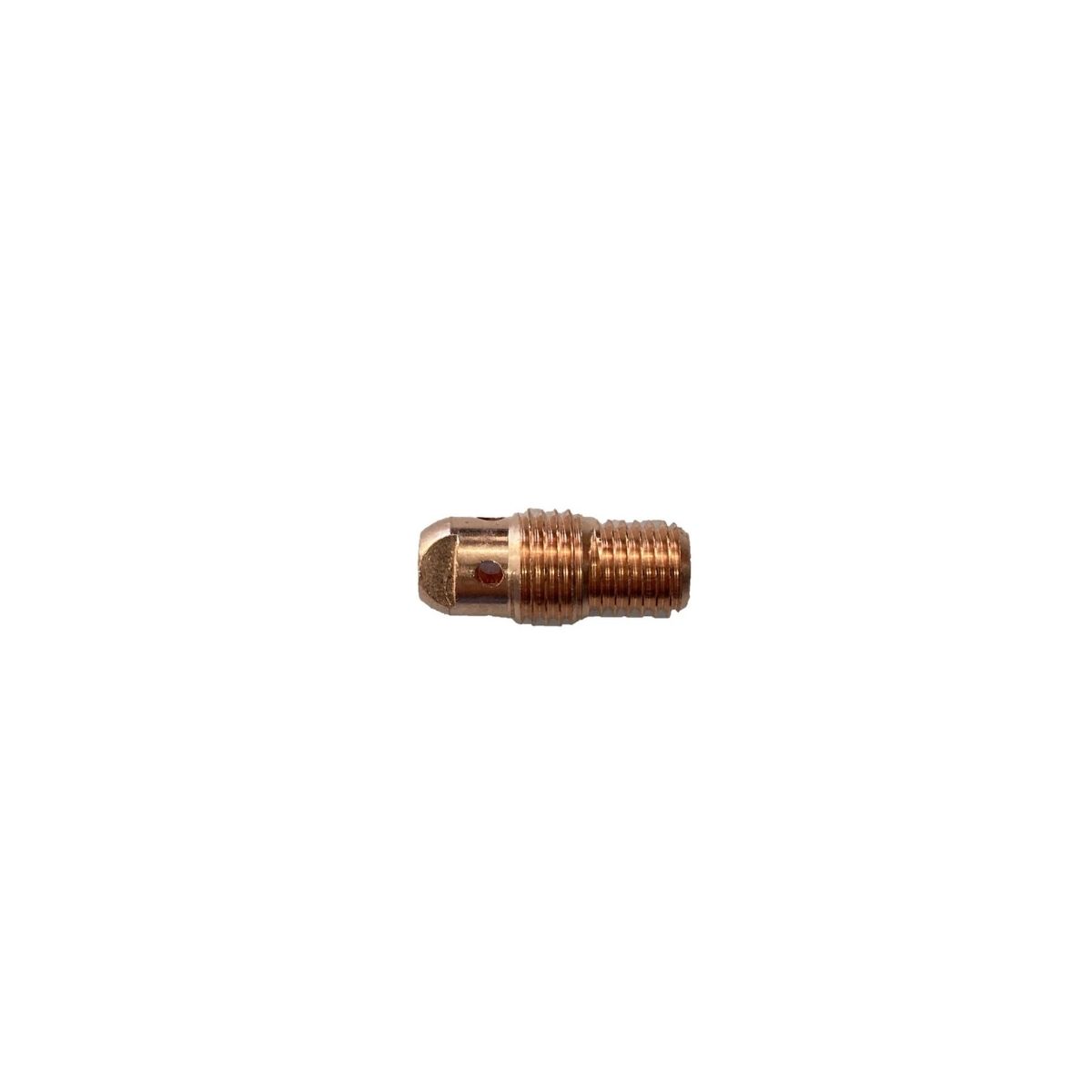

9T13N25 Request information |  | Collet body ø 0.5mm | 6 | D | 10 | -- |
9T13N26 Request information |  | Collet body ø 1.0 mm | 6 | D | 10 | -- |
9T13N27 Request information |  | Collet body ø 1.6 mm | 6 | D | 10 | -- |
9T70067WT Request information |  | Collet body ø 2.0 mm | 6 | D | 10 | -- |
9T13N28 Request information |  | Collet body ø 2.4 mm | 6 | D | 10 | -- |
9T13N29 Request information |  | Collet body ø 3.2 mm | 6 | D | 10 | -- |

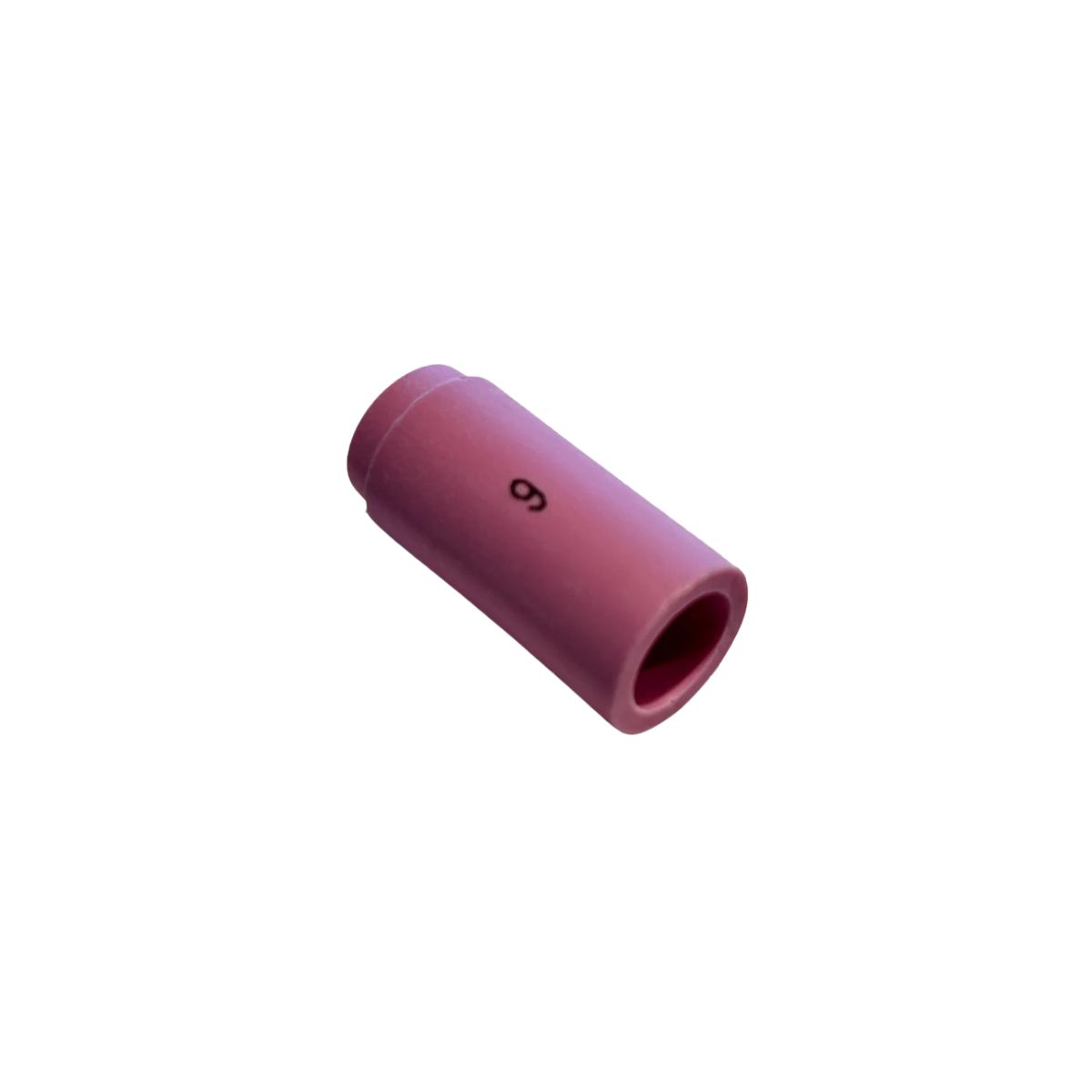

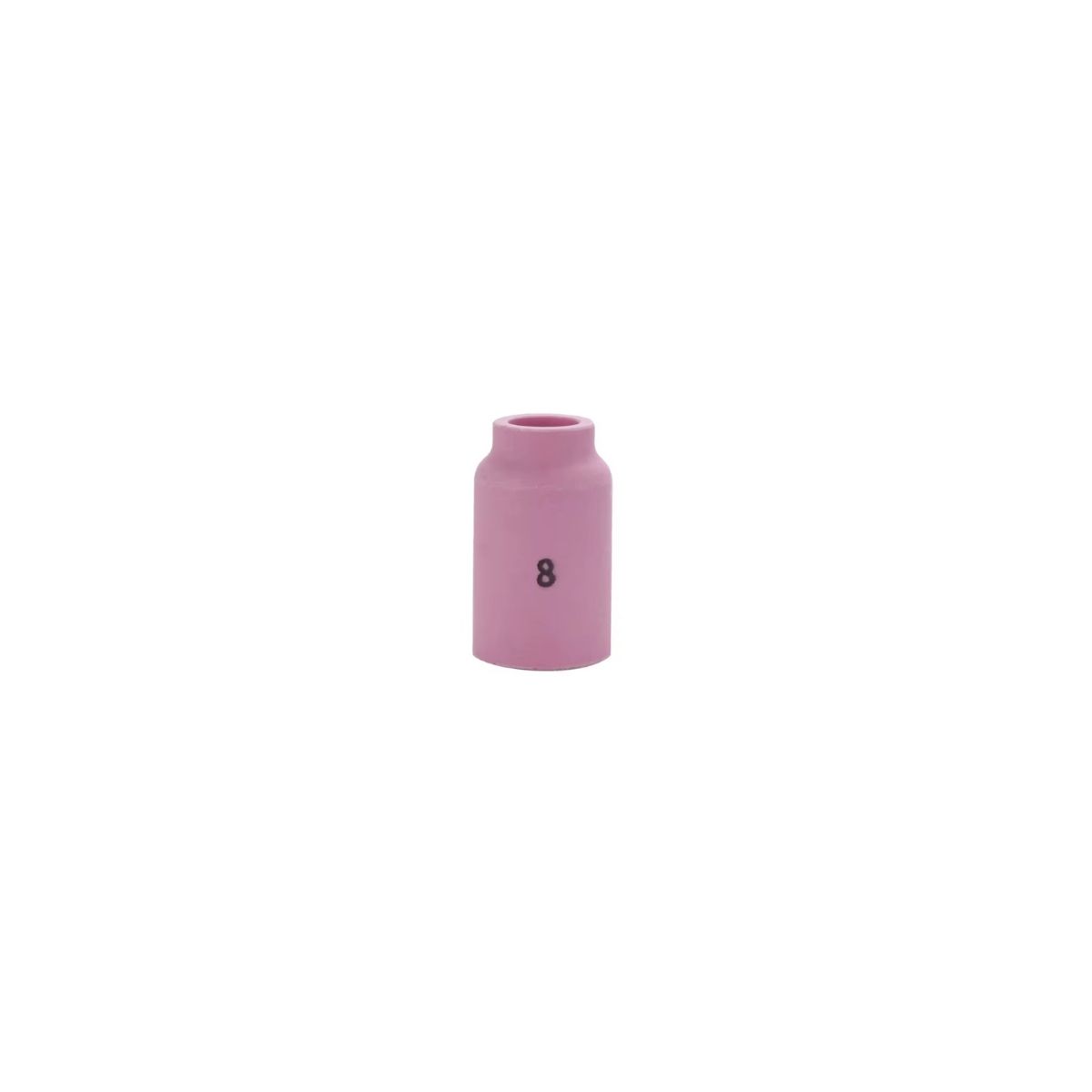

9T13N08 Request information |  | Ceramic nozzle g 4 ø 6.0 mm | 7 | D | 10 | -- |
9T13N09 Request information |  | Ceramic nozzle g 5 ø 8.0 mm | 7 | D | 10 | -- |
9T13N10 Request information |  | Ceramic nozzle g 6 ø 9.5 mm | 7 | D | 10 | -- |
9T13N11 Request information |  | Ceramic nozzle g 7 ø 11.0 mm | 7 | D | 10 | -- |
9T13N12 Request information |  | Ceramic nozzle g 8 ø 12.7 mm | 7 | D | 10 | -- |
9T13N13 Request information |  | Ceramic nozzle g 10 ø 17.5 mm | 7 | D | 10 | -- |

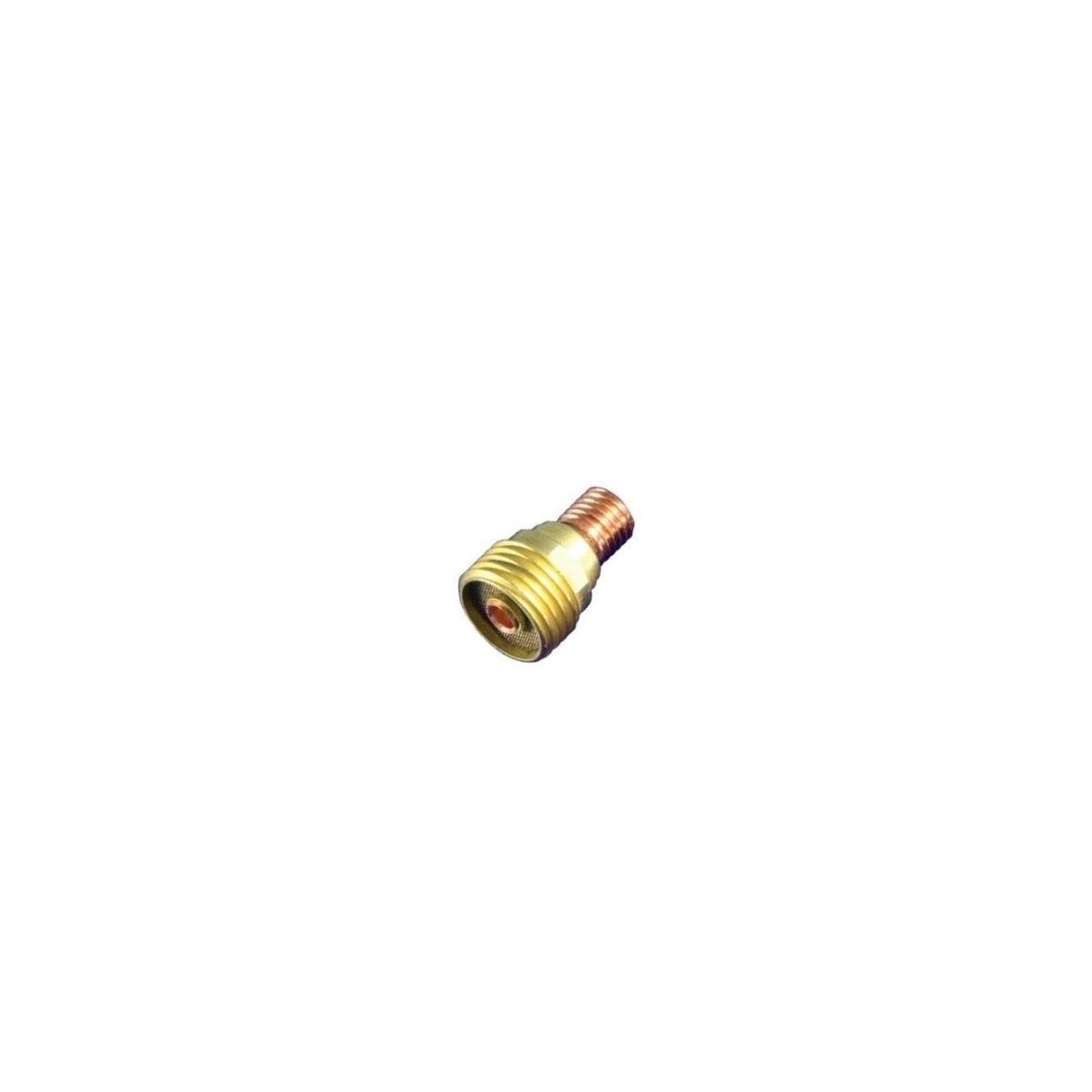

9T45V44 Request information |  | Collet body gas lens ø 2.4 mm | 8 | D | 10 | -- |
9T45V45 Request information |  | Collet body gas lens ø 3.2 mm | 8 | D | 10 | -- |
9T53N58 Request information |  | Ceramic nozzle gas lens ø 6.0 mm | 9 | D | 10 | -- |
9T53N59 Request information |  | Ceramic nozzle gas lens ø 8.0 mm | 9 | D | 10 | -- |
9T53N60 Request information |  | Ceramic nozzle gas lens ø 9.5 mm | 9 | D | 10 | -- |
9T53N61 Request information |  | Ceramic nozzle gas lens ø 11.0 mm | 9 | D | 10 | -- |
WP9 SUPER FLEX
TIG WELDING - WP 9 - WP 20 TORCHES - WP9 SUPER FLEX
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

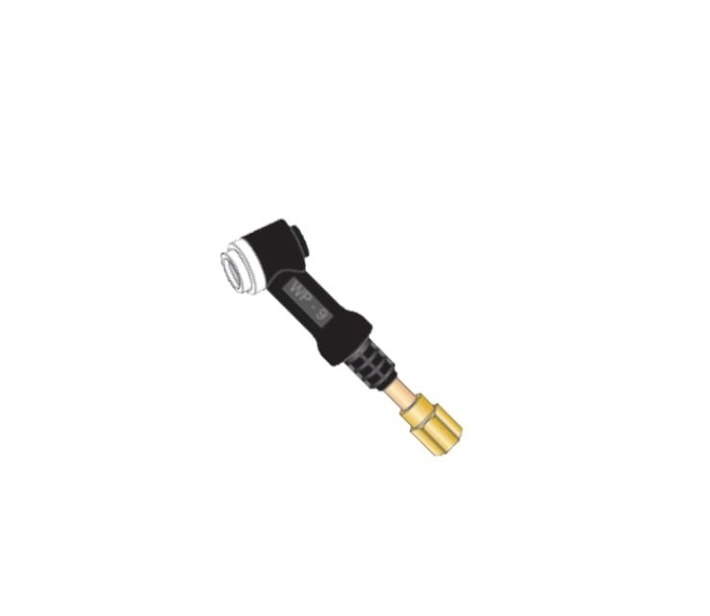

9TWP9 Request information |  | WP9 torch body | 11 | R | 1 | -- |

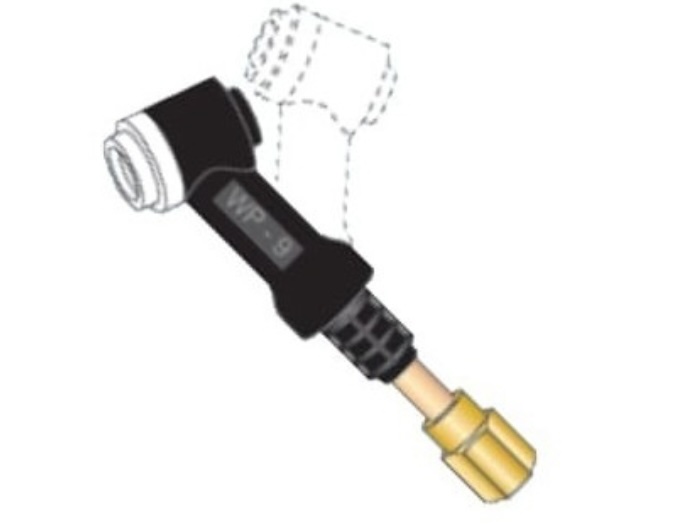

9TWP9F Request information |  | WP9 flexible torch body | 11A | R | 1 | -- |

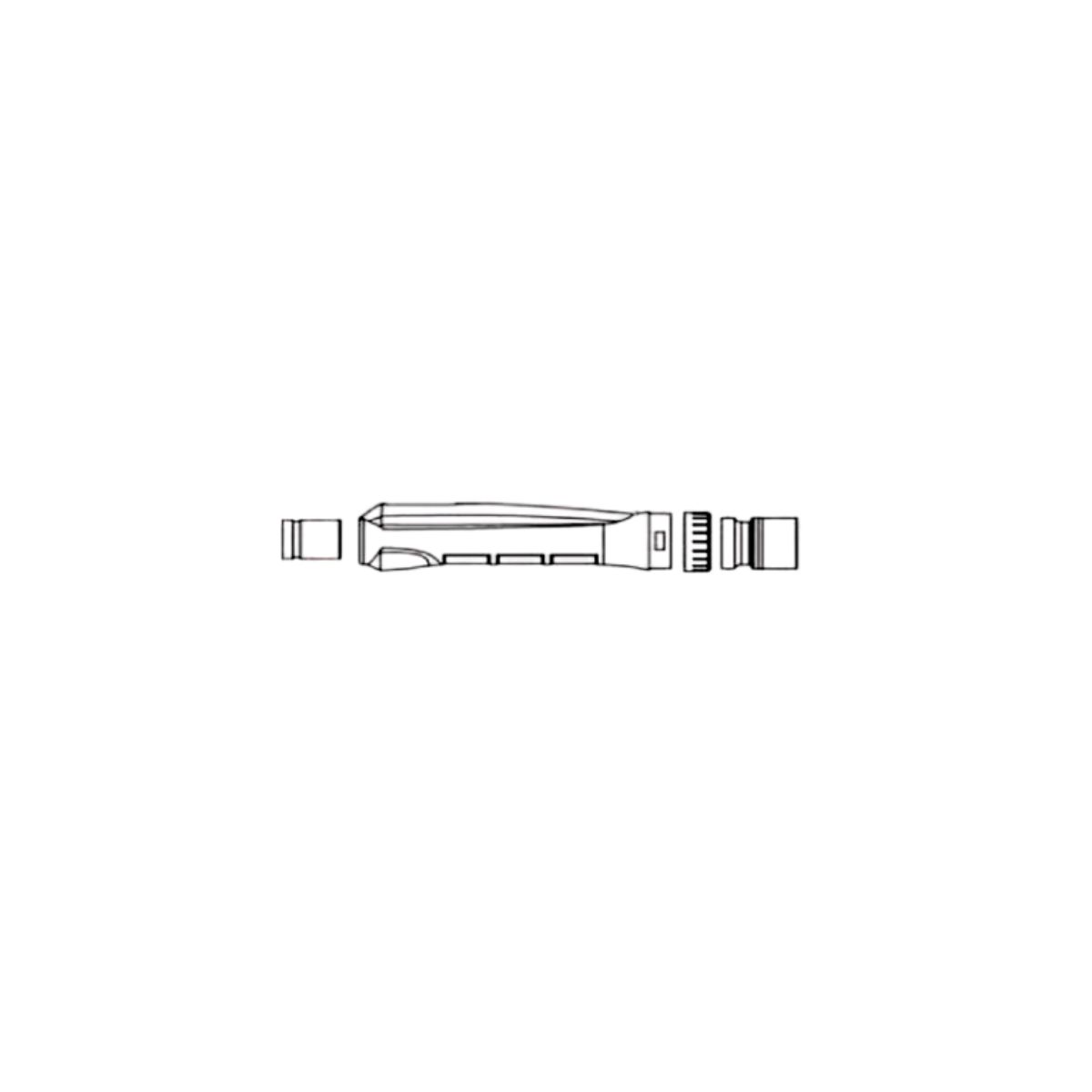

9TTP91C Request information |  | Complete handle | 17 | R | 1 | -- |
9TTG004 Request information |  | Switch | 19 | R | 1 | -- |
9TTG003 Request information |  | Micro 1 position | 20 | R | 1 | -- |

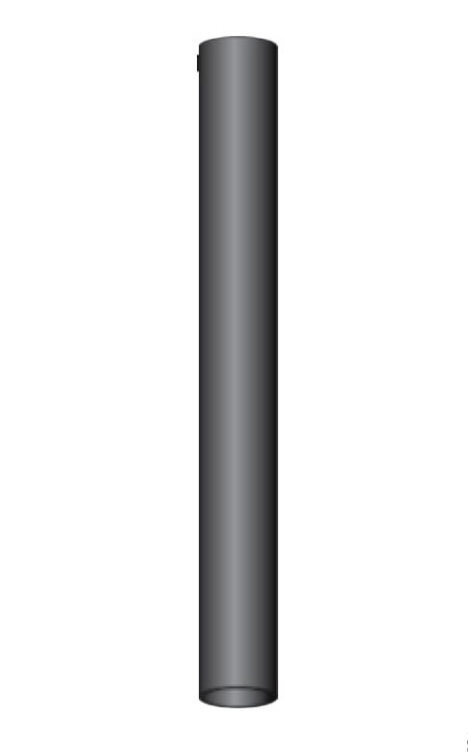

9TVAPL26281 Request information |  | Leather sleeve 26x28 0.5 m | -- | R | 1 | -- |
| Code | Image | Description | Length (m) | Connection | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
9T57Y01R25TR Request information |  | Overb. rubber p.c. 4 m 3/8” | 8 | 3/8 | R | 1 | -- |
9T57Y01R12TR12 Request information |  | Overb. rubber p.c. 4 m 12x1 | 4 | 12x1 | R | 1 | -- |
| Code | Image | Description | Availability | Length (m) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
9TVACVBP Request information |  | Control wire | R | 100 | 1 | -- |
| Code | Image | Description | Dimensions (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|

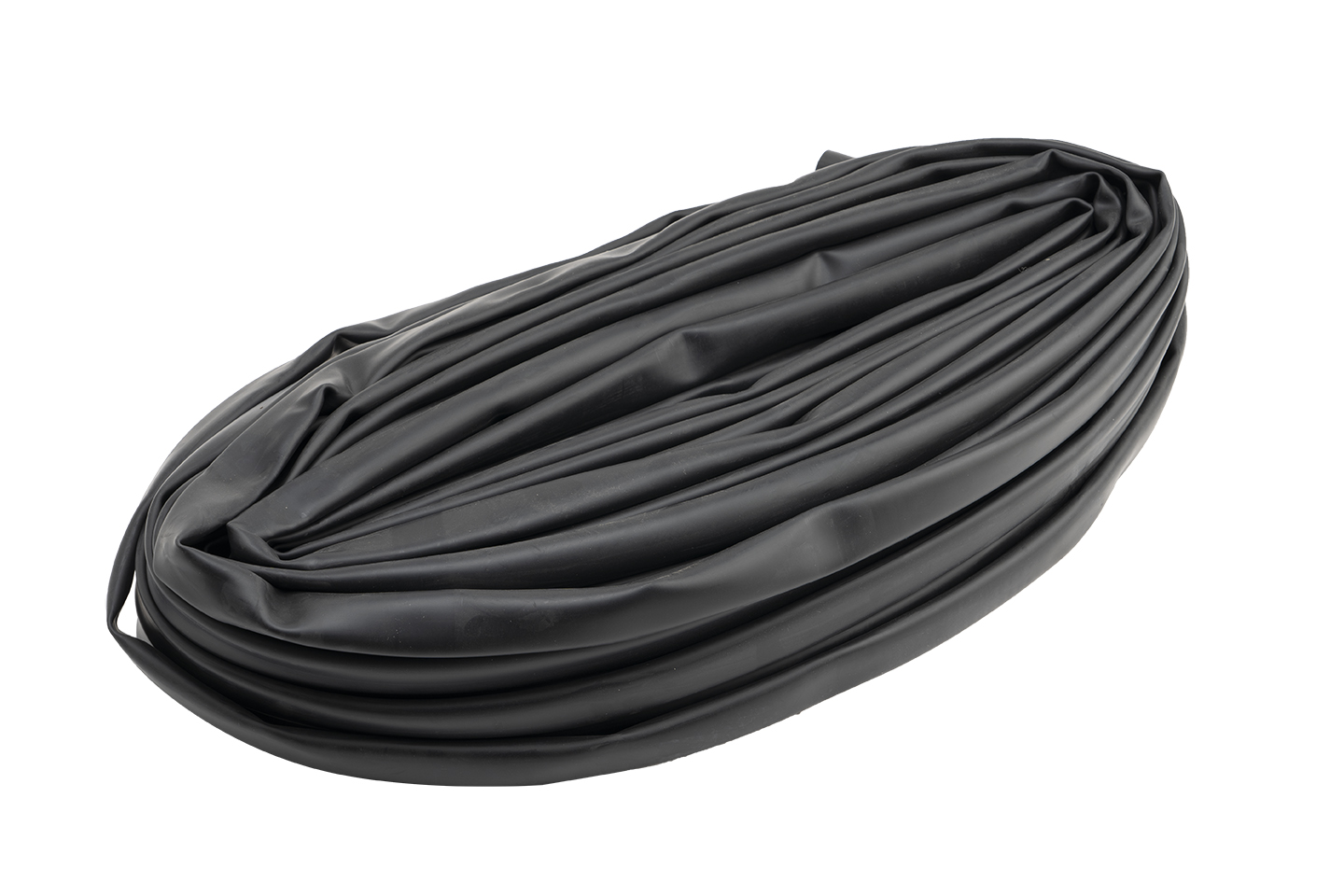

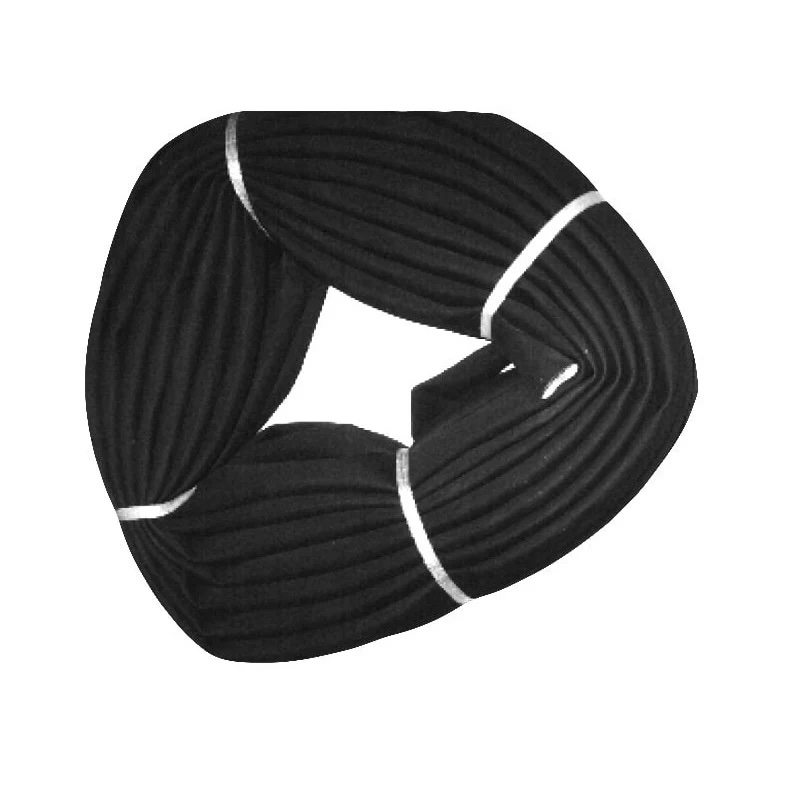

9TVAGD2325 Request information |  | Rubber sheat 23x25 | 23X25 | R | 0 | 1 | -- |
WP9 TORCH WITH FLYWHEEL
TIG WELDING - WP 9 - WP 20 TORCHES - WP9 TORCH WITH FLYWHEEL
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

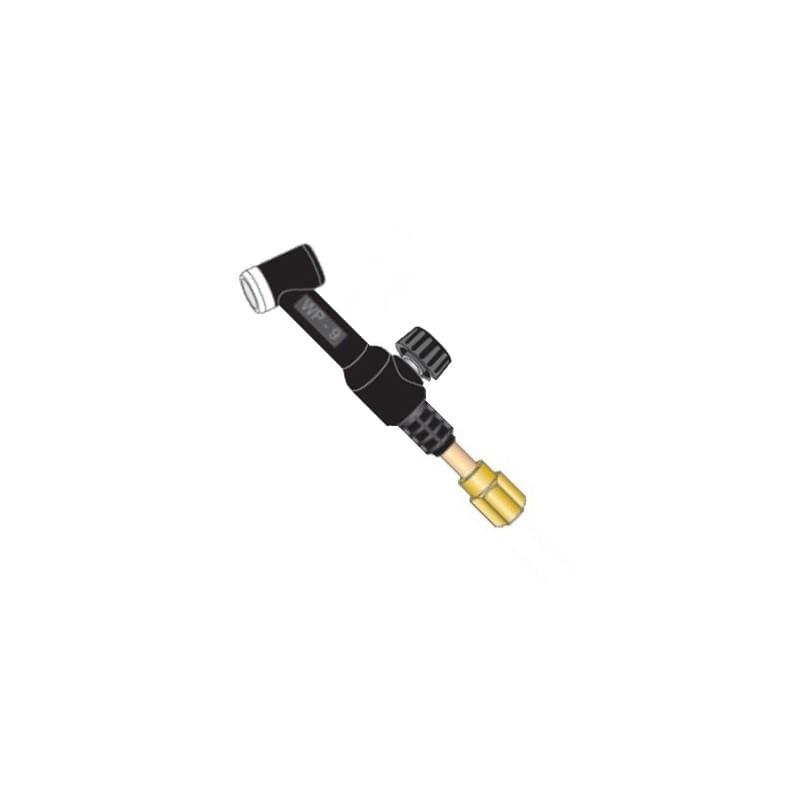

9TWP9V Request information |  | Torch body with valve | 12 | R | 1 | -- |
9TWP9VF Request information |  | Flexible torch body with valve | 12A | R | 1 | -- |
9TH100 Request information |  | Standard handle | 18 | R | 1 | -- |
9TVS-2 Request information |  | Valve for torch body | 21 | R | 1 | -- |
| Code | Image | Description | Length (m) | Connection | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
9T57Y01R25GO3/8 Request information |  | Rubber power cable 8 m 3/8” | 8 | 3/8 | R | 1 | -- |
9T57Y01R25GO Request information |  | Rubber power cable 8 m 3/8” | 8 | 12x1 | R | 1 | -- |
WP20 SUPERFLEX TORCH SPECIFIC SPARE PARTS
TIG WELDING - WP 9 - WP 20 TORCHES - WP20 SUPERFLEX TORCH SPECIFIC SPARE PARTS
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

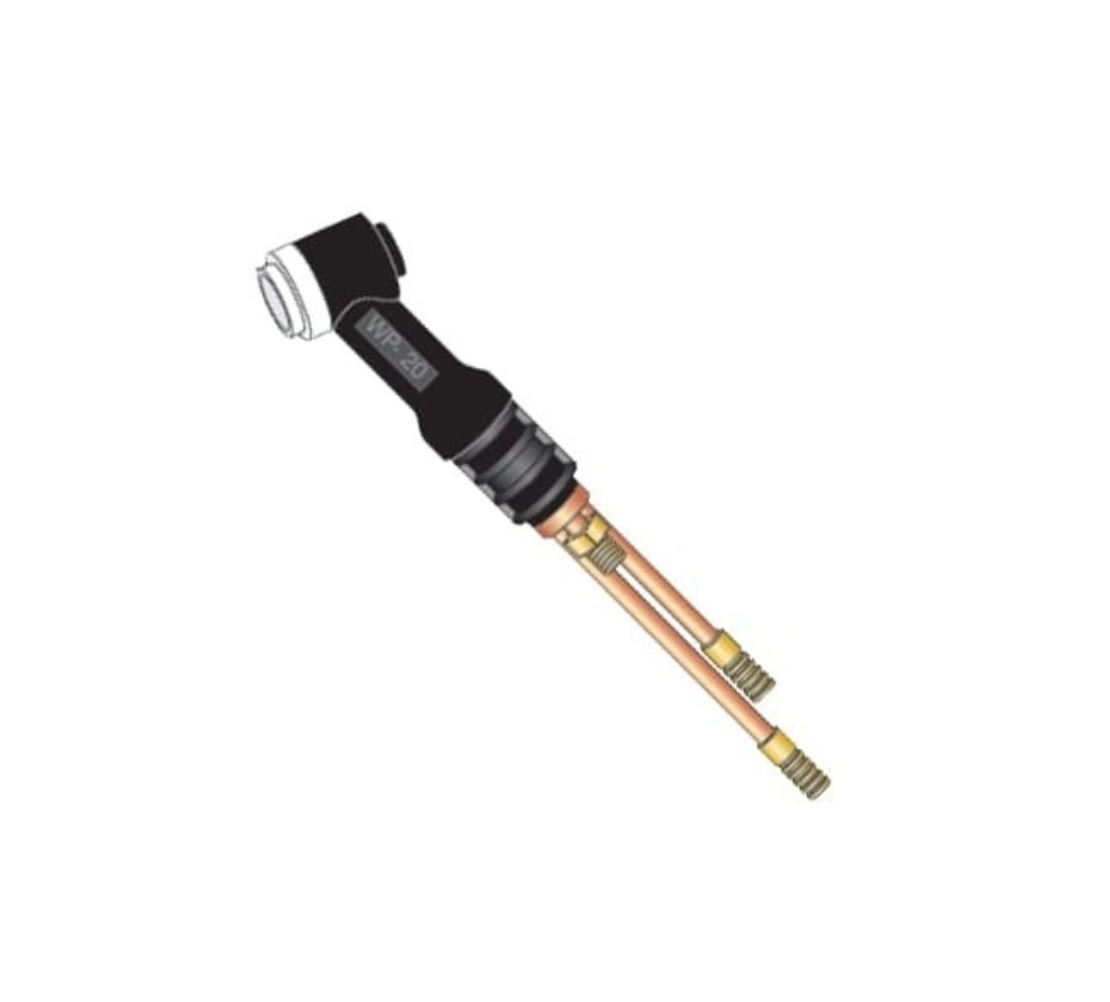

9TWP20 Request information |  | Torch body | 13 | R | 1 | -- |

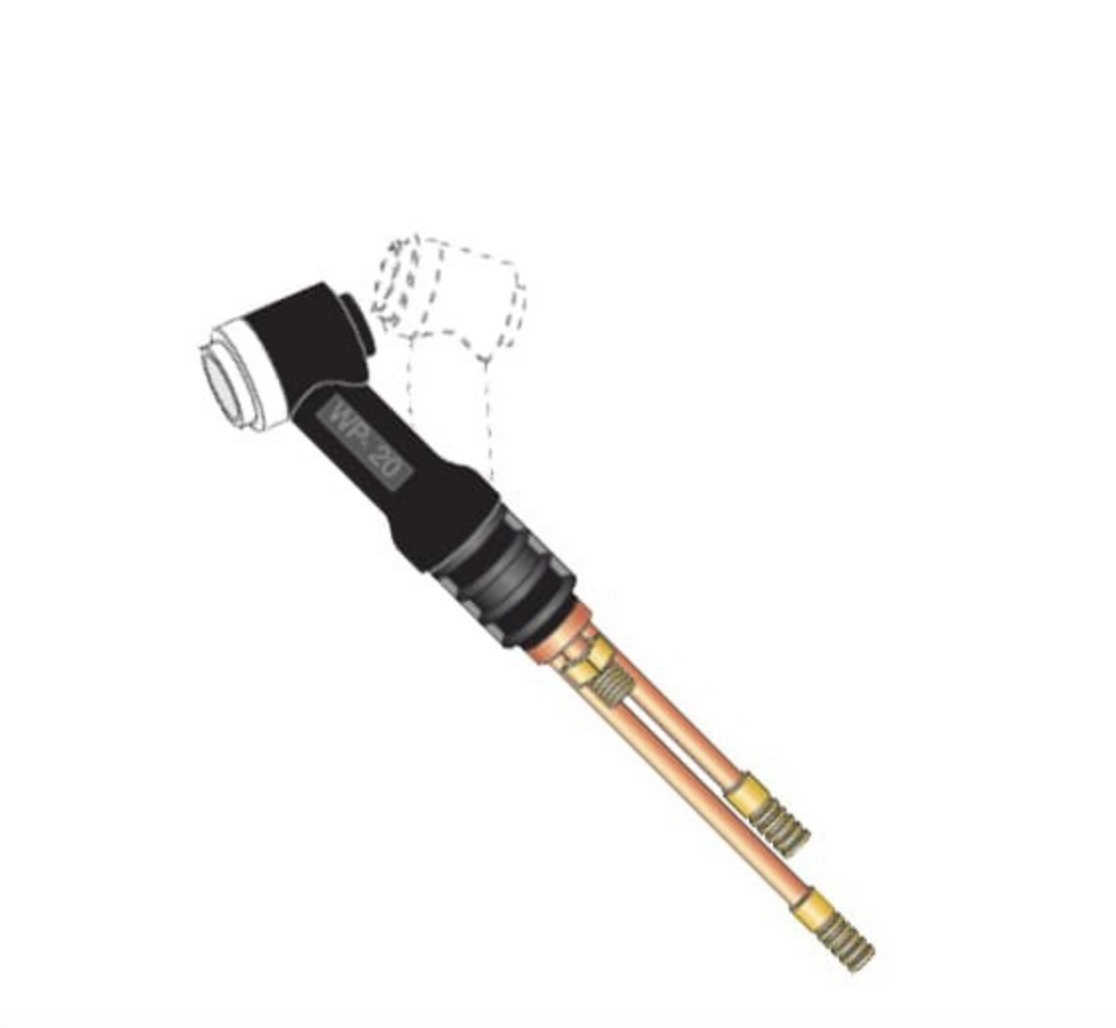

9TWP20F Request information |  | Flexible torch body | 13A | R | 1 | -- |
9TTP91C Request information | | Complete handle | 17 | R | 1 | -- |
9TTG004 Request information | | Switch | 19 | R | 1 | -- |
9TTG003 Request information | | Micro 1 position | 20 | R | 1 | -- |

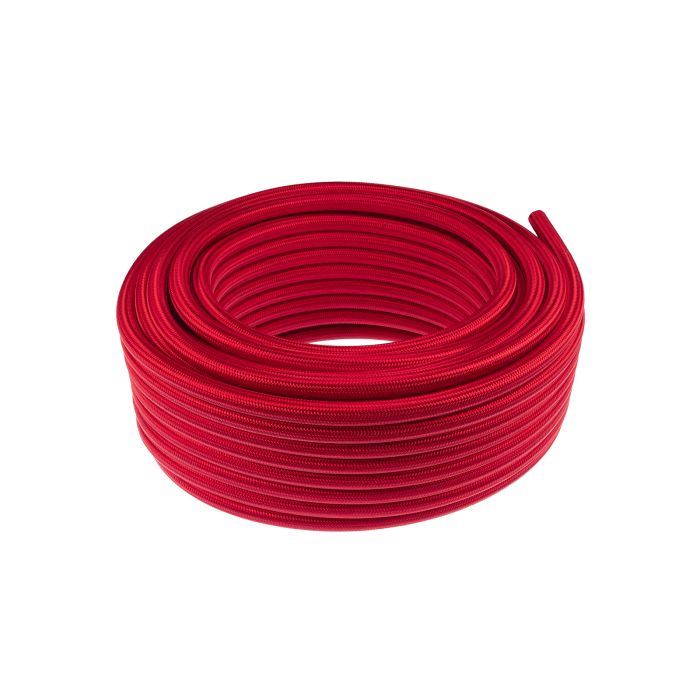

9TVAGH46R Request information |  | O/B red rubber hose ø 4x6 | 28 | R | 250 | -- |
9TVAPL26281 Request information | | Leather sleeve 26x28 0.5 m | -- | R | 1 | -- |
| Code | Image | Description | Length (m) | Connection | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|

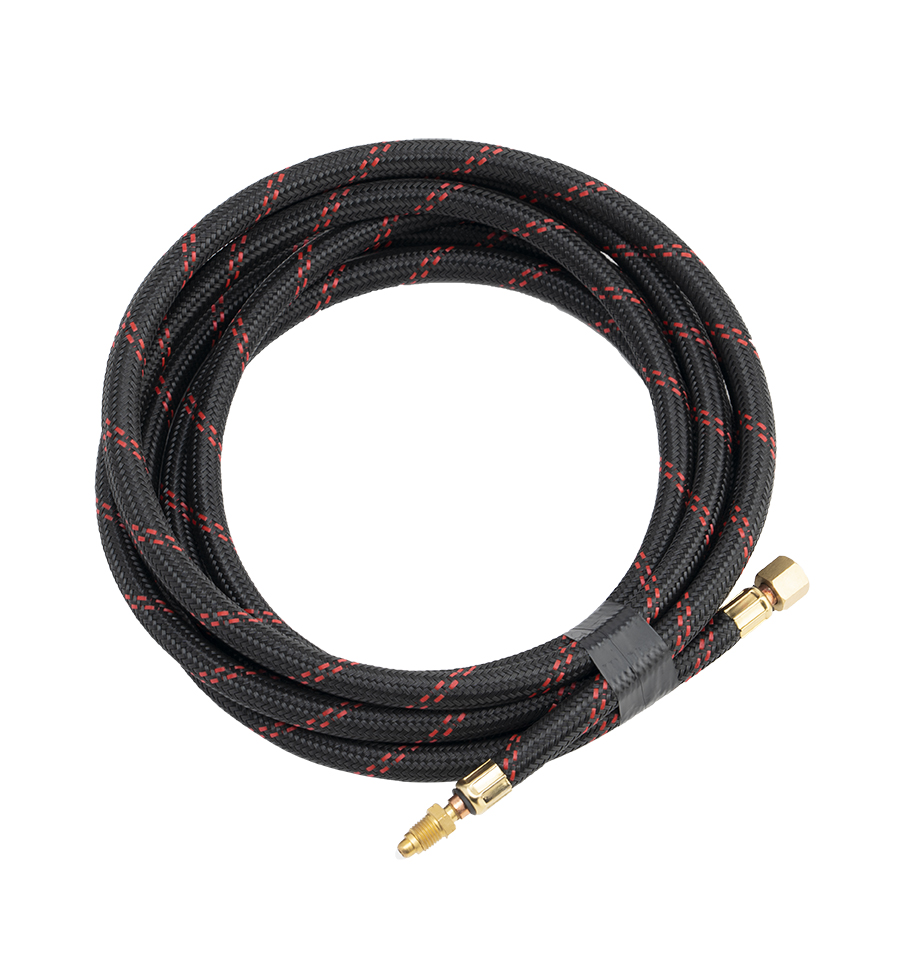

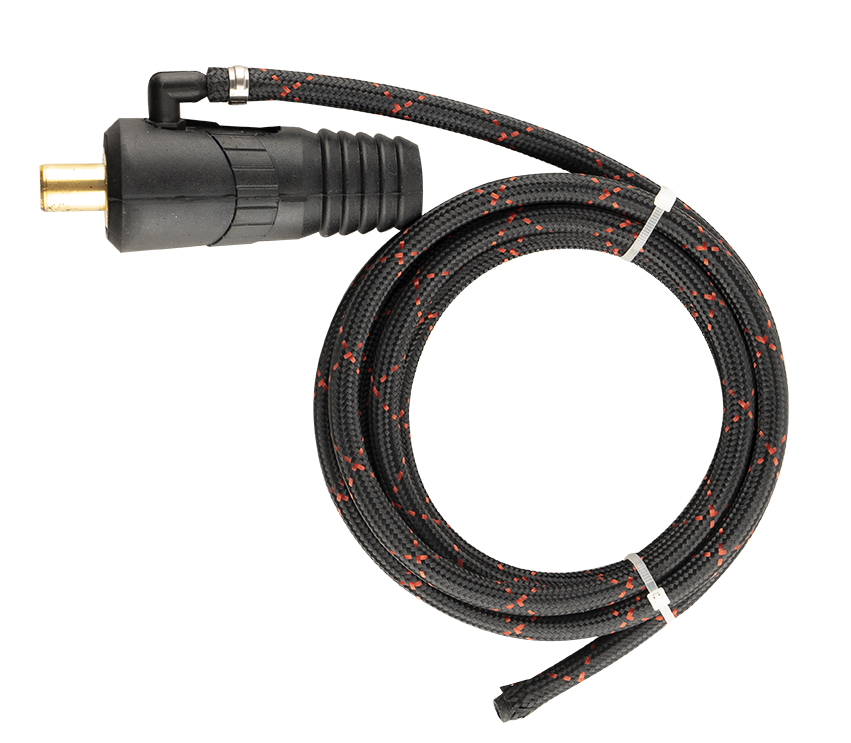

9T45V03123/8 Request information |  | Nylon Power cable 4m 3/8” | 4 | 3/8 | R | 1 | -- |
9T45V04253/8 Request information |  | Nylon Power cable 8m 3/8” | 8 | 3/8 | R | 1 | -- |
9T45V0312 Request information |  | Nylon Power cable 4m 12x1 | 4 | 12x1 | R | 1 | -- |
9T45V0425 Request information |  | Nylon Power cable 8m 12x1 | 8 | 12x1 | R | 1 | -- |
| Code | Image | Description | Availability | Length (m) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
9TVACVBP Request information | | Control wire | R | 100 | 1 | -- |
| Code | Image | Description | Dimensions (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
9TVAGD2826 Request information |  | Rubber sheat 28x26 | 26X28 | R | 0 | 50 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
