TUNGSTEN ELECTRODES
Tungsten electrodes are used in arc welding with inert gas and tungsten (TIG). Tungsten is used at very high temperatures as it resists melting and degrades very little (if working in a controlled atmosphere with inert gases as is usually the case). The electrodes are made by sintering powders and subsequent forging.
Tungsten electrodes for TIG generally contain small quantities of metal oxides which ensure benefits of materials such as:
• Facilitated start of the current transient
• Improved arc stability
• Increased current of the rod
• Reduced risk of contaminating the base surface
• Increased life of the electrode
The most used electrodes for the TIG welding process are as follows:
• Pure tungsten electrodes
• Thoriated tungsten electrodes
• Cerium tungsten electrodes
• 1.5% or 2% Lanthanum tungsten electrodes
• Universal tungsten electrodes
Characteristics
Use
Product Sectors
PURE TUNGSTEN ELECTRODE WP 00 - TUNGSTEN ELECTRODES
THORIATED TUNGSTEN ELECTRODE WT 20 - TUNGSTEN ELECTRODES
2% CERIUM TUNGSTEN ELECTRODE WC 20 - TUNGSTEN ELECTRODES
2% LANTHANUM TUNGSTEN ELECTRODE WL 20 - TUNGSTEN ELECTRODES
1.5% LANTHANUM TUNGSTEN ELECTRODE WL 15 - TUNGSTEN ELECTRODES
UNIVERSAL TUNGSTEN ELECTRODE WTR 20 - TUNGSTEN ELECTRODES

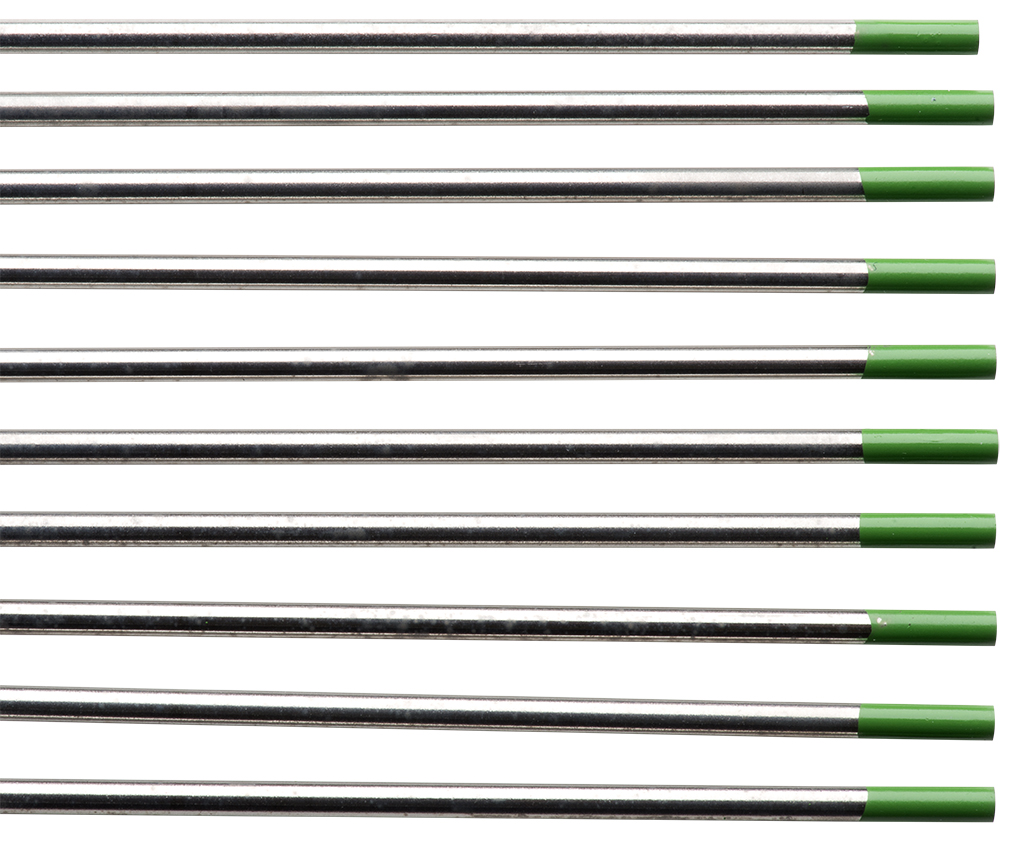

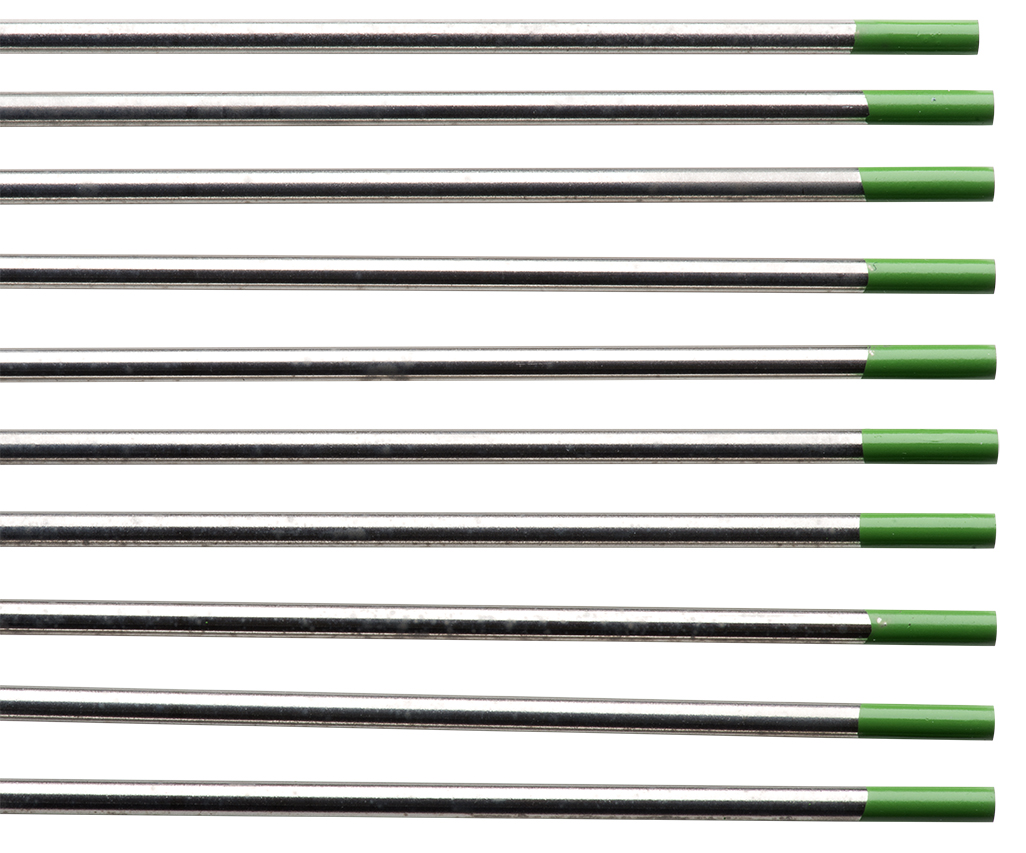

PURE TUNGSTEN ELECTRODE WP 00
TIG WELDING - TUNGSTEN ELECTRODES - PURE TUNGSTEN ELECTRODE WP 00
Good stability of the electric arc in alternating current welding; can also be applied with direct current
for small powers. Particularly suitable for welding light metals and light metal alloys. Specific for
welding aluminum
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
9EWP0016 Request information | | Pure tungsten electrodes Ø 1.6mm | D | 10 | -- |
9EWP0020 Request information |  | Pure tungsten electrodes Ø 2.0mm | D | 10 | -- |
9EWP0024 Request information |  | Pure tungsten electrodes Ø 2.4mm | D | 10 | -- |
9EWP0032 Request information |  | Pure tungsten electrodes Ø 3.2mm | D | 10 | -- |
9EWP0040 Request information |  | Pure tungsten electrodes Ø 4.0mm | D | 10 | -- |

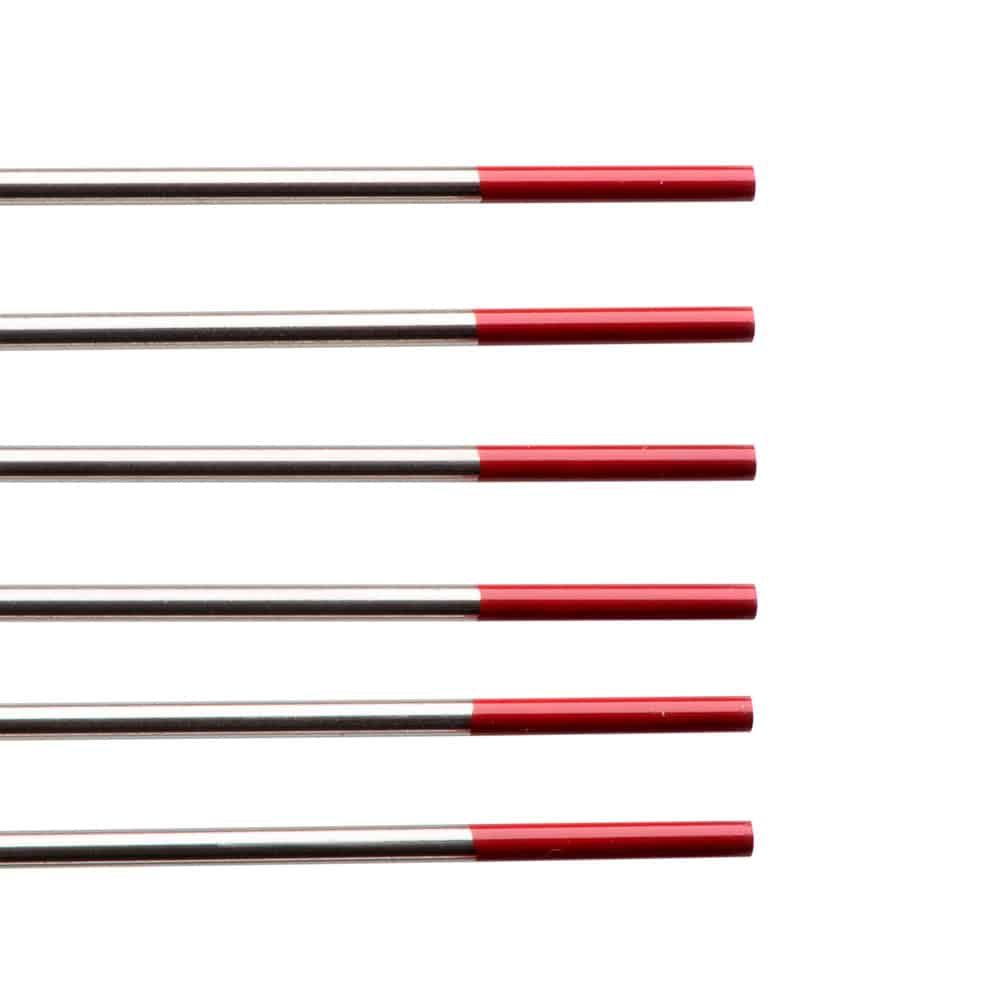

THORIATED TUNGSTEN ELECTRODE WT 20
TIG WELDING - TUNGSTEN ELECTRODES - THORIATED TUNGSTEN ELECTRODE WT 20
These electrodes contain 2% thorium and are the most used in the world for their excellent welding performance. Specific for welding stainless steel. They require a good suction system as it’s vapours or dusts are harmful if inhaled, especially when sharpening. Since this material in certain conditions contains radioactive elements, even below the tolerance thresholds allowed, this electrode is only supplied upon request.
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
9EWT2010 Request information |  | Thoriated tungsten electrodes Ø 1.0mm | R | 10 | -- |
9EWT2016 Request information |  | Thoriated tungsten electrodes Ø 1.6mm | R | 10 | -- |
9EWT2020 Request information |  | Thoriated tungsten electrodes Ø 2.0mm | R | 10 | -- |
9EWT2024 Request information |  | Thoriated tungsten electrodes Ø 2.4mm | R | 10 | -- |
9EWT2032 Request information |  | Thoriated tungsten electrodes Ø 3.2mm | R | 10 | -- |
9EWT2040 Request information |  | Thoriated tungsten electrodes Ø 4.0mm | R | 10 | -- |

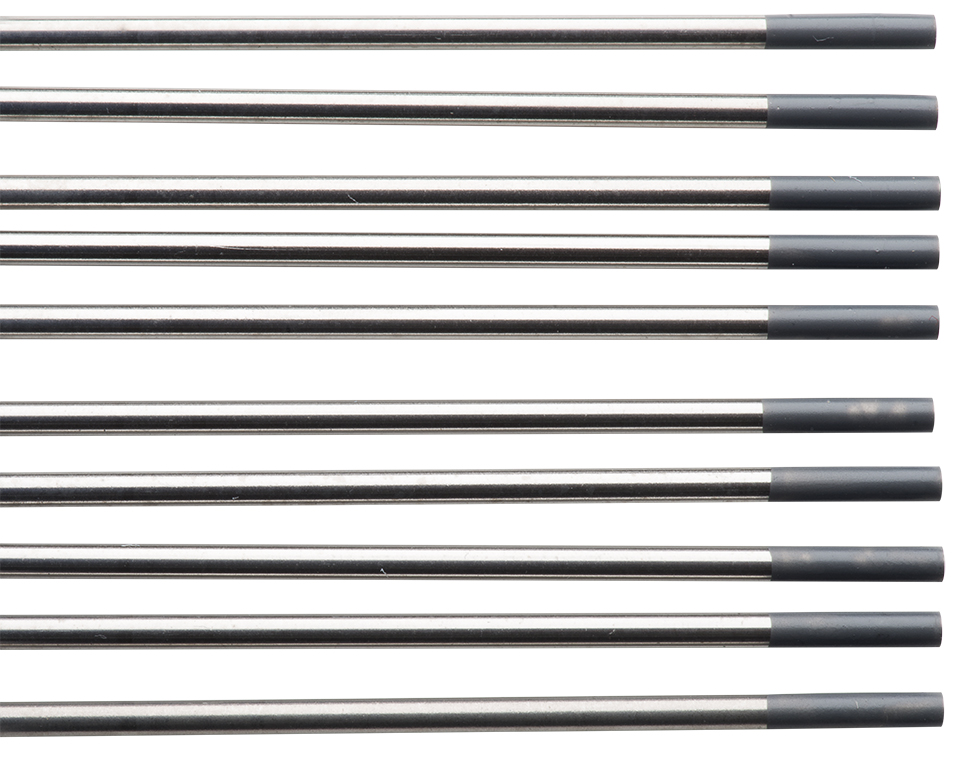

2% CERIUM TUNGSTEN ELECTRODE WC 20
TIG WELDING - TUNGSTEN ELECTRODES - 2% CERIUM TUNGSTEN ELECTRODE WC 20
First generation environmentally safe electrode. Used to replace thoriated electrodes to work around even minimal problems, due to the presence of thorium oxide. Good ignition and optimal duration. Specific for welding aluminium and stainless steel.
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
9EWC2010 Request information |  | Cerium tungsten electrodes Ø 1.0mm | R | 10 | -- |
9EWC2016 Request information |  | Cerium tungsten electrodes Ø 1.6mm | R | 10 | -- |
9EWC2020 Request information |  | Cerium tungsten electrodes Ø 2.0mm | R | 10 | -- |
9EWC2024 Request information |  | Cerium tungsten electrodes Ø 2.4mm | R | 10 | -- |
9EWC2032 Request information |  | Cerium tungsten electrodes Ø 3.2mm | R | 10 | -- |
9EWC2040 Request information |  | Cerium tungsten electrodes Ø 4.0m | R | 10 | -- |

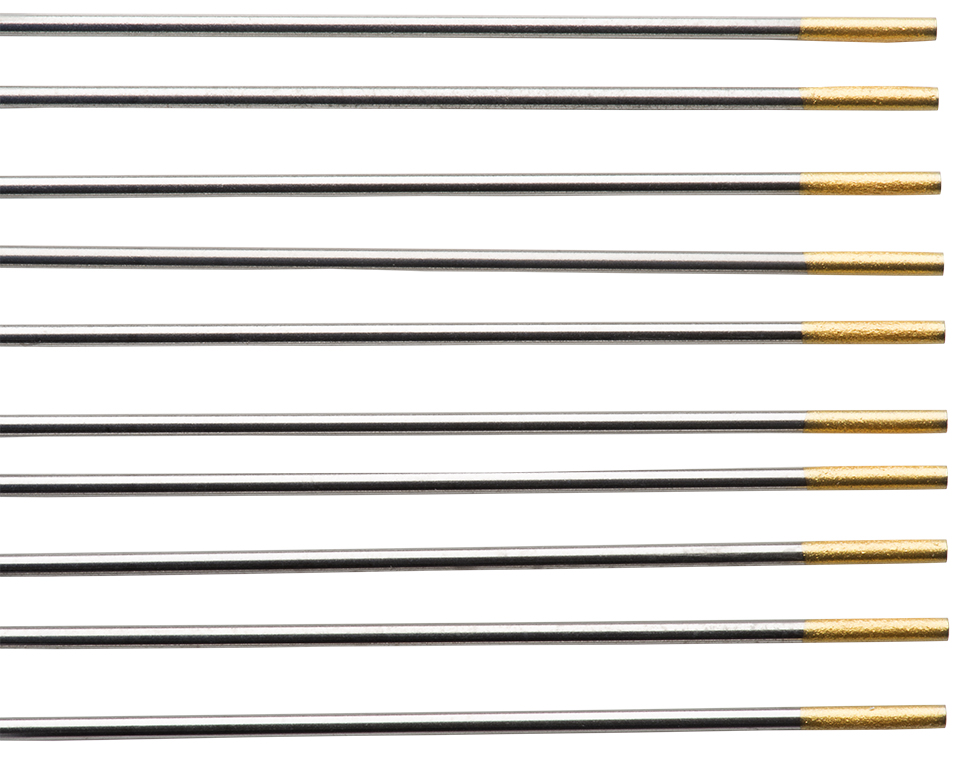

2% LANTHANUM TUNGSTEN ELECTRODE WL 20
TIG WELDING - TUNGSTEN ELECTRODES - 2% LANTHANUM TUNGSTEN ELECTRODE WL 20
Environmentally safe electrode ideal for replacing, with greater durability, thoriated electrodes in automated systems that weld stainless steels with DC power. During use, it is best to keep the nozzle clean without altering its geometry. Not radioactive.
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
9EWL2016 Request information |  | 2% Lanthanum tungsten electrodes Ø 1.6mm | D | 10 | -- |
9EWL2020 Request information |  | 2% Lanthanum tungsten electrodes Ø 2.0mm | D | 10 | -- |
9EWL2024 Request information |  | 2% Lanthanum tungsten electrodes Ø 2.4mm | D | 10 | -- |
9EWL2032 Request information |  | 2% Lanthanum tungsten electrodes Ø 3.2mm | D | 10 | -- |
9EWL2040 Request information |  | 2% Lanthanum tungsten electrodes Ø 4.0mm | D | 10 | -- |
1.5% LANTHANUM TUNGSTEN ELECTRODE WL 15
TIG WELDING - TUNGSTEN ELECTRODES - 1.5% LANTHANUM TUNGSTEN ELECTRODE WL 15
Good electric arc stability in AC/DC soldering, unlike thoriated 2% which is only used with DC. It has a long duration and can also be used with higher current than normal electrodes. Great performance with low currents. Particularly suitable for spot welding. Recommended for carbon and stainless steels, aluminium, magnesium, titanium, nickel and copper alloys. Not radioactive.
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
9EWL1510 Request information |  | 1.5% Lanthanum tungsten electrodes Ø 1.0mm | D | 10 | -- |
9EWL1516 Request information |  | 1.5% Lanthanum tungsten electrodes Ø 1.6mm | D | 10 | -- |
9EWL1520 Request information |  | 1.5% Lanthanum tungsten electrodes Ø 2.0mm | D | 10 | -- |
9EWL1524 Request information |  | 1.5% Lanthanum tungsten electrodes Ø 2.4mm | D | 10 | -- |
9EWL1532 Request information |  | 1.5% Lanthanum tungsten electrodes Ø 3.2mm | D | 10 | -- |
9EWL1540 Request information |  | 1.5% Lanthanum tungsten electrodes Ø 4.0mm | D | 10 | -- |
UNIVERSAL TUNGSTEN ELECTRODE WTR 20
TIG WELDING - TUNGSTEN ELECTRODES - UNIVERSAL TUNGSTEN ELECTRODE WTR 20
Universal use electrode. Provides excellent performance both in DC and AC soldering. Good arc stability at 500 Ampere. The most common among thorium-free electrodes. Recommended for the welding of aluminium and light alloys, together with stainless steel.
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
9EWU0016 Request information |  | Universal tungsten electrodes Ø 1.6mm | D | 10 | -- |
9EWU0024 Request information |  | Universal tungsten electrodes Ø 2.4mm | D | 10 | -- |
9EWU0032 Request information |  | Universal tungsten electrodes Ø 3.2mm | D | 10 | -- |
