PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS
MINI
MINI
Reliability and quality at the service of professionals: the regulator that marked the history of Oxyturbo..
It was the first and most popular regulator in the Oxyturbo range, becoming a standard on the Italian and international markets, particularly on mobile equipment (5-liter wheeled oxyacetylene kits) and on medium-power MIG/MAG/TIG welders requiring an argon flow of up to 12 liters per minute.
Designed and manufactured entirely in Italy under the EN-ISO 9001 quality management system and in compliance with the EN-ISO 2503 standard, it has inspired many other manufacturers over time, but Oxyturbo has decades of manufacturing experience that guarantee its quality and reliability over time, so much so that it can provide a three-year warranty.
The highest performance in the small-sized Mini regulator:
- Safety valve in accordance with standard EN ISO 2503
- High resistance integrated capsule
- Unremovable knob with mechanical support
Characteristics
Use
Suitable for:
- Small mobile flame welding units
- Professional MIG/MAG-TIG welding machines
- Special applications
- Small mobile flame welding units
- Professional MIG/MAG-TIG welding machines
- Special applications
Certificates
Product Sectors

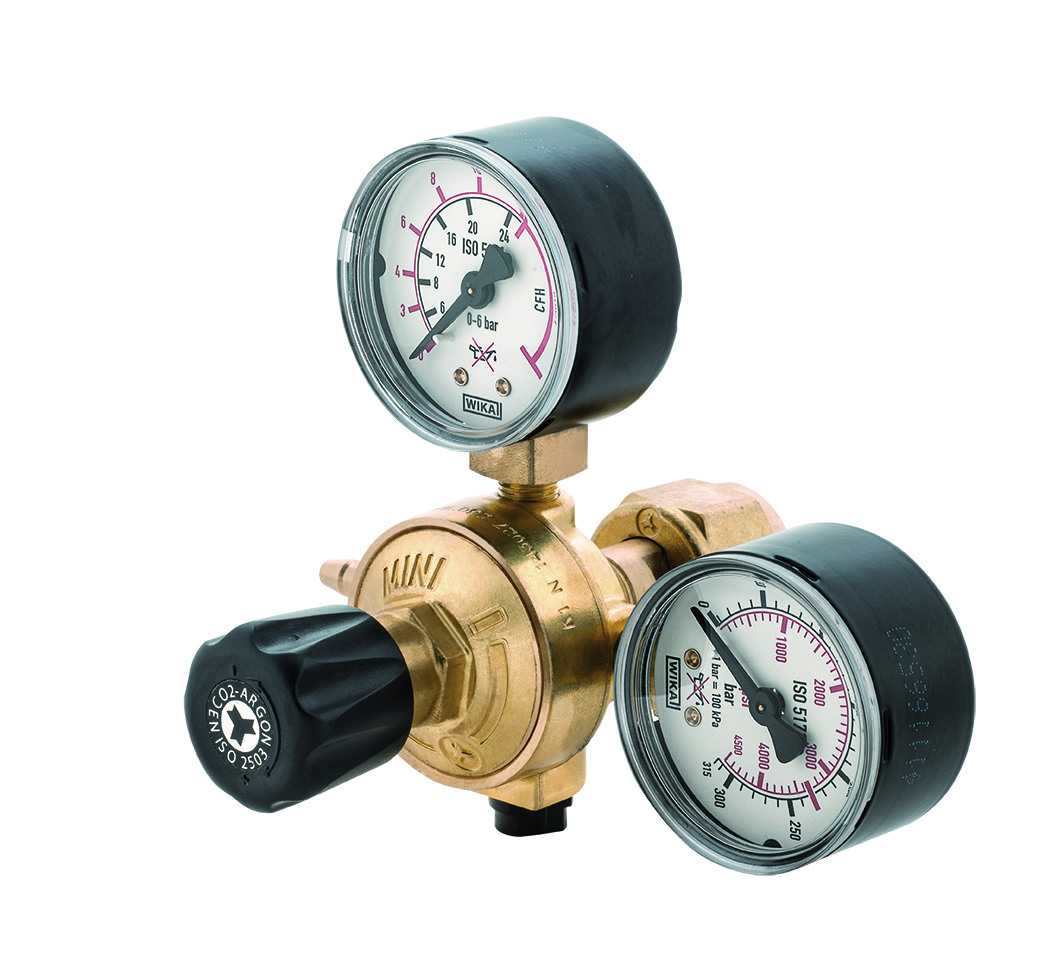

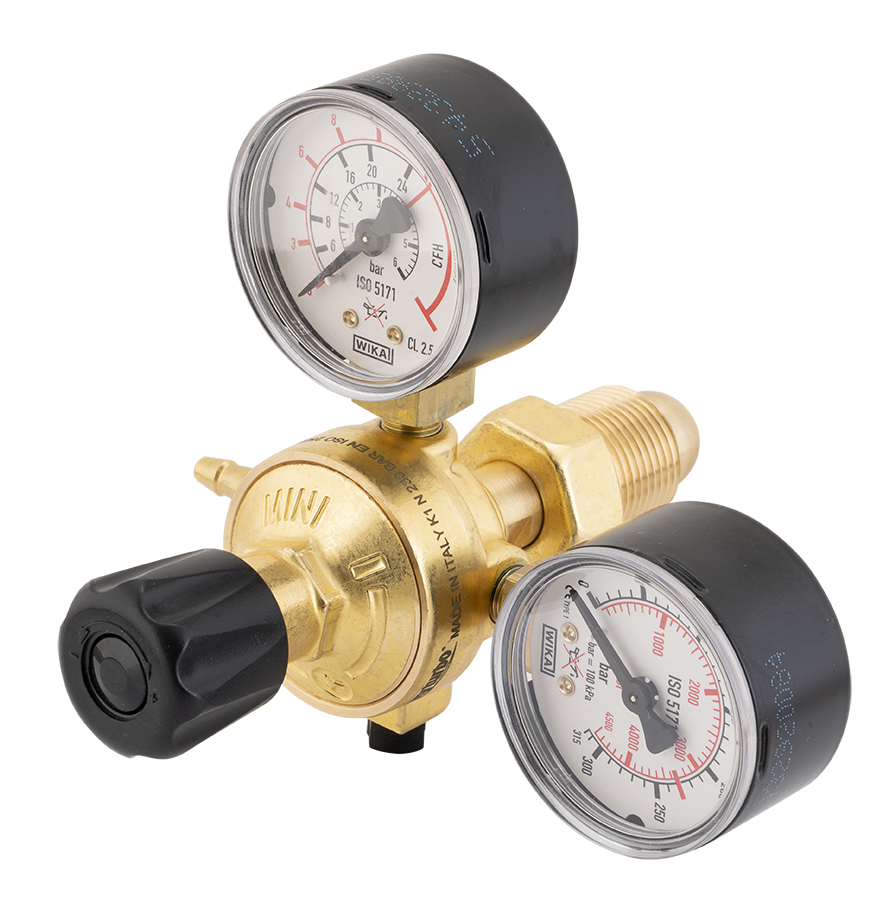

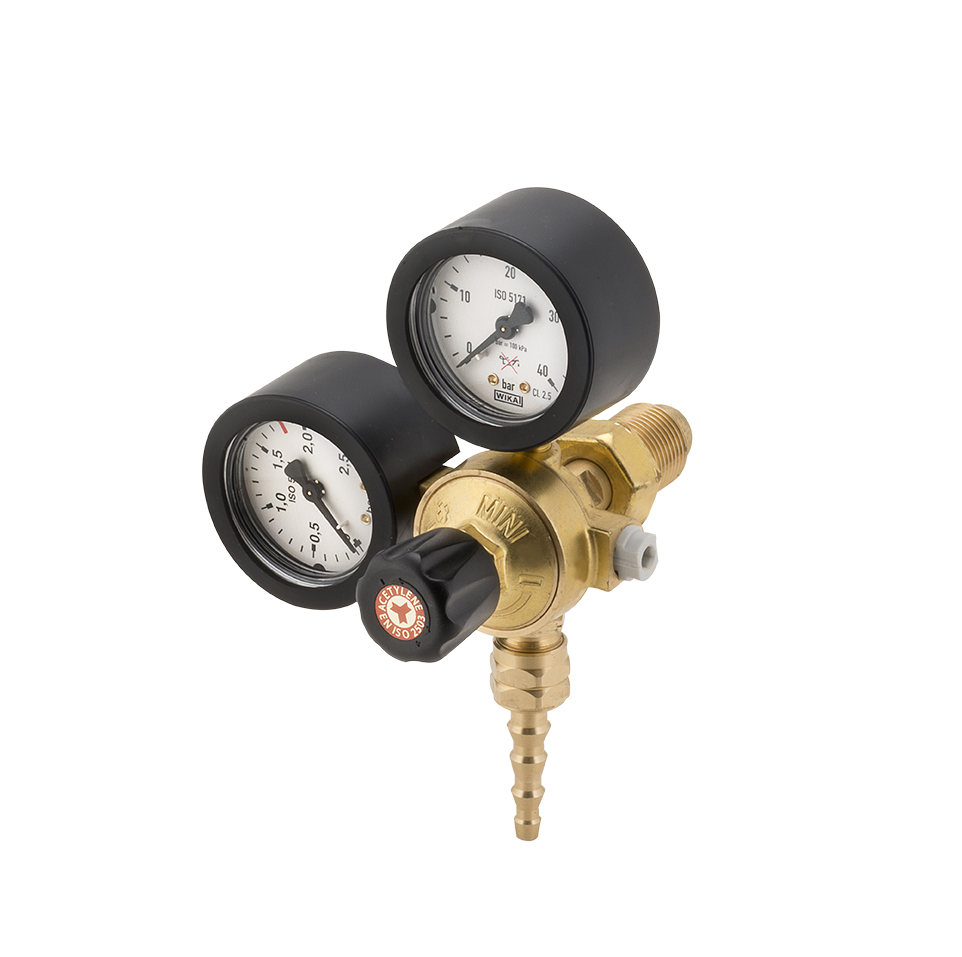

MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - 2 GAUGES
MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - H.P. GAUGE
MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - L.P. GAUGE
MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - NO GAUGE
MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - ARGON/CO2 WITH FLOWMETER
MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - OXYGEN
MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - ACETYLENE
MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - PROPANE
MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - 2 GAUGES
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - 2 GAUGES
Despite their small dimensions, these regulators are tested for an inlet pressure up to 300 bar which makes them the most suitable regulators for use with mobile equipment and for continuous MIG/MAG/TIG welding. The CO2 and argon versions are provided with an output hose connection. Available in versions with two gauges with only low or high-pressure, or without gauges to fully meet the needs of each end user.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
255200 Request information | | MINI CO2 2 GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
255201 Request information |  | MINI CO2 2 GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255209 Request information |  | MINI CO2 2 GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255205 Request information |  | MINI CO2 2 GAUGES | CGA | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256200 Request information |  | MINI ARGON 2 GAUGES | UNI-CGA | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256201 Request information |  | MINI ARGON 2 GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256203 Request information |  | MINI ARGON 2 GAUGES | BS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255200 Request information | | MINI CO2 2 GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256209 Request information |  | MINI ARGON 2 GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256204 Request information |  | MINI ARGON 2 GAUGES | SS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |

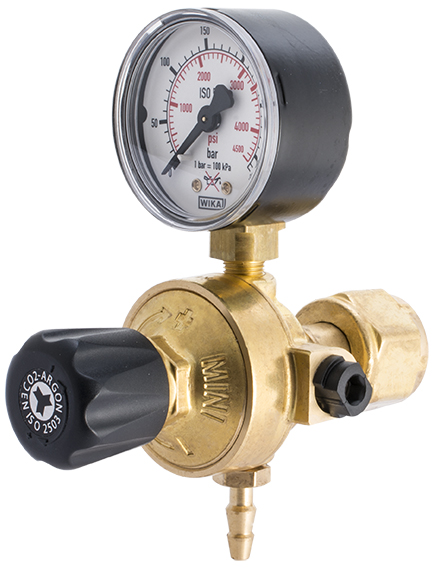

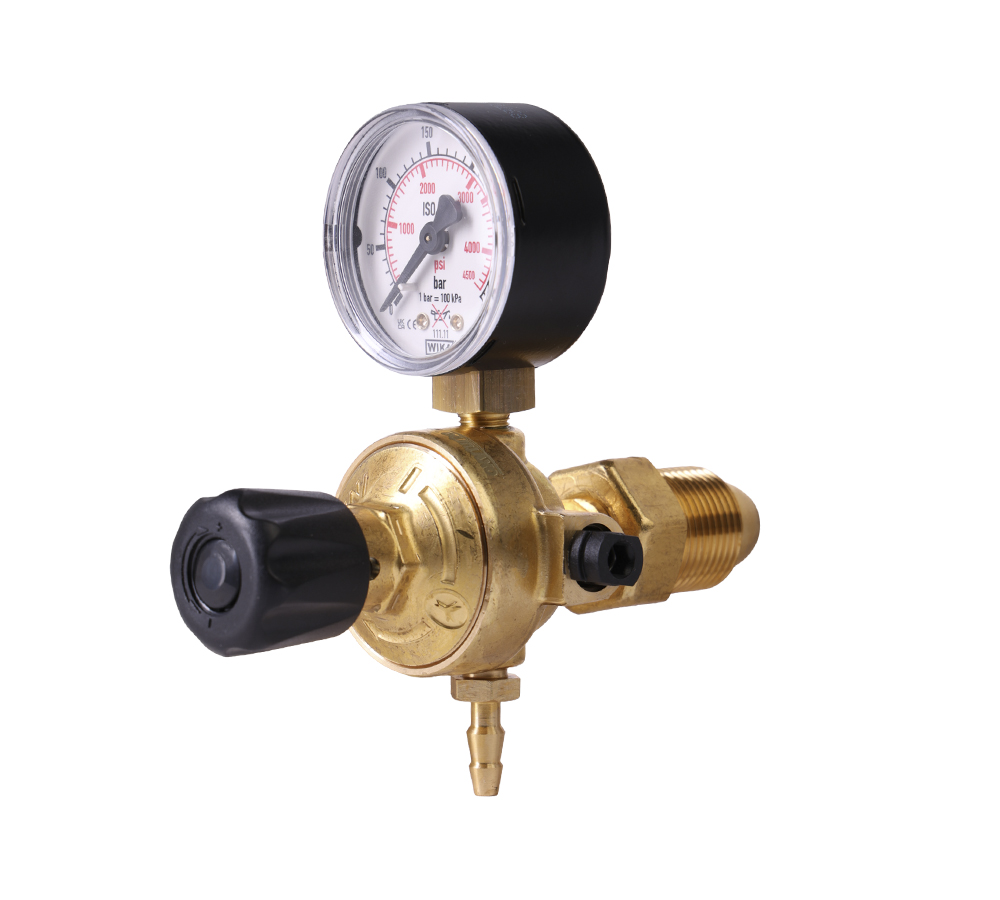

MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - H.P. GAUGE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - H.P. GAUGE
Despite their small dimensions, these regulators are tested for an inlet pressure up to 300 bar which makes them the most suitable regulators for use with mobile equipment and for continuous MIG/MAG/TIG welding. The CO2 and argon versions are provided with an output hose connection. Available in versions with two gauges with only low or high-pressure, or without gauges to fully meet the needs of each end user.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
255100 Request information |  | MINI CO2 H.P. GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256101 Request information |  | MINI CO2/ARGON H.P. GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255109 Request information |  | MINI CO2 H.P. GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255105 Request information |  | MINI CO2 H.P. GAUGES | CGA | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256100 Request information |  | MINI ARGON H.P. GAUGE | UNI-CGA | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256101 Request information | | MINI CO2/ARGON H.P. GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256103 Request information |  | MINI ARGON H.P. GAUGES | BS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255100 Request information | | MINI CO2 H.P. GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256109 Request information |  | MINI ARGON H.P. GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256104 Request information |  | MINI ARGON H.P. GAUGES | SS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |

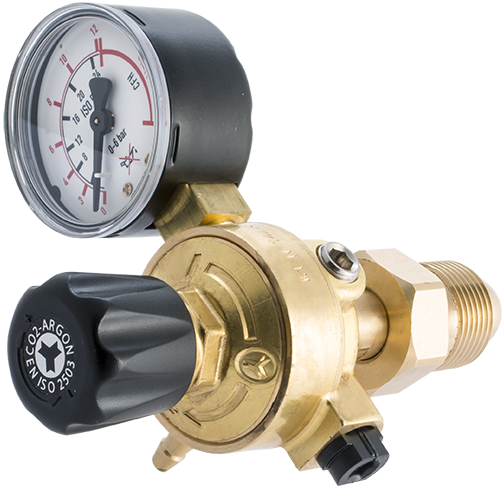

MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - L.P. GAUGE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - L.P. GAUGE
Despite their small dimensions, these regulators are tested for an inlet pressure up to 300 bar which makes them the most suitable regulators for use with mobile equipment and for continuous MIG/MAG/TIG welding. The CO2 and argon versions are provided with an output hose connection. Available in versions with twogauges with only low or high-pressure, or without gauges to fully meet the needs of each end user.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
255300 Request information |  | MINI CO2 L.P. GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256301 Request information |  | MINI CO2/ARGON L.P. GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255309 Request information |  | MINI CO2 L.P. GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256300 Request information |  | MINI ARGON L.P. GAUGES | UNI-CGA | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256301 Request information | | MINI CO2/ARGON L.P. GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256303 Request information |  | MINI ARGON L.P. GAUGES | BS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255300 Request information | | MINI CO2 L.P. GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256309 Request information |  | MINI ARGON L.P. GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256304 Request information |  | MINI ARGON L.P. GAUGES | SS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |

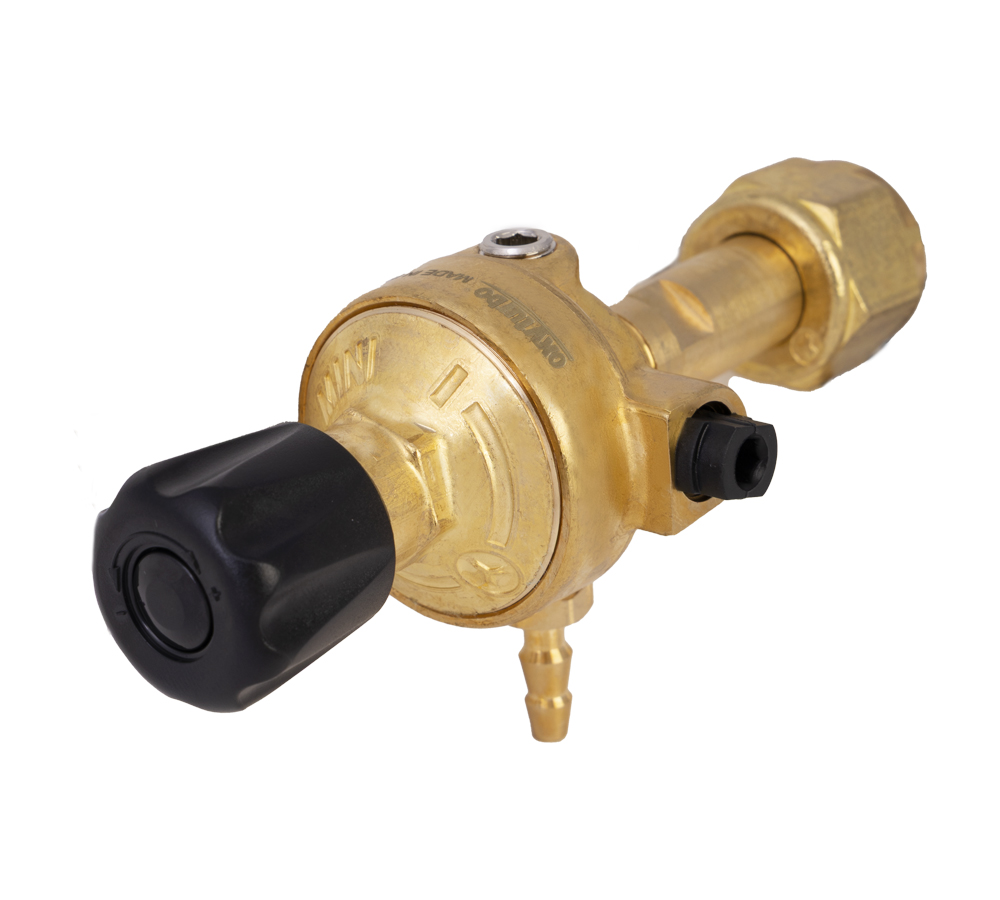

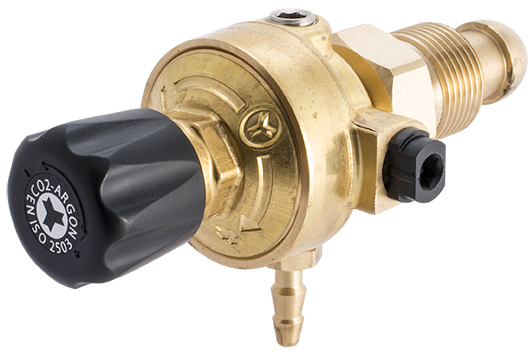

MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - NO GAUGE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - NO GAUGE
Despite their small dimensions, these regulators are tested for an inlet pressure up to 300 bar which makes them the most suitable regulators for use with mobile equipment and for continuous MIG/MAG/TIG welding. The CO2 and argon versions are provided with an output hose connection. Available in versions with two gauges with only low or high-pressure, or without gauges to fully meet the needs of each end user.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
255000 Request information |  | MINI CO2 NO GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256001 Request information |  | MINI CO2/ARGON NO GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255009 Request information |  | MINI CO2 NO GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255005 Request information |  | MINI CO2 NO GAUGES | CGA | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256000 Request information |  | MINI ARGON NO GAUGES | UNI-CGA | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256001 Request information | | MINI CO2/ARGON NO GAUGES | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256003 Request information |  | MINI ARGON NO GAUGES | BS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255000 Request information | | MINI CO2 NO GAUGES | UNI-BS-NF-SS-MIE | PG D6.5mm | 200 | 4 | 12 | D | 0 | 1 | -- |
256009 Request information |  | MINI ARGON NO GAUGES | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256004 Request information |  | MINI ARGON NO GAUGES | SS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |

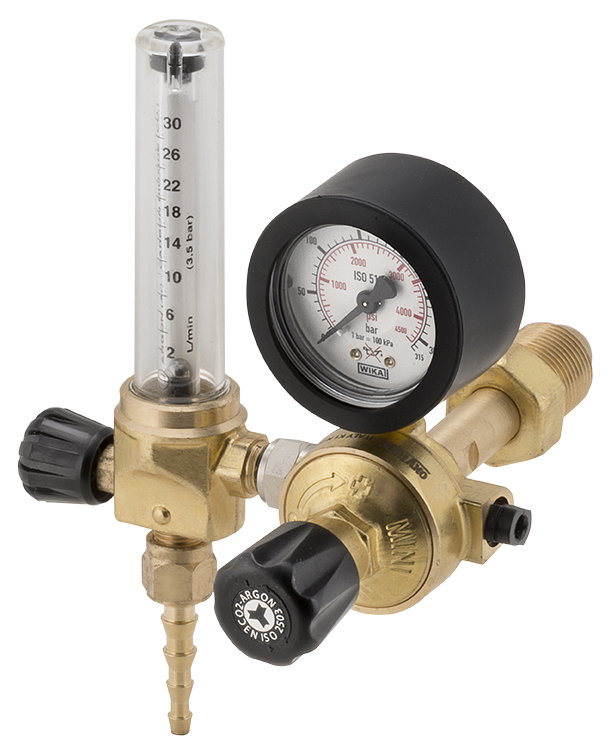

MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - ARGON/CO2 WITH FLOWMETER
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI ARGON/CO2 FOR MIG/MAG/TIG WELDING - ARGON/CO2 WITH FLOWMETER
Available version with fixed calibration flowmeter 3.5 bar scale 0-30 l/min which is particularly suitable for jobs where the flow measurement requires greater immediacy and precision in reading.
Complete with cap on the pressure gauge.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
255400.20 Request information |  | MINI CO2/ARGON MAP+FLUX | UNI-BS-NF-SS-MIE | PG D6.5mm | 300 | 4 | 30 | D | 0 | 1 | -- |
256401.20 Request information |  | MINI CO2/ARGON MAP+FLUX | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255409.20 Request information |  | MINI CO2 MAP+FLUX | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255405.20 Request information |  | MINI CO2 MAP+FLUX | CGA | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256400.20 Request information |  | MINI ARGON MAP+FLUX | UNI-CGA | PG D6.5mm | 200 | 3,5 | 30 | D | 0 | 1 | -- |
256401.20 Request information | | MINI CO2/ARGON MAP+FLUX | DIN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256403.20 Request information |  | MINI ARGON MAP+FLUX | BS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
255400.20 Request information | | MINI CO2/ARGON MAP+FLUX | UNI-BS-NF-SS-MIE | PG D6.5mm | 300 | 4 | 30 | D | 0 | 1 | -- |
256409.20 Request information |  | MINI ARGON MAP+FLUX | NEN | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |
256404.20 Request information |  | MINI ARGON MAP+FLUX | SS | PG D6.5mm | 300 | 4 | 12 | D | 0 | 1 | -- |

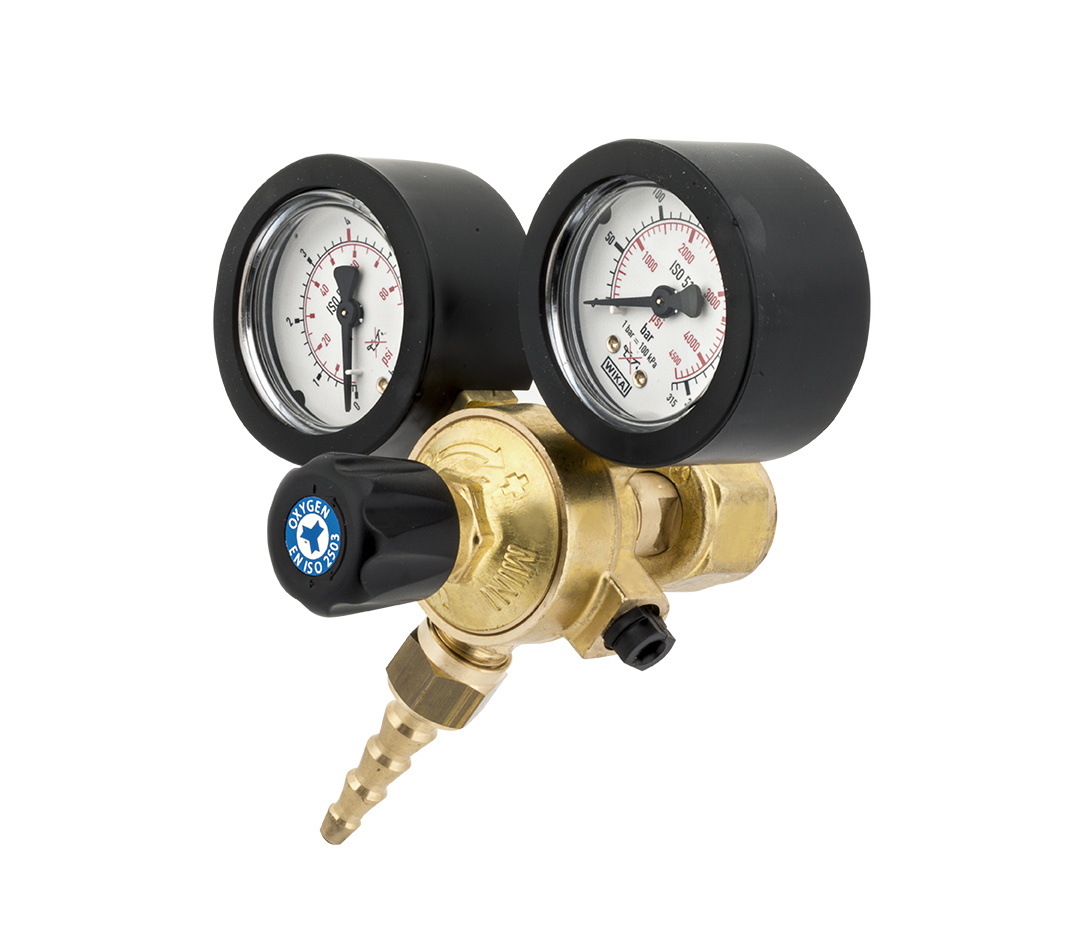

MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - OXYGEN
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - OXYGEN
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
250200 Request information |  | MINI OXYGEN | UNI-SS | G1/4 | 300 | 4 | 5 | D | 0 | 1 | |
250201 Request information |  | MINI OXYGEN | DIN | G1/4 | 300 | 4 | 5 | D | 0 | 1 | -- |
250203 Request information |  | MINI OXYGEN | BS-NF-NEN-MIE | G1/4 | 300 | 4 | 5 | D | 0 | 1 | -- |
250250 Request information |  | MINI OXYGEN | UNI-SS | G3/8 | 200 | 4 | 5 | D | 0 | 1 | -- |
250251 Request information |  | MINI OXYGEN | DIN | G3/8 | 300 | 4 | 5 | D | 0 | 1 | -- |
250253 Request information |  | MINI OXYGEN | BS-NF-NEN-MIE | G3/8 | 300 | 4 | 5 | D | 0 | 1 | -- |
250293 Request information |  | MINI OXYGEN | NF | 9/16" | 300 | 4 | 5 | D | 0 | 1 | -- |
250295 Request information |  | MINI OXYGEN | CGA | 9/16" | 300 | 4 | 5 | D | 0 | 1 | -- |
250283 Request information |  | MINI OXYGEN | NF | M16x1.5 | 300 | 4 | 5 | D | 0 | 1 | -- |
250285 Request information |  | MINI OXYGEN | CGA | M16x1.5 | 300 | 4 | 5 | D | 0 | 1 | -- |

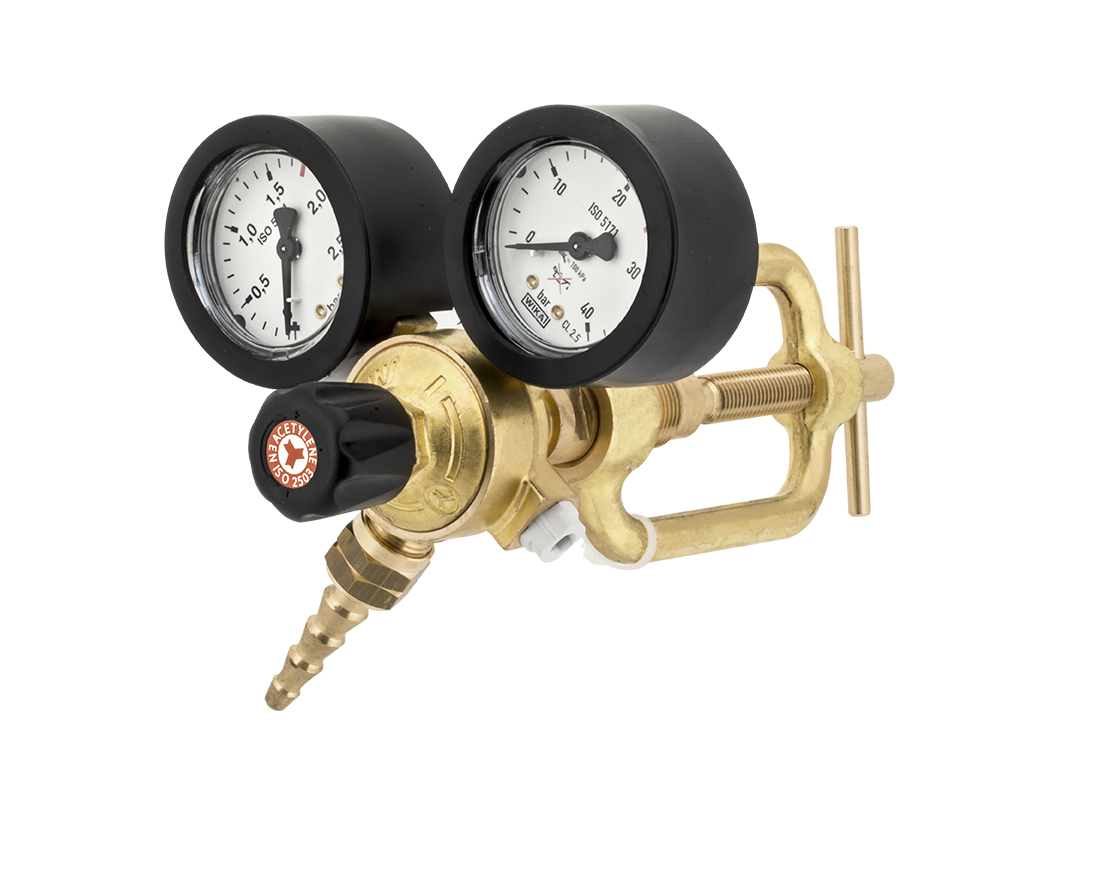

MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - ACETYLENE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - ACETYLENE
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
251203 Request information |  | MINI ACETYL. C/BULLNOSE | UNI-BS-NF-NEN-MIE | G1/4 LH | 25 | 0,8 | >1 | D | 1 | 1 | |
251204 Request information |  | MINI ACETYL. C/BULLNOSE | SS | G1/4 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251253 Request information |  | MINI ACETYL. C/Bullnose | UNI-BS-NF-NEN-MIE | G3/8 | 25 | 0,8 | >1 | D | 0 | 1 | -- |
251254 Request information |  | MINI ACETYL. C/Bullnose | SS | G3/8 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251200 Request information |  | MINI ACETYL. C/Yoke | UNI-NF | G1/4 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251201 Request information |  | MINI ACETYL. C/Yoke | DIN | G1/4 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251209 Request information |  | MINI ACETYL. C/Yoke | NEN | G1/4 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251250 Request information |  | MINI ACETYL. C/Yoke | UNI-NF | G3/8 | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251251 Request information |  | MINI ACETYL. C/Yoke | DIN | G3/8 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251259 Request information |  | MINI ACETYL. C/Yoke | NEN | G3/8 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251295 Request information |  | MINI ACETYL. C/BULLNOSE | CGA | 9/16" LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251283 Request information |  | MINI ACETYL. C/BULLNOSE | NF | M16X1.5 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |
251280 Request information |  | MINI ACETYL. C/Yoke | NF | M16X1.5 LH | 25 | 0,8 | >1 | D | 1 | 1 | -- |

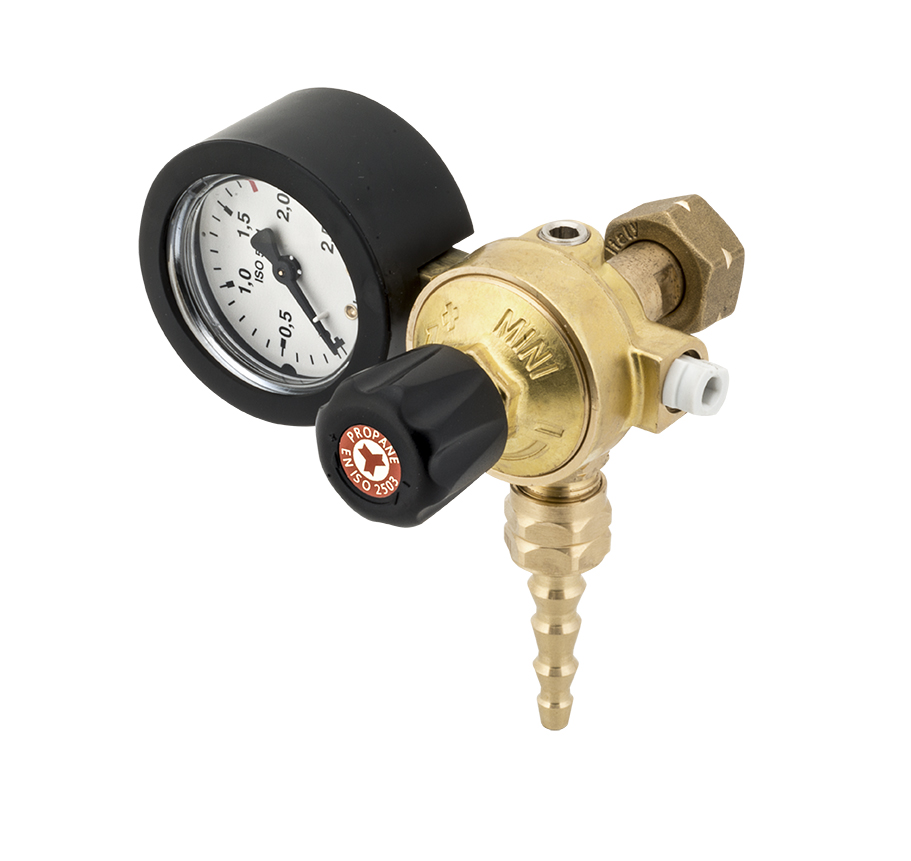

MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - PROPANE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MINI - MINI FOR OXYGEN/ACETYLENE/PROPANE WELDING - PROPANE
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
252300 Request information |  | MINI PROPANE | UNI | G1/4 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252301 Request information |  | MINI PROPANE | DIN-NF-SS-MIE | G1/4 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252303 Request information |  | MINI PROPANE | BS | G1/4 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252309 Request information |  | MINI PROPANE | NEN | G1/4 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252350 Request information |  | MINI PROPANE | UNI | G3/8 | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252351 Request information |  | MINI PROPANE | DIN-NF-SS-MIE | G3/8 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252353 Request information |  | MINI PROPANE | BS | G3/8 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252359 Request information |  | MINI PROPANE | NEN | G3/8 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252395 Request information |  | MINI PROPANE 9/16" Lh | CGA | 9/16" LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
252381 Request information |  | MINI PROPANE M16x1.5 Lh | NF | M16X1.5 LH | 25 | 1,5 | >1 | D | 0 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
