PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS

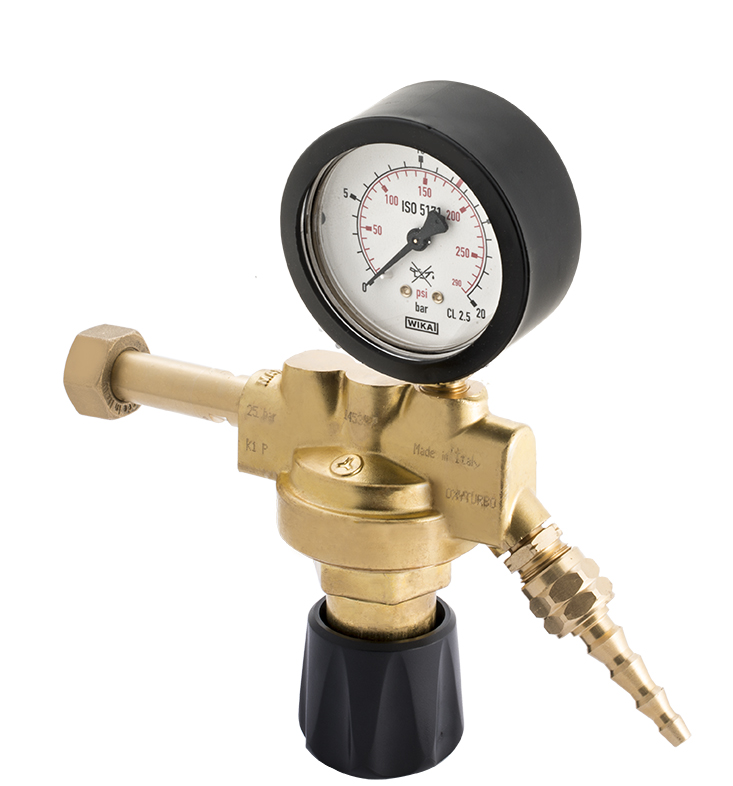

MAXY
MAXY

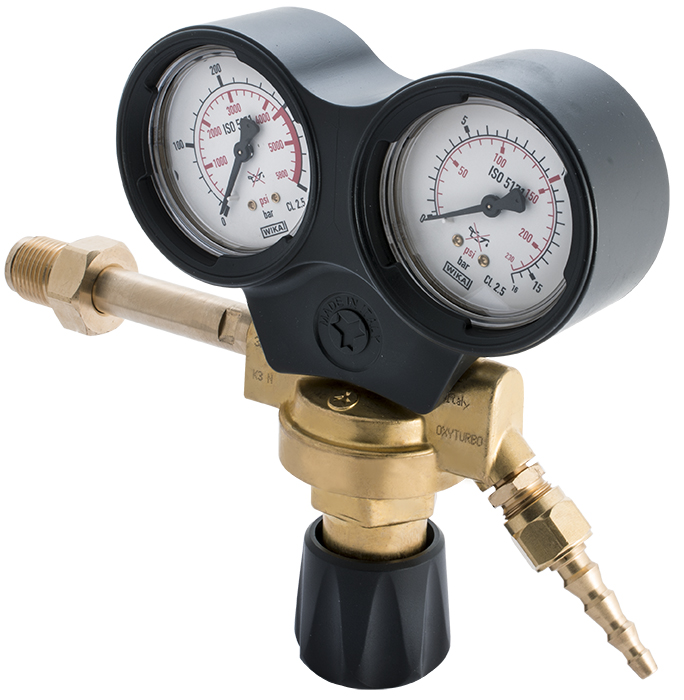

Pressure regulators with 2 pressure gauges or with flow meter, for all industrial uses, even intensive ones, and connections for various types of gas.
Characteristics
Entirely designed and manufactured in Italy for over 20 years in compliance with the EN-ISO 2503 standard, the MAXY regulator has always been appreciated for its robustness, reliability, and stable delivery once the pressure or flow parameter has been set, until the gas cylinder is exhausted.
The body is made of carefully pickled brass with an automated system that guarantees the absence of oxidation over time without the need for additional paint, thus making it possible to immediately recycle the brass at the end of the product's life, fully respecting the environment..
Use
The CO2 or Argon Mix versions are ideal for equipping MIG/MAG/TIG welding units with outputs of up to 32 liters per minute, a value more than sufficient to cover all applications.
The Oxygen/Acetylene versions guarantee sufficient output flow for all cutting operations up to 30 cm thickness of steel!
The MAXY version is available in many configurations (including with multi-flow meters) and with different cylinder connections for many different types of gases in addition to the usual oxygen, acetylene, and argon.
All our regulators comply with the international standard EN-ISO2503, and the versions for combustible and combustible gases (oxygen/acetylene) are also certified by APRAGAZ, a Belgian inspection and certification body specializing in pressure equipment.
VERSATILITY
The MAXY version is available in many configurations (including with multi-flow meters) and with different cylinder connections for many different types of gases in addition to the usual oxygen, acetylene, and argon.
OUR CERTIFICATIONS, YOUR SAFETY
All our regulators comply with the international standard EN-ISO2503, and the versions for combustible and combustible gases (oxygen/acetylene) are also certified by APRAGAZ, a Belgian inspection and certification body specializing in pressure equipment.
Certificates
Product Sectors
MAXY FOR MIG/MAG/TIG WELDING - CO2
MAXY FOR MIG/MAG/TIG WELDING - ARGON
MAXY - CONNECTION ARGON/CO2
MAXY WITH FLOW METER - CO2
MAXY WITH FLOW METER - ARGON
MAXY MULTI-flow meter - CO2
MAXY MULTI-flow meter - ARGON
MAXY FOR ACETYLENE/OXYGEN/ PROPANE - OXYGEN
MAXY FOR ACETYLENE/OXYGEN/PROPANE - ACETYLENE
MAXY FOR ACETYLENE/OXYGEN/ PROPANE - PROPANE
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - NITROGEN
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - COMPRESSED AIR
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - HYDROGEN/METHANE
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - HELIUM
CONVERSION FITTINGS FOR OXYGEN AND CO2 - MAXY

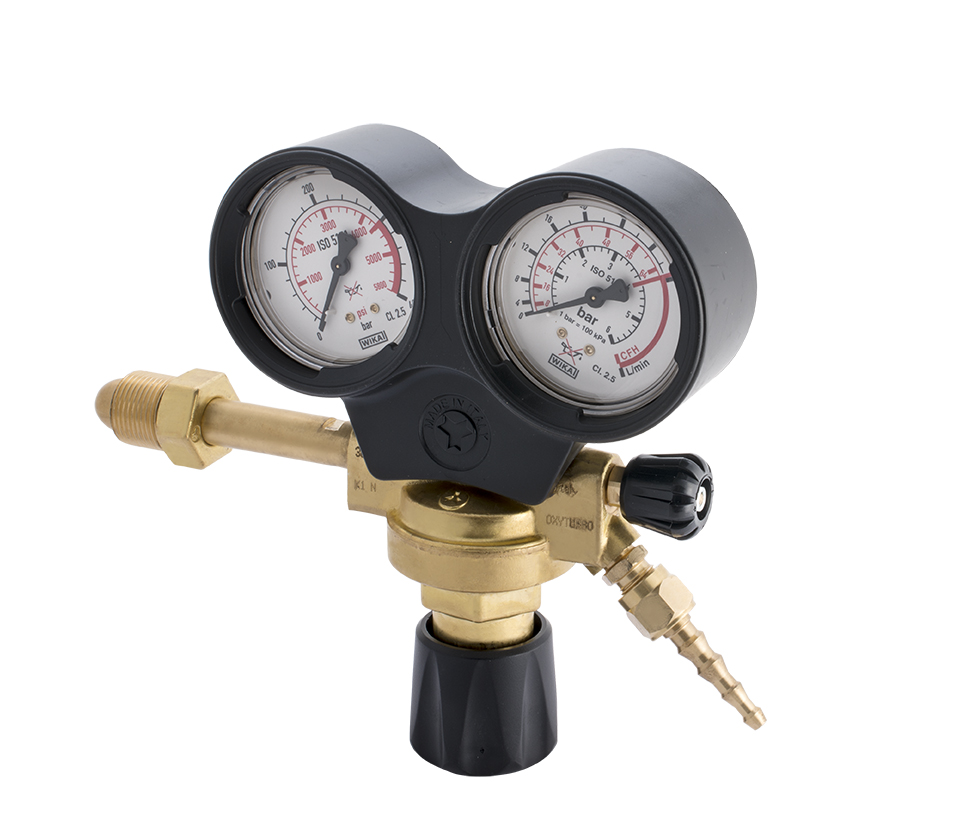

MAXY FOR MIG/MAG/TIG WELDING - CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR MIG/MAG/TIG WELDING - CO2

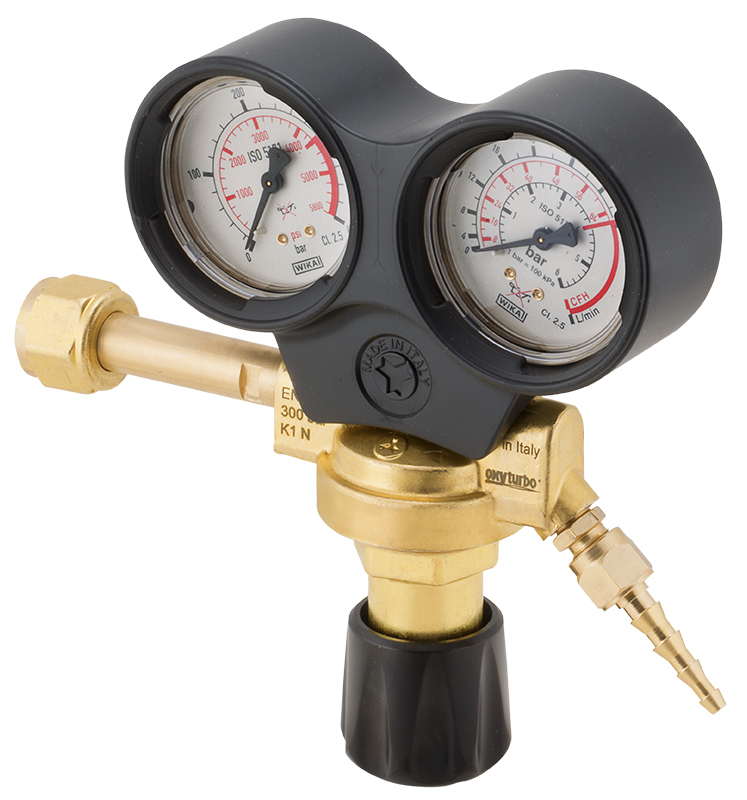

Designed for use on MIG/MAG/TIG welding machines that require high productivity and sufficient flexibility of use. They are fitted with an automatic overpressure valve and pressure gauges in compliance with ISO 5171. The CO2 regulators can also be combined with a pre-heater to eliminate the "brine" effect. If present, the cap gives the pressure gauges further protection from impact.
All mano-flow meters on our Maxy regulators have been upgraded for an adjustable flow up to 32 L/min at 4 bar ope- rating pressure.
Available also the version with 10 bar outlet pressure.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
265200 Request information | | MAXY CO2/ARGON | UNI-BS-NF-SS-MIE | G/14 | 300 | 4 | -- | R | 1 | 1 | |
266201 Request information |  | MAXY CO2/ARGON | DIN | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
265209 Request information |  | MAXY CO2 | NEN | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
265205 Request information |  | MAXY CO2 | CGA | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
265250 Request information |  | MAXY CO2/ARGON | UNI-BS-NF-SS-MIE | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
266251 Request information |  | MAXY CO2/ARGON | DIN | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
265259 Request information |  | MAXY CO2 | NEN | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
265255 Request information |  | MAXY CO2 | CGA | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
MAXY FOR MIG/MAG/TIG WELDING - ARGON
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR MIG/MAG/TIG WELDING - ARGON
Designed for use on MIG/MAG/TIG welding machines that require high productivity and sufficient flexibility of use. They are fitted with an automatic overpressure valve and pressure gauges in compliance with ISO 5171. The CO2 regulators can also be combined with a pre-heater to eliminate the "brine" effect. If present, the cap gives the pressure gauges further protection from impact.
All mano-flow meters on our Maxy regulators have been upgraded for an adjustable flow up to 32 L/min at 4 bar ope- rating pressure.
Available also the version with 10 bar outlet pressure.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
266200 Request information |  | MAXY ARGON | UNI-CGA | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
266201 Request information | | MAXY CO2/ARGON | DIN | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
266203 Request information |  | MAXY ARGON | BS | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
265200 Request information | | MAXY CO2/ARGON | UNI-BS-NF-SS-MIE | G/14 | 300 | 4 | -- | R | 1 | 1 | |
266209 Request information |  | MAXY ARGON | NEN | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
266204 Request information |  | MAXY ARGON | SS | G/14 | 300 | 4 | -- | R | 1 | 1 | -- |
266250 Request information |  | MAXY ARGON | UNI-CGA | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
266251 Request information | | MAXY CO2/ARGON | DIN | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
266253 Request information |  | MAXY ARGON | BS | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
265250 Request information | | MAXY CO2/ARGON | UNI-BS-NF-SS-MIE | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
266259 Request information |  | MAXY ARGON | NEN | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |
266254 Request information |  | MAXY ARGON | SS | G3/8 | 300 | 4 | -- | R | 1 | 1 | -- |

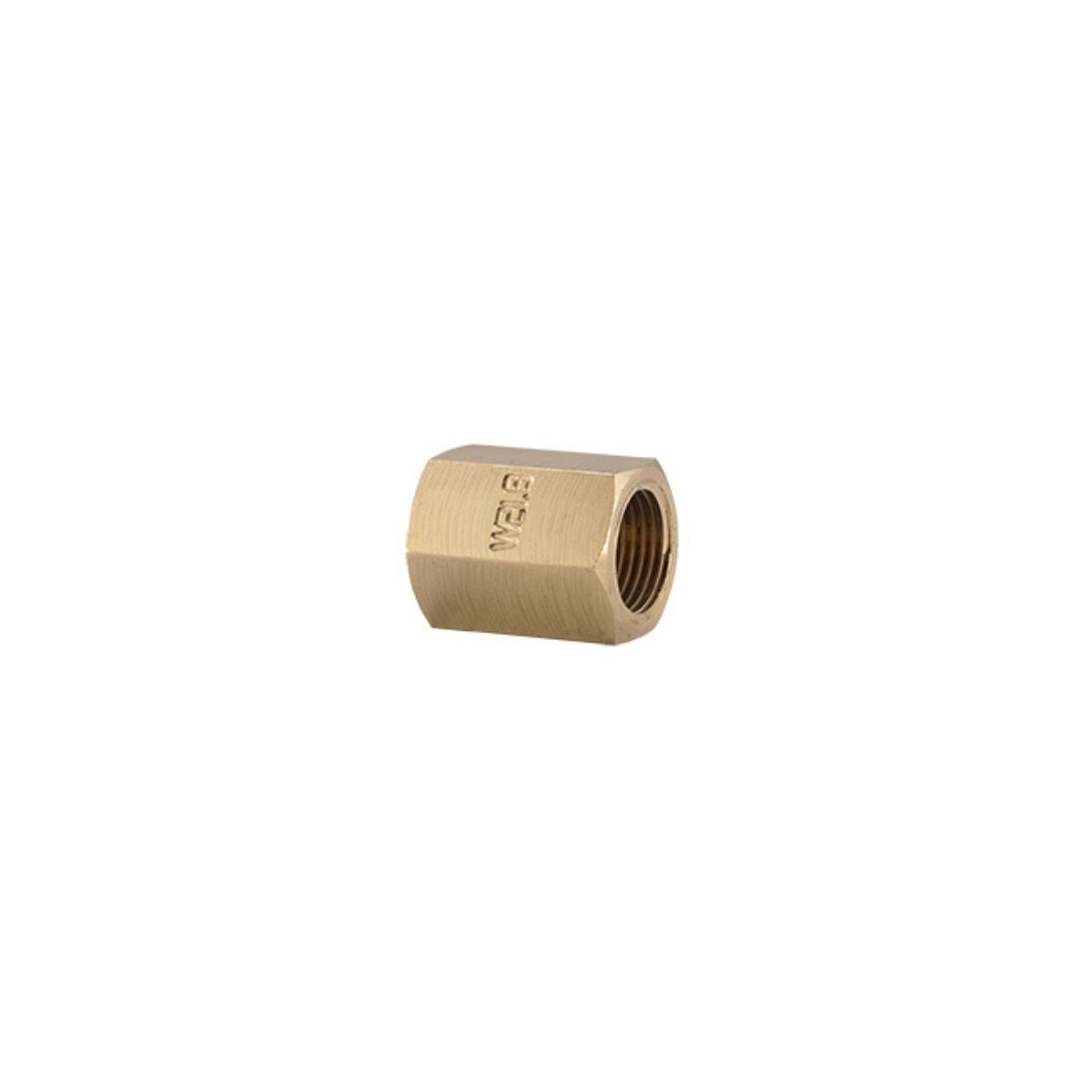

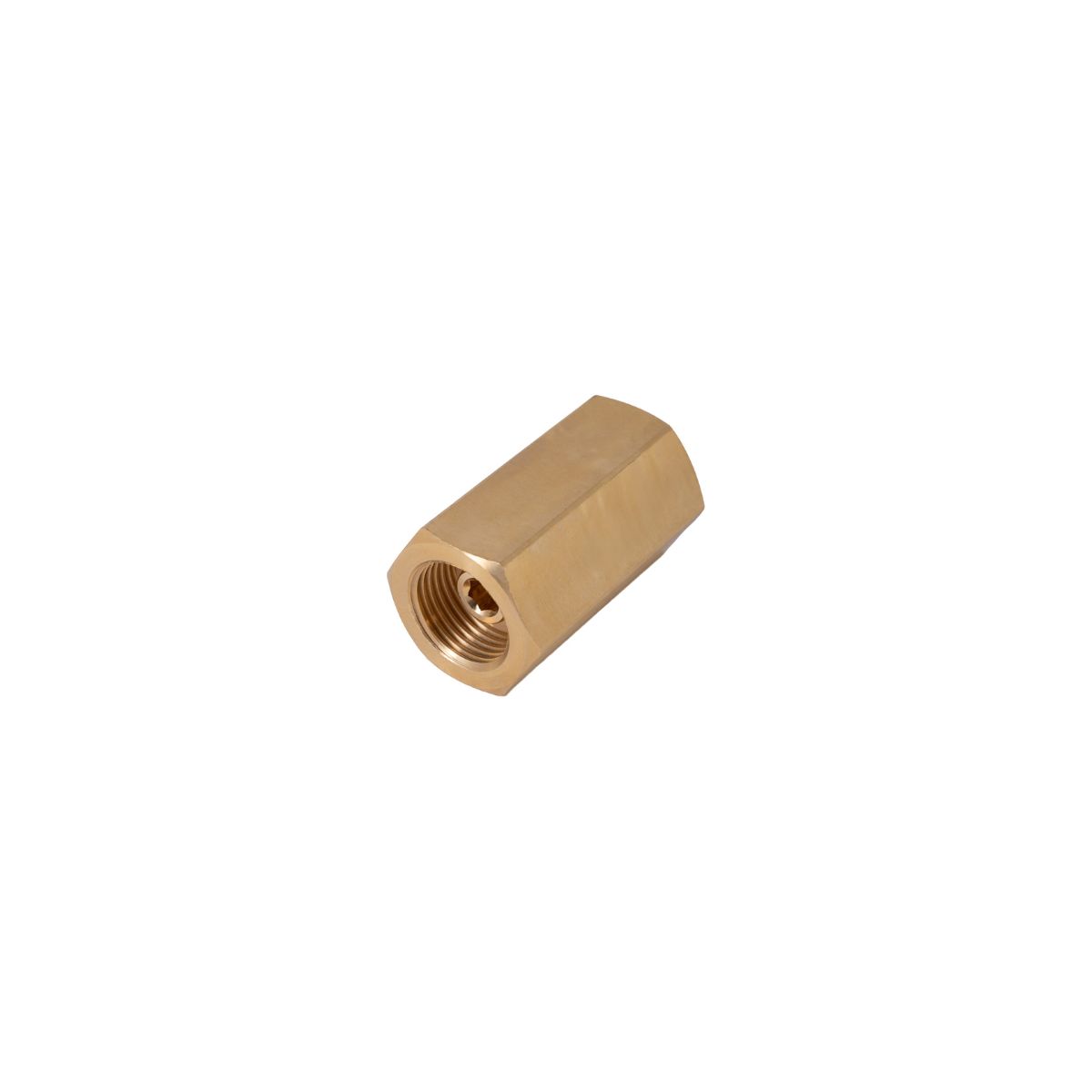

MAXY - CONNECTION ARGON/CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY - CONNECTION ARGON/CO2
These fittings allow you to use CO2 regulators with argon/mixture cylinders and all argon/mixture regulators with CO2 cylinders.
| Code | Image | Description | COâ‚‚ pressure reducer inlet | FINCATURA.attaccoBombola | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|
C5649000 Request information |  | CO2/ARGON FITTING IT | -- | -- | D | 0 | 1 | -- |
C5649002 Request information |  | ARGON/CO2 FITTING | -- | -- | D | 0 | 1 | -- |

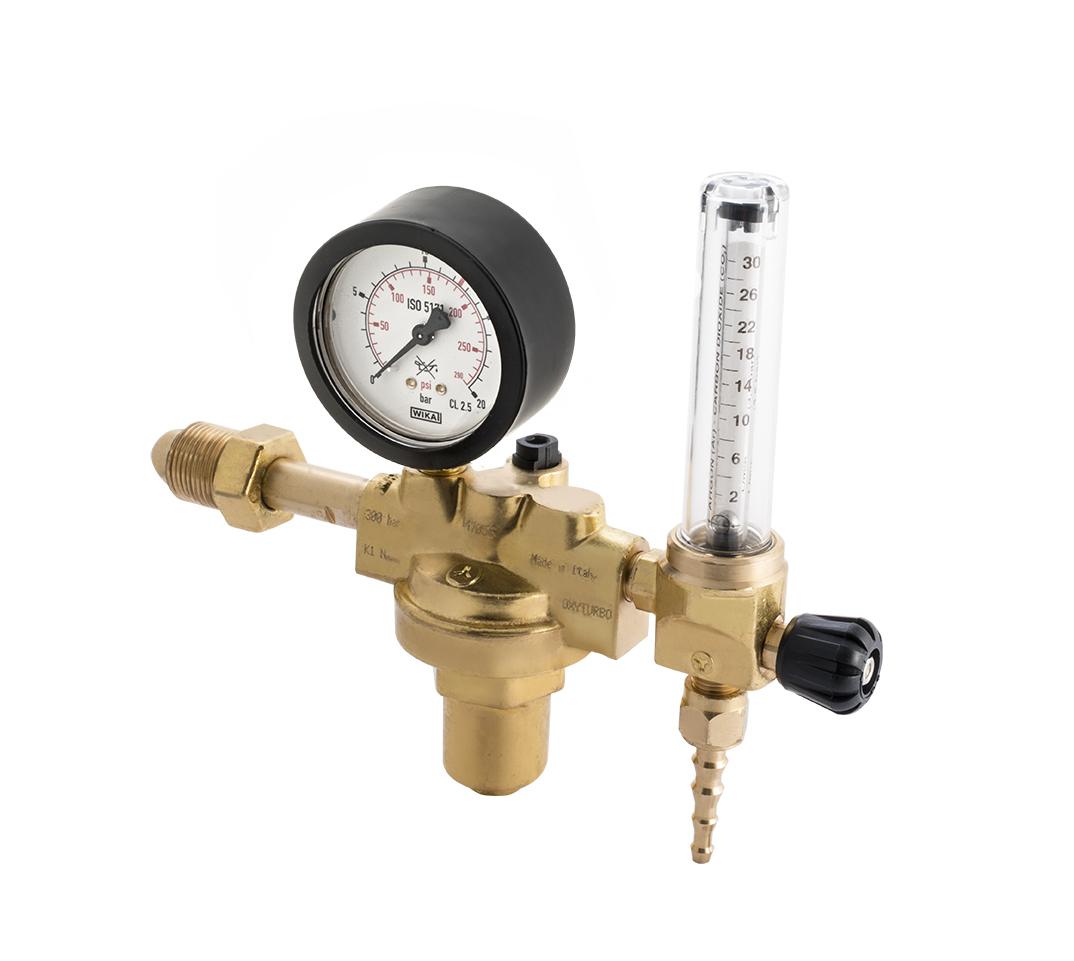

MAXY WITH FLOW METER - CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY WITH FLOW METER - CO2

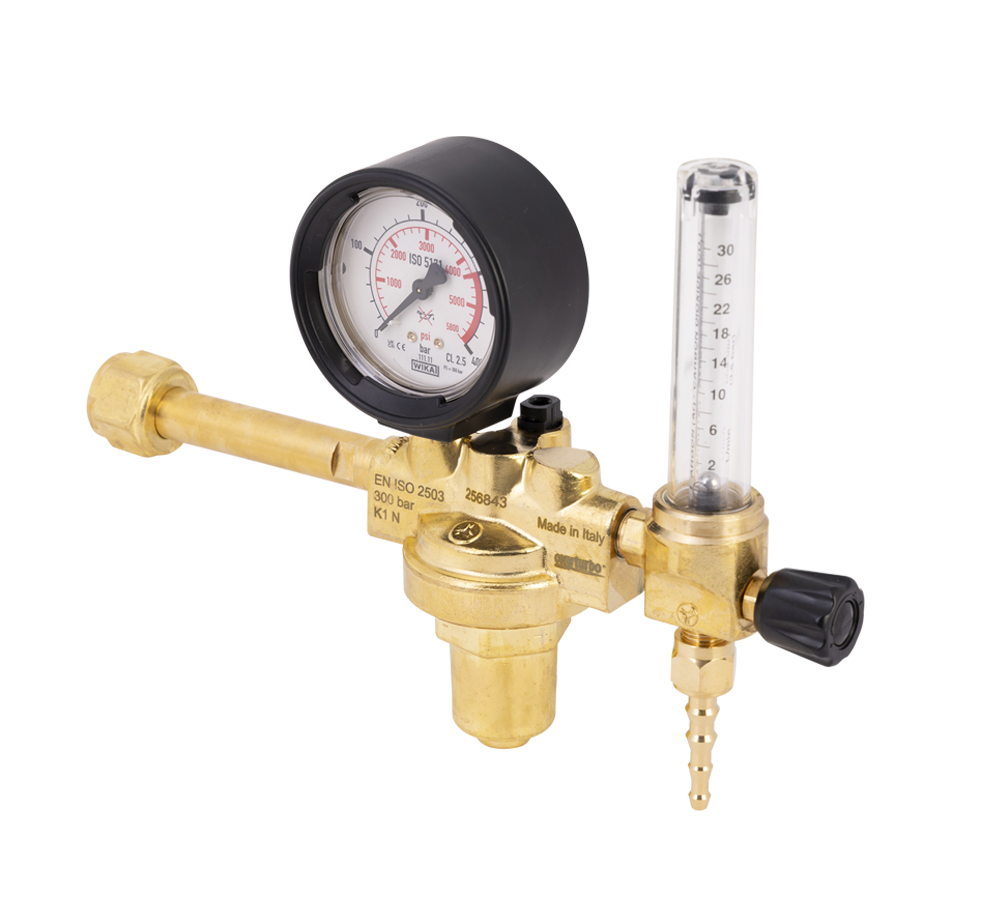

Regulators with a fixed-calibration flowmeter of 3.5 bar and a 0-30 l/min scale are particularly suitable for applications where flow measurement requires greater immediacy and precision. The fixed calibration of the output pressure and the ability for the operator to adjust the flow rate alone from 0 to 30 l/min make them suitable for almost all applications, avoiding setting errors.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
265400 Request information |  | MAXY CO2 W/CAP + FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30 | D | 1 | 1 | -- |
266401 Request information |  | MAXY CO2 W/CAP + FLUX | DIN | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
265409 Request information |  | MAXY CO2 W/CAP + FLUX | NEN | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
265405 Request information |  | MAXY CO2 W/CAP + FLUX | CGA | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
MAXY WITH FLOW METER - ARGON
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY WITH FLOW METER - ARGON
Regulators with a fixed-calibration flow meter of 3.5 bar and a 0-30 l/min scale are particularly suitable for applications where flow measurement requires greater immediacy and precision. The fixed calibration of the output pressure and the ability for the operator to adjust the flow rate alone from 0 to 30 l/min make them suitable for almost all applications, avoiding setting errors.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
266400 Request information |  | MAXY ARGON W/CAP + FLUX | UNI-CGA | G1/4 | 200 | 3,5 | 30 | D | 1 | 1 | -- |
266401 Request information | | MAXY CO2 W/CAP + FLUX | DIN | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
266403 Request information |  | MAXY ARGON W/CAP + FLUX | BS | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
265400 Request information | | MAXY CO2 W/CAP + FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30 | D | 1 | 1 | -- |
266409 Request information |  | MAXY ARGON W/CAP + FLUX | NEN | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
266404 Request information |  | MAXY ARGON W/CAP + FLUX | SS | G1/4 | 300 | 3,5 | 30 | D | 1 | 1 | -- |
MAXY MULTI-flow meter - CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY MULTI-flow meter - CO2

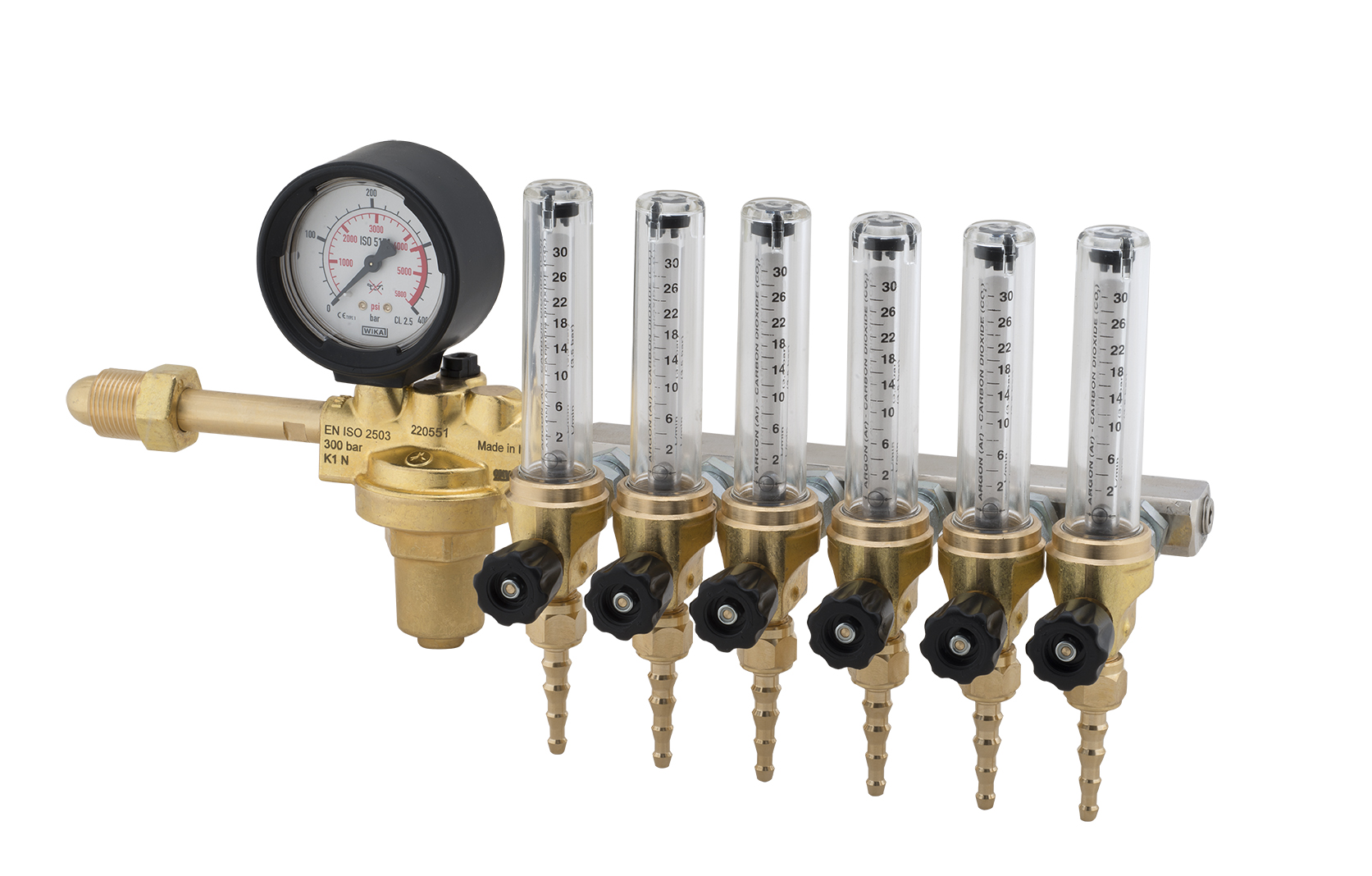

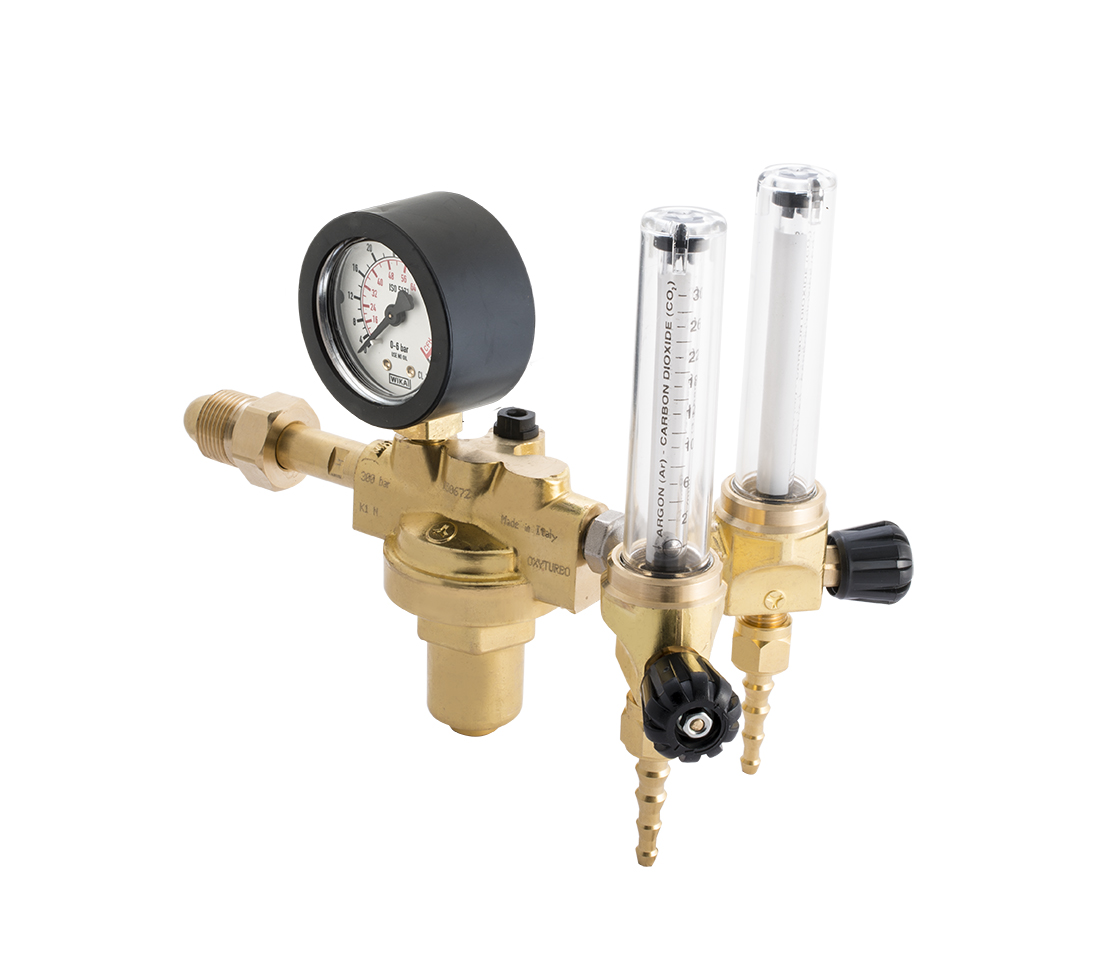

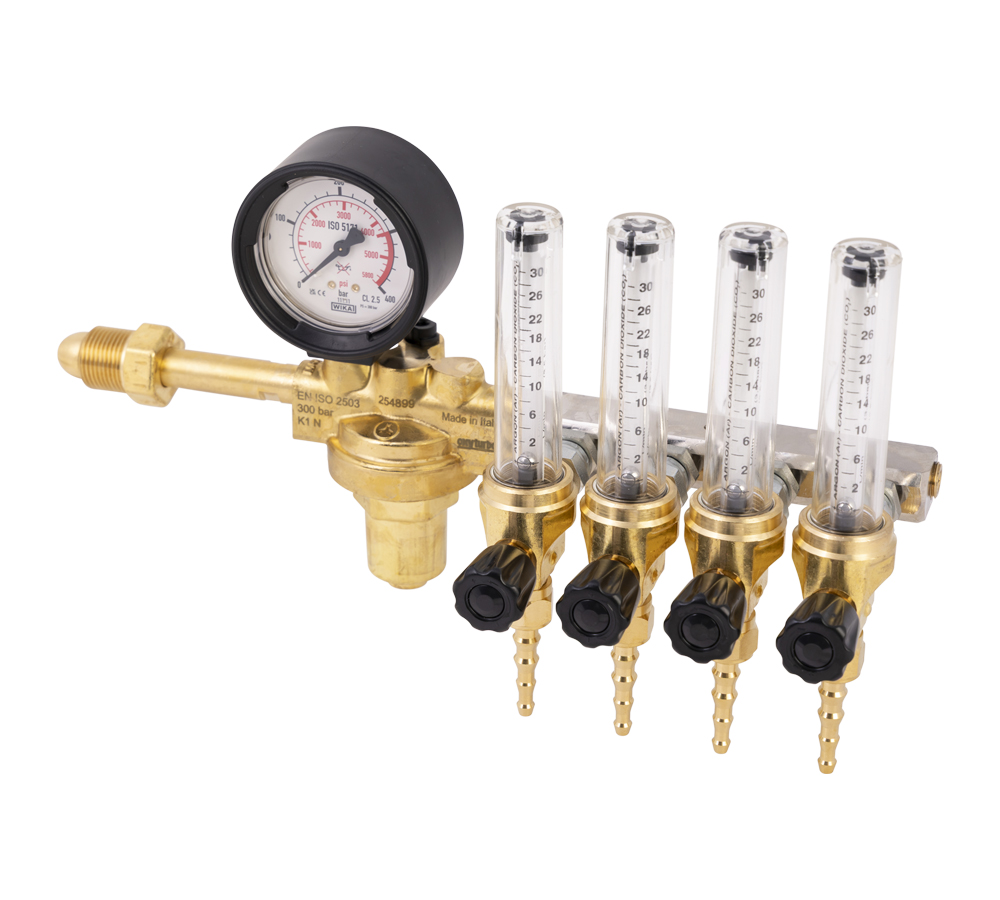

For special work needs, regulators with two or six flow meters are available. These allow the same regulator to be used with two and up to six welders that also work with different outputs.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
265800 Request information |  | MAXY CO2 W/CAP + 2 FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30X2 | R | 1 | 1 | -- |
266801 Request information |  | MAXY CO2/ARGON W/CAP + 2 FLUX | DIN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265809 Request information |  | MAXY CO2 W/CAP + 2 FLUX | NEN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265805 Request information |  | MAXY CO2 W/CAP + 2 FLUX | CGA | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265800.04 Request information |  | MAXY CO2 W/CAP + 4 FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30X4 | R | 2 | 1 | -- |
266801.04 Request information |  | MAXY CO2/ARGON W/CAP + 4 FLUX | DIN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265809.04 Request information |  | MAXY CO2 W/CAP + 4 FLUX | NEN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265805.04 Request information |  | MAXY CO2 W/CAP + 4 FLUX | CGA | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265800.06 Request information |  | MAXY CO2 W/CAP + 6 FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30X6 | R | 3 | 1 | -- |
266801.06 Request information |  | MAXY CO2/ARGON W/CAP + 6 FLUX | DIN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265809.06 Request information |  | MAXY CO2 W/CAP + 6 FLUX | NEN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265805.06 Request information |  | MAXY CO2 W/CAP + 6 FLUX | CGA | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
MAXY MULTI-flow meter - ARGON
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY MULTI-flow meter - ARGON
For special work needs, regulators with two or six flow meters are available. These allow the same regulator to be used with two and up to six welders that also work with different outputs.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
266800 Request information |  | MAXY ARGON W/CAP + 2 FLUX | UNI-CGA | G1/4 | 200 | 3,5 | 30X2 | R | 1 | 1 | -- |
266801 Request information | | MAXY CO2/ARGON W/CAP + 2 FLUX | DIN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266803 Request information |  | MAXY ARGON W/CAP + 2 FLUX | BS | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265800 Request information | | MAXY CO2 W/CAP + 2 FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30X2 | R | 1 | 1 | -- |
266809 Request information |  | MAXY ARGON W/CAP + 2 FLUX | NEN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266804 Request information |  | MAXY ARGON W/CAP + 2 FLUX | SS | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266800.04 Request information |  | MAXY ARGON W/CAP + 4 FLUX | UNI-CGA | G1/4 | 200 | 3,5 | 30X4 | R | 3 | 1 | -- |
266801.04 Request information | | MAXY CO2/ARGON W/CAP + 4 FLUX | DIN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266803.04 Request information |  | MAXY CO2/ARGON W/CAP + 4 FLUX | BS | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265800.04 Request information | | MAXY CO2 W/CAP + 4 FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30X4 | R | 2 | 1 | -- |
266809.04 Request information |  | MAXY ARGON W/CAP + 4 FLUX | NEN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266804.04 Request information |  | MAXY ARGON W/CAP + 4 FLUX | SS | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266800.06 Request information |  | MAXY ARGON W/CAP + 6 FLUX | UNI-CGA | G1/4 | 200 | 3,5 | 30X6 | R | 4 | 1 | -- |
266801.06 Request information | | MAXY CO2/ARGON W/CAP + 6 FLUX | DIN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266803.06 Request information |  | MAXY CO2/ARGON W/CAP + 6 FLUX | BS | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
265800.06 Request information | | MAXY CO2 W/CAP + 6 FLUX | UNI-BS-NF-SS-MIE | G1/4 | 200 | 3,5 | 30X6 | R | 3 | 1 | -- |
266809.06 Request information |  | MAXY ARGON W/CAP + 6 FLUX | NEN | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
266804.06 Request information |  | MAXY ARGON W/CAP + 6 FLUX | SS | G1/4 | 300 | 3,5 | 30X2 | R | 1 | 1 | -- |
MAXY FOR ACETYLENE/OXYGEN/ PROPANE - OXYGEN
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR ACETYLENE/OXYGEN/ PROPANE - OXYGEN

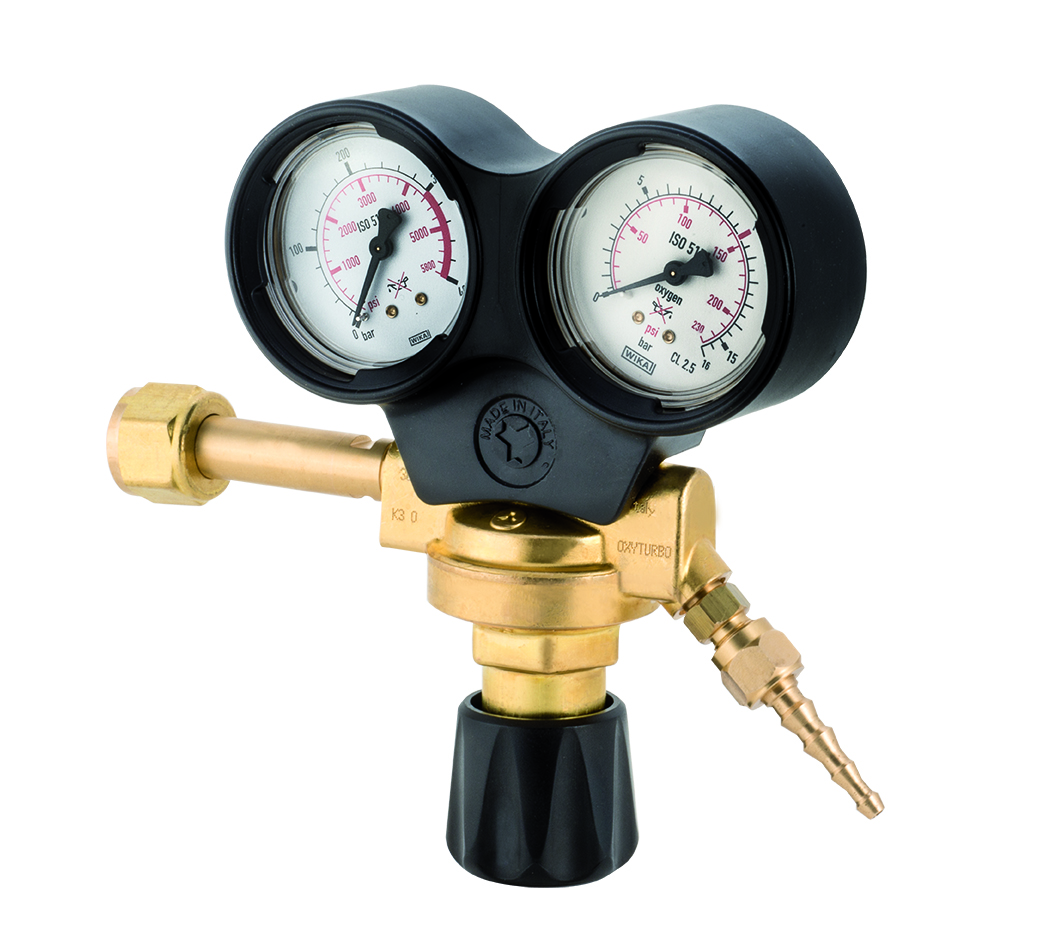

Designed and built to ensure accurate and safe gas use, they are particularly suitable for heavy-duty cutting applications in the demolition and steel industries.
The oxygen and acetylene versions are Apragaz approved.
The pressure gauges are one of the most delicate parts of the regulator, containing the gas at maximum pressure (200 bar) with internal micro-welding to ensure leak-proofing. For this reason, Oxyturbo uses only pressure gauges from WIKA, a German company that is a world leader in pressure gauge manufacturing.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
260200 Request information |  | MAXY OXYGEN | UNI-SS | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
260201 Request information |  | MAXY OXYGEN | DIN | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
260203 Request information |  | MAXY OXYGEN | BS-NF-NEN-MIE | G1/4 | 300 | 10 | 30 | D | 1 | 1 | |
260250 Request information |  | MAXY OXYGEN | UNI-SS | G3/8 | 200 | 10 | 30 | D | 1 | 1 | -- |
260251 Request information |  | MAXY OXYGEN | DIN | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
260253 Request information |  | MAXY OXYGEN | BS-NF-NEN-MIE | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
260293 Request information |  | MAXY OXYGEN | NF | 9/16" | 300 | 10 | 30 | D | 1 | 1 | -- |
260295 Request information |  | MAXY OXYGEN | CGA | 9/16" | 300 | 10 | 30 | D | 1 | 1 | -- |
260283 Request information |  | MAXY OXYGEN | NF | M16X1.5 | 300 | 10 | 30 | D | 1 | 1 | |
260285 Request information |  | MAXY OXYGEN | CGA | M16X1.5 | 300 | 10 | 30 | D | 1 | 1 | -- |

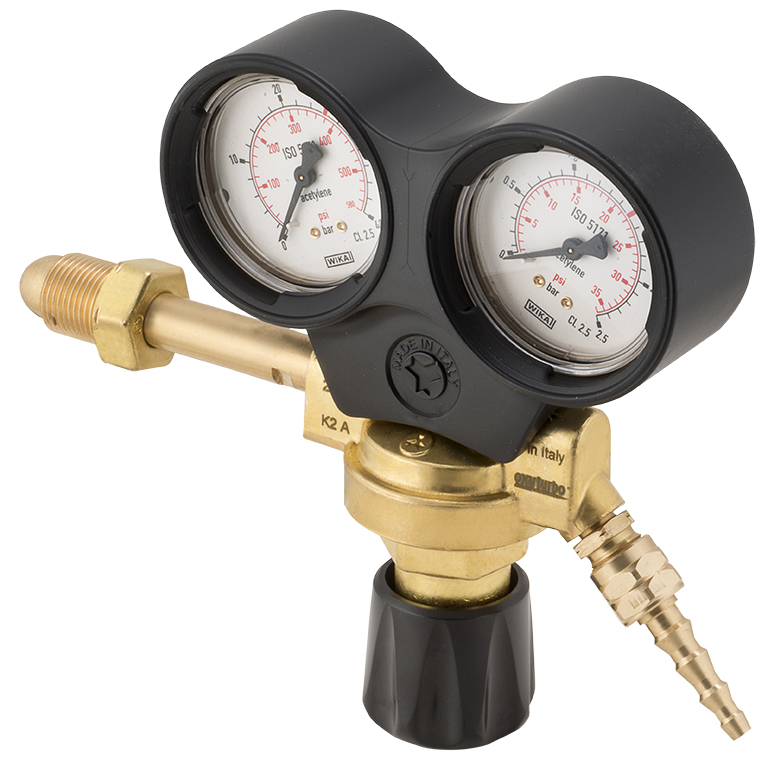

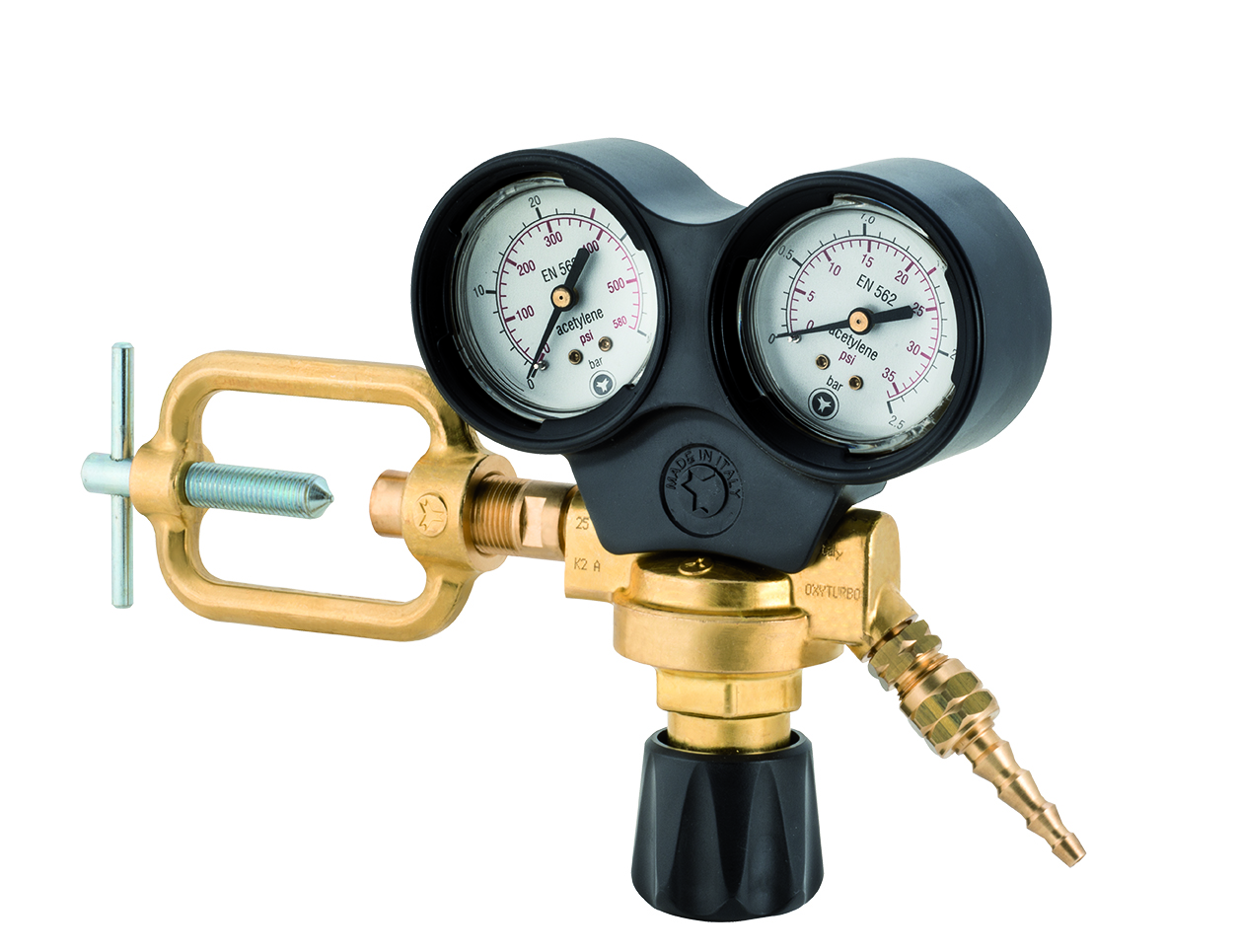

MAXY FOR ACETYLENE/OXYGEN/PROPANE - ACETYLENE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR ACETYLENE/OXYGEN/PROPANE - ACETYLENE
Designed and built to ensure accurate and safe gas use, they are particularly suitable for heavy-duty cutting applications in the demolition and steel industries.
The oxygen and acetylene versions are Apragaz approved.
The pressure gauges are one of the most delicate parts of the regulator, containing the gas at maximum pressure (200 bar) with internal micro-welding to ensure leak-proofing. For this reason, Oxyturbo uses only pressure gauges from WIKA, a German company that is a world leader in pressure gauge manufacturing.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
261203 Request information |  | MAXY ACETIL. C/bullnose | UNI-BS-NF-NEN-SS | G1/4 Lh | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261204 Request information |  | MAXY ACETIL. C/bullnose | SS | G1/4 Lh | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261253 Request information |  | MAXY ACETYL. W/Bullnose | UNI-BS-NF-NEN-SS | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261254 Request information |  | MAXY ACETIL. C/GHIERA | SS | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261200 Request information |  | MAXY ACETIL. C/Yoke | UNI-NF | G1/4 Lh | 25 | <1,5 | 5 | D | 1 | 1 | |
261201 Request information |  | MAXY ACETIL. C/Yoke | DIN | G1/4 Lh | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261209 Request information |  | MAXY ACETIL. C/Yoke | NEN | G1/4 Lh | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261250 Request information |  | MAXY ACETYL. W/Yoke | UNI-NF | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261251 Request information |  | MAXY ACETYL. W/Yoke | DIN | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261259 Request information |  | MAXY ACETYL. W/Yoke | NEN | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261295 Request information |  | MAXY ACETIL. C/bullnose | CGA | 9/16" | 25 | <1,5 | 5 | D | 1 | 1 | -- |
261283 Request information |  | MAXY ACETIL. C/bullnose | NF | M16X1.5 LH | 25 | <1,5 | 5 | D | 1 | 1 | |
261280 Request information |  | MAXY ACETIL. C/Yoke | NF | M16X1.5 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
MAXY FOR ACETYLENE/OXYGEN/ PROPANE - PROPANE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR ACETYLENE/OXYGEN/ PROPANE - PROPANE
Designed and built to ensure accurate and safe gas use, they are particularly suitable for heavy-duty cutting applications in the demolition and steel industries.
The oxygen and acetylene versions are Apragaz approved.
The pressure gauges are one of the most delicate parts of the regulator, containing the gas at maximum pressure (200 bar) with internal micro-welding to ensure leak-proofing. For this reason, Oxyturbo uses only pressure gauges from WIKA, a German company that is a world leader in pressure gauge manufacturing.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
262300 Request information |  | MAXY PROPANE G1/4 Lh | UNI | G/14 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
262301 Request information |  | MAXY PROPANE G1/4 Lh | DIN-NF-SS-MIE | G/14 LH | 25 | 4 | 5 | D | 1 | 1 | |
262303 Request information |  | MAXY PROPANE G1/4 Lh | BS | G/14 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
262309 Request information |  | MAXY PROPANE G1/4 Lh | NEN | G/14 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
262350 Request information |  | MAXY PROPANE | UNI | G3/8 | 25 | 4 | 15 | D | 1 | 1 | -- |
262351 Request information |  | MAXY PROPANE G1/4 Lh | DIN-NF-SS-MIE | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
262353 Request information |  | MAXY PROPANE G1/4 Lh | BS | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
262359 Request information |  | MAXY PROPANE G1/4 Lh | NEN | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
262395 Request information |  | MAXY PROPANE 9/16" Lh | NF | 9/16" | 25 | 4 | 5 | D | 1 | 1 | -- |
262381 Request information |  | MAXY PROPANE M16X1.5 Lh | CGA | M16x1.5 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - NITROGEN
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - NITROGEN
Built for use with compressed gases up to 200 bar, they allow for high output values. Recommended for tire fitting, fire extinguisher charging and arc welding.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
264200 Request information |  | MAXY NITROGEN | UNI | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
264201 Request information |  | MAXY NITROGEN | DIN | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
264203 Request information |  | MAXY NITROGEN | BS | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
264202 Request information |  | MAXY NITROGEN | NF-MIE | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
264209 Request information |  | MAXY NITROGEN | NEN | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
264204 Request information |  | MAXY NITROGEN | SS | G1/4 | 300 | 10 | 30 | D | 1 | 1 | -- |
264250 Request information |  | MAXY NITROGEN | UNI | G3/8 | 200 | 10 | 30 | D | 1 | 1 | -- |
264251 Request information |  | MAXY NITROGEN | DIN | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
264253 Request information |  | MAXY NITROGEN | BS | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
264252 Request information |  | MAXY NITROGEN | NF-MIE | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
264259 Request information |  | MAXY NITROGEN | NEN | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
264254 Request information |  | MAXY NITROGEN | SS | G3/8 | 300 | 10 | 30 | D | 1 | 1 | -- |
264295 Request information |  | MAXY NITROGEN | CGA | 9/16" | 300 | 10 | 30 | D | 1 | 1 | -- |
264282 Request information |  | MAXY NITROGEN | NF | M16x1.5 Lh | 300 | 10 | 30 | D | 1 | 1 | -- |
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - COMPRESSED AIR
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - COMPRESSED AIR
Built for use with compressed gases up to 200 bar, they allow for high output values. Recommended for tire fitting, fire extinguisher charging and arc welding.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
268200 Request information |  | MAXY COMPRESSED AIR | UNI | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
268203 Request information |  | MAXY COMPRESSED AIR | DIN-BS-SS | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
268209 Request information |  | MAXY COMPRESSED AIR | NEN | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
268208 Request information |  | MAXY COMPRESSED AIR | MIE | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
268250 Request information |  | MAXY COMPRESSED AIR | UNI | G3/8 | 200 | 10 | 30 | R | 1 | 1 | -- |
268253 Request information |  | MAXY COMPRESSED AIR | DIN-BS-SS | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
268259 Request information |  | MAXY COMPRESSED AIR | NEN | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
268258 Request information |  | MAXY COMPRESSED AIR | MIE | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
268295 Request information |  | MAXY COMPRESSED AIR | CGA | 9/16" | 300 | 10 | 30 | R | 1 | 1 | -- |
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - HYDROGEN/METHANE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - HYDROGEN/METHANE
Built for use with compressed gases up to 200 bar, they allow for high output values. Recommended for tire fitting, fire extinguisher charging and arc welding.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
263200 Request information |  | MAXY HYDROGEN METHANE | UNI | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
263201 Request information |  | MAXY HYDROGEN METHANE | DIN-NF-NEN-SS-MIE | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
263203 Request information |  | MAXY HYDROGEN METHANE | BS | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
263250 Request information |  | MAXY HYDROGEN METHANE | UNI | G3/8 | 200 | 10 | 30 | R | 1 | 1 | -- |
263251 Request information |  | MAXY HYDROGEN METHANE | DIN-NF-NEN-SS-MIE | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
263253 Request information |  | MAXY HYDROGEN METHANE | BS | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
263295 Request information |  | MAXY HYDROGEN METHANE | CGA | 9/16" Lh | 300 | 10 | 30 | R | 1 | 1 | -- |
263281 Request information |  | MAXY HYDROGEN METHANE | NF | M16x1.5 Lh | 300 | 10 | 30 | R | 1 | 1 | -- |
MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - HELIUM
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - MAXY FOR NITROGEN/AIR/HYDROGEN/METHANE/HELIUM - HELIUM
Built for use with compressed gases up to 200 bar, they allow for high output values. Recommended for tire fitting, fire extinguisher charging and arc welding.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
267200 Request information |  | MAXY HELIUM | UNI | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
267201 Request information |  | MAXY HELIUM | DIN | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
267203 Request information |  | MAXY HELIUM | BS | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
267202 Request information |  | MAXY HELIUM | NF-MIE | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
267209 Request information |  | MAXY HELIUM | NEN | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
267204 Request information |  | MAXY HELIUM | SS | G1/4 | 300 | 10 | 30 | R | 1 | 1 | -- |
267250 Request information |  | MAXY HELIUM | UNI | G3/8 | 200 | 10 | 30 | R | 1 | 1 | -- |
267251 Request information |  | MAXY HELIUM | DIN | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
267253 Request information |  | MAXY HELIUM | BS | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
267252 Request information |  | MAXY HELIUM | NF-MIE | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
267259 Request information |  | MAXY HELIUM | NEN | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
267254 Request information |  | MAXY HELIUM | SS | G3/8 | 300 | 10 | 30 | R | 1 | 1 | -- |
267295 Request information |  | MAXY HELIUM | CGA | 9/16" Lh | 300 | 10 | 30 | R | 1 | 1 | -- |
267282 Request information |  | MAXY HELIUM | NF | M16x1.5 Lh | 300 | 10 | 30 | R | 1 | 1 | -- |
CONVERSION FITTINGS FOR OXYGEN AND CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAXY - CONVERSION FITTINGS FOR OXYGEN AND CO2
| Code | Image | Description | COâ‚‚ pressure reducer inlet | FINCATURA.attaccoBombola | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|
C5419000 Request information |  | NITROGEN CONNECTION | -- | -- | D | 0 | 1 | -- |
C5419001 Request information |  | NITROGEN CONNECTION | -- | -- | D | 0 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
