PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS
MAGNUMSMART REAR SIDE
MAGNUMSMART REAR SIDE
Characteristics
Use
Certificates
Product Sectors

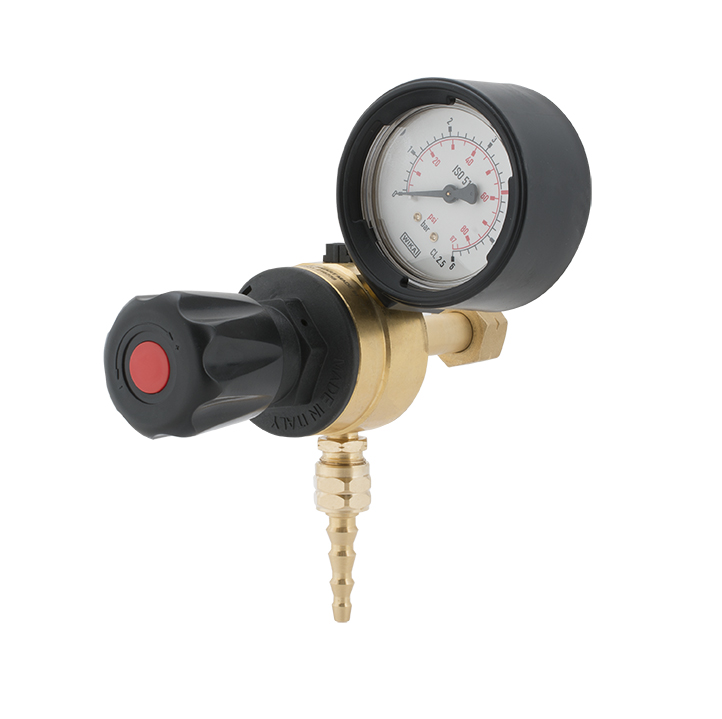

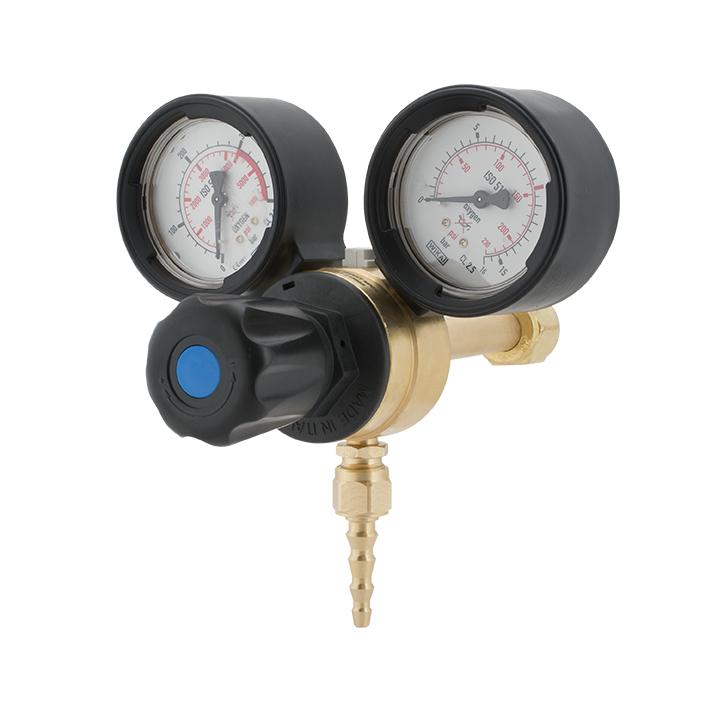

MAGNUMSMART REAR SIDE FOR OXYGEN/ACETYLENE/PROPANE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART REAR SIDE - MAGNUMSMART REAR SIDE FOR OXYGEN/ACETYLENE/PROPANE
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
280500MS Request information | | MAGNUMSMART RS OXYGEN | UNI-SS | G1/4 | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280501MS Request information |  | MAGNUMSMART RS OXYGEN | DIN | G1/4 | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280503MS Request information |  | MAGNUMSMART RS OXYGEN | BS-NF-NEN-MI | G1/4 | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280550MS Request information |  | MAGNUMSMART RS OXYGEN | UNI-SS | G3/8 | 200 | 10 | 40 | D | 1 | 1 | -- |
280551MS Request information |  | MAGNUMSMART RS OXYGEN | DIN | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280553MS Request information |  | MAGNUMSMART RS OXYGEN | BS-NF-NEN-MI | G3/8 | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280593MS Request information |  | MAGNUMSMART RS OXYGEN | NF | 9/16" | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280595MS Request information |  | MAGNUMSMART RS OXYGEN | CGA | M16x1.5 | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280583MS Request information |  | MAGNUMSMART RS OXYGEN | NF | 9/16" | 300 | 12,5 | 40 | -- | 1 | 1 | -- |
280585MS Request information |  | MAGNUMSMART RS OXYGEN | CGA | M16x1.5 | 300 | 12,5 | 40 | -- | 1 | 1 | -- |

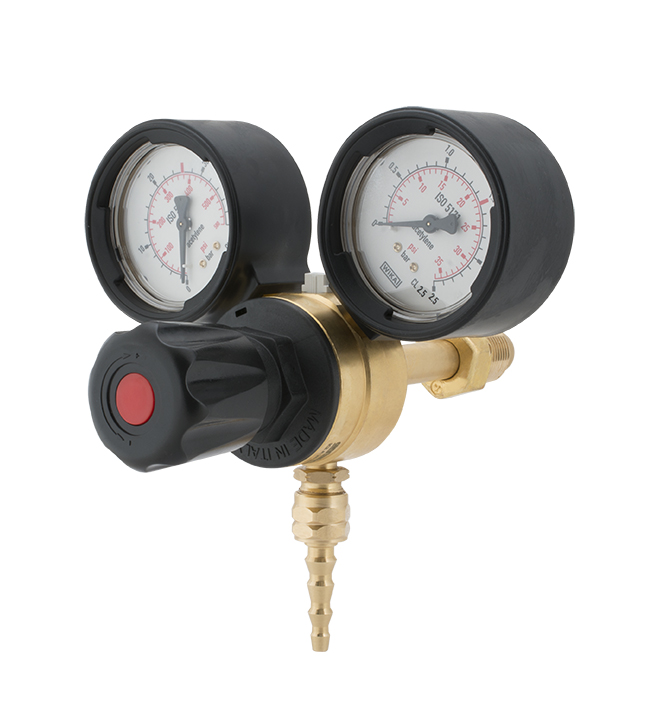

MAGNUMSMART REAR SIDE FOR OXYGEN/ACETYLENE/PROPANE - ACETYLENE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART REAR SIDE - MAGNUMSMART REAR SIDE FOR OXYGEN/ACETYLENE/PROPANE - ACETYLENE
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
281503MS Request information |  | MAGNUMSMART RS ACETYLENE G1/4 Lh W/BULLNOSE | UNI-BS-NF-NEN-MIE | G1/4 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- |
281504MS Request information |  | MAGNUMSMART RS ACETYLENE G1/4 Lh W/BULLNOSE | SS | G1/4 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- |
281553MS Request information |  | MAGNUMSMART RS ACETYL. C/Bullnose | UNI-BS-NF-NEN-MIE | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281554MS Request information |  | MAGNUMSMART RS ACETYL. C/Bullnose | SS | G3/8 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281500MS Request information | MAGNUMSMART RS ACETYLENE G1/4 Lh W/YOKE | UNI-NF | G1/4 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- | |
281501MS Request information | MAGNUMSMART RS ACETYLENE G1/4 Lh W/YOKE | DIN | G1/4 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- | |
281509MS Request information | MAGNUMSMART RS ACETYLENE G1/4 Lh W/YOKE | NEN | G1/4 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- | |
281550MS Request information | MAGNUMSMART RS ACETYLENE G3/8 Lh W/YOKE | UNI-NF | G3/8 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- | |
281551MS Request information | MAGNUMSMART RS ACETYLENE G3/8 Lh W/YOKE | DIN | G3/8 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- | |
281559MS Request information | MAGNUMSMART RS ACETYLENE G3/8 Lh W/YOKE | NEN | G3/8 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- | |
281595MS Request information |  | MAGNUMSMART RS ACETYLENE 9/16" Lh W/BULLNOSE | CGA | 9/16" LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- |
281583MS Request information |  | MAGNUMSMART RS ACETYLENE M16x1.5 Lh W/BULLNOSE | NF | M16x1.5 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- |
281580MS Request information | MAGNUMSMART RS ACETYLENE M16x1.5 Lh W/YOKE | NF | M16x1.5 LH | 25 | <1,5 | 5 | -- | 1 | 1 | -- |
MAGNUMSMART REAR SIDE FOR OXYGEN/ACETYLENE/PROPANE - PROPANE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART REAR SIDE - MAGNUMSMART REAR SIDE FOR OXYGEN/ACETYLENE/PROPANE - PROPANE
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
282500MS Request information |  | MAGNUMSMART RS PROPANE | UNI | G1/4 LH | 25 | 4 | 5 | -- | 1 | 1 | -- |
282501MS Request information |  | MAGNUMSMART RS PROPANE | DIN-NF-SS-MIE | G1/4 LH | 25 | 4 | 5 | -- | 1 | 1 | -- |
282503MS Request information |  | MAGNUMSMART RS PROPANE | BS | G1/4 LH | 25 | 4 | 5 | -- | 1 | 1 | -- |
282509MS Request information |  | MAGNUMSMART RS PROPANE | NEN | G1/4 LH | 25 | 4 | 5 | -- | 1 | 1 | -- |
282550MS Request information |  | MAGNUMSMART RS PROPANE | UNI | G3/8 | 25 | 4 | 5 | D | 1 | 1 | -- |
282551MS Request information |  | MAGNUMSMART RS PROPANE | DIN-NF-SS-MIE | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282553MS Request information |  | MAGNUMSMART RS PROPANE | BS | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282559MS Request information |  | MAGNUMSMART RS PROPANE | NEN | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282595MS Request information |  | MAGNUMSMART RS PROPANE | CGA | 9/16" LH | 25 | 4 | 5 | -- | 1 | 1 | -- |
282581MS Request information |  | MAGNUMSMART RS PROPANE | NF | M16x1.5 LH | 25 | 4 | 5 | -- | 1 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
