PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS
MAGNUMSMART

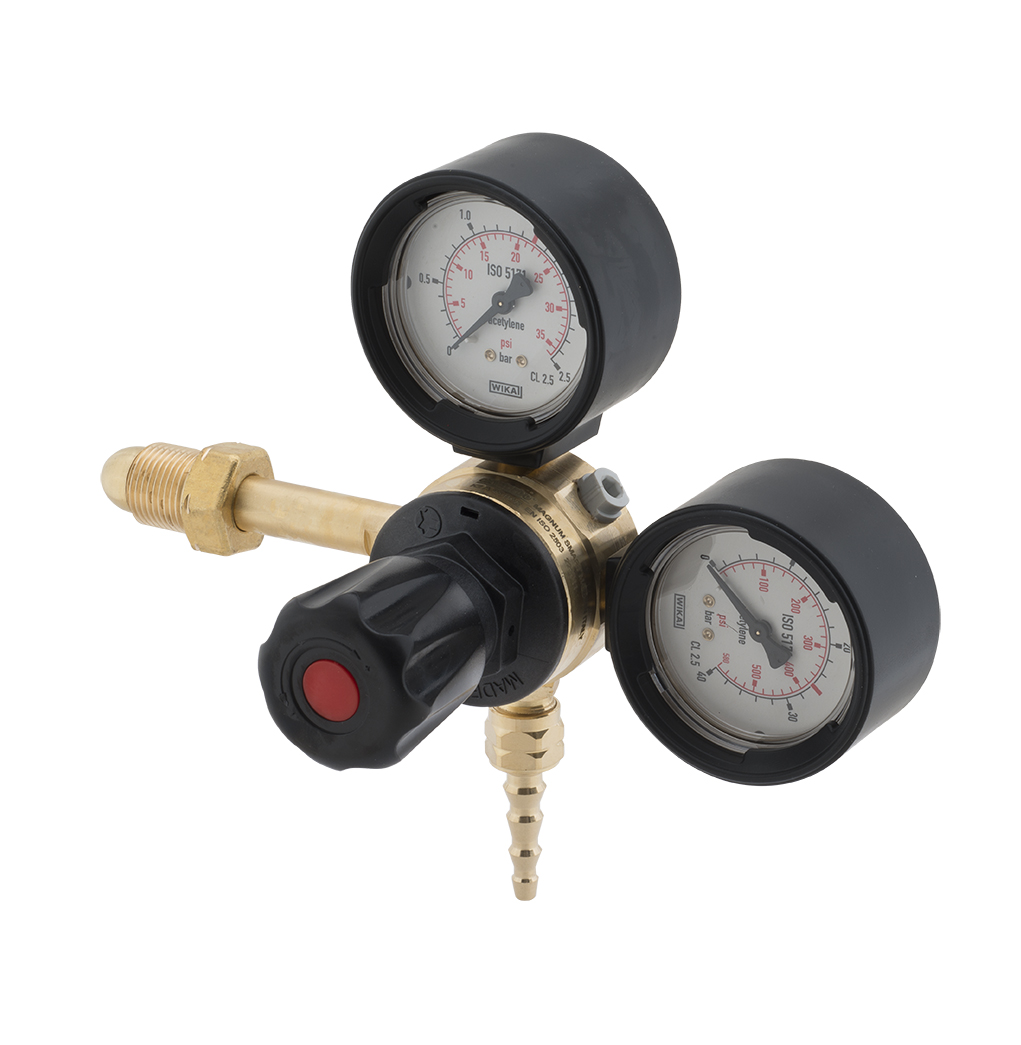

MAGNUMSMART
EN-ISO 2503 compliant pressure regulator with front adjustment for all industrial uses, including intensive use, with increased oxygen/nitrogen flow rates (40 m3/h). Entirely designed and manufactured in Italy, from machining to assembly, with a 3-year warranty.
- Flow regulation pressure gauge perpendicular to the regulator body for maximum ergonomic reading.
For maximum leak protection, we use only pressure gauges from WIKA, a world-leading German company.
- The cover is made of high-strength polymer.
The body is made of brass obtained directly
from bar stock for an excellent finish and maximum strength.
- The front adjustment knob allows for easy pressure adjustment and features a new design that improves ergonomics.
- Vertical outlet connection pointing downwards to guide the hose without excessive bends.
Characteristics
Use
Certificates
Product Sectors

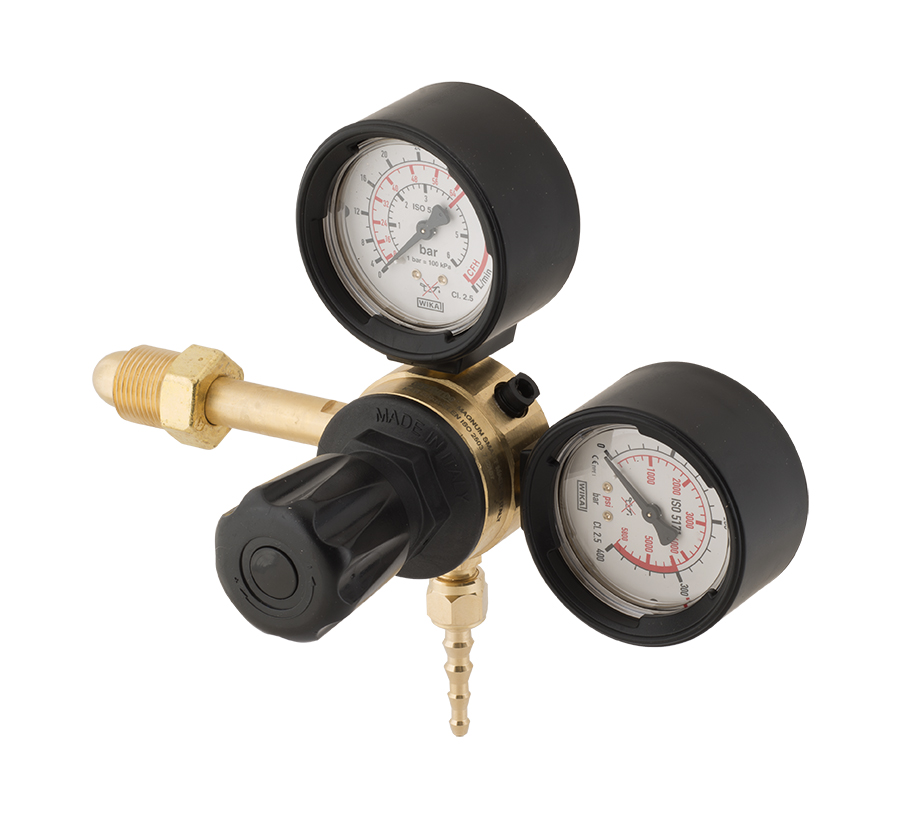

MAGNUMSMART FOR MIG/MAG/TIG WELDING - CO2
MAGNUMSMART FOR MIG/MAG/TIG WELDING - ARGON
MAGNUMSMART WITH FLOWMETER - CO2
MAGNUMSMART WITH FLOWMETER - ARGON
MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - OXYGEN
MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - ACETYLENE
MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - PROPANE
MAGNUMSMART FOR NITROGEN - MAGNUMSMART
MAGNUMSMART FOR MIG/MAG/TIG WELDING - CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART FOR MIG/MAG/TIG WELDING - CO2
Allow stable delivery even at low flow rates and are particularly suitable for long MIG/MAG/TIG welding working cycles. They have a robust brass body obtained directly from a bar. 63mm diameter pressure gauges which make reading easier and they have a practical front adjusting knob.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
285200MS Request information | | MAGNUMSMART CO2 | UNI-BS-NF-SS-MIE | G1/4 | 200 | 4 | 32 | D | 1 | 1 | |
286201MS Request information |  | MAGNUMSMART CO2 | DIN | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
285209MS Request information |  | MAGNUMSMART CO2 | NEN | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
285205MS Request information |  | MAGNUMSMART CO2 | CGA | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
285250MS Request information |  | MAGNUMSMART CO2 | UNI-BS-NF-SS-MIE | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
286251MS Request information |  | MAGNUMSMART CO2/ARGON | DIN | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
285259MS Request information |  | MAGNUMSMART CO2 | NEN | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
285255MS Request information |  | MAGNUMSMART CO2 | CGA | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |

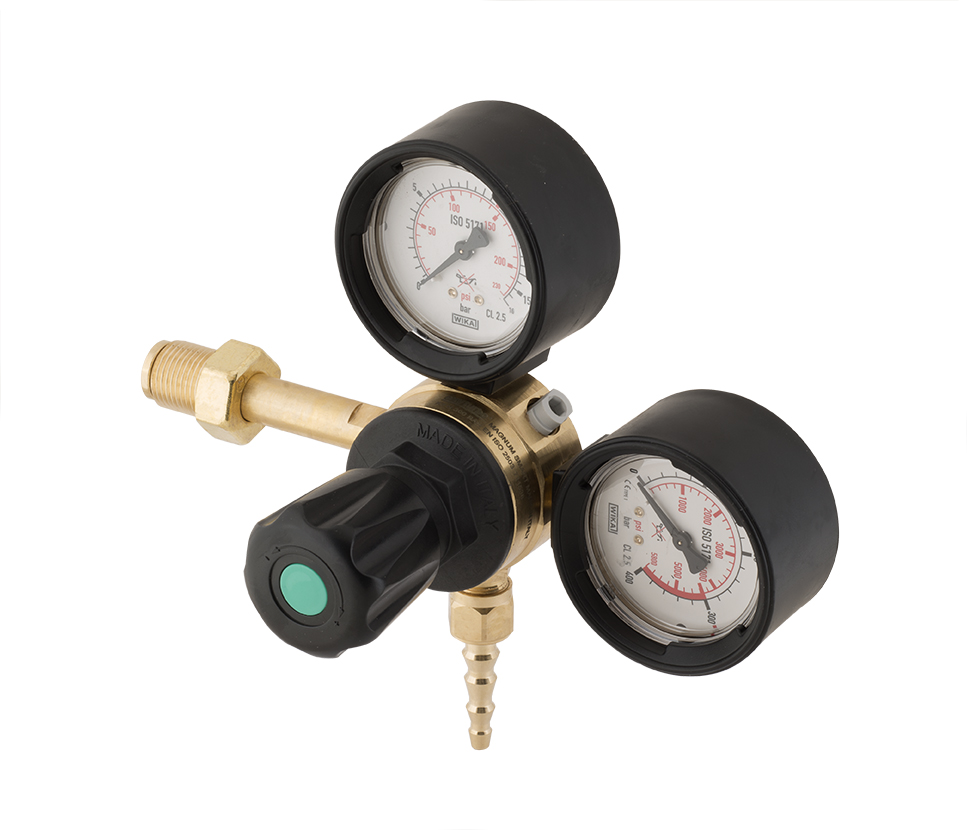

MAGNUMSMART FOR MIG/MAG/TIG WELDING - ARGON
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART FOR MIG/MAG/TIG WELDING - ARGON
Allow stable delivery even at low flow rates and are particularly suitable for long MIG/MAG/TIG welding working cycles. They have a robust brass body obtained directly from a bar. 63mm diameter pressure gauges which make reading easier and they have a practical front adjusting knob.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
286200MS Request information |  | MAGNUMSMART ARGON | UNI-CGA | G1/4 | 200 | 4 | 32 | D | 1 | 1 | -- |
286201MS Request information | | MAGNUMSMART CO2 | DIN | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
286203MS Request information |  | MAGNUMSMART CO2 | BS | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
285200MS Request information | | MAGNUMSMART CO2 | UNI-BS-NF-SS-MIE | G1/4 | 200 | 4 | 32 | D | 1 | 1 | |
286209MS Request information |  | MAGNUMSMART CO2 | NEN | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
286204MS Request information |  | MAGNUMSMART CO2 | SS | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
286250MS Request information |  | MAGNUMSMART ARGON | UNI-CGA | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
286251MS Request information | | MAGNUMSMART CO2/ARGON | DIN | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
286253MS Request information |  | MAGNUMSMART ARGON | BS | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
285250MS Request information | | MAGNUMSMART CO2 | UNI-BS-NF-SS-MIE | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
286259MS Request information |  | MAGNUMSMART ARGON | NEN | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |
286254MS Request information |  | MAGNUMSMART ARGON | SS | G3/8 | 300 | 4 | 32 | D | 1 | 1 | -- |

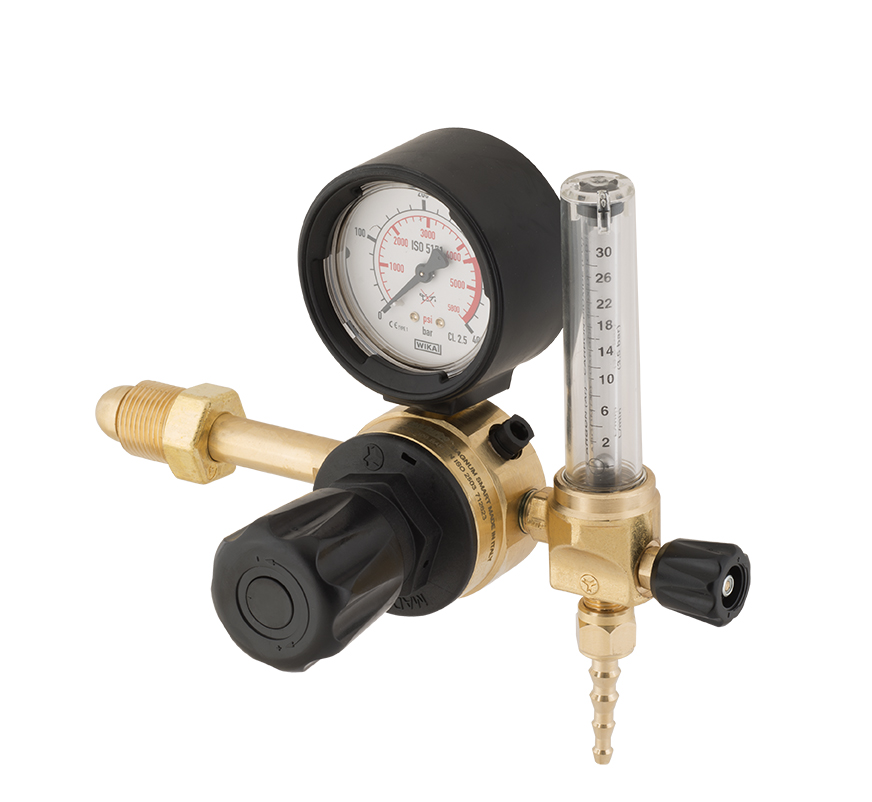

MAGNUMSMART WITH FLOWMETER - CO2
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART WITH FLOWMETER - CO2
Magnumsmart regulators with flow meter are available in the version with a 0-4 bar pressure regulation knob for greater flexibility in welding jobs that, in addition to regulating the gas flow, require it to be delivered at higher or lower pressures than the normal fixed factory setting of 3.5 bar..
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
285400.98 Request information |  | MAGNUMSMART CO2 +FLUX G1/4 | UNI-BS-NF-SS-MIE | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
286401.98 Request information |  | MAGNUMSMART CO2/ARGON +FLUX | DIN | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
286409.98 Request information |  | MAGNUMSMART CO2/ARGON +FLUX | NEN | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
285405.98 Request information |  | MAGNUMSMART CO2/ARGON +FLUX | CGA | G1/4 | 300 | 4 | 32 | D | 1 | 1 | -- |
MAGNUMSMART WITH FLOWMETER - ARGON
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART WITH FLOWMETER - ARGON
Magnumsmart regulators with flow meter are available in the version with a 0-4 bar pressure regulation knob for greater flexibility in welding jobs that, in addition to regulating the gas flow, require it to be delivered at higher or lower pressures than the normal fixed factory setting of 3.5 bar..
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
286400.98 Request information |  | MAGNUMSMART ARGON | UNI-CGA | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
286401.98 Request information | | MAGNUMSMART CO2/ARGON +FLUX | DIN | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
286403.98 Request information |  | MAGNUMSMART ARGON | BS | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
285400.98 Request information | | MAGNUMSMART CO2 +FLUX G1/4 | UNI-BS-NF-SS-MIE | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
286409.98 Request information | | MAGNUMSMART CO2/ARGON +FLUX | NEN | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |
286404.98 Request information |  | MAGNUMSMART CO2/ARGON +FLUX | SS | G1/4 | 300 | 4 | 32 | D | 0 | 1 | -- |

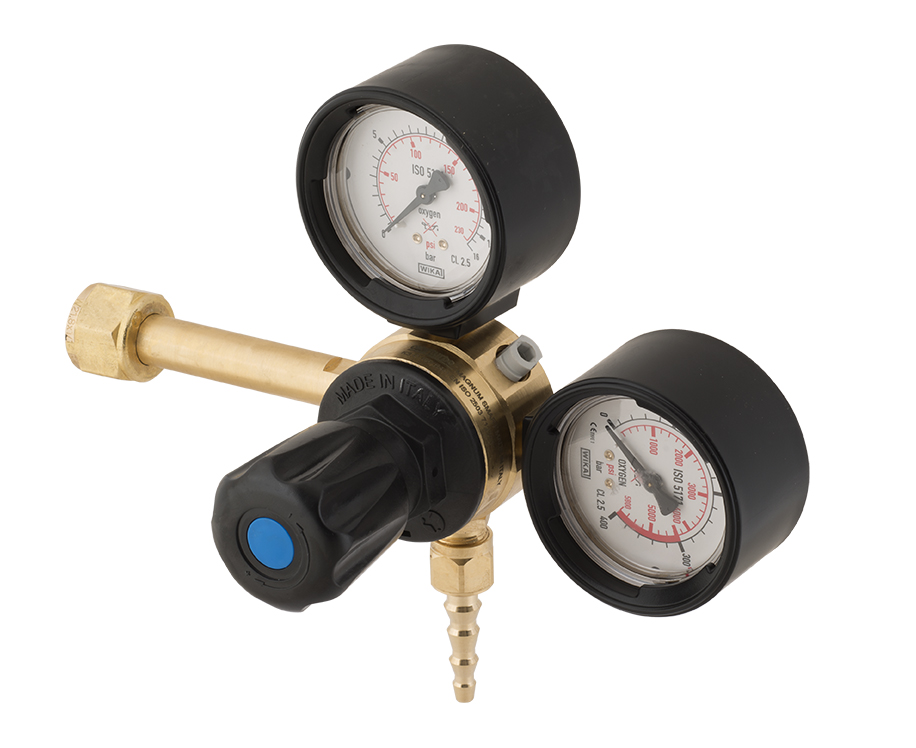

MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - OXYGEN
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - OXYGEN
These regulators are particularly suitable for use on rechargeable cylinders for oxy-cutting work. In the acetylene version, they are available with two different types of cylinder attachment depending on the different needs of the user: with bullnose, nut or with yoke. The colored label on the knob identifies the gas used. The oxygen version guarantees an output flow rate of 40 m3/h, allowing cutting operations on very high thicknesses (35-40cm/14 inches of steel) and is Apragaz certified.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
280200MS Request information |  | MAGNUMSMART OXIGEN | UNI-SS | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280201MS Request information |  | MAGNUMSMART OXIGEN | DIN | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280203MS Request information |  | MAGNUMSMART OXIGEN | BS-NF-NEN-MIE | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280250MS Request information |  | MAGNUMSMART OXYGEN | UNI-SS | G3/8 | 20012,5 | 10 | 40 | D | 1 | 1 | -- |
280251MS Request information |  | MAGNUMSMART OXIGEN | DIN | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280253MS Request information |  | MAGNUMSMART OXIGEN | BS-NF-NEN-MIE | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280293MS Request information |  | MAGNUMSMART OXIGEN | NF | 9/16" | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280295MS Request information |  | MAGNUMSMART OXIGEN | CGA | M16x1.5 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280283MS Request information |  | MAGNUMSMART OXIGEN | NF | 9/16" | 300 | 12,5 | 40 | D | 1 | 1 | -- |
280285MS Request information |  | MAGNUMSMART OXIGEN | CGA | M16x1.5 | 300 | 12,5 | 40 | D | 1 | 1 | -- |

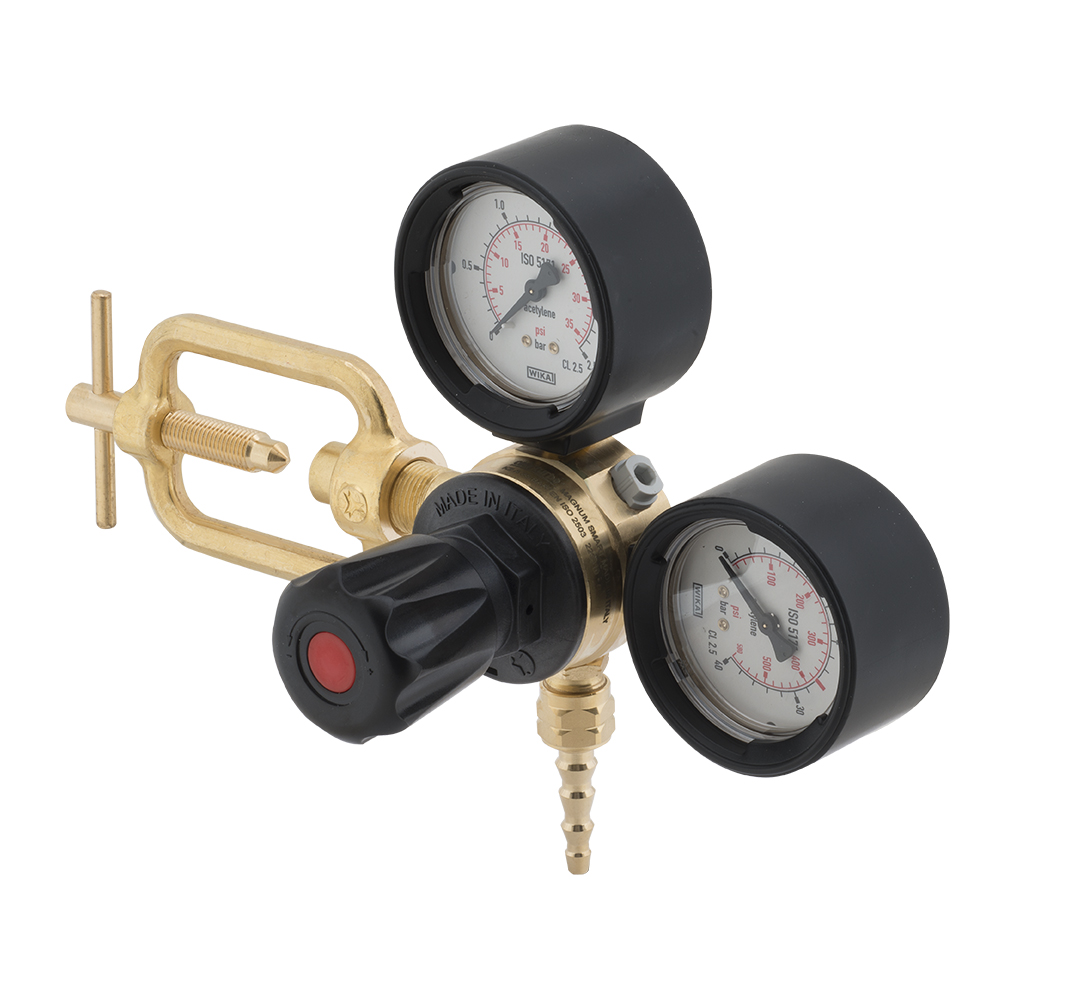

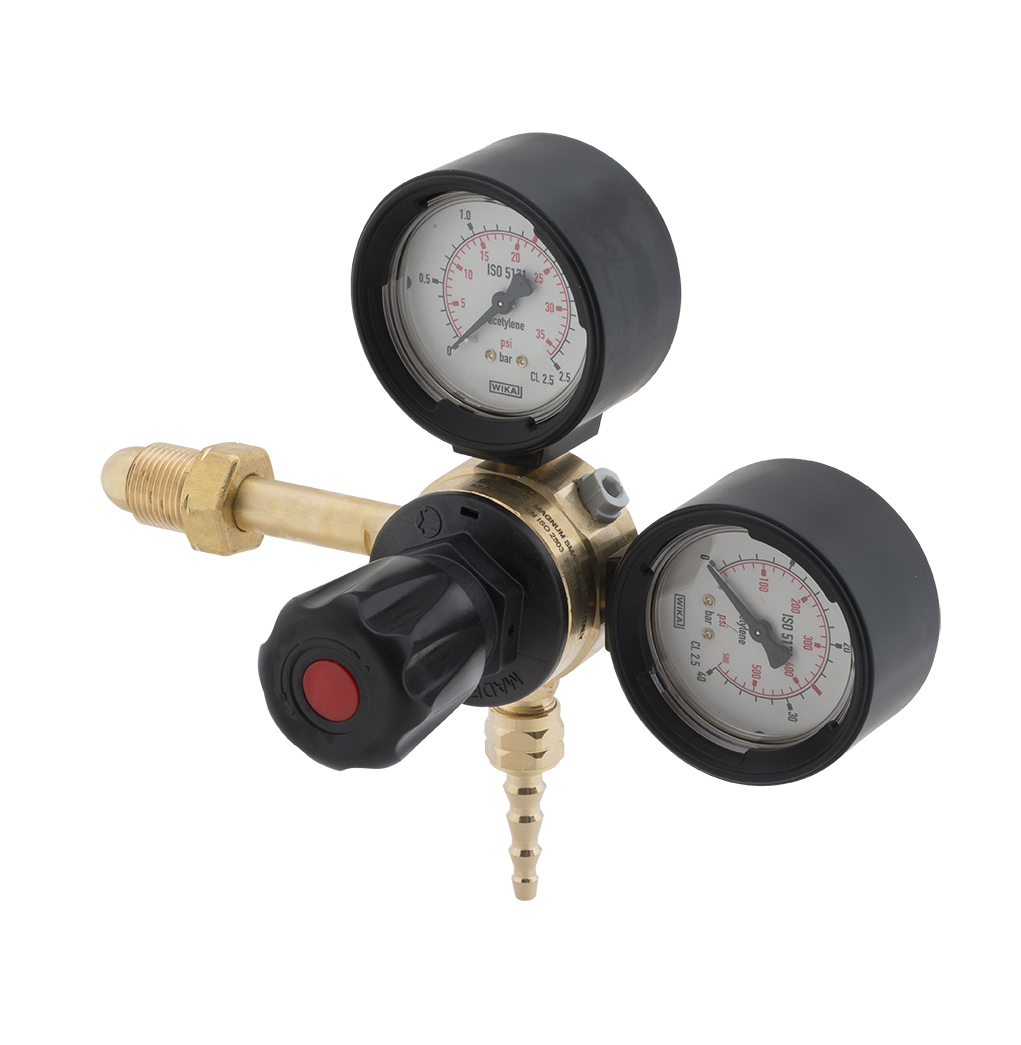

MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - ACETYLENE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - ACETYLENE
These regulators are particularly suitable for use on rechargeable cylinders for oxy-cutting work. In the acetylene version, they are available with two different types of cylinder attachment depending on the different needs of the user: with bullnose, nut or with yoke. The colored label on the knob identifies the gas used. The oxygen version guarantees an output flow rate of 40 m3/h, allowing cutting operations on very high thicknesses (35-40cm/14 inches of steel) and is Apragaz certified.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
281203MS Request information |  | MAGNUMSMART ACETYLENE W/Bullnose G1/4Lh | UNI-BS-NF-NEN-MIE | G1/4 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281204MS Request information |  | MAGNUMSMART ACETYLENE W/Bullnose G1/4Lh | SS | G1/4 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281253MS Request information |  | MAGNUMSMART ACETYLENE W/Bullnose | UNI-BS-NF-NEN-MIE | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281254MS Request information |  | MAGNUMSMART ACETYLENE W/Bullnose | SS | G3/8 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281200MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE G1/4L h | UNI-NF | G1/4 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281201MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE G1/4L h | DIN | G1/4 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281209MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE G1/4L h | NEN | G1/4 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281250MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE | UNI-NF | G3/8 | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281251MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE | DIN | G3/8 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281259MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE | NEN | G3/8 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281295MS Request information |  | MAGNUMSMART ACETYLENE W/Bullnose 9/16" | CGA | 9/16" LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281283MS Request information |  | MAGNUMSMART ACETYLENE W/Bullnose M16x1.5 Lh | NF | M16x1.5 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |
281280MS Request information |  | MAGNUMSMART ACETYLENE W/YOKE M16x1.5 Lh | NF | M16x1.5 LH | 25 | <1,5 | 5 | D | 1 | 1 | -- |

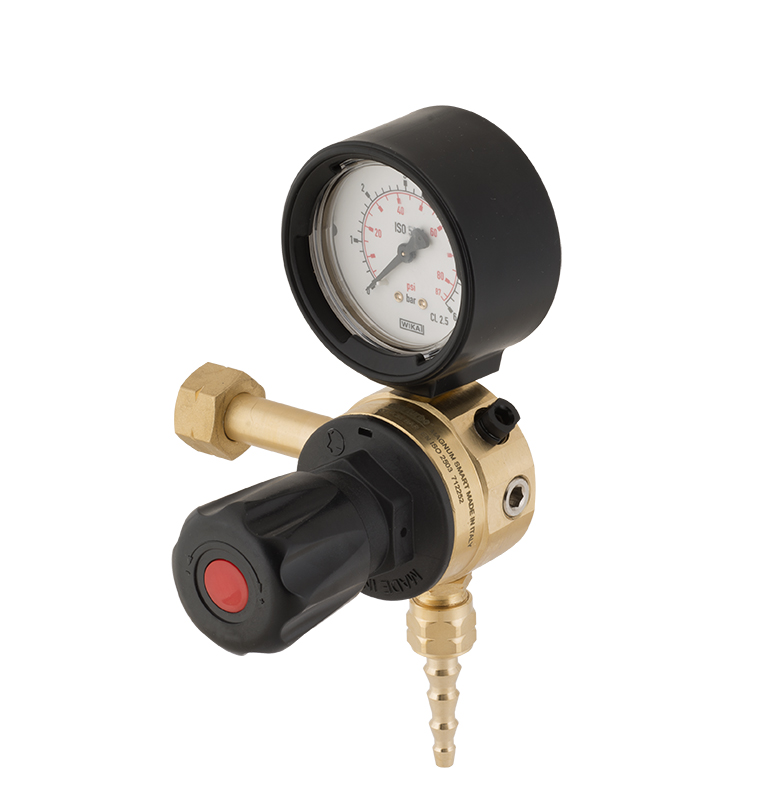

MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - PROPANE
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART FOR OXYGEN/ACETYLENE/PROPANE - PROPANE
These regulators are particularly suitable for use on rechargeable cylinders for oxy-cutting work. In the acetylene version, they are available with two different types of cylinder attachment depending on the different needs of the user: with bullnose, nut or with yoke. The colored label on the knob identifies the gas used. The oxygen version guarantees an output flow rate of 40 m3/h, allowing cutting operations on very high thicknesses (35-40cm/14 inches of steel) and is Apragaz certified.
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
282300MS Request information |  | MAGNUMSMART PROPANO | UNI | G1/4 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282301MS Request information |  | MAGNUMSMART PROPANO | DIN-NF-SS-MIE | G1/4 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282303MS Request information |  | MAGNUMSMART PROPANO | BS | G1/4 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282309MS Request information |  | MAGNUMSMART PROPANO | NEN | G1/4 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282350MS Request information |  | MAGNUMSMART PROPANE 1 GAUGE L.P. | UNI | G3/8 | 25 | 4 | 5 | D | 1 | 1 | -- |
282351MS Request information |  | MAGNUMSMART PROPANO | DIN-NF-SS-MIE | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282353MS Request information |  | MAGNUMSMART PROPANO | BS | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282359MS Request information |  | MAGNUMSMART PROPANO | NEN | G3/8 LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282395MS Request information |  | MAGNUMSMART PROPANO | CGA | 9/16" LH | 25 | 4 | 5 | D | 1 | 1 | -- |
282381MS Request information |  | MAGNUMSMART PROPANO | NF | M16x1.5 LH | 25 | 4 | 5 | D | 1 | 1 | -- |

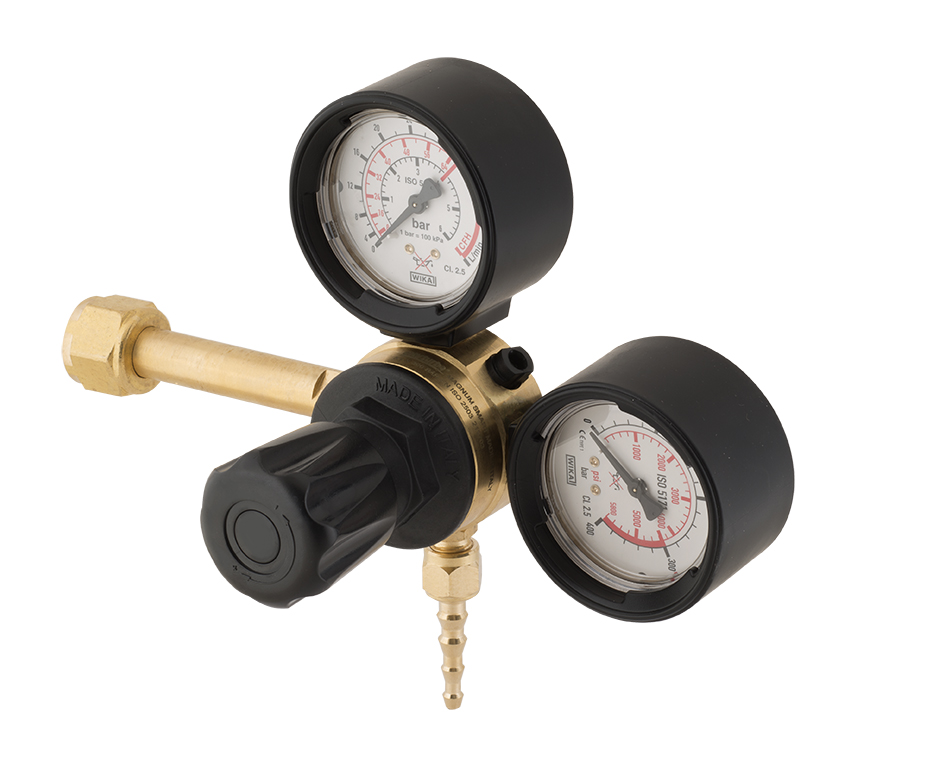

MAGNUMSMART FOR NITROGEN
PRESSURE REGULATORS FOR RECHARGEABLE CYLINDERS - MAGNUMSMART - MAGNUMSMART FOR NITROGEN
| Code | Image | Description | Normative | Outlet | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
284200MS Request information |  | MAGNUMSMART AZOTO | UNI | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284201MS Request information |  | MAGNUMSMART AZOTO | DIN | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284203MS Request information |  | MAGNUMSMART AZOTO | BS | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284202MS Request information |  | MAGNUMSMART AZOTO | NF-MIE | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284209MS Request information |  | MAGNUMSMART AZOTO | NEN | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284204MS Request information |  | MAGNUMSMART AZOTO | SS | G1/4 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284250MS Request information |  | MAGNUMSMART NITROGEN | UNI | G3/8 | 200 | 10 | 40 | D | 1 | 1 | -- |
284251MS Request information |  | MAGNUMSMART AZOTO | DIN | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284253MS Request information |  | MAGNUMSMART AZOTO | BS | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284252MS Request information |  | MAGNUMSMART AZOTO | NF-MIE | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284259MS Request information |  | MAGNUMSMART AZOTO | NEN | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284254MS Request information |  | MAGNUMSMART AZOTO | SS | G3/8 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284295MS Request information |  | MAGNUMSMART AZOTO | CGA | 9/16" | 300 | 12,5 | 40 | D | 1 | 1 | -- |
284282MS Request information |  | MAGNUMSMART AZOTO | NF | M16x1.5 | 300 | 12,5 | 40 | D | 1 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
