PRESSURE REGULATORS FOR DISPOSABLE CYLINDERS

MIGNON

MIGNON

Small regulators with high performance for CO2 / Argon / Mix for use with disposable cylinders


Even the small size of these regulators still manages to offer high performance:


- Safety valve in accordance with standard EN ISO 2503
- High resistance integrated capsule with mechanical lock
- Unremovable pressure adjusting knob
- Mechanical locking system on cylinder to preserve OR sealing
Reliable and safe, equipped with overpressure exhaust device and high and/or low pressure 40 diameter pressure gauges.
The outlet is a push-fit connection for 4mm Rilsan(R) type pipe.


SMALL BUT EFFICIENT
Their size allows them to be widely used in small spaces without affecting their efficiency.

Use

Regulators built for intermediate pressures (110 bar) with disposable cylinders for MIG/MAG welding machines up to 6 liters/min.


SMALL BUT EFFICIENT
Their size allows for extensive use even in small spaces without compromising their efficiency. Entirely designed and manufactured in Italy, under ISO 9001 quality certification, available in versions with two pressure gauges, one pressure gauge, and without pressure gauges.

Certificates


MIGNON FOR MIG/MAG WELDING WITH DISPOSABLE CYLINDERS

PRESSURE REGULATORS FOR DISPOSABLE CYLINDERS - MIGNON - MIGNON FOR MIG/MAG WELDING WITH DISPOSABLE CYLINDERS

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Outlet Class K P1 (bar) P2 (bar) Q1 (m³/h) Availability Weight (kg) No. of pcs Product sheet

225200

Request information
MIGNON
 MIGNON CO2 – ARGON –MIX 2 GAUGES M10X1RH 1 110 4 6 D 0 1
--

225300

Request information
MIGNON

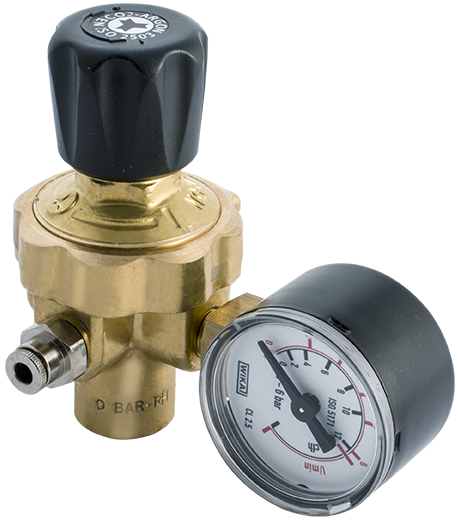

 MIGNON CO2 – ARGON – MIX GAUGE L.P. M10X1RH 1 110 4 6 D 0 1
--

225100

Request information
MIGNON
 MIGNON CO2 – ARGON – MIX GAUGE H.P. M10X1RH 1 110 4 6 D 0 1
--

225000

Request information
MIGNON

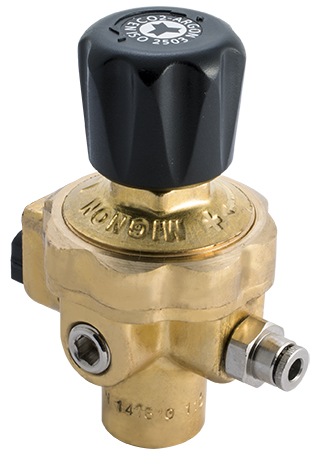

 MIGNON CO2 – ARGON – MIX NO GAUGE M10X1RH 1 110 4 6 D 0 1
--

MIGNON NITROGEN FOR SPECIAL APPLICATIONS

PRESSURE REGULATORS FOR DISPOSABLE CYLINDERS - MIGNON - MIGNON NITROGEN FOR SPECIAL APPLICATIONS

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Outlet Class K P1 (bar) P2 (bar) Q1 (m³/h) Availability Weight (kg) No. of pcs Product sheet

324280

Request information
MIGNON
 MIGNON Nitrogen 2 gauges -- 1 150 10 <1 D 0 1
--

324380

Request information
MIGNON
 MIGNON Nitrogen L.P. gauge -- 1 150 10 <1 D 0 1
--

324180

Request information
MIGNON
 MIGNON Nitrogen H.P. gauge -- 1 150 10 <1 D 0 1
--

324080

Request information
MIGNON
 MIGNON Nitrogen no gauges -- 1 150 10 <1 D 0 1
324080_ENG.pdf

Technical questions and evidence

How can I compare the available variants?

Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.

Which supporting documents are available?

The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.

How do I verify compatibility with my application?

Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
