Products
OXYKLYMA
KLYMA KIT SERIES
KLYMA KIT SERIES
Practical kits containing all the equipment you’ll need for checking and maintaining air conditioning systems.
The term flushing means the removal using fluid transport of contaminants of various natural bodies present within piping and/or equipment. To achieve this result the carrier fluid is released into circulation by means of suitable pumps to meet these conditions ensuring that certain turbulent flow conditions are met and are suitable for transporting contaminants. Flushing operations mainly involve hydraulic and lubrication circuit piping.
HVAC is an English abbreviation, widely used in all fields of industry, which stands for Heating, Ventilating and Air Conditioning.
Characteristics
Use
- Pressure loss monitoring of HVAC and A/C systems
- HVAC and A/C system washing
- Flushing during welding in HVAC and A/C systems
- Pressure switch calibration testing
- Pressure gauge calibration testing
Product Sectors
KLYMA KIT 1000 - KLYMA KIT SERIES
KLYMA KIT 900 - KLYMA KIT SERIES
KLYMA KIT 800 - KLYMA KIT SERIES
KLYMA KIT 4000 - KLYMA KIT SERIES
KLYMA KIT 4500 - KLYMA KIT SERIES
KLYMA KIT 5000 - KLYMA KIT SERIES
KLYMA KIT 1000
OXYKLYMA - KLYMA KIT SERIES - KLYMA KIT 1000

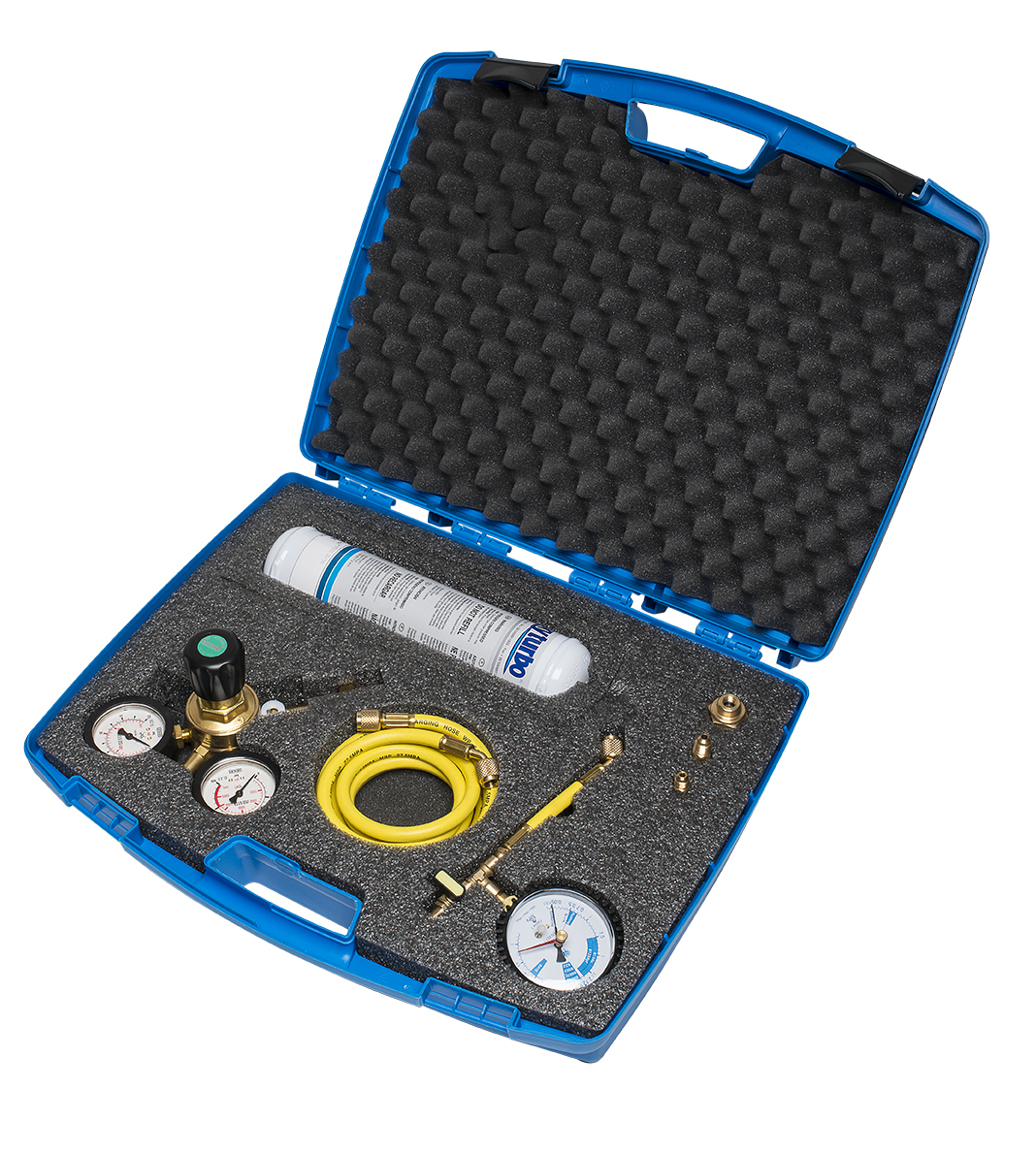

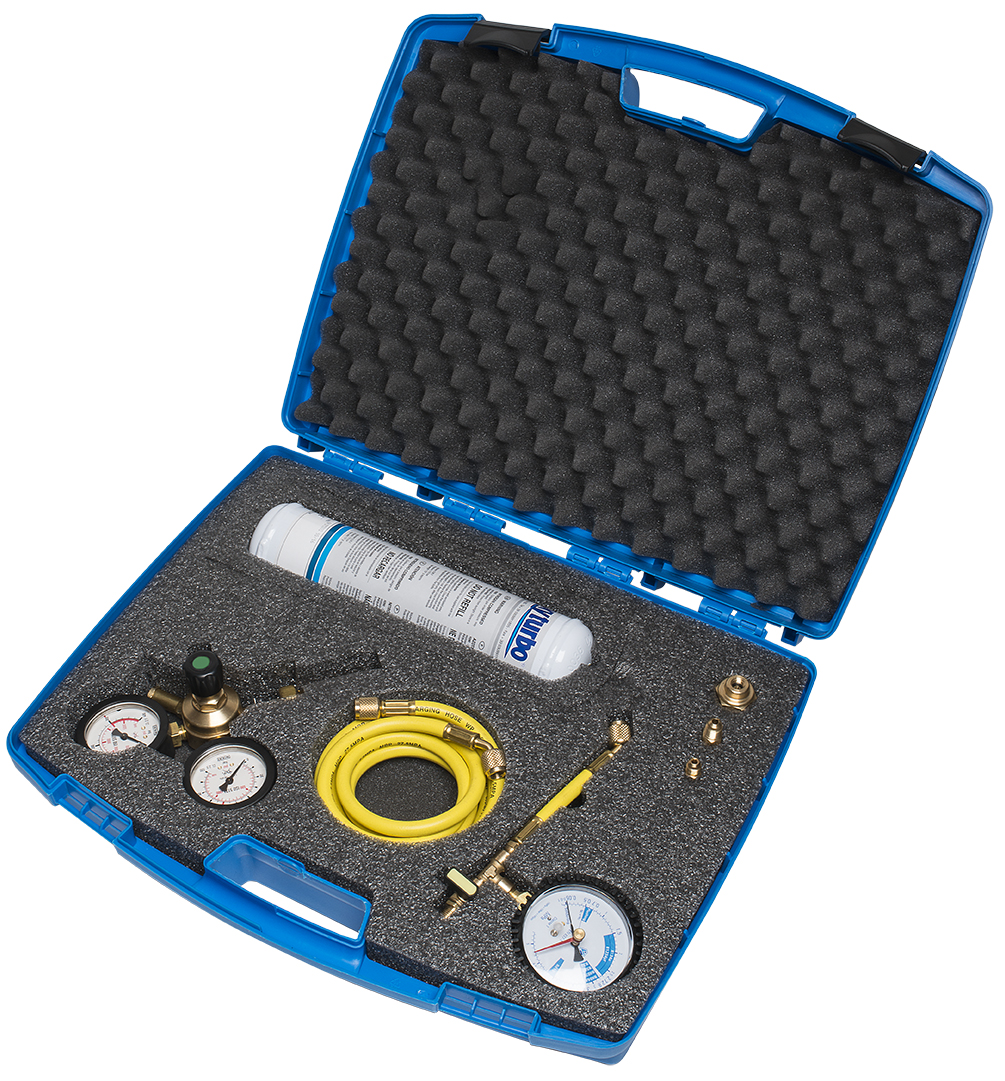

The professional equipment contained in the Klyma 1000 Kit allows for tightness testing of the system, together with its washing during any welding operations with slight nitrogen flushing. The case has been designed to hold, as required, a 2.2 litre nitrogen cylinder (supplied separately) in place of a 1-litre cylinder, by simply removing part of the inner die cut.
The Maxymum pressure regulator has a flow rate of 150 m3/h at a pressure of 60 bar.
EQUIPPED WITH:
- MAXYMUM 60 bar nitrogen pressure regulator
- Disposable 1L / 110 bar nitrogen cylinder
- 80 mm diameter, class 1.0 pressure gauge
- 1/4 SAE, 2500 mm flexible hose
- Adapter for disposable cylinder W21.8 F - M10x1 F
- 1/4 SAE F - 5/16 SAE M adapter
- 1/4 SAE M - 5/16 SAE F adapter.
| Code | Image | Description | Normative | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
KK1000.DE Request information | | KLYMA KIT 1000 | DIN-SS | D | 7 | 1 | -- |
KK1000.GB Request information |  | KLYMA KIT 1000 | BS | D | 7 | 1 | -- |
KK1000.FE Request information |  | KLYMA KIT 1000 | NF | D | 7 | 1 | -- |
KK1000.NL Request information |  | KLYMA KIT 1000 | NEN | D | 7 | 1 | -- |
KK1000.FR Request information |  | KLYMA KIT 1000 | MIE | D | 7 | 1 | -- |
KK1000.US Request information |  | KLYMA KIT 1000 | CGA | D | 7 | 1 | -- |
KK1000 Request information |  | KLYMA KIT 1000 | UNI | D | 7 | 1 | -- |
KLYMA KIT 900
OXYKLYMA - KLYMA KIT SERIES - KLYMA KIT 900

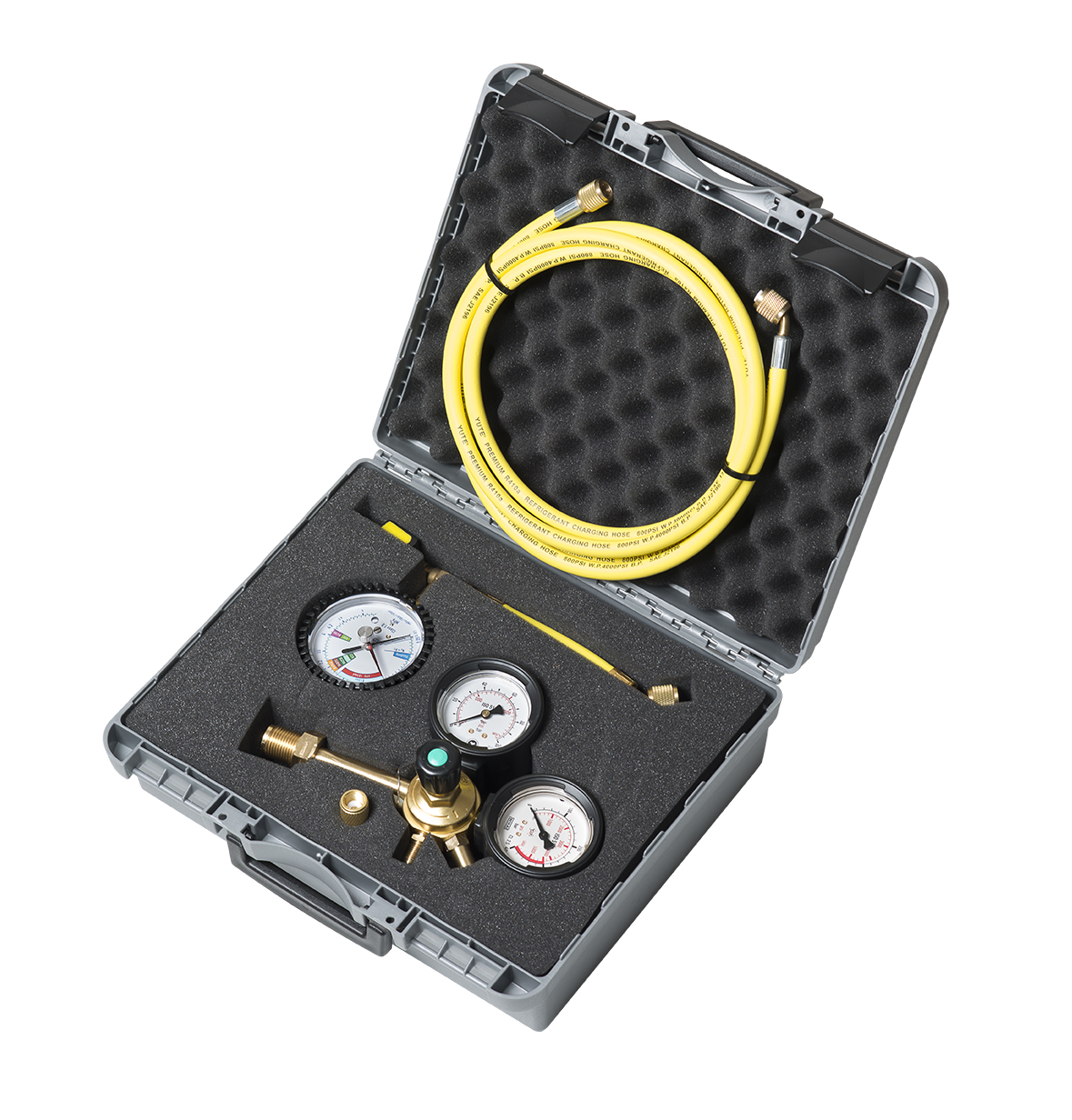

The Klyma Kit 900 comes with a shockproof case which encloses everything professionals need for conditioning system testing. The equipment contained in the case allows for tightness testing of the system as well as its washing during any welding operations with slight nitrogen flushing. The Klyma Kit 900 case has also been designed to contain, as needed, a 2.2 litre nitrogen cylinder (supplied separately) in place of a 1-litre cylinder, simply by removing a part of the inner die cut. The Major HP pressure regulator has a flow rate of 50 m3/h at a pressure of 60 bar.
EQUIPPED WITH:
- MAJOR HP 60 bar nitrogen pressure regulator
- Disposable 1 L / 110 bar nitrogen cylinder
- 80 mm diameter, class 1.0 pressure gauge
- 1/4 SAE, 2500 mm flexible hose
- Adapter for disposable cylinder W21.8 F - M10x1 F
- 1/4 SAE F - 5/16 SAE M adapter
- 1/4 SAE M - 5/16 SAE F adapter
| Code | Image | Description | Normative | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
KK900 Request information |  | KLYMA KIT 900 | UNI | D | 4 | 1 | -- |
KK900.DE Request information |  | KLYMA KIT 900 | DIN-SS | D | 4 | 1 | -- |
KK900.GB Request information |  | KLYMA KIT 900 | BS | D | 4 | 1 | -- |
KK900.FE Request information |  | KLYMA KIT 900 | NF | D | 4 | 1 | -- |
KK900.NL Request information |  | KLYMA KIT 900 | NEN | D | 4 | 1 | -- |
KK900.FR Request information |  | KLYMA KIT 900 | MIE | D | 4 | 1 | -- |
KK900.US Request information |  | KLYMA KIT 900 | CGA | D | 4 | 1 | -- |
KLYMA KIT 800
OXYKLYMA - KLYMA KIT SERIES - KLYMA KIT 800

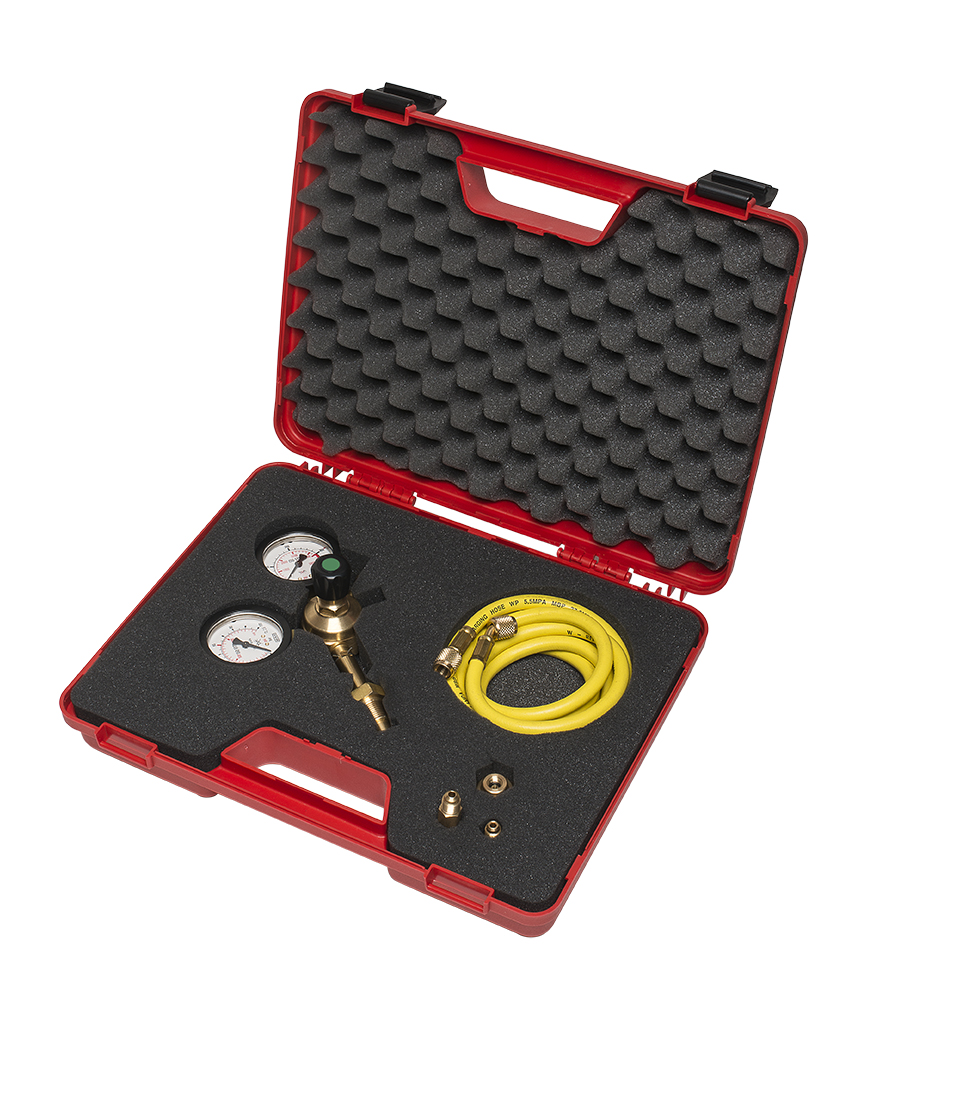

The Klyma Kit 800 has a practical polypropylene case which includes accessories for professional testing of air conditioning systems. The nitrogen cylinder is not supplied with the kit but is sold separately. The Major HP pressure regulator has a flow rate of 50 m3/h at a pressure of 60 bar.
EQUIPPED WITH:
- MAJOR HP 60 bar nitrogen pressure regulator
- 1/4 SAE, 2500 mm flexible hose
- Adapter for disposable cylinder W21.8 F - M10x1 F
- 5/16 SAE F - 1/4 SAE M adapter
- 5/16 SAE M - 1/4 SAE F adapter
| Code | Image | Description | Normative | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
KK800 Request information |  | KLYMA KIT 800 | UNI | R | 2 | 1 | -- |
KK800.DE Request information |  | KLYMA KIT 800 | DIN-SS | R | 4 | 1 | -- |
KK800.GB Request information |  | KLYMA KIT 800 | BS | R | 4 | 1 | -- |
KK800.FE Request information |  | KLYMA KIT 800 | NF | R | 4 | 1 | -- |
KK800.NL Request information |  | KLYMA KIT 800 | NEN | R | 4 | 1 | -- |
KK800.FR Request information |  | KLYMA KIT 800 | MIE | R | 4 | 1 | -- |
KK800.US Request information |  | KLYMA KIT 800 | CGA | R | 4 | 1 | -- |
KLYMA KIT 4000
OXYKLYMA - KLYMA KIT SERIES - KLYMA KIT 4000
Kit in polypropylene case to have everything needed close at hand for the testing and filling of HVAC and A/C systems. It contains a MAJOR HP 60 bar regulator and a series of accessories for use with a rechargeable nitrogen or azoidro cylinder. (Azoidro = 95% N2, 5% H2)
EQUIPPED WITH:
- MAJOR HP 60 bar nitrogen pressure regulator
- Pressure gauge ø 80mm class 1.0 connected with pipe and valve
- 1/4 SAE flexible hose, L=2500mm
- Adapter 5/16 SAE F - 1/4 SAE M
| Code | Image | Description | Normative | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
KK4000 Request information |  | KLYMA KIT 4000 | UNI | D | 2 | 1 | -- |
KK4000.DE Request information |  | KLYMA KIT 4000 | DIN-SS | D | 2 | 1 | -- |
KK4000.GB Request information |  | KLYMA KIT 4000 | BS | D | 2 | 1 | -- |
KK4000.FE Request information |  | KLYMA KIT 4000 | NF | D | 2 | 1 | -- |
KK4000.NL Request information |  | KLYMA KIT 4000 | NEN | D | 2 | 1 | -- |
KK4000.FR Request information |  | KLYMA KIT 4000 | MIE | D | 2 | 1 | -- |
KK4000.US Request information |  | KLYMA KIT 4000 | CGA | D | 2 | 1 | -- |
KLYMA KIT 4500
OXYKLYMA - KLYMA KIT SERIES - KLYMA KIT 4500

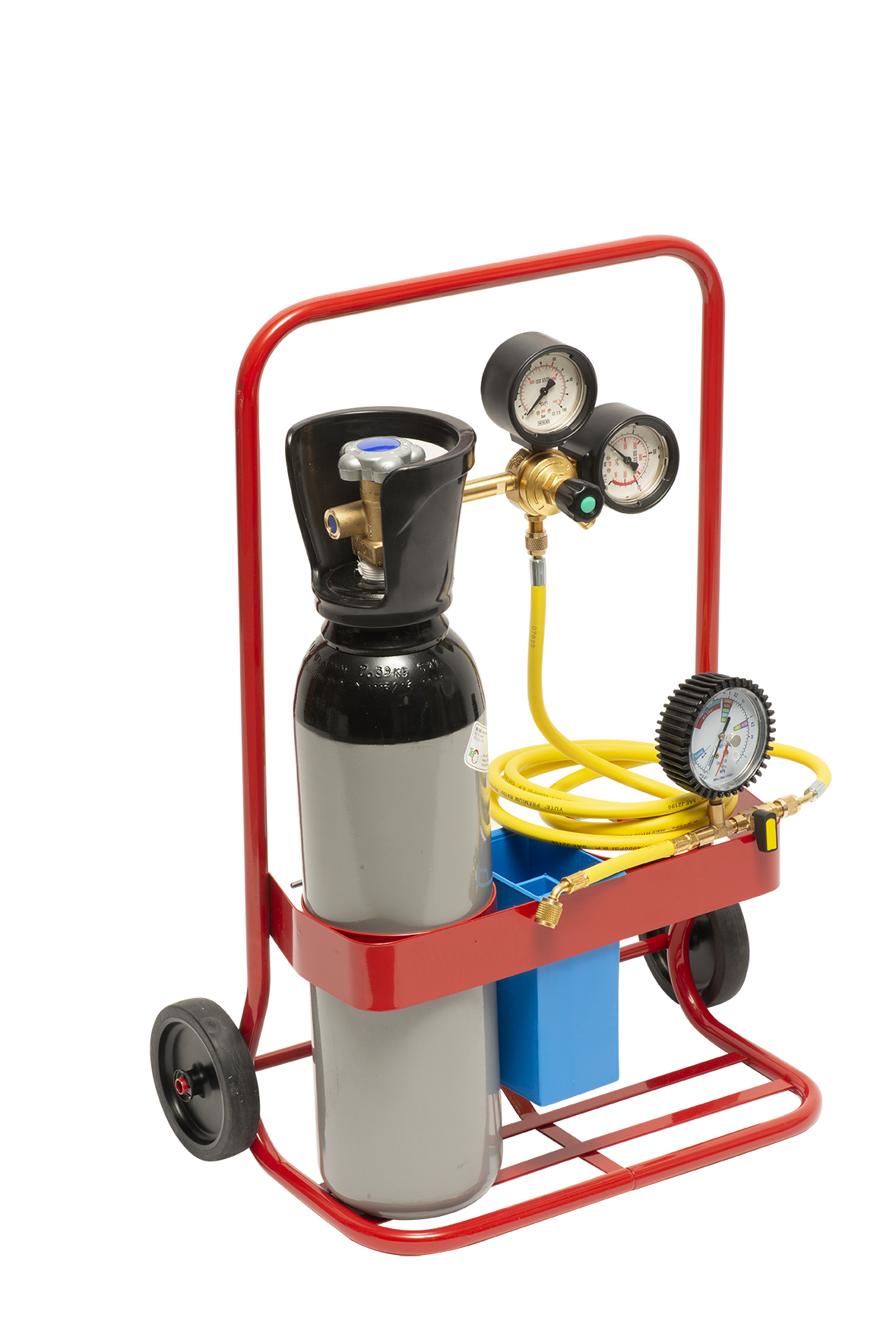

A practical kit for testing air conditioning systems in a wheeled trolley essential for easily transporting the 5-litre cylinder of rechargeable nitrogen and the 2-litre cylinder of refrigerant gas (not included), supplied with a MAJOR HP pressure regulator with small dimensions. Also equipped with a dedicated tray for fittings and everything the user needs to have on hand.
The 5-litre nitrogen cylinder is of non-EU origin and comes with a regular certificate of conformity.
EQUIPPED WITH:
- MAJOR HP nitrogen pressure regulator
- rechargeable nitrogen cylinder 5 lt - 200 bar extra EU
- Flexible hose 1/4 SAE L=2500mm
- Pressure gauge Ø 80mm class 1.0 connected with hose and valve - Fitting 1/4 SAE M - 5/16 SAE F
| Code | Image | Description | Normative | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
KK4500 Request information |  | KLYMA KIT 4500 | UNI | D | 14 | 1 | -- |
KK4500.DE Request information |  | KLYMA KIT 4500 | DIN-SS | D | 14 | 1 | -- |
KK4500.GB Request information |  | KLYMA KIT 4500 | BS | D | 14 | 1 | -- |
KK4500.FE Request information |  | KLYMA KIT 4500 | NF | D | 14 | 1 | -- |
KK4500.NL Request information |  | KLYMA KIT 4500 | NEN | D | 14 | 1 | -- |
KK4500.FR Request information |  | KLYMA KIT 4500 | MIE | D | 14 | 1 | -- |
KK4500.US Request information |  | KLYMA KIT 4500 | CGA | D | 14 | 1 | -- |
KLYMA KIT 5000
OXYKLYMA - KLYMA KIT SERIES - KLYMA KIT 5000

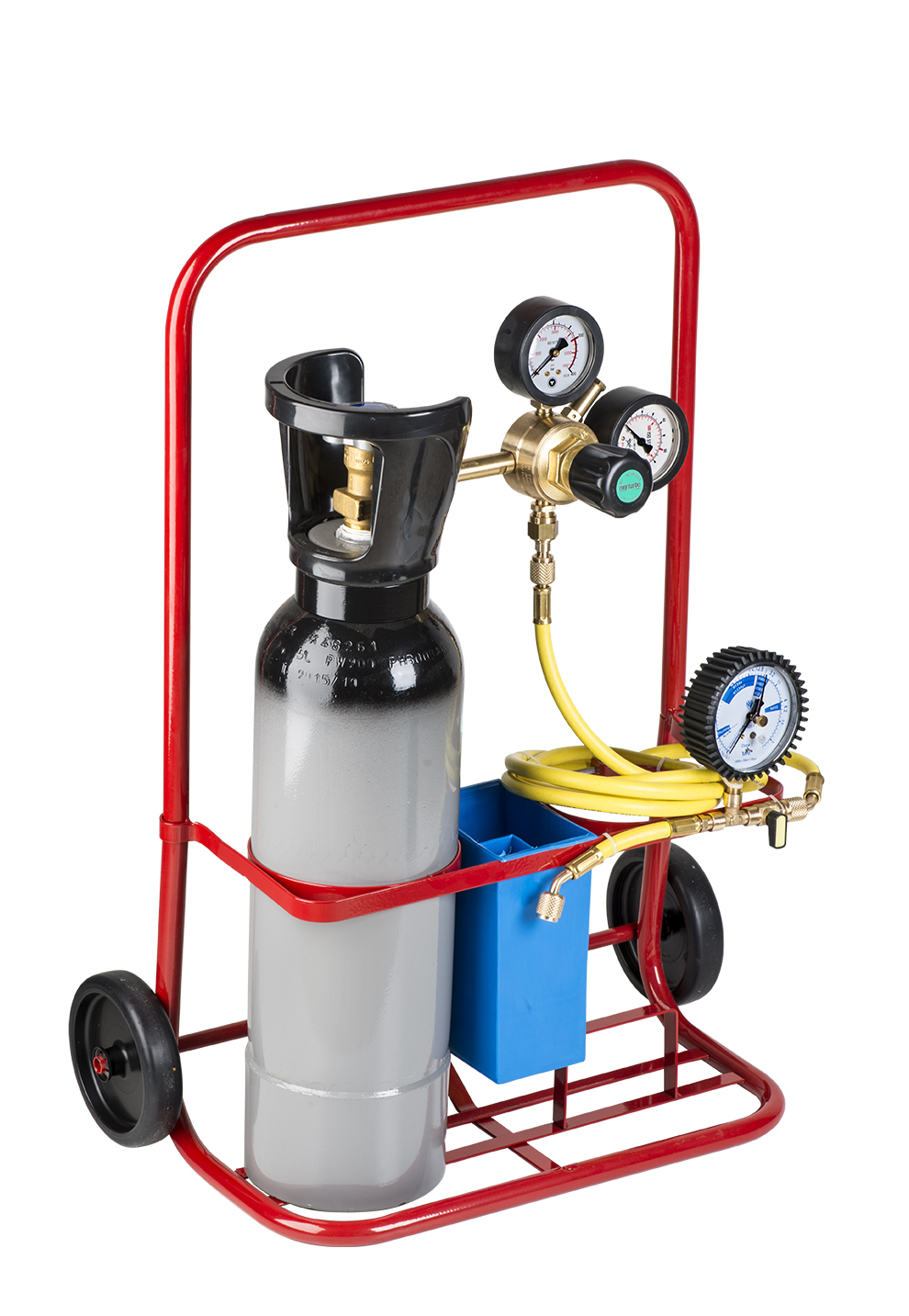

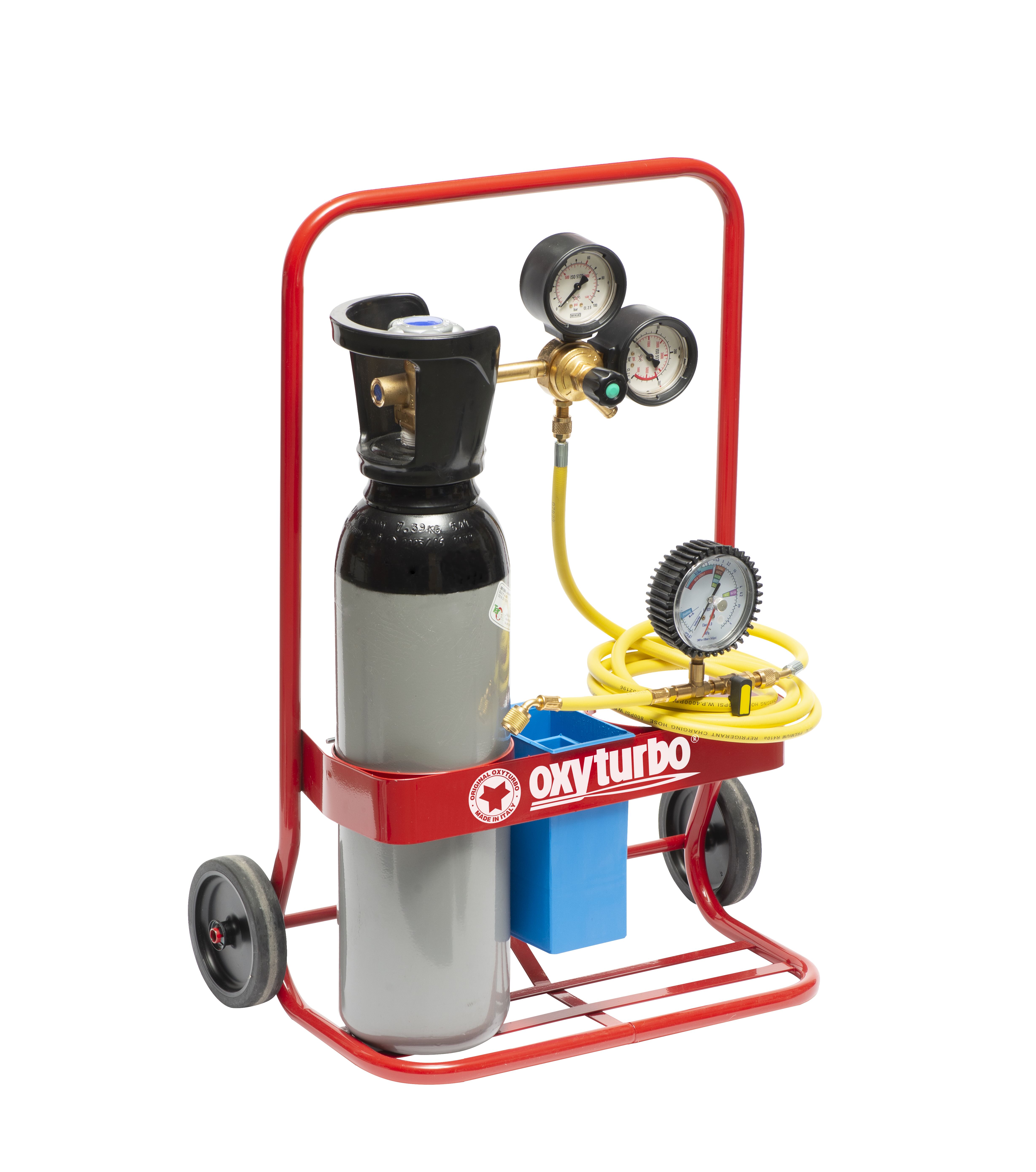

The kit with practical trolley with wheels to easily transport with ease the 5-liter rechargeable nitrogen cylinder and the possible 2-liter refrigerant gas cylinder (not included), supplied with a MAJOR HP pressure regulator of small dimensions. Also equipped with a dedicated tray for the connections and everything the user needs to have at hand.
EQUIPPED WITH:
- MAXYMUM 60 bar nitrogen pressure regulator
- Rechargeable nitrogen cylinder 5 l - 200 bar
- Flexible hose 1/4 SAE L=2500mm
- Pressure gauge Ø 80mm class 1.0 connected with hose and valve
- Adapter fitting W21.8 F - M10x1 F
- Fitting kit 1/4 SAE F - 5/16 SAE M
- Fitting kit 1/4 SAE M - 5/16 SAE F
| Code | Image | Description | Normative | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
KK5000 Request information |  | KLYMA KIT 5000 | UNI | D | 15 | 1 | -- |
KK5000.DE Request information |  | KLYMA KIT 5000 | DIN-SS | D | 15 | 1 | -- |
KK5000.GB Request information |  | KLYMA KIT 5000 | BS | D | 15 | 1 | -- |
KK5000.FE Request information |  | KLYMA KIT 5000 | NF | D | 15 | 1 | -- |
KK5000.NL Request information |  | KLYMA KIT 5000 | NEN | D | 15 | 1 | -- |
KK5000.FR Request information |  | KLYMA KIT 5000 | MIE | D | 15 | 1 | -- |
KK5000.US Request information |  | KLYMA KIT 5000 | CGA | D | 15 | 1 | -- |
Frequently asked questions
How can I return a product or get a refund?
You can request a return for a product ordered by mistake within 5 days of delivery. The refund will be 80% of the product value, subject to verification of its condition and quality.
What are the delivery times?
Products marked D (available) are normally shipped within 48/72 hours. Products in class R (on request) are shipped according to the date stated in the order confirmation.
What warranties apply to the products?
Our warranty covers any manufacturing defect and provides:
- 36 months from delivery for all pressure regulators
- 24 months from delivery for all other products
- 12 months from delivery for all electric welding products
