KLYMA KIT 900

Products

OXYKLYMA

KLYMA KIT 900

KLYMA KIT 900

A new line of kits with Azoidro designed for verification and maintenance of the air conditioning systems in the automotive sector, available in versions with or without an electronic leak detector.


Oxyturbo offers a complete range of all the elements to allow you to test the car's climate control circuits.
This equipment, packed in handy and lightweight cases, is suitable for the detection of refrigerant leaks in A/C systems using an eco- friendly and non-flammable gas mixture
(Azoidro = 95% Nitrogen / 5% Hydrogen).

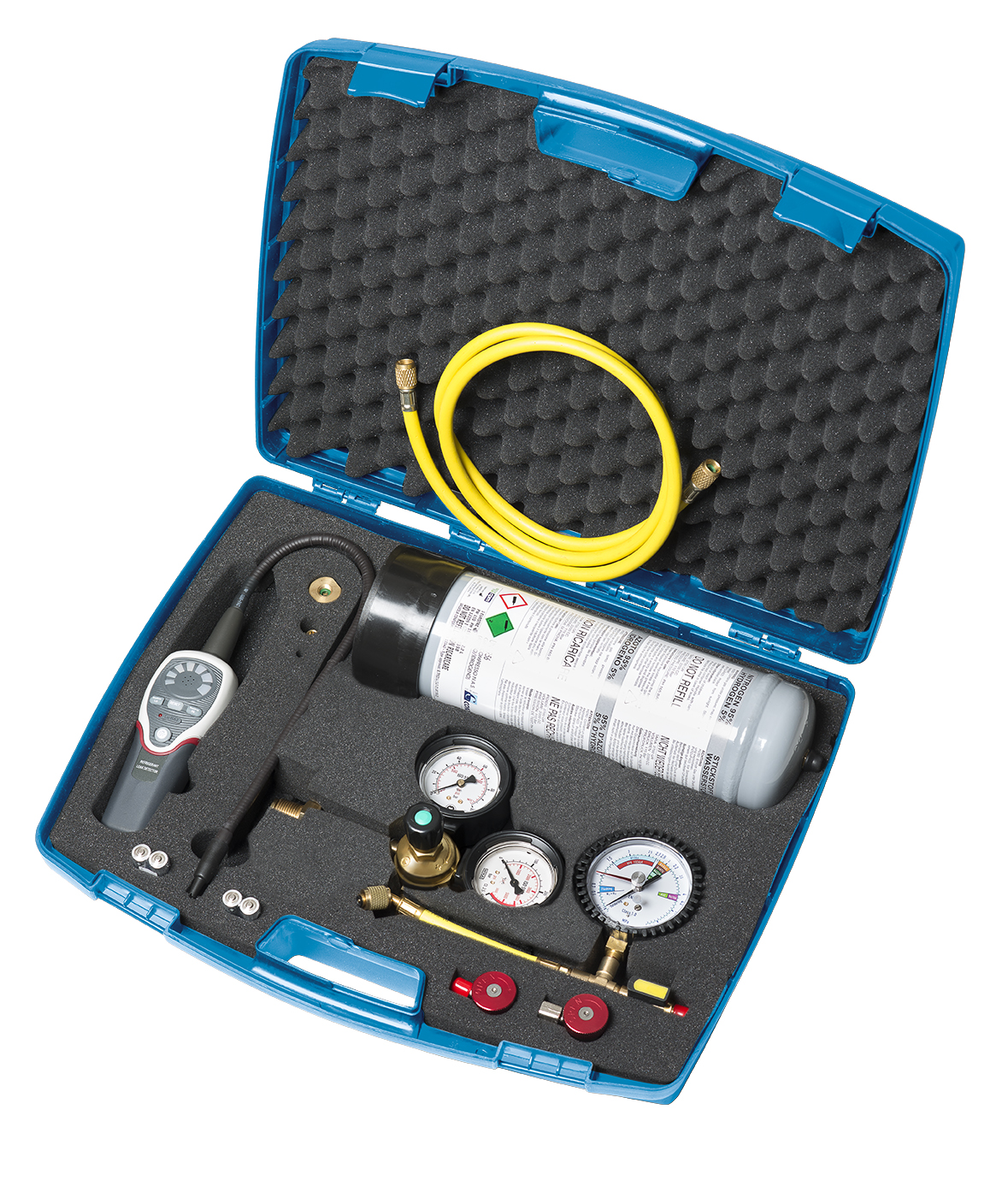

KLYMA KIT 900 AUTOMOTIVE COMPLET

OXYKLYMA - KLYMA KIT 900 - KLYMA KIT 900 AUTOMOTIVE COMPLET

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Normative Availability Weight (kg) No. of pcs Product sheet

KK900AC

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET UNI D 7 1
--

KK900AC.DE

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET DIN-SS D 7 1
--

KK900AC.GB

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET BS D 7 1
--

KK900AC.FR

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET NF-MIE D 7 1
--

KK900AC.NL

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET NEN D 7 1
--

KK900AC.US

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET CGA D 7 1
--

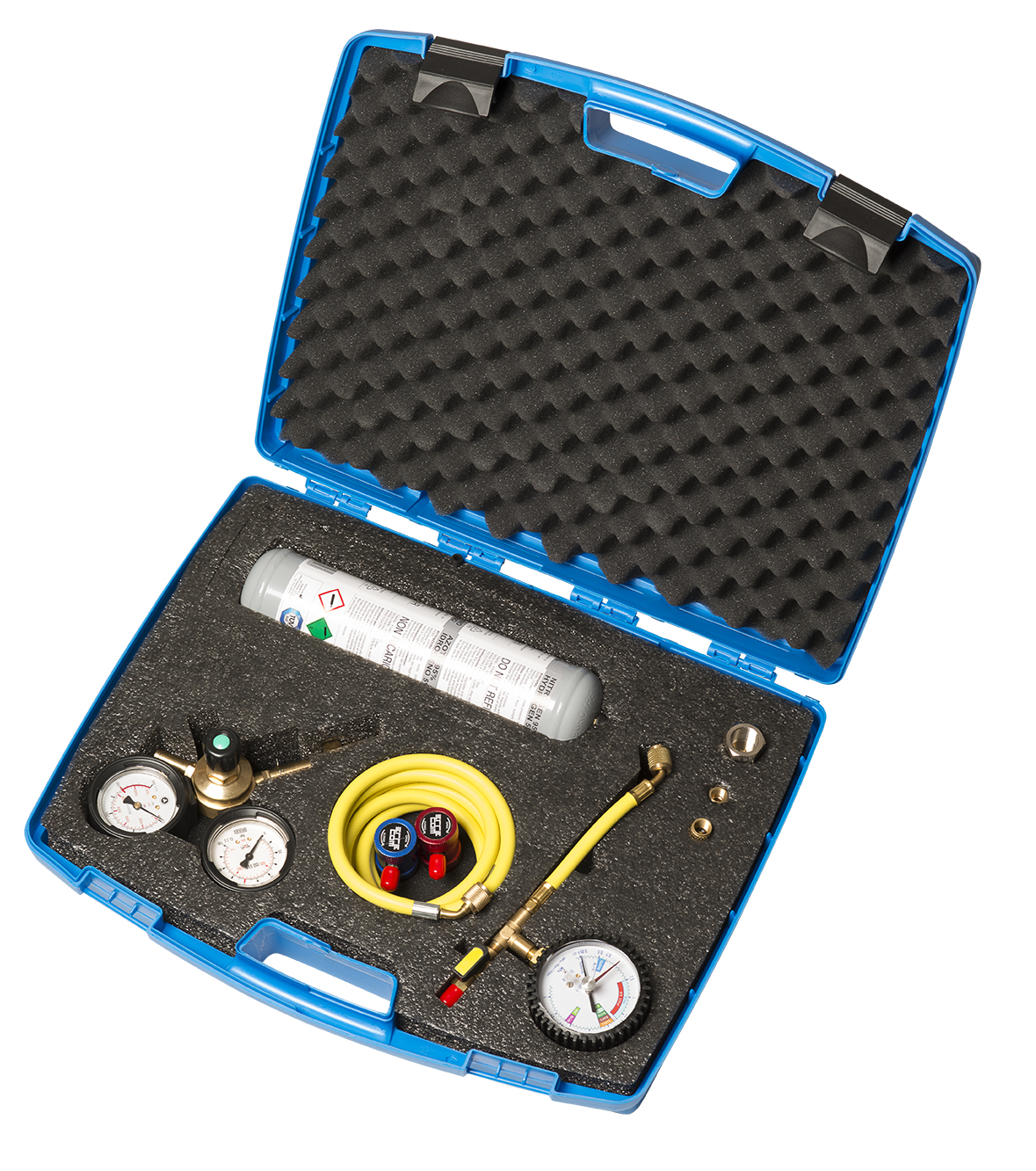

KLYMA KIT 900 AUTOMOTIVE

OXYKLYMA - KLYMA KIT 900 - KLYMA KIT 900 AUTOMOTIVE

A polypropylene case containing everything necessary for checking the air conditioning system of a car. The equipment it contains performs a leak test of the system. The case is also designed to contain, if required, a 2.2-litre azoidro cylinder (supplied separately) instead of the 1-litre version simply by removing a part of the internal casing. The Major HP pressure regulator has a flow rate of 50 m3/h at a pressure of 60 bar.


EQUIPPED WITH:
- MAJOR HP 60 bar pressure regulator
- Disposable azoidro cylinder 1litre – 110 bar
- Pressure gauge ø 80 mm class 1.0 with pipe
- Flexible hose 1/4 SAE, L=2500 mm
- Adapter W21.8F - M10x1 F
- Kit 1/4 SAE F – 5/16 SAE M fittings
- 1/4 SAE M – 5/16 SAE F fitting
- HP 1/4 SAE – R134 A quick coupler
- HP 1/4 SAE – R1234 YF quick coupler - M12X1.5 M
- M12x1.5M-1/4 SAE M adaptor and valve
Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Normative Availability Weight (kg) No. of pcs Product sheet

KK900I

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE UNI R 4 1
--

KK900I.DE

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET DIN-SS D 7 1
--

KK900I.GB

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET BS D 7 1
--

KK900I.FR

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET NF-MIE D 7 1
--

KK900I.NL

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET NEN D 7 1
--

KK900I.US

Request information
KLYMA KIT 900
 KLYMA KIT 900 AUTOMOTIVE COMPLET CGA D 7 1
--

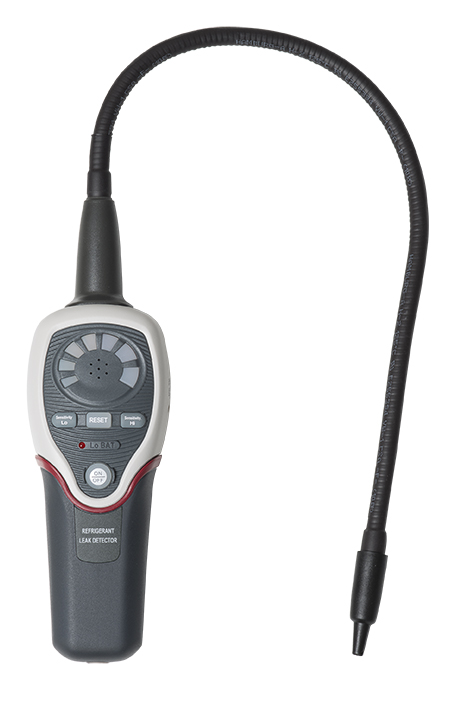

KLYMA KIT 007 - LEAK TESTER

OXYKLYMA - KLYMA KIT 900 - KLYMA KIT 007 - LEAK TESTER

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Availability Weight (kg) No. of pcs Product sheet

KK007

Request information
KLYMA KIT 900
 Klyma Kit 007 - Leak tester D 1 1
--

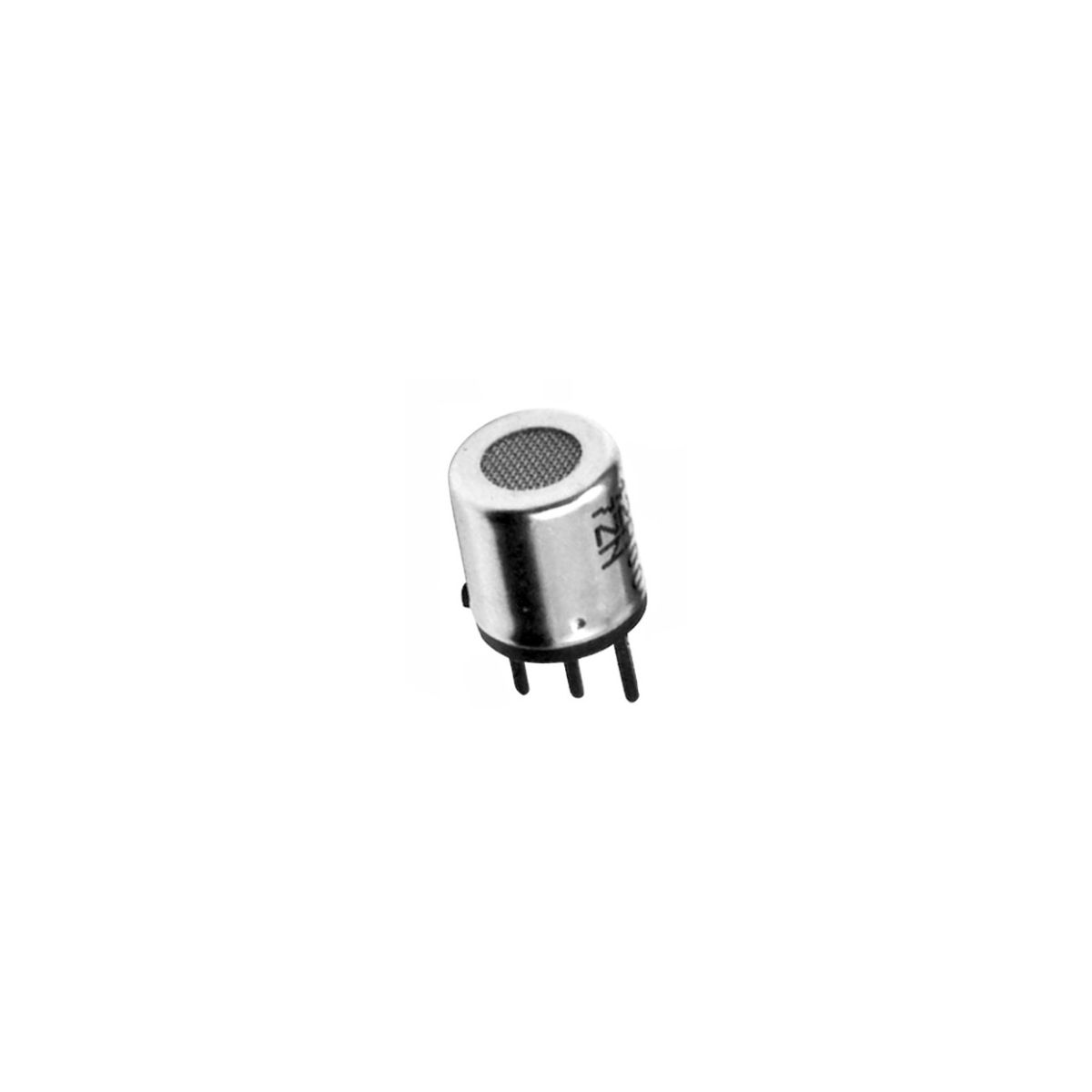

KK007.SENS

Request information
KLYMA KIT 900
 SPARE PART Sensor D 0 1
--

Technical questions and evidence

How can I compare the available variants?

Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.

Which supporting documents are available?

The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.

How do I verify compatibility with my application?

Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
