MIG/MAG WELDING
TW 4 TORCH
TW 4 TORCH
Characteristics
Use
Product Sectors
TW 4 TORCH
MIG/MAG WELDING - TW 4 TORCH - TW 4 TORCH
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

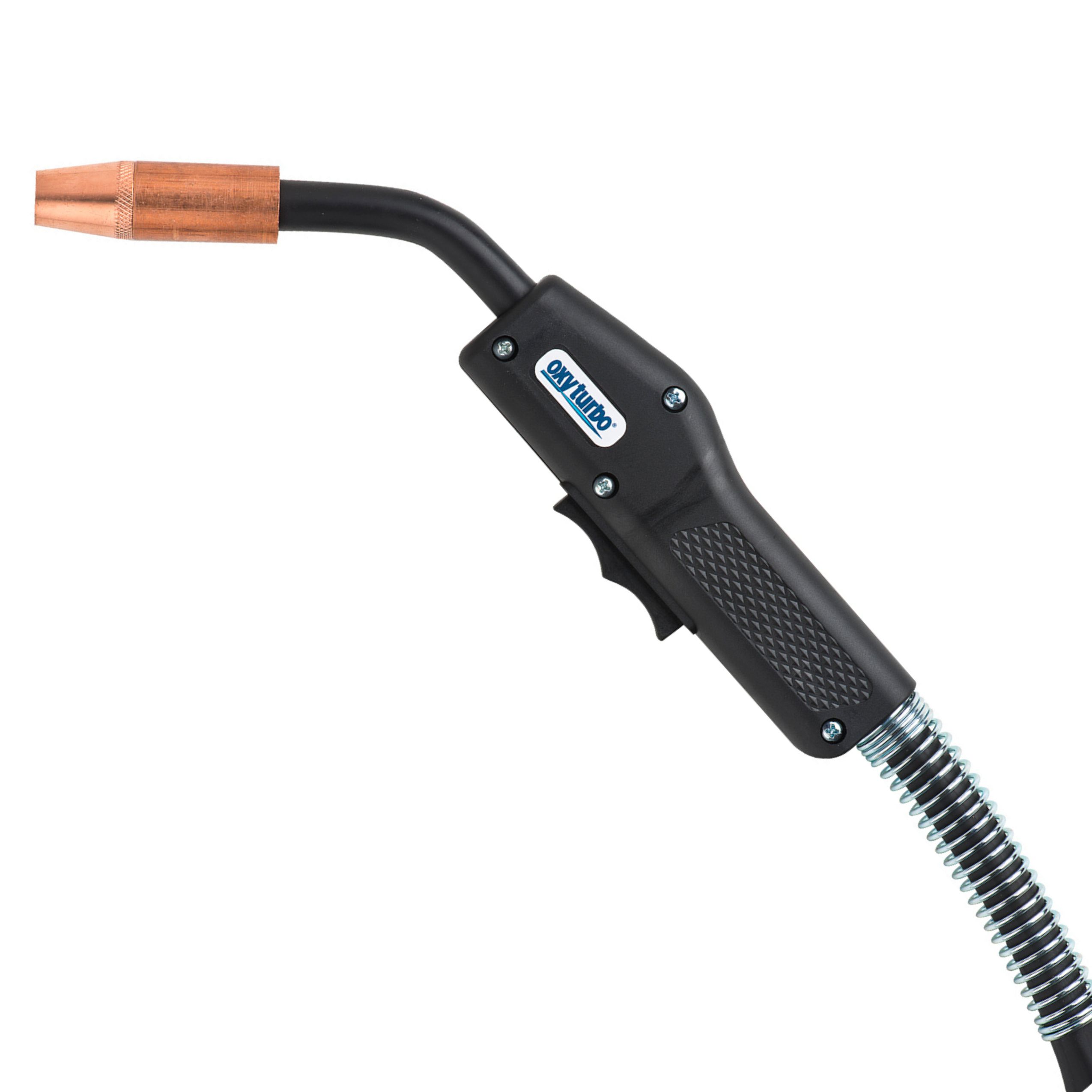

9T01430E Request information | | TW4 Torch 10 ft. Euro connection | R | 3 | 1 | -- |
9T01440E Request information |  | TW4 Torch 12 ft. Euro connection | R | 4 | 1 | -- |
9T01445E Request information |  | TW4 Torch 15 ft. Euro connection | R | 4 | 1 | -- |
TW 4 TORCH SPARE PARTS
MIG/MAG WELDING - TW 4 TORCH - TW 4 TORCH SPARE PARTS
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

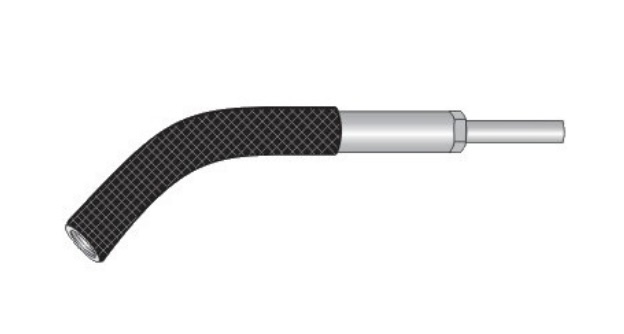

9T0164A60C Request information |  | Complete conductor tube 60° TW4 | 1 | D | 1 | -- |

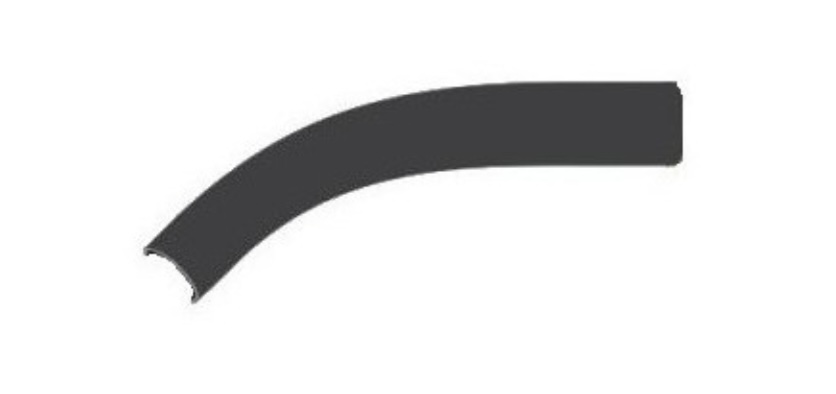

9T0174A Request information |  | Conductor tube insulation TW4 | 3 | D | 1 | -- |

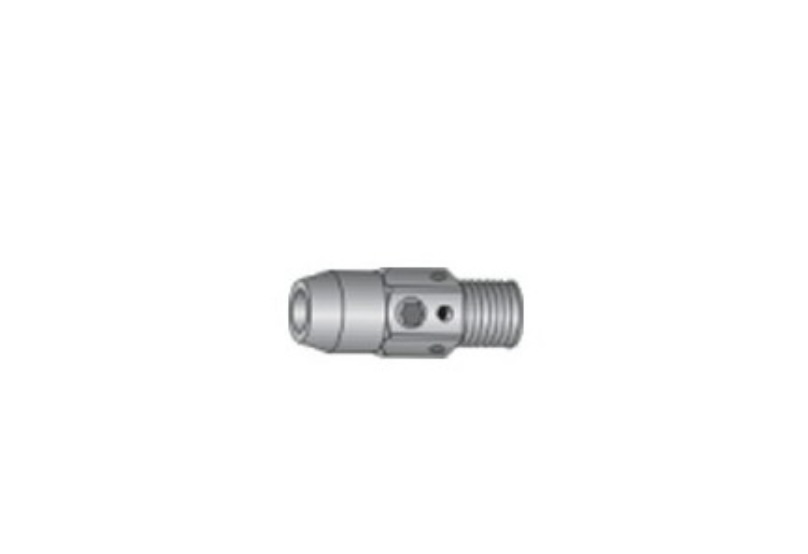

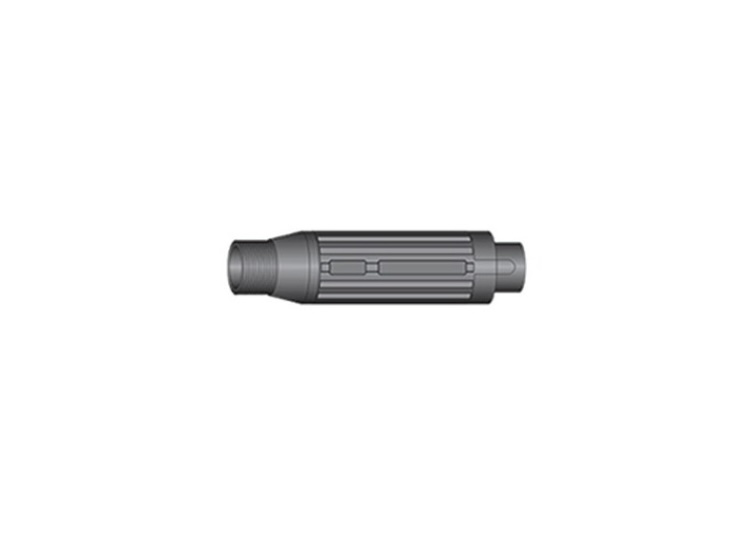

9T0154A Request information |  | Gas diffuser TW4 | 4 | D | 10 | -- |
9T0114H30C Request information |  | Contact tip ø 0.8 mm | 5 | D | 20 | -- |
9T0114H40C Request information |  | Contact tip ø 1.0 mm | 5 | D | 20 | -- |
9T0114H45C Request information |  | Contact tip ø 1.2 mm | 5 | D | 20 | -- |
9T0114H52C Request information |  | Contact tip ø 1.4 mm | 5 | D | 20 | -- |
9T0114H116C Request information |  | Contact tip ø 1.6 mm | 5 | D | 20 | -- |
9T0134CT Request information |  | Nozzle insul. for CT TW4 | 6 | D | 20 | -- |
9T0124CT62C Request information |  | Coarse thread nozzle ø 16 mm | 7 | D | 10 | -- |
9T012362 Request information |  | Self insul. Nozzle ø 16 mm | 8 | D | 10 | -- |

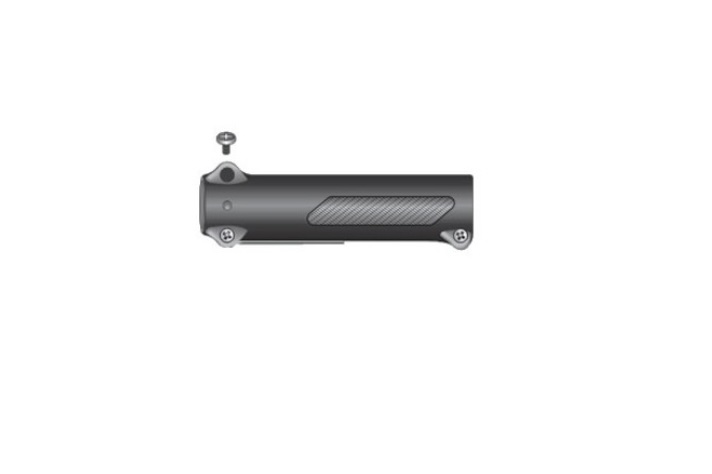

9T0184 Request information |  | Handle case with screws | 9 | R | 1 | -- |

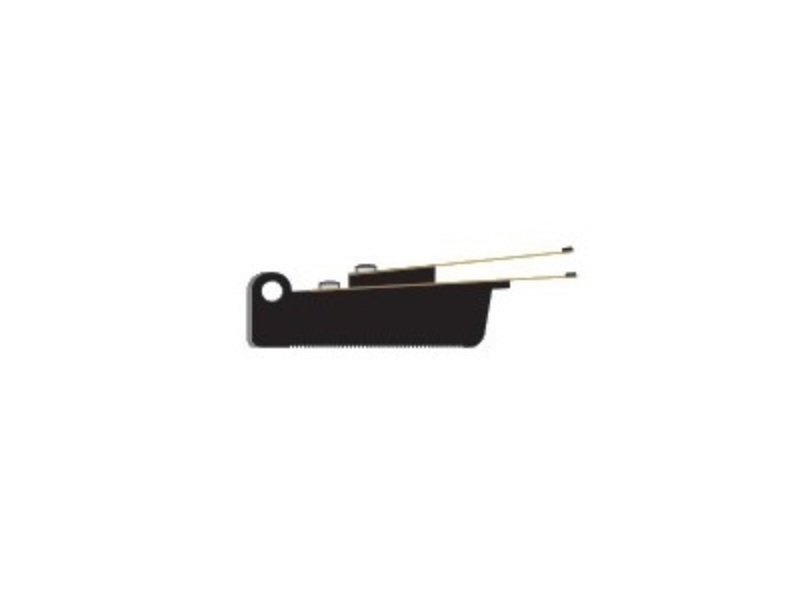

9T0194 Request information |  | Trigger switch with blades | 10 | R | 1 | -- |
9T0192C Request information |  | Switch blades set | 10A | R | 1 | -- |

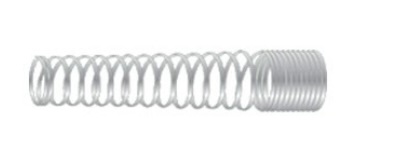

9T011446S Request information |  | Cable support TW4 spring | 11 | R | 1 | -- |

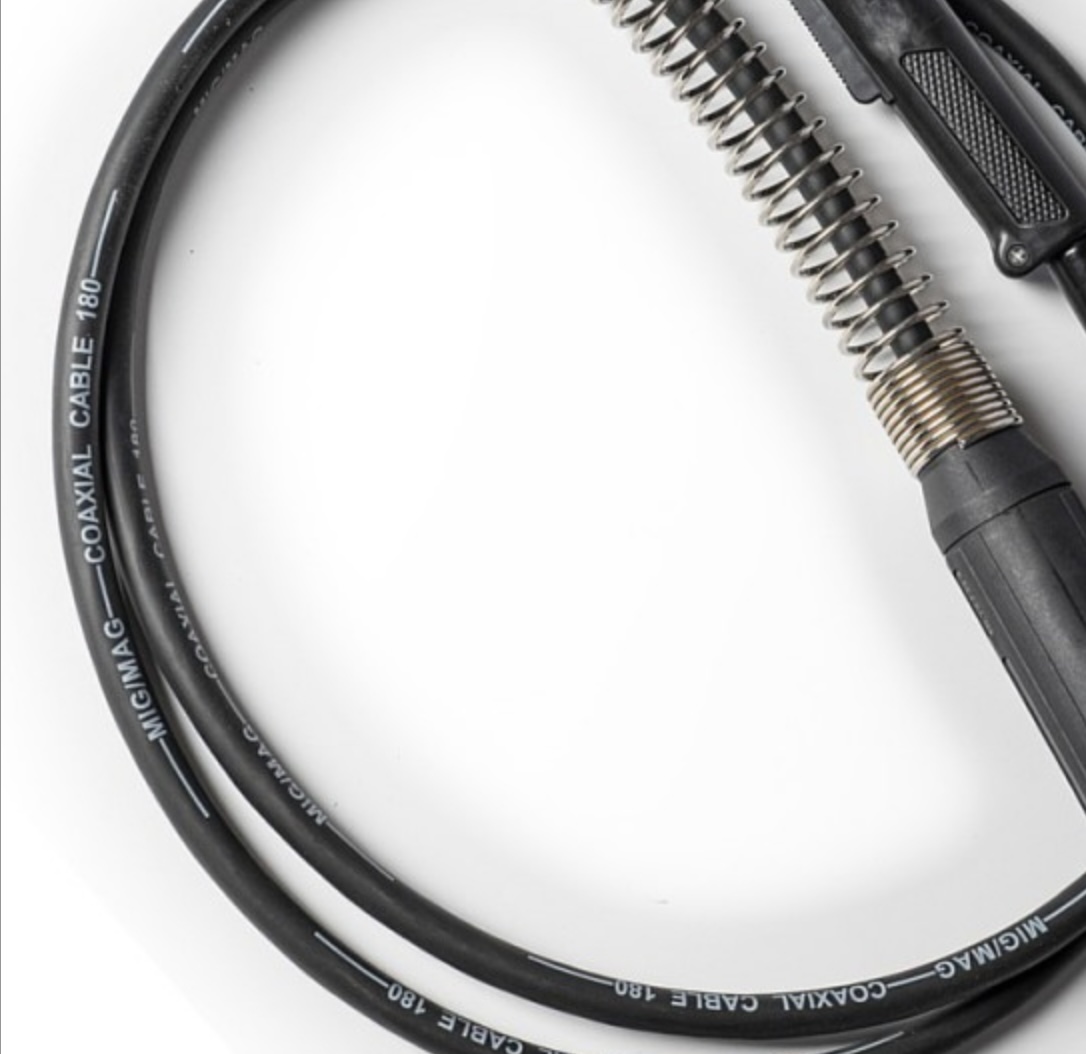

9T0120410E Request information |  | Replac. Cable TW4 50 mm2 10 ft. | 14 | R | 1 | -- |
9T0120412E Request information |  | Replac. Cable TW4 50 mm2 12 ft. | 14 | R | 1 | -- |
9T0120415E Request information |  | Replac. Cable TW4 50 mm2 15 ft. | 14 | R | 1 | -- |
9TBW159 Request information |  | Big connector case | 15 | R | 1 | -- |
9TBW195 Request information |  | Small connector case | 15 | R | 1 | -- |
9T023004C Request information |  | Nut for case | 19 | R | 1 | -- |
9T023005TW Request information |  | Euro connector for TW 12x1 | 20 | R | 1 | -- |

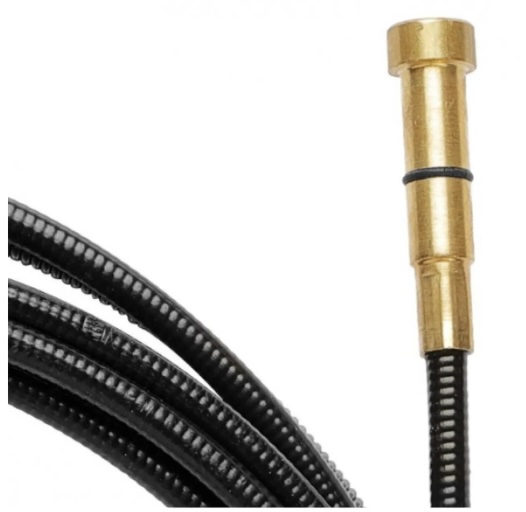

9T01441165WIP Request information |  | Wip liner ø 1.0/1.6 – 4.5 m | 21 | R | 1 | -- |
9T01441167WIP Request information |  | Wip liner ø 1.0/1.6 – 7.0 m | 21 | R | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
