MIG/MAG WELDING

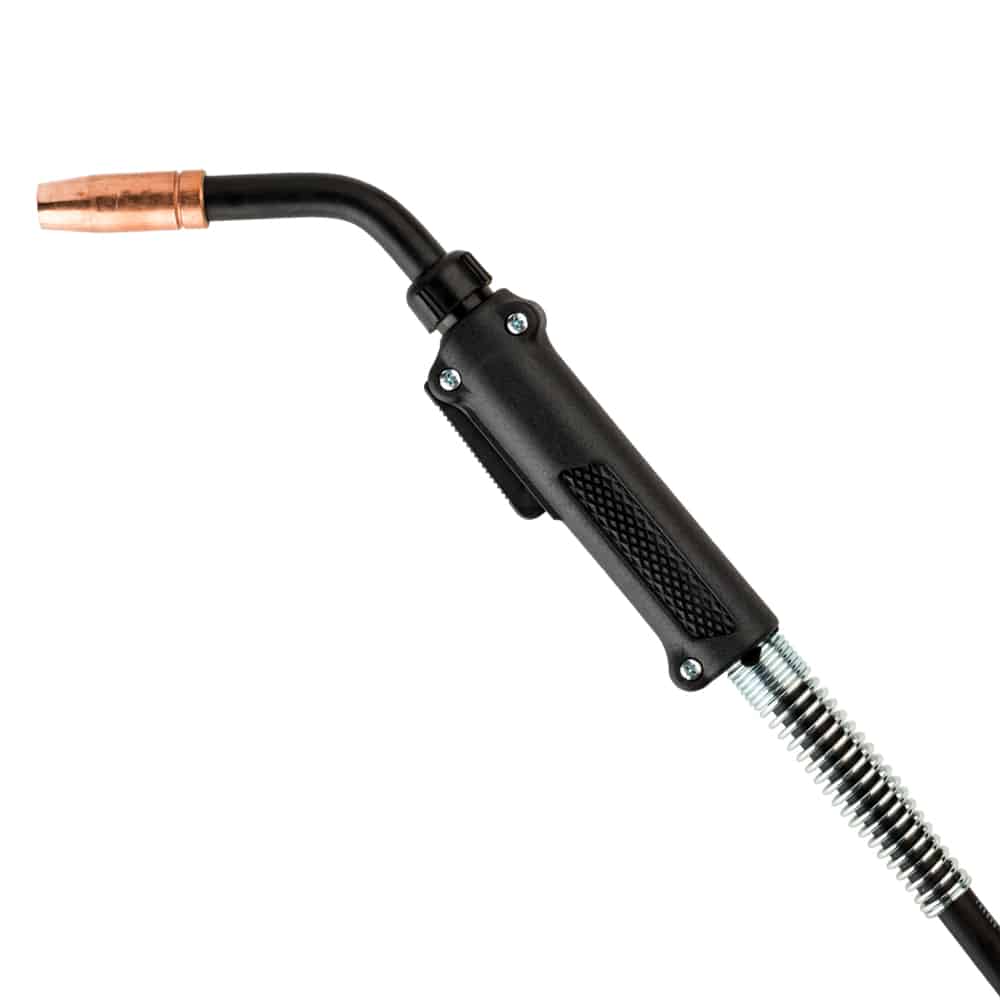

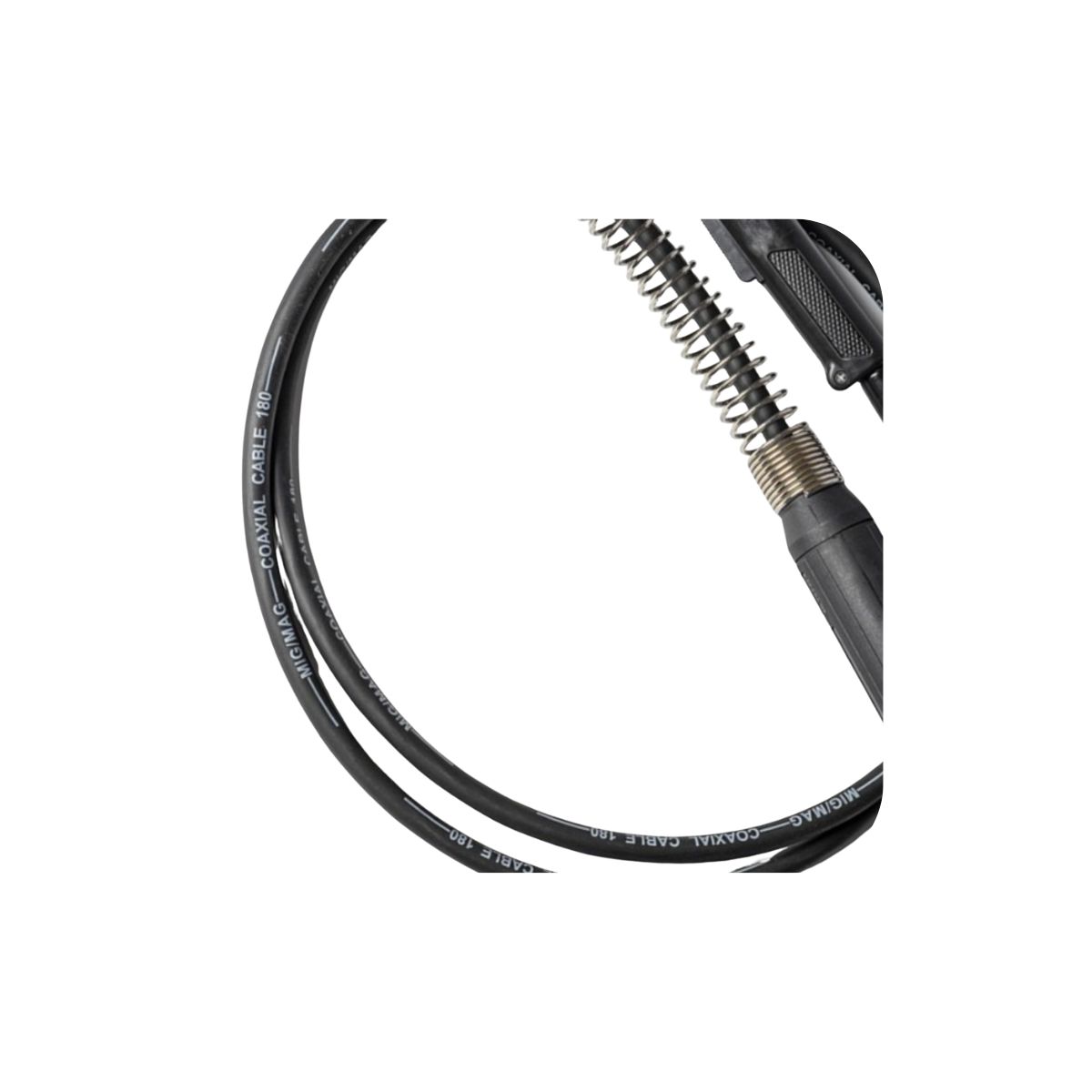

TW 1 TORCH
TW 1 TORCH
Characteristics
Use
Product Sectors
TW 1 TORCH
MIG/MAG WELDING - TW 1 TORCH - TW 1 TORCH
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
9T01130E Request information | | TW1 Torch 10 ft. Euro connection | R | 2 | 1 | -- |
9T01140E Request information |  | TW1 Torch 12 ft. Euro connection | D | 2 | 1 | -- |
9T01145E Request information |  | TW1 Torch 15 ft. Euro connection | R | 2 | 1 | -- |
TW 1 TORCH SPARE PARTS
MIG/MAG WELDING - TW 1 TORCH - TW 1 TORCH SPARE PARTS
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

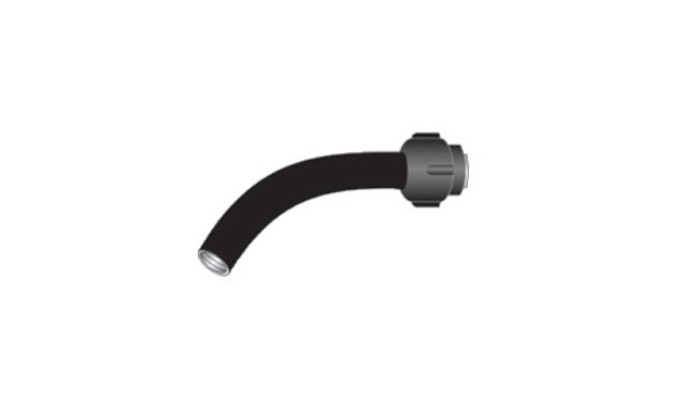

9T016160C Request information |  | Complete conductor tube TW1 | 1 | D | 1 | -- |

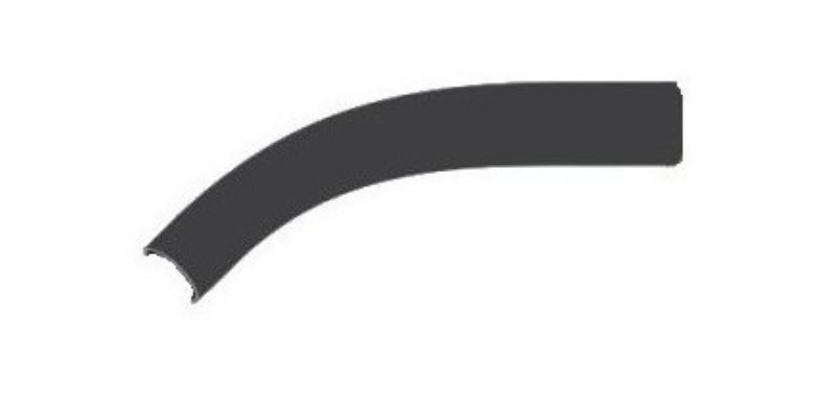

9T0171A Request information |  | Conductor tube insulation TW1 | 3 | D | 1 | -- |

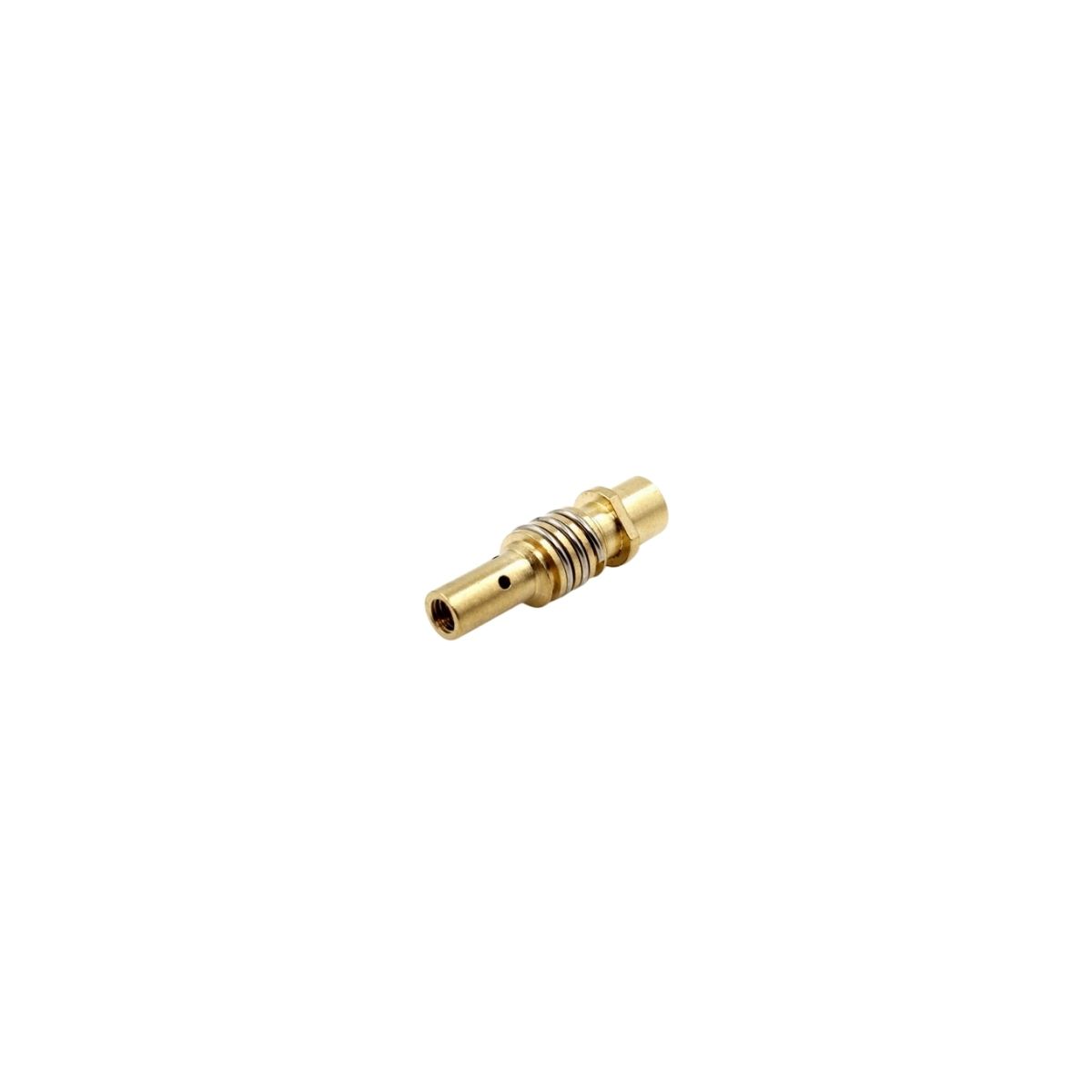

9T0151 Request information |  | Gas diffuser TW1 | 4 | D | 10 | -- |
9T02011506C Request information |  | Contact tip M6X25 Ø 0.6 | 5 | D | 20 | -- |
9T02011508C Request information |  | Contact tip M6X25 Ø 0.8 | 5 | D | 20 | -- |
9T02011510C Request information |  | Contact tip M6X25 Ø 1.0 | 5 | D | 20 | -- |
9T02011512C Request information |  | Contact tip M6X25 Ø 1.2 | 5 | D | 20 | -- |

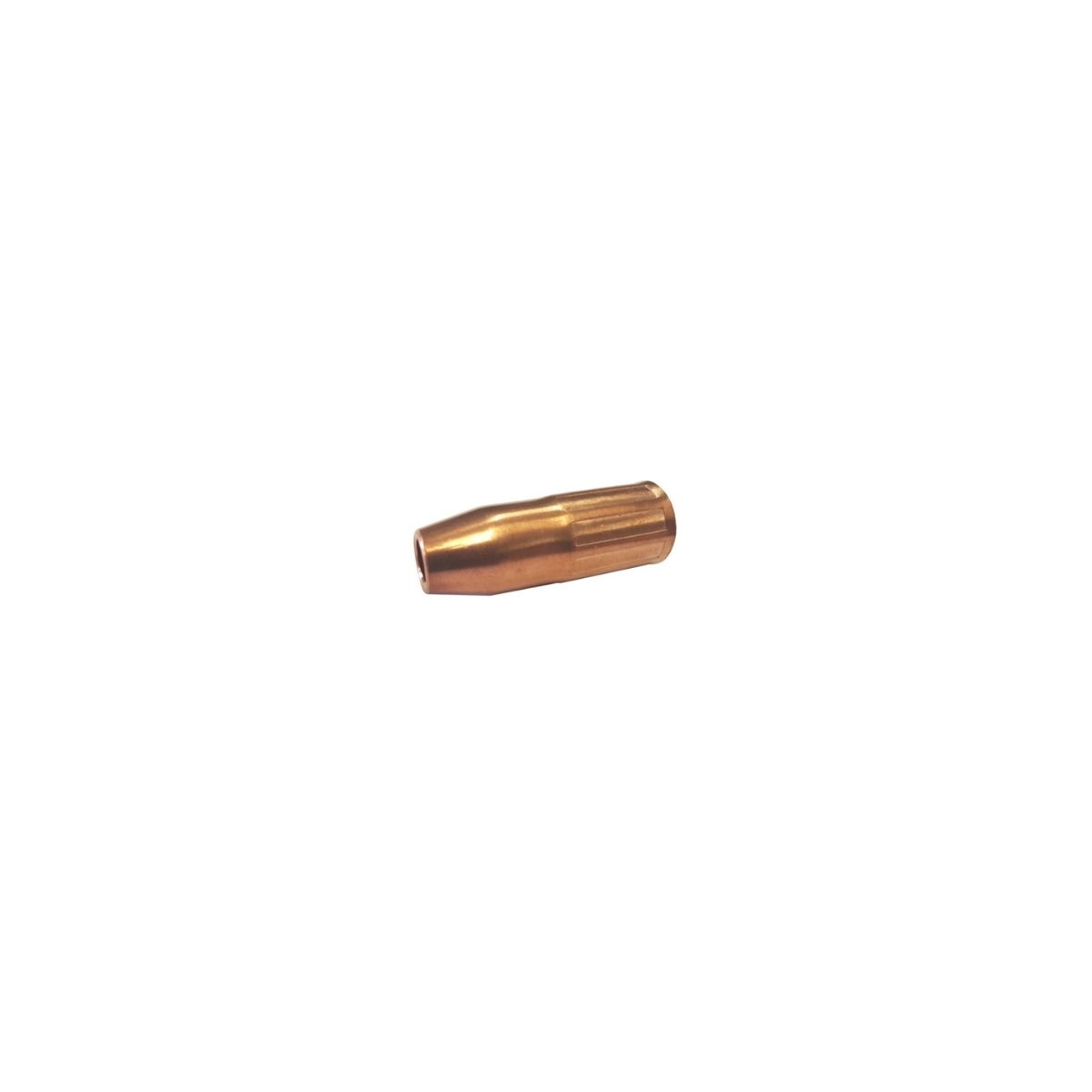

9T012137 Request information |  | Self insul. nozzle ø 10mm | 6 | D | 10 | -- |
9T012150 Request information |  | Self insul. nozzle ø 13mm | 6 | D | 10 | -- |
9T012162 Request information |  | Self insul. nozzle ø 16mm | 6 | D | 10 | -- |

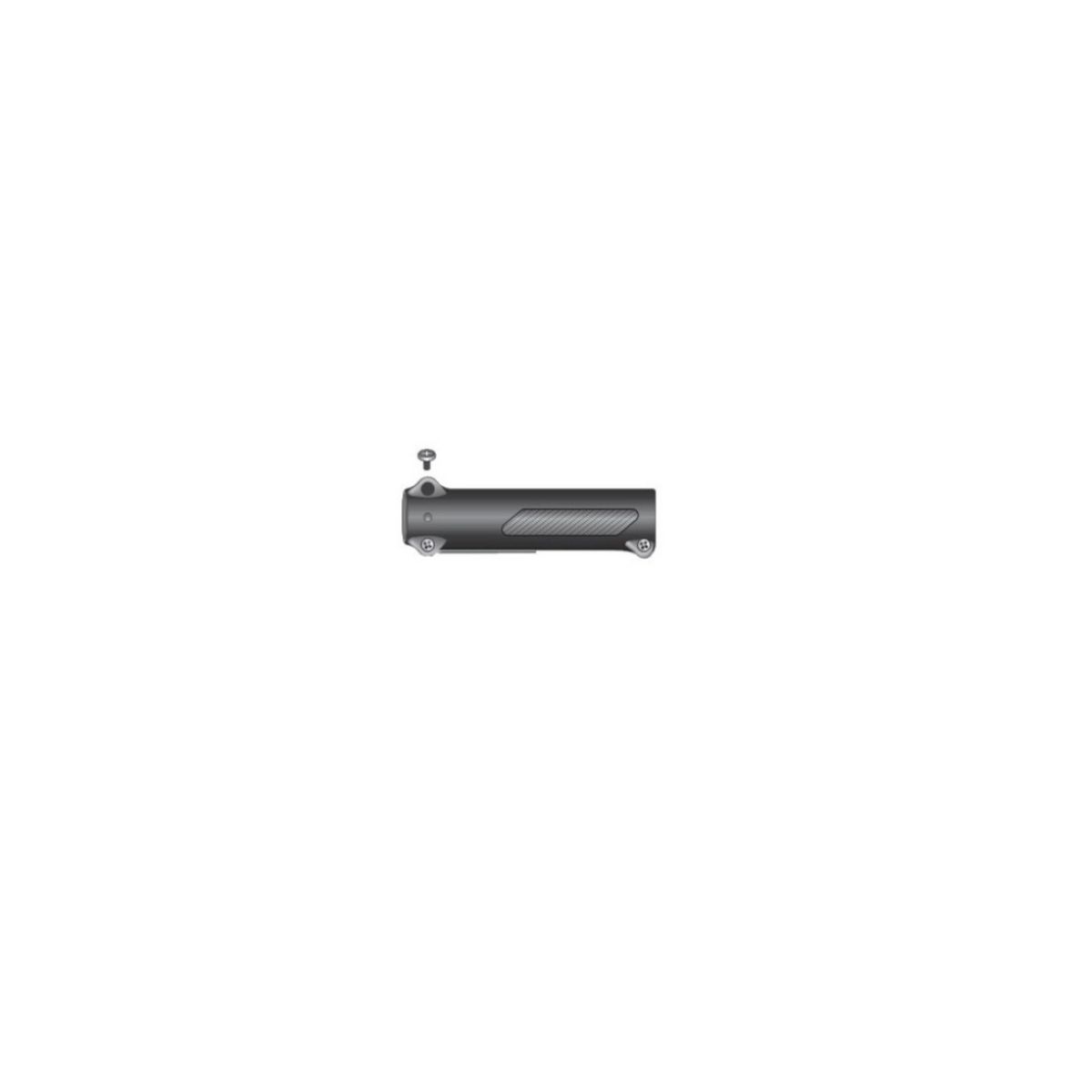

9T0181 Request information |  | Handle case with screws | 10 | R | 1 | -- |

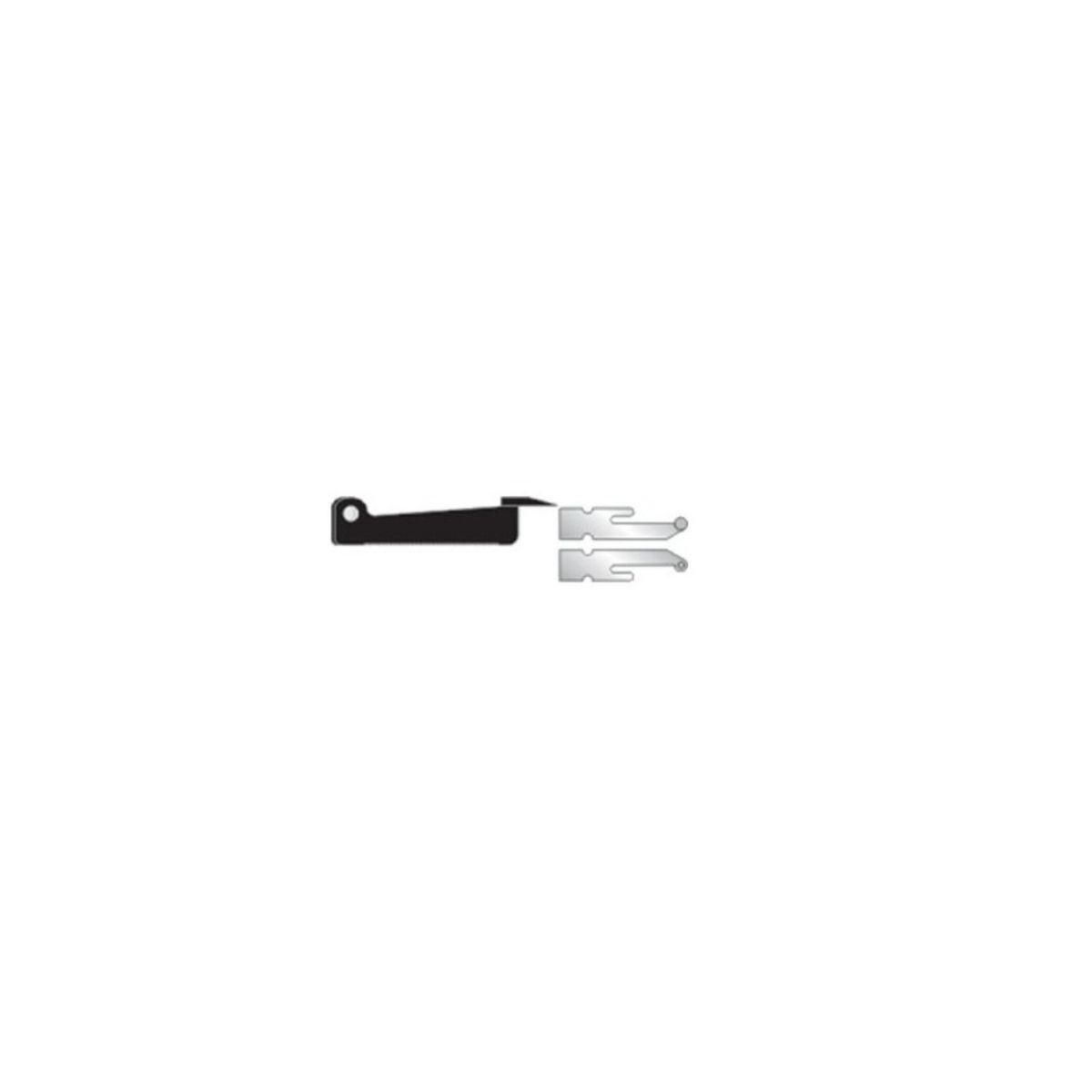

9T0191 Request information |  | Trigger switch with blades | 11 | R | 1 | -- |
9T0191A Request information |  | Trigger switch without blades | 11A | R | 1 | -- |

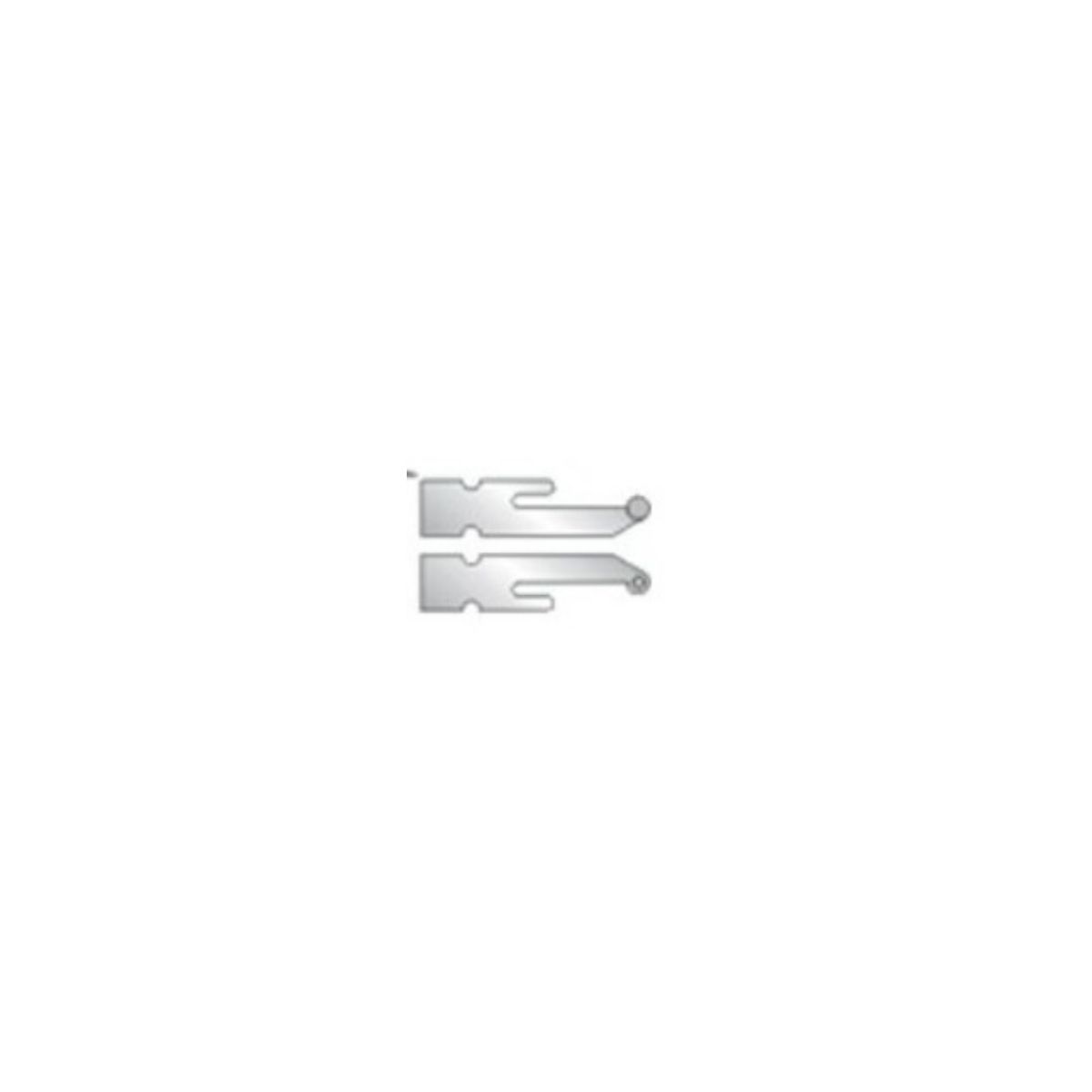

9T0191C Request information |  | Switch blades set TW1 | 11B | R | 1 | -- |

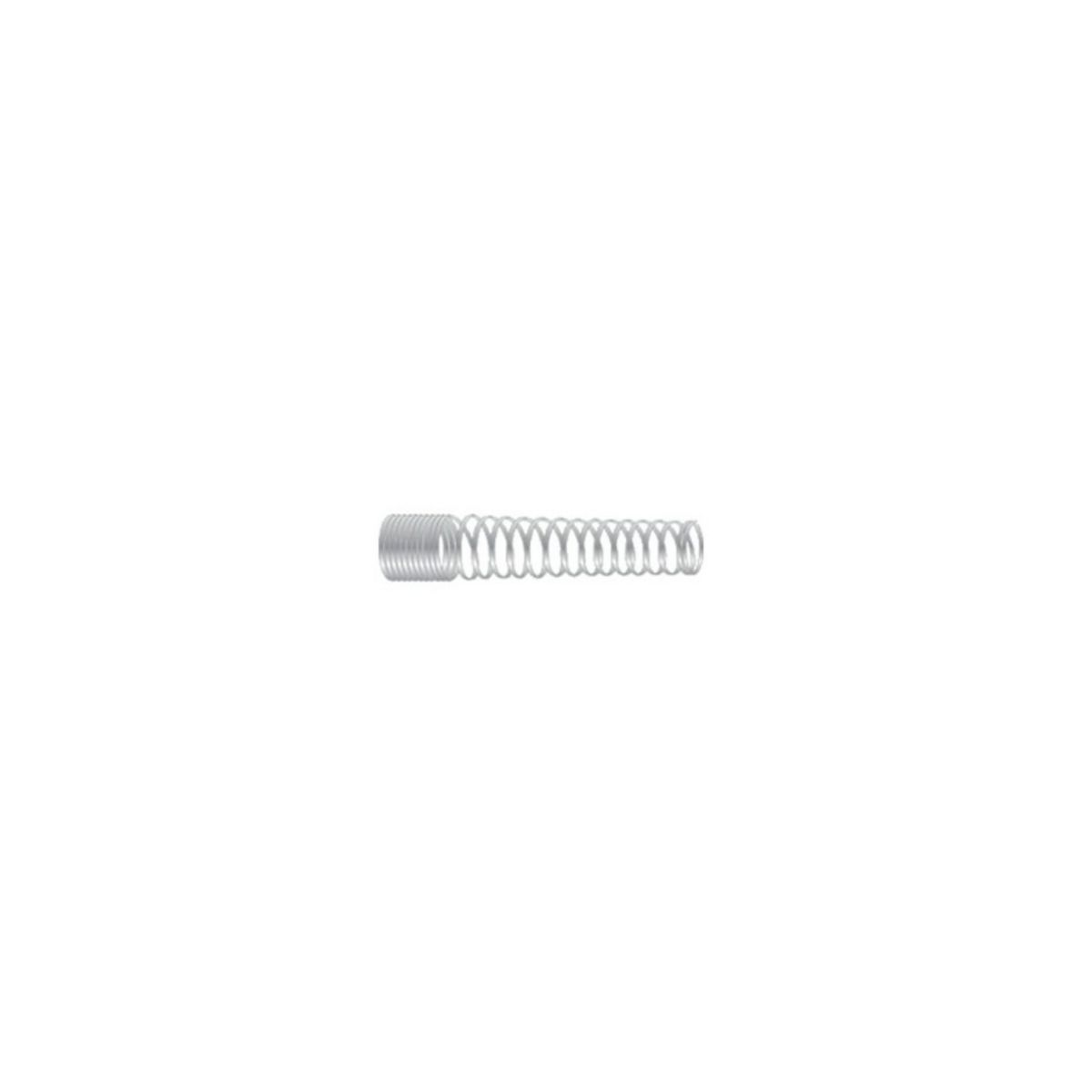

9T011416S Request information |  | Cable support TW1 spring | 12 | R | 1 | -- |
9T0120110E Request information |  | Replac. Cable TW1 25 mm2 10 ft. | 17 | R | 1 | -- |
9T0120112E Request information |  | Replac. Cable TW1 25 mm2 12 ft. | 17 | R | 1 | -- |
9T0120115E Request information |  | Replac. Cable TW1 25 mm2 15 ft. | 17 | R | 1 | -- |
9TBW195 Request information |  | Small connector case | 15 | R | 1 | -- |
9TEA331 Request information |  | Spring for small connector case | 22 | R | 1 | -- |
9T023004C Request information |  | Nut for case | 19 | R | 1 | -- |
9T023005TW Request information |  | Euro connector for TW 12x1 | 20 | R | 1 | -- |
9T014240455WIP Request information |  | Wip liner ø 0.8/1.0 – 4.5 m | 21 | R | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
