MIG/MAG WELDING
BZ 25 TORCH
BZ 25 TORCH
Characteristics
Use
Product Sectors
BZ 25 TORCH
MIG/MAG WELDING - BZ 25 TORCH - BZ 25 TORCH
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

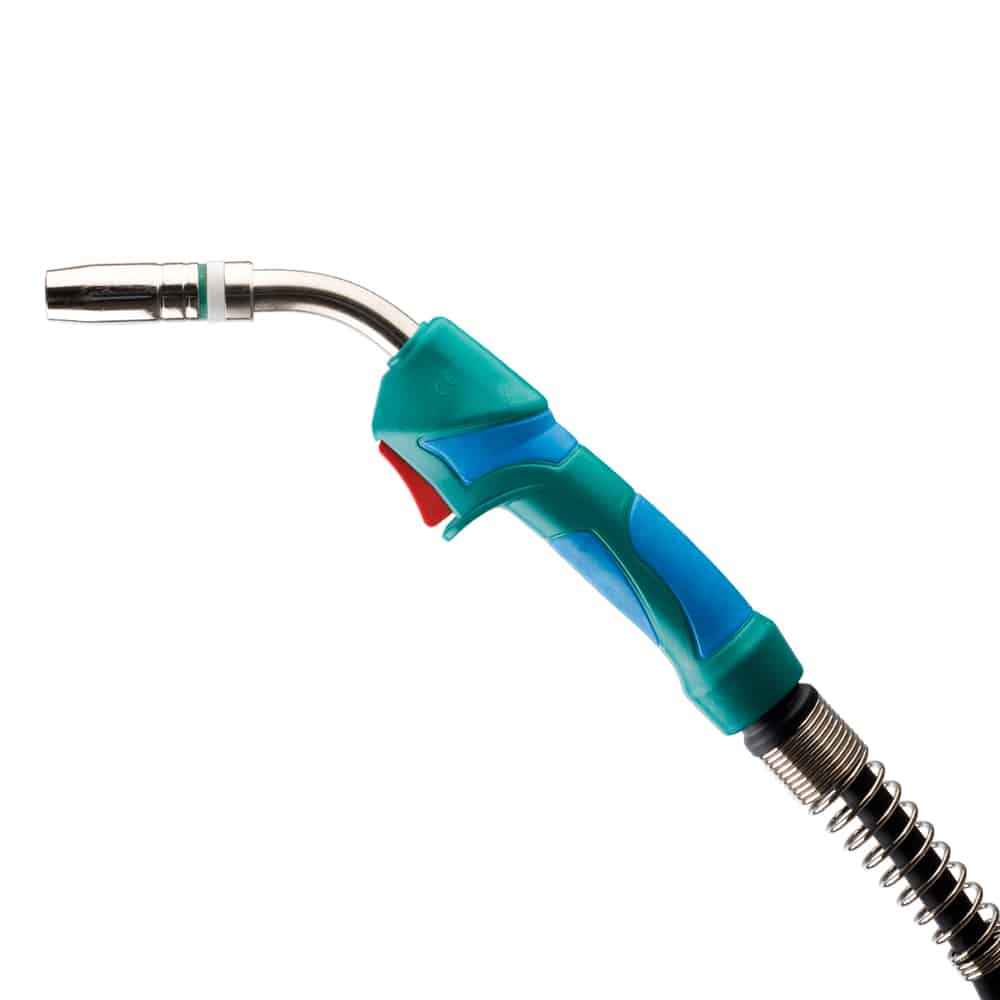

9T0200253SP Request information | | Mig Torch BZ 25 3 m | D | 2 | 1 | -- |
9T0200254SP Request information |  | Mig Torch BZ 25 4 m | D | 2 | 1 | -- |
9T0200255SP Request information |  | Mig Torch BZ 25 5 m | D | 2 | 1 | -- |
BZ 25 TORCH SPARE PARTS
MIG/MAG WELDING - BZ 25 TORCH - BZ 25 TORCH SPARE PARTS
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
9T020625C Request information |  | Complete adjustable swan neck BZ 25 | 1 | D | 1 | -- |
9T021015C Request information |  | Pvc torch body | 2 | D | 1 | -- |

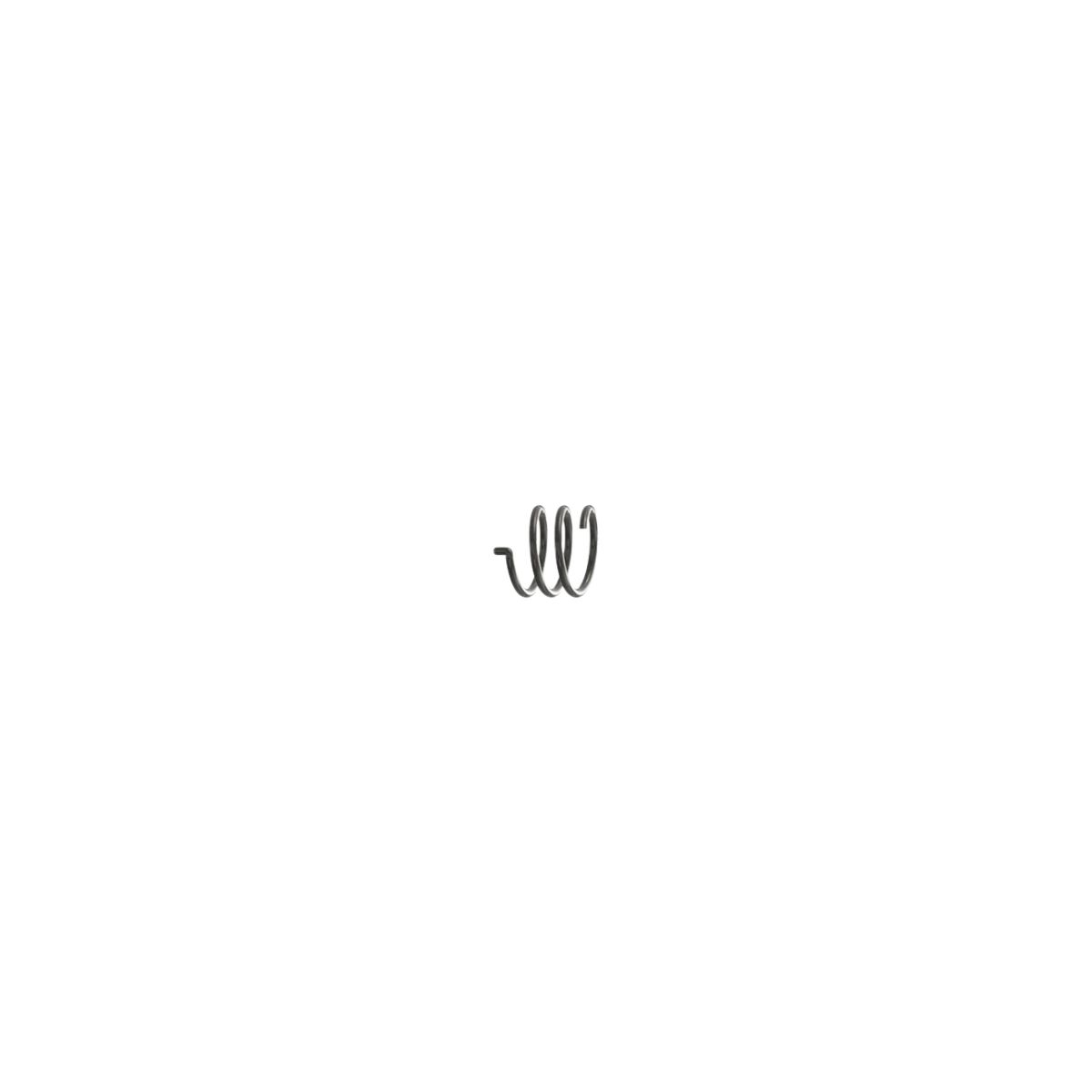

9T02052501C Request information |  | Spring | 3 | D | 1 | -- |

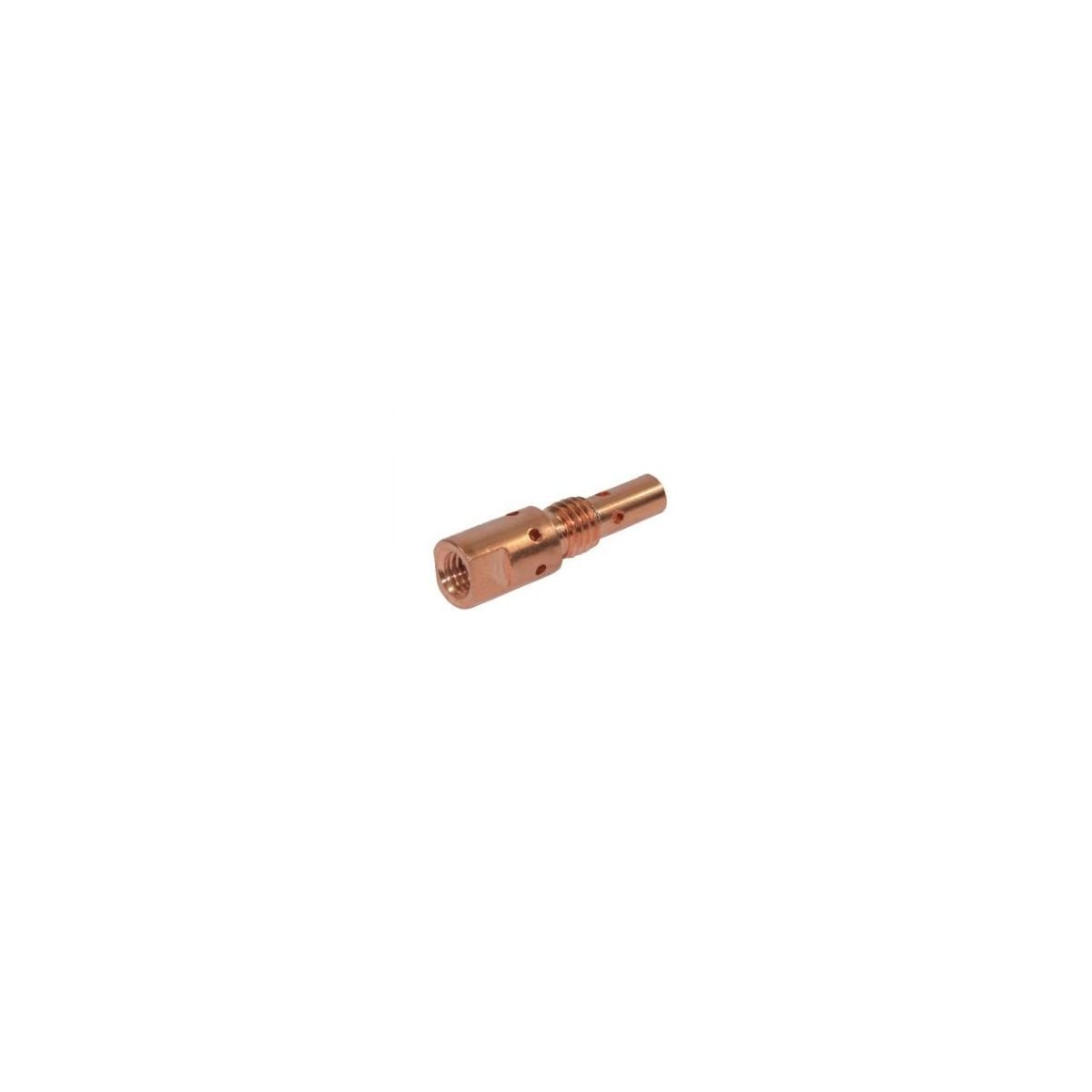

9T020525C Request information |  | Tip adaptor gas diffuser BZ 25 | 4 | D | 10 | -- |

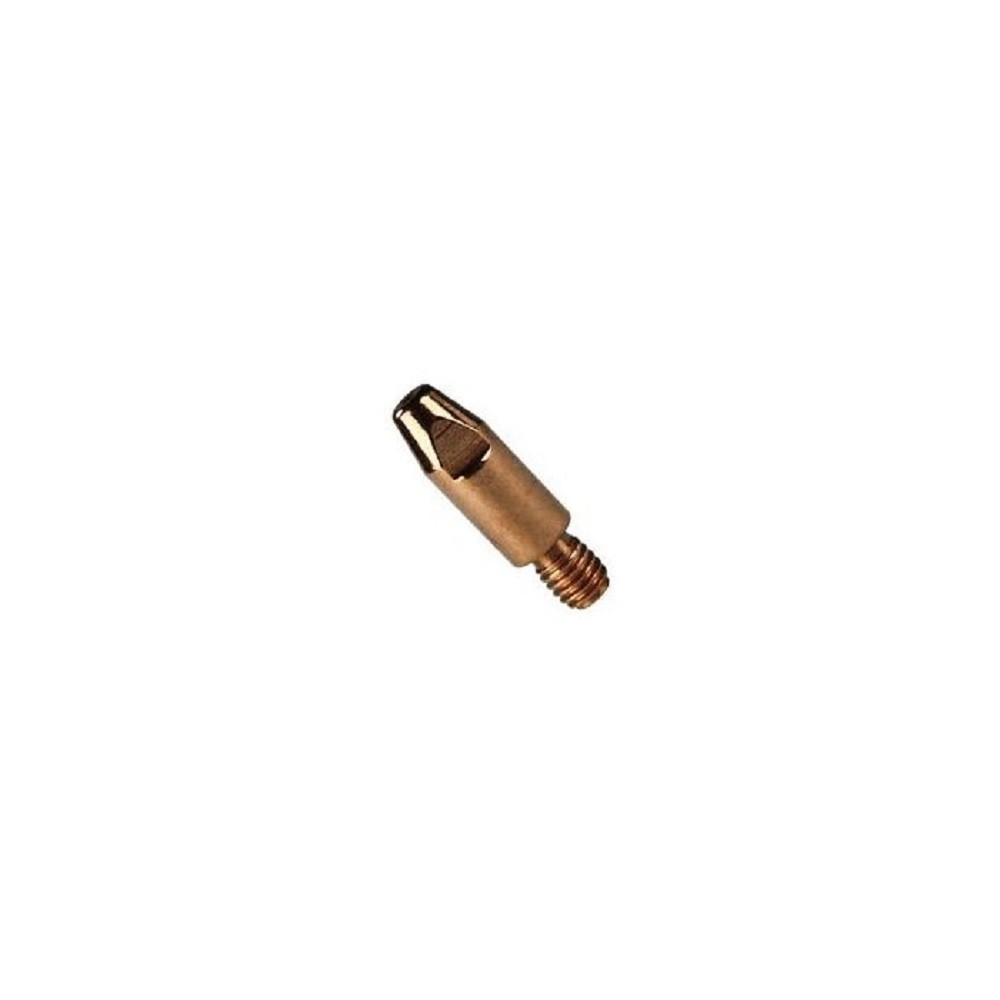

9T02012506C Request information |  | Contact tip M6x28 ø 0.6 | 5A | D | 20 | -- |
9T02012508C Request information |  | Contact tip M6x28 ø 0.8 | 5A | D | 20 | -- |
9T02012510C Request information |  | Contact tip M6x28 ø 1.0 | 5A | D | 20 | -- |
9T02012512C Request information |  | Contact tip M6x28 ø 1.2 | 5A | D | 20 | -- |
9T02012506H Request information |  | Contact tip M6x28 ø 0.6 Cucrzr | 5A | D | 10 | -- |
9T02012508H Request information |  | Contact tip M6x28 ø 0.8 Cucrzr | 5A | D | 10 | -- |
9T02012510H Request information |  | Contact tip M6x28 ø 1.0 Cucrzr | 5A | D | 10 | -- |
9T02012512H Request information |  | Contact tip M6x28 ø 1.2 Cucrzr | 5A | D | 10 | -- |

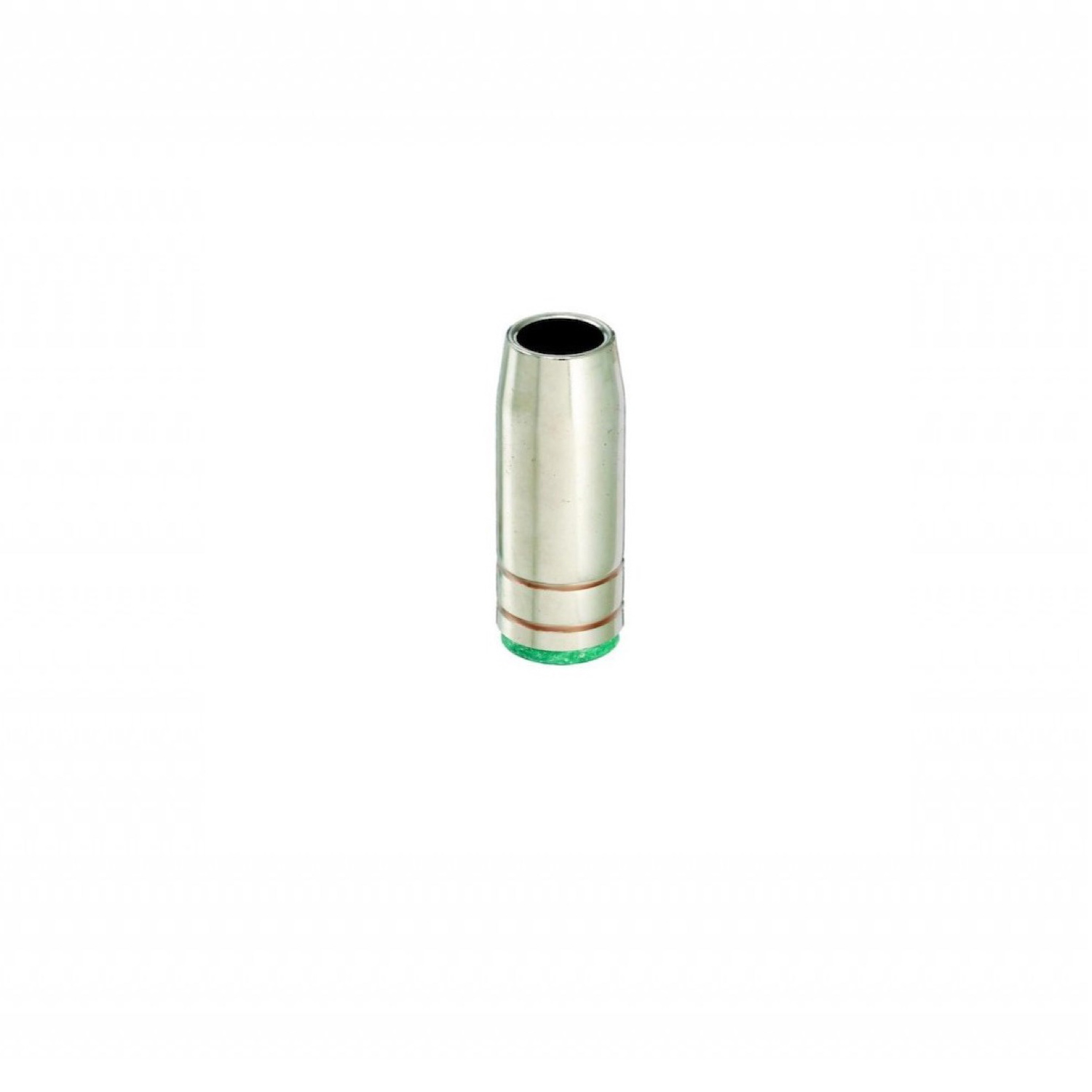

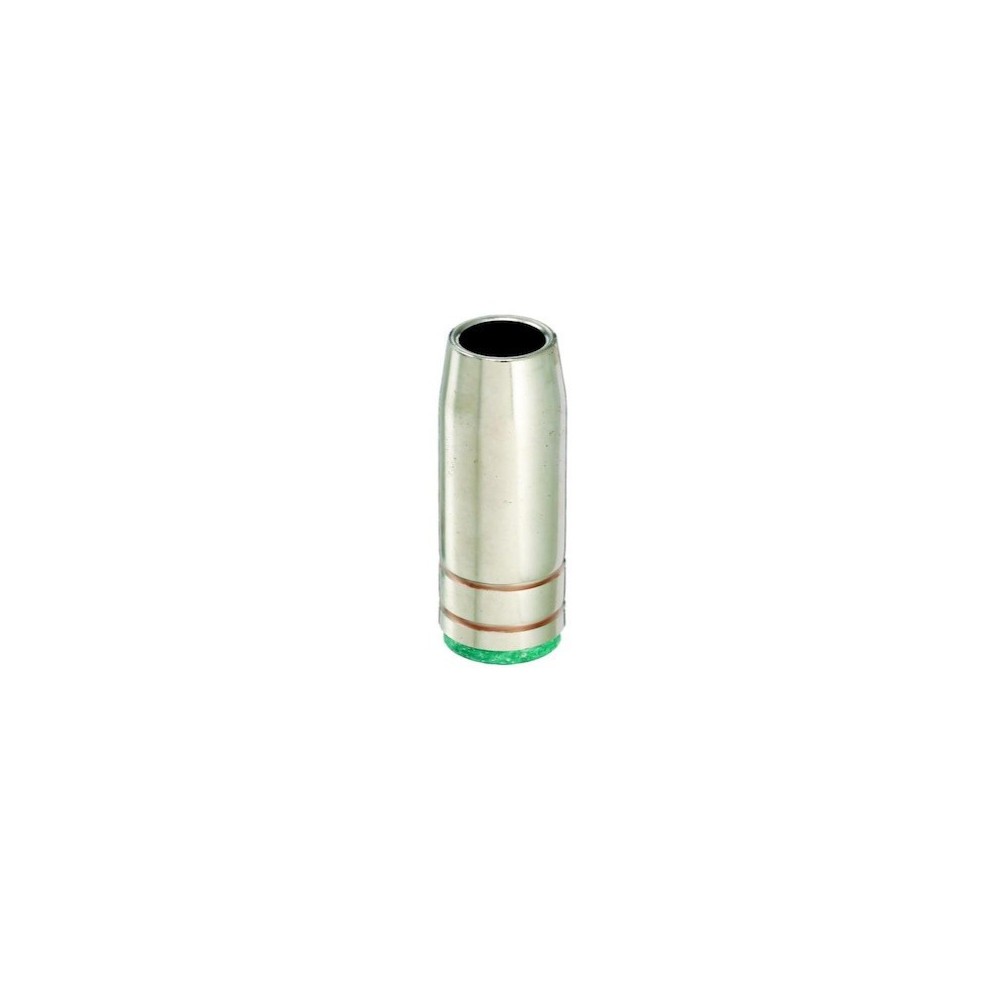

9T020225CLC Request information |  | Nozzle Ø 18 | 6 | R | 10 | -- |
9T020225COC Request information |  | Adjustable conic nozzle Ø 15 | 6 | D | 10 | -- |
9T0208ABZTT Request information |  | Complete anatomic handle rubbered | 7 | R | 1 | -- |
9TEA321 Request information |  | Spring for handle | 10 | R | 1 | -- |
9T0209ABZ Request information |  | Switch for anatomic handle | 11 | R | 1 | -- |
9TVAB1820 Request information |  | Sleeve 35 sq mm coax cable | 12 | R | 10 | -- |
9TEA331 Request information |  | Spring for small connector case | 22 | R | 1 | -- |
9TBW195 Request information |  | Small connector case | 15 | R | 1 | -- |
9T023004C Request information |  | Nut for case | 19 | R | 1 | -- |
9T023005C Request information |  | Euro connector w/bitt splice C | 17 | R | 1 | -- |
9T023006C Request information |  | Liner nut | 18 | R | 1 | -- |
| Code | Image | Description | Availability | Length (m) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

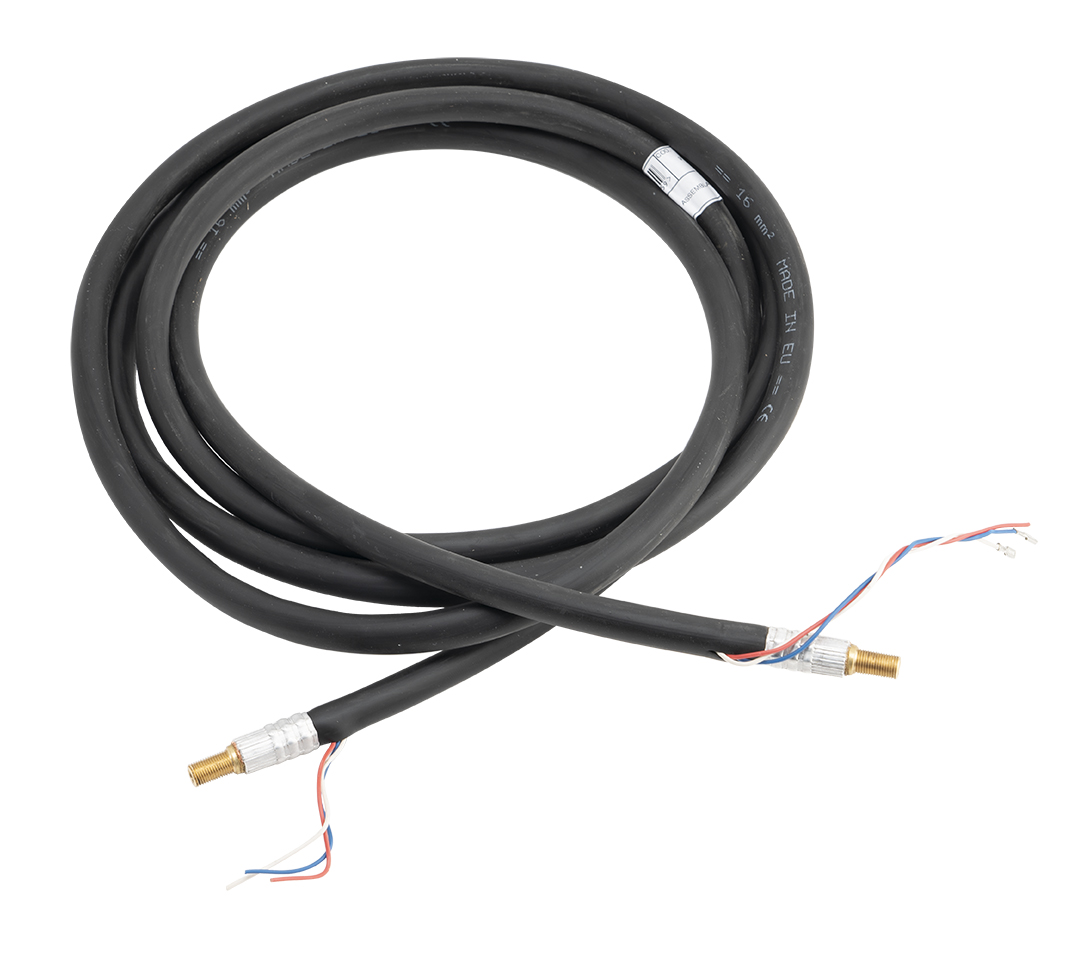

9T0220253E Request information |  | Coax cable 25 mm2 3 m | R | 3 | 1 | -- |
9T0220254E Request information |  | Coax cable 25 mm2 4 m | R | 4 | 1 | -- |
9T0220255E Request information |  | Coax cable 25mm2 5 m | R | 5 | 1 | -- |
