MANUAL PLASMA TORCHES
CB150 TORCHES
CB150 TORCHES
Characteristics
Use
Product Sectors
CB150 TORCHES
MANUAL PLASMA TORCHES - CB150 TORCHES - CB150 TORCHES
| Code | Image | Description | Inlet | L (m) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|

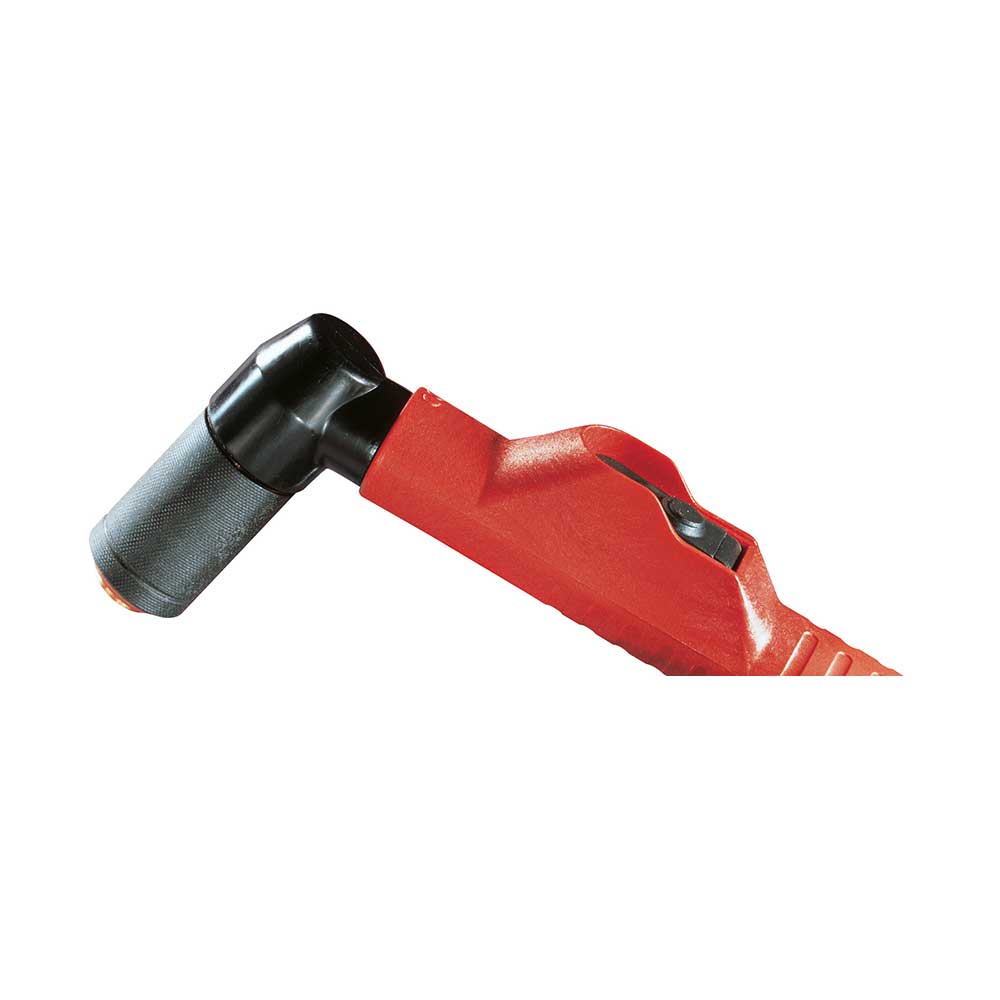

9P04050/CS Request information | | CB150 TORCH | 1/8 | 6 | R | 3 | 1 | -- |
9P04051/CS Request information |  | CB150 TORCH | CENTRALIZZATO | 6 | R | 3 | 1 | -- |
SPARE PARTS
MANUAL PLASMA TORCHES - CB150 TORCHES - SPARE PARTS
| Code | Image | Description | No. | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

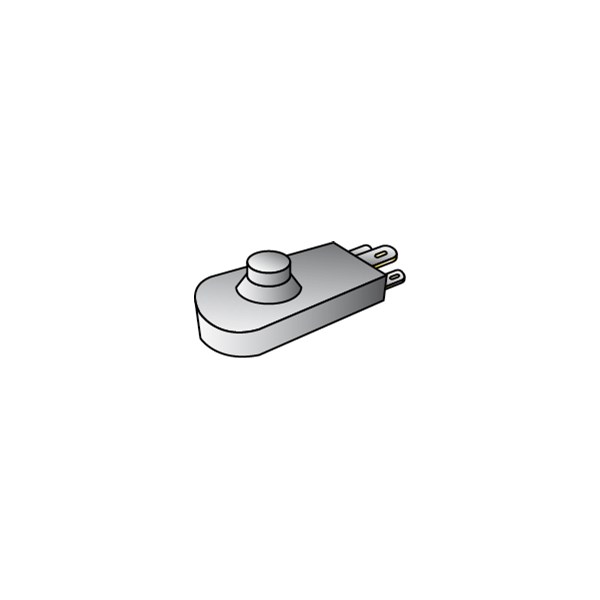

9PBX0070 Request information |  | Button for handle CB150 | 1C | R | 1 | -- |
9P01002.60 Request information |  | O-ring for CB100-CB150 | 1B | R | 10 | -- |
9P05004 Request information |  | Diffuser | 3 | R | 10 | -- |

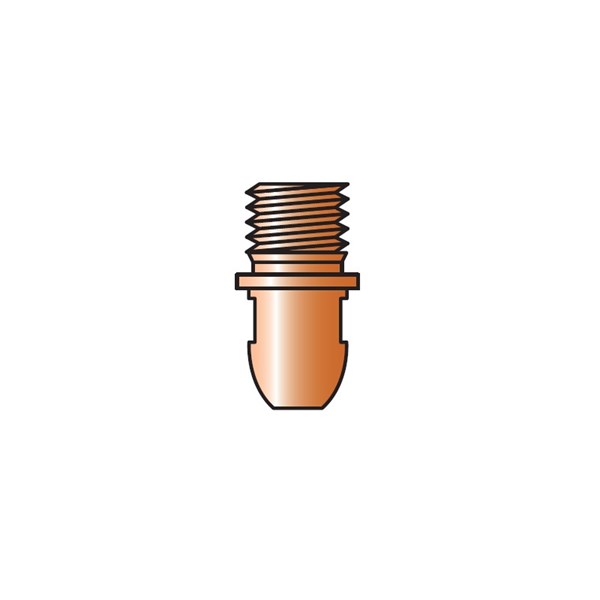

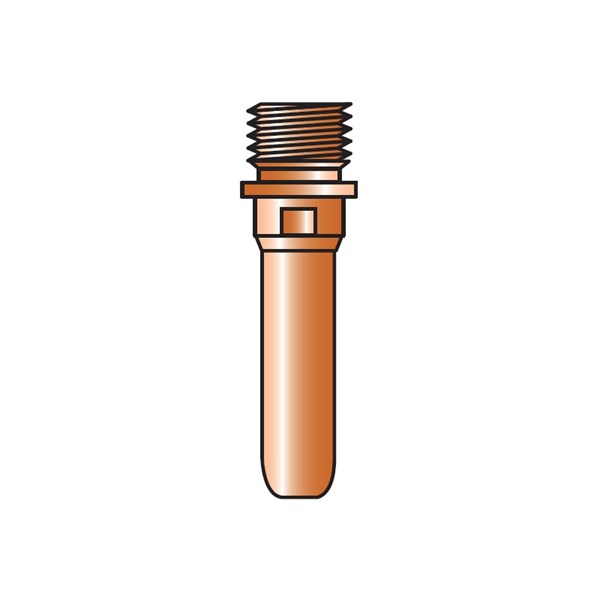

9P52540 Request information |  | Electrode | 4 | R | 10 | -- |
9P60020 Request information |  | Air diffuser | 5 | R | 2 | -- |

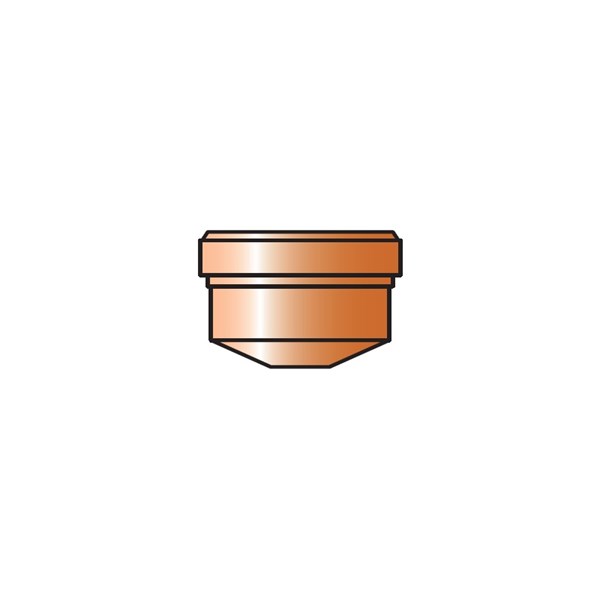

9P51140/S Request information |  | Contact tip ø 1.1mm | 6 | R | 10 | -- |
9P51141/S Request information |  | Contact tip ø 1.3 mm | 6 | R | 10 | -- |
9P51142/S Request information |  | Contact tip ø 1.6 mm | 6 | R | 10 | -- |
9P51143/S Request information |  | Contact tip ø 1.8 mm | 6 | R | 10 | -- |
9P51144 Request information |  | Contact tip ø 3.0 mm | 6 | R | 10 | -- |
9P51410 Request information |  | Contact tip ø 1.3 mm | 7 | R | 10 | -- |
9P51411 Request information |  | Contact tip ø 1.6 mm | 7 | R | 10 | -- |
9P51412 Request information |  | Contact tip ø 1.8 mm | 7 | R | 10 | -- |
9P52549 Request information |  | Long electrode | 8 | R | 10 | -- |

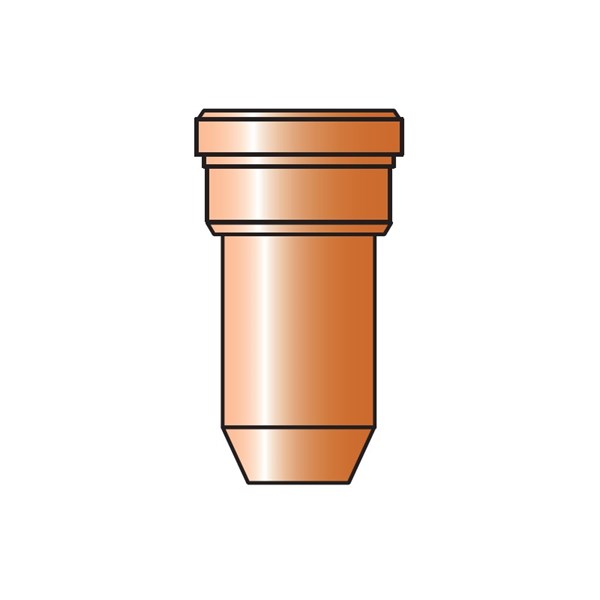

9P51148.13 Request information |  | Long Contact tip ø 1.4mm | 10 | R | 10 | -- |
9P51148.16 Request information |  | Long Contact tip ø 1.6 mm | 10 | R | 10 | -- |
9P51148.18 Request information |  | Long Contact tip ø 1.8 mm | 10 | R | 10 | -- |

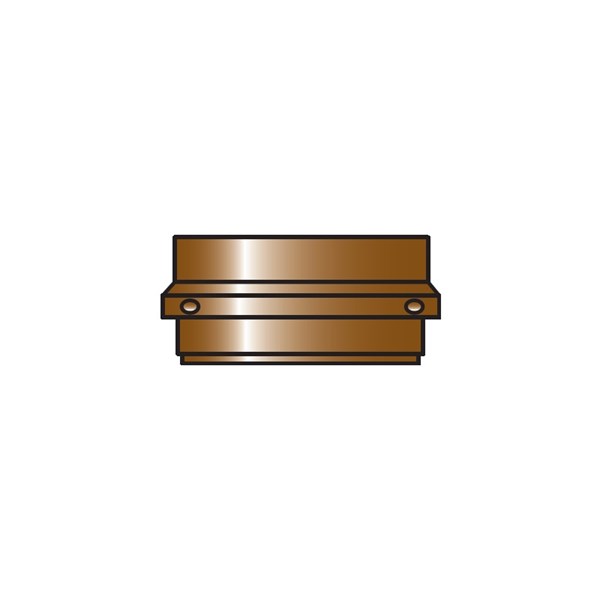

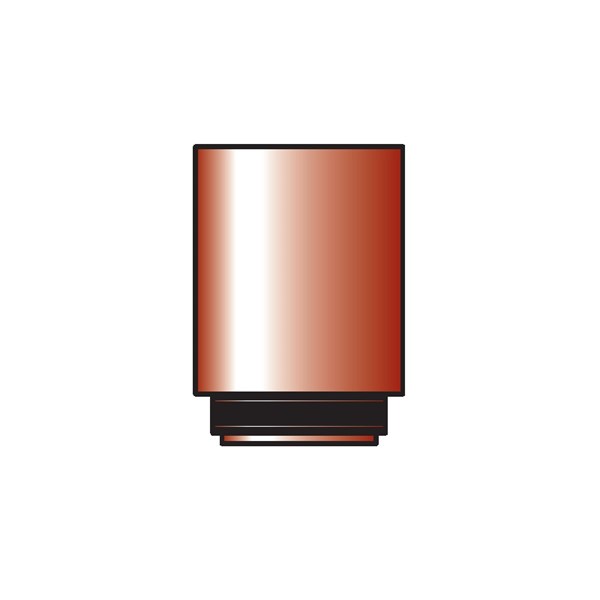

9P60330 Request information |  | External tip holder | 11 | R | 2 | -- |
9P60350 Request information |  | External tip holder for contact cutting | 12 | R | 2 | -- |
9P51911 Request information |  | Spacer spring | 14 | R | 10 | -- |
9P51973 Request information |  | Spacer for contact cutting | 16 | R | 10 | -- |
9P60370 Request information |  | Double pointed spacer | 24 | R | 2 | -- |

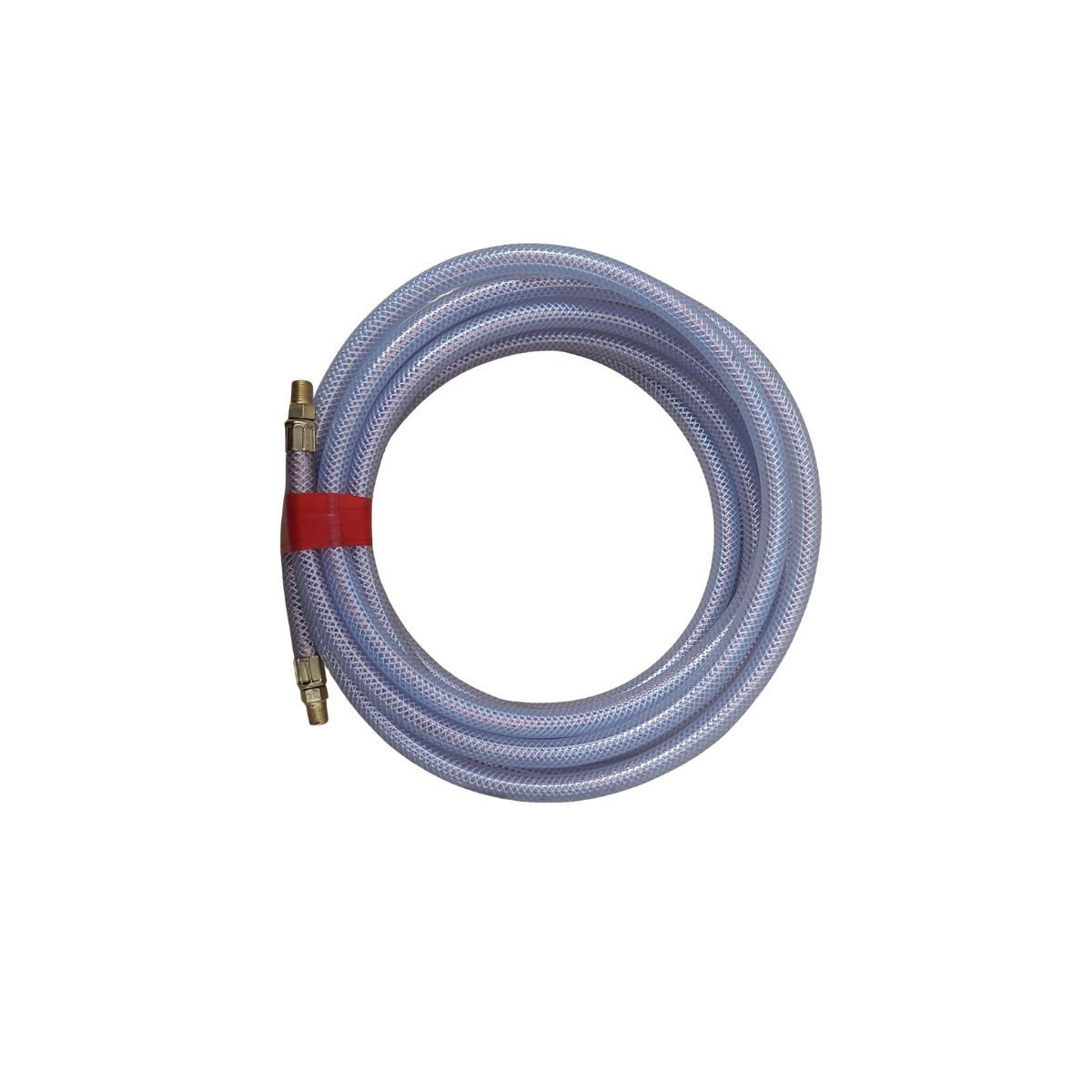

9P03093/S Request information |  | Rubber cable 1/8 6m | -- | R | 1 | -- |
POWER CABLES
MANUAL PLASMA TORCHES - CB150 TORCHES - POWER CABLES
| Code | Image | Description | Availability | Length (m) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

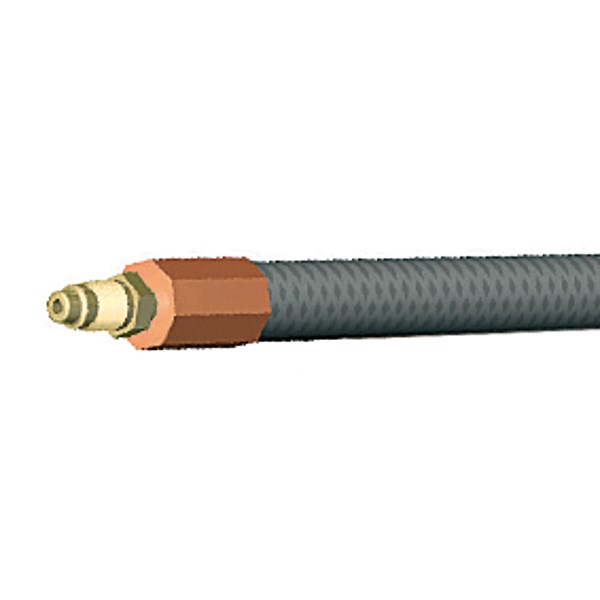

9PCE50203 Request information |  | 50 Amp Power Cable | R | 6 | 1 | -- |
9PCE50204 Request information |  | 50 Amp Power Cable | R | 12 | 1 | -- |
9PCE150203 Request information |  | 150 Amp Power Cable | R | 6 | 1 | -- |
9PCE150204 Request information |  | 150 Amp Power Cable | R | 12 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
