Products
GAS DISTRIBUTION CONTROL SYSTEMS

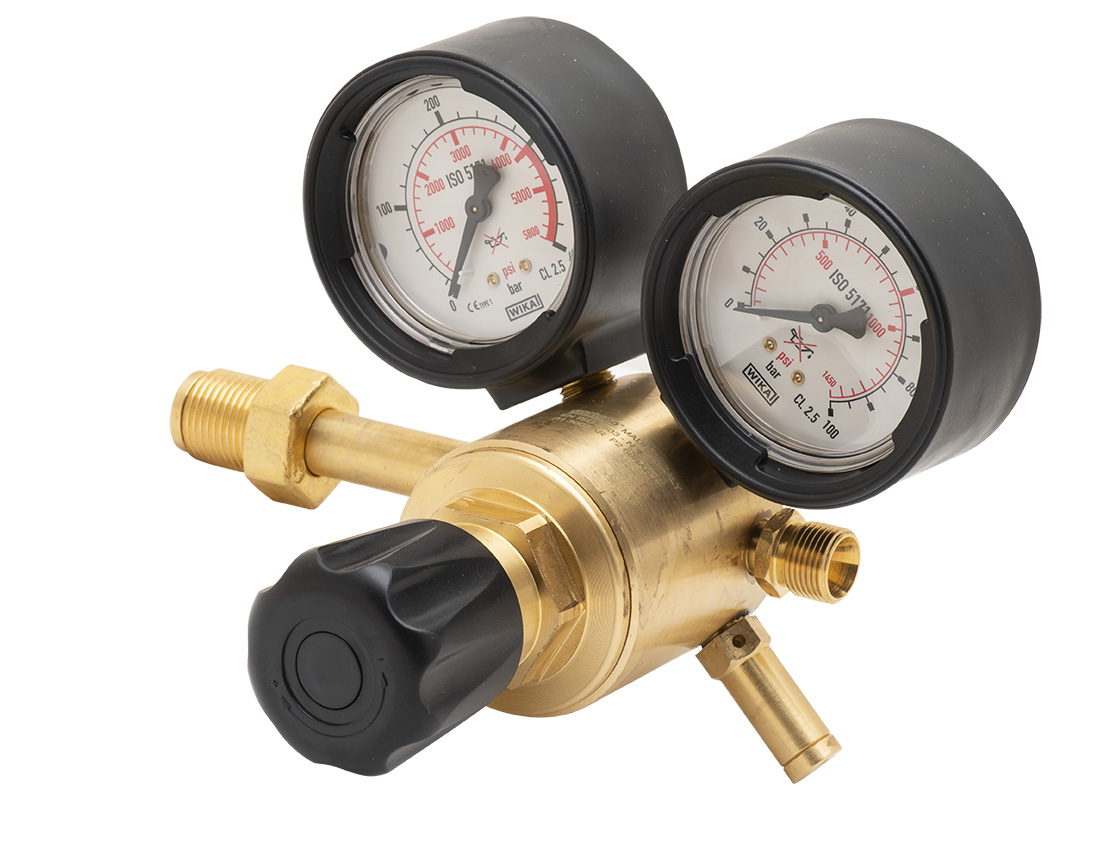

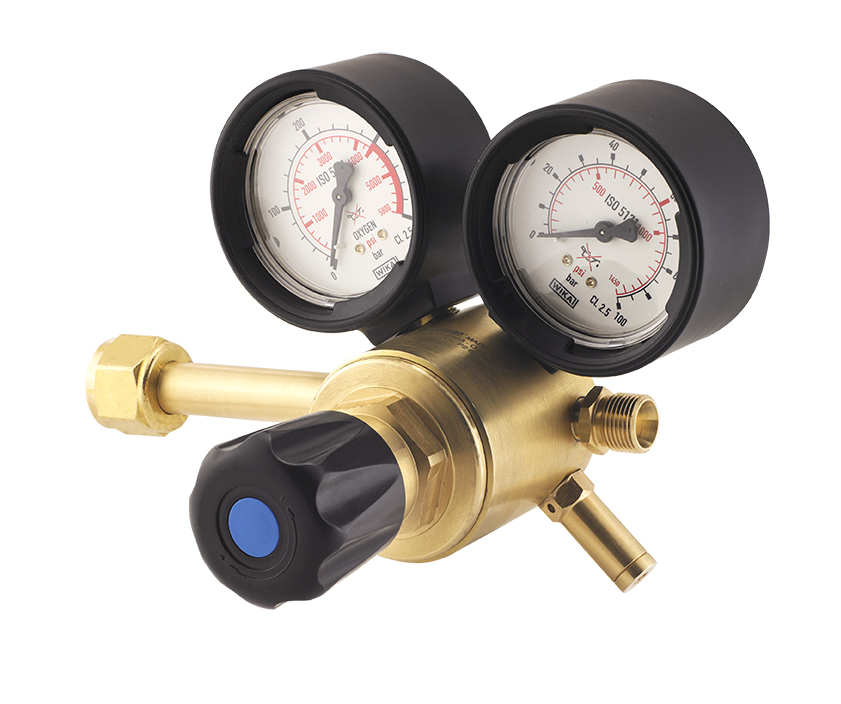

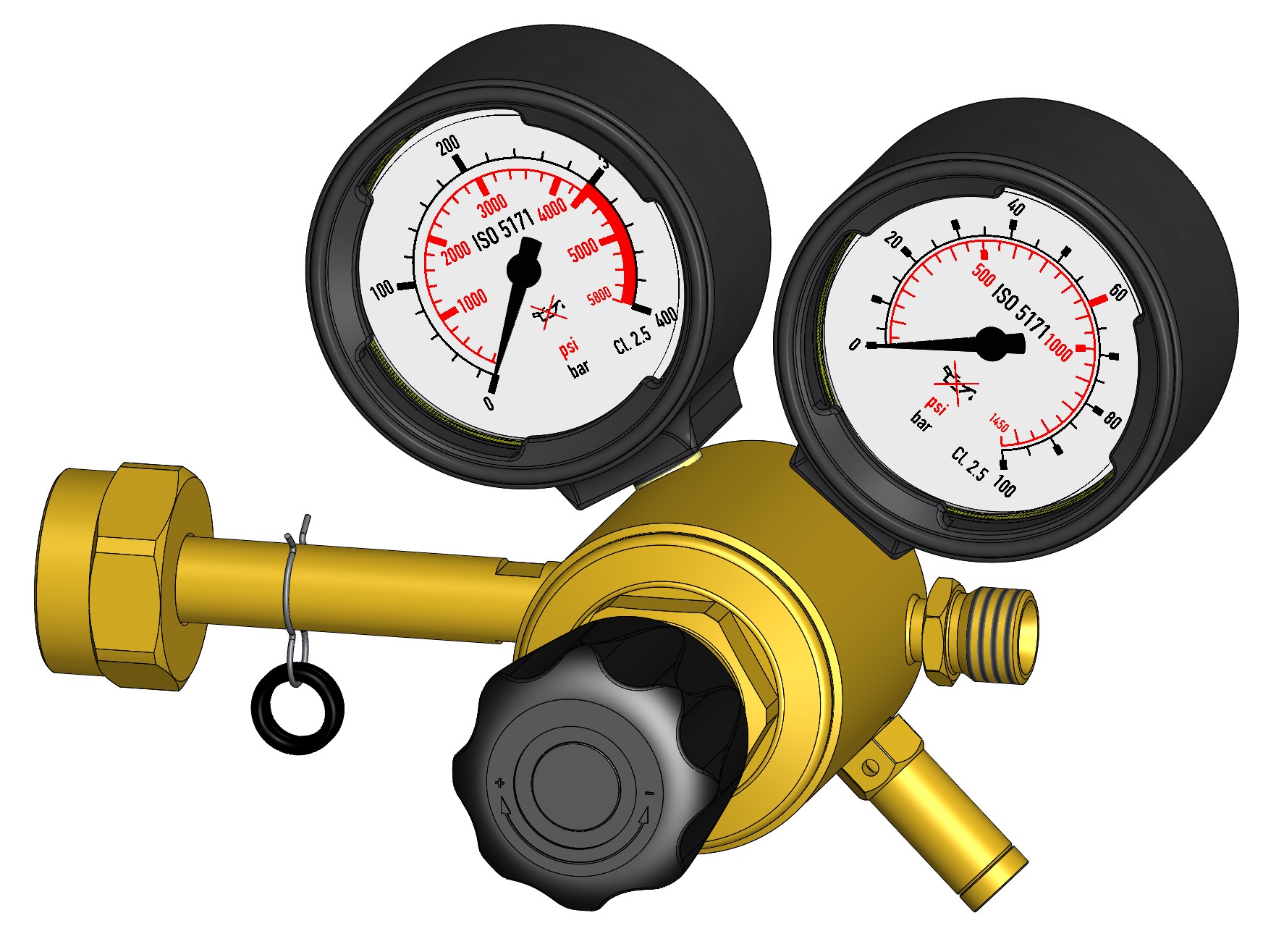

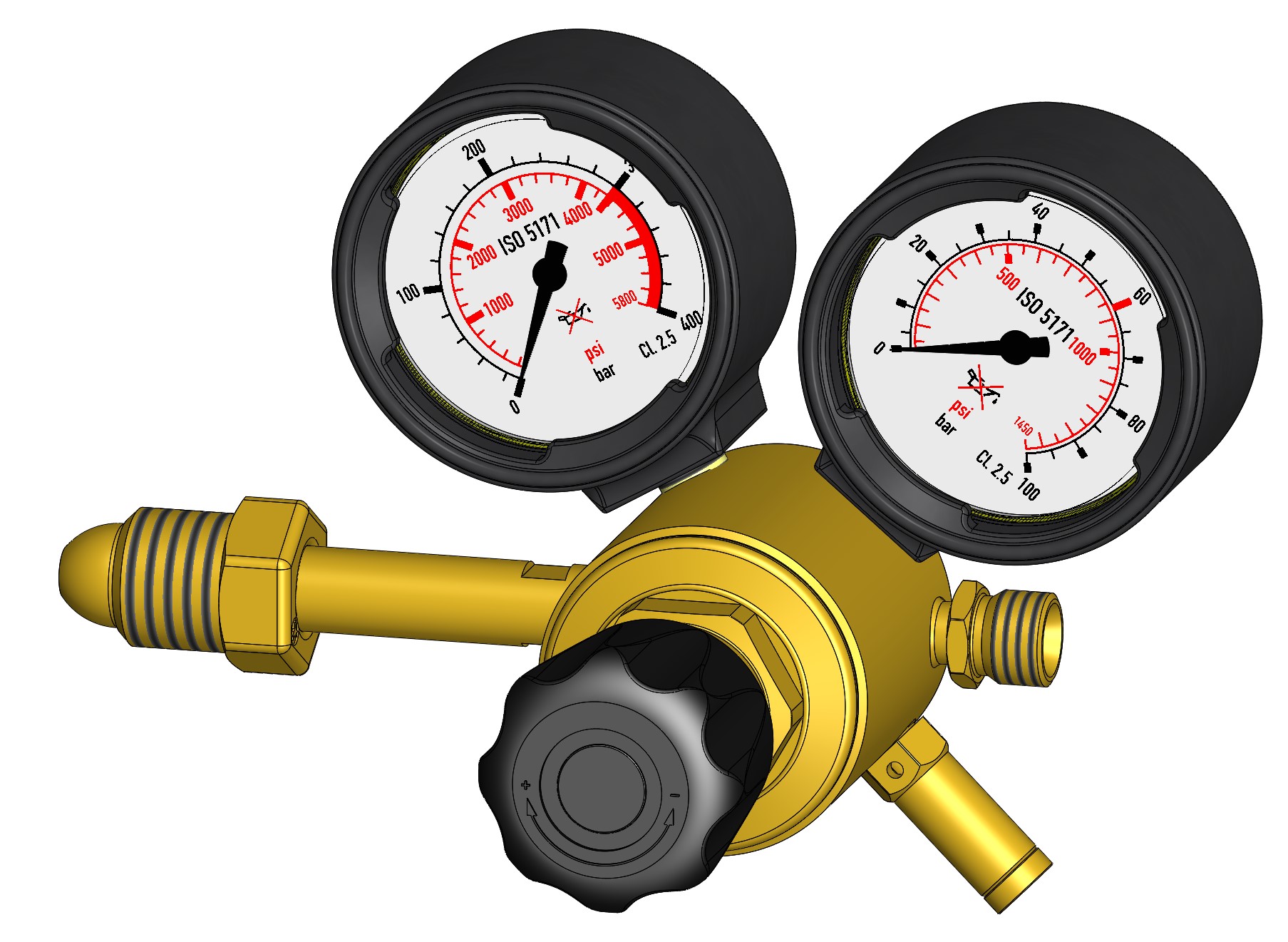

MEGA HP 60
MEGA HP 60
Characteristics
Use
Certificates
Product Sectors
MEGA HP 60
GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 60 - MEGA HP 60
| Code | Image | Description | Normative | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
290250HP60 Request information | | MEGA HP60 OXYGEN | UNI-SS | 200 | 60 | >180 | R | 2 | 1 | -- |
290251HP60 Request information |  | MEGA HP60 OXYGEN | DIN | 300 | 60 | >180 | R | 2 | 1 | -- |
290253HP60 Request information |  | MEGA HP60 OXYGEN | BS-NF-NEN-MIE | 300 | 60 | >180 | R | 2 | 1 | -- |
290255HP60 Request information |  | MEGA HP60 OXYGEN | CGA | 300 | 60 | >180 | R | 2 | 1 | -- |
MEGA HP 60 - NITROGEN
GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 60 - MEGA HP 60 - NITROGEN
| Code | Image | Description | Normative | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
294250HP60 Request information |  | MEGA HP60 NITROGEN | UNI | 200 | 60 | >180 | R | 2 | 1 | -- |
294251HP60 Request information |  | MEGA HP60 NITROGEN | DIN | 300 | 60 | >180 | R | 2 | 1 | -- |
294253HP60 Request information |  | MEGA HP60 NITROGEN | BS-NF | 300 | 60 | >180 | R | 2 | 1 | -- |
294259HP60 Request information |  | MEGA HP60 NITROGEN | NEN | 300 | 60 | >180 | R | 2 | 1 | -- |
294254HP60 Request information |  | MEGA HP60 NITROGEN | SS | 300 | 60 | >180 | R | 2 | 1 | -- |
294252HP60 Request information |  | MEGA HP60 NITROGEN | MIE | 300 | 60 | >180 | R | 2 | 1 | -- |
294255HP60 Request information |  | MEGA HP60 NITROGEN | CGA | 300 | 60 | >180 | R | 2 | 1 | -- |
MEGA HP 60 - ARGON
GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 60 - MEGA HP 60 - ARGON
| Code | Image | Description | Normative | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
296250HP60 Request information |  | MEGA HP60 ARGON | UNI-CGA300 | 200 | 60 | >180 | R | 2 | 1 | -- |
296251HP60 Request information |  | MEGA HP60 ARGON | DIN | 300 | 60 | >180 | R | 2 | 1 | -- |
296253HP60 Request information |  | MEGA HP60 ARGON | BS | 300 | 60 | >180 | R | 2 | 1 | -- |
295250HP60 Request information |  | MEGA HP60 ARGON | NF-MIE | 300 | 60 | >180 | R | 2 | 1 | -- |
296259HP60 Request information |  | MEGA HP60 ARGON | NEN | 300 | 60 | >180 | R | 2 | 1 | -- |
296254HP60 Request information |  | MEGA HP60 ARGON | SS | 300 | 60 | >180 | R | 2 | 1 | -- |
295250HP60 Request information | | MEGA HP60 ARGON | NF-MIE | 300 | 60 | >180 | R | 2 | 1 | -- |
MEGA HP 60 - COMPRESSED AIR
GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 60 - MEGA HP 60 - COMPRESSED AIR
| Code | Image | Description | Normative | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
298250HP60 Request information |  | MEGA HP60 COMPRESSED AIR | UNI | 200 | 60 | >180 | R | 2 | 1 | -- |
298253HP60DIN Request information |  | MEGA HP60 COMPRESSED AIR | DIN | 300 | 60 | >180 | R | 2 | 1 | -- |
298253HP60 Request information |  | MEGA HP60 COMPRESSED AIR | BS-SS | 300 | 60 | >180 | R | 2 | 1 | -- |
298255HP60 Request information |  | MEGA HP60 COMPRESSED AIR | CGA | 300 | 60 | >180 | R | 2 | 1 | -- |
MEGA HP 60 - HYDROGEN
GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 60 - MEGA HP 60 - HYDROGEN
| Code | Image | Description | Normative | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
293250HP60 Request information |  | MEGA HP60 HYDROGENO | UNI | 200 | 60 | >180 | R | 2 | 1 | -- |
293251HP60 Request information |  | MEGA HP60 HYDROGENO | DIN-NEN-SS-MIE | 300 | 60 | >180 | R | 2 | 1 | -- |
293253HP60 Request information |  | MEGA HP60 HYDROGENO | BS | 300 | 60 | >180 | R | 2 | 1 | -- |
293281HP60 Request information |  | MEGA HP60 HYDROGENO | NF | 300 | 60 | >180 | R | 2 | 1 | -- |
293255HP60 Request information |  | MEGA HP60 HYDROGENO | CGA | 300 | 60 | >180 | R | 2 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
