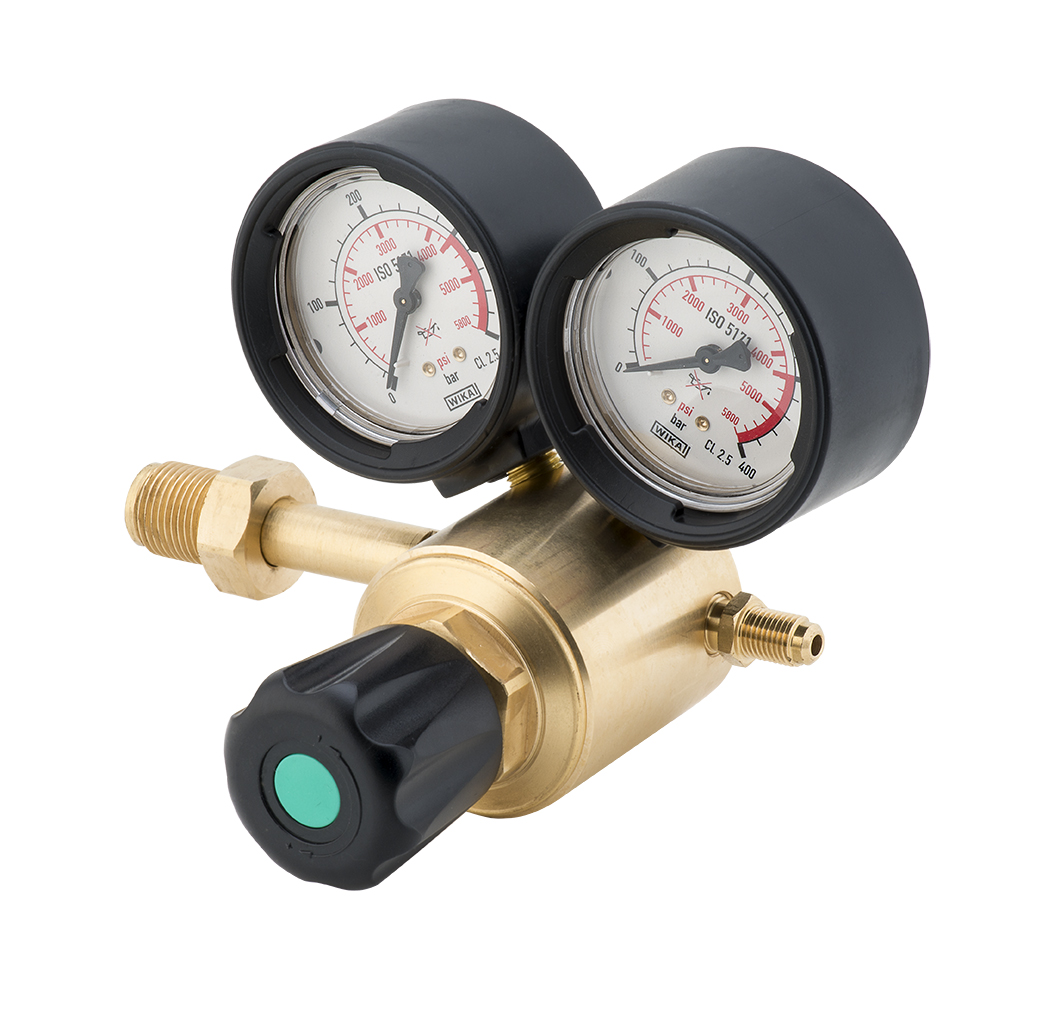

MEGA HP 200

MEGA HP 200

Nitrogen regulator (0-200 bar) fits for preventive leak testing and piping cleaning for R744 systems (CO2)


Refrigerant gases such as R744 or others can be used in a variety of industrial and non-industrial applications, such as the conditioning market for cars and other vehicles, cabinets for supermarkets, containers, and climate-controlled residential systems..
An R744 system reaches a pressure of up to 133 bar. The high pressure in R744 systems corresponds to a high heat dissipation mainly carried out at pressure levels above the critical point..
The Mega HP200 regulator is suitable for verification and maintenance of this system.

Characteristics

- Body and cover machined directly from bras bar
- Front adjusting knob
- Two ø63mm pressure gauges 0-400 bar
- Outlet pressure 200 bar
- Outlet fitting 7/16"-20 UNF (1/4 SAE)

Use

Permits use of nitrogen with an inlet pressure up to 200 bar and enables outlet supply > 300 m3/h at 200 bar.

Certificates

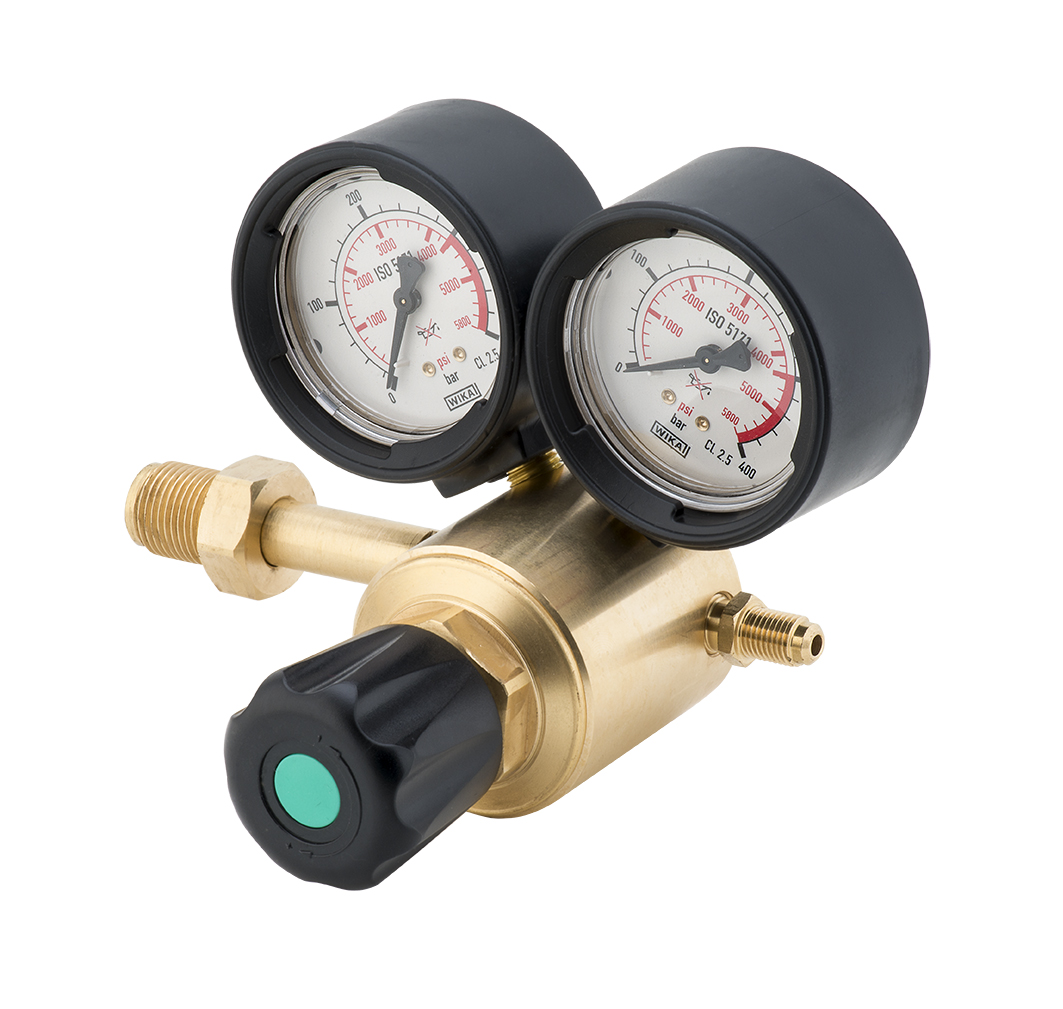

MEGA HP200 - OXYGEN

GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 200 - MEGA HP200 - OXYGEN

Available in the version for nitrogen, ideal for checking the tightness and cleaning air conditioning systems, and for oxygen. They allow for an output delivery > 300 m3/h at 200 bar. They have a 7/16”-20 UNF (1/4 SAE)M outlet connection.
On request we supply the regulator with connections not in the catalogue for other types of gas.
Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Normative P1 (bar) P2 (bar) Q1 (m³/h) Availability Weight (kg) No. of pcs Product sheet

290200HP

Request information
MEGA HP 200
 MEGA HP200 OXYGEN UNI-SS300 200 200 >300 D 2 1
--

290209HP

Request information
MEGA HP 200
 MEGA HP200 OXYGEN DIN 300 200 >300 D 2 1
--

290203HP

Request information
MEGA HP 200
 MEGA HP200 OXYGEN BS-NEN-MIE 300 200 >300 D 2 1
--

290202HP

Request information
MEGA HP 200
 MEGA HP200 OXYGEN NF 300 200 >300 D 2 1
--

290205HP

Request information
MEGA HP 200
 MEGA HP200 OXYGEN CGA 300 200 >300 D 2 1
--

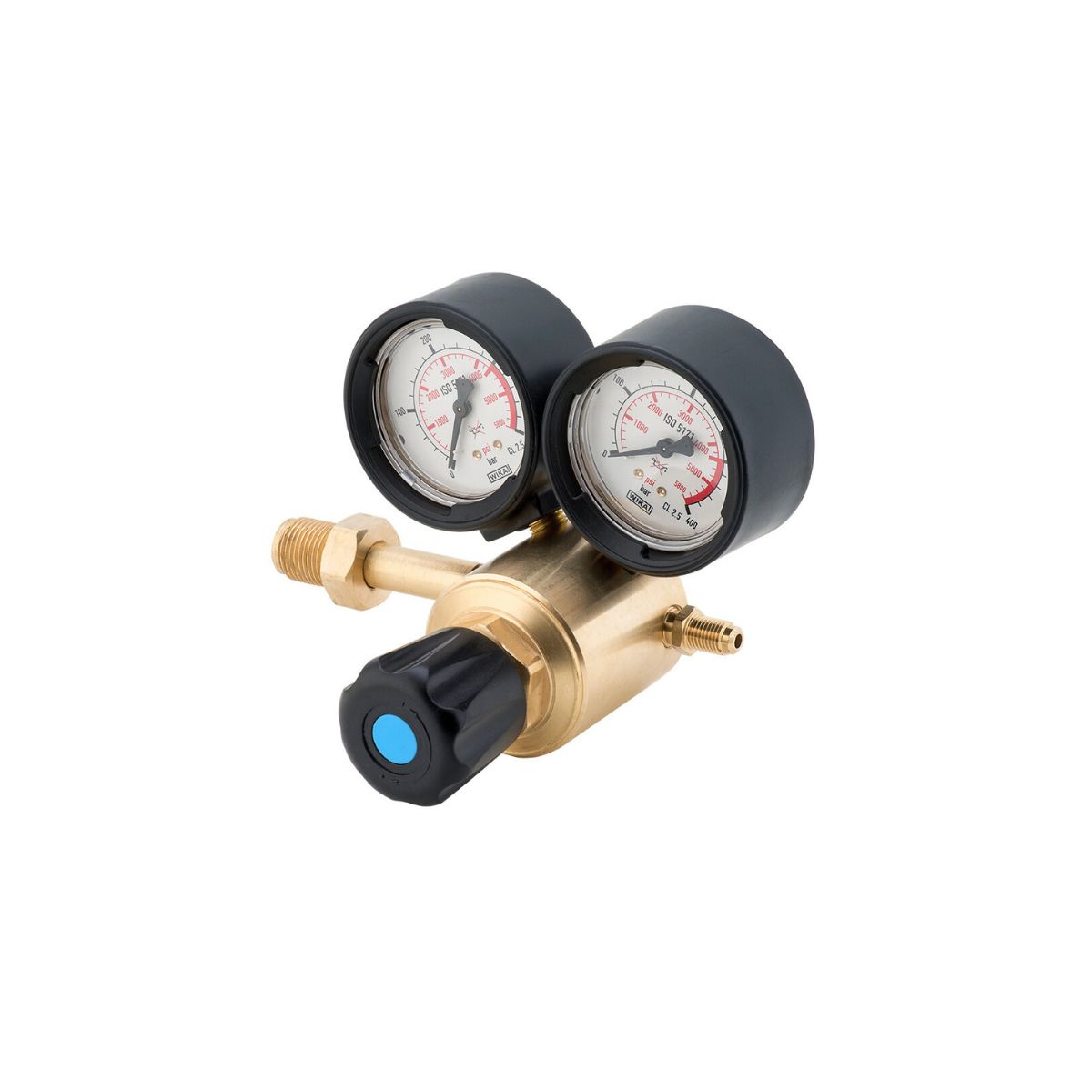

MEGA HP200 - NITROGEN

GAS DISTRIBUTION CONTROL SYSTEMS - MEGA HP 200 - MEGA HP200 - NITROGEN

Available in the version for nitrogen, ideal for checking the tightness and cleaning air conditioning systems, and for oxygen. They allow for an output delivery > 300 m3/h at 200 bar. They have a 7/16”-20 UNF (1/4 SAE)M outlet connection.
On request we supply the regulator with connections not in the catalogue for other types of gas.
Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Normative P1 (bar) P2 (bar) Q1 (m³/h) Availability Weight (kg) No. of pcs Product sheet

294200HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN UNI 200 200 >300 D 2 1
--

294209HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN DIN 300 200 >300 D 2 1
--

294203HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN BS 300 200 >300 D 2 1
--

294202HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN NF-MIE 300 200 >300 D 2 1
--

2942049HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN NEN 300 200 >300 D 2 1
--

294204HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN SS 300 200 >300 D 2 1
--

294205HP

Request information
MEGA HP 200
 MEGA HP200 NITROGEN CGA 300 200 >300 D 2 1
--

Technical questions and evidence

How can I compare the available variants?

Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.

Which supporting documents are available?

The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.

How do I verify compatibility with my application?

Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
