The first step of pressure reduction in a system for the centralised distribution of technical and laser gases.
The decompression panel is used to manage the supply of a gas to the system, thereby guaranteeing continuity of the supply by controlling the primary and secondary sources. The system is used to minimise the stress to the fittings and the pipes during cylinder replacement.
From the decompression station, the gases are distributed to the various places of use in the department by means of dedicated pipes. The gas outlets are obtained from the main networks at the individual workstations. The dedicated outlet panels are applied where Gas Points are considered necessary for the smooth operation of the workplace.

Characteristics

The Oxyturbo panels are of the manual or semi-automatic exchange type and include:
- the inlet shut-off valves with no-return valves
- the 1/2 M outlet ball valve
- the pressure regulator
All of the components are fixed onto a stainless steel panel ready for wall mounting.
For utilities where there is a significant and continuous flow, the use of a hydrothermal pre-heater is advisable.
To allow for the simultaneous use of several cylinders, manifold systems, can be easily connected to the panel.

Use

The Oxyturbo decompression panels are available for various types of gas and pressures and are suitable for industrial applications in chemistry, metallurgy and laser applications.

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT (W21.7 RH OR LH)

GAS DISTRIBUTION CONTROL SYSTEMS - HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT - HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT (W21.7 RH OR LH)

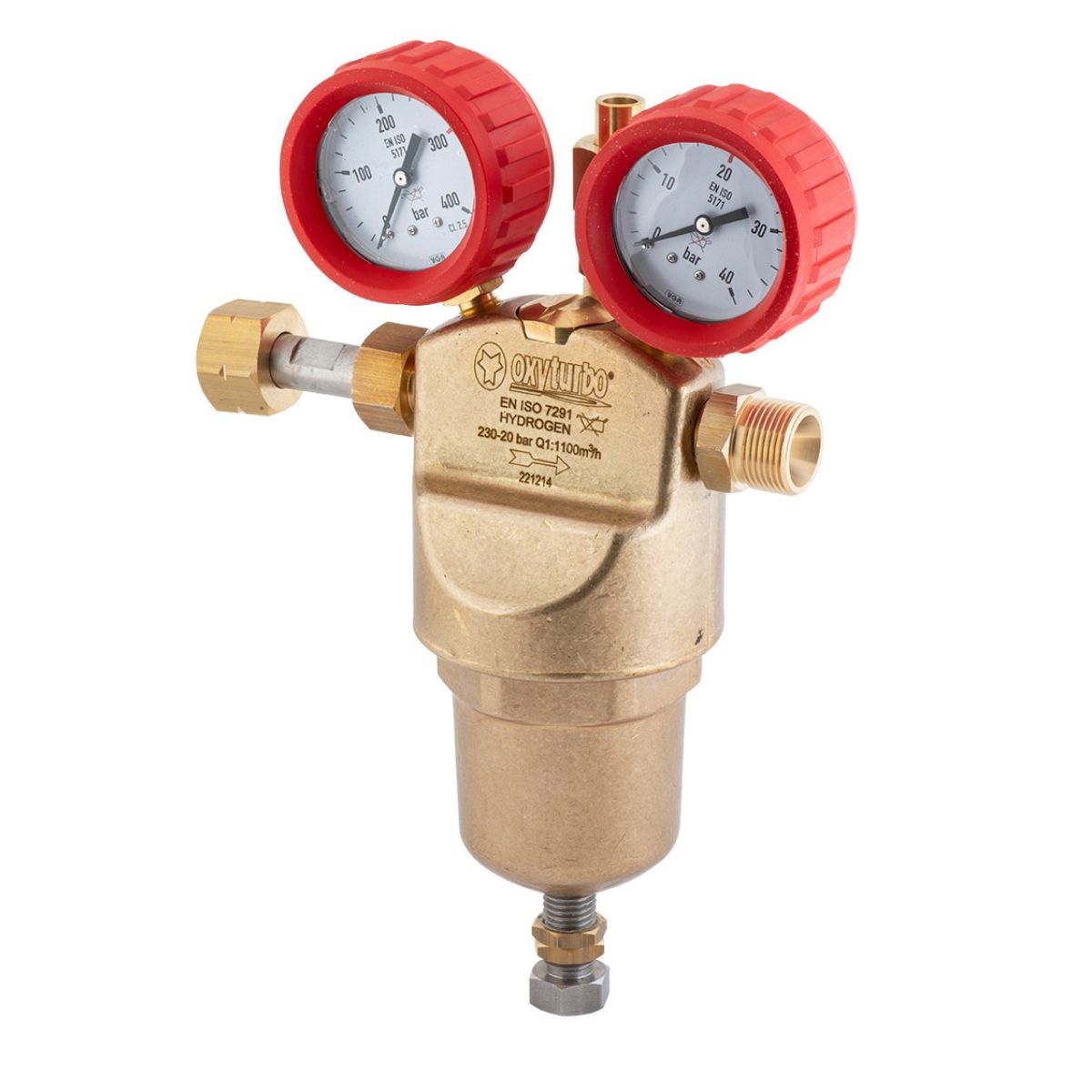

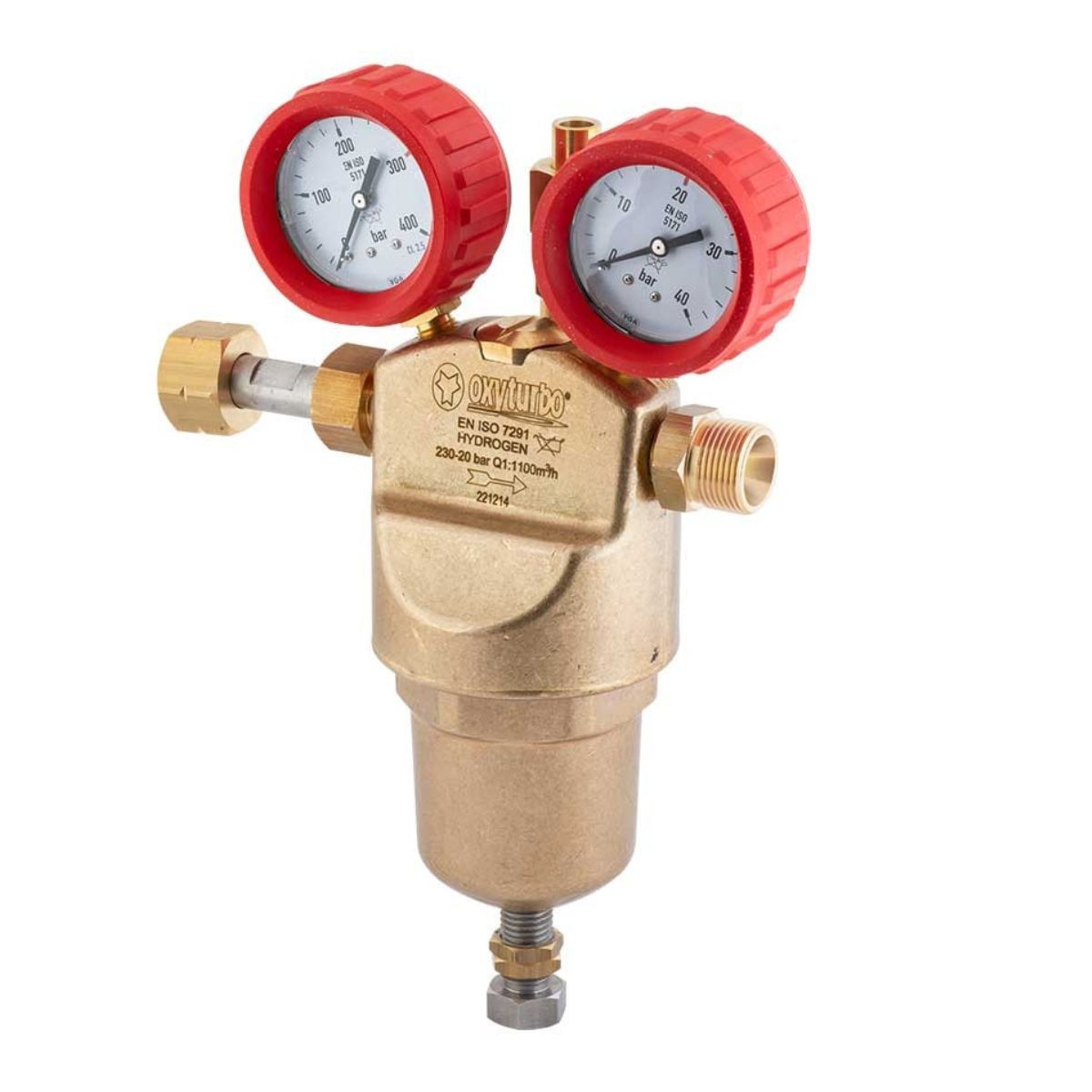

Recommended for all applications where constant pressure and high flow rate are required, they are ideal for oxygen and gas cutting operations, for laser processes using gas and for arc welding. They can be used either as spare parts in a decompression cabinet or directly on cylinders or cylinder packs. For some gases, however, a cylinder connection fitting is required, which is supplied separately on request (see table below). Thanks to the filter integrated in the inlet connection of the regulator, it is also possible to work well with gas from old or dirty installations. FEATURES - Variable pressure regulators with piston pressure adjustment for the 50 bar P2 version and diaphragm pressure adjustment for all other versions. - High and low pressure gauges ø 63 mm with dual bar/psi scales - Integrated pressure relief valve - Degreased components for version for use with oxygen - G3/4M outlet connection.
Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description P1 (bar) P2 (bar) Flow rate (Nm³/h) Availability Weight (kg) No. of pcs Product sheet

190100Y.RID

Request information
HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 High flow regulator Oxygen - CO2 - Argon - Nitrogen 300 20 150 R 5 1
--

190000Y.RID

Request information

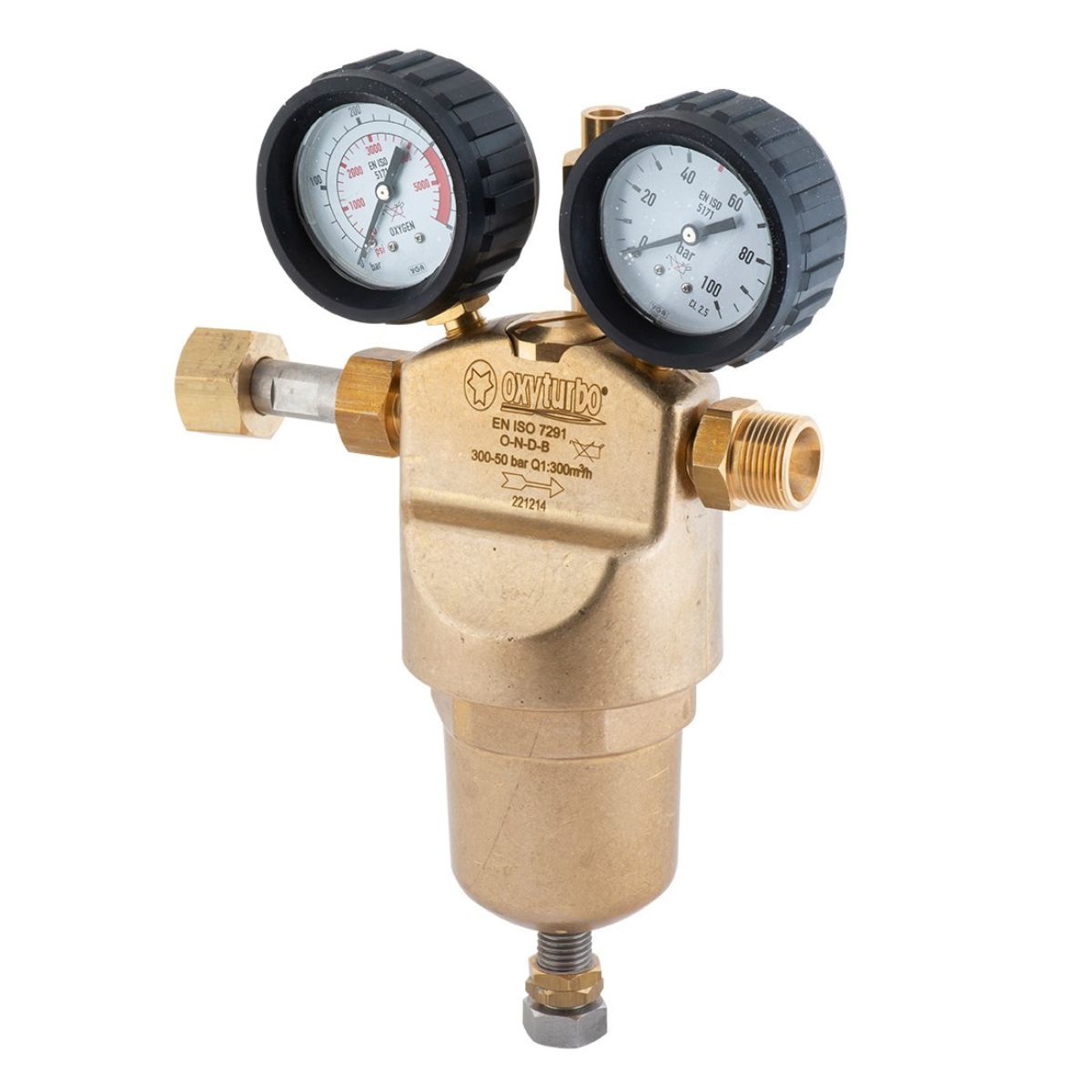

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 High flow regulator Oxygen - CO2 - Argon - Nitrogen 300 50 300 R 5 1
--

190150Y.RID

Request information
HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 High flow regulator Hydrogen 300 20 1100 R 5 1
--

190253Y.RID

Request information
HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 High flow regulator Acetylene 25 1,5 22 R 5 1
--

190250Y.RID

Request information
HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 High flow regulator Acetylene 25 4 45 R 5 1
--

190254Y.RID

Request information

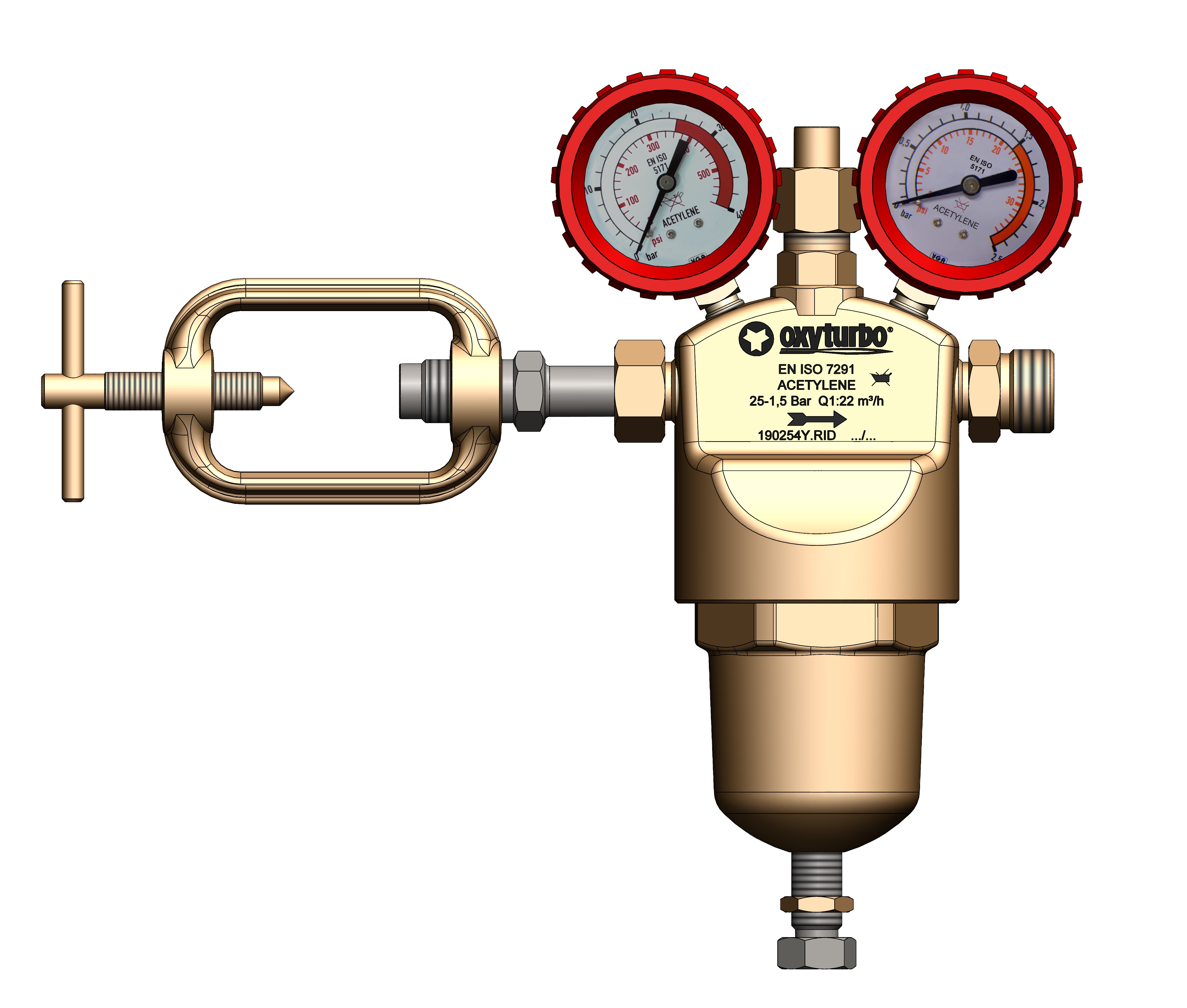

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 High flow rate acetylene reducer with UNI11144-7S bracket 25 1,5 22 R 5 1
--

CONNECTION FITTINGS

GAS DISTRIBUTION CONTROL SYSTEMS - HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT - CONNECTION FITTINGS

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Availability Weight (kg) No. of pcs Product sheet

C5649000

Request information

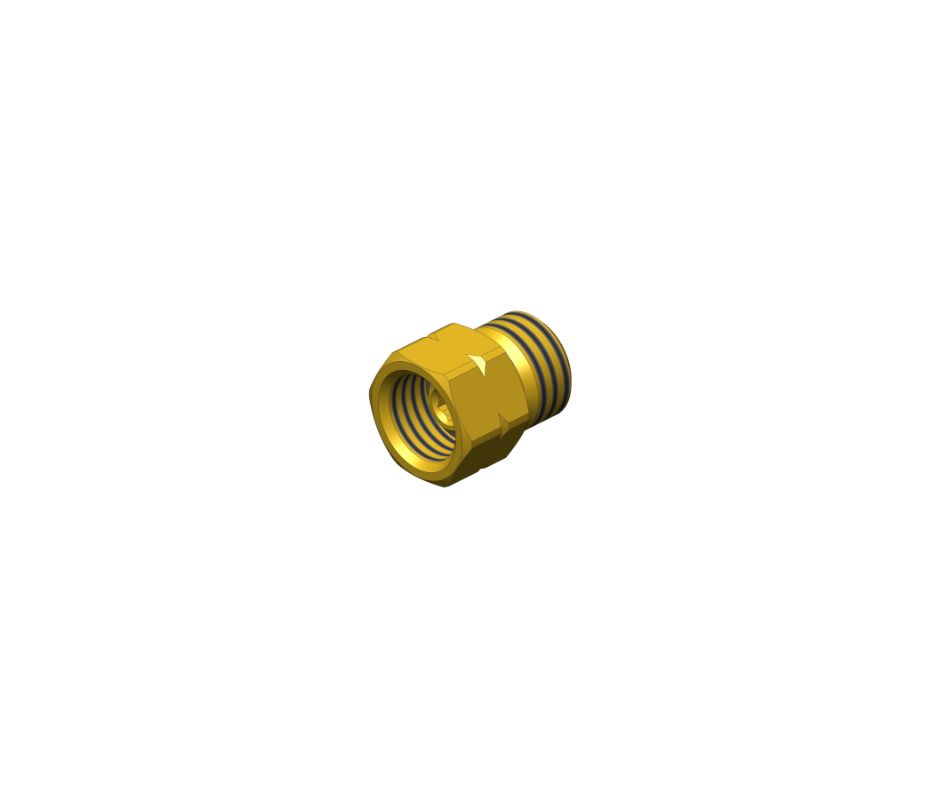

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 CO2/ARGON FITTING IT D 0 1
--

C5419000

Request information

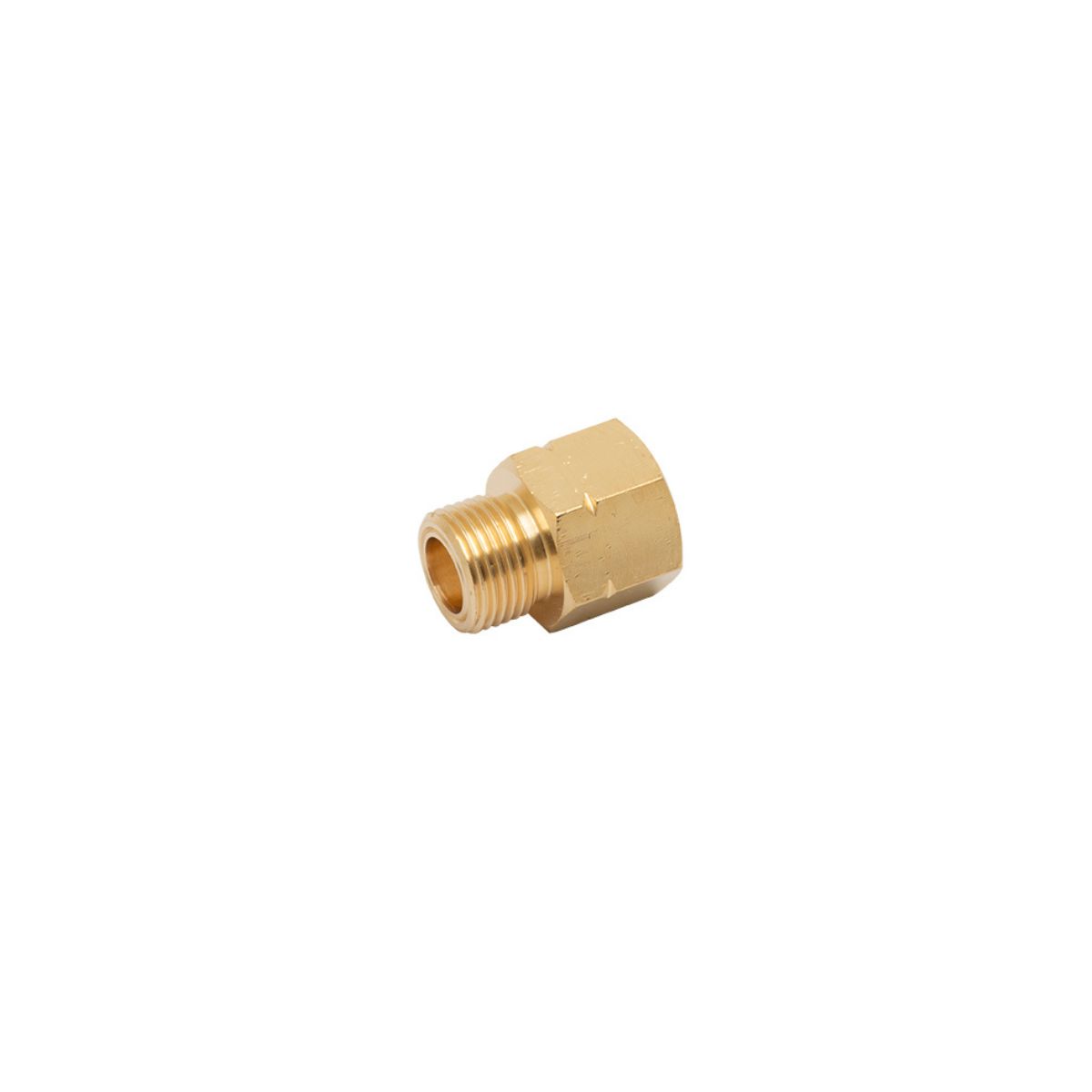

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 NITROGEN CONNECTION D 0 1
--

C5629054

Request information

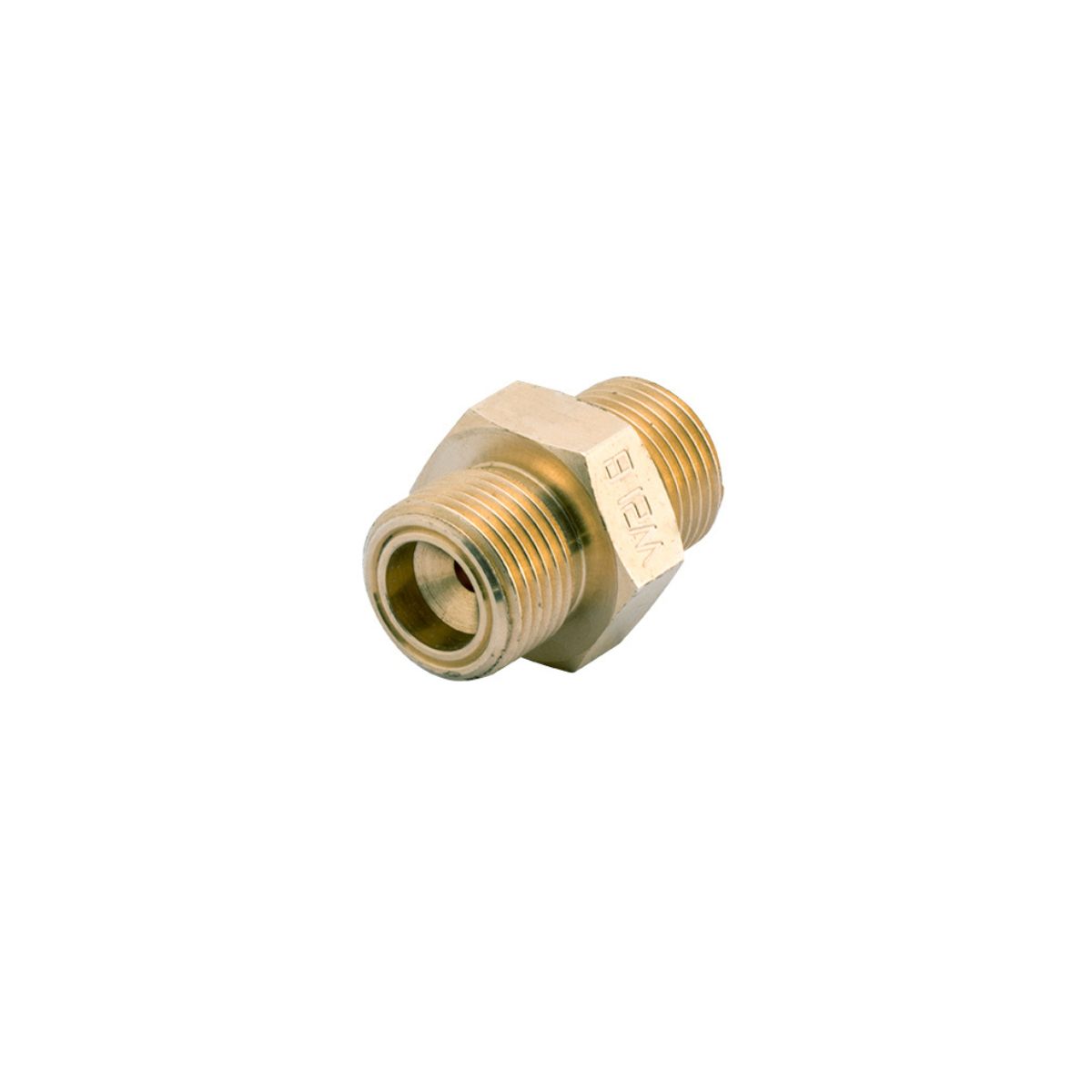

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 G5/8" LH (UNI 11144-7F) - W21.8x1/14" LH (DIN 477 No.1) fitting for acetylene regulator D 0 1
--

C5419003

Request information

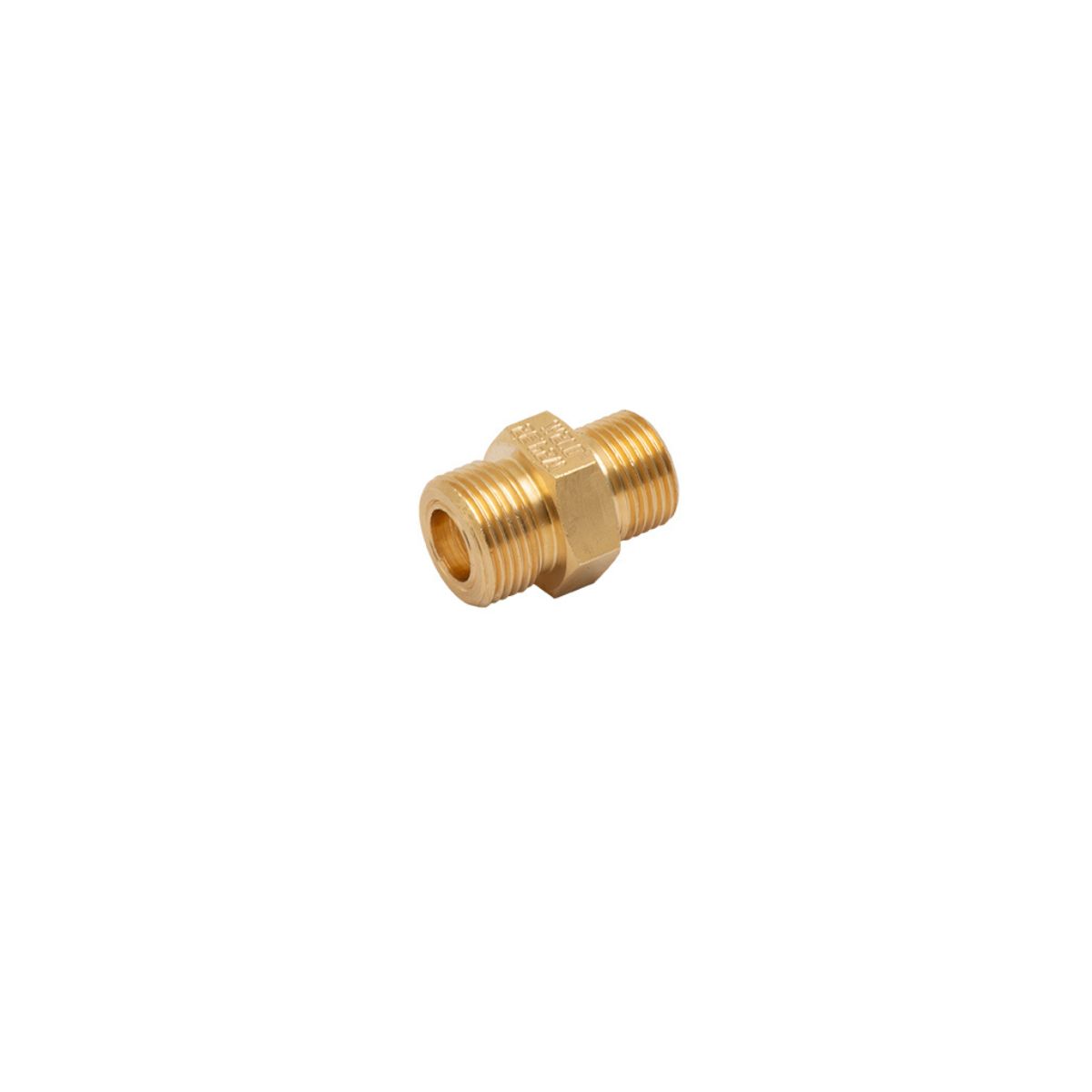

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
 W21.7x1/14 Lhe - W20x1/1 4 Lhi (UNI11144-1H) fitting for hydrogen regulator D 0 1
--

C5419004

Request information

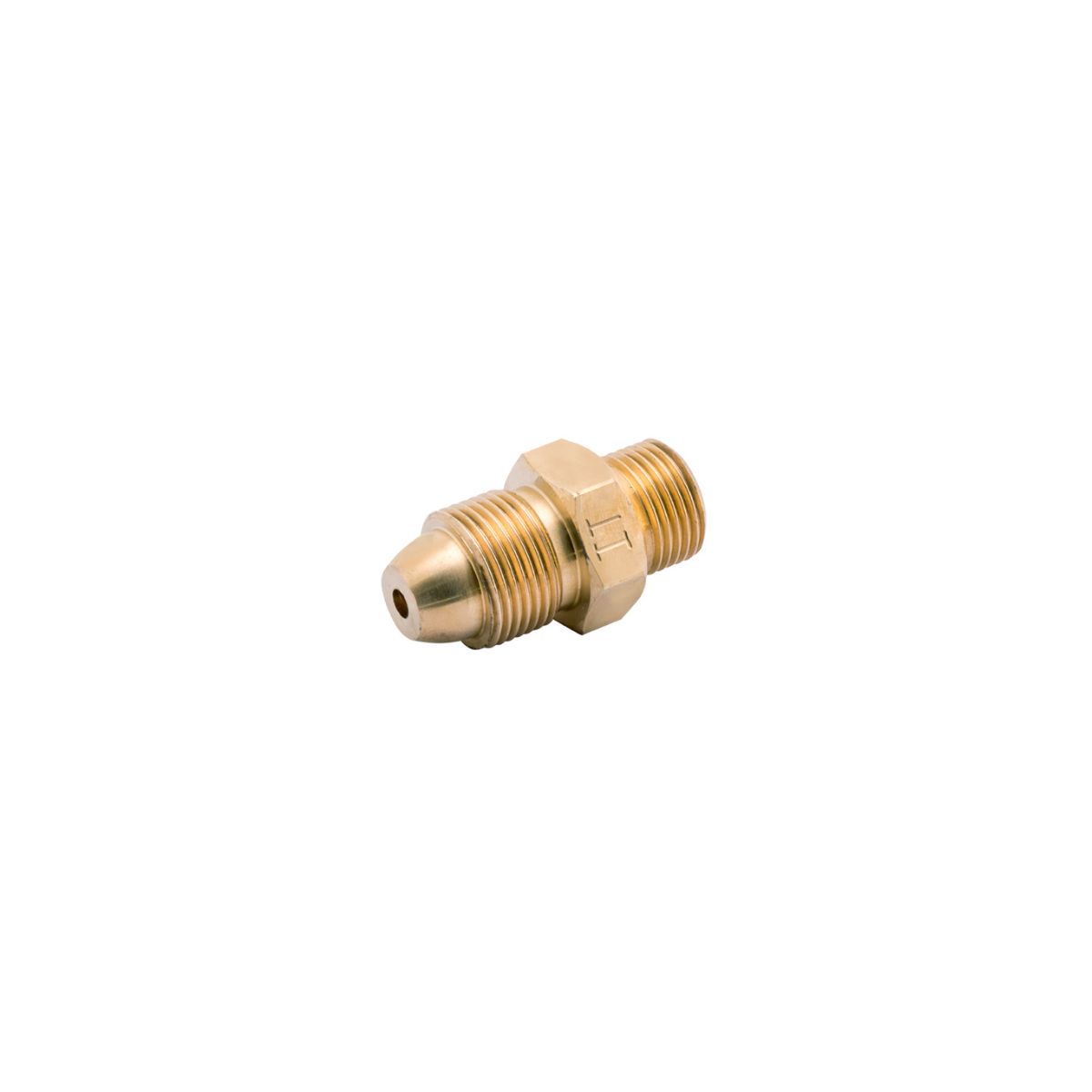

HIGH FLOW RATE REGULATORS WITH RAMP ATTACHMENT
