GAS POINT SMART
At the service of industrial gases.
The simplest, easiest and quickest socket designed by Oxyturbo to complete gas distribution centralisation.

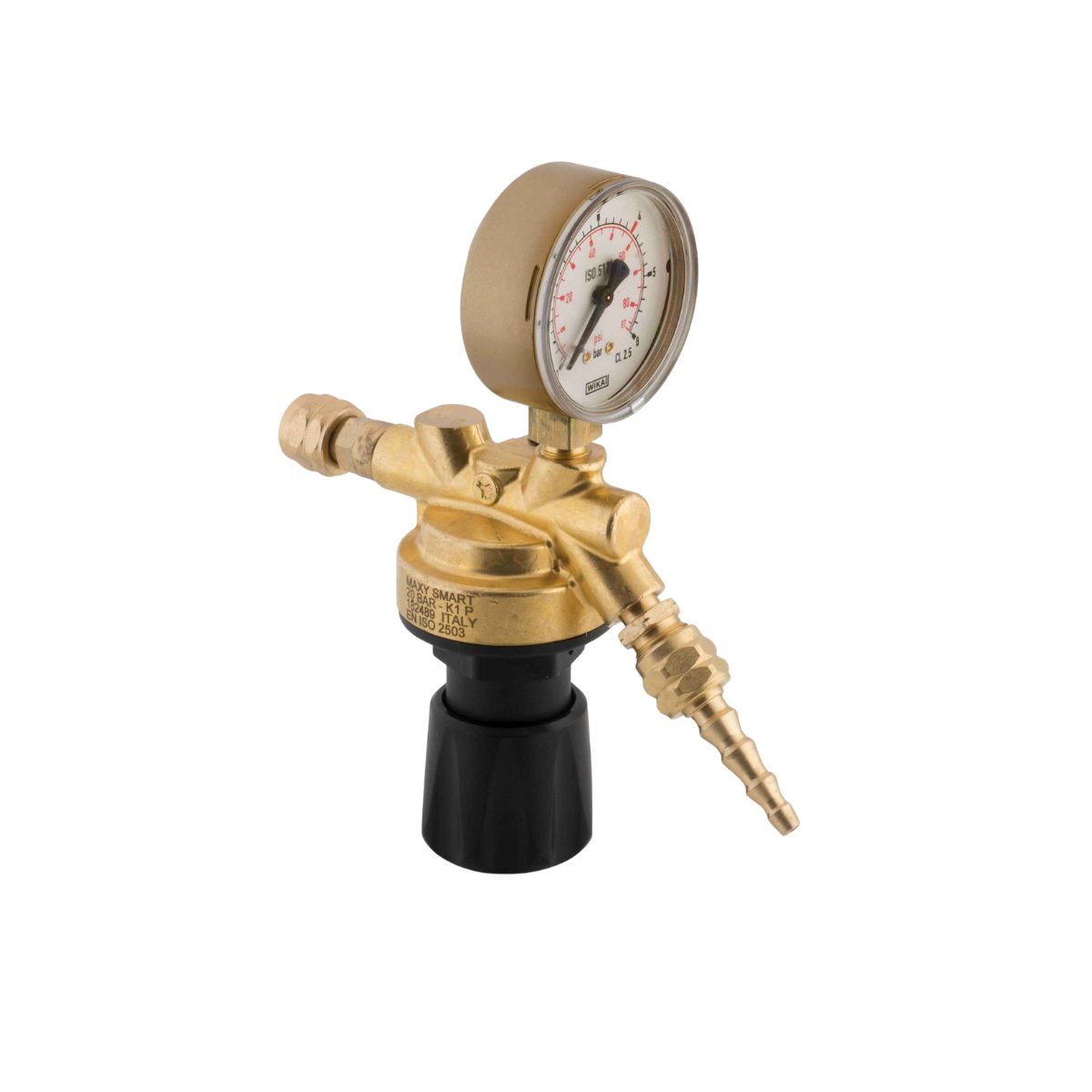

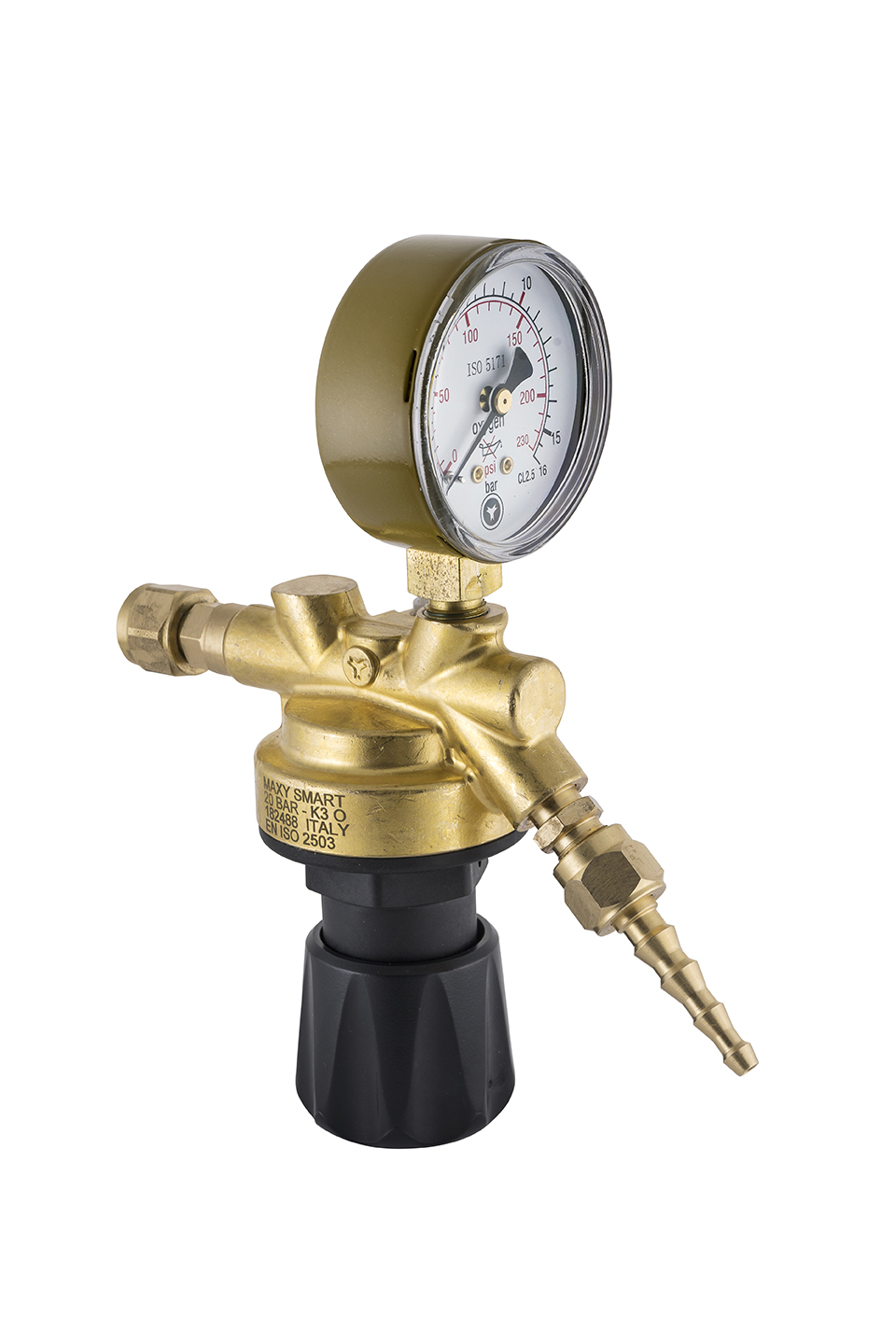

The inlet connection is G3/8 female. It is composed of a MaxySmart line regulator with 63 mm diameter pressure gauge or with a flow meter and outlet flexible hose connection. The pressure gauge is oriented so as to allow for easy operator reading.
The variants for oxygen, acetylene and propane are arranged for the connection of a dual safety valve against flame and gas returns.
Characteristics
GAS POINT distribution points are equipped with easy-to-mount stainless steel casing enclosures that envelop components to ensure maximum protection. Markings on the enclosure are built into it without the use of labels which could detach over time. The models for oxygen, acetylene and propane are equipped with a dual safety valve against flame and gas returns. The inlet connection is G3/8 male and is equipped with a G1/4 ball cut-off valve with inspecting filter. At outlet, the connection is G3/8 with hose connection. The pressure control gauges are 63 mm diameter and allow for easy reading of the internal scale.
Use
- Automotive
- Metallurgical
- Production or use of metal, plastic, glass and paper
- Packaging
- Chemical and petrochemical industry
- Metallurgical
- Production or use of metal, plastic, glass and paper
- Packaging
- Chemical and petrochemical industry
Certificates
Product Sectors
GAS POINT SMART - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS POINT SMART WITH flow meter - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
KIT GAS POINT SMART - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS POINT SMART KIT WITH flow meter - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
ROUNDED BALL VALVES - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
LINE flow meter 30L/min - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
CONNECTION FITTING - GAS POINT SMART
WALL SUPPORTS - GAS POINT SMART
GAS POINT SMART - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - GAS POINT SMART - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
This new line of gas outlets is the safe, simple, and practical solution for using cylinder-based industrial gases.

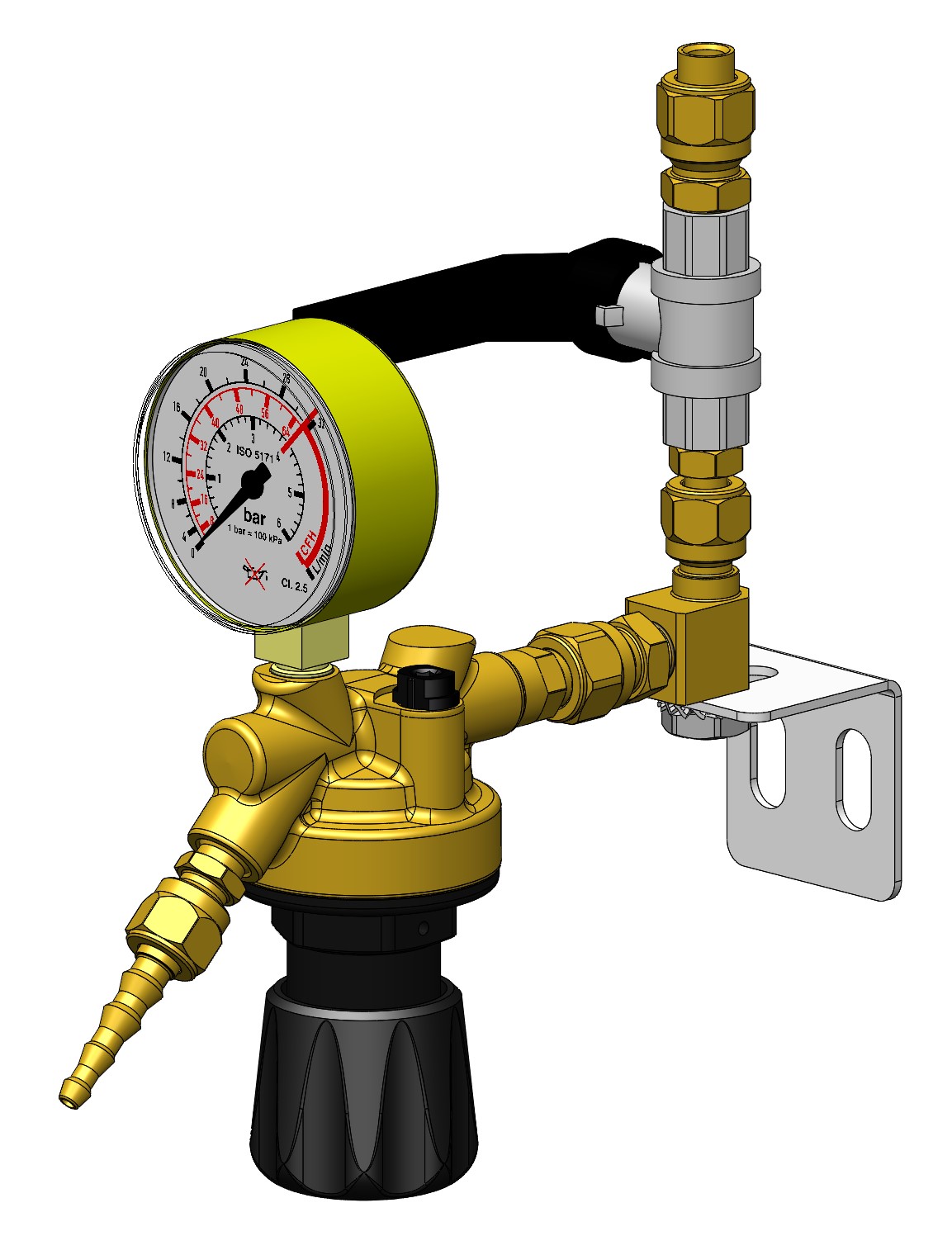

Oxyturbo offers a complete kit with a pressure regulators, a ball valve for connection to the circuit, and a wall-mounting bracket for the single Gas Point Smart.
It's also possible to have two or three outlets mounted on a single bracket (e.g., one for oxygen, one for acetylene, and one for argon) by purchasing the two- or three-port bracket and the modular Gas Point Smart units.
.
| Code | Image | Description | Inlet | Outlet | P2 (bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
240302.PP Request information | | Gas Point Smart Oxygen | G3/8 | G1/4 | 10 | R | 0 | 1 | -- |
241352.PP Request information |  | Gas Point Smart Acetylene | G3/8LH | G3/8LHH | 1,5 | R | 0 | 1 | -- |
242352.PP Request information |  | Gas Point Smart Propane | G3/8LH | G3/8LH | 4 | R | 0 | 1 | -- |
245302.PP Request information |  | Gas Point Smart CO2/Argon | G3/8 | G1/4 | 32L/min | R | 0 | 1 | -- |
245352.10PP Request information |  | Gas Point Smart Inert Gases | G3/8 | G3/8 | 10 | R | 0 | 1 | -- |

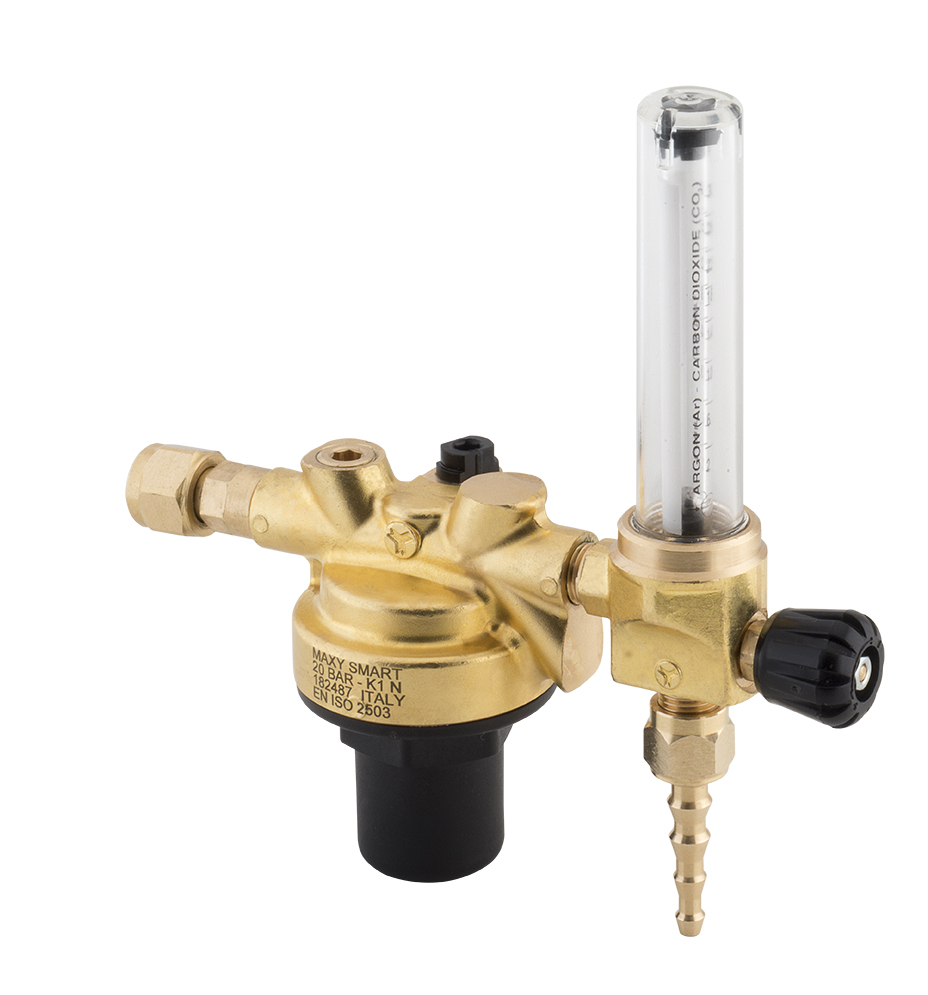

GAS POINT SMART WITH flow meter - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - GAS POINT SMART WITH flow meter - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
| Code | Image | Description | Inlet | Outlet | P2 (bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
245402.PP Request information |  | Gas Point Smart CO2/ Argon + flowmeter | G3/8 | G1/4 | 30L/min | R | 0 | 1 |

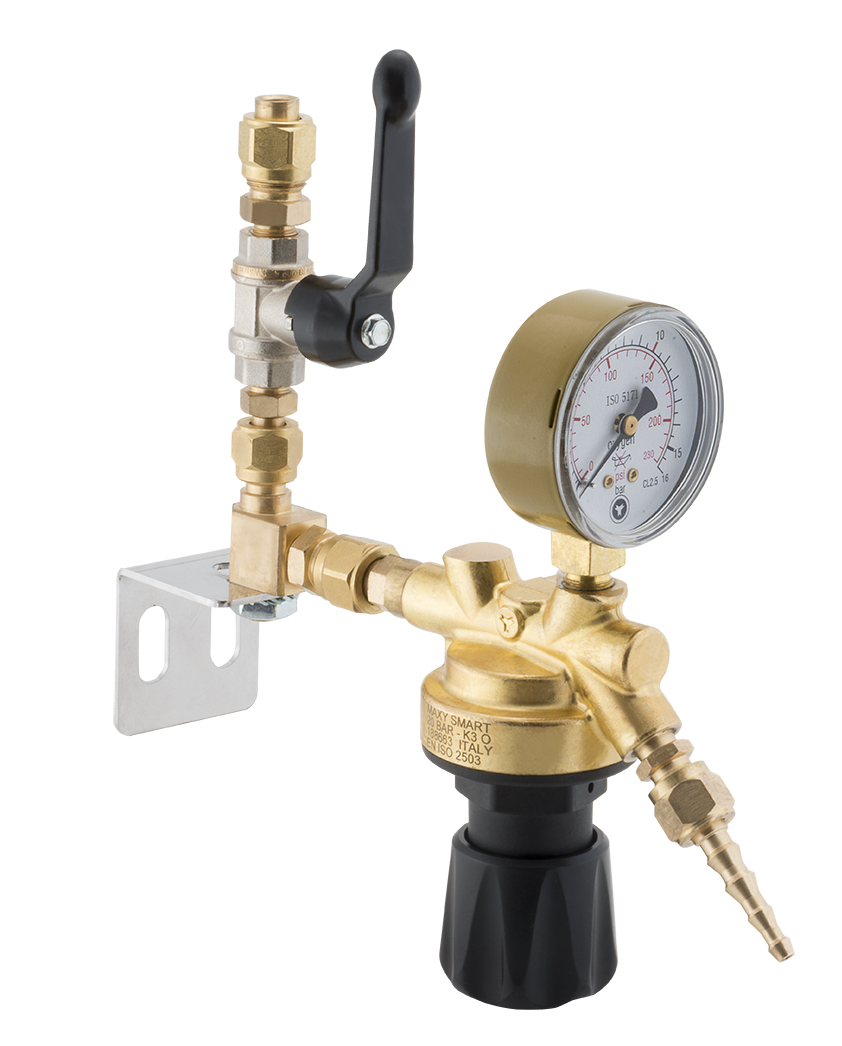

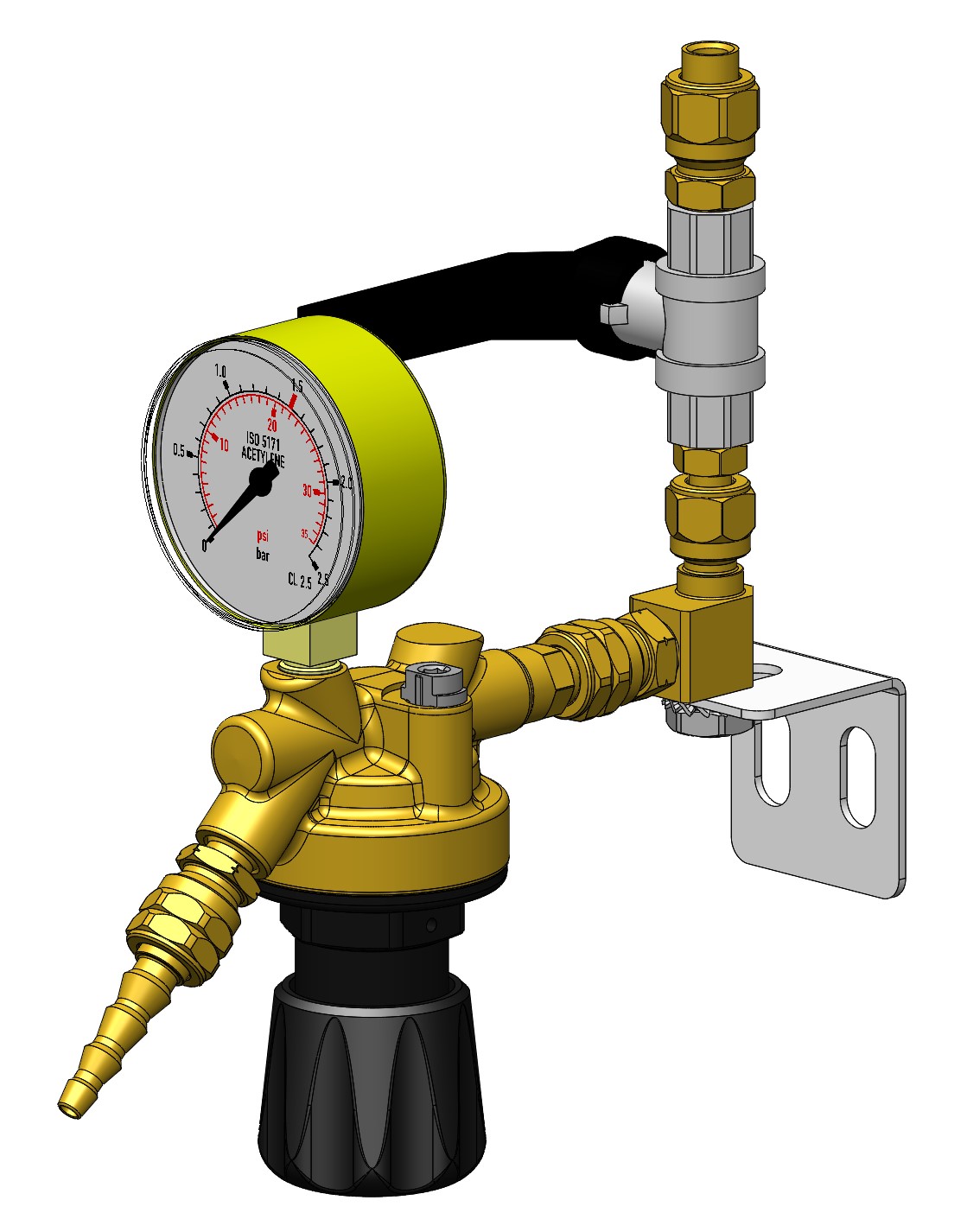

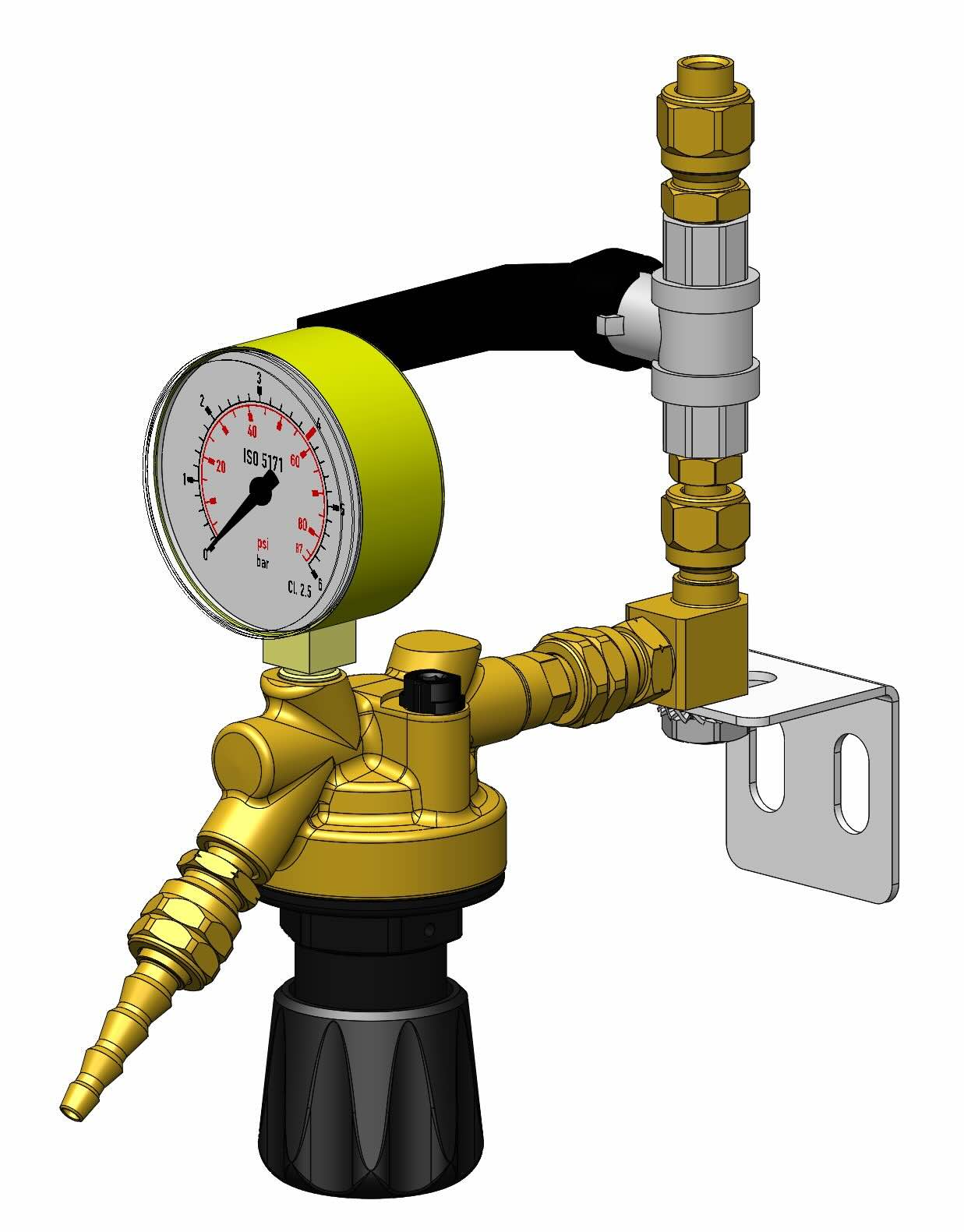

KIT GAS POINT SMART - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - KIT GAS POINT SMART - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
This new kit range is the safe, simple and practical solution for the use of industrial gases in cylinders.
Oxyturbo offers a complete kit of pressure regulator, ball valve for connection to the circuit and bracket for wall mounting of the Gas Point Smart in the single version.
It is also possible to have 2 or 3 sockets fixed on a single bracket (e.g. one for Oxygen, one Acetylene and one Argon) by purchasing the 2 or 3 socket bracket and the modular Gas Point Smart.
| Code | Image | Description | Gas | Inlet | Outlet | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
245352GPS10 Request information |  | Kit Gas Point Smart 10 bar | GAS INERTI | G3/8 | G3/8 | R | 1 | 1 | -- |
240302GPS Request information |  | Kit Gas Point Smart 10 bar | OSSIGENO | G3/8 | G1/4 | R | 1 | 1 | -- |
241352GPS Request information |  | Gas Point Smart Kit 1.5 bar | ACETILENE | G3/8LH | G3/8LH | R | 1 | 1 | -- |
242352GPS Request information |  | Gas Point Smart Kit 4 bar | PROPANO | G3/8LH | G3/8LH | R | 1 | 1 | -- |
245302GPS Request information |  | Gas Point Smart Kit 32 l/min | CO2/ARGON | G3/8 | G1/4 | R | 1 | 1 | -- |
GAS POINT SMART KIT WITH flow meter - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - GAS POINT SMART KIT WITH flow meter - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES

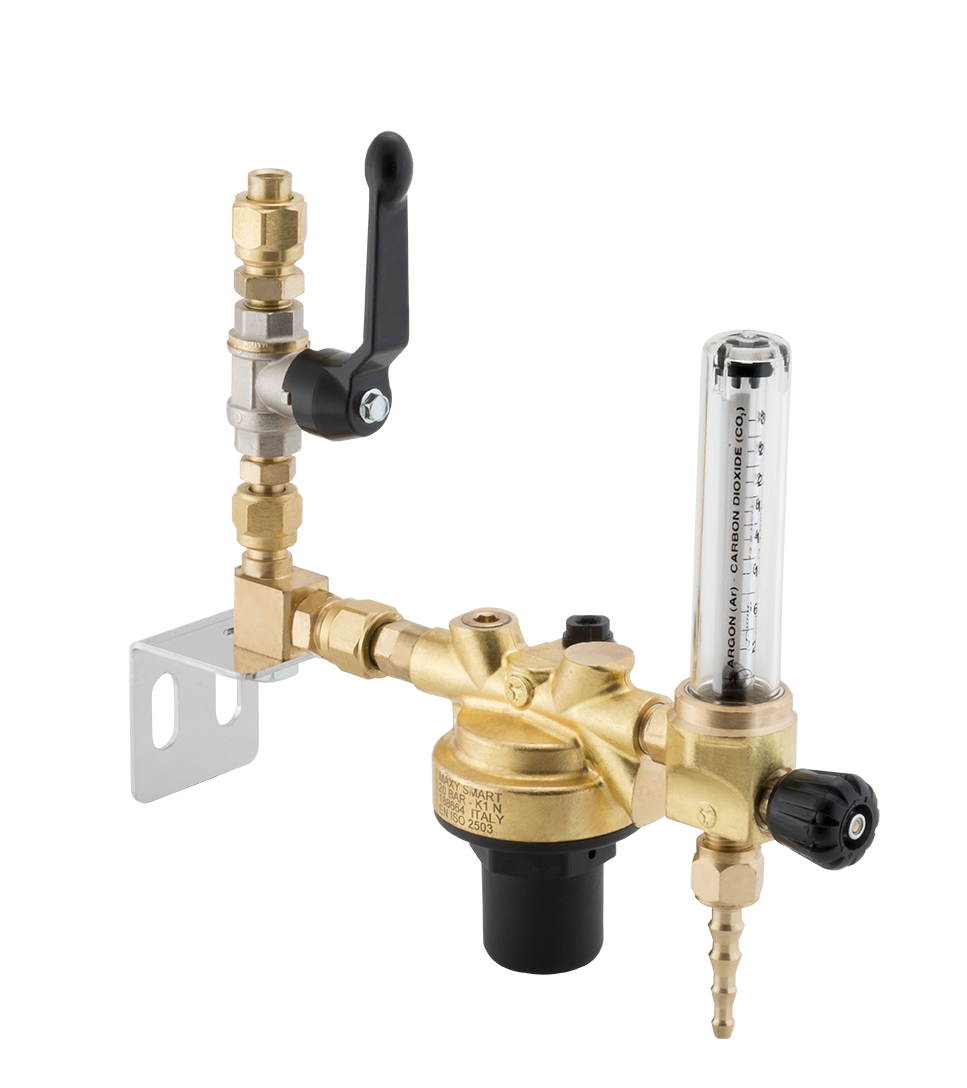

The Gas Point Smart with single flow meter is also available in the kit version complete with ball valves for connection to the circuit and brackets for wall mounting.
N.B. For the double and triple versions, it is possible to order the components separately.
| Code | Image | Description | Gas | Inlet | Outlet | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
245402GPS Request information |  | Gas Point Smart Co2/Argon G3/8 G1/4 R 1.180 40.5 Flux 30 l/min | CO2/ARGON | G3/8 | G1/4 | R | 1 | 1 |
ROUNDED BALL VALVES - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - ROUNDED BALL VALVES - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES

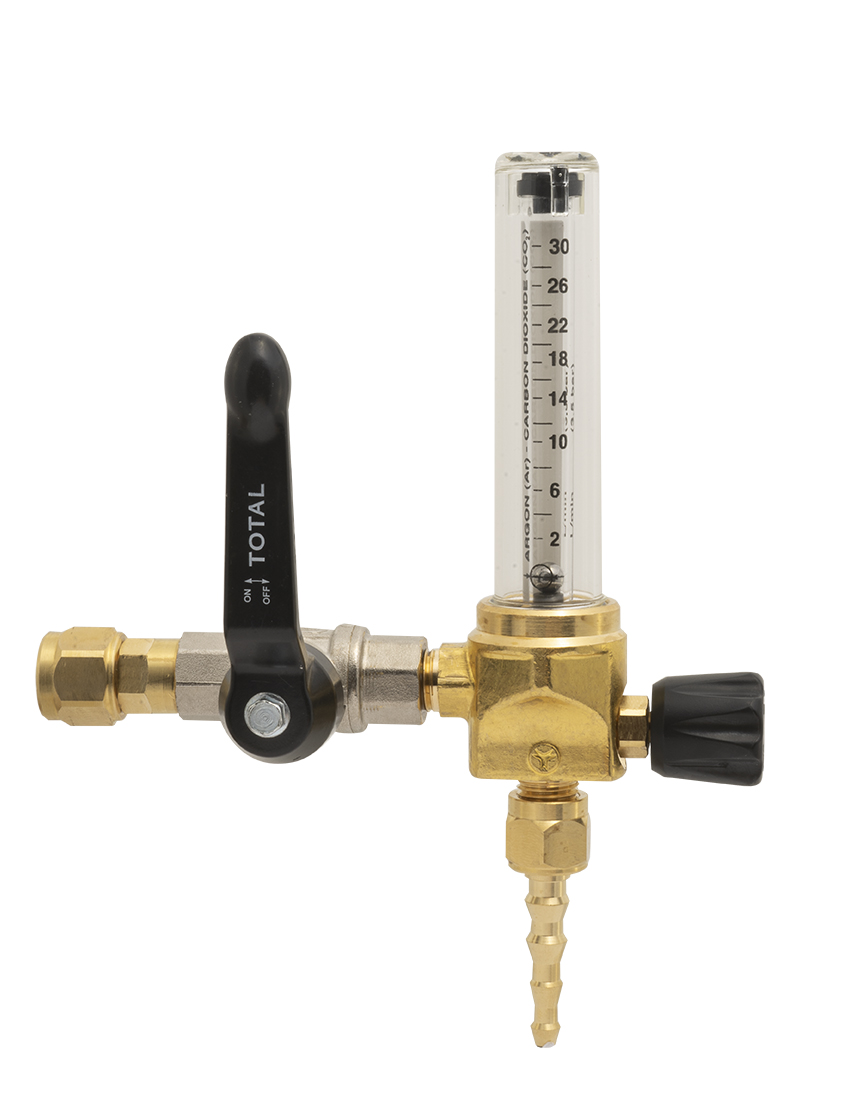

The Gas Point Smart with flowmeter is supplied with a control knob and is therefore particularly suitable for applications where flow measurement requires greater immediacy and accuracy.
They can be mounted on a 1-, 2-, or 3-port bracket using a ball valve connected to an elbow (see codes below). They are also available as spare parts for GAS POINT Smart KITS.

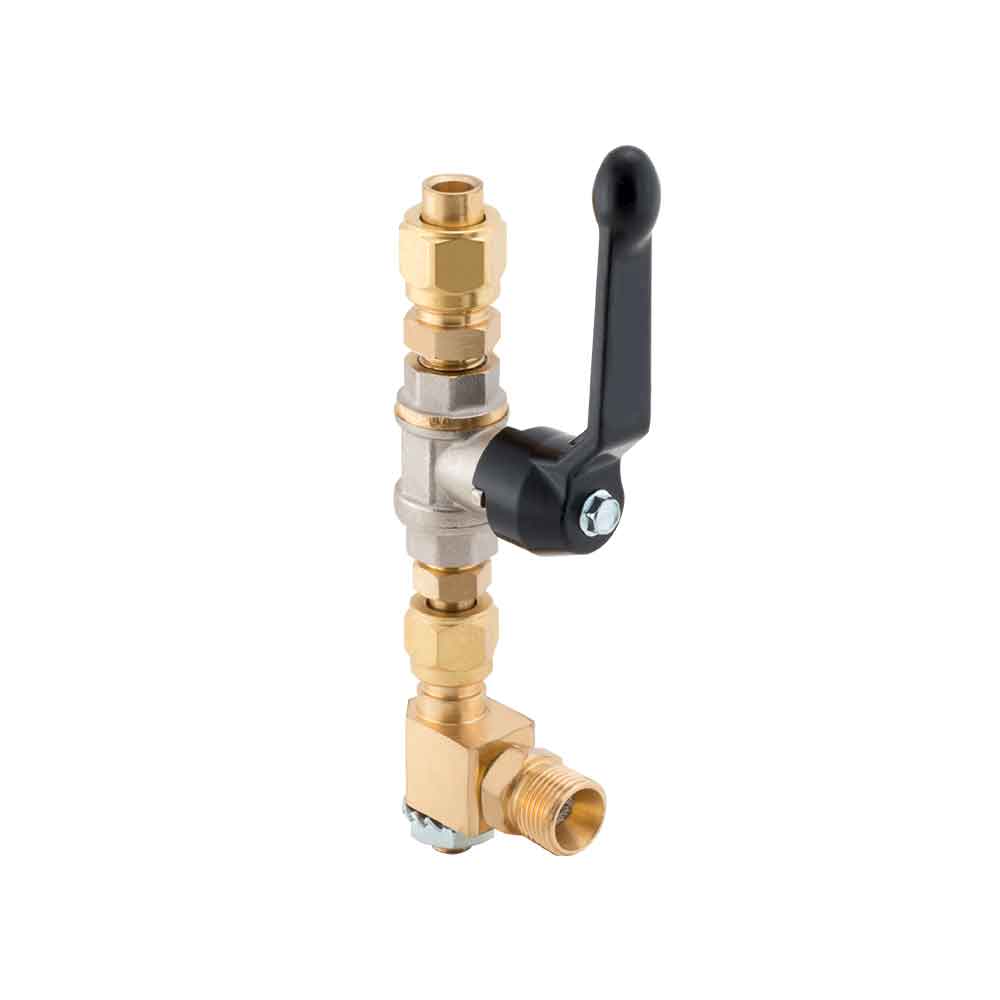

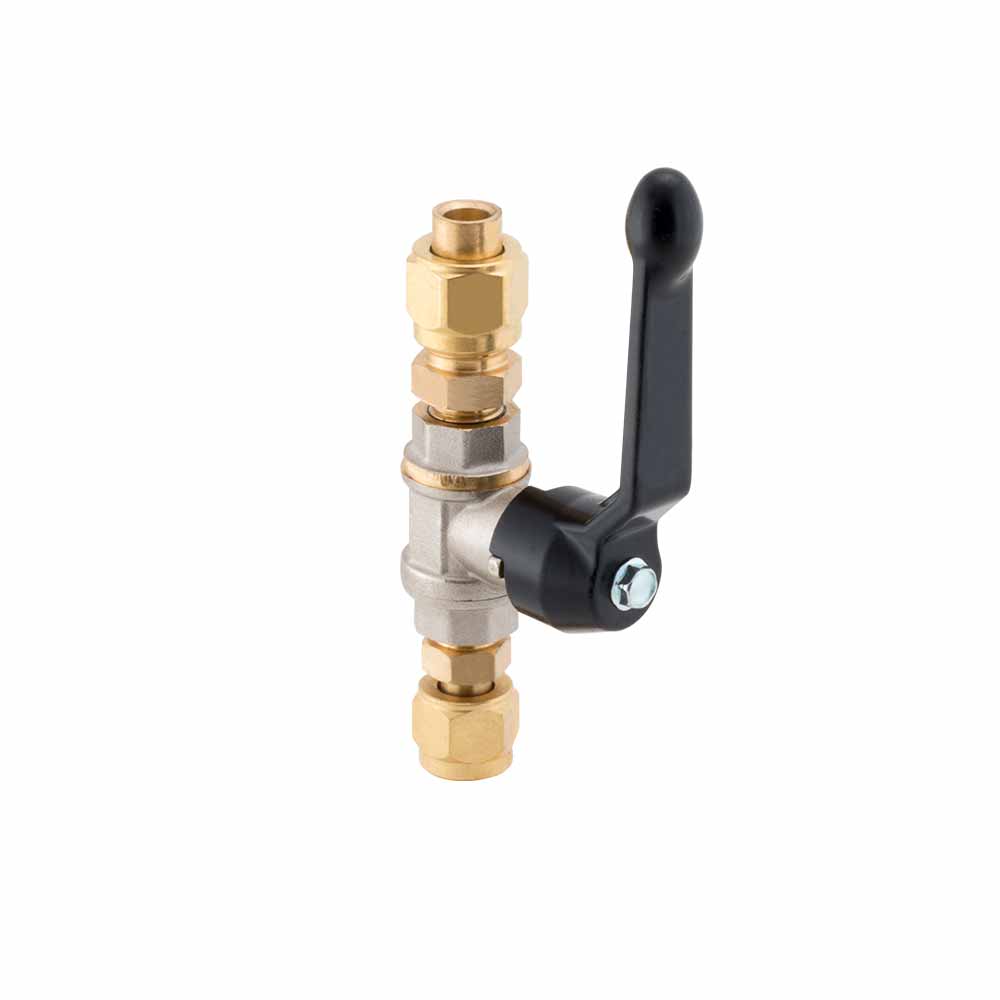

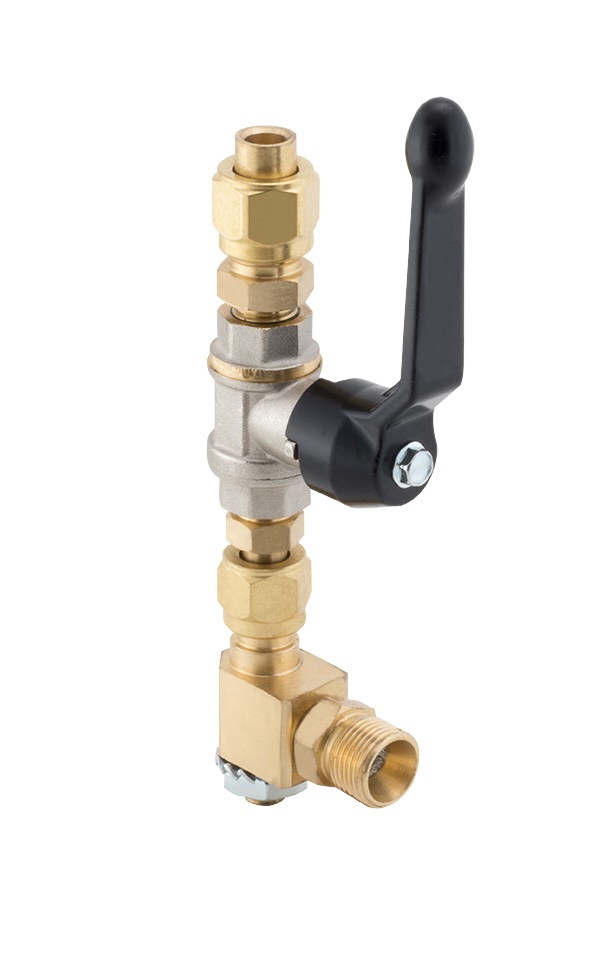

Galvanised ball valves with handle for easy gas opening/closing. These allow connection of the Gas Point Smart to the gas distribution circuit.The version with ELBOW is used to fix the GAS POINT SMART COMPONIBILE to the 1, 2 or 3-seater bracket (see codes below).
| Code | Image | Description | Gas | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
479950 Request information |  | Straight ball valve | OSSIGENO/INERTI | R | 0 | 1 | -- |
479951 Request information |  | Straight ball valve | GAS CARBURANTI | R | 0 | 1 | -- |
C1999005 Request information |  | Straight ball valve | O2/INERTI/GAS CARBURANTI | D | 0 | 1 | -- |
LINE flow meter 30L/min - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - LINE flow meter 30L/min - OXYGEN-ACETYLENE-PROPANE-ARGON/CO2-INERT GASES
Column flow meter to be mounted at the end of the line with 3.5 bar pressure with G1/4 male outlet fitting and nut and hose holder for 6 and 8 mm internal ø hose. Designed for measuring flow rates of NEUTRAL GASES or other NON-CORROSIVE MIXTURES. Adjustment range: 1 to 30 l/min.
| Code | Image | Description | FINCATURA.p1MaxBar | Inlet | Outlet | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
290300.RUB3/8 Request information |  | Line flow meter 0-30 l/min | 3,5 | G3/8F | G1/4 M + dado e pgø 6 e 8mm | D | 0 | 1 | -- |
CONNECTION FITTING
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - CONNECTION FITTING

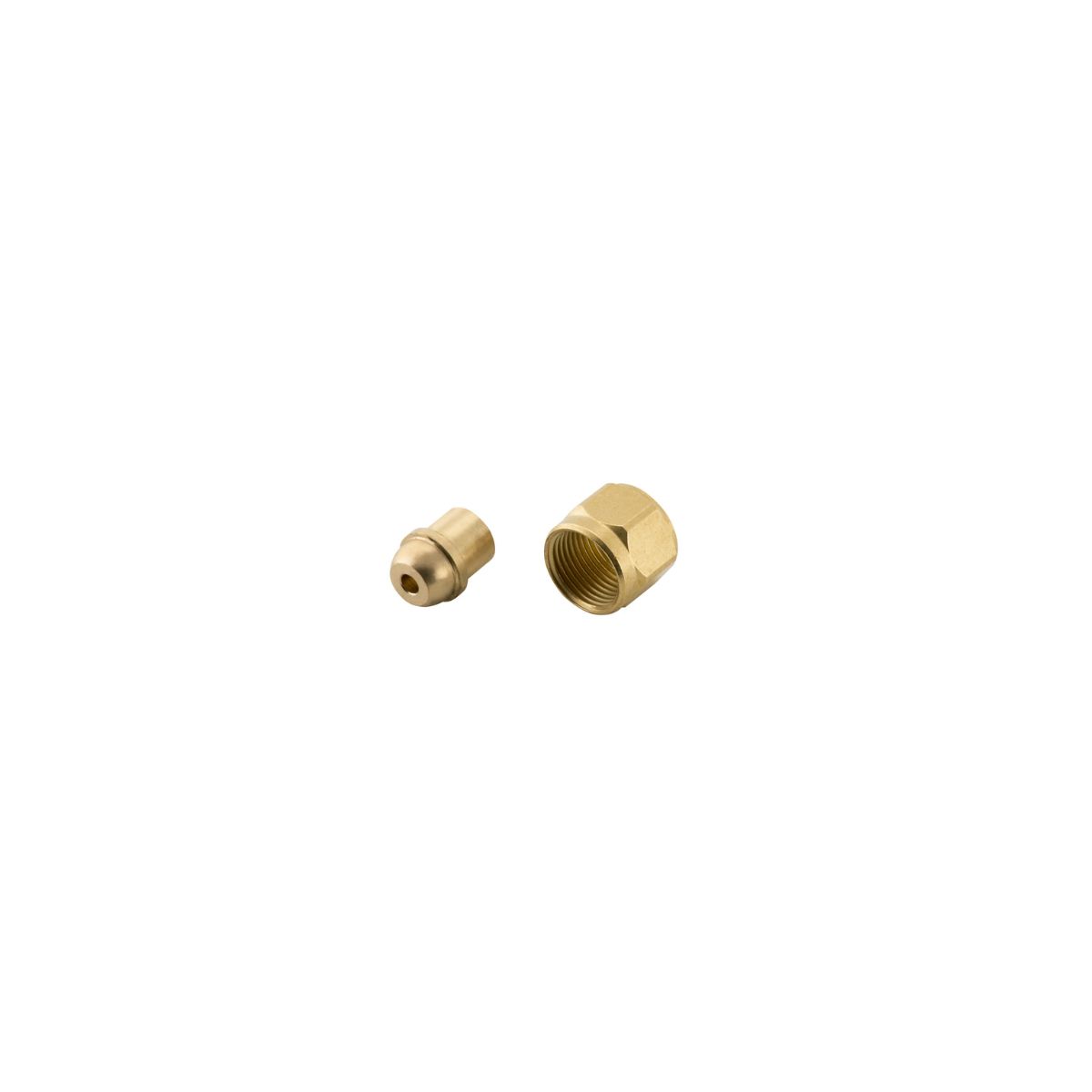

Brass fitting kit suitable for all our versions. Includes a G3/8 nut and a welded Pool fitting for Ø8mm pipe.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
490382 Request information |  | Nut G3/8 + Pool fitting for Ø 8mm pipe | R | 0 | 1 | -- |
WALL SUPPORTS
GAS DISTRIBUTION CONTROL SYSTEMS - GAS POINT SMART - WALL SUPPORTS

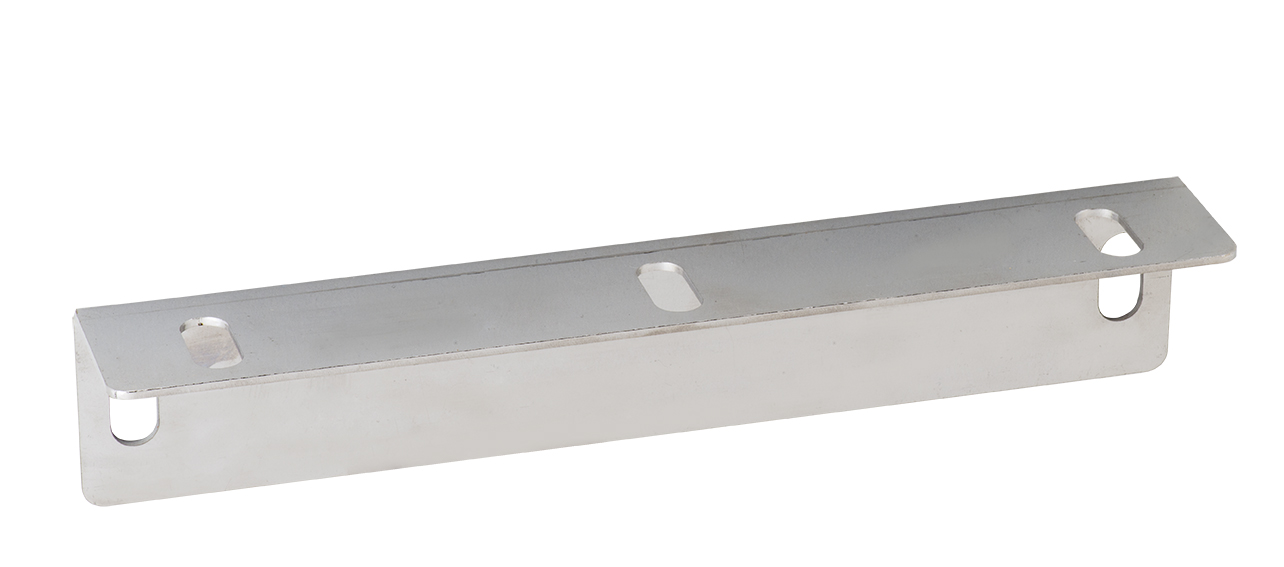

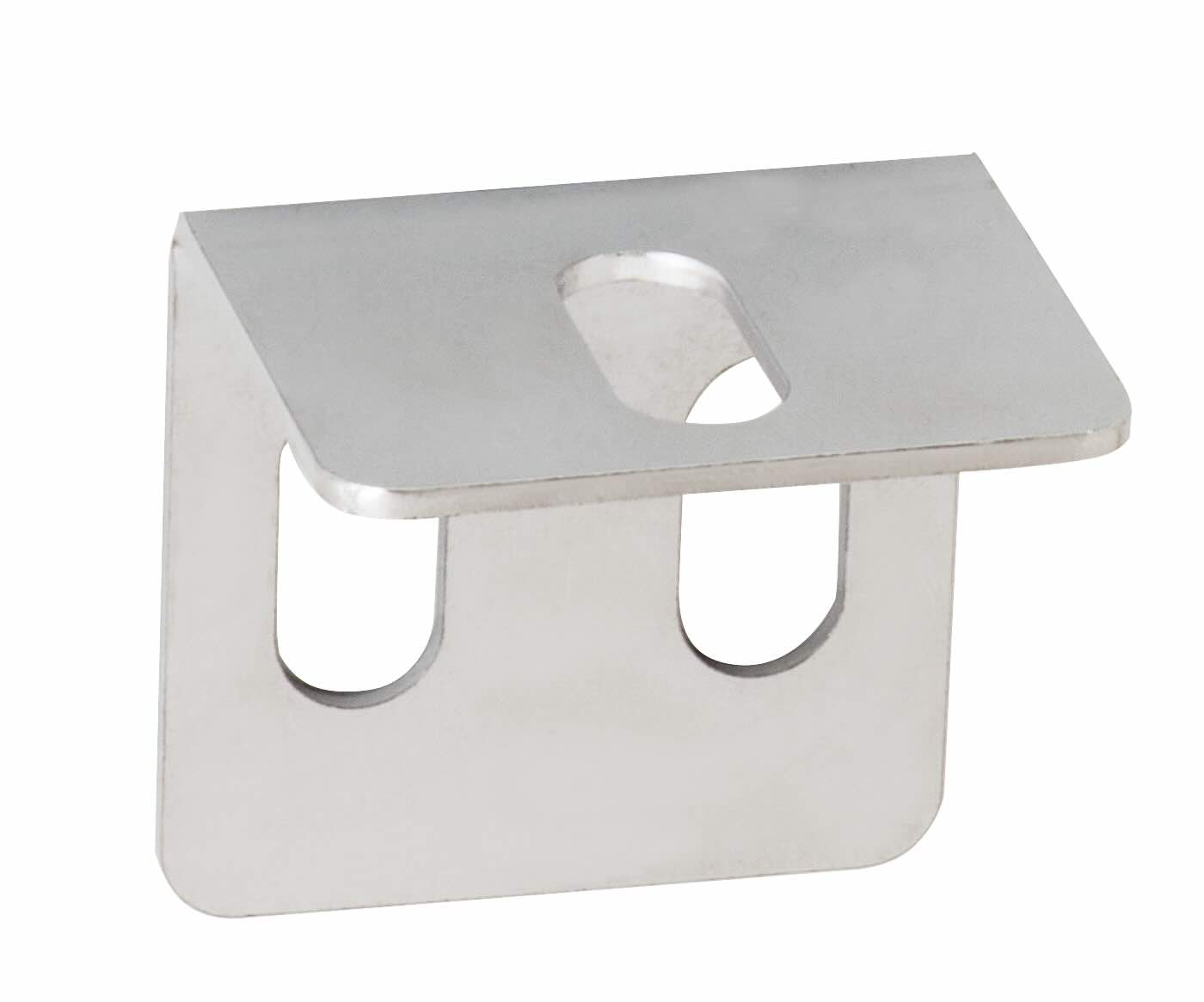

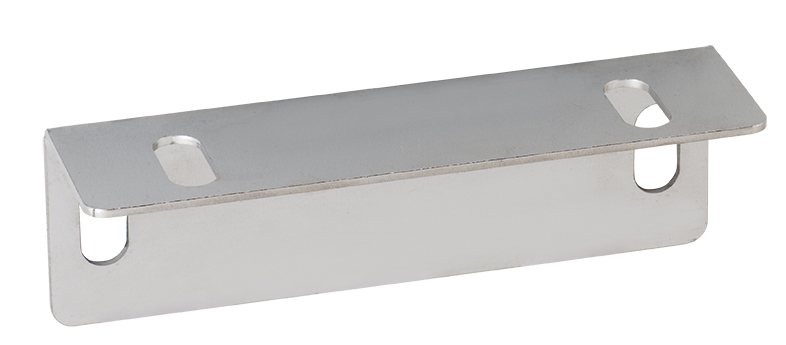

Stainless steel wall angle supports, suitable for wall mounting of Gas Point Smart. Available for wall mounting of 1, 2 or 3 sockets, also for different gases. To fix the GAS POINT SMART to the bracket it is necessary to use the ball valve with ELBOW (see previous codes)
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
194850 Request information |  | SINGLE wall bracket | D | 0 | 1 | -- |
194851 Request information |  | DOUBLE wall bracket | D | 0 | 1 | -- |
194852 Request information |  | TRIPLE wall bracket | D | 0 | 1 | -- |
