FLAME WELDING
WELDING MINI
WELDING MINI
Handle, attachments and tips for welding up to 12.5mm and cutting up to 100mm for small and medium carpentry
Characteristics
Use
Certificates
Product Sectors
MINI HANDGRIPS FOR WELDING AND CUTTING - WELDING MINI
SPARE PARTS FOR ALUMINIUM HANDGRIP - WELDING MINI
ACETYLENE - WELDING LANCES MINI
ACETYLENE - WELDING NOZZLES MINI
PROPANE - WELDING LANCES MINI
PROPANE - WELDING NOZZLES MINI
ACETYLENE - BENDABLE LANCES MINI
CUTTING LANCES - CUTTING LANCES MINI
CUTTING NOZZLES MINI - ACETYLENE
CUTTING NOZZLES MINI - PROPANE
HEATING LANCES MINI - WELDING MINI
HEATING NOZZLES MINI - WELDING MINI
MINI HANDGRIP SPARE PARTS GASKETS - WELDING MINI
MINI HANDGRIPS FOR WELDING AND CUTTING
FLAME WELDING - WELDING MINI - MINI HANDGRIPS FOR WELDING AND CUTTING
A range complete with handgrips, lances and nozzles for welding up to 12.5 mm and cutting up to 100 mm for small and medium carpentry.
Anodised aluminium handgrips that can be used in all welding and cutting operations on small and medium carpentry. Ideal for bodywork and refrigerator technicians, allowing for welding up to 12.5mm in thickness and cutting up to 100mm with special supplied lances. The brass taps are equipped with coloured stickers for immediate identification of gas, even during use. All handgrips have been tested individually with an electronic digital check.
All lances are APRAGAZ approved and have been tested separately in operating pres- sure with a lit flame. All constructive components are individually marked to ensure greater safety during coupling.
| Code | Image | Description | Inlet | FINCATURA.ingrsso | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|
140500 Request information | | ALUMINIUM HANDGRIP | M20X1,25 | -- | D | 0 | 1 | -- |
SPARE PARTS FOR ALUMINIUM HANDGRIP
FLAME WELDING - WELDING MINI - SPARE PARTS FOR ALUMINIUM HANDGRIP
| Code | Image | Description | Inlet | FINCATURA.ingrsso | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|

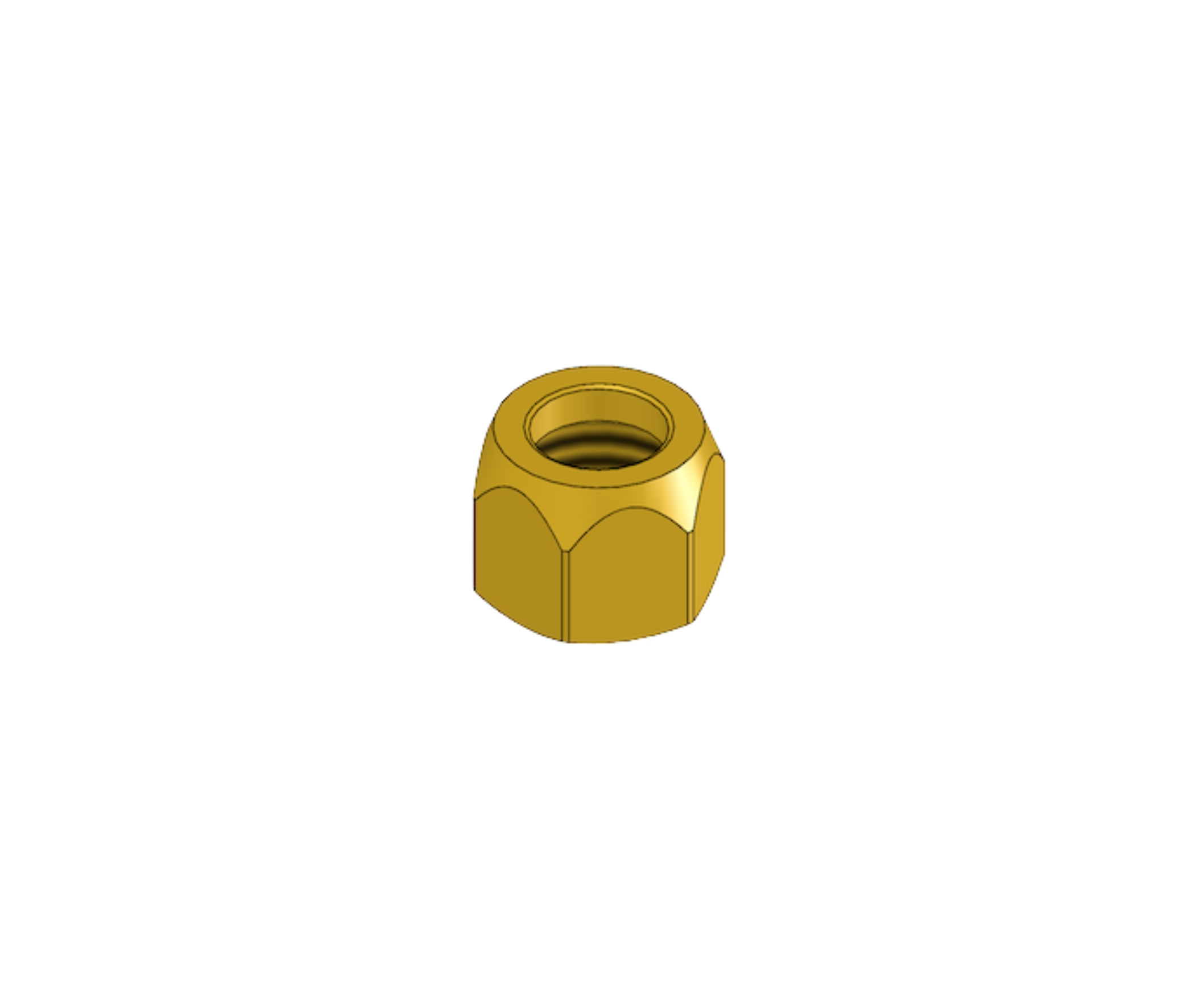

N3708002 Request information |  | Head nut in brass | M20X1,25 | -- | D | 0 | 1 | -- |

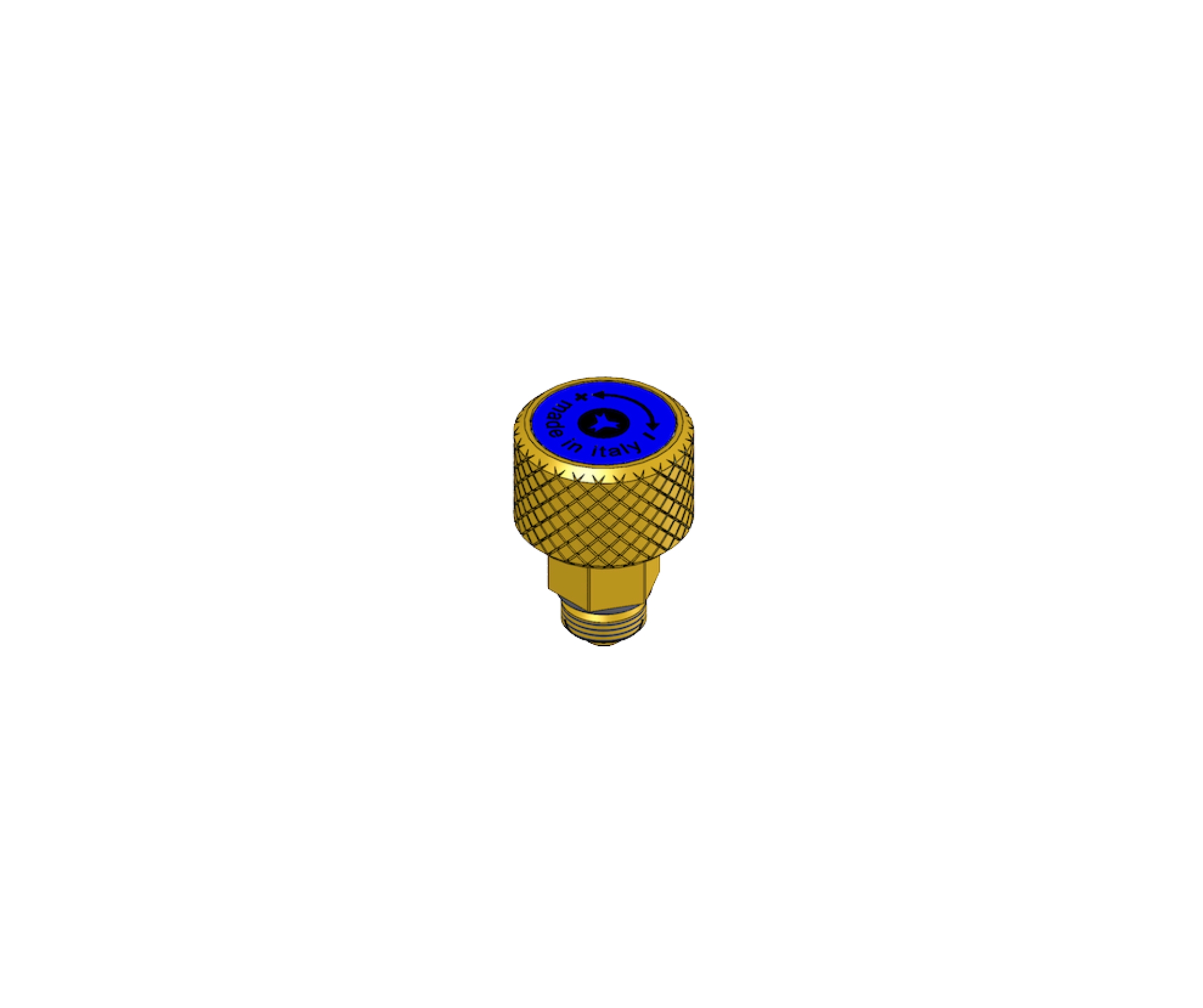

N0469001 Request information |  | Complete tap O2 Aluminium handgrip | - | -- | R | 0 | 1 | -- |

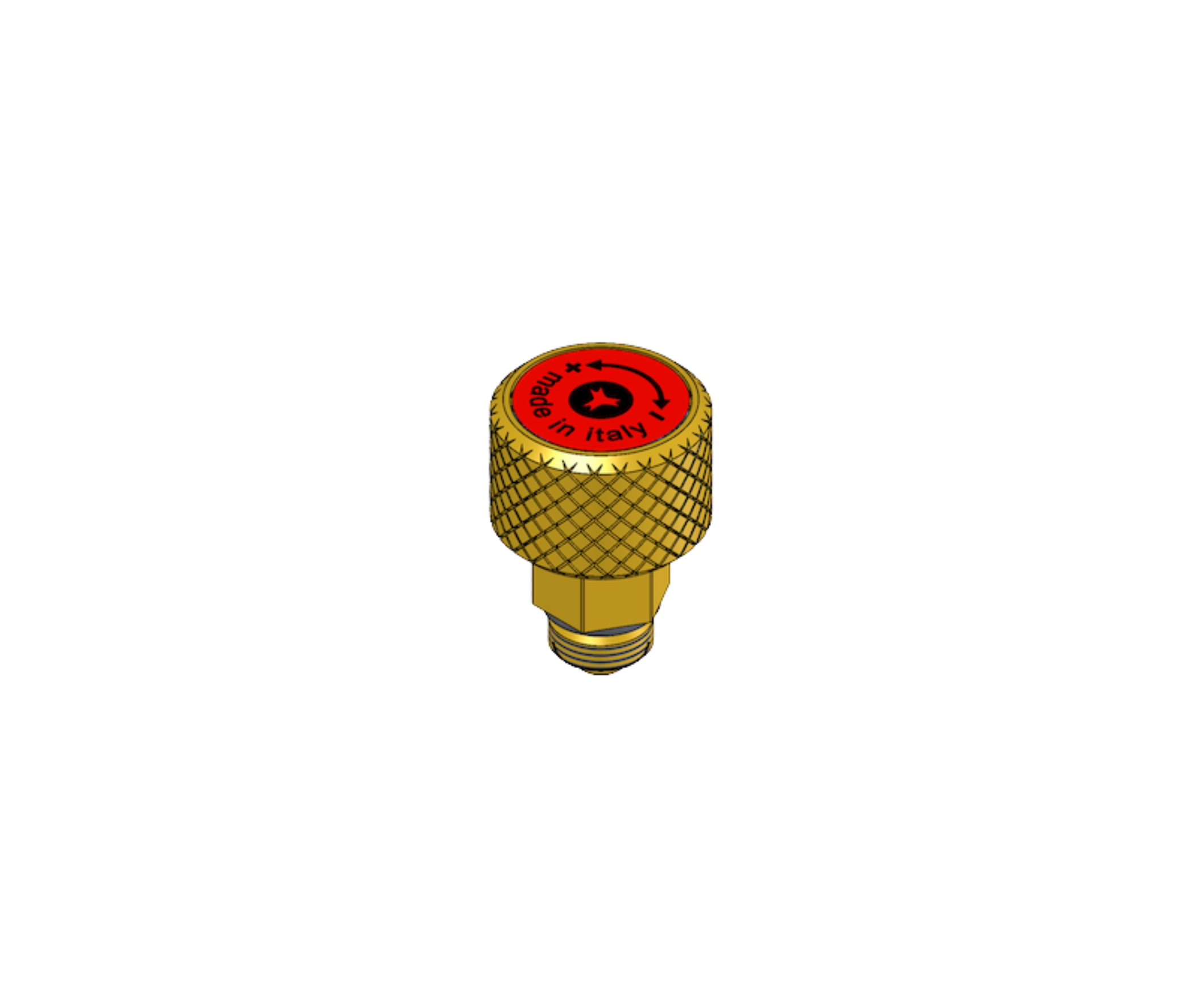

N0469000 Request information |  | Complete Gas tap Aluminium Mini handgrip | - | -- | R | 0 | 1 | -- |
ACETYLENE - WELDING LANCES MINI
FLAME WELDING - WELDING MINI - ACETYLENE - WELDING LANCES MINI

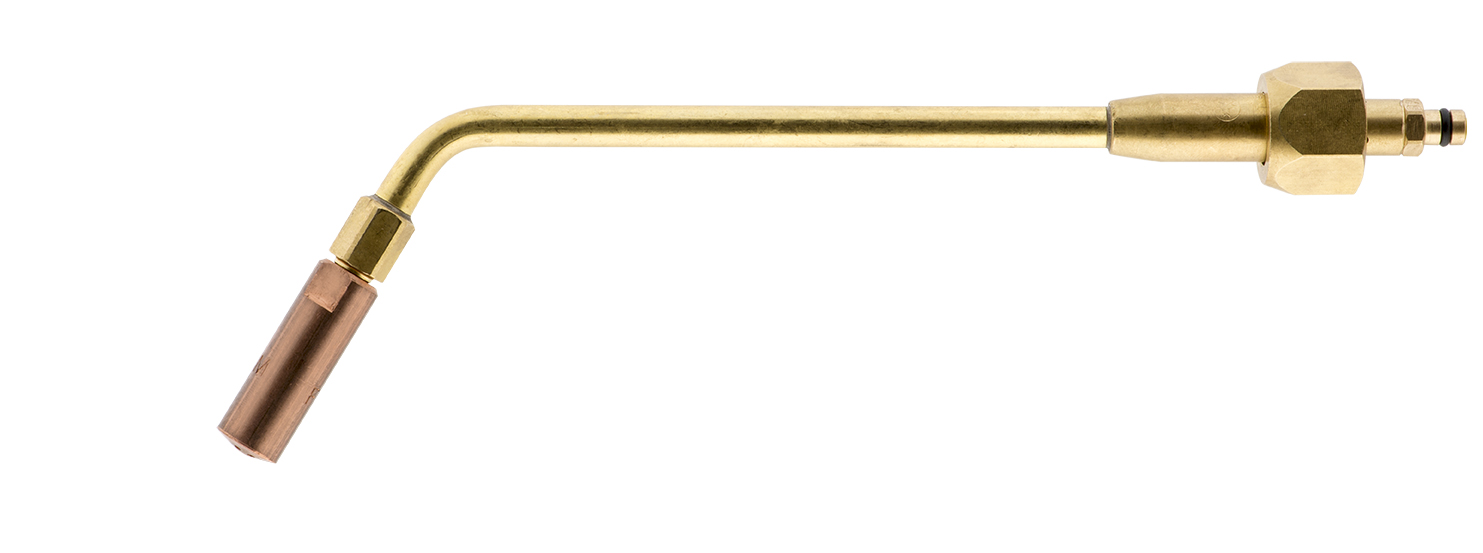

These can be used on our MINI handgrips, allowing for welding with acetylene up to 12.5 mm thick. Lances are supplied with a nozzle.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
146101 Request information |  | LANCE 40 L/H | 0,4 | D | 0 | 1 | -- |
146102 Request information |  | LANCE 80 L/H | 0,8 | D | 0 | 1 | -- |
146103 Request information |  | LANCE 160 L/H | 1,6 | D | 0 | 1 | -- |
146104 Request information |  | LANCE 225 L/H | 2,2 | D | 0 | 1 | -- |
146105 Request information |  | LANCE 315 L/H | 3 | D | 0 | 1 | -- |
146106 Request information |  | LANCE 500 L/H | 5 | D | 0 | 1 | -- |
146107 Request information |  | LANCE 800 L/H | 8 | D | 0 | 1 | -- |
146108 Request information |  | LANCE 800 L/H | 12,5 | D | 0 | 1 | -- |
ACETYLENE - WELDING NOZZLES MINI
FLAME WELDING - WELDING MINI - ACETYLENE - WELDING NOZZLES MINI

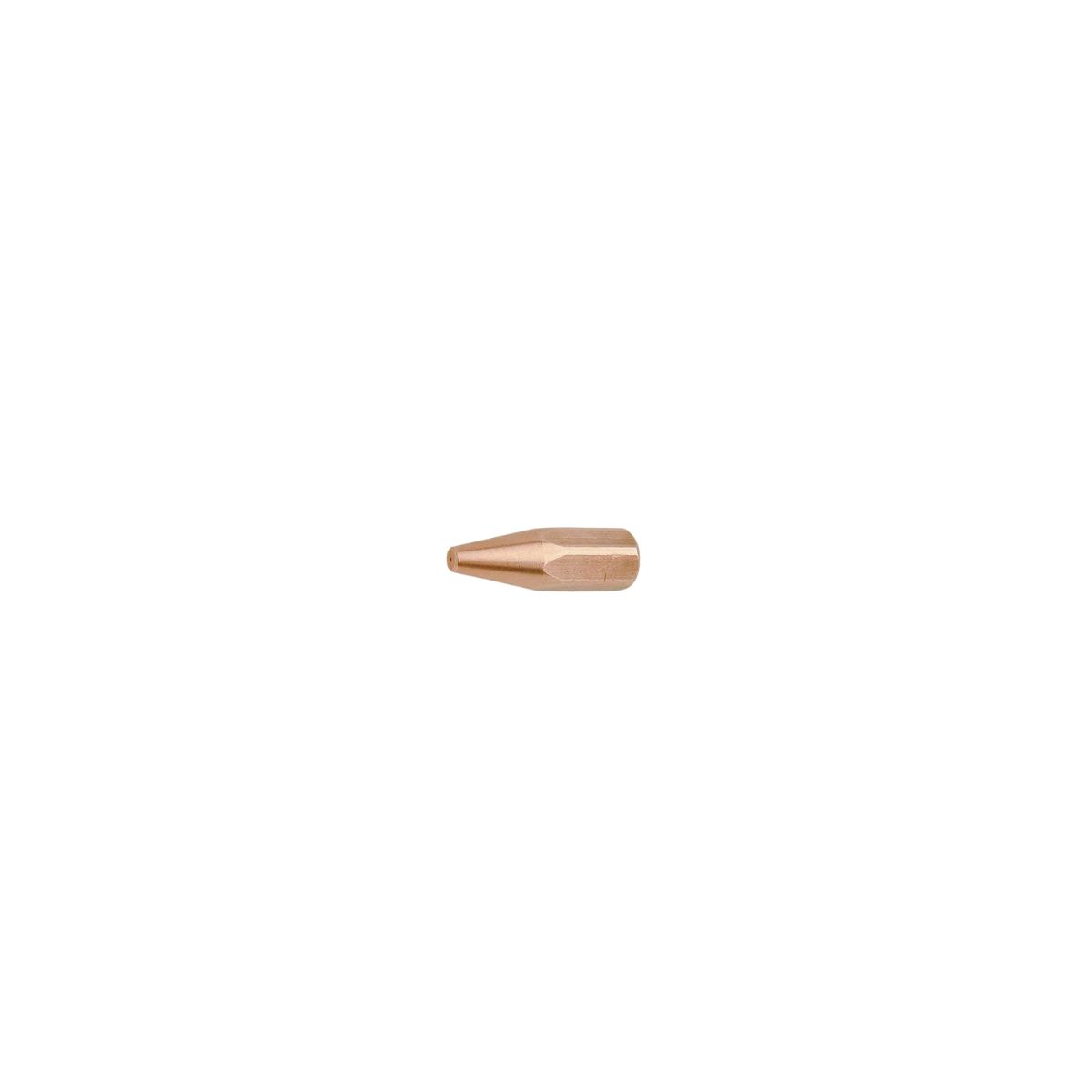

CAUTION: sizes printed on nozzles and lances must match. Do not install different size nozzles from the original on lances
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
147101 Request information |  | NOZZLE 40 L/H | 0,4 | D | 0 | 1 | -- |
147102 Request information |  | NOZZLE 80 L/H | 0,8 | D | 0 | 1 | -- |
147103 Request information |  | NOZZLE 160 L/H | 1,6 | D | 0 | 1 | -- |
147104 Request information |  | NOZZLE 225 L/H | 2,2 | D | 0 | 1 | -- |
147105 Request information |  | NOZZLE 315 L/H | 3 | D | 0 | 1 | -- |
147106 Request information |  | NOZZLE 500 L/H | 5 | D | 0 | 1 | -- |
147107 Request information |  | NOZZLE 800 L/H | 8 | D | 0 | 1 | -- |
147108 Request information |  | NOZZLE 1250 L/H | 12,5 | D | 0 | 1 | -- |
PROPANE - WELDING LANCES MINI
FLAME WELDING - WELDING MINI - PROPANE - WELDING LANCES MINI
These can be used on our MINI handgrips, allowing for welding with propane up to 5 mm thick. Lances are supplied with a nozzle.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
146152 Request information |  | LANCE 100 L/H | 1 | D | 0 | 1 | -- |
146153 Request information |  | LANCE 160 L/H | 1,6 | D | 0 | 1 | -- |
146154 Request information |  | LANCE 250 L/H | 2,5 | D | 0 | 1 | -- |
146155 Request information |  | LANCE 315 L/H | 3 | D | 0 | 1 | -- |
146156 Request information |  | LANCE 500 L/H | 5 | D | 0 | 1 | -- |
PROPANE - WELDING NOZZLES MINI
FLAME WELDING - WELDING MINI - PROPANE - WELDING NOZZLES MINI
CAUTION: sizes printed on nozzles and lances must match. Do not install different size nozzles from the original size on lances.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
147152 Request information |  | NOZZLE 100 L/H | 1 | D | 0 | 1 | -- |
147153 Request information |  | NOZZLE 160 L/H | 1,6 | D | 0 | 1 | -- |
147154 Request information |  | NOZZLE 250 L/H | 2,5 | D | 0 | 1 | -- |
147155 Request information |  | NOZZLE 315 L/H | 3 | D | 0 | 1 | -- |
147156 Request information |  | NOZZLE 315 L/H | 5 | D | 0 | 1 | -- |
ACETYLENE - BENDABLE LANCES MINI
FLAME WELDING - WELDING MINI - ACETYLENE - BENDABLE LANCES MINI

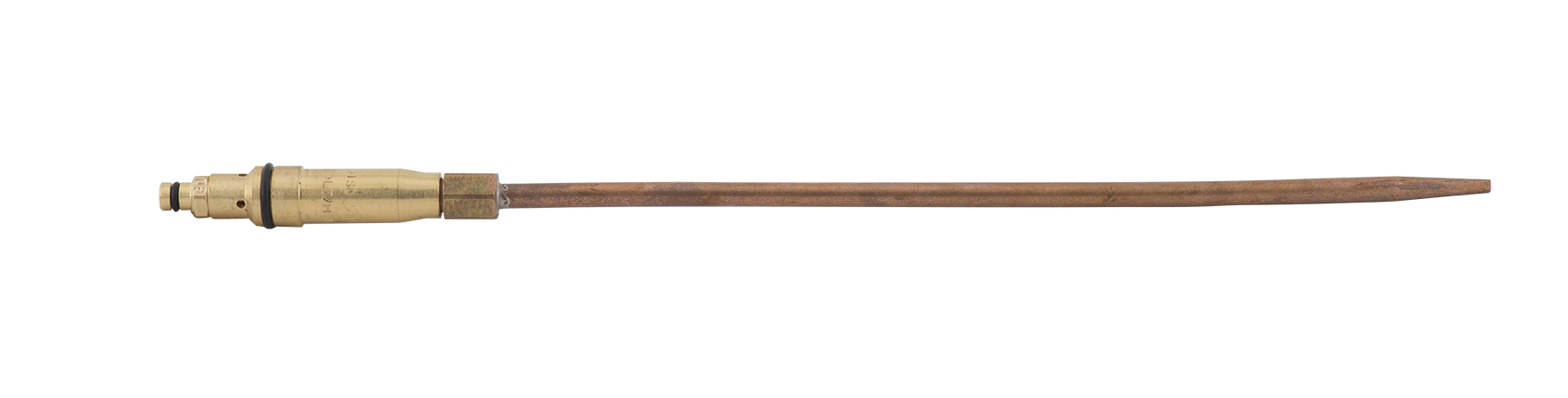

These lances are particularly useful for thermo-hydraulic works and are indicated for welding in special positions. Complete with brass mixer and special copper tubing with hammered ends.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
146203 Request information |  | LANCE 160 L/H | 1,6 | D | 0 | 1 | -- |
146204 Request information |  | LANCE 225 L/H | 2,2 | D | 0 | 1 | -- |
146205 Request information |  | LANCE 315 L/H | 3 | D | 0 | 1 | -- |
CUTTING LANCES - CUTTING LANCES MINI
FLAME WELDING - WELDING MINI - CUTTING LANCES - CUTTING LANCES MINI

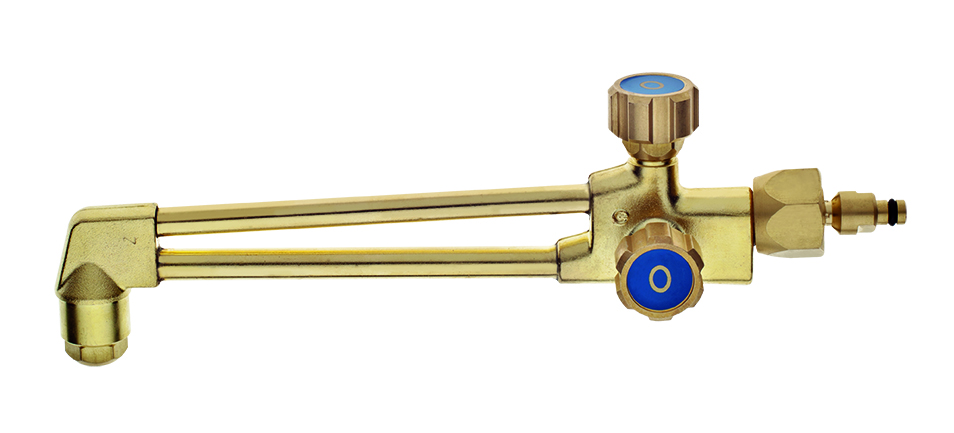

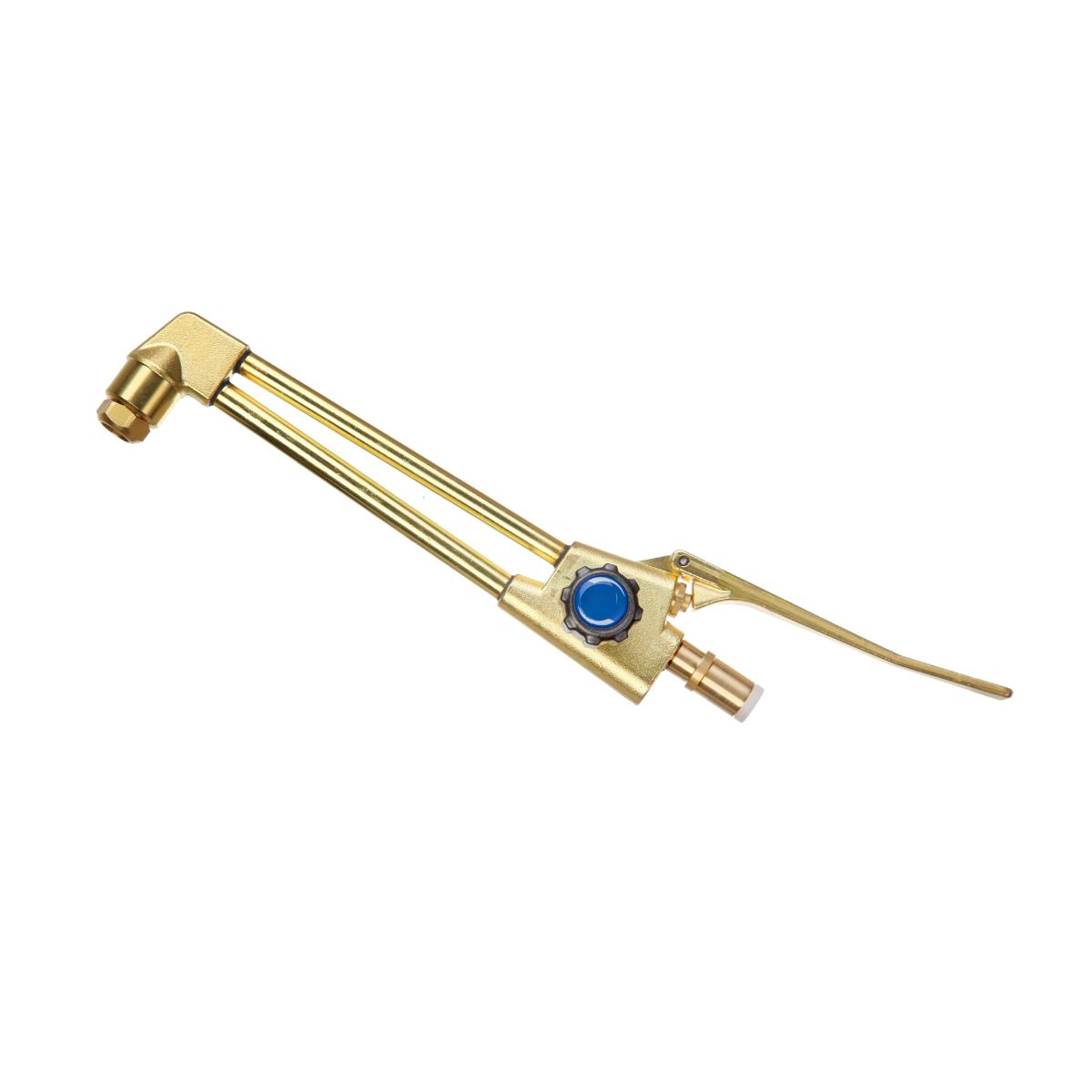

MINI handgrips can also be combined with cutting lances available in this version with a tap or lever are both for acetylene and propane. They can be combined with three different size nozzles for cutting up to 100 mm for acetylene and 50 mm for propane. Cutting lances have an o-ring gasket protected by a nut, ensuring safe connection with handgrips.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
146500 Request information |  | ACETYLENE cutting lance with tap | D | 0 | 1 | -- |
146510 Request information |  | ACETYLENE cutting lance with lever | D | 0 | 1 | -- |
146560 Request information |  | PROPANE cutting lance with lever | D | 0 | 1 | -- |
CUTTING NOZZLES MINI - ACETYLENE
FLAME WELDING - WELDING MINI - CUTTING NOZZLES MINI - ACETYLENE
Nozzles should be selected based on cutting thickness and on the gas to be used. The acetylene nozzles are single-piece in copper, while those for propane are two-piece with a brass interior and a copper exterior. Both have flat housings. Cutting thickness is marked directly on the nozzle and are indicative.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
147601 Request information |  | ACETYLENE | 8-20 | D | 0 | 1 | -- |
147602 Request information |  | ACETYLENE | 20-50 | D | 0 | 1 | -- |
147603 Request information |  | ACETYLENE | 50-100 | D | 0 | 1 | -- |
CUTTING NOZZLES MINI - PROPANE
FLAME WELDING - WELDING MINI - CUTTING NOZZLES MINI - PROPANE
Nozzles should be selected based on cutting thickness and on the gas to be used. The acetylene nozzles are single-piece in copper, while those for propane are two-piece with a brass interior and a copper exterior. Both have flat housings. Cutting thickness is marked directly on the nozzle and are indicative.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
147651 Request information |  | PROPANE | 10-20 | D | 0 | 1 | -- |
147652 Request information |  | PROPANE | 20-50 | D | 0 | 1 | -- |
147653 Request information |  | CUTTING NOZZLES PROPANE | 50-100 | R | 3 | 1 | -- |
HEATING LANCES MINI
FLAME WELDING - WELDING MINI - HEATING LANCES MINI
With high heating power, these lances allow for absolute safe operation for high power flames in all surface tempering operations, forging, heating of materials before welding, large brazing and annealing, etc. Lances are supplied with a nozzle.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
146308 Request information |  | HEATING LANCE ACETYLENE 800/1250 L/h | D | 0 | 1 | -- |
146358 Request information |  | HEATING LANCE PROPANE 800/1250 L/h | D | 0 | 1 | -- |
HEATING NOZZLES MINI
FLAME WELDING - WELDING MINI - HEATING NOZZLES MINI

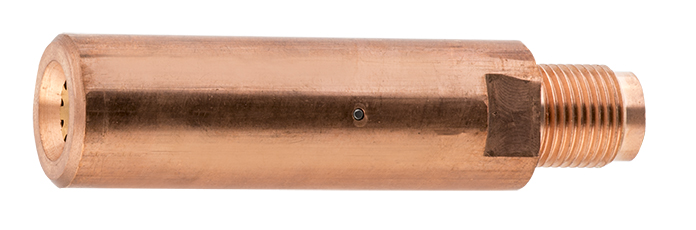

Special copper nozzles which produce a flame that enables accurate control of all fusion operations.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

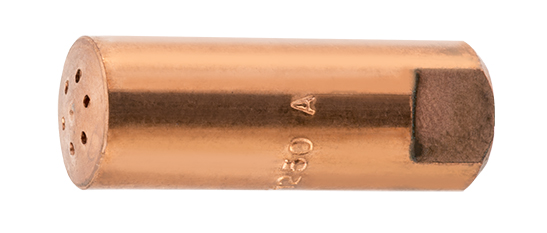

147308 Request information |  | HEATING NOZZLES ACETYLENE 800/1250 L/h | D | 0 | 1 | -- |
147358 Request information |  | HEATING NOZZLES PROPANE 800/1250 L/h | D | 0 | 1 | -- |
MINI HANDGRIP SPARE PARTS GASKETS
FLAME WELDING - WELDING MINI - MINI HANDGRIP SPARE PARTS GASKETS

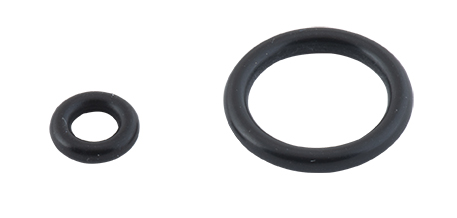

The package contains 10 + 10 replacement O-rings for welding, bendable and heating lances: 1.78 x 3.6 and 2 x 11.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
KIT004 Request information |  | MINI lance gasket kit pack of 10 + 10 pieces | D | 0 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
