FLAME WELDING
WELDING MAXI
WELDING MAXI
A complete range of handles, lances and tips for welding up to 12.5mm and cutting up to 300mm
Characteristics
Use
Certificates
Product Sectors
MAXI HANDGRIPS FOR WELDING AND CUTTING - WELDING MAXI
SPARE PARTS FOR MAXI ALUMINUM HANDGRIP - WELDING MAXI
ACETYLENE - WELDING LANCES MAXI
ACETYLENE - WELDING NOZZLES MAXI
ACETYLENE - BENDABLE LANCES MAXI
ASP CUTTING LANCES MAXI - WELDING MAXI
AC AND NX ASP CUTTING NOZZLES TYPE 6290 - ACETYLENE
AC AND NX ASP CUTTING NOZZLES TYPE 6290 - PROPANE
CUTTING NOZZLES H1F - ACETYLENE
CUTTING NOZZLES H1F - PROPANE - METHANE
MIX CUTTING LANCES MAXI - WELDING MAXI
KIT SPARE PART GASKETS FOR MAXI HANDGRIP - WELDING MAXI
ANME AND PNME MIX CUTTING NOZZLES -IC - ACETYLENE
ANME AND PNME MIX CUTTING NOZZLES -IC - PROPANE
HEATING LANCES MAXI - WELDING MAXI
HEATING NOZZLES MAXI - WELDING MAXI

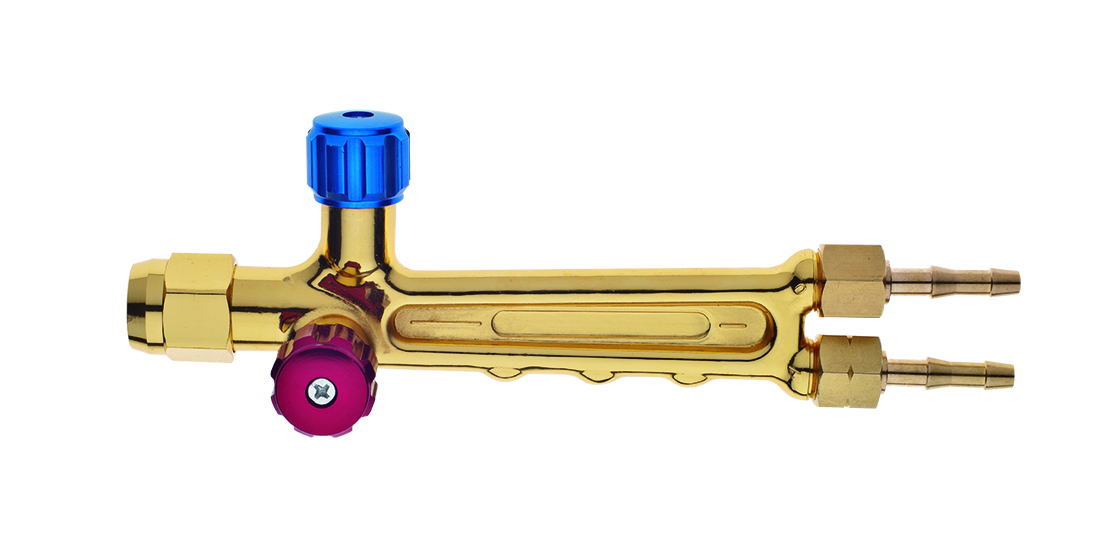

MAXI HANDGRIPS FOR WELDING AND CUTTING
FLAME WELDING - WELDING MAXI - MAXI HANDGRIPS FOR WELDING AND CUTTING
A range complete with handgrips, lances and nozzles for welding up to 12.5 mm and cutting up to 300 mm.
Oxyturbo offers two maxi handgrips: one in robust and long-lasting brass, the other in anodised lightweight and easy- to-handle aluminium. These handgrips have been designed with a meticulous attention to detail, are easily adjustable and provided with extra-fine threaded taps which are equipped with a coloured sticker for immediate identification of gas even during use. All handles have been tested individually with an electronic digital check.
All lances are APRAGAZ approved and have been tested individually in operating pressure with a lit flame. All constructive components are also separately marked to ensure greater safety during coupling.
| Code | Image | Description | Inlet | FINCATURA.ingrsso | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|
150500 Request information | | ALUMINIUM HANDGRIP | M22X1,25 | -- | D | 0 | 1 | -- |
150550 Request information |  | BRASS HANDGRIP | M22X1,25 | -- | D | 0 | 1 | -- |
SPARE PARTS FOR MAXI ALUMINUM HANDGRIP
FLAME WELDING - WELDING MAXI - SPARE PARTS FOR MAXI ALUMINUM HANDGRIP
| Code | Image | Description | Inlet | FINCATURA.ingrsso | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|

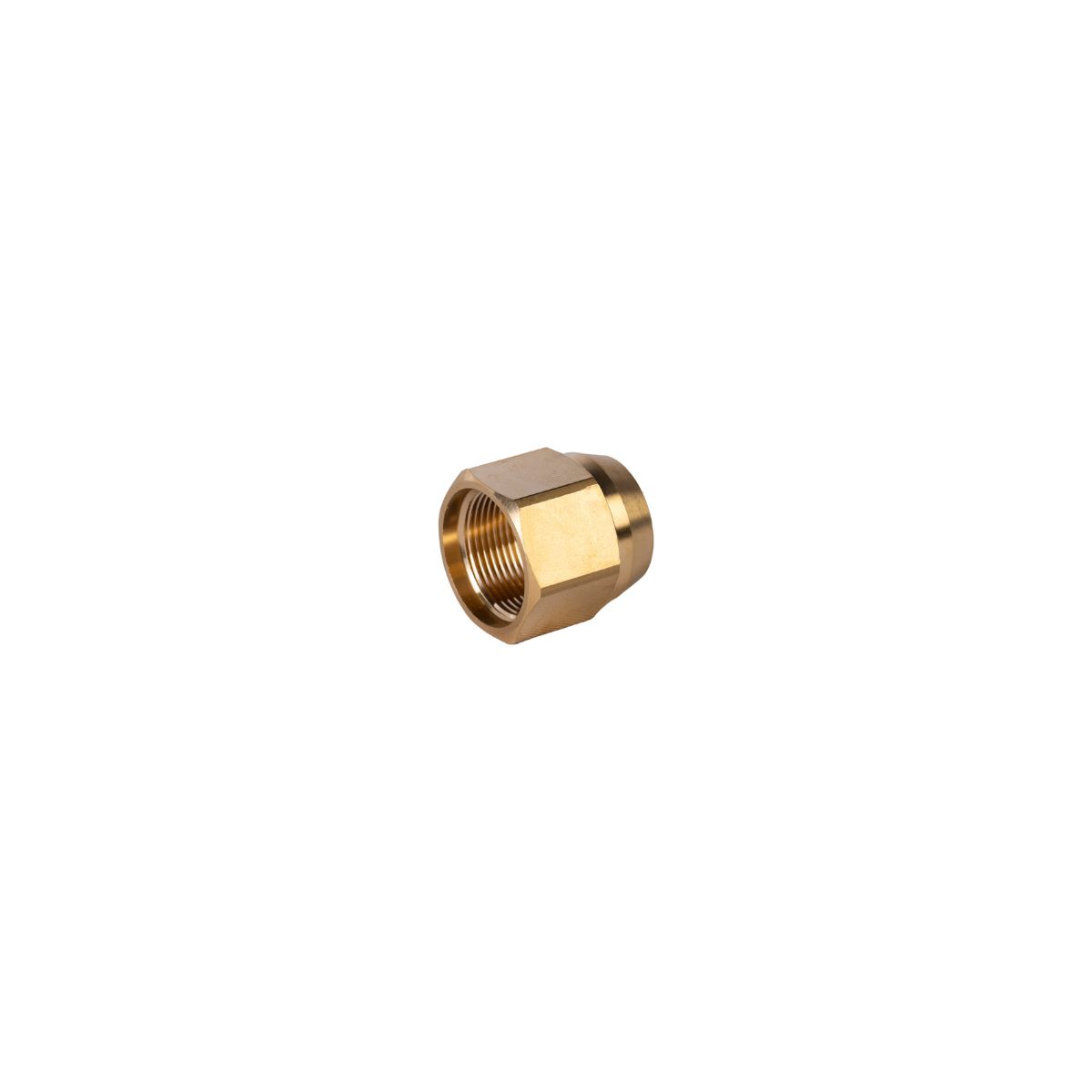

N3708003 Request information |  | Head nut in brass | M22X1,25 | -- | D | 0 | 1 | -- |

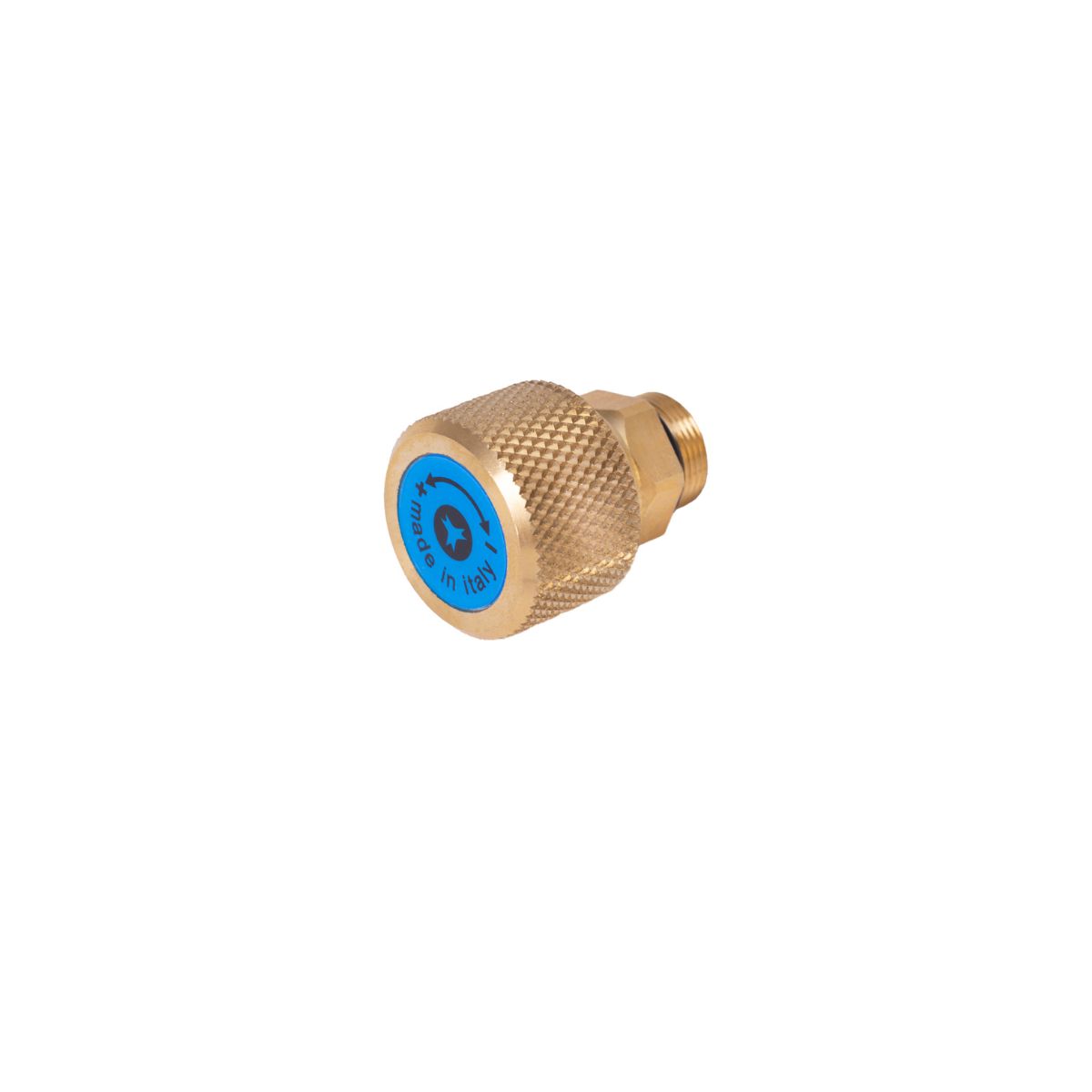

N0569000 Request information |  | Complete tap O2 Aluminium handgrip | - | -- | R | 0 | 1 | -- |
N0569001 Request information |  | Complete Gas tap Aluminium Maxi handgrip | - | -- | R | 0 | 1 | -- |
ACETYLENE - WELDING LANCES MAXI
FLAME WELDING - WELDING MAXI - ACETYLENE - WELDING LANCES MAXI
To be used on our MAXI handgrips for welding from 0.4 to 12.5 mm. Lances are supplied with nozzle.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
156101 Request information |  | LANCE 40 L/H | 0,4 | D | 0 | 1 | -- |
156102 Request information |  | LANCE 80 L/H | 0,8 | D | 0 | 1 | -- |
156103 Request information |  | LANCE 160 L/H | 1,6 | D | 0 | 1 | -- |
156104 Request information |  | LANCE 225 L/H | 2,2 | D | 0 | 1 | -- |
156105 Request information |  | LANCE 315 L/H | 3 | D | 0 | 1 | -- |
156106 Request information |  | LANCE 500 L/H | 5 | D | 0 | 1 | -- |
156107 Request information |  | LANCE 800 L/H | 8 | D | 0 | 1 | -- |
156108 Request information |  | LANCE 1250 L/H | 12,5 | D | 0 | 1 | -- |

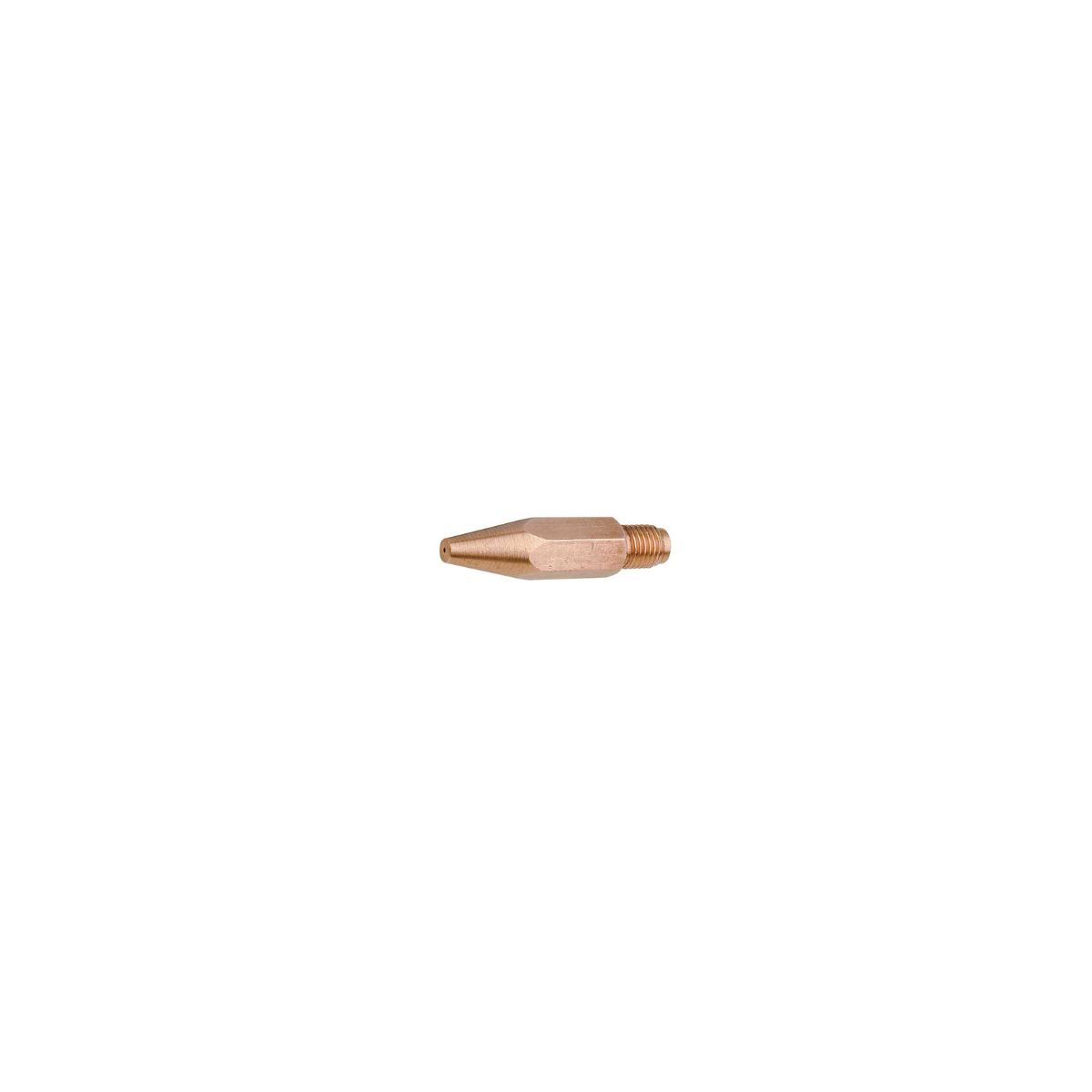

ACETYLENE - WELDING NOZZLES MAXI
FLAME WELDING - WELDING MAXI - ACETYLENE - WELDING NOZZLES MAXI
WARNING: The values printed on the tips and lances must match. Do not mount tips of a different size to the original on the lances.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157101 Request information |  | NOZZLE 40 L/H | 0,4 | D | 0 | 1 | -- |
157102 Request information |  | NOZZLE 80 L/H | 0,8 | D | 0 | 1 | -- |
157103 Request information |  | NOZZLE 160 L/H | 1,6 | D | 0 | 1 | -- |
157104 Request information |  | NOZZLE 225 L/H | 2,2 | D | 0 | 1 | -- |
157105 Request information |  | NOZZLE 315 L/H | 3 | D | 0 | 1 | -- |
157106 Request information |  | NOZZLE 500 L/H | 5 | D | 0 | 1 | -- |
157107 Request information |  | NOZZLE 500 L/H | 8 | D | 0 | 1 | -- |
157108 Request information |  | NOZZLE 500 L/H | 12,5 | D | 0 | 1 | -- |

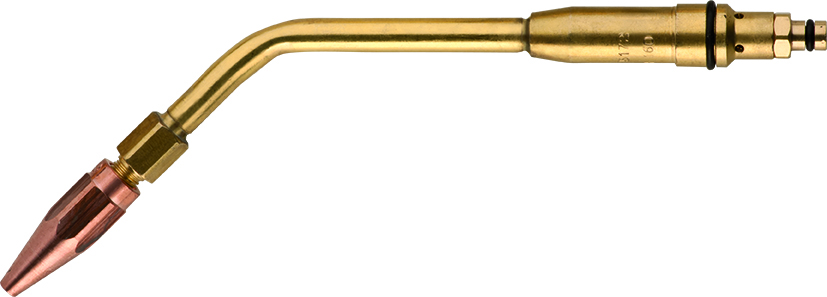

ACETYLENE - BENDABLE LANCES MAXI
FLAME WELDING - WELDING MAXI - ACETYLENE - BENDABLE LANCES MAXI
These lances are particularly useful for thermo-hydraulic works and are ideal for welding in special positions. Complete with brass mixer and special copper tubing with hammered ends.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
156203 Request information |  | LANCE 160 L/H | 1,6 | D | 0 | 1 | -- |
156204 Request information |  | LANCE 225 L/H | 2,2 | D | 0 | 1 | -- |
156205 Request information |  | LANCE 225 L/H | 3 | D | 0 | 1 | -- |
156206 Request information |  | LANCE 225 L/H | 5 | D | 0 | 1 | -- |

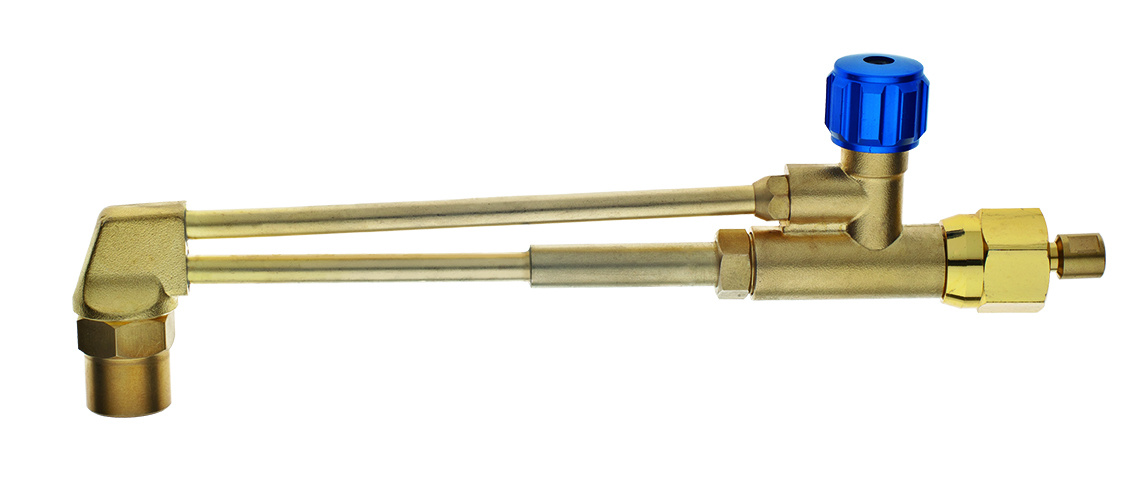

ASP CUTTING LANCES MAXI
FLAME WELDING - WELDING MAXI - ASP CUTTING LANCES MAXI
These cutting lances with suction mixing guarantee the highest cutting quality. When gas is mixed in the handgrip, the lance is already ready and the gun is "fired" directly on the piece. They use AC and NX nozzles. They are suitable for cutting medium thicknesses (up to 150-175mm), beyond these thicknesses the use of a specific cutting torch is recommended.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
156600 Request information |  | ACETYLENE | D | 0 | 1 | -- |
156650 Request information |  | PROPANE | D | 0 | 1 | -- |

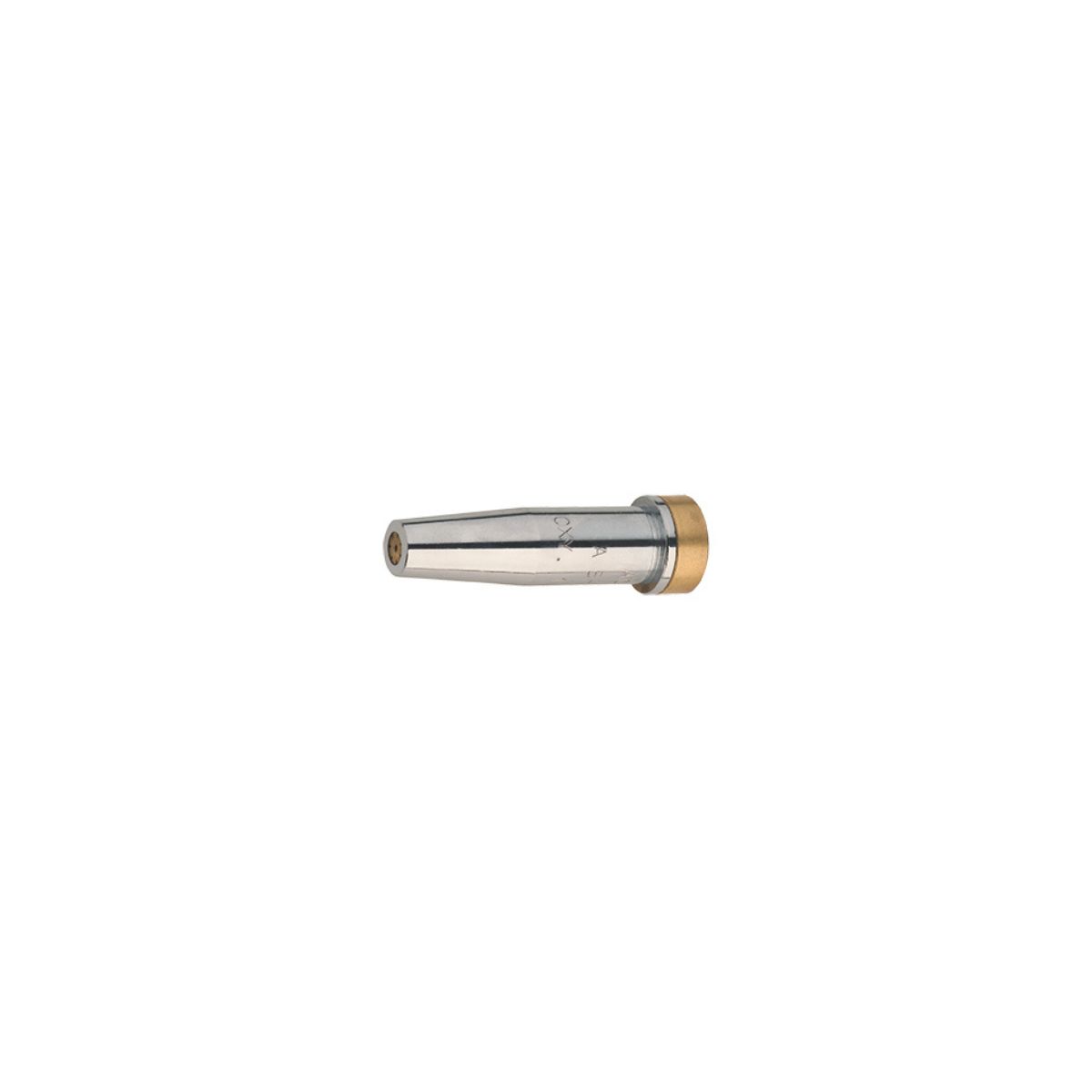

AC AND NX ASP CUTTING NOZZLES TYPE 6290 - ACETYLENE
FLAME WELDING - WELDING MAXI - AC AND NX ASP CUTTING NOZZLES TYPE 6290 - ACETYLENE
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157600 Request information |  | AC ACETYLENE | 5-10 | D | 0 | 1 | -- |
157601 Request information |  | AC ACETYLENE | 10-15 | D | 0 | 1 | -- |
157602 Request information |  | AC ACETYLENE | 15-25 | D | 0 | 1 | -- |
157603 Request information |  | AC ACETYLENE | 25-50 | D | 0 | 1 | -- |
157604 Request information |  | AC ACETYLENE | 50-100 | D | 0 | 1 | -- |
157605 Request information |  | AC ACETYLENE | 100-175 | D | 0 | 1 | -- |
157606 Request information |  | AC ACETYLENE | 175-200 | D | 0 | 1 | -- |
157607 Request information |  | AC ACETYLENE | 250-300 | D | 0 | 1 | -- |
AC AND NX ASP CUTTING NOZZLES TYPE 6290 - PROPANE
FLAME WELDING - WELDING MAXI - AC AND NX ASP CUTTING NOZZLES TYPE 6290 - PROPANE
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157650 Request information |  | NX PROPANE | 5-10 | D | 0 | 1 | -- |
157651 Request information |  | NX PROPANE | 10-15 | D | 0 | 1 | -- |
157652 Request information |  | NX PROPANE | 15-25 | D | 0 | 1 | -- |
157653 Request information |  | NX PROPANE | 25-50 | D | 0 | 1 | -- |
157654 Request information |  | NX PROPANE | 50-75 | D | 0 | 1 | -- |
157655 Request information |  | NX PROPANE | 75-150 | D | 0 | 1 | -- |
157656 Request information |  | NX PROPANE | 150-200 | D | 0 | 1 | -- |
157657 Request information |  | NX PROPANE | 200-300 | D | 0 | 1 | -- |

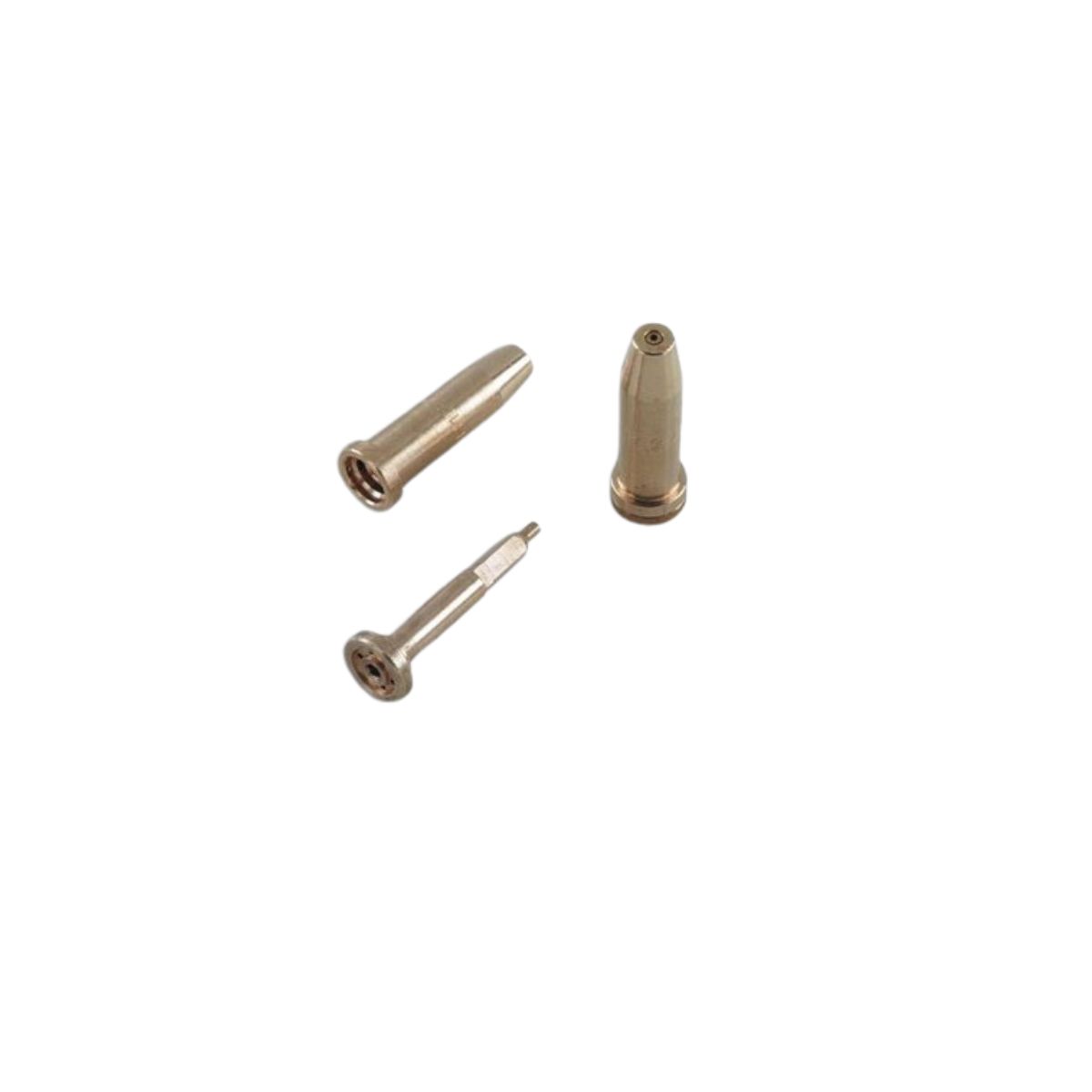

CUTTING NOZZLES H1F - ACETYLENE
FLAME WELDING - WELDING MAXI - CUTTING NOZZLES H1F - ACETYLENE
These are two-piece tips: the external part is made of special copper for all versions, while the internal part is made of special copper for the acetylene tips and brass for the Propane-Methane tips. This makes cleaning the tip much faster and more effective without the need to use special tools and allows for more concentrated heating because the heating flame is very close to the central hole of the cut.
They are suitable for all medium and heavy cutting applications for thicknesses from 25mm up to 100mm. Available in the versions for Acetylene and Propane-Methane.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157681 Request information |  | H1F ACETYLENE | 25 | R | 0 | 1 | -- |
157682 Request information |  | H1F ACETYLENE | 50 | R | 0 | 1 | -- |
157683 Request information |  | H1F ACETYLENE | 75 | R | 0 | 1 | -- |
157684 Request information |  | H1F ACETYLENE | 100 | R | 0 | 1 | -- |
CUTTING NOZZLES H1F - PROPANE - METHANE
FLAME WELDING - WELDING MAXI - CUTTING NOZZLES H1F - PROPANE - METHANE
These are two-piece tips: the external part is made of special copper for all versions, while the internal part is made of special copper for the acetylene tips and brass for the Propane-Methane tips. This makes cleaning the tip much faster and more effective without the need to use special tools and allows for more concentrated heating because the heating flame is very close to the central hole of the cut.
They are suitable for all medium and heavy cutting applications for thicknesses from 25mm up to 100mm. Available in the versions for Acetylene and Propane-Methane.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157691 Request information |  | H1F PROPANE-METHANE | 25 | R | 0 | 1 | -- |
157692 Request information |  | H1F PROPANE-METHANE | 50 | R | 0 | 1 | -- |
157693 Request information |  | H1F PROPANE-METHANE | 75 | R | 0 | 1 | -- |
157694 Request information |  | H1F PROPANE-METHANE | 10 | R | 0 | 1 | -- |
MIX CUTTING LANCES MAXI
FLAME WELDING - WELDING MAXI - MIX CUTTING LANCES MAXI
They are built in two versions: with tap and with a lever. They are the most cost-effective solution for cutting small and medium-thickness metals. Mixing takes place in the cutting head for greater work safety. The mixing system reduces the path of already mixed gases practically to zero, reducing the danger of flame back flow to minimum. They use ANME and PNME nozzles. They are suitable for cutting medium thicknesses (up to 150-175mm), beyond these thicknesses the use of a specific cutting torch is recommended.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

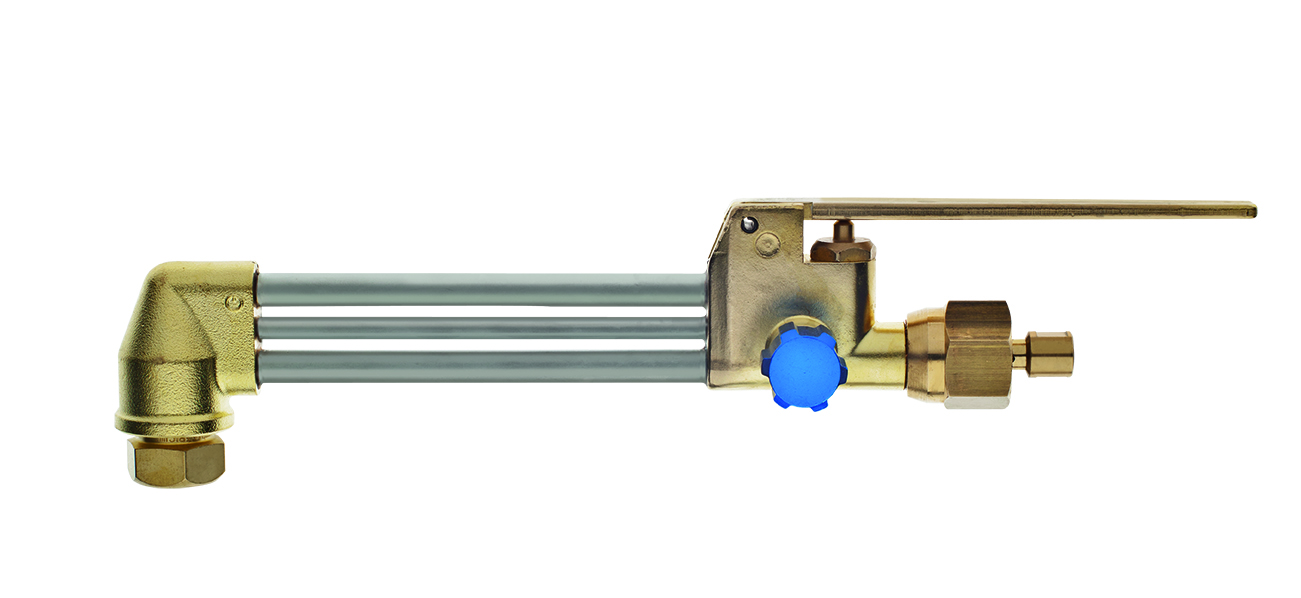

156510 Request information |  | CUTTING LANCE WITH LEVER (recommended only on aluminum handle) | D | 0 | 1 | -- |

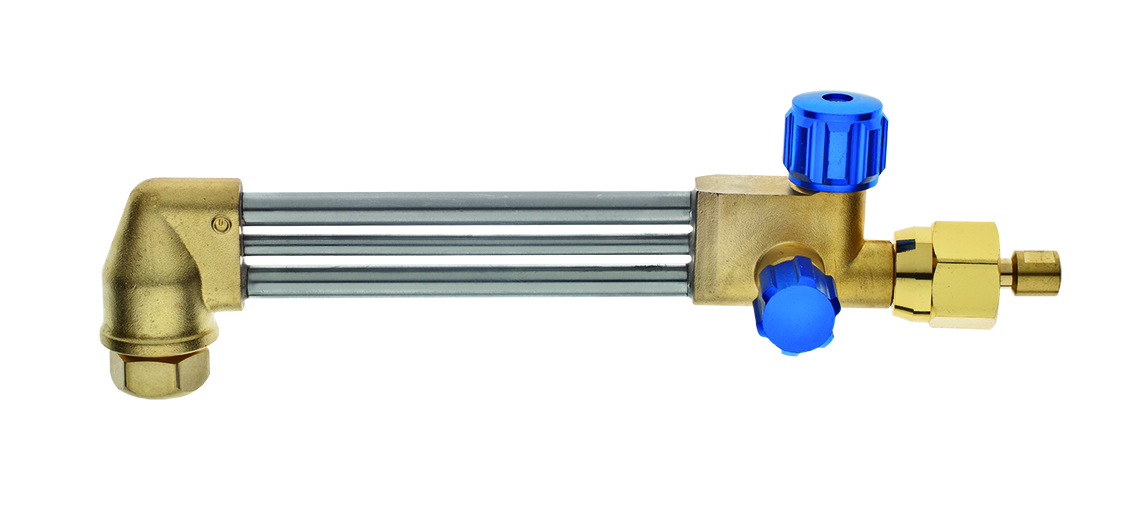

156500 Request information |  | CUTTING LANCE WITH TAP | D | 0 | 1 | -- |

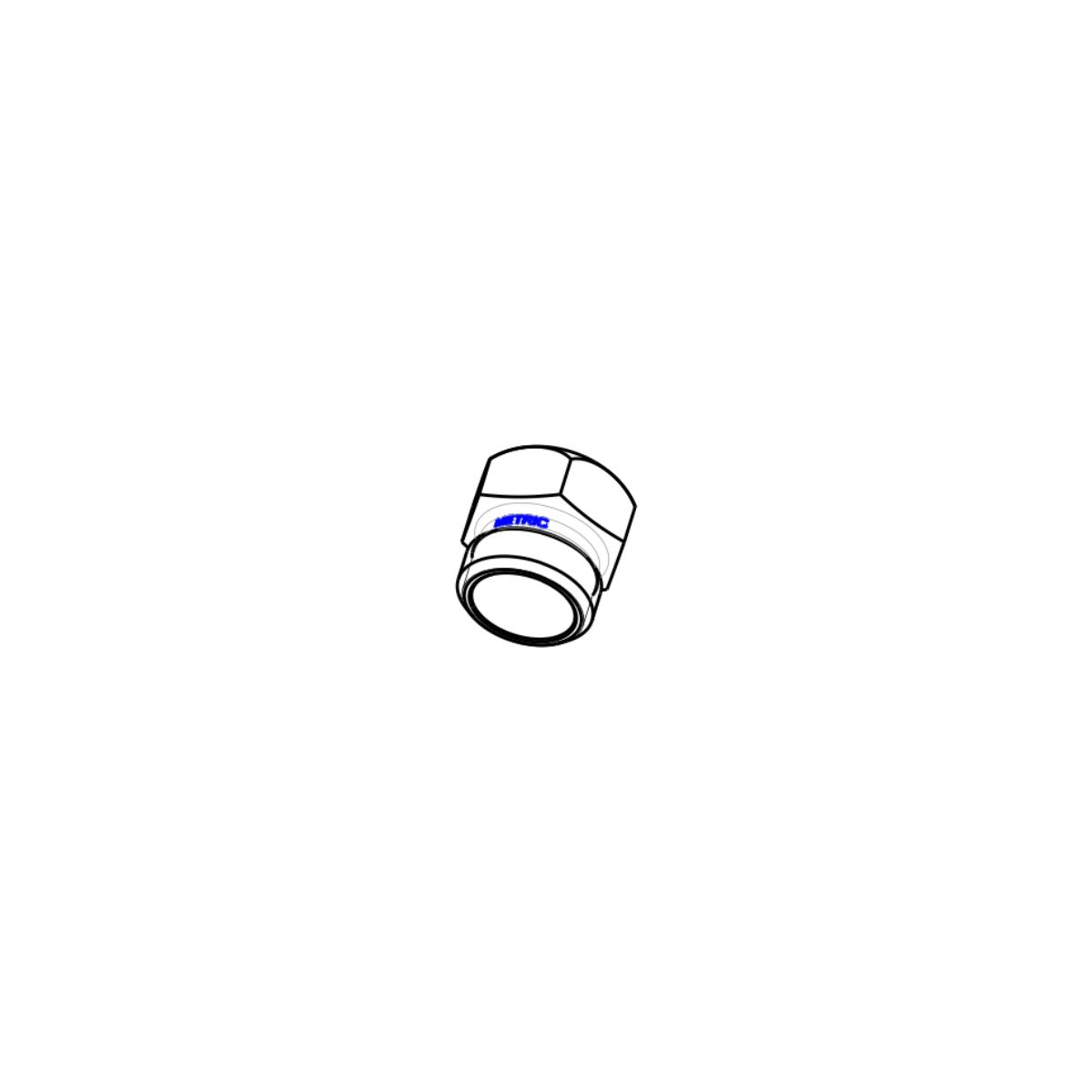

N3708008 Request information |  | HEAD NUT | D | 0 | 1 | -- |

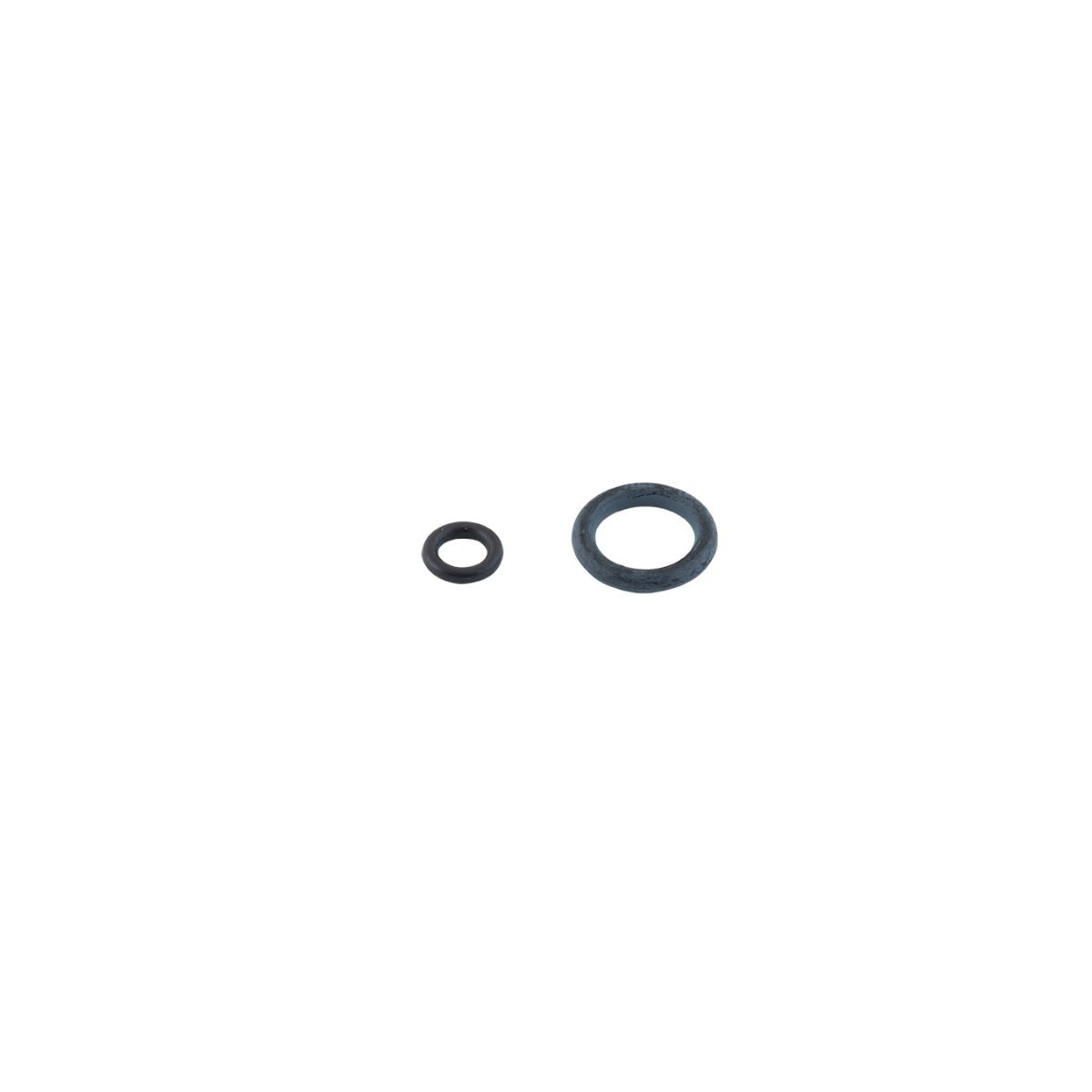

KIT SPARE PART GASKETS FOR MAXI HANDGRIP
FLAME WELDING - WELDING MAXI - KIT SPARE PART GASKETS FOR MAXI HANDGRIP
The package contains 10 + 10 replacement O-rings for welding, bendable and heating lances: 1.78 x 5.2 and 2.62 x 10.78.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
KIT003 Request information |  | MAXI lance gasket kit. Pack of 10 + 10 pieces | D | 0 | 1 | -- |

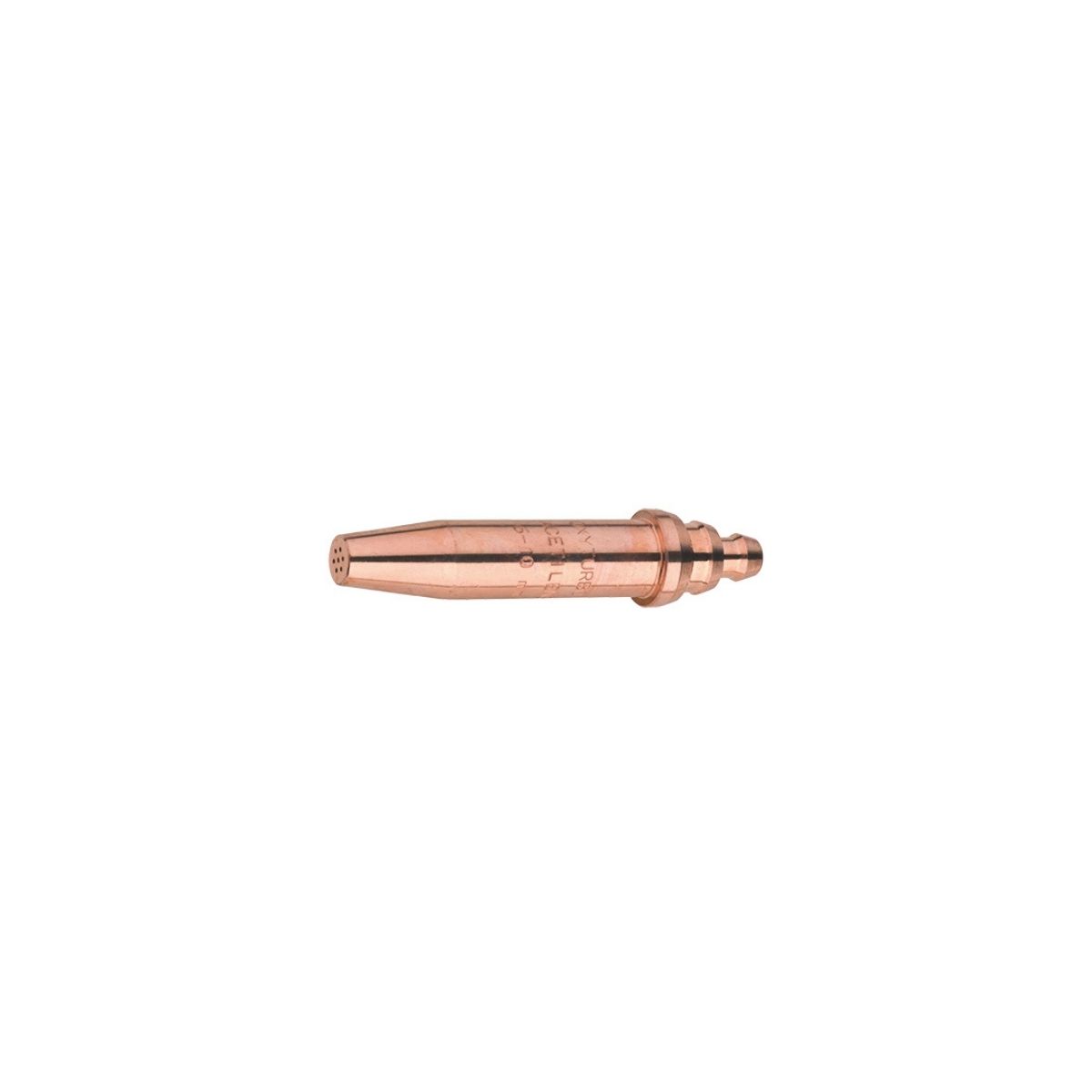

ANME AND PNME MIX CUTTING NOZZLES -IC - ACETYLENE
FLAME WELDING - WELDING MAXI - ANME AND PNME MIX CUTTING NOZZLES -IC - ACETYLENE
Nozzles should be selected based on cutting thickness and on the gas to be used. ANME nozzles are single block self-mixing copper-coated nozzles to be used for cutting with acetylene. PNME nozzles are two-piece self-mixing nozzles with brass interior and copper exterior, to be used on cutting with propane. Cutting thickness is marked directly on the nozzle and is indicative.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157500 Request information |  | ANME ACETYLENE | 6-10 | D | 0 | 1 | -- |
157501 Request information |  | ANME ACETYLENE | 10-13 | D | 0 | 1 | -- |
157502 Request information |  | ANME ACETYLENE | 13-25 | D | 0 | 1 | -- |
157503 Request information |  | ANME ACETYLENE | 25-38 | D | 0 | 1 | -- |
157504 Request information |  | ANME ACETYLENE | 38-50 | D | 0 | 1 | -- |
157505 Request information |  | ANME ACETYLENE | 50-75 | D | 0 | 1 | -- |
157506 Request information |  | ANME ACETYLENE | 75-125 | D | 0 | 1 | -- |
157507 Request information |  | ANME ACETYLENE | 125-200 | D | 0 | 1 | -- |
157508 Request information |  | ANME ACETYLENE | 200-300 | D | 0 | 1 | -- |

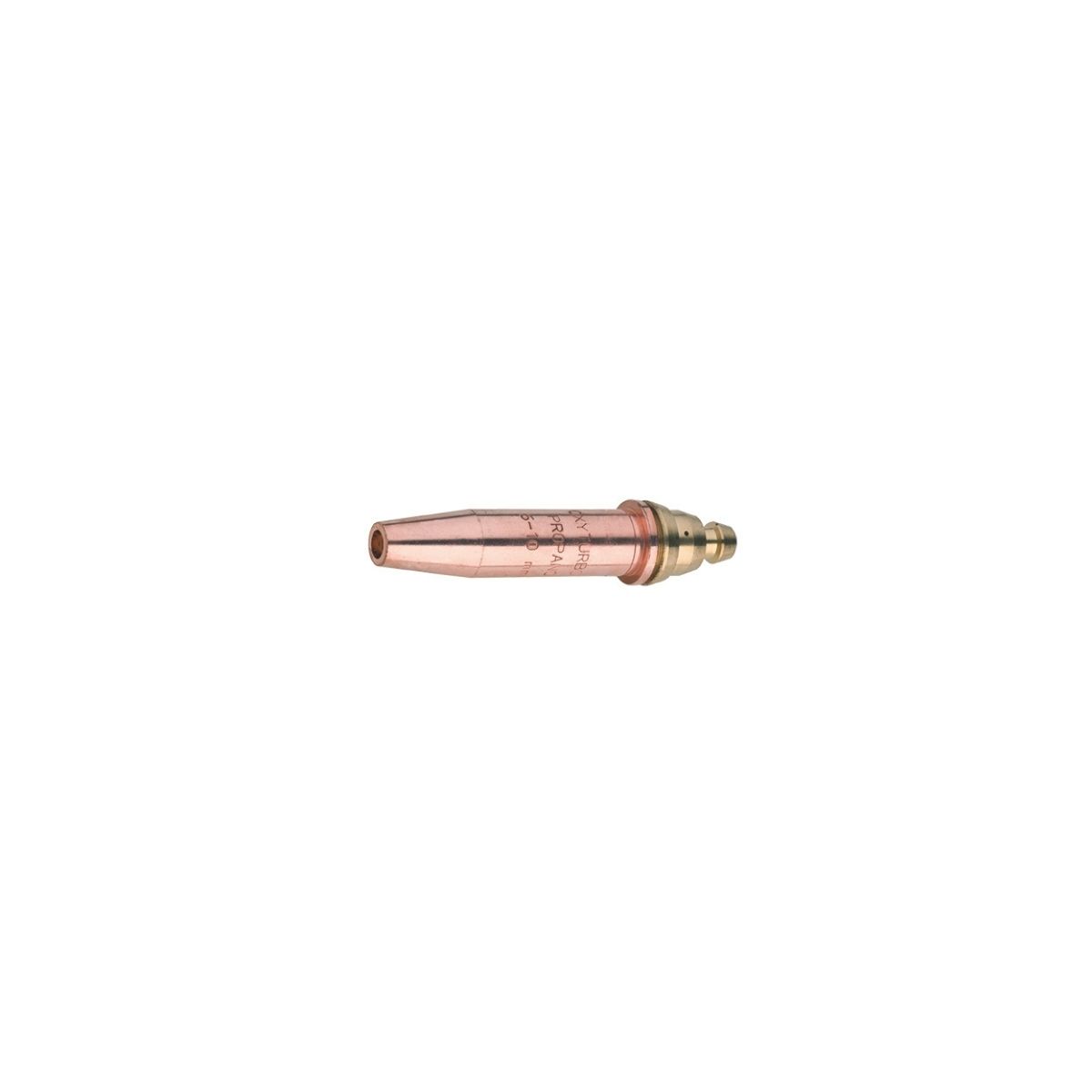

ANME AND PNME MIX CUTTING NOZZLES -IC - PROPANE
FLAME WELDING - WELDING MAXI - ANME AND PNME MIX CUTTING NOZZLES -IC - PROPANE
Nozzles should be selected based on cutting thickness and on the gas to be used. ANME nozzles are single block self-mixing copper-coated nozzles to be used for cutting with acetylene. PNME nozzles are two-piece self-mixing nozzles with brass interior and copper exterior, to be used on cutting with propane. Cutting thickness is marked directly on the nozzle and is indicative.
| Code | Image | Description | Thickness (mm) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
157550 Request information |  | PNME PROPANE | 6-10 | D | 0 | 1 | -- |
157551 Request information |  | PNME PROPANE | 10-13 | D | 0 | 1 | -- |
157552 Request information |  | PNME PROPANE | 13-25 | D | 0 | 1 | -- |
157553 Request information |  | PNME PROPANE | 25-38 | D | 0 | 1 | -- |
157554 Request information |  | PNME PROPANE | 38-50 | D | 0 | 1 | -- |
157555 Request information |  | PNME PROPANE | 50-75 | D | 0 | 1 | -- |
157556 Request information |  | PNME PROPANE | 75-125 | D | 0 | 1 | -- |
157557 Request information |  | PNME PROPANE | 125-200 | D | 0 | 1 | -- |
157558 Request information |  | PNME PROPANE | 200-300 | D | 0 | 1 | -- |
HEATING LANCES MAXI
FLAME WELDING - WELDING MAXI - HEATING LANCES MAXI
High heating power. They ensure safe operation even for high-powered flames in all types of surface hardening, forging, heating of materials before welding, large brazing, etc. The lances are supplied with tip.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
156308 Request information |  | HEATING LANCE ACETYLENE 1250 L/H -334mm | D | 0 | 1 | -- |
156309 Request information |  | HEATING LANCE ACETYLENE 2500/4000 L/H - 501mm | D | 0 | 1 | -- |
156359 Request information |  | HEATING LANCE PROPANE 800/1250 L/H - 334mm | D | 0 | 1 | -- |
156361 Request information |  | HEATING LANCE PROPANE 2500/4000 L/H - 513mm | D | 0 | 1 | -- |

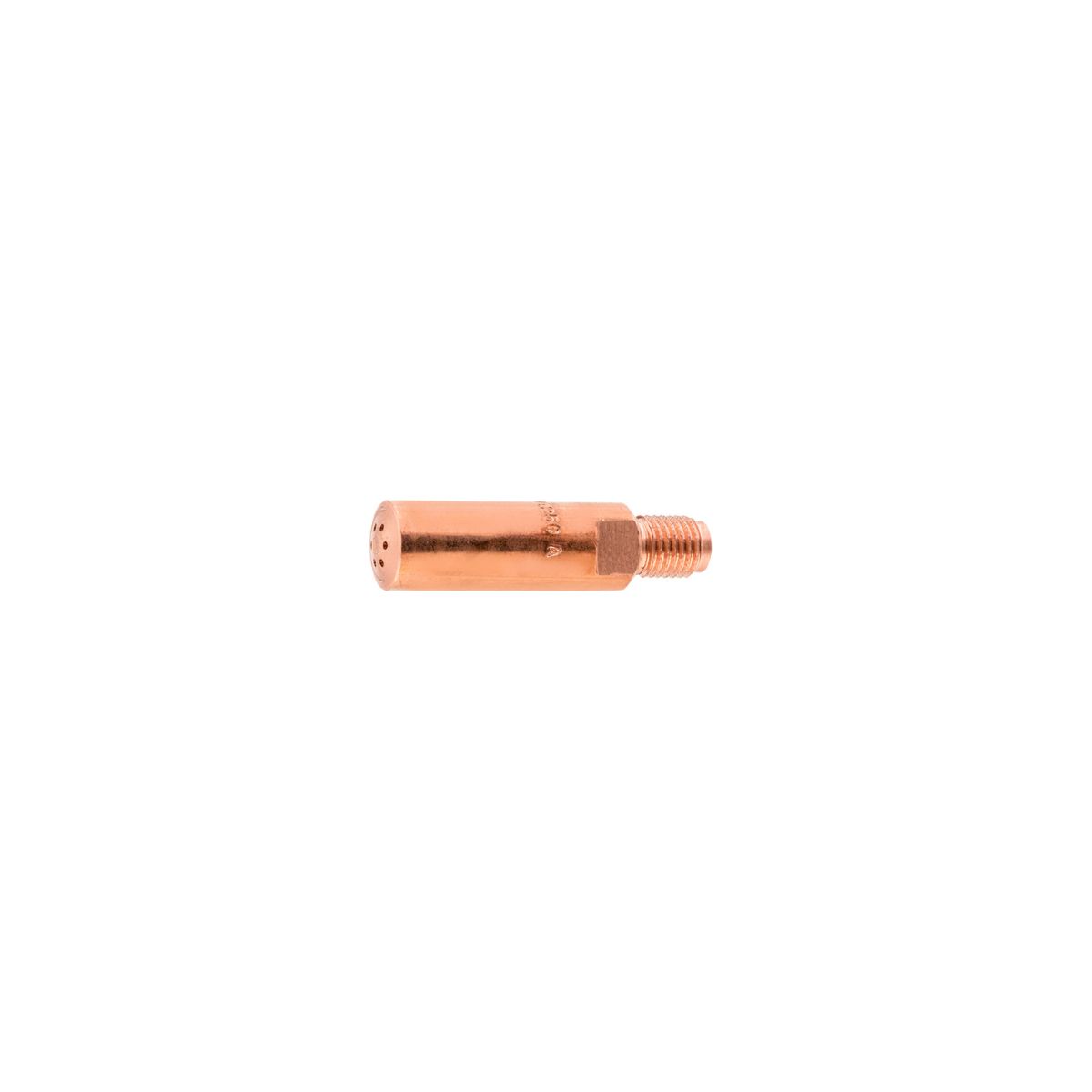

HEATING NOZZLES MAXI
FLAME WELDING - WELDING MAXI - HEATING NOZZLES MAXI
Special copper tips. They produce a flame that allows precise control of all welding operations.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
157308 Request information |  | HEATING NOZZLES ACETYLENE 1250 L/H | D | 0 | 1 | -- |
157309 Request information |  | HEATING NOZZLES ACETYLENE 2500/4000 L/H | D | 0 | 1 | -- |
157359 Request information |  | HEATING NOZZLES PROPANE 800/1250 L/H | D | 0 | 1 | -- |
157361 Request information |  | HEATING NOZZLES PROPANE 2500/4000 L/H | D | 0 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
