STINGER TORCH

Products

FLAME WELDING

STINGER TORCH

STINGER TORCH

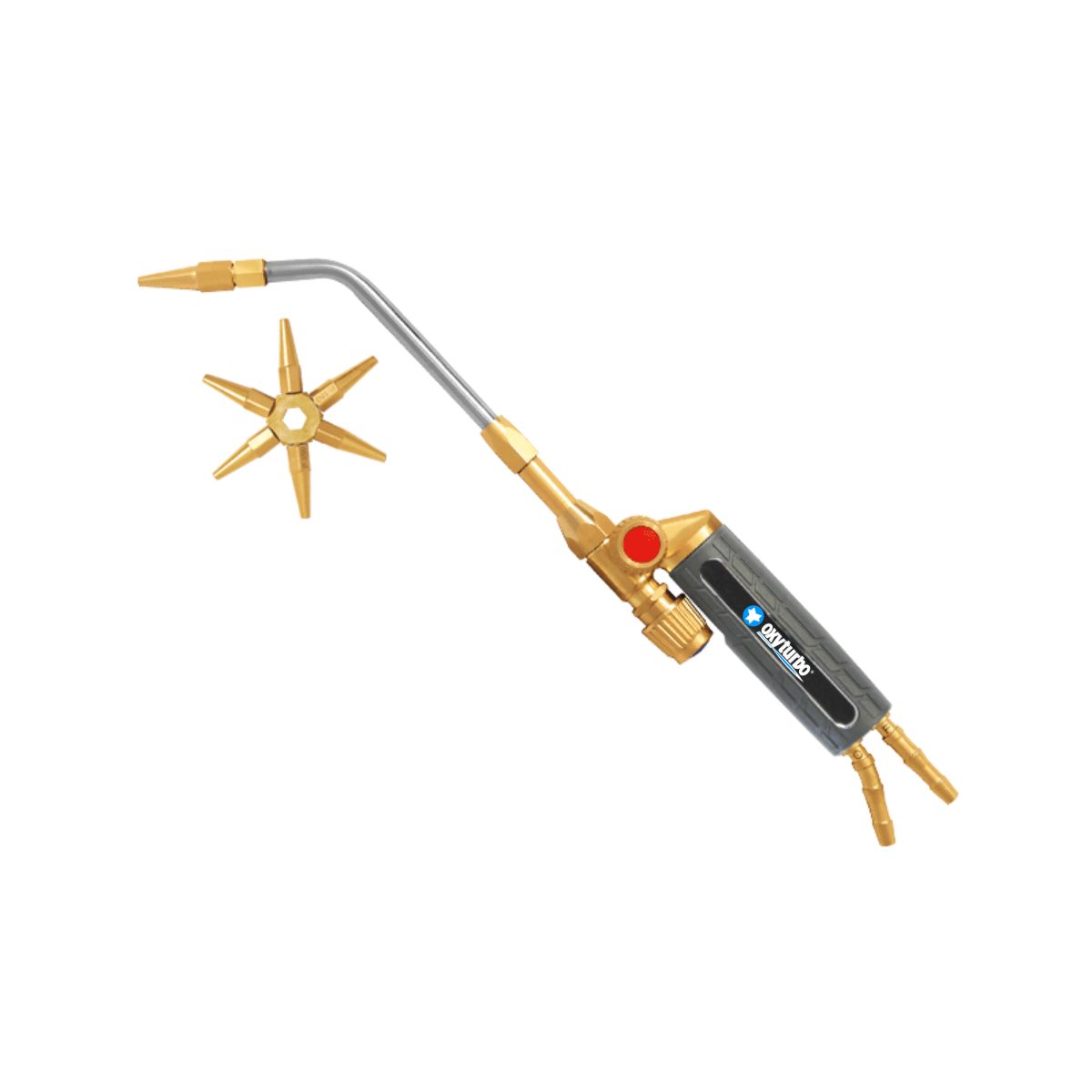

Compact and lightweight, the STINGER torch ensures maximum maneuverability and precise flame control.

Characteristics

The STINGER torch stands out for its compact size and weight, and for its extraordinary maneuverability when brazing thin and medium-thickness materials. The axial oxygen regulation makes flame adjustment extremely easy and precise, even during the welding process itself.

FLAME WELDING - STINGER TORCH

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Inlet Availability Weight (kg) No. of pcs Product sheet

120500

Request information
STINGER TORCH
 STINGER TORCH + STAR 6 TIPS PROPANE G3/8 RH-G3/8 LH D 0 1
--

120501

Request information
STINGER TORCH
 STINGER TORCH + STAR 6 TIPS ACETYLENE G3/8 RH-G3/8 LH D 0 1
--

120715

Request information
STINGER TORCH

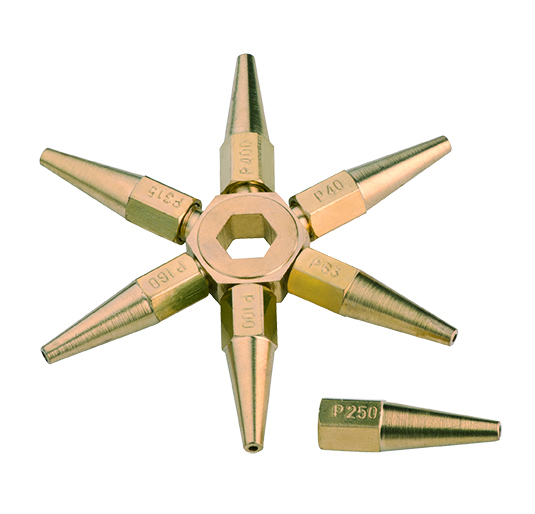

 7 POINT STAR PROPANE STINGER - D 0 1
--

120720

Request information
STINGER TORCH
 7 POINT STAR ACETYLENE STINGER - D 1 1
--

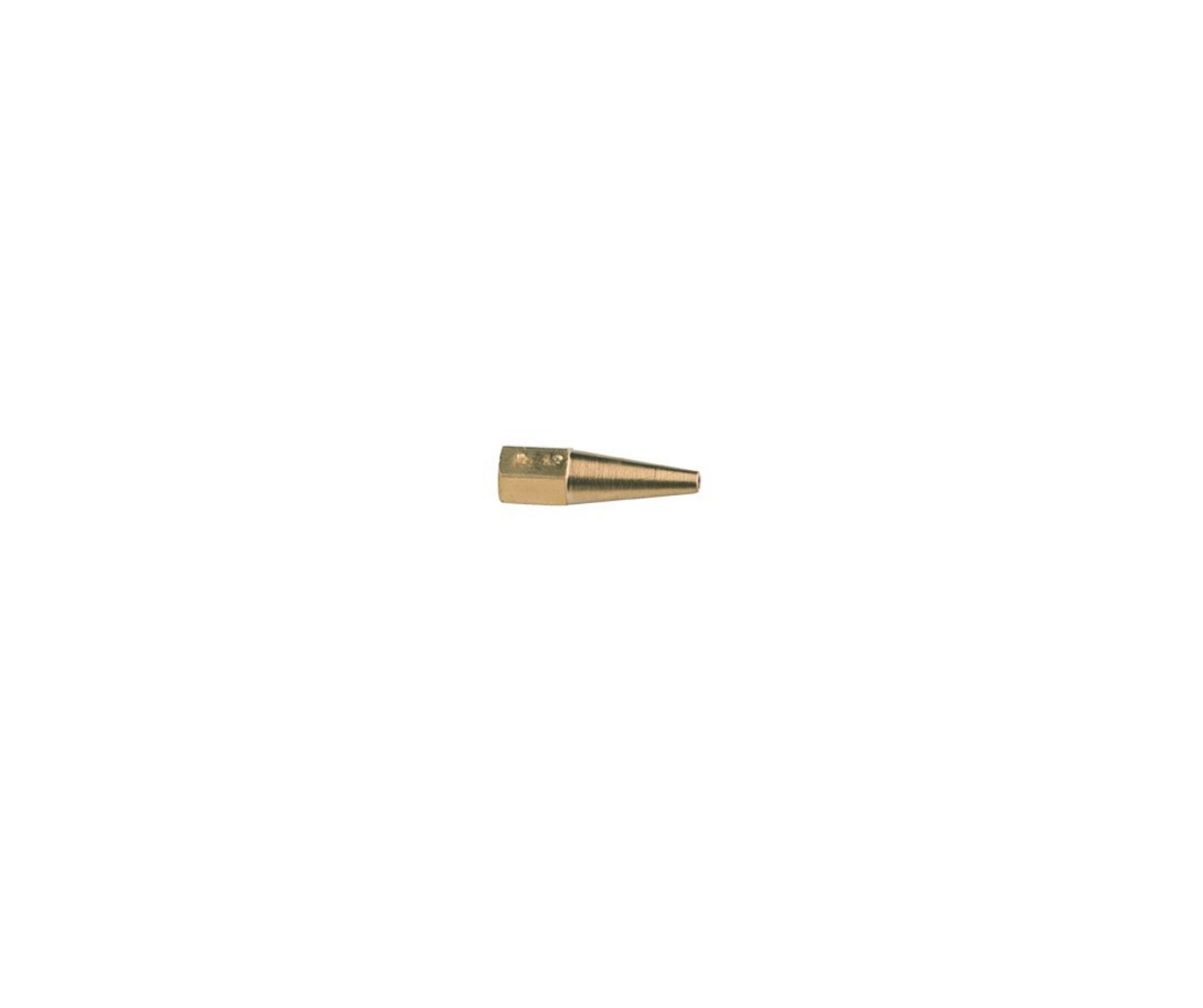

REPLACEMENT TIPS FOR PROPANE STINGER TORCH

FLAME WELDING - STINGER TORCH - REPLACEMENT TIPS FOR PROPANE STINGER TORCH

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Thickness (mm) Availability Weight (kg) No. of pcs Product sheet

120715.40

Request information
STINGER TORCH
 Stinger Tip GPL 40 I/h 0,4 D 0 5
--

120715.63

Request information
STINGER TORCH
 Stinger Tip GPL 63 I/h 0,6 D 0 5
--

120715.100

Request information
STINGER TORCH
 Stinger Tip GPL 100 I/h 0,8 D 0 5
--

120715.160

Request information
STINGER TORCH
 Stinger Tip GPL 160 I/h 1,6 D 0 5
--

120715.250

Request information
STINGER TORCH
 Stinger Tip GPL 250 I/h 2,4 D 0 5
--

120715.315

Request information
STINGER TORCH
 Stinger Tip GPL 315 I/h 3,0 R 0 5
--

120715.400

Request information
STINGER TORCH
 Stinger Tip GPL 400 I/h 4,0 R 0 5
--

REPLACEMENT TIPS FOR ACETYLENE STINGER TORCH

FLAME WELDING - STINGER TORCH - REPLACEMENT TIPS FOR ACETYLENE STINGER TORCH

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Thickness (mm) Availability Weight (kg) No. of pcs Product sheet

120720.40

Request information
STINGER TORCH
 Stinger Tip ACE 40 I/h 0,4 D 0 5
--

120720.63

Request information
STINGER TORCH
 Stinger Tip ACE 63 I/h 0,6 D 0 5
--

120720.100

Request information
STINGER TORCH
 Stinger Tip ACE 100 I/h 0,8 D 0 5
--

120720.160

Request information
STINGER TORCH
 Stinger Tip ACE 160 I/h 1,6 D 0 5
--

120720.250

Request information
STINGER TORCH
 Stinger Tip ACE 250 I/h 2,4 D 0 5
--

120720.315

Request information
STINGER TORCH
 Stinger Tip ACE 315 I/h 3,0 R 0 5
--

120720.400

Request information
STINGER TORCH
 Stinger Tip ACE 400 I/h 4,0 R 0 5
--

Technical questions and evidence

How can I compare the available variants?

Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.

Which supporting documents are available?

The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.

How do I verify compatibility with my application?

Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
