MAXY PLUS

Products

EMERGENCY PRODUCTS

MAXY PLUS

MAXY PLUS

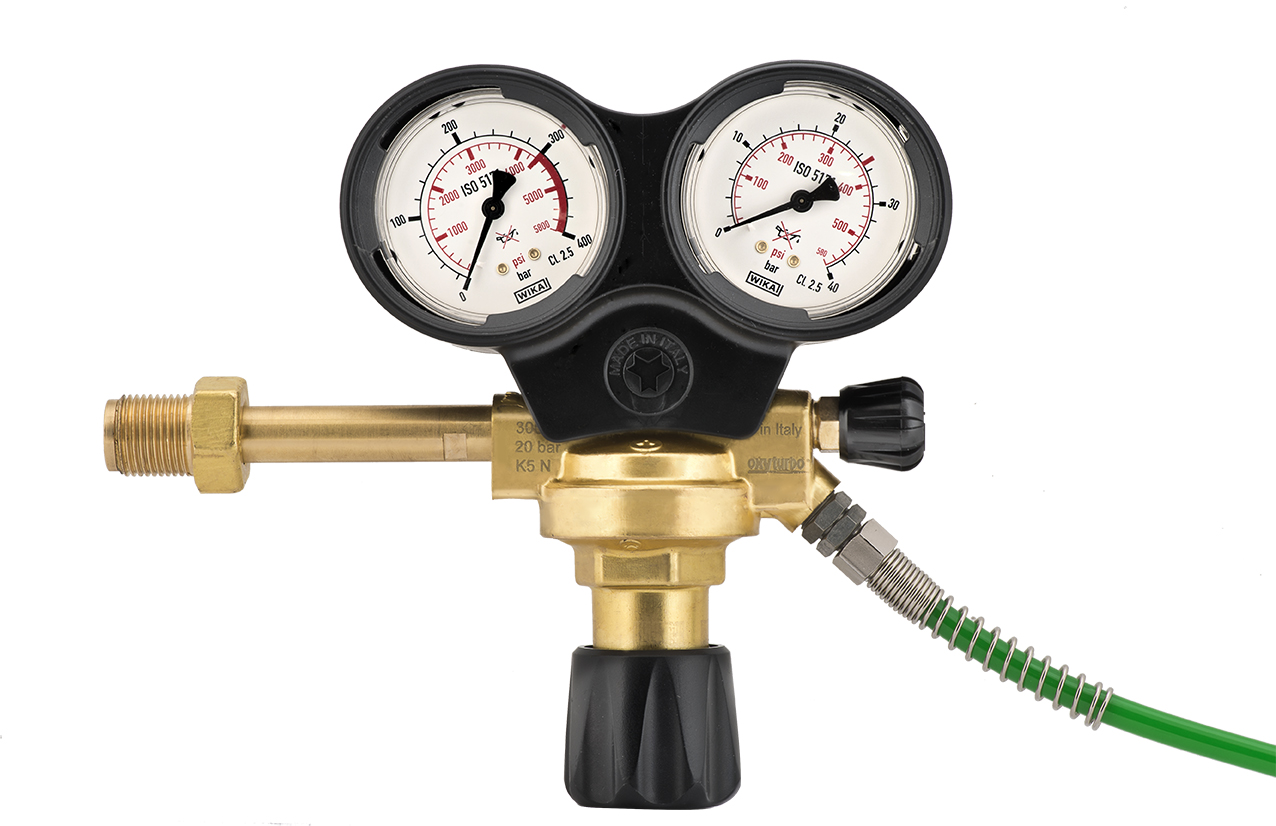

Regulator for pressurising fire extinguishers.


Standard UNI 9994 describes 4 maintenance stages for fire extinguishers (surveillance, control, revision, and final testing) and indicates the frequency with which they must be carried out. Maintenance technicians must always have a pressure regulator at hand to pressurise fire extinguishers with nitrogen. Oxyturbo has designed a professional regulator to be used with rechargeable nitrogen cylinders.

Characteristics

- The body and cover originate from a brass mould
- Gas flow adjustment knob
- Two 63 mm Ø pressure gauges
- 5 m Rilastollan spiral pipe (Ø 8x5)
- Flashback arrestor valve on the open/close tap of the pipe

Use

Permits use of nitrogen up to 200 bar and enables outlet supply up to 20 bar. The spiral pipe has a 1/4MG connection and is equipped with an open/close tap to facilitate the use of the regulator.

Certificates


MAXY PLUS - NITROGEN

EMERGENCY PRODUCTS - MAXY PLUS - MAXY PLUS - NITROGEN

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description Normative Outlet Class K P1 (bar) P2 (bar) Q1 (m³/h) Availability Weight (kg) No. of pcs Product sheet

264500MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV UNI 1/4 5 200 20 60 R 1 1
--

264501MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV DIN 1/4 5 300 20 60 R 1 1
--

264503MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV BS 1/4 5 300 20 60 R 1 1
--

264502MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV NF-MIE 1/4 5 300 20 60 R 1 1
--

264509MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV NEN 1/4 5 300 20 60 R 1 1
--

264504MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV SS 1/4 5 300 20 60 R 1 1
--

264508MP.20

Request information
MAXY PLUS
MAXY PLUS + HOSE + NRV CGA 1/4 5 300 20 60 R 1 1
--
