Products
EMERGENCY PRODUCTS
MAXY LIFT
MAXY LIFT
Characteristics

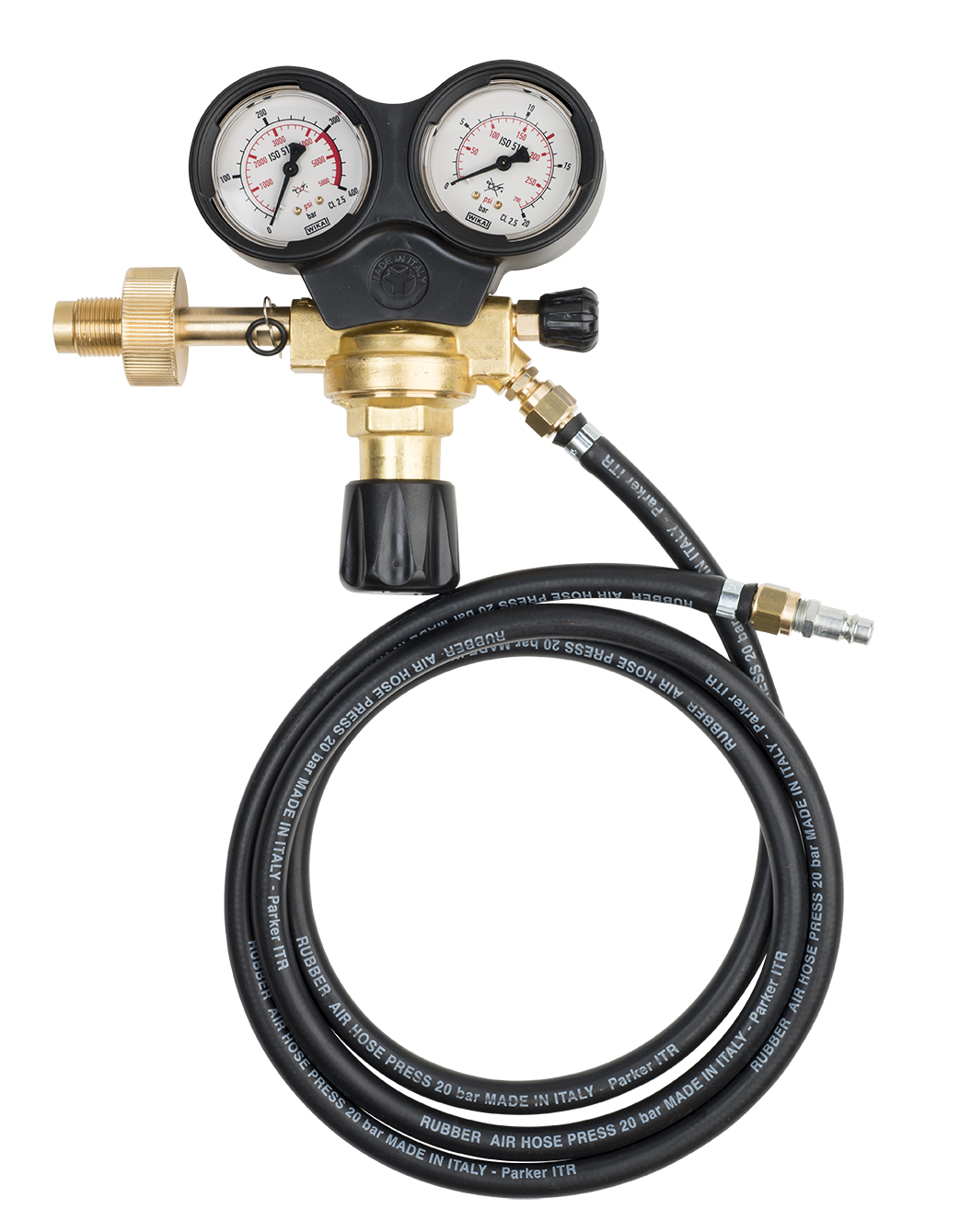

a MAXY POWER CONTROL pressure regulator for industrial compressed air with a capacity of 60 m3 at a pressure of 14 bar, a 2 metre-long rubber inflating pipe and a quick coupling for insertion in lifting bags or emergency equipment. The regulator reduces the high pressure of the compressed air inside the cylinder down to a suitable operating pressure. The air pressure is kept constant even when the air flow varies.
Use
Certificates
Product Sectors
MAXY LIFT - AIR
EMERGENCY PRODUCTS - MAXY LIFT - MAXY LIFT - AIR
| Code | Image | Description | Normative | Outlet | Class K | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
268500.OXY Request information | | MAXY LIFT | UNI | 1/4 | 4 | 300 | 14 | 60 | R | 2 | 1 | -- |
268503.OXY Request information |  | MAXY LIFT | DIN-BS-SS | 1/4 | 4 | 300 | 14 | 60 | R | 2 | 1 | -- |
268509.OXY Request information |  | MAXY LIFT | NEN | 1/4 | 4 | 300 | 14 | 60 | R | 2 | 1 | -- |
268508.OXY Request information |  | MAXY LIFT | MIE | 1/4 | 4 | 300 | 14 | 60 | R | 2 | 1 | -- |
268501.OXY Request information |  | MAXY LIFT | CGA | 1/4 | 4 | 300 | 14 | 60 | R | 2 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
