BEVERAGE
MINOR
MINOR

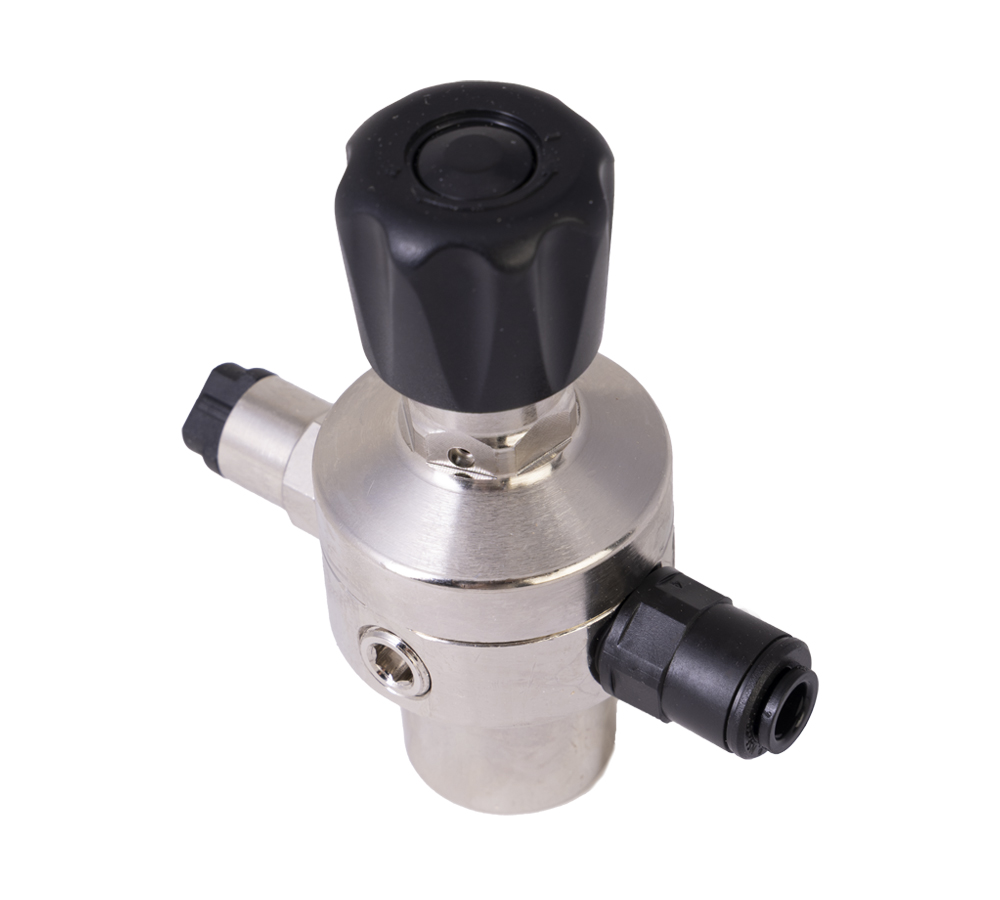

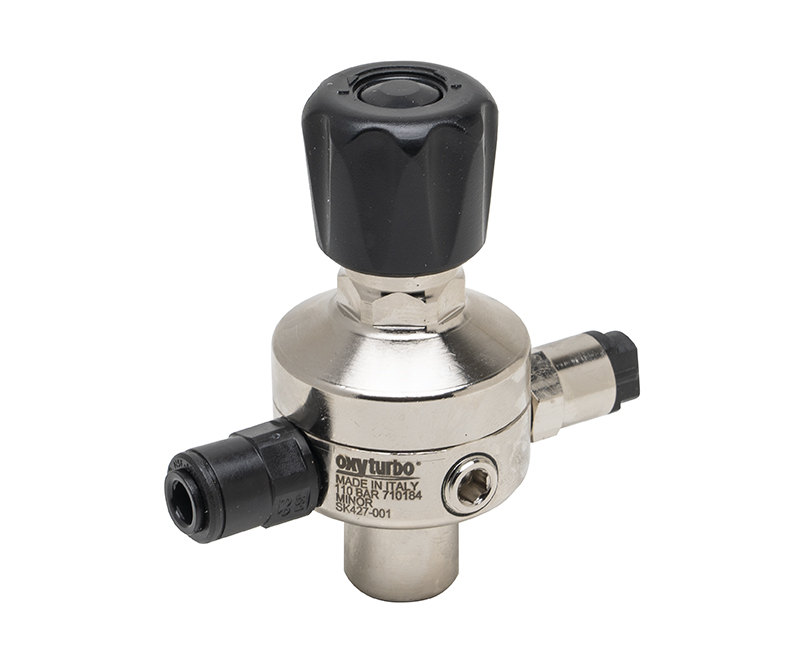

Compact, professional pressure regulators for disposable CO2 cylinders, ideal for dispensing wine and beer and for carbonating. Indispensable for household use.
Characteristics
- Body and cover are machined directly from brass bar and are nickel-plated.
- Available in versions with M11x1 or ACME or W21.8 connection.
- Supplied with quick coupling fitting for 6mm outlet piping.
-Vertical pressure adjustment
- 40mm diameter pressure gauges
- Individual packaging.
Use
Designed for a maximum pressure of 60 bar (CO2) and 110 bar (Ar/N2), an operating pressure of 5.5 bar.
Using the appropriate adapters, the Minor can also be applied to rechargeable cylinders.
Certificates
Product Sectors
MINOR CO2 M11x1 FITTING - CALIBRATION 5.5
MINOR CO2 ACME FITTING - CALIBRATION 5.5
MINOR CO2 W21.8 FITTING - CALIBRATION 5.5
MAJOR and MINOR - ADAPTORS

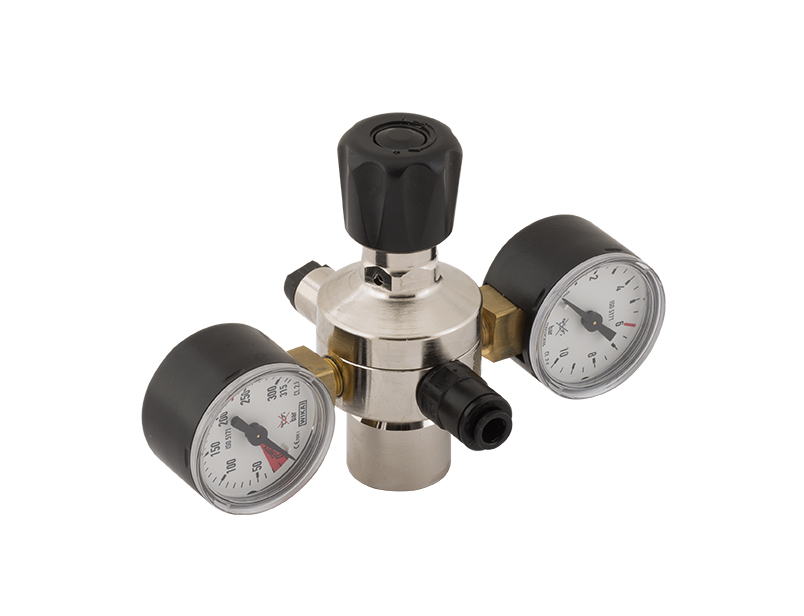

MINOR CO2 M11x1 FITTING - CALIBRATION 5.5
BEVERAGE - MINOR - MINOR CO2 M11x1 FITTING - CALIBRATION 5.5
These pressure regulators are especially suitable for carbonating systems and for small beer dispensers, with a maximum outlet pressure of 5.5 bar.

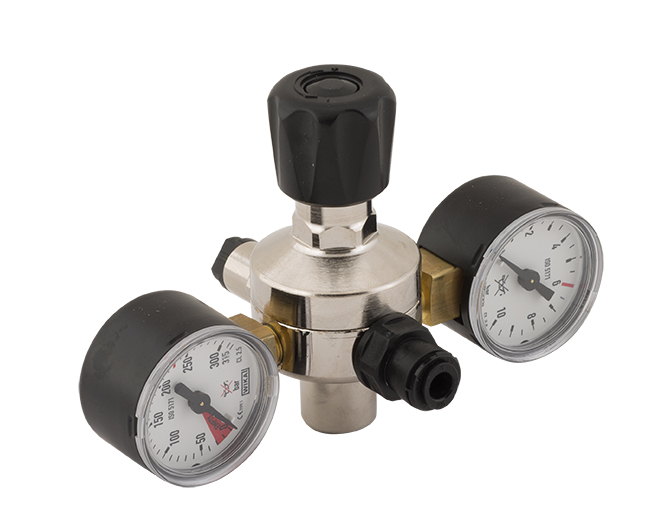

The low-pressure gauge is used to display the set carbonation level, while the high-pressure gauge indicates the quantity of gas inside the cylinder.
It is possible to use the Minor with M11X1 connection with ACME cylinders using the appropriate adapter (Cod. 490880).
| Code | Image | Description | Cylinder thread | H.P. gauge (bar) | L.P. gauge (bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
371300 Request information | | MINOR 1GaugeLP M11x1Dxi C.Vert -Q1=11000nL/h p2=5,5b AR6 J.G. | M11X1 | -- | -- | D | 0 | 1 | |
371000 Request information |  | MINOR NoGauge M11x1Dxi C.Vert -Q1=11000nL/h p2=5,5b AR6 J.G. | M11X1 | -- | -- | R | 0 | 1 | -- |
371200 Request information |  | MINOR 2Gauges M11x1Dxi C.Vert -Q1=11000nL/h p2=5,5b AR6mm | M11X1 | 0-315 | -- | D | 0 | 1 |

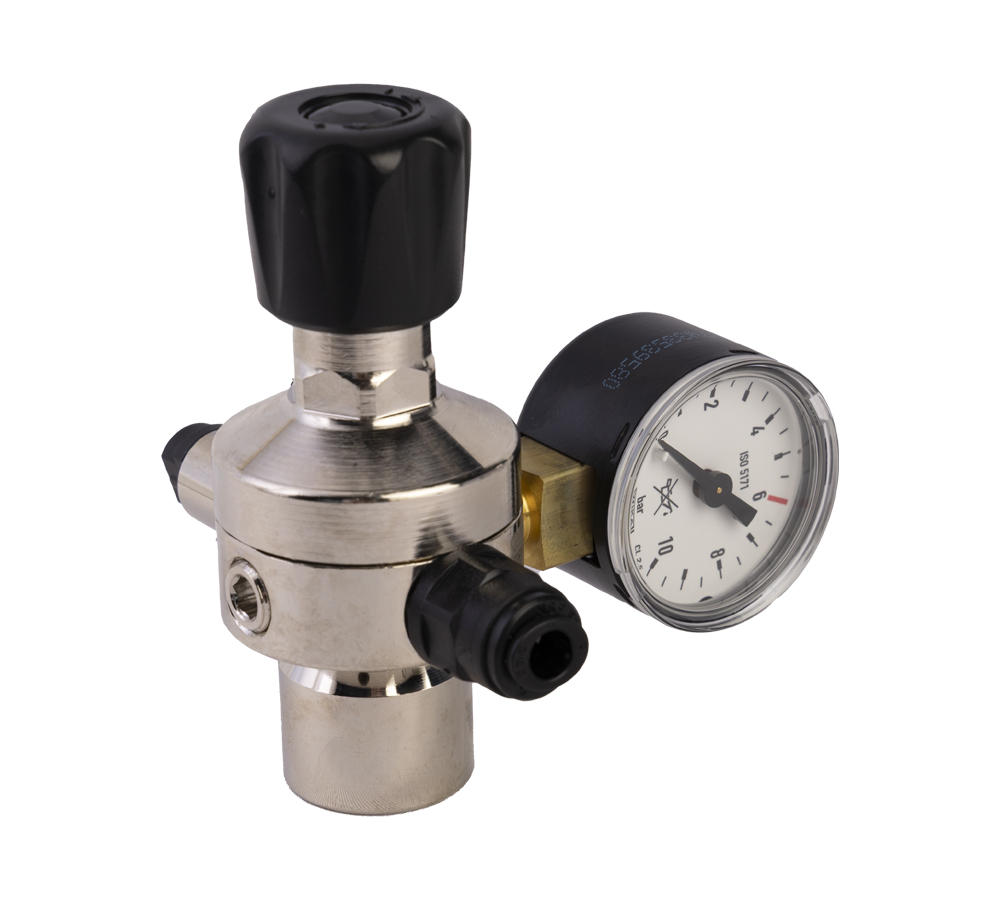

MINOR CO2 ACME FITTING - CALIBRATION 5.5
BEVERAGE - MINOR - MINOR CO2 ACME FITTING - CALIBRATION 5.5
These pressure regulator for ACME cylinders are suitable for manual carbonation devices. The peculiarity is the ACME fitting that is obtained directly from the manufactory of the regulator’s body so that is possible to avoid adding the connection.
The reduced dimensions make the regulator suitable for usage in small spaces It also has a quick connection for ø6mm hose (food-safe).

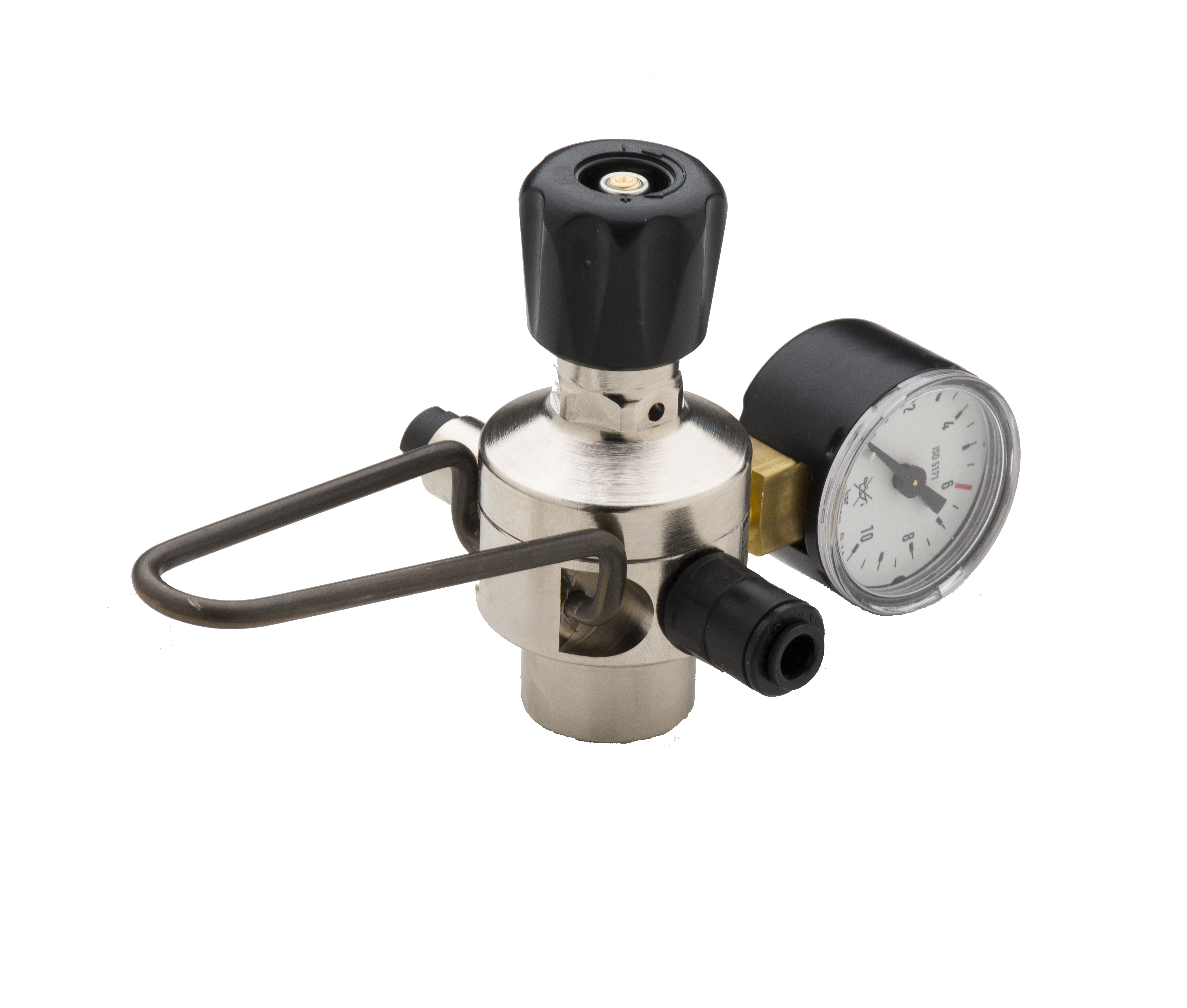

Oxyturbo, always focused on the end-user, created a version with the handle to guarantee a higher lever during the screwing and unscrewing of the regulator to the cylinder.
| Code | Image | Description | Cylinder thread | H.P. gauge (bar) | L.P. gauge (bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
371002 Request information |  | MINOR NoGauge ACME Dxi C.Vert -Q1=11000nL/h p2=5,5b AR6 J.G. | ACME | -- | -- | R | 0 | 1 | -- |
371302.00 Request information |  | MINOR 1GaugeLP ACME Dxi C.Vert -p2=5,5b c/maniglia Us J.G.ø6 | ACME | -- | -- | R | 0 | 1 | -- |
371302 Request information |  | MINOR 1GaugeLP ACME Dxi C.Vert -Q1=11000nL/h p2=5,5b AR6 J.G. | ACME | -- | -- | R | 0 | 1 | -- |
371202 Request information |  | MINOR 2Gauges ACME Dxi C.Vert -Q1=11000nL/h p2=5,5b AR6 J.G. | ACME | 0-315 | -- | R | 0 | 1 | -- |

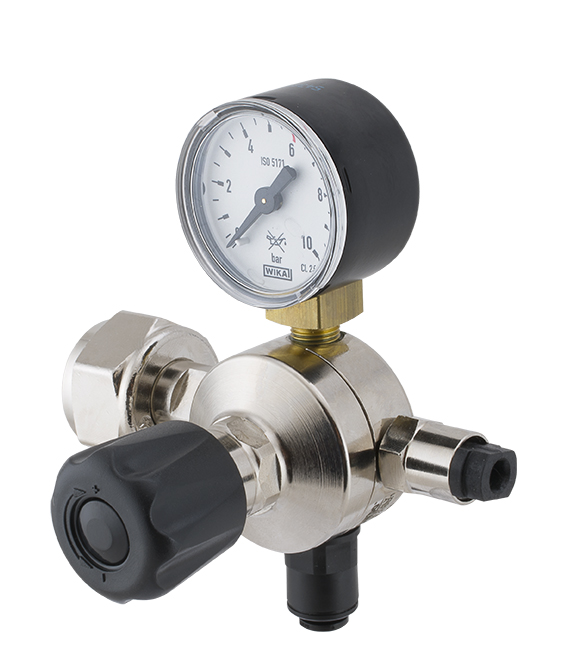

MINOR CO2 W21.8 FITTING - CALIBRATION 5.5
BEVERAGE - MINOR - MINOR CO2 W21.8 FITTING - CALIBRATION 5.5
Pressure regulator for small-size rechargeable cylinders. It has a side connection and a front control that allows easy adjustment up to 5.5 bar. The set pressure can be read on the low-pressure gauge. It can only be supplied with a low-pressure gauge.
It is possible to use the Minor with connection W21.8 with disposable cylinders M11x1 through the adaptor code 490783 or with ACME cylinders through adaptor code 490885.
| Code | Image | Description | Normative | Outlet | Class K | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
381309.00 Request information |  | MINOR 1ManoLP W21,8Rhi C.Fron 4lav.p2=5,5b Us-A.R.ø6mm | -- | G1/4M + Dado PG D6-8mm | -- | 300 | 200 | >300 | D | 0 | 1 |

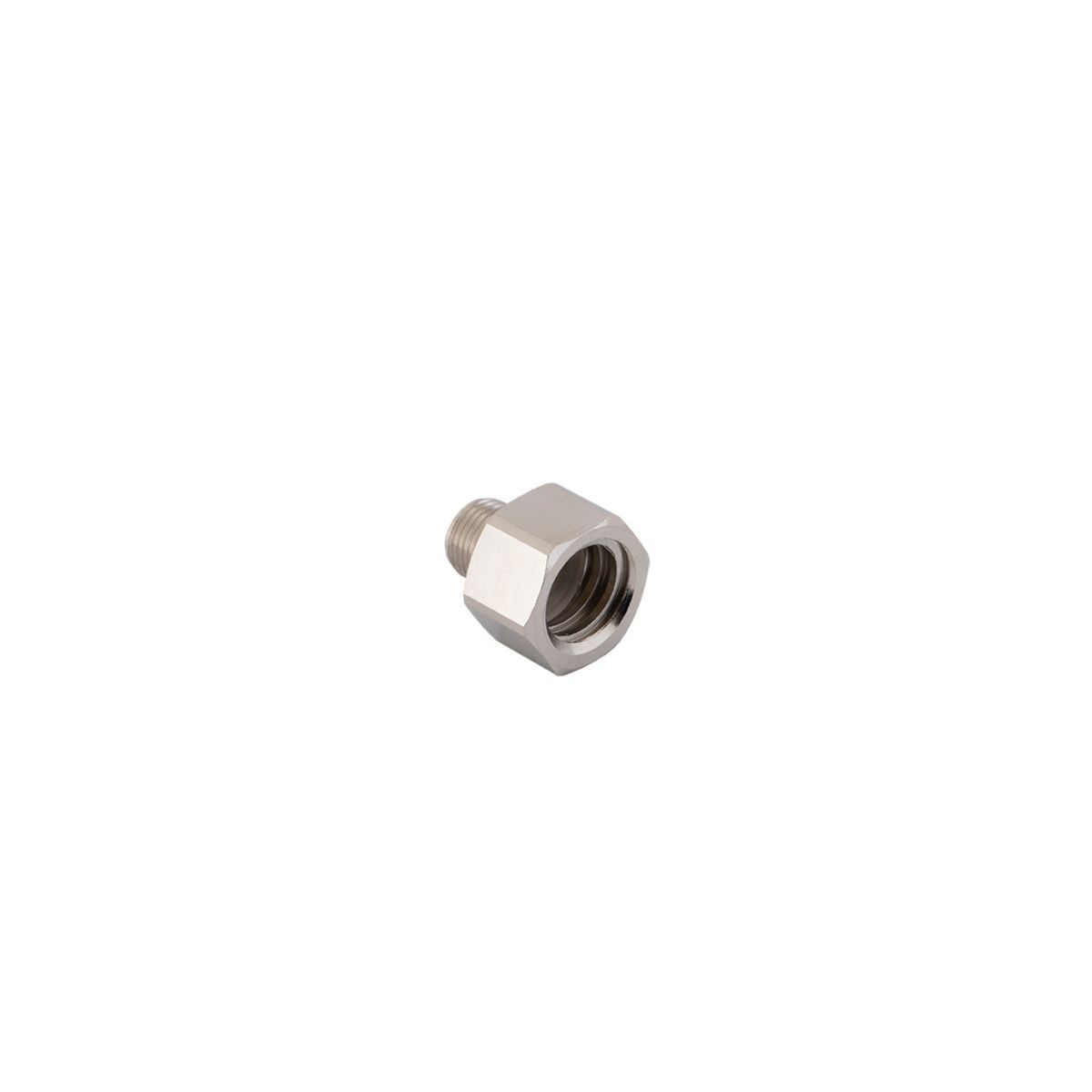

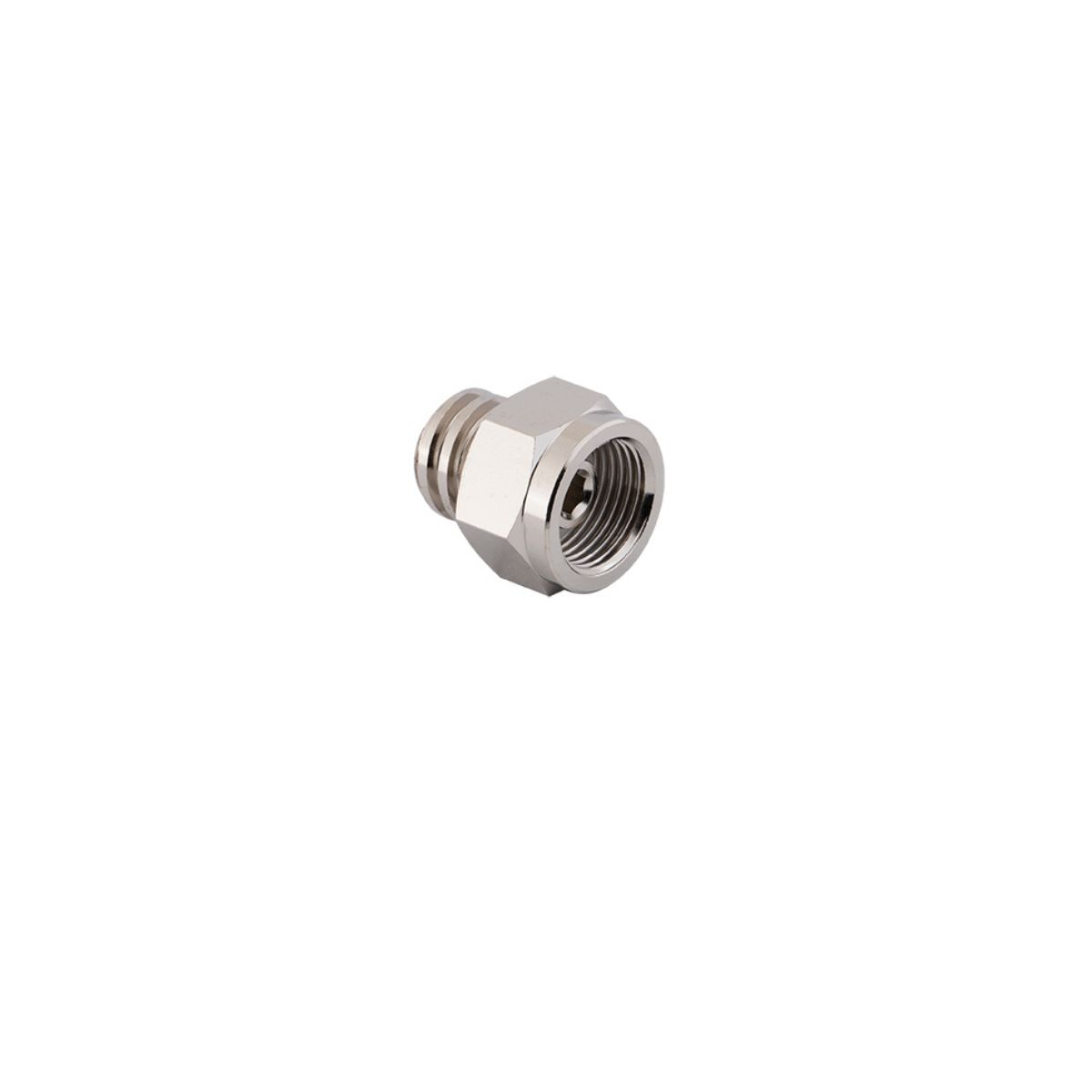

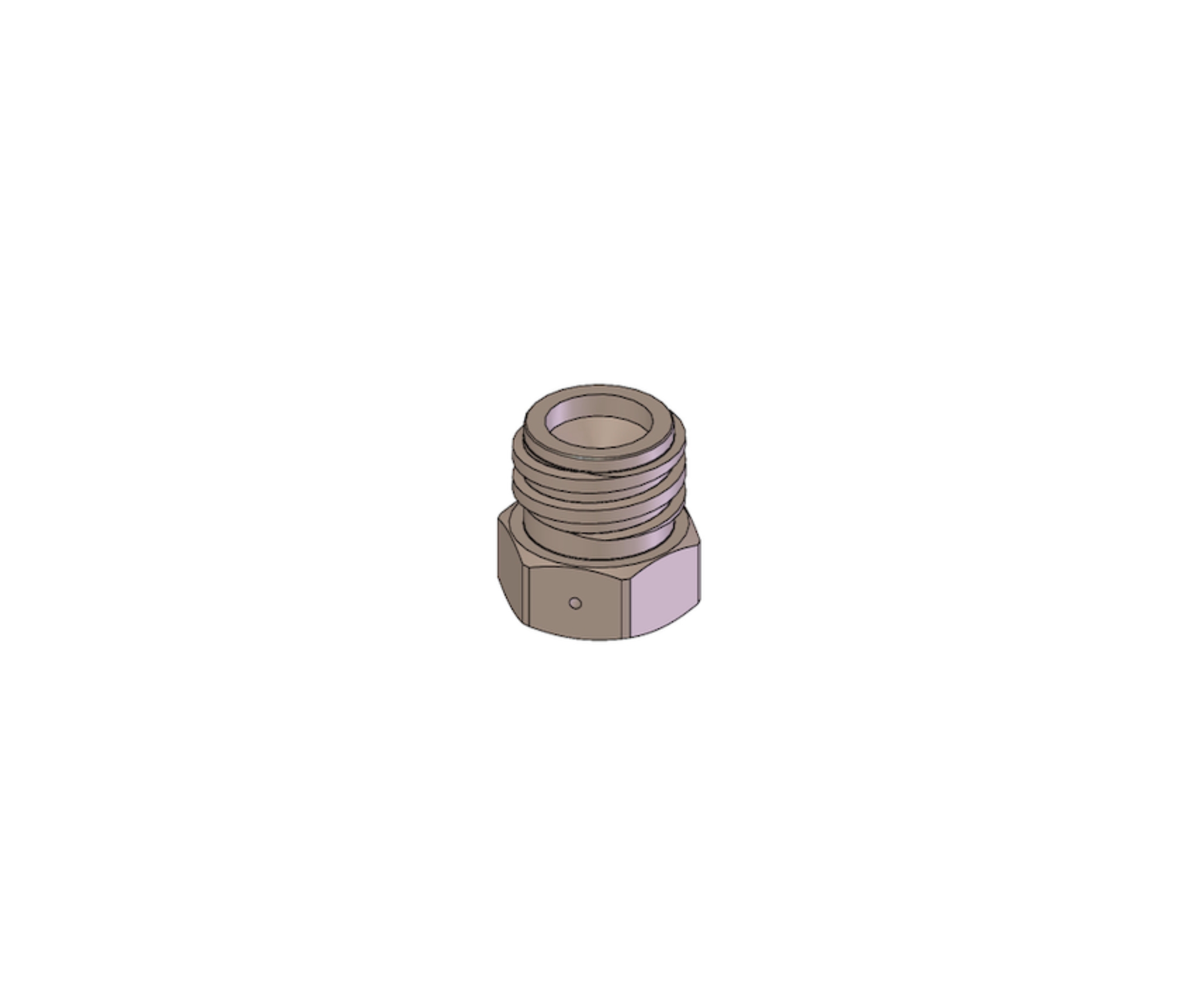

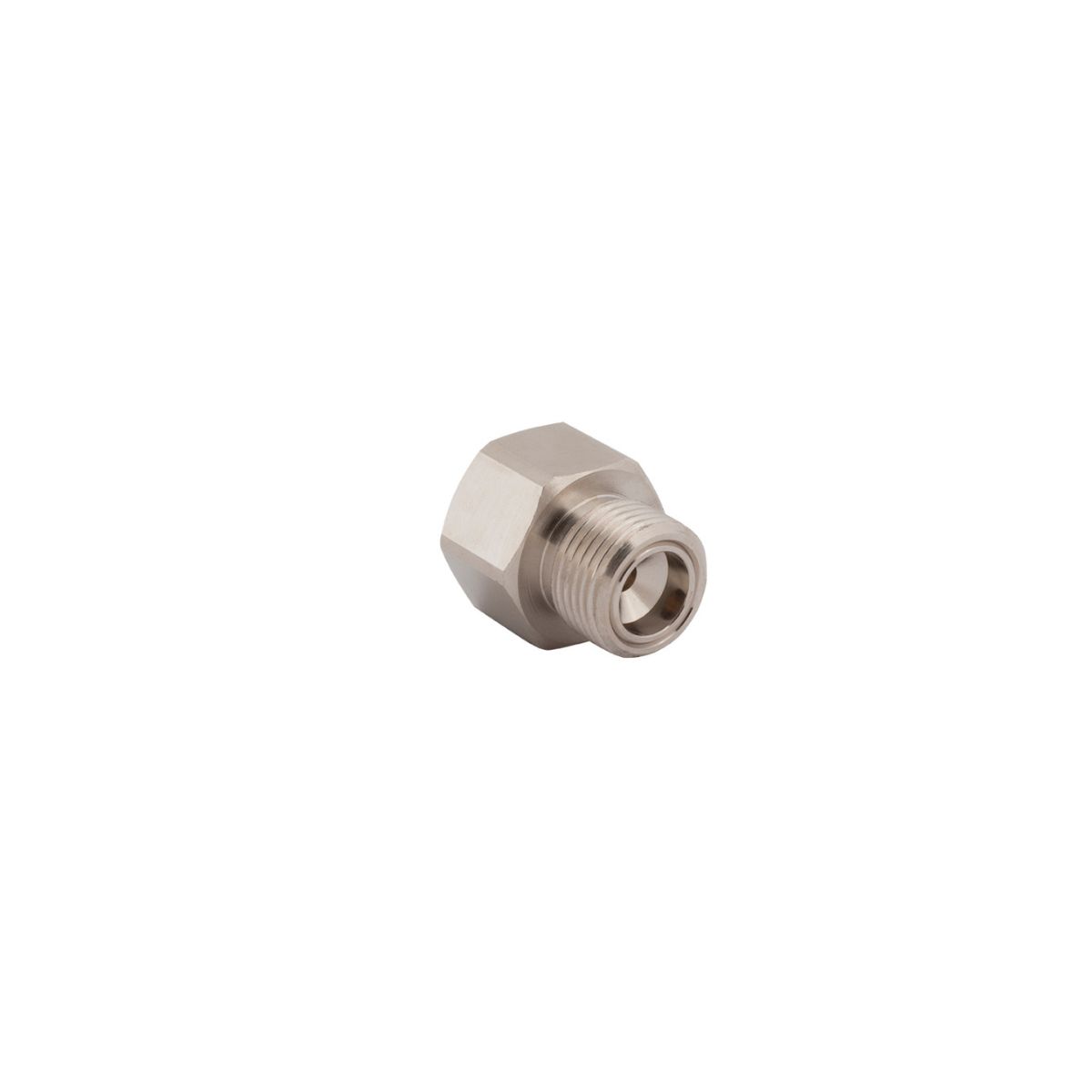

MAJOR and MINOR - ADAPTORS
BEVERAGE - MINOR - MAJOR and MINOR - ADAPTORS

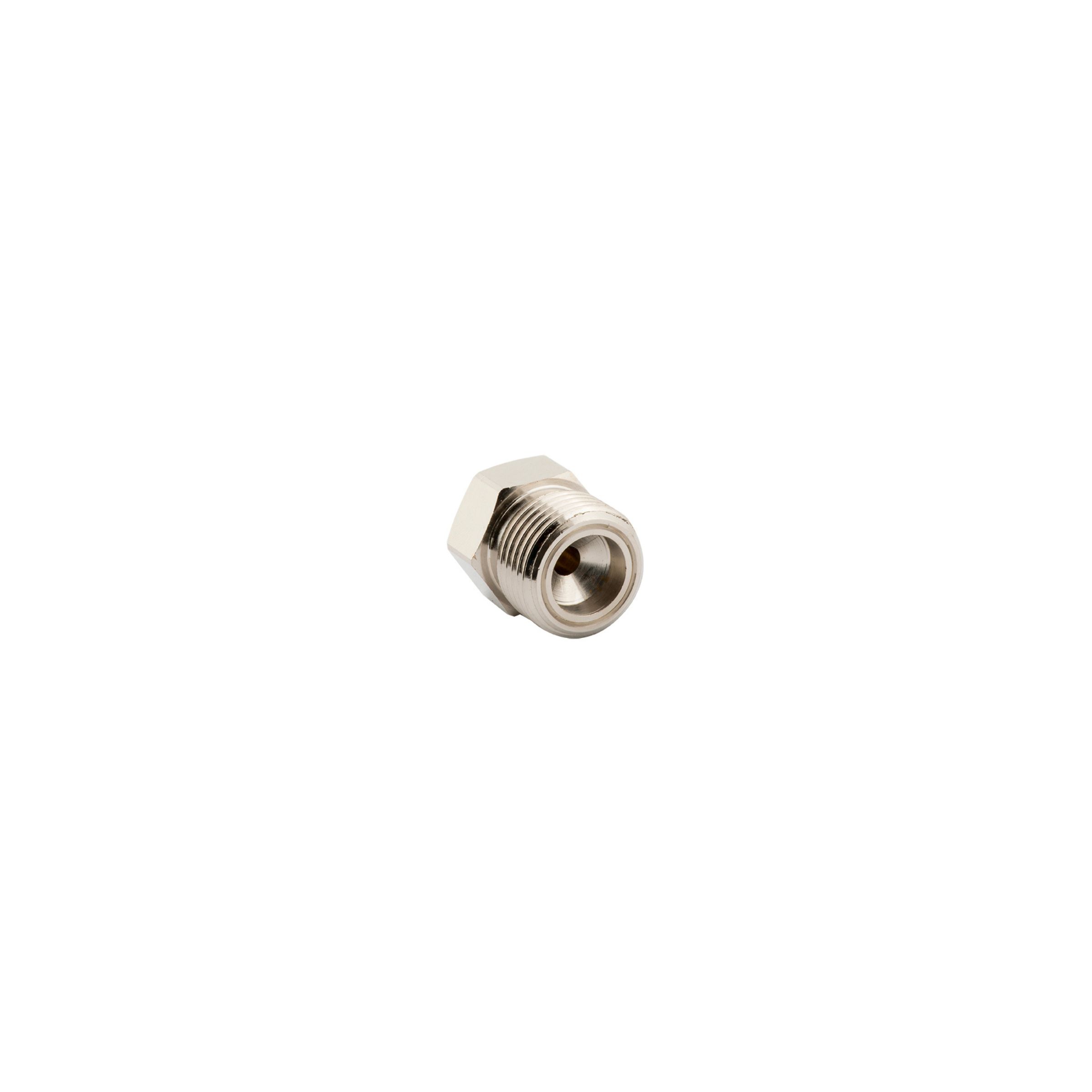

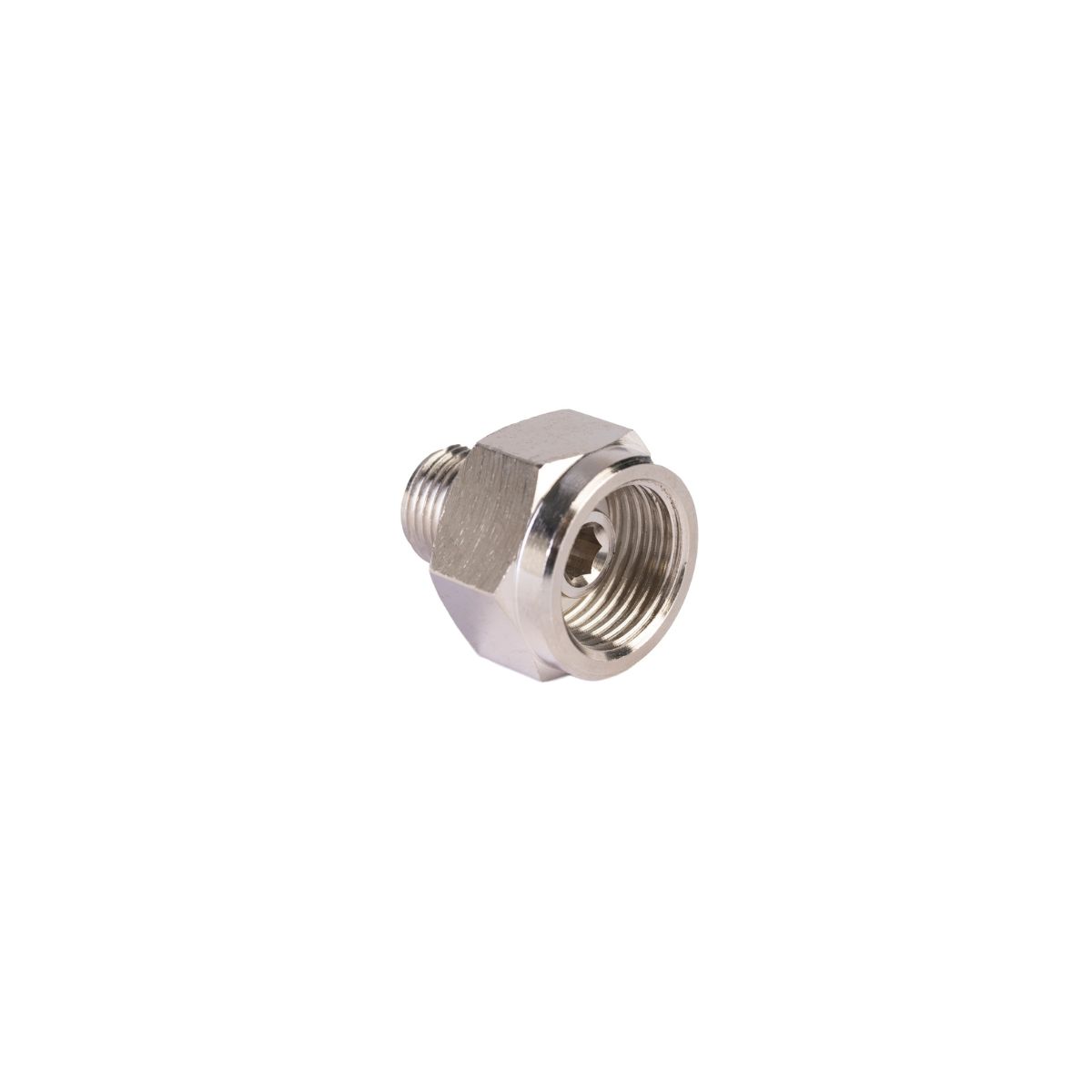

The adaptors allow for rechargeable cylinder installation on the carbonator on which smaller size disposable cylinders were originally installed. This also makes Minor regulator use possible with rechargeable cylinders.
The adaptor with a nylon gasket is best suited for continuous regulator use.
Also available with an adaptor for Minor M11x1 use on acme cylinders and 5/8” – 18UNF and vice versa.
CAUTION: always screw the adaptors onto the pressure regulator first and then install the complete regulator on the cylinder.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
490780 Request information |  | Adapter M11x1 – W21,8 with nylon gasket for Minor | D | 0 | 1 | -- |
490781 Request information |  | Adapter M11x1 – W21,8 with o-ring for Minor | D | 0 | 1 | -- |
490880 Request information |  | Adapter ACME - M11x1 h=7,5mm for Minor | D | 0 | 1 | -- |
490783 Request information |  | Adapter M11x1 – W21,8Rhe for MAJOR | R | 0 | 1 | -- |
490885 Request information |  | Adapter ACME – W21,8Rhe | R | 0 | 1 | -- |
490886 Request information |  | Adapter AMCE - 5/8”–18UNFrhe | R | 0 | 1 | -- |
490887 Request information |  | Adapter 5/8”-18UNFrhe – W21,8rhi | R | 0 | 1 | -- |
490786 Request information |  | Adapter ACMErhe – M11x1rhi for MINOR | R | 0 | 1 | -- |
490787 Request information |  | Adapter ACMErhe – W21,8rhi for MINOR | R | 0 | 1 | -- |
