MINIMAL
MINIMAL

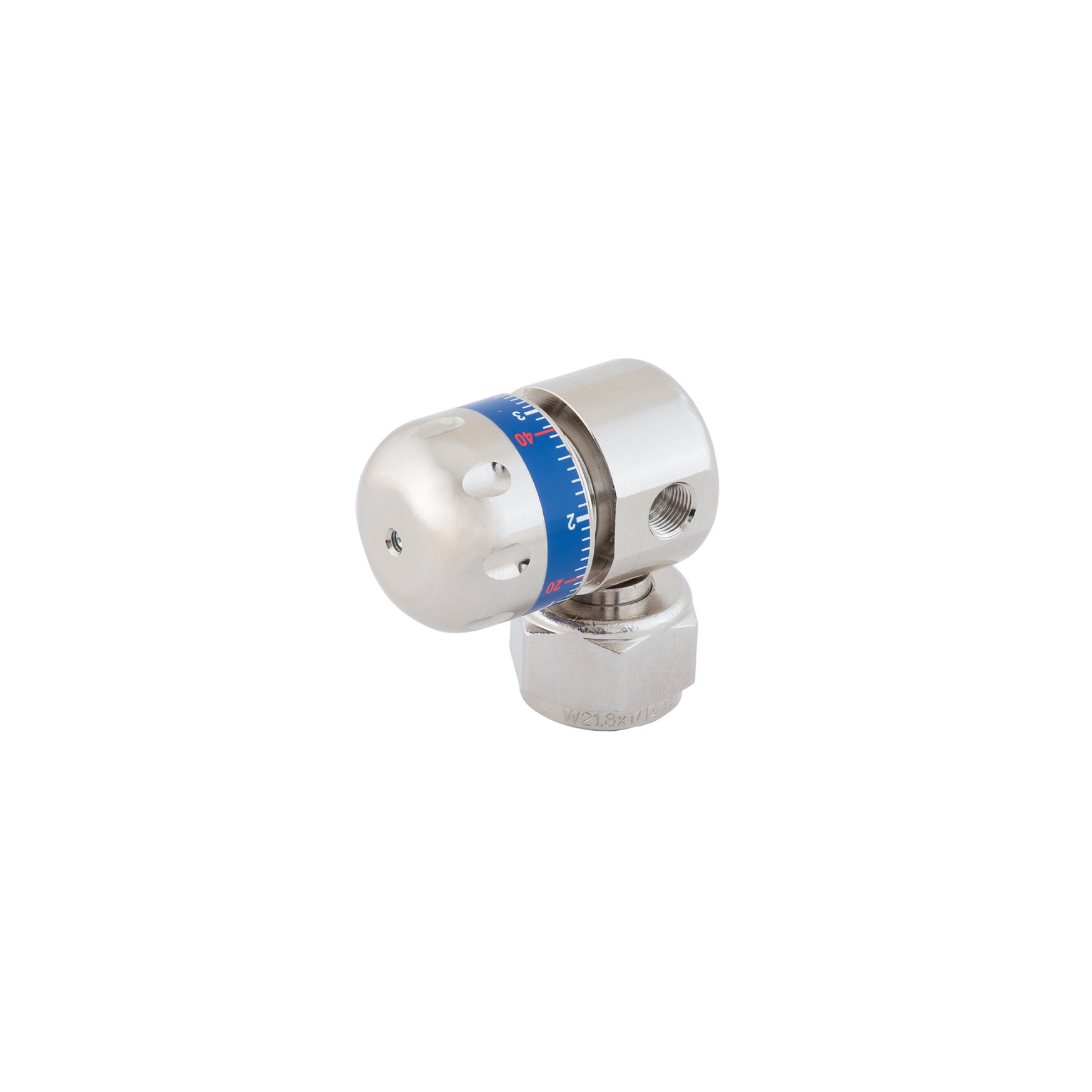

Compact pressure regulator without gauges for disposable and rechargeable CO2 cylinders, ideal for carbonating water for domestic users.
Characteristics
- Compact dimensions that facilitate installation even in the smallest domestic dispensers
- Body and cover in nickel-plated brass
- Easy and precise pressure adjustment, readable by means of a graduated bar/psi scale label applied to the cover instead of the low pressure gauge.
- Cylinder pressure gauge not present
- Internal brass piston system which allows greater precision and stability of the regulated pressure
- Conversion adapters to rechargeable cylinders for disposable versions
- Individual packing
Use
Designed for a maximum pressure of 60 bar (CO2) and 110 bar (Ar/N2), an adjustable operating pressure from 0 to 5.5 bar and a maximum flow rate of 7000 nl/h at 5.5 bar.
Using the appropriate adapters, the Minimal
can also be applied to refillable cylinders.
Link for use
Certificates
Product Sectors
MINIMAL FOR DISPOSABLE CYLINDERS - CALIBRATION 5.5 BAR
ADAPTORS - MINIMAL
MINIMAL FOR RECHARGEABLE CYLINDERS - CALIBRATION 5.5 BAR
MINIMAL FOR DISPOSABLE CYLINDERS - CALIBRATION 5.5 BAR
BEVERAGE - MINIMAL - MINIMAL FOR DISPOSABLE CYLINDERS - CALIBRATION 5.5 BAR
Pressure regulator for carbonating water with connection for disposable CO2 cylinders (M11X1 connection).
Its particularly small dimensions make it suitable for easy installation both in dispensers under the sink at home and in water dispensers with water cylinders in the office. It allows to always have sparkling water available while saving time and effort and with an eye to the environment.
The graduated scale makes it easy to adjust the pressure from 0 to 5.5 bar to achieve the desired degree of carbonation.
| Code | Image | Description | Cylinder thread | Outlet | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|
2302000 Request information | | MINIMAL M11X1 NoGauge 5,5bar Outlet AR ø6mm | M11X1 | Attacco Rapido ø 6mm | R | 0 | 1 | |

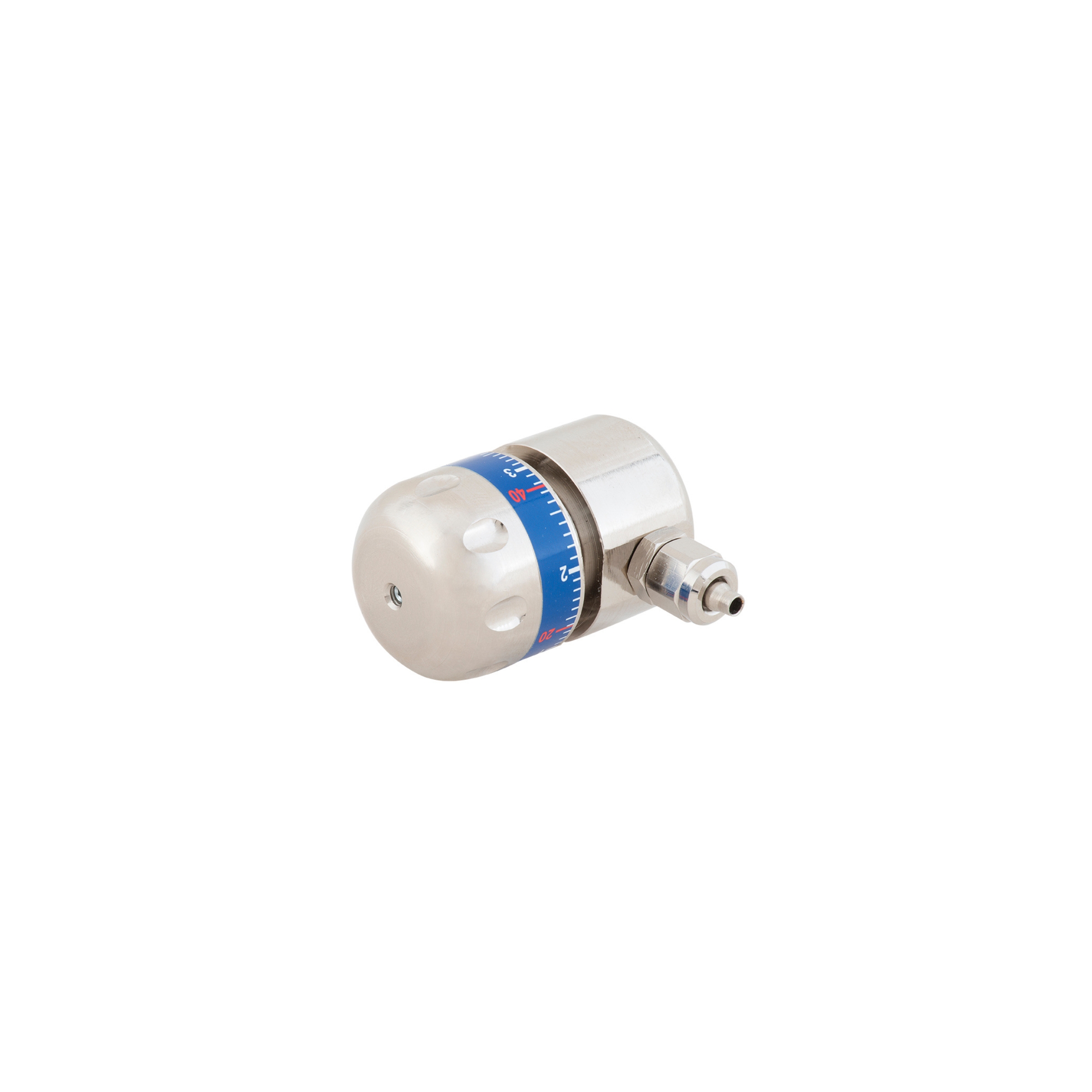

2302060 Request information |  | MINIMAL M11X1 NoGauge 5,5bar Outlet ø6/4 a calzamento | M11X1 | RACCORDO A CALZAMENTO 6/4 | R | 0 | 1 | -- |

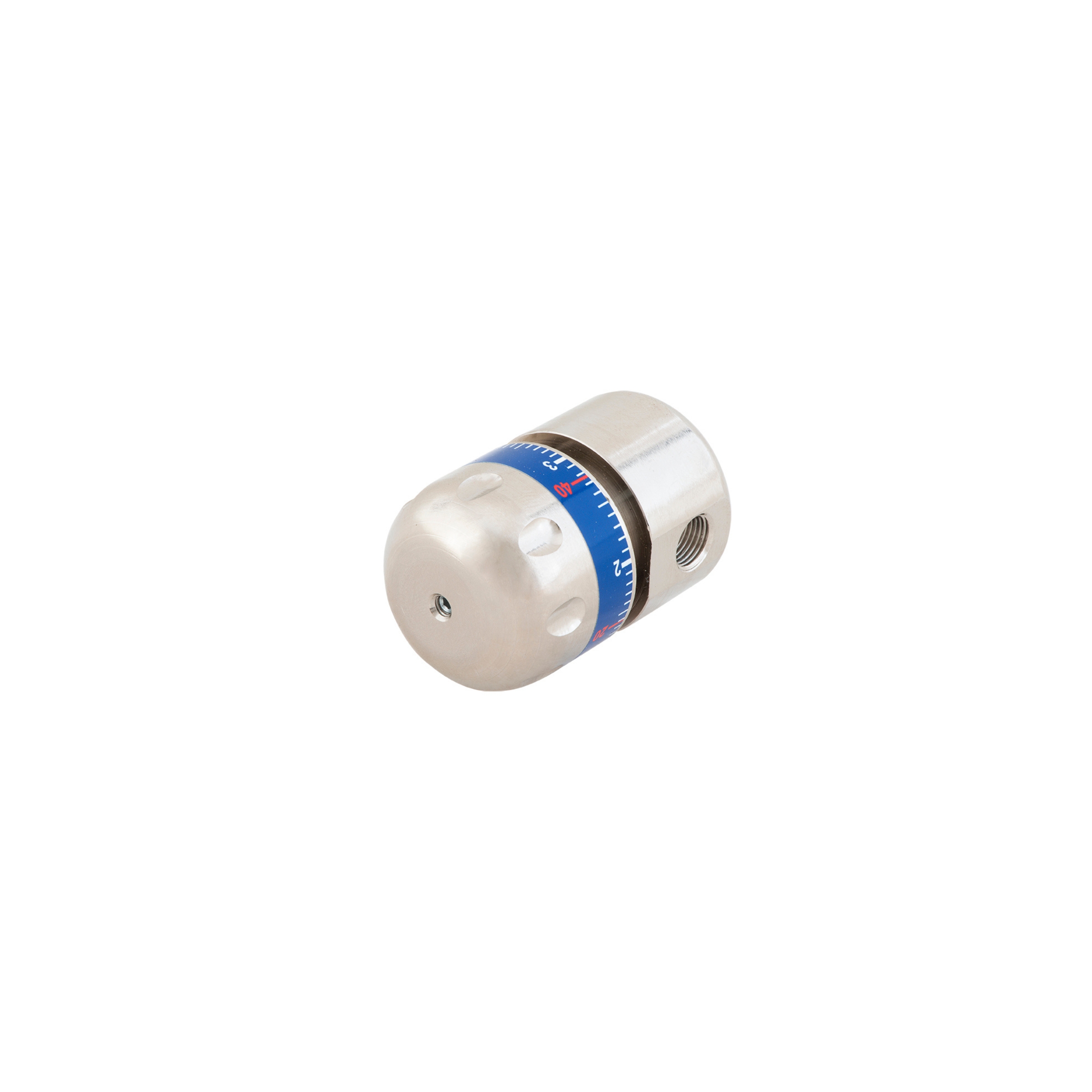

2302090 Request information |  | MINIMAL M11X1 NoGauge 5,5bar Outlet G1/8F | M11X1 | G1/8F | R | 0 | 1 | -- |
ADAPTORS
BEVERAGE - MINIMAL - ADAPTORS

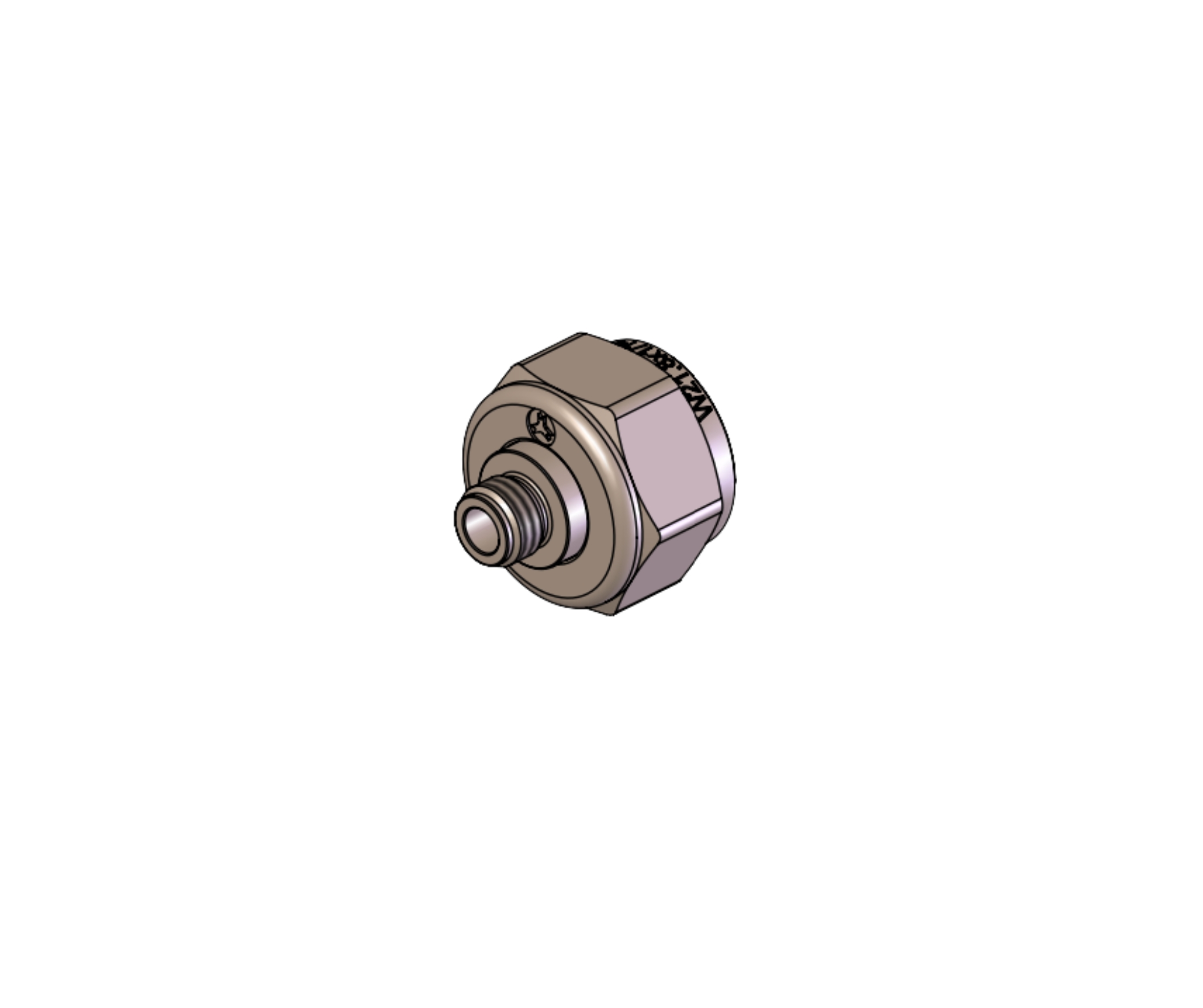

These adapters allow the Minimal regulator with disposable cylinder connection to be used with rechargeable cylinders and ACME cylinders as well.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

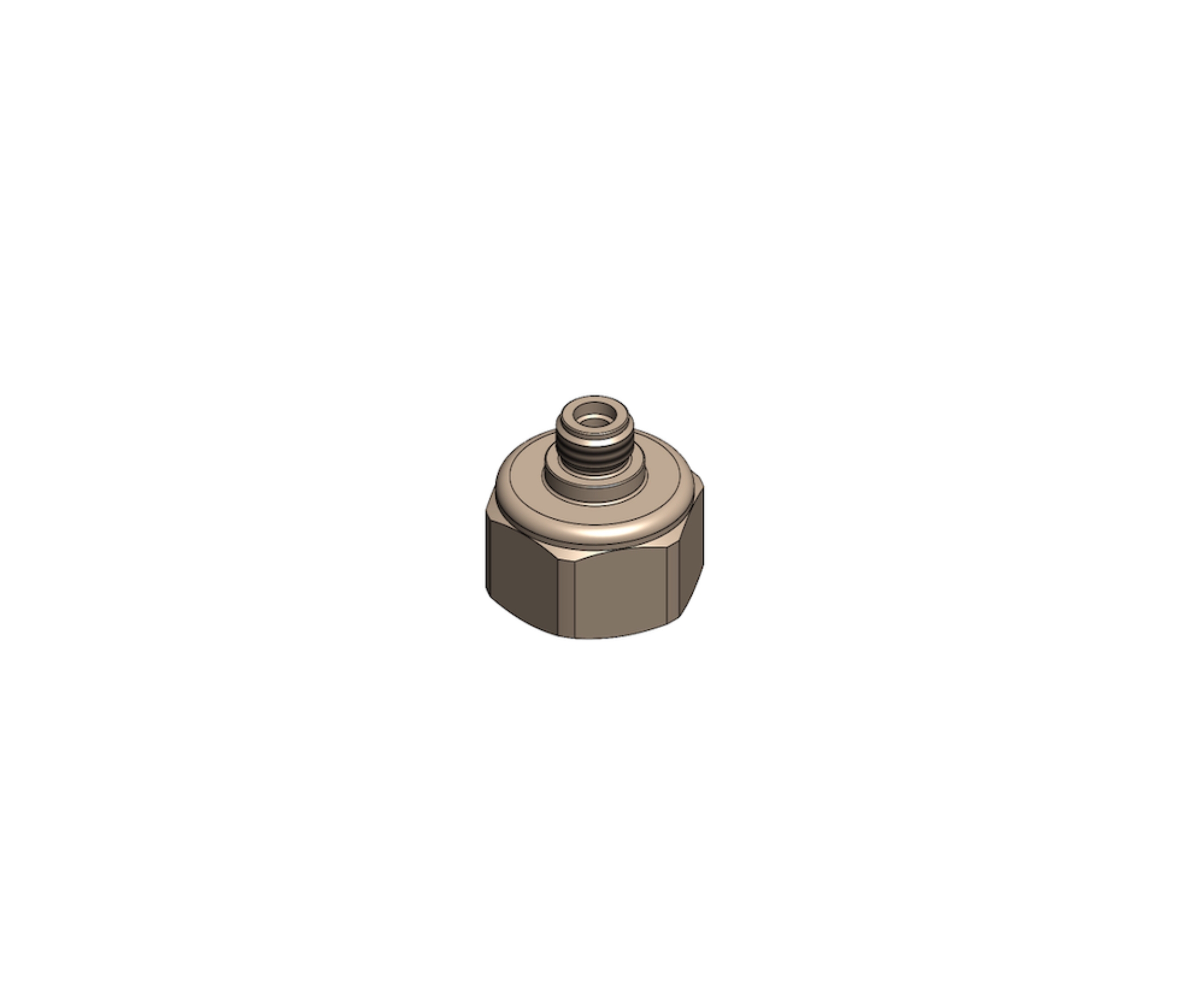

490780 Request information |  | Adapter M11x1 – W21,8 with nylon gasket for Minor | D | 0 | 1 | -- |
490781 Request information |  | Adapter M11x1 – W21,8 with o-ring for Minor | D | 0 | 1 | -- |

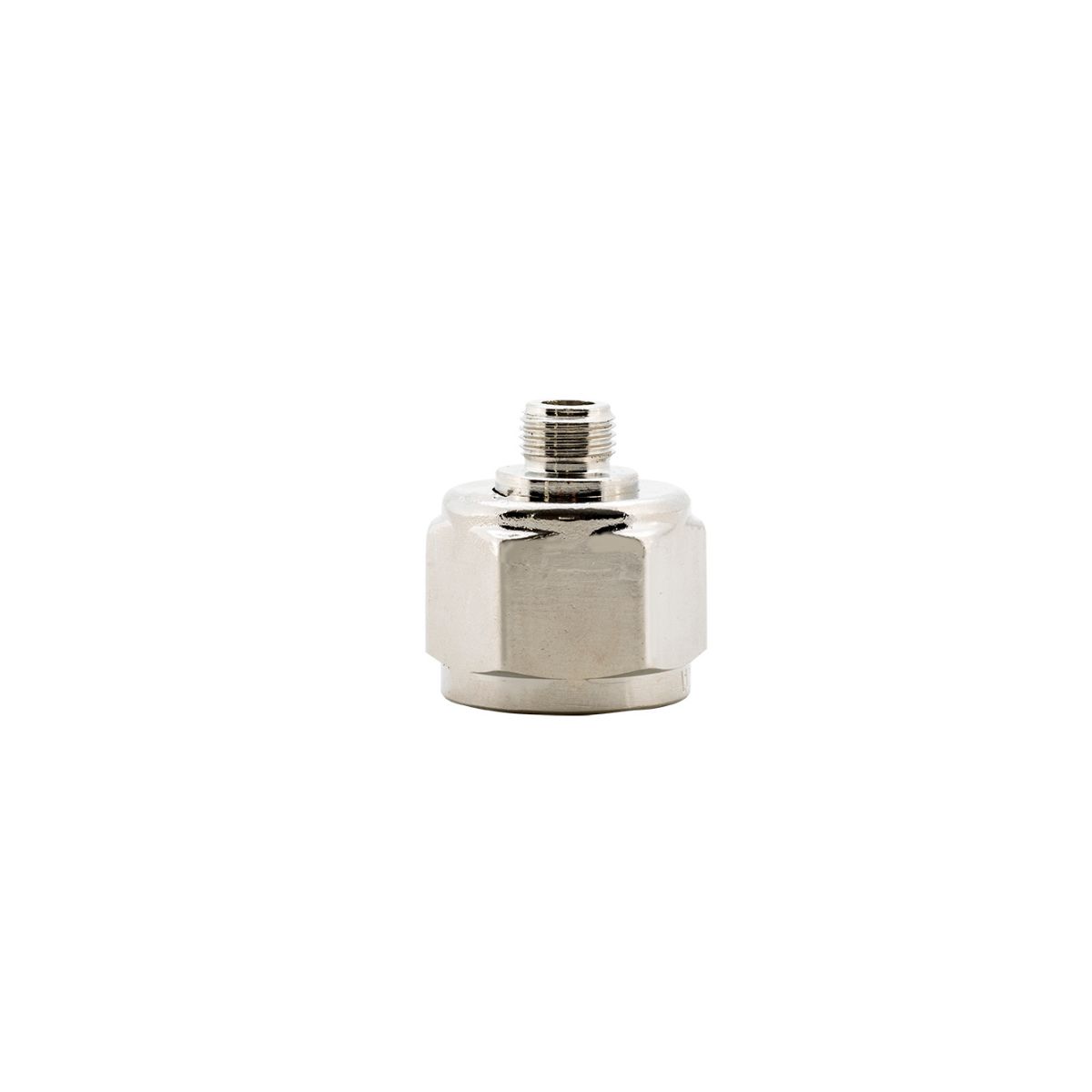

490880 Request information |  | Adapter ACME - M11x1 h=7,5mm for Minor | D | 0 | 1 | -- |
MINIMAL FOR RECHARGEABLE CYLINDERS - CALIBRATION 5.5 BAR
BEVERAGE - MINIMAL - MINIMAL FOR RECHARGEABLE CYLINDERS - CALIBRATION 5.5 BAR

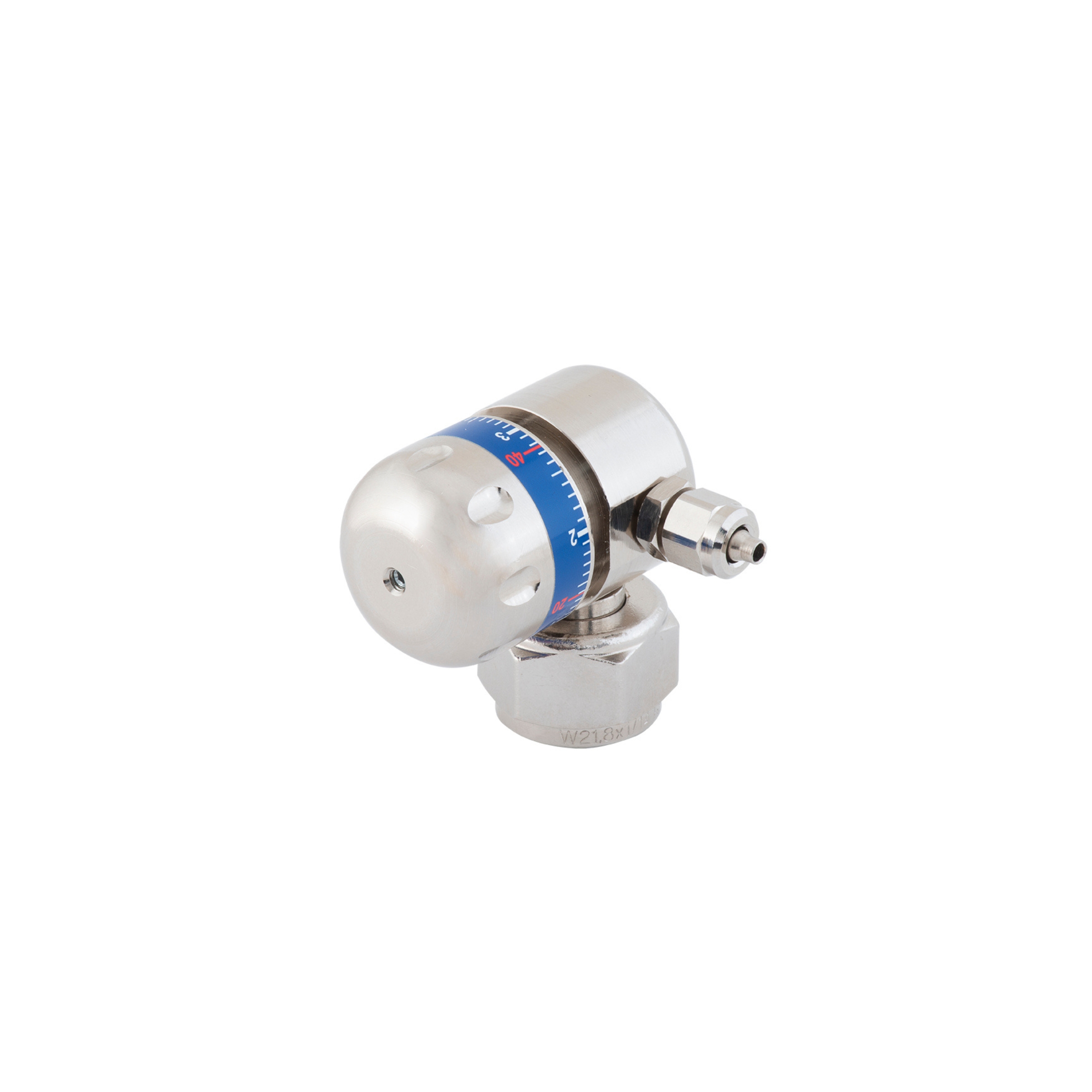

Pressure regulator for carbonating water with connections for rechargeable CO2 cylinders. Particularly suitable for dispensers with a large consumption of carbonated water used for example in workplaces, shops, schools and places open to the public.
The graduated scale makes it easy to adjust the pressure from 0 to 5.5 bar to achieve the desired degree of carbonation.
| Code | Image | Description | Cylinder thread | Outlet | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|

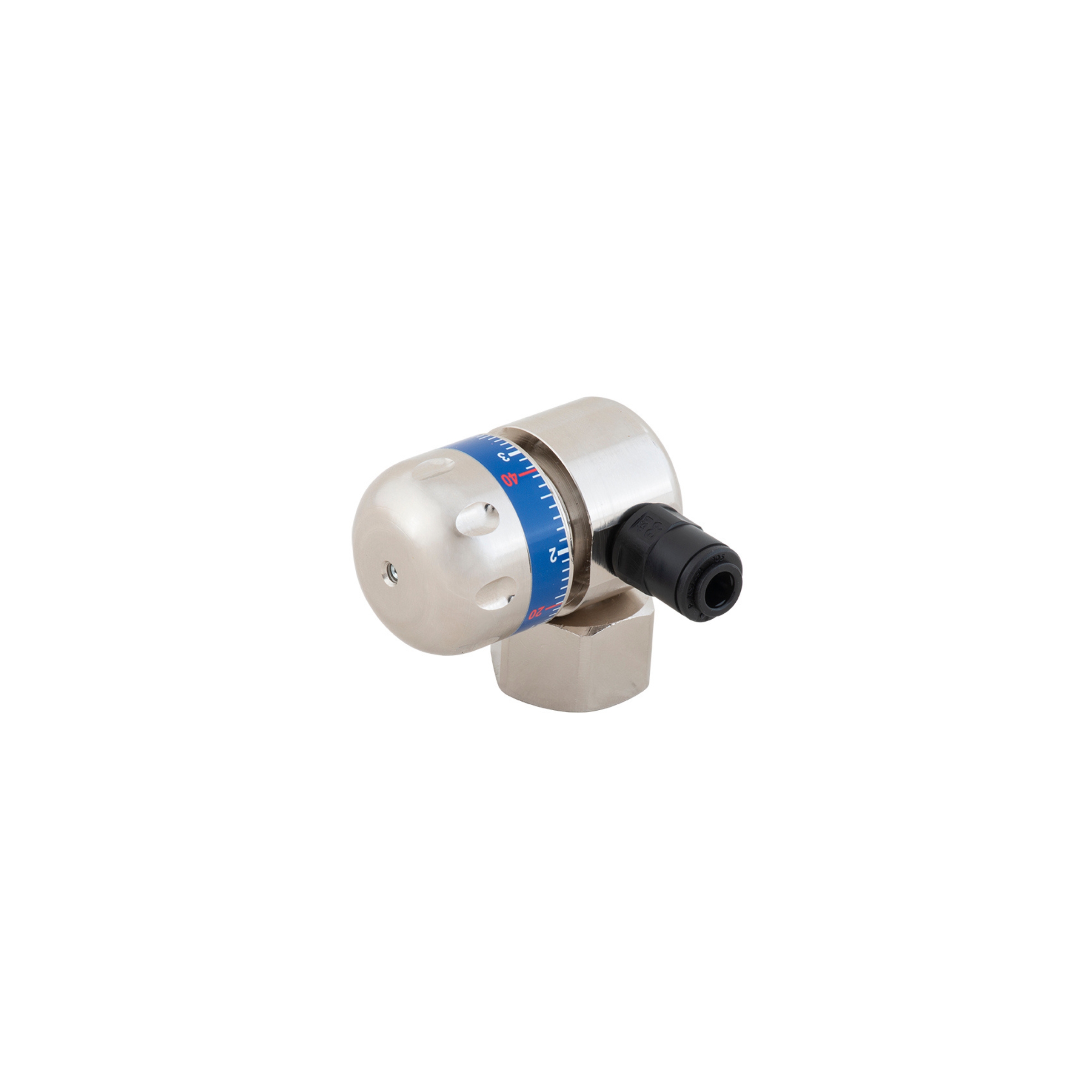

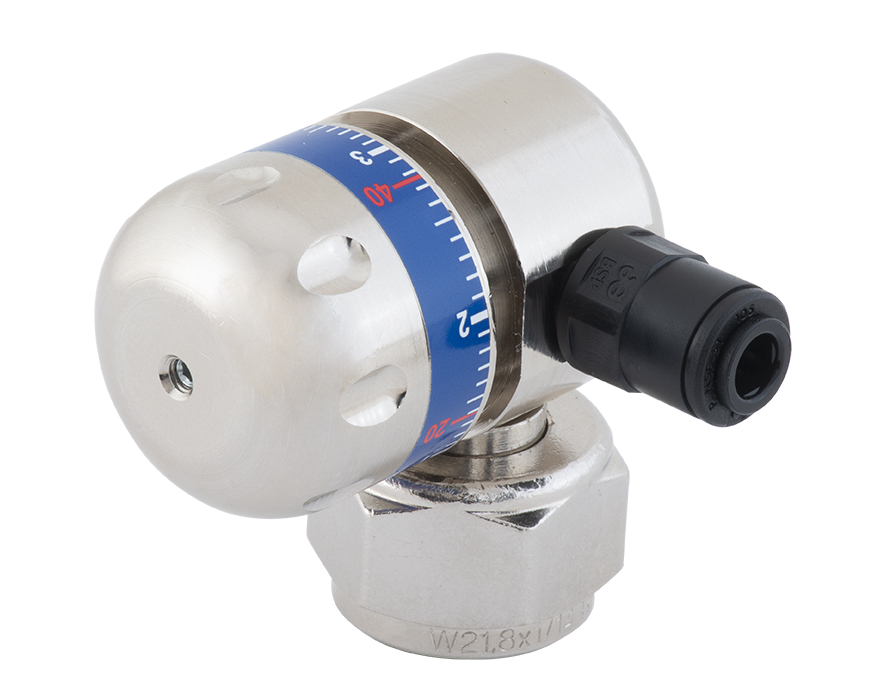

2302005 Request information |  | MINIMAL W21,7x1/14" DIN CH30 NoGauge 5,5bar Outlet AR ø6mm | W21.7X1/14" | Attacco Rapido D6mm | R | 0 | 1 | |

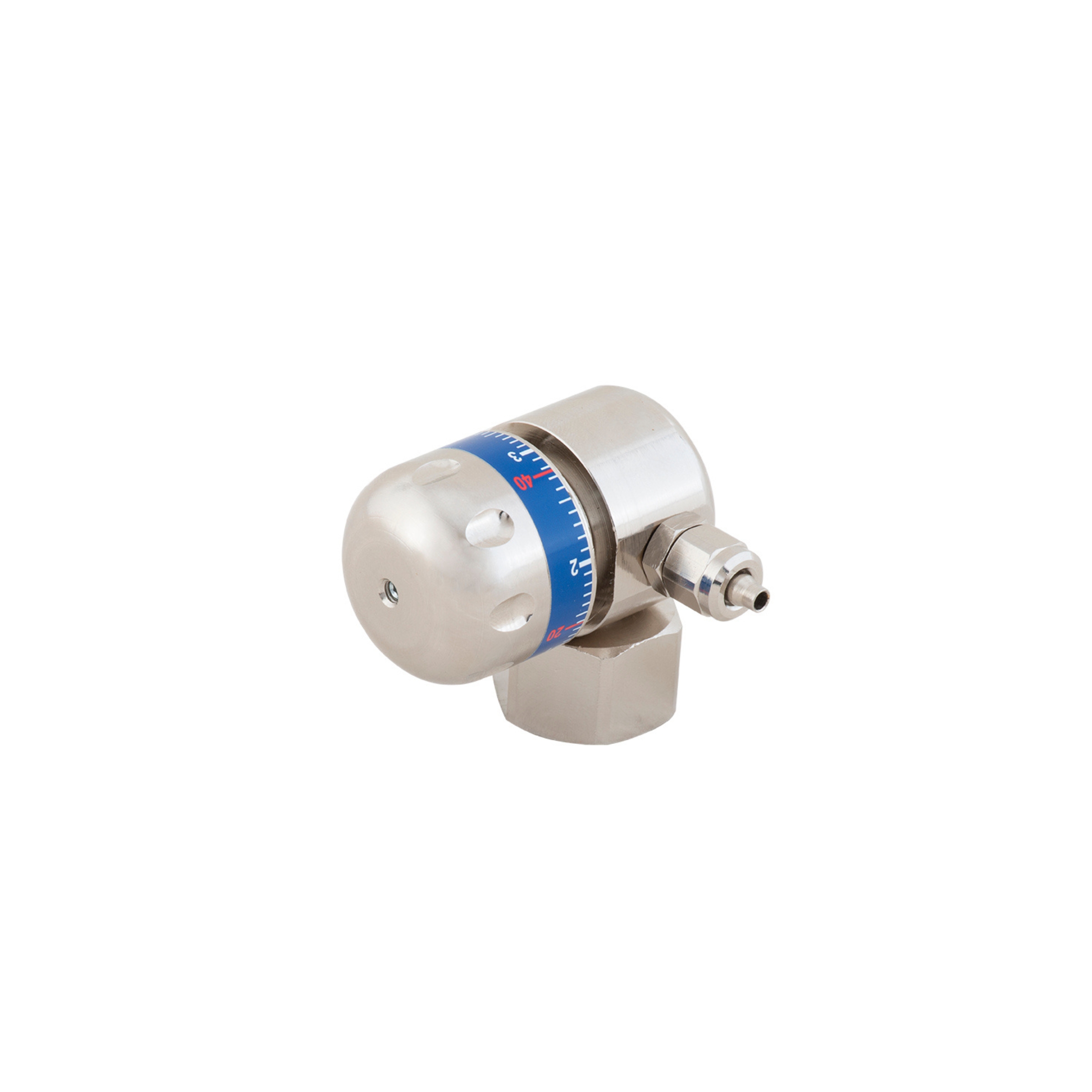

2302065 Request information |  | MINIMAL W21,7x1/14" DIN CH30 NoGauge 5,5bar Outlet ø6/4 calz | W21.7X1/14" | Raccordo a calzamento D6/4 | R | 0 | 1 | -- |

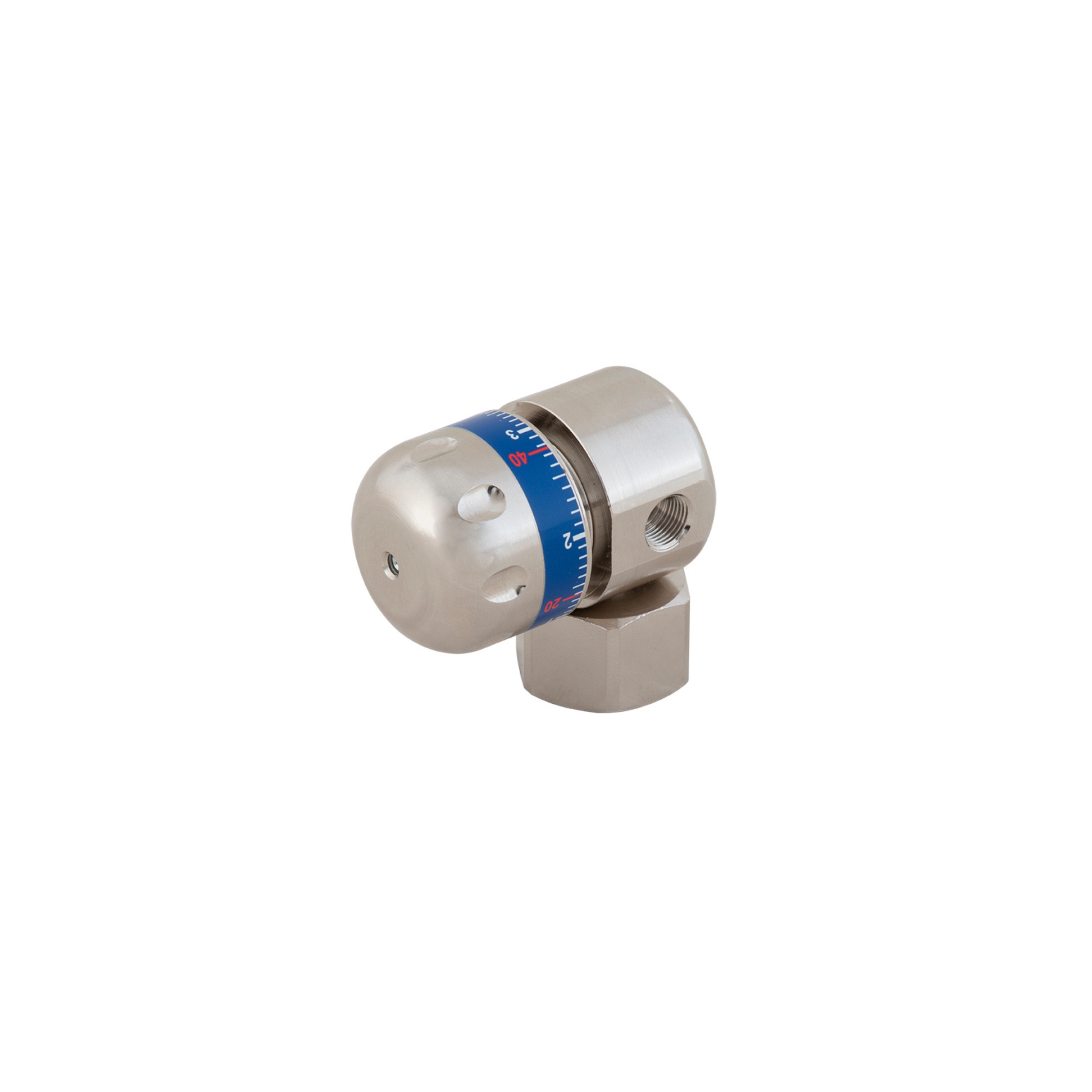

2302095 Request information |  | MINIMAL W21,7x1/14" DIN CH30 NoGauge 5,5bar Outlet G1/8"rhi | W21.7X1/14" | G1/8F | R | 0 | 1 | -- |
2302002 Request information |  | MINIMAL ACME NoGauge 5,5bar Outlet AR ø6mm | ACME | Attacco rapido D6mm | R | 0 | 1 | |
2302062 Request information |  | MINIMAL ACME NoGauge 5,5bar Outlet ø6/4 a calzamento | ACME | Raccordo a calzamento D6/4 | R | 0 | 1 | -- |
2302092 Request information |  | MINIMAL ACME NoGauge 5,5bar Outlet G1/8F | ACME | G1/8F | R | 0 | 1 | -- |
