BEVERAGE
MASTER
MASTER

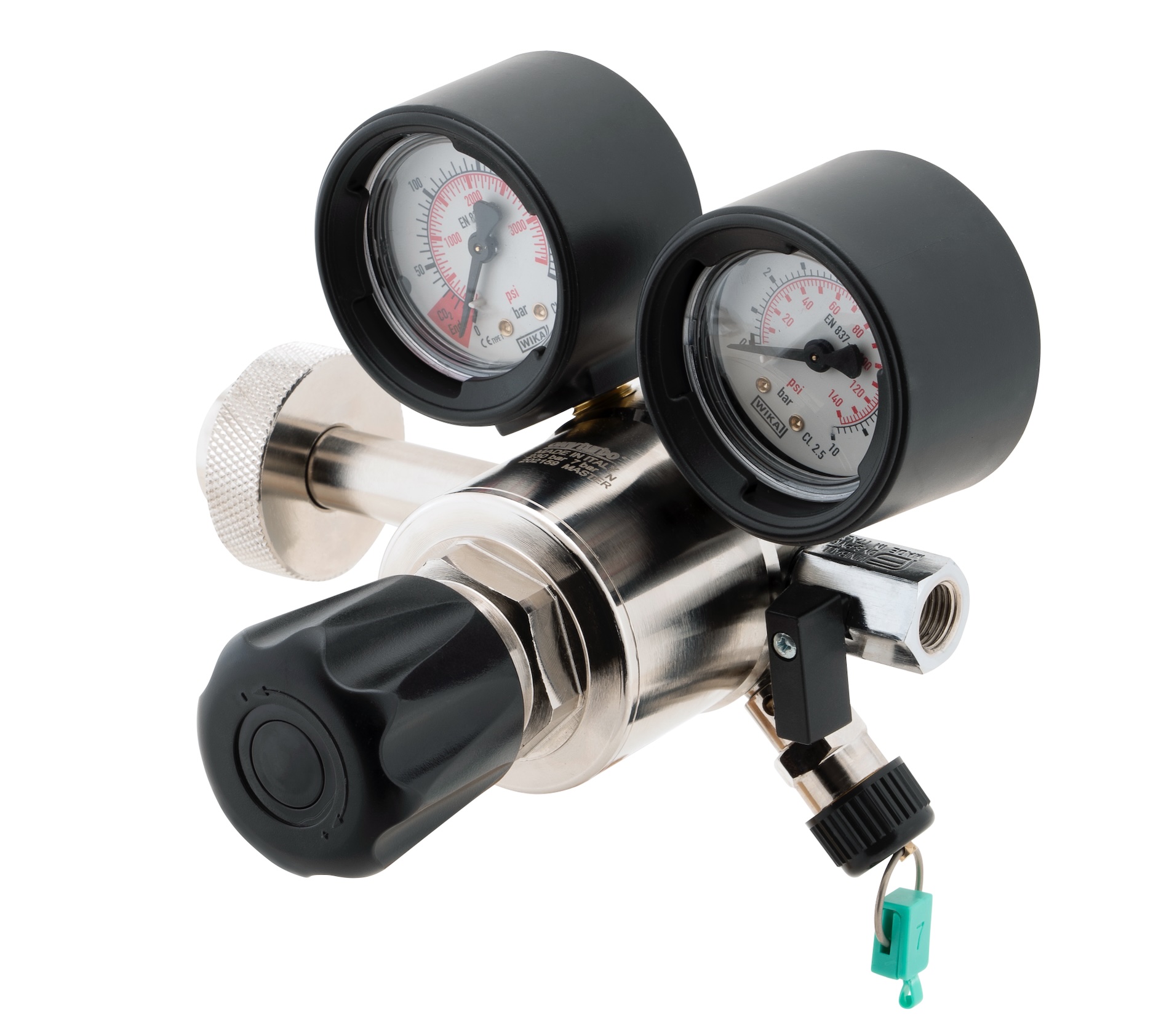

First stage pressure regulator to supply many sampling stations. Ideal for beverage equipment and for tapping beer,soft drinks and water.
Characteristics
- The body and cover are machined directly from brass bar and are nickel-plated
- The safety valve is sealed to the pressure calibration with an anti-tampering system Available with left or right cylinder connection
- Supplied with ball-valve with 1/4 SAE adaptor and hose nipple
- High pressure capsule with needle in AISI 304 material to guarantee a longer life
- Seal in PTFE material with high endurance
- Internal membrane entirely in brass material
- Chamber with big volume capacity to avoid freezing
- Provided with a sintered bronze dual-protection filter: one on the cylinder connection injector (which can be inspected for cleaning) and the second inside the high-pressure capsule
-50mm diameter pressure gauges
- Laser markings with technical characteristics as per standard EN ISO 2503
- Approved up to 300 bar inlet
- Individual packaging.
Use
The Master pressure regulator is ideal for the direct connection to the saturation tank beer even during the bottling phase.
The big flow capacity enables the supply of up to 15 secondary pressure regulators at the same time without freezing.
Certificates
Product Sectors
MASTER CO2 - CALIBRATION 7 BAR
MASTER NITROGEN - CALIBRATION 7 BAR
MASTER ARGON - CALIBRATION 7 BAR
MASTER CO2 - CALIBRATION 7 BAR
BEVERAGE - MASTER - MASTER CO2 - CALIBRATION 7 BAR
CO2 first stage pressure regulator 60 bar made of brass and nickel-plated.
Available with left or right cylinder connection.
The great volume capacity of the chamber enables the supply up to 15 secondary pressure regulators downstream without causing freezing problems and the consequent stop of the system.
Limited flow at 7 bar with relevant calibrated and sealed at 7 bar overpressure valve (anti-tampering system). Outlet with G 1⁄4 F ball-valve and equipment of double connection 1⁄4 SAE and Ø 7-11 hose nipple.
| Code | Image | Description | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|

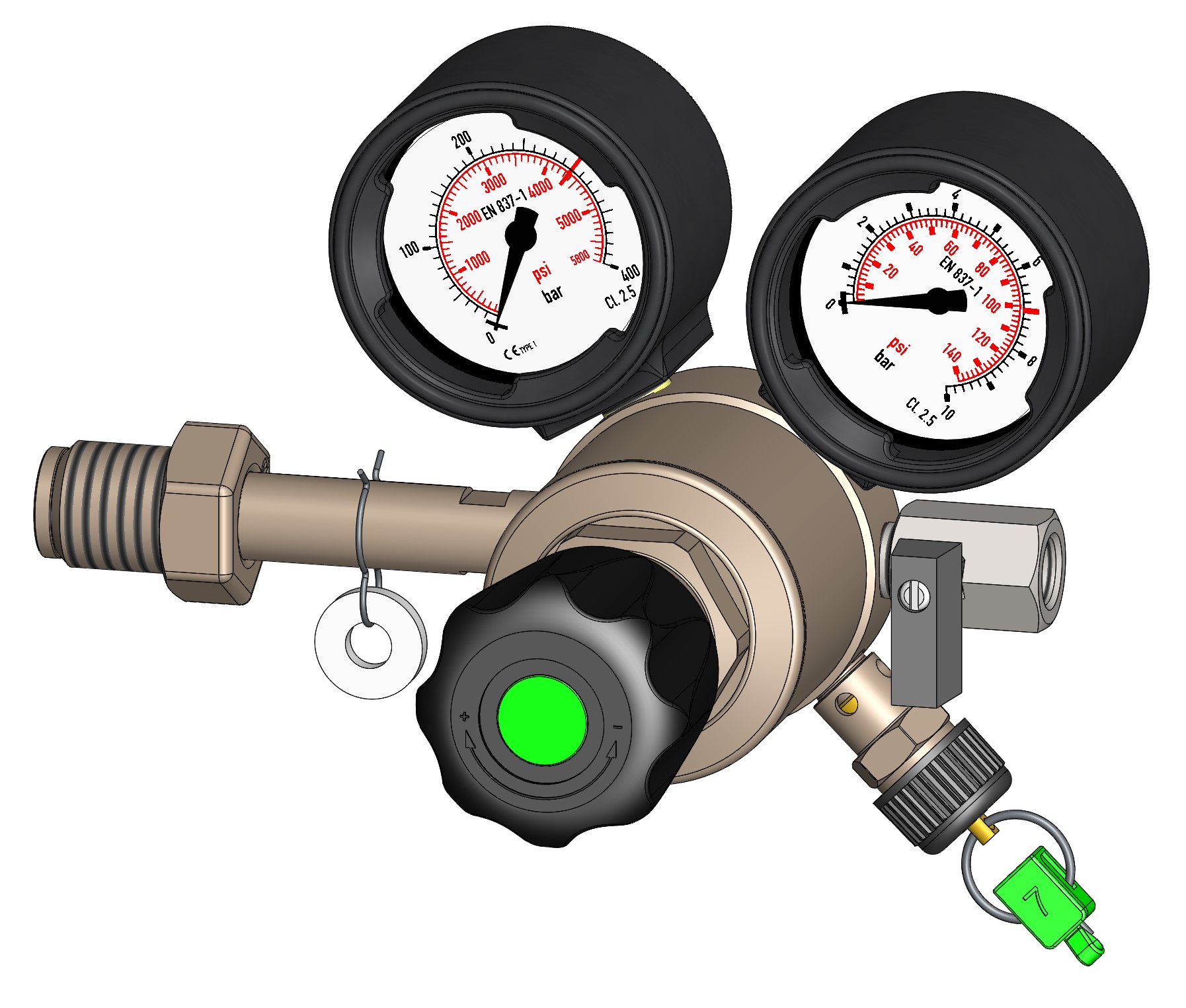

30621100 Request information | | Regulator with left side connection | 60 | 7 | 23 | R | 1 | 1 | -- |

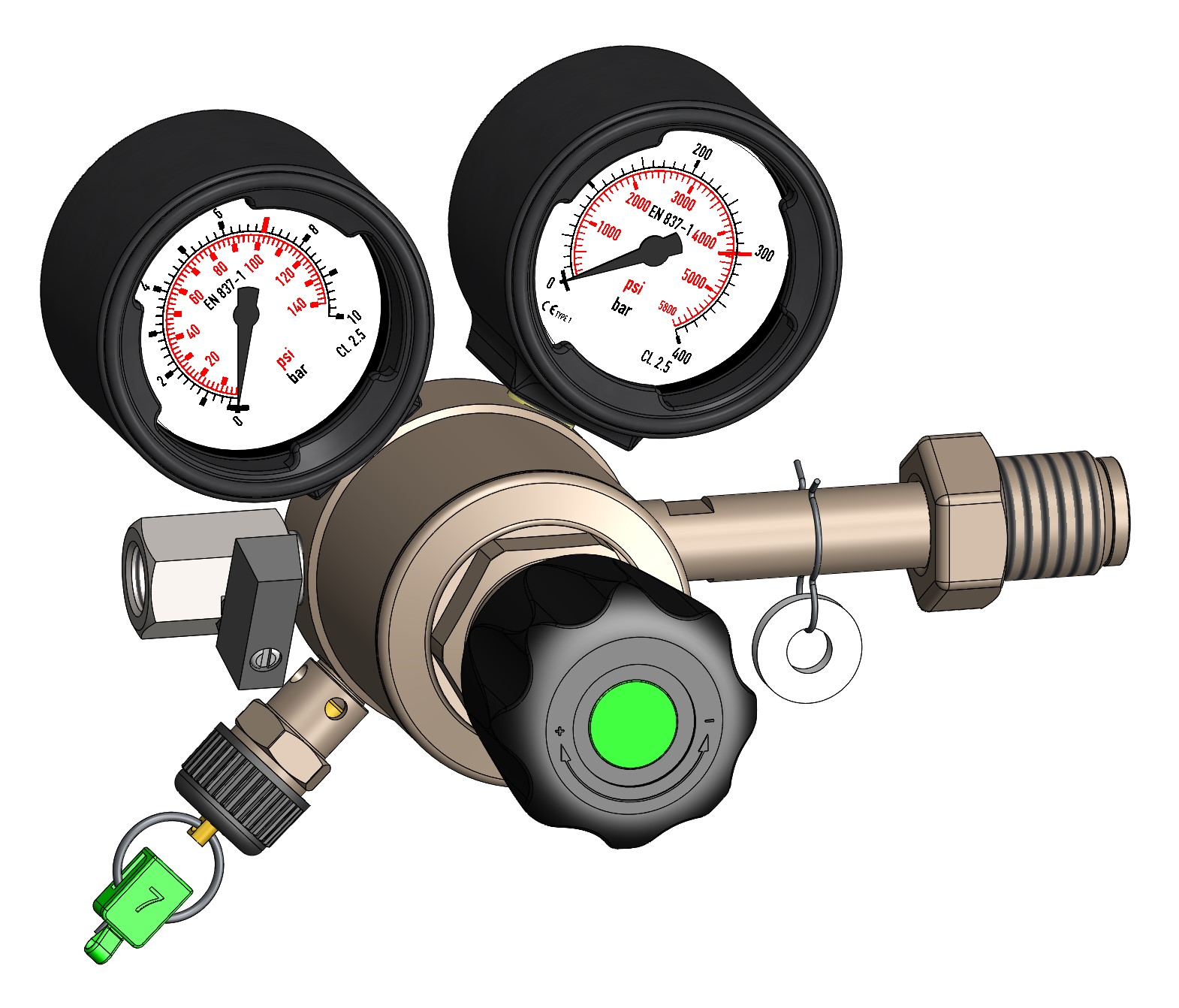

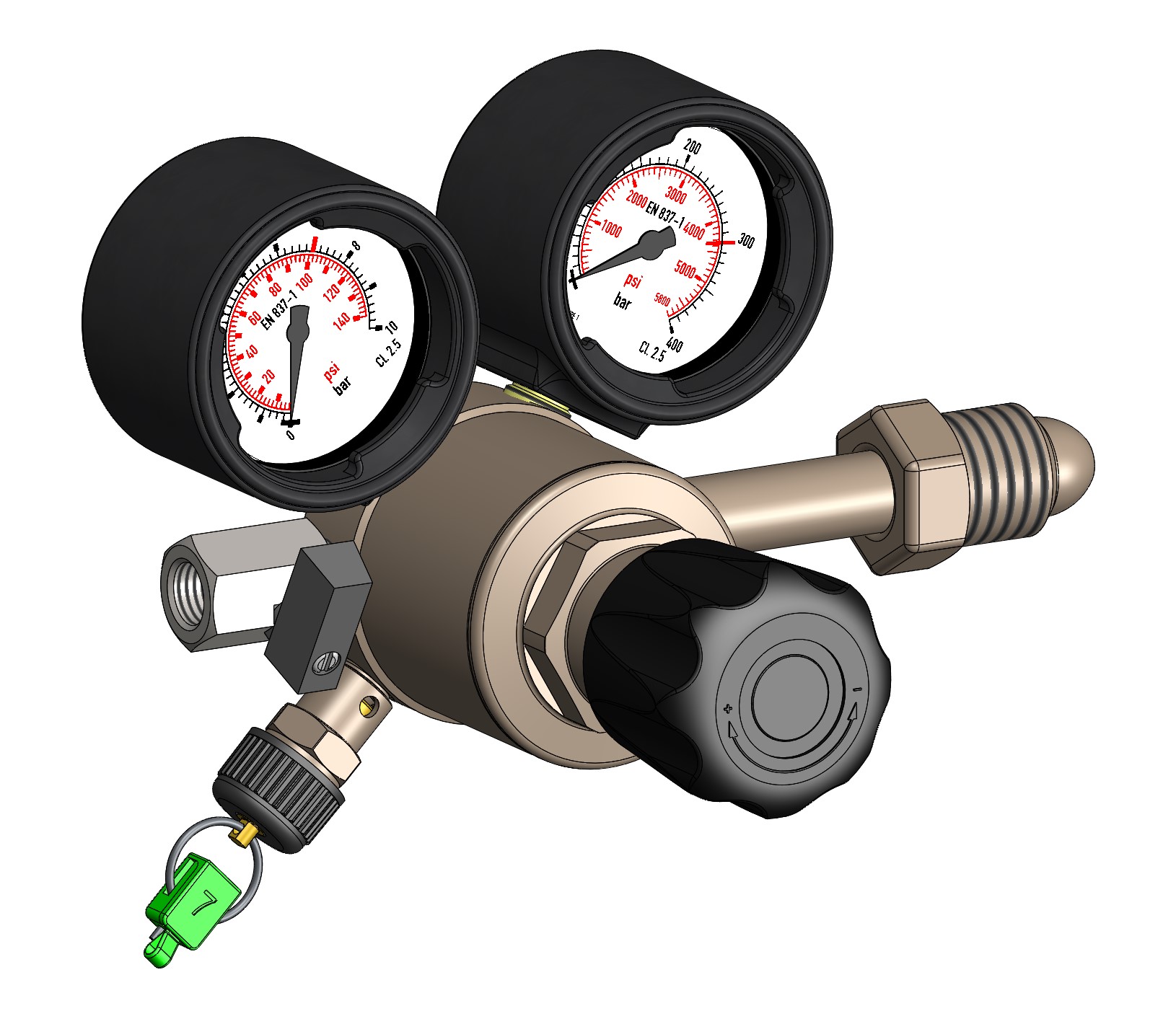

30671100 Request information |  | Regulator with right side connection | 60 | 7 | 23 | R | 1 | 1 | -- |
MASTER NITROGEN - CALIBRATION 7 BAR
BEVERAGE - MASTER - MASTER NITROGEN - CALIBRATION 7 BAR
Nitrogen first stage pressure regulator 230 bar made of brass and nickel-plated.
Available with left or right cylinder connection.
The great volume capacity of the chamber enables the supply up to 15 secondary pressure regulators downstream without causing freezing problems and the consequent stop of the system.
Limited flow at 7 bar with relevant calibrated and sealed at 7 bar overpressure valve (anti-tampering system). Outlet with G 1⁄4 F ball-valve and equipment of double connection 1⁄4 SAE and Ø 7-11 hose nipple
| Code | Image | Description | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
30621102 Request information |  | Regulator with left side connection | 230 | 7 | 23 | R | 1 | 1 | -- |
30671102 Request information |  | Regulator with right side connection | 230 | 7 | 23 | R | 1 | 1 | -- |
MASTER ARGON - CALIBRATION 7 BAR
BEVERAGE - MASTER - MASTER ARGON - CALIBRATION 7 BAR
Argon 230 bar first stage pressure regulator in brass and nickel-plated.
Available in versions with left and right side cylinder connection.
The great volume capacity of the chamber allows the supply of up to 15 d secondary pressure regulators downstream without causing freezing problems and the consequent stop of the system.
Limited flow at 7 bar with relevant calibrated and sealed at 7 bar overpressure valve (anti-tampering system).
Outlet with G 1⁄4 F ball-valve and equipment of double connection 1⁄4 SAE and Ø 7-11 hose nipple
| Code | Image | Description | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
30621103 Request information |  | Regulator with left side connection | 230 | 7 | 23 | R | 1 | 1 | -- |
30671103 Request information |  | Regulator with right side connection | 230 | 7 | 23 | R | 1 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
