Products
BEVERAGE
MAJORPLUS
MAJORPLUS
Pressure regulators for rechargeable cylinders. Available with 1 or 5 sampling stations, or in the secondary pressure regulator version with a low-pressure gauge only.
A very reliable pressure regulator for keeping circuit pressure stable.
Characteristics
- The body and cover are machined directly from brass bar and are nickel-plated.
- The safety valve is sealed to the pressure calibration with an anti-tampering system.
- Available in the left side connection version or with the 1 station version which also includes a rear connection.
- Front adjustment system.
-There is no self-regulation system for the operating pressure when unscrewing the adjustment screw. This system is present in the Macro version.
- The high-pressure capsule is entirely made of brass with a tapered PTFE tablet.
- Pressure vent created by means of a safety valve ring.
- Provided with a sintered bronze dual-protection filter: one on the cylinder connection injector (which can be inspected for cleaning) and the second inside the high-pressure capsule.
-1/4 SAE outlet connection.
- Different outlet fittings can be supplied separately upon request together with a place for regulator wall mounting
- 50mm diameter pressure gauges.
- Laser markings with technical characteristics as per standard EN ISO 2503.
- Individual shockproof packaging with internal protection.
Use
Particularly suitable for beer and beverage dispensing thanks to its pressure adjustment stability (p4 = 2.75 bar after 24 h of installation at calibration 3.0 bar).
Certificates
Product Sectors

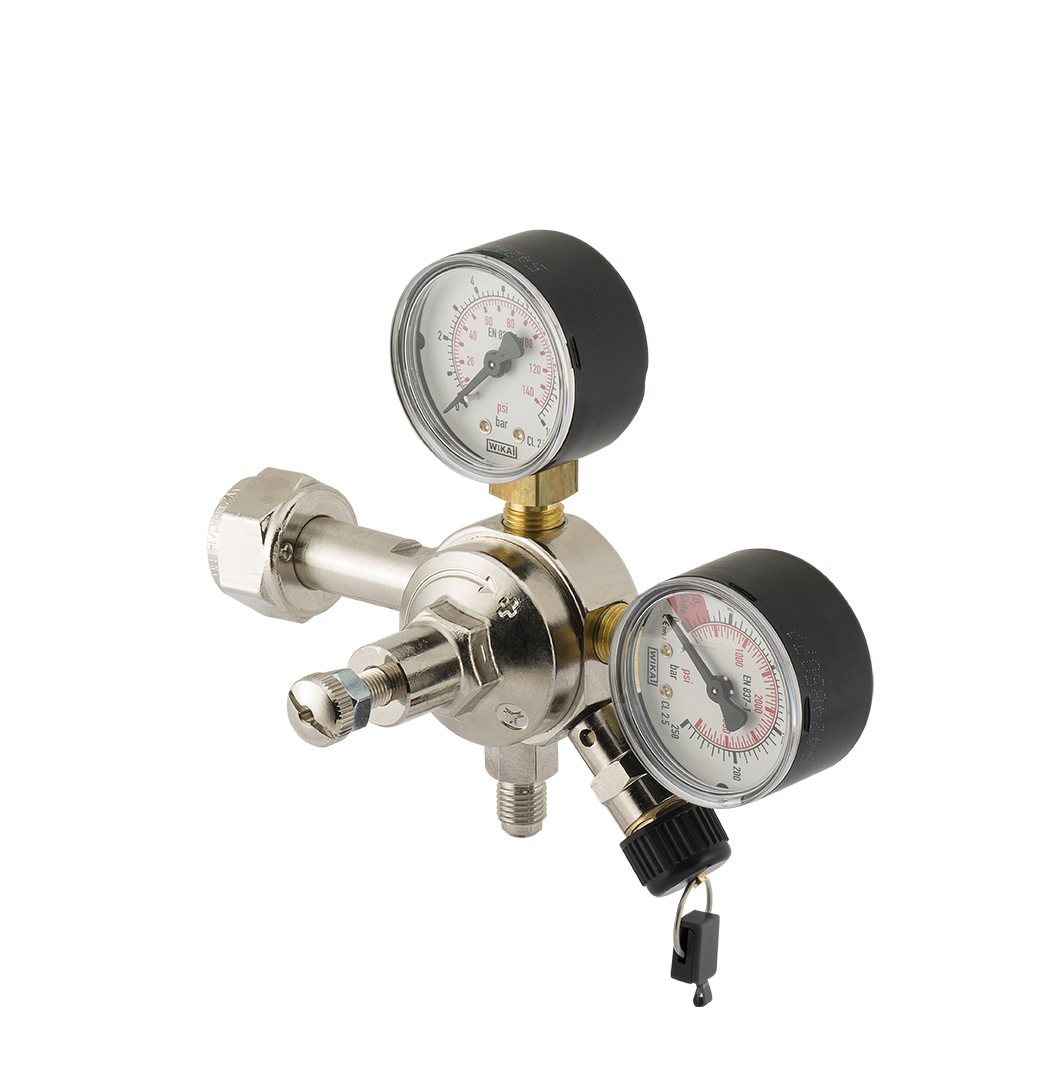

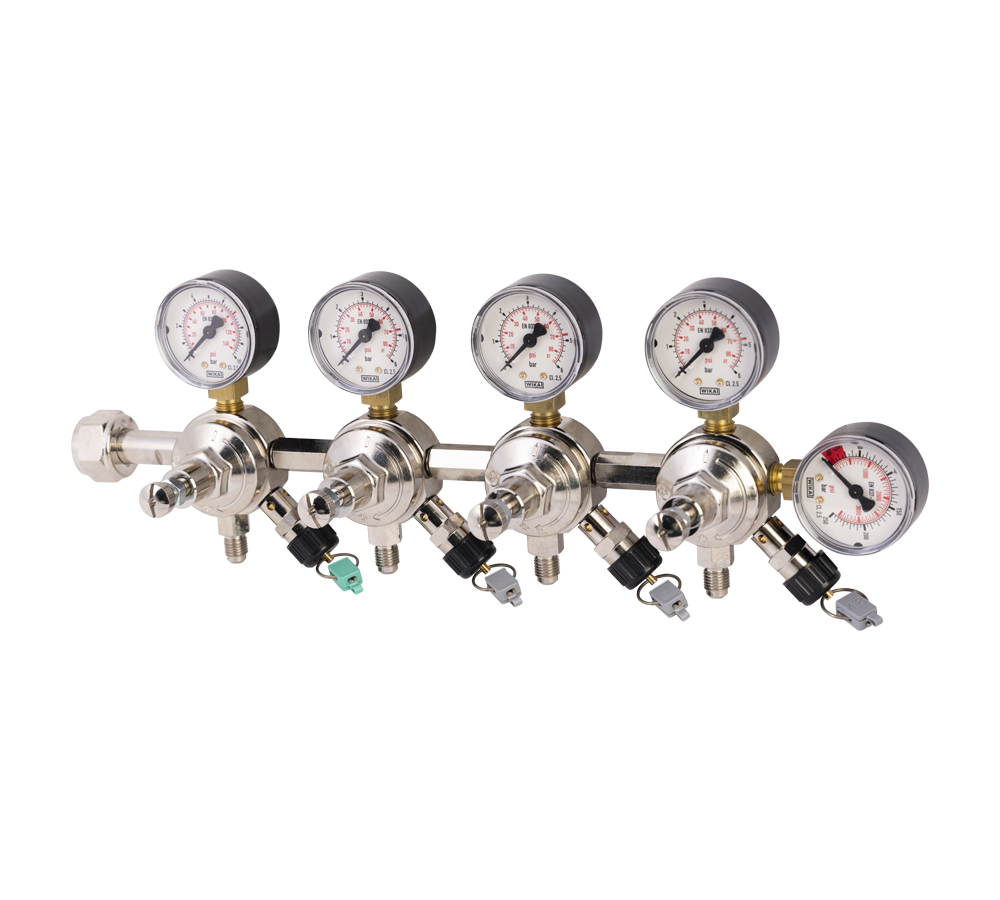

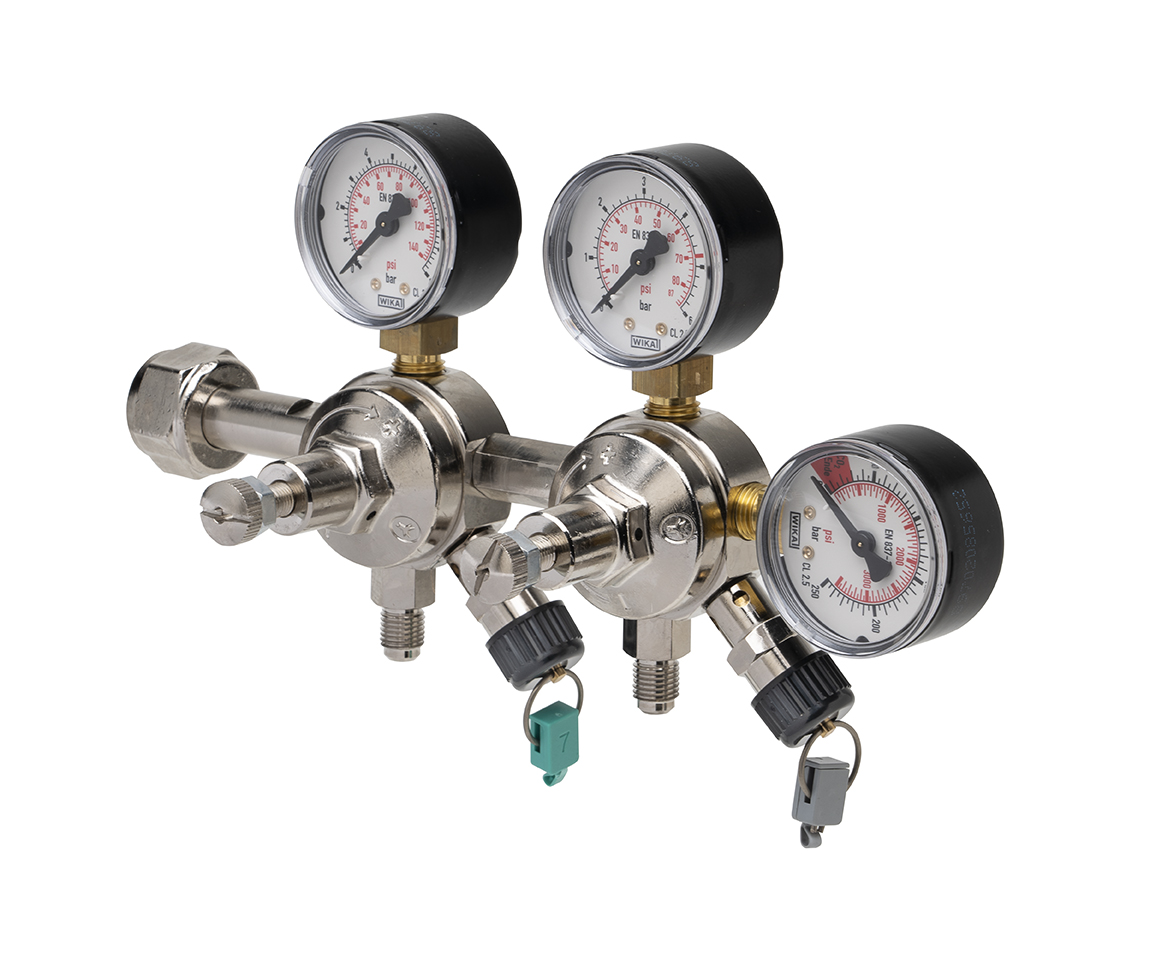

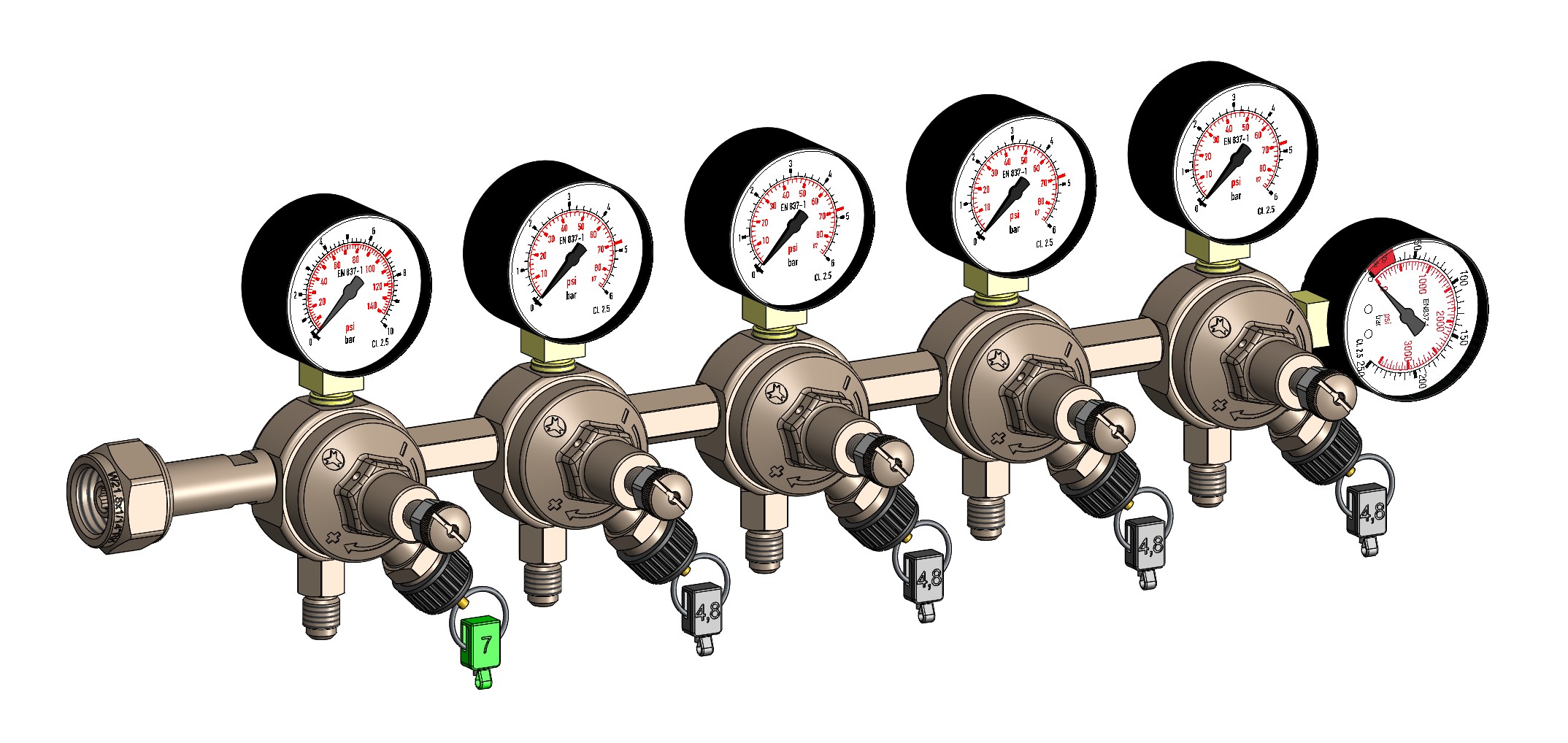

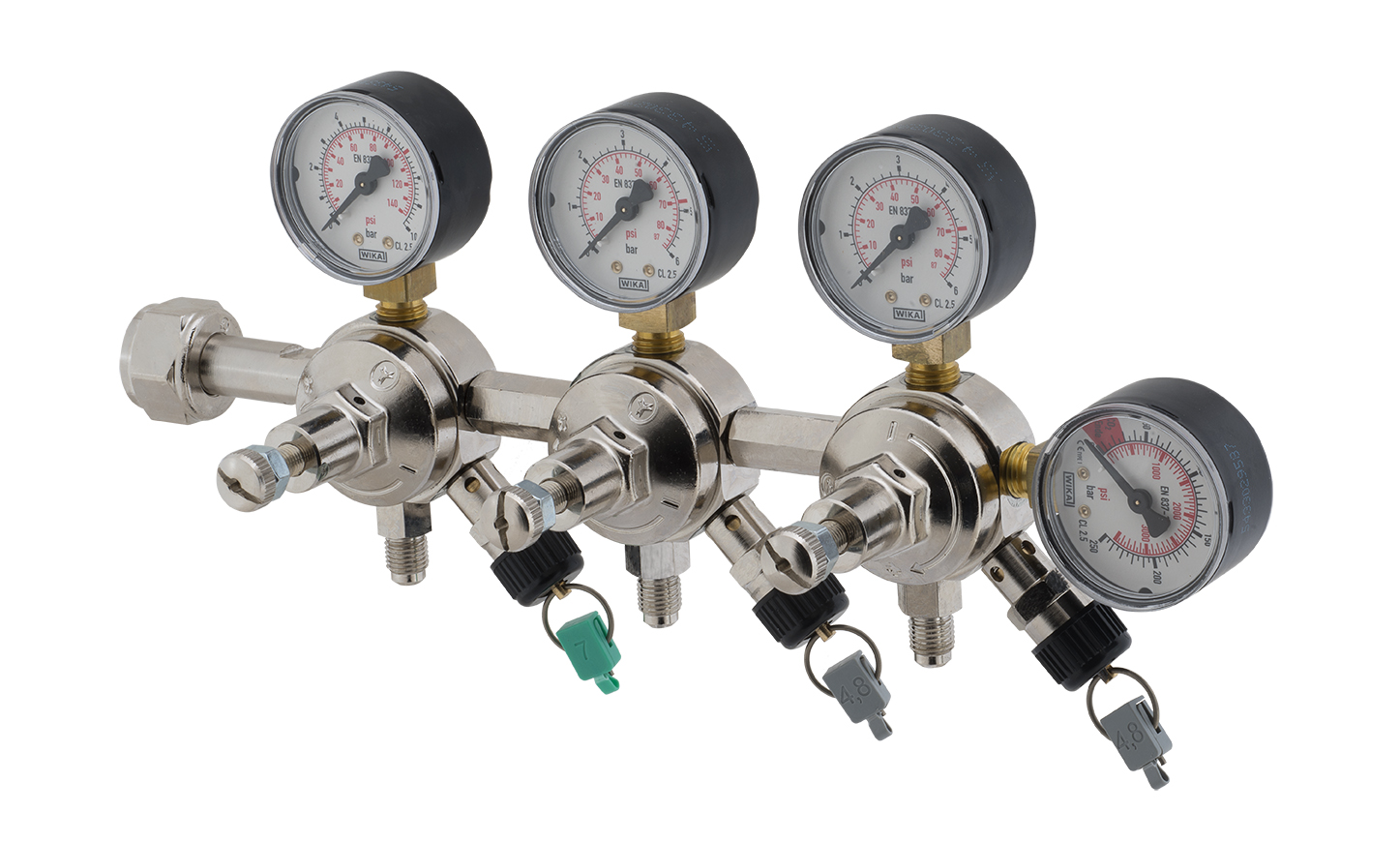

MAJORPLUS CO2 - CALIBRATION 3 - 4.8 - 7 BAR
MAJORPLUS NITROGEN - CALIBRATION 3 - 4.8 - 7 BAR
MAJORPLUS SECONDARY - CALIBRATION 3 - 4.8 - 7 BAR
MAJORPLUS CO2 - CALIBRATION 3 - 4.8 - 7 BAR
BEVERAGE - MAJORPLUS - MAJORPLUS CO2 - CALIBRATION 3 - 4.8 - 7 BAR
2 pressure calibrations are available in the CO2 version: 4.8 and 7 bar.
Operating pressure can be adjusted via the safety valve if the regulator is already connected to the gas distribution system in use. Upon request are available other pressure combinations on the different sampling stations.
| Code | Image | Description | No. of withdrawals | No. of H.P. gauges (0–250 bar) | No. of L.P. gauges (0–10 bar) | Carbonator L.P. gauge (0–10 bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
36611000 Request information | | MAJORPlus Rad.CO2 W21,8x1/14"r hi-1P7/16-20UNF-A250-B6/4,8 SX | 1 | 1 | 1 | -- | R | 0 | 1 | -- |
36621000 Request information |  | MAJORPlus Rad.CO2 W21,8x1/14" rhi-1P7/16"-A250-B10/7(SX) | 1 | 1 | -- | 1 | R | 0 | 1 | -- |
36622000B Request information |  | MAJORPlus Rad.CO2 W21,80rhi- 2P7/16"-A250-B10/7-B6/4,8(SX) | 2 | 1 | 1 | 1 | R | 1 | 1 | -- |
36623000B Request information |  | MAJORPlus Rad.CO2 W21,80rhi- 3P7/16-A250-1B10/7-2B6/4,8(SX) | 3 | 1 | 2 | 1 | R | 2 | 1 | -- |
36624000B Request information |  | MAJORPlus Rad.CO2 W21,80rhi- 4P7/16-A250-1B10/7-3B6/4,8(SX) | 4 | 1 | 3 | 1 | R | 2 | 1 | -- |
36625000B Request information |  | MAJORPlus Rad.CO2 W21,80rhi- 5P7/16-A250-1B10/7-4B6/4,8(SX) | 5 | 1 | 4 | 1 | R | 3 | 1 | -- |

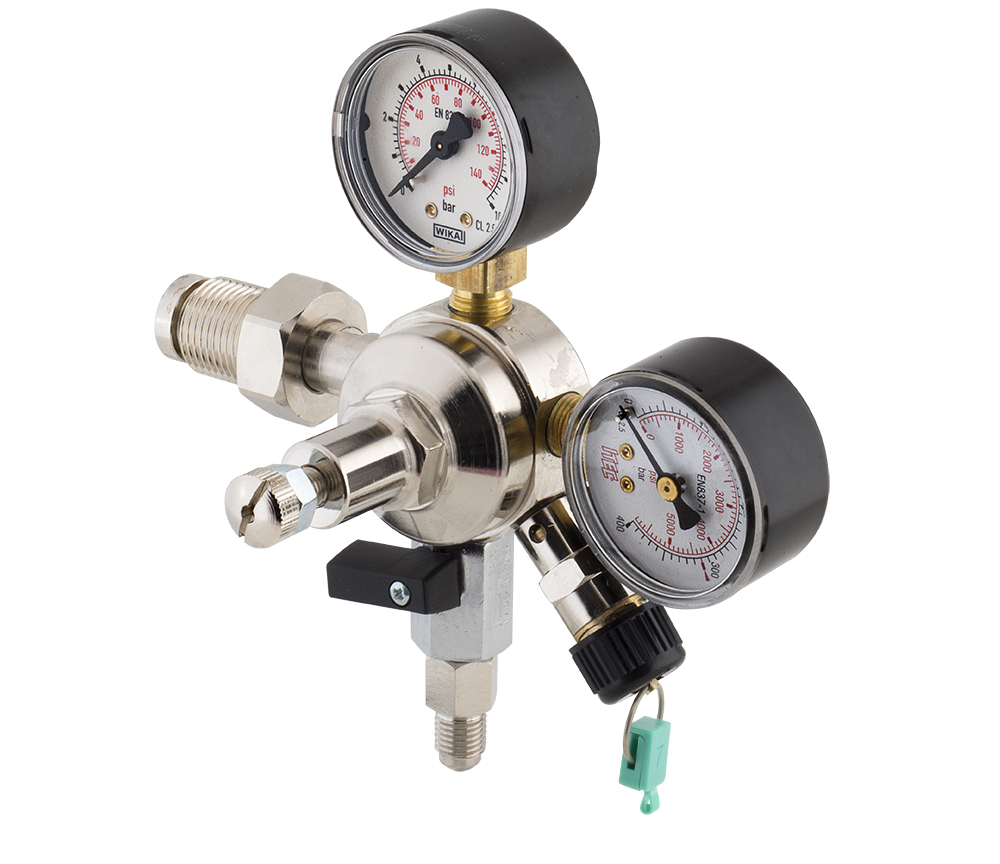

MAJORPLUS NITROGEN - CALIBRATION 3 - 4.8 - 7 BAR
BEVERAGE - MAJORPLUS - MAJORPLUS NITROGEN - CALIBRATION 3 - 4.8 - 7 BAR
Majorplus is also available in a version for nitrogen with a high-pressure gauge from 0-400 bar and calibration at 7 bar. Ideal for dispensing wine and non-carbonated beverages and perfect for small spaces. Only 1 station version available.
It is available with 1 or 2 stations. Provided with a ball valve and a 1/4 SAE outlet fitting.
| Code | Image | Description | No. of withdrawals | No. of H.P. gauges (0–250 bar) | Carbonator L.P. gauge (0–10 bar) | Availability | Weight (kg) | No. of pcs | Availability | Product sheet |
|---|---|---|---|---|---|---|---|---|---|---|
36621102 Request information |  | MAJORPlus Rad.N2 W21,8x1/14"Rh e-1P7/16"+Rub-A400-B10/7(SX) | 1 | 1 | 1 | R | 0 | 1 | R | -- |
36622102 Request information | MAJORPlus Rad.N2 W21,8x1/14Rhe -2P7/16"+Rub.-A400-B10/7(SX) | 2 | 1 | 2 | R | 1 | 1 | R | -- |

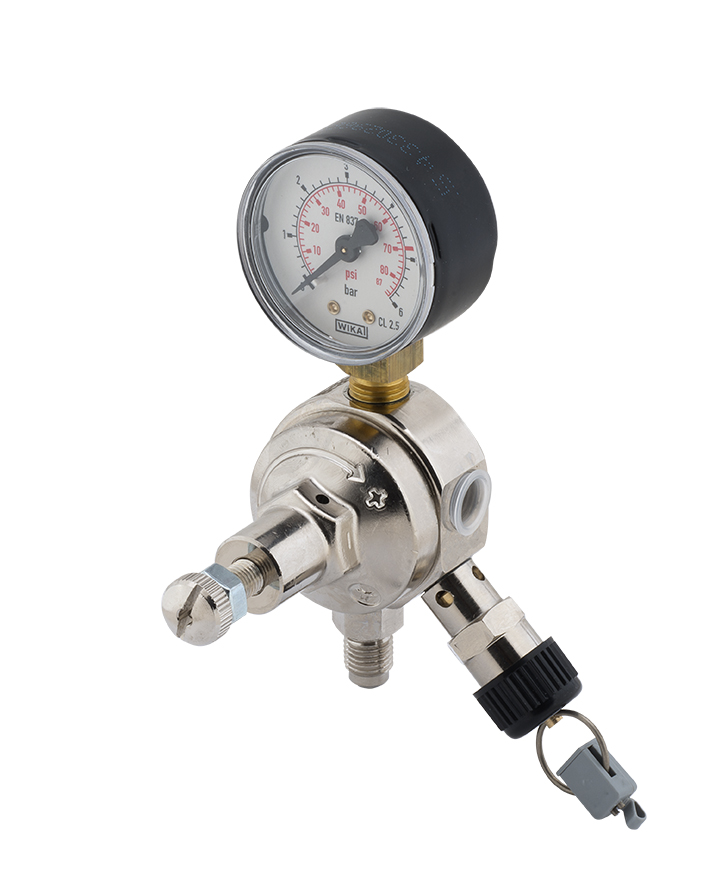

MAJORPLUS SECONDARY - CALIBRATION 3 - 4.8 - 7 BAR
BEVERAGE - MAJORPLUS - MAJORPLUS SECONDARY - CALIBRATION 3 - 4.8 - 7 BAR
Supplied with 1/4F input. The intermediate secondary pressure regulator feeds a derivation of a dispensing system and is only supplied with a low pressure gauge.
| Code | Image | Description | No. of withdrawals | No. of H.P. gauges (0–250 bar) | No. of L.P. gauges (0–10 bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
366S0006 Request information |  | MAJORPlus Second.2HP libere 1Us 7/16"-20UNF-B6/4,8 | 1 | -- | 1 | R | 0 | 1 | -- |
