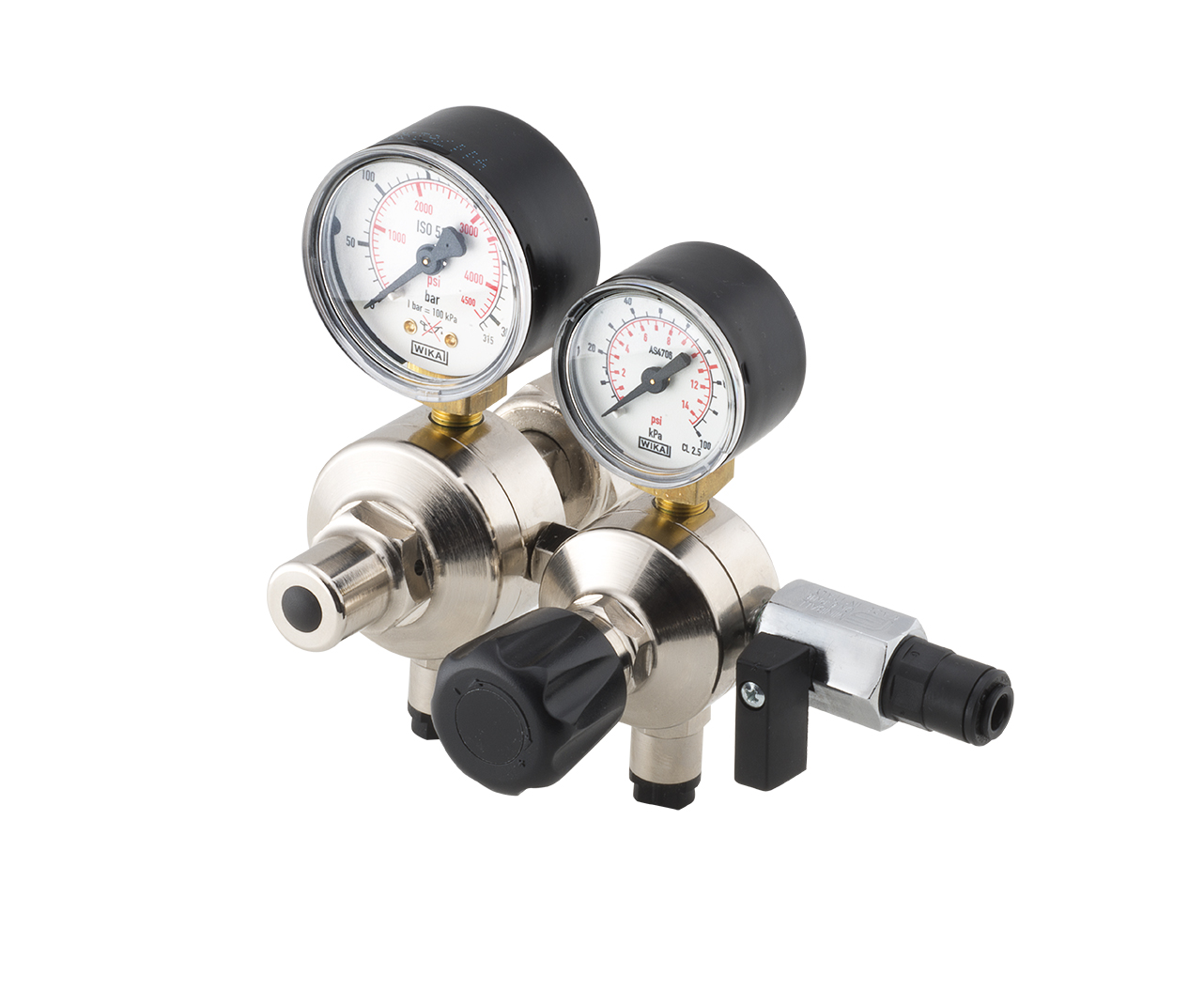

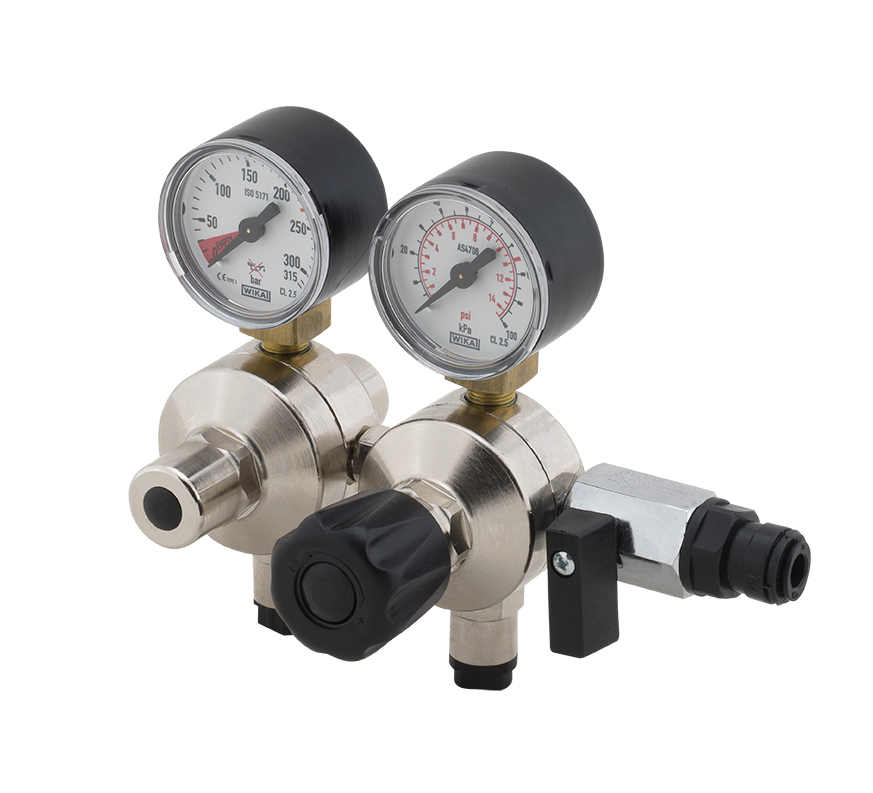

MAJORMIX / MINORMIX
MAJORMIX / MINORMIX
Regulators ideal for wine cellars that use nitrogen. Their small size, make them particularly suitable for household devices that use both disposable and rechargeable cylinders.
Characteristics
The Oxyturbo range also includes dual-sampling station regulators (regulator and pre-regulator) with sensitive and more stable pressure adjustment from 0.2 to 0.5 bar on the second station. Both regulators are supplied with a ball valve and quick coupling for a 6mm hose at outlet, and with a dual-safety valve to prevent dangerous overpressure during use. Both the Majormix and the Minormix have two pressure gauges: 50mm diameter for the former on the first station and 40mm diameter on the second station. Both (high and low pressure) are 40mm diameter for the latter.
Use
Certificates
Product Sectors
MAJORMIX / MINORMIX - MAJORMIX / MINORMIX
BEVERAGE GAUGES - CO2 HIGH PRESSURE
BEVERAGE GAUGES - CO2 LOW PRESSURE
BEVERAGE GAUGES - NITROGEN HIGH PRESSURE
BEVERAGE GAUGES - NITROGEN LOW PRESSURE
PRESSURE GAUGE GASKETS - MAJORMIX / MINORMIX
OUTLET CONNECTIONS - MACRO - MAJORPLUS
OUTLET CONNECTIONS - MAJOR - MINOR
ACCESSORIES FOR MACRO AND MAJORPLUS - MAJORMIX / MINORMIX
SAFETY VALVES - MAJORMIX / MINORMIX
HIGH PRESSURE PIPING FOR MACRO AND MAJOR - MAJORMIX / MINORMIX
ACCESSORIES FOR FERMENTATION IN TANKS AND KEGS - MAJORMIX / MINORMIX
ACCESSORIES FOR WALL MOUNTING OF HIGH PRESSURE CONNECTIONS - MAJORMIX / MINORMIX
WALL MOUNTED CONTROL KITS - MAJORMIX / MINORMIX
EXTENSIONS FOR CONNECTING INTERMEDIATE PRESSURE REGULATORS - MAJORMIX / MINORMIX
DOUBLE CYLINDER CONNECTION - MAJORMIX / MINORMIX
STANDARD AND HIGH FLOW PREHEATERS - MAJORMIX / MINORMIX
FOODGRADE GAS CYLINDERS - MAJORMIX / MINORMIX
MAJORMIX / MINORMIX
BEVERAGE - MAJORMIX / MINORMIX - MAJORMIX / MINORMIX
| Code | Image | Description | H.P. gauge (bar) | L.P. gauge (kPa) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|
368200 Request information | | MAJORMIX CO2 (W21,8X1/14 RHI) | 0-315 | 0-100 | R | 0 | 1 | -- |
368202 Request information |  | MAJORMIX N2 (W21,8X1/14 RHE) | 0-315 | 0-100 | R | 0 | 1 | -- |
368203 Request information |  | MAJORMIX AR (W24,51 X 1/14 RHE) | 0-315 | 0-100 | R | 0 | 1 | -- |
378200 Request information |  | MINORMIX CO2 / N2 (M11X1) | 0-315 | 0-100 | R | 0 | 1 | -- |

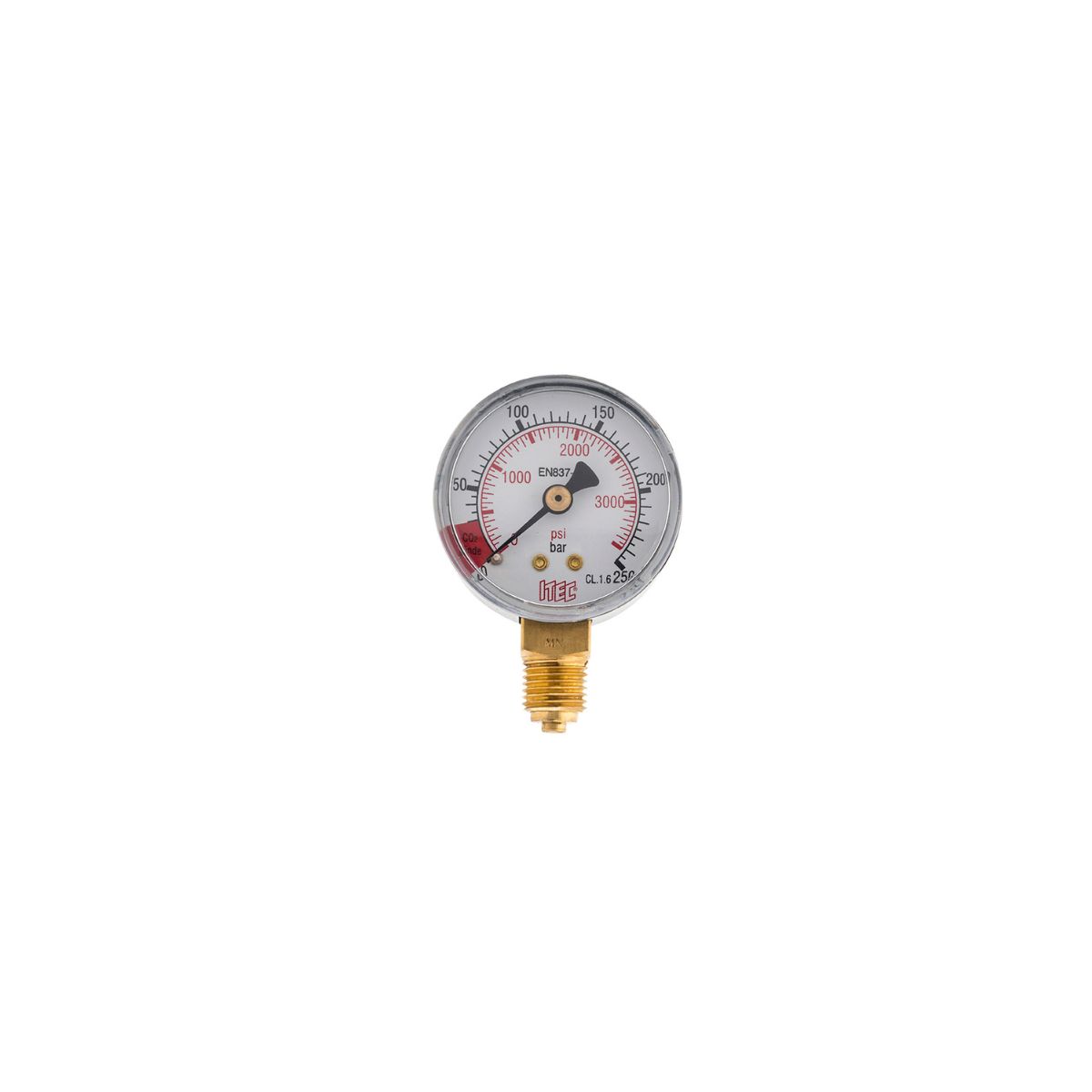

BEVERAGE GAUGES - CO2 HIGH PRESSURE
BEVERAGE - MAJORMIX / MINORMIX - BEVERAGE GAUGES - CO2 HIGH PRESSURE
Our pressure gauges are sturdy and offer accurate measuring. They are equipped with an anti-burst system at the rear of the metal case. The white background dial ensures easy readability.
| Code | Image | Description | Description | Pressure | Inlet | Scale | Red mark | Availability | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
Q5020104I Request information |  | MASTER | MASTER | ALTA | G1/4-R | 0-250 | -- | D | -- |
Q5020104I Request information | | MACRO | MACRO | ALTA | G1/4-R | 0-250 | -- | D | -- |
Q5020104I Request information | | MAJORPLUS | MAJORPLUS | ALTA | G1/4-R | 0-250 | -- | D | -- |
Q4020100I Request information |  | MAJOR | MAJOR | ALTA | G1/8-R | 0-315 | 230 | D | -- |
Q4020100I Request information | | MINOR | MINOR | ALTA | G1/8-R | 0-315 | 230 | D | -- |

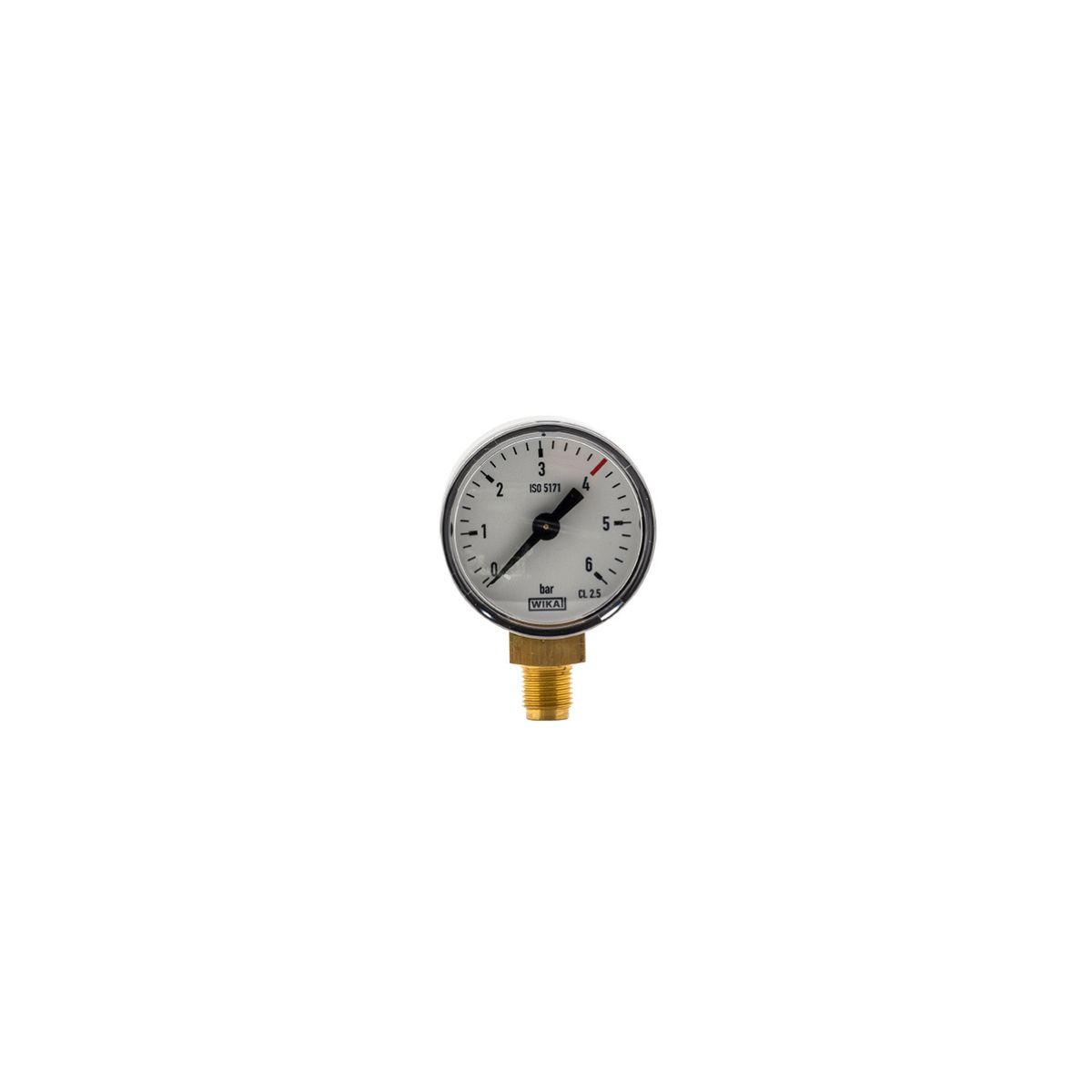

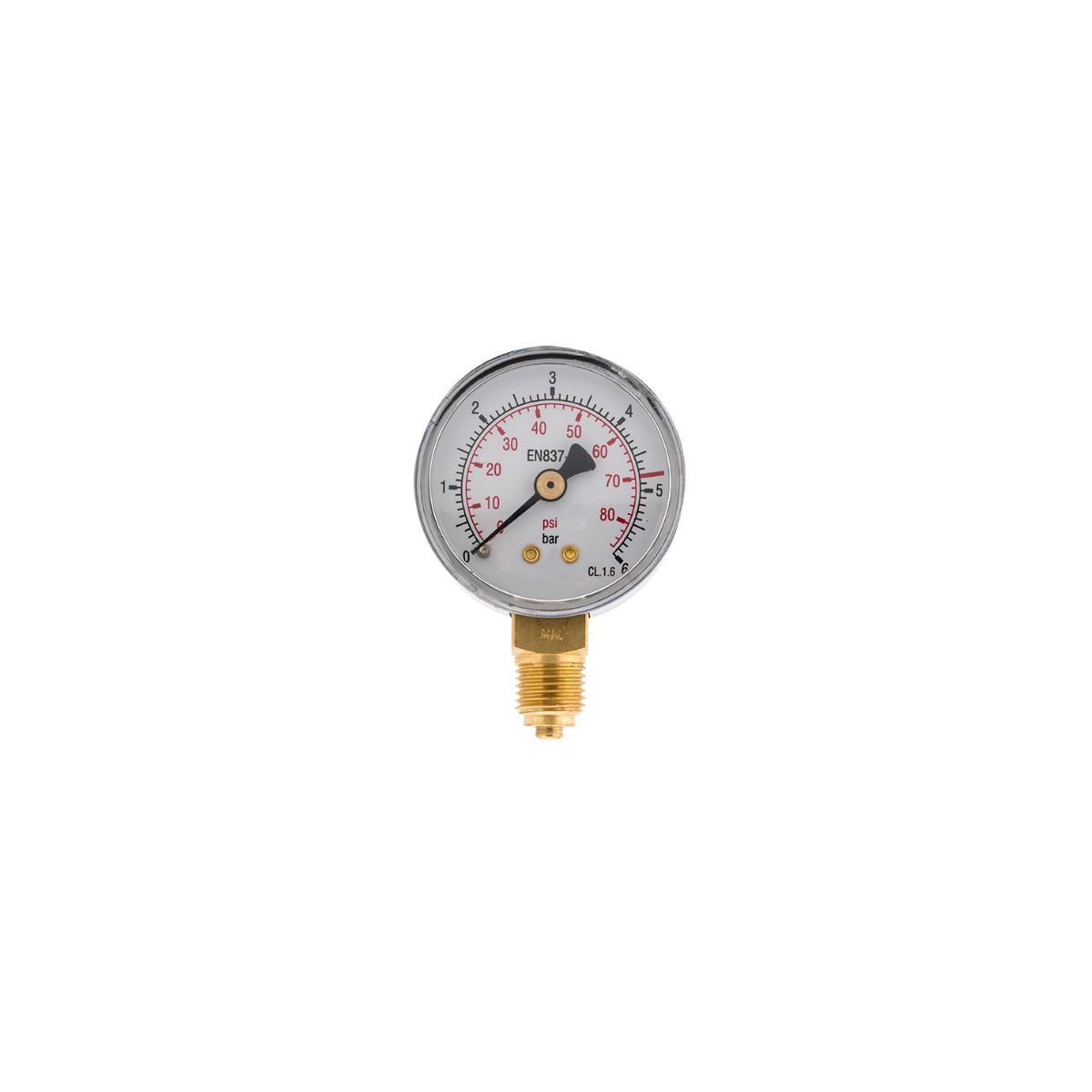

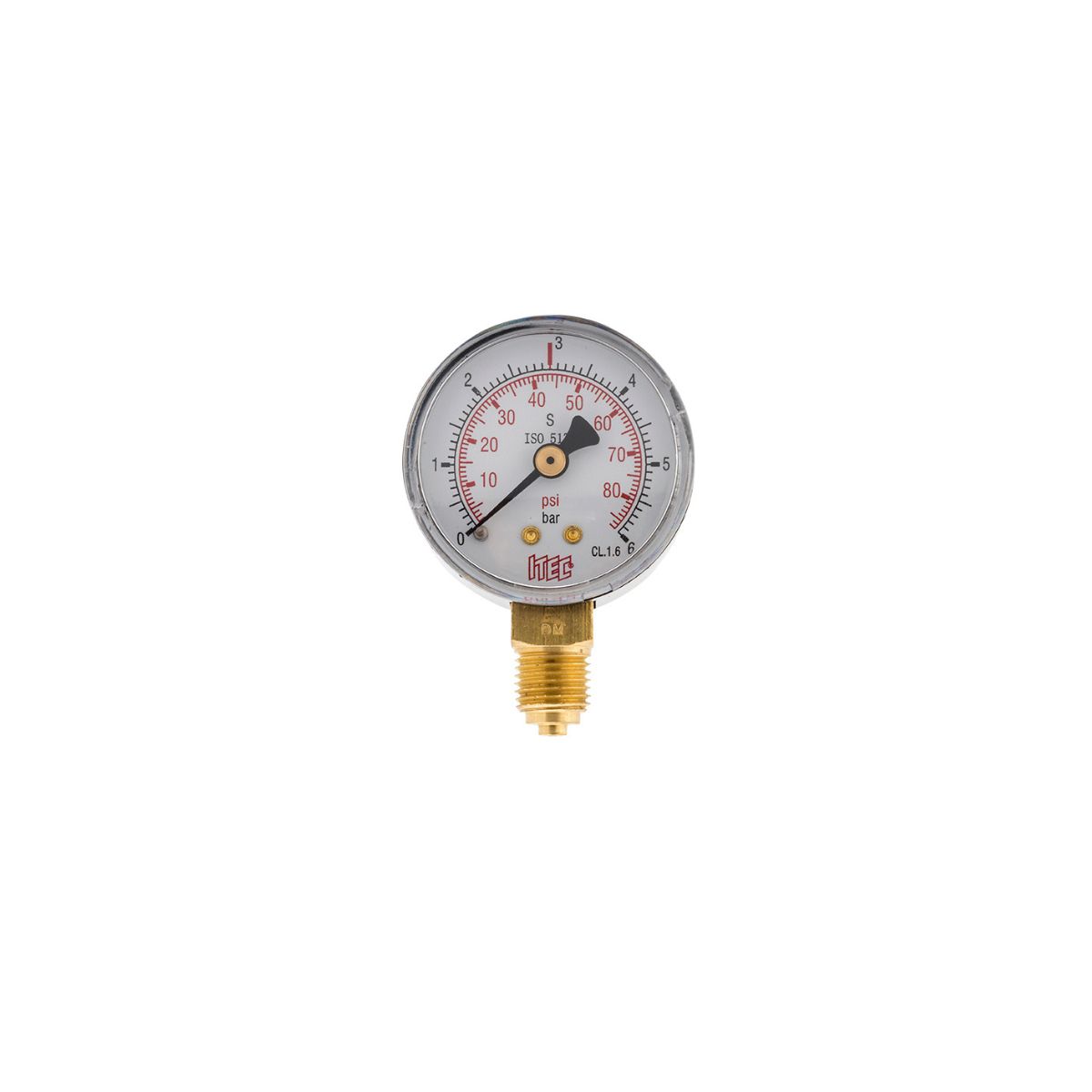

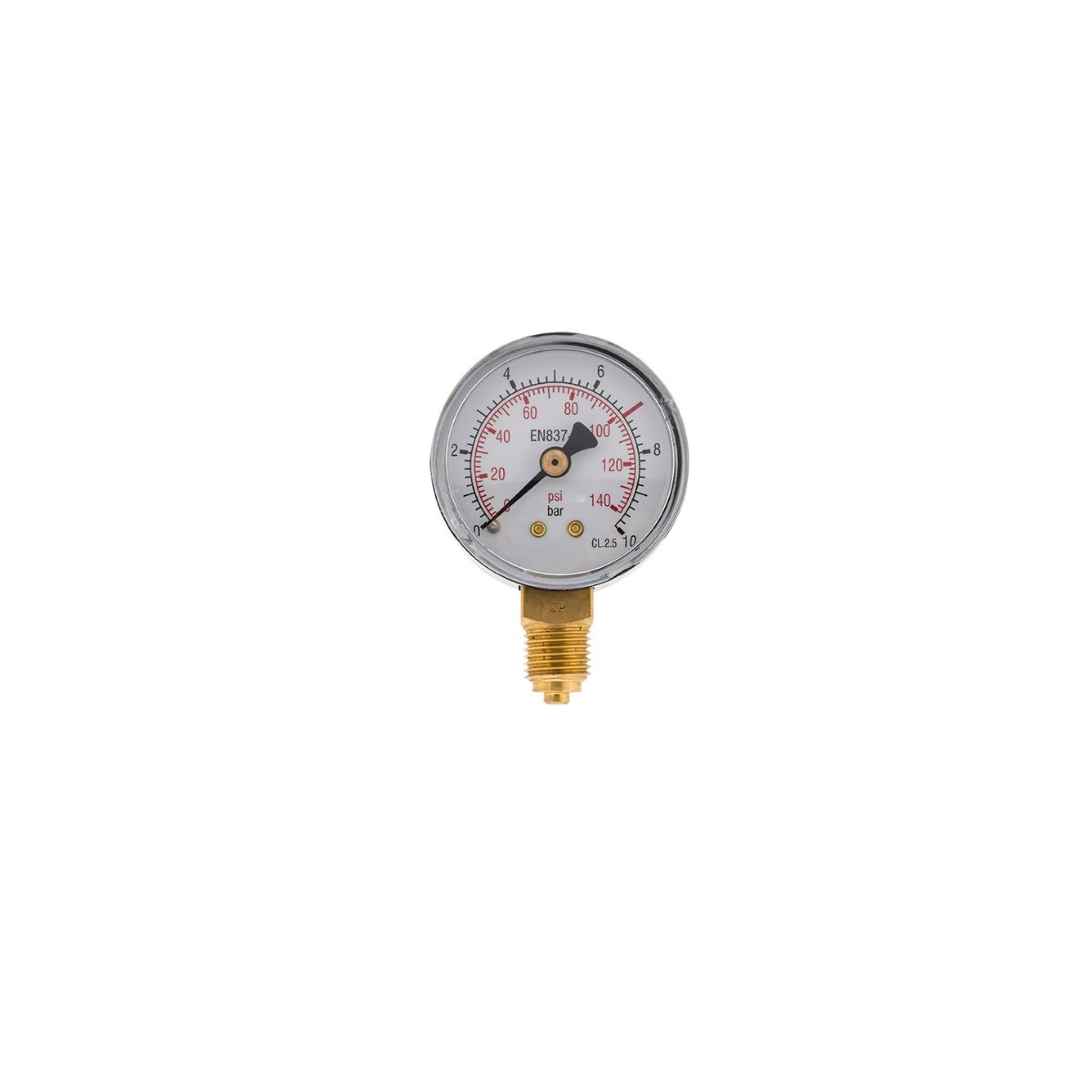

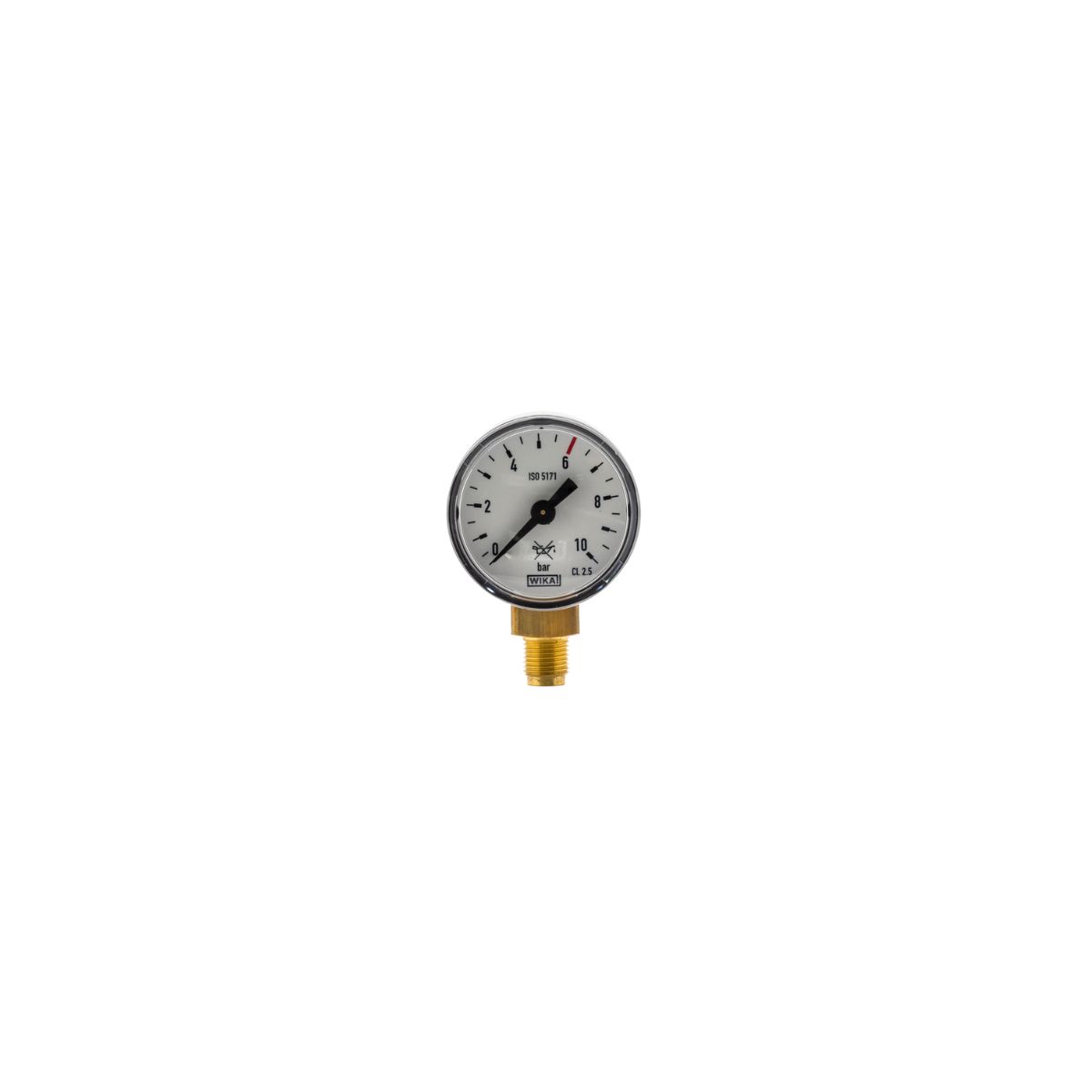

BEVERAGE GAUGES - CO2 LOW PRESSURE
BEVERAGE - MAJORMIX / MINORMIX - BEVERAGE GAUGES - CO2 LOW PRESSURE
Our pressure gauges are sturdy and offer accurate measuring. They are equipped with an anti-burst system at the rear of the metal case. The white background dial ensures easy readability.
| Code | Image | Description | Description | Pressure | Inlet | Scale | Red mark | Availability | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
Q5060106I Request information |  | MACRO | MACRO | BASSA | G1/4-R | 0-6 | 4,8 | D | -- |
Q5060106I Request information | | MAJORPLUS | MAJORPLUS | BASSA | G1/4-R | 0-6 | 4,8 | D | -- |
Q5060107I Request information |  | MACRO | MACRO | LOW | G1/4-R | 0-6 | 3 | R | -- |
Q5060107I Request information | | MAJORPLUS | MAJORPLUS | LOW | G1/4-R | 0-6 | 3 | R | -- |
Q5100102I Request information |  | MASTER | MASTER | BASSA | G1/4R | 0-10 | 7 | D | -- |
Q5100102I Request information | | MACRO | MACRO | BASSA | G1/4R | 0-10 | 7 | D | -- |
Q5100102I Request information | | MAJORPLUS | MAJORPLUS | BASSA | G1/4R | 0-10 | 7 | D | -- |
Q4040100I Request information |  | MAJOR | MAJOR | BASSA | G1/8-R | 0-4 | 3 | D | -- |
Q4060150I Request information |  | MAJOR | MAJOR | BASSA | G1/8R | 0-6 | 4 | D | -- |
Q4100150I Request information |  | MAJOR | MAJOR | BASSA | G1/8-R | 0-10 | 6 | D | -- |
Q4100150I Request information | | MINOR | MINOR | BASSA | G1/8-R | 0-10 | 6 | D | -- |

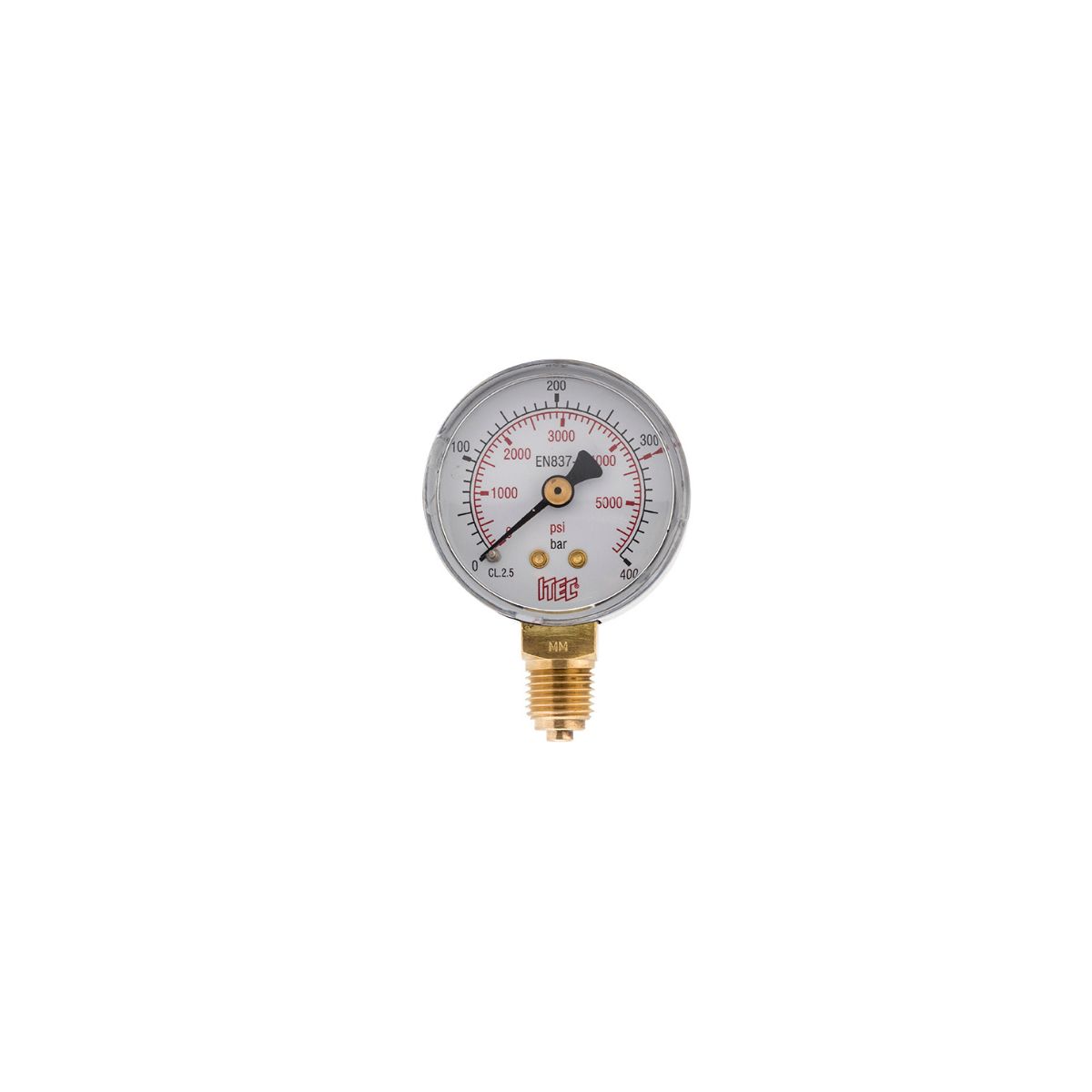

BEVERAGE GAUGES - NITROGEN HIGH PRESSURE
BEVERAGE - MAJORMIX / MINORMIX - BEVERAGE GAUGES - NITROGEN HIGH PRESSURE
Our pressure gauges are sturdy and offer accurate measuring. They are equipped with an anti-burst system at the rear of the metal case. The white background dial ensures easy readability.
| Code | Image | Description | Description | Pressure | Inlet | Scale | Red mark | Availability | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
Q5030103I Request information |  | MASTER | MASTER | ALTA | G1/4-R | 0-400 | 300 | D | -- |
Q5030103I Request information | | MACRO | MACRO | ALTA | G1/4-R | 0-400 | 300 | D | -- |
Q5030103I Request information | | MAJORPLUS | MAJORPLUS | ALTA | G1/4-R | 0-400 | 300 | D | -- |
BEVERAGE GAUGES - NITROGEN LOW PRESSURE
BEVERAGE - MAJORMIX / MINORMIX - BEVERAGE GAUGES - NITROGEN LOW PRESSURE
Our pressure gauges are sturdy and offer accurate measuring. They are equipped with an anti-burst system at the rear of the metal case. The white background dial ensures easy readability.
| Code | Image | Description | Description | Pressure | Inlet | Scale | Red mark | Availability | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
Q5060106I Request information | | MACRO | MACRO | BASSA | G1/4-R | 0-6 | 4,8 | D | -- |
Q5060106I Request information | | MAJORPLUS | MAJORPLUS | BASSA | G1/4-R | 0-6 | 4,8 | D | -- |
Q5060107I Request information | | MACRO | MACRO | LOW | G1/4-R | 0-6 | 3 | R | -- |
Q5060107I Request information | | MAJORPLUS | MAJORPLUS | LOW | G1/4-R | 0-6 | 3 | R | -- |
PRESSURE GAUGE GASKETS
BEVERAGE - MAJORMIX / MINORMIX - PRESSURE GAUGE GASKETS
| Code | Image | Description | Description | Pressure | Inlet | Scale | Red mark | Availability | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
D0943001I Request information |  | Pressure gauge gasket G1/8 100 pcs. | Pressure gauge gasket G1/8 100 pcs. | -- | -- | -- | -- | D | -- |
D0943002I Request information |  | Pressure gauge gasket G1/4 100 pcs. | Pressure gauge gasket G1/4 100 pcs. | -- | -- | -- | -- | D | -- |
OUTLET CONNECTIONS - MACRO - MAJORPLUS
BEVERAGE - MAJORMIX / MINORMIX - OUTLET CONNECTIONS - MACRO - MAJORPLUS
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|

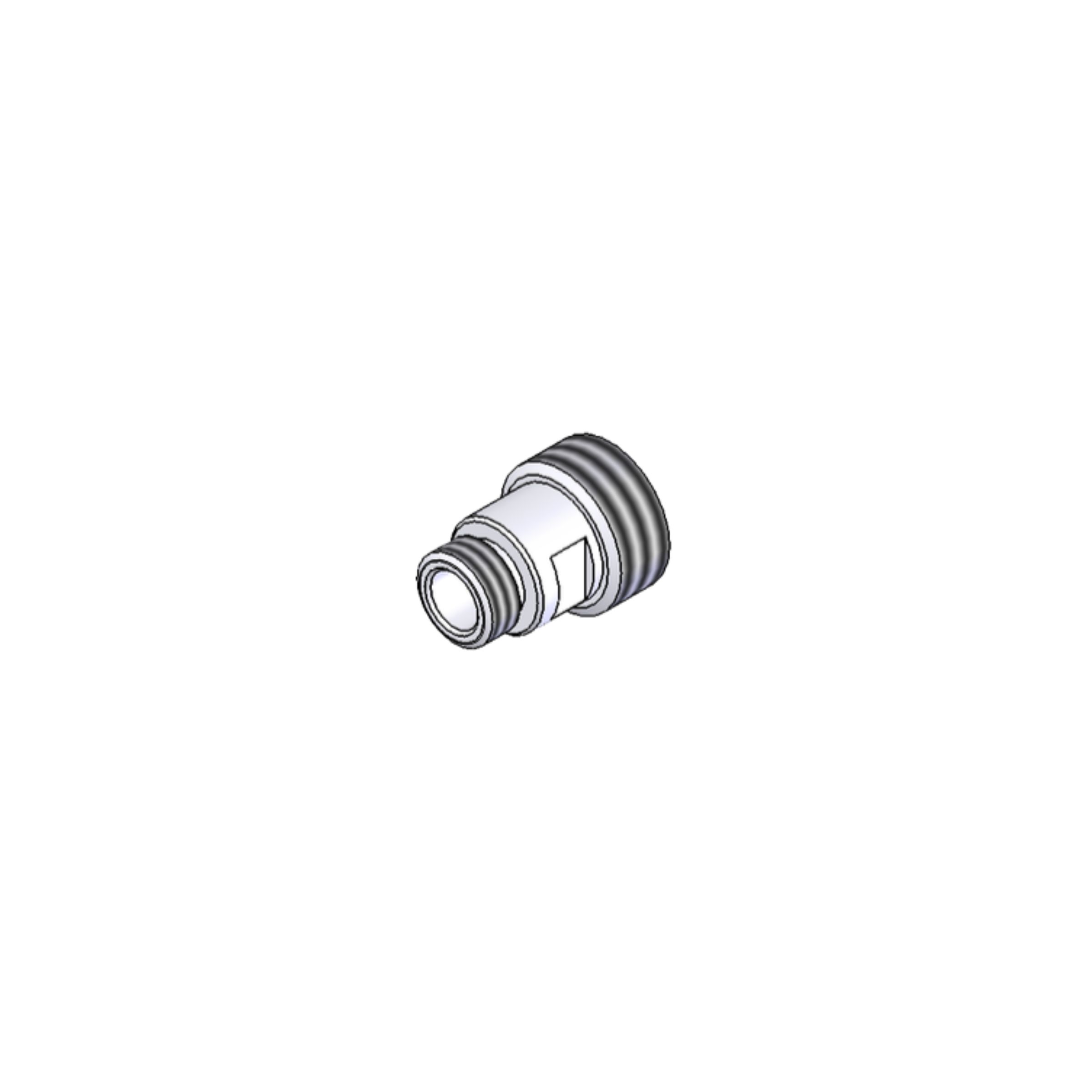

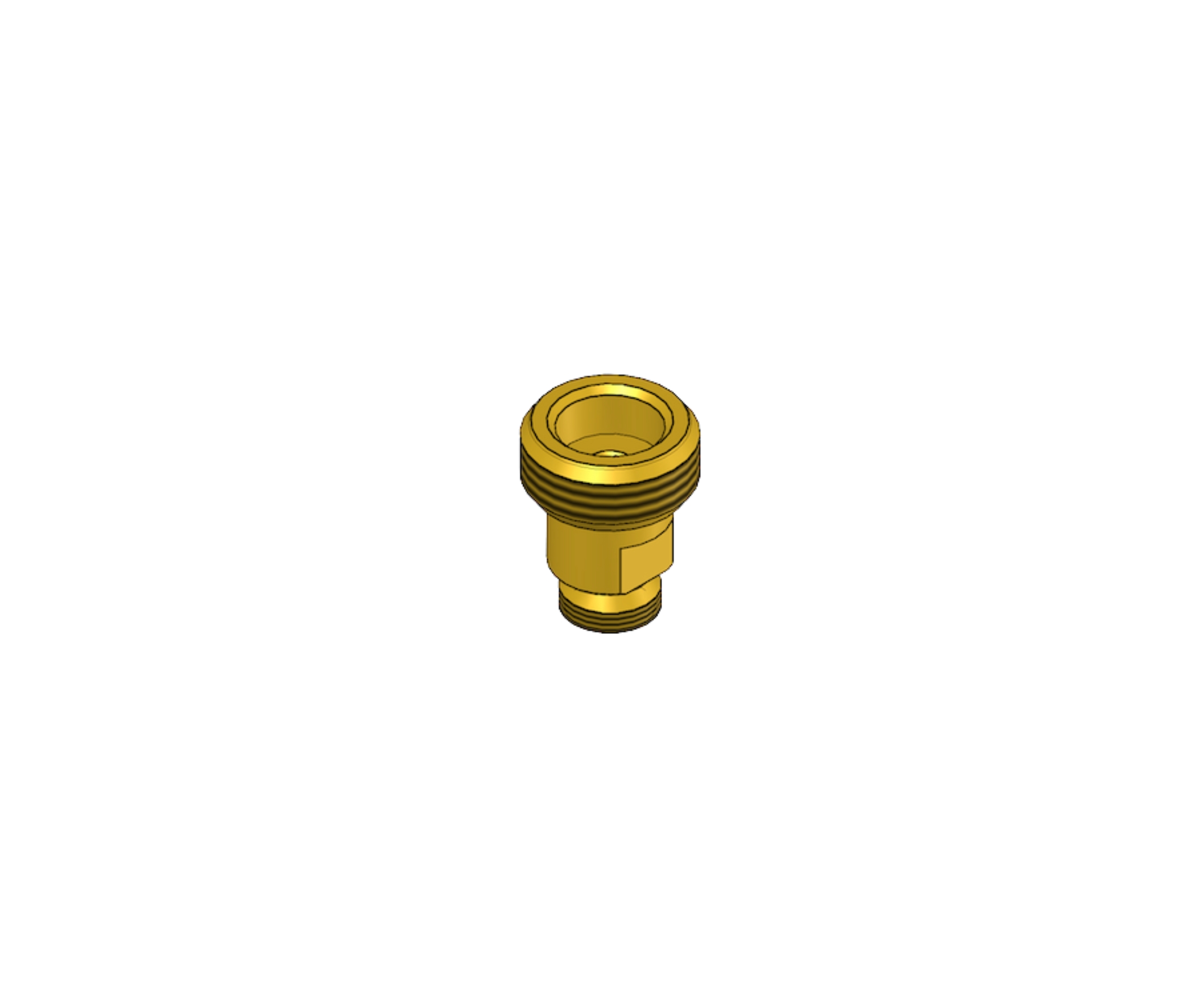

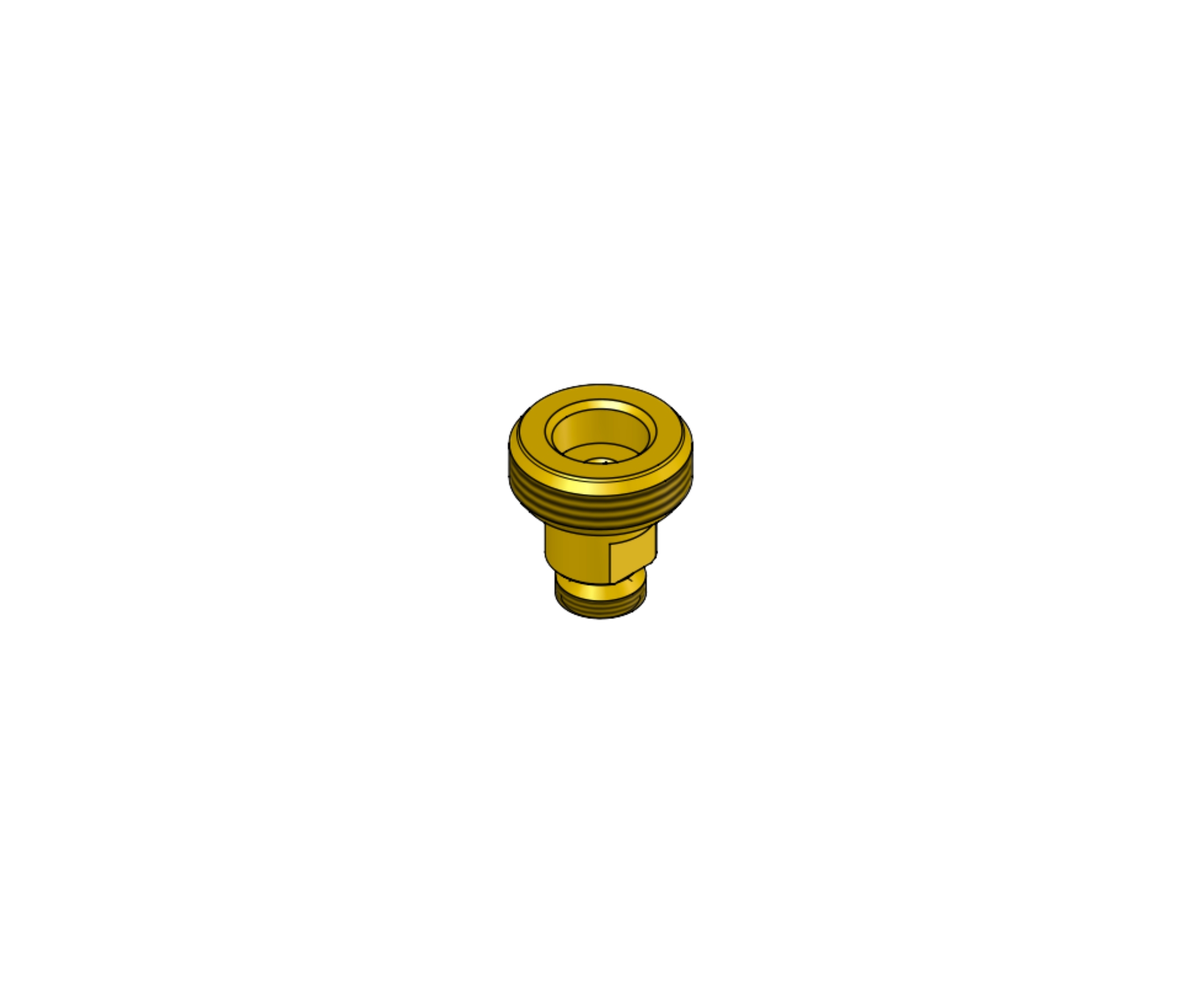

C1198402 Request information |  | 7/16"– 20 UNF (1/4 SAE) fitting with duck bill* seat | D | 1 | -- |
C1138400 Request information |  | G1/2 fitting | R | 1 | -- |
C1198414 Request information |  | G1/4 fitting | R | 1 | -- |
C1148400 Request information |  | G3/4 fitting | R | 1 | -- |
C1198403 Request information |  | G5/8 fitting | R | 1 | -- |

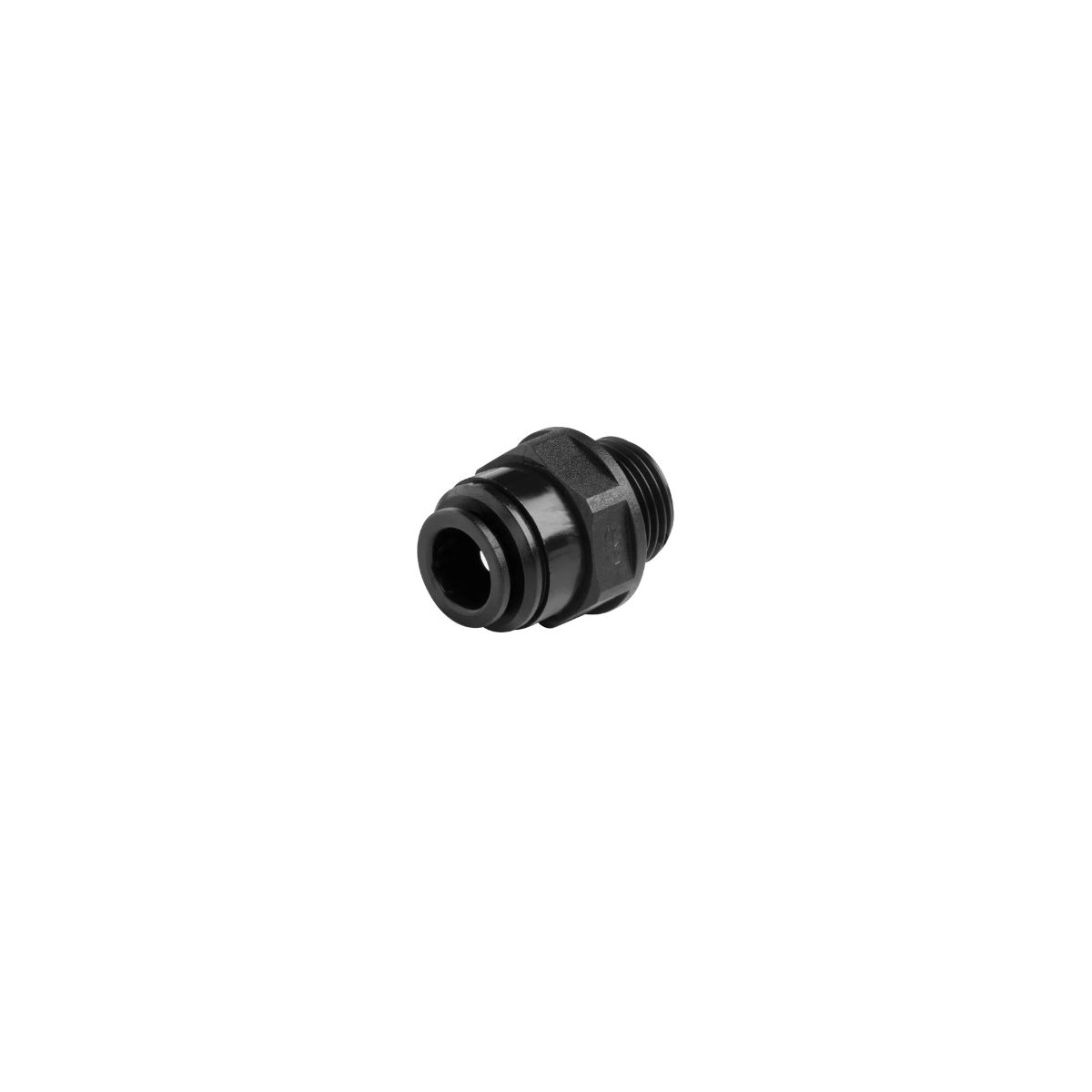

C1098011 Request information |  | Quick G1/4 connection – hose Ø 6mm | R | 1 | -- |

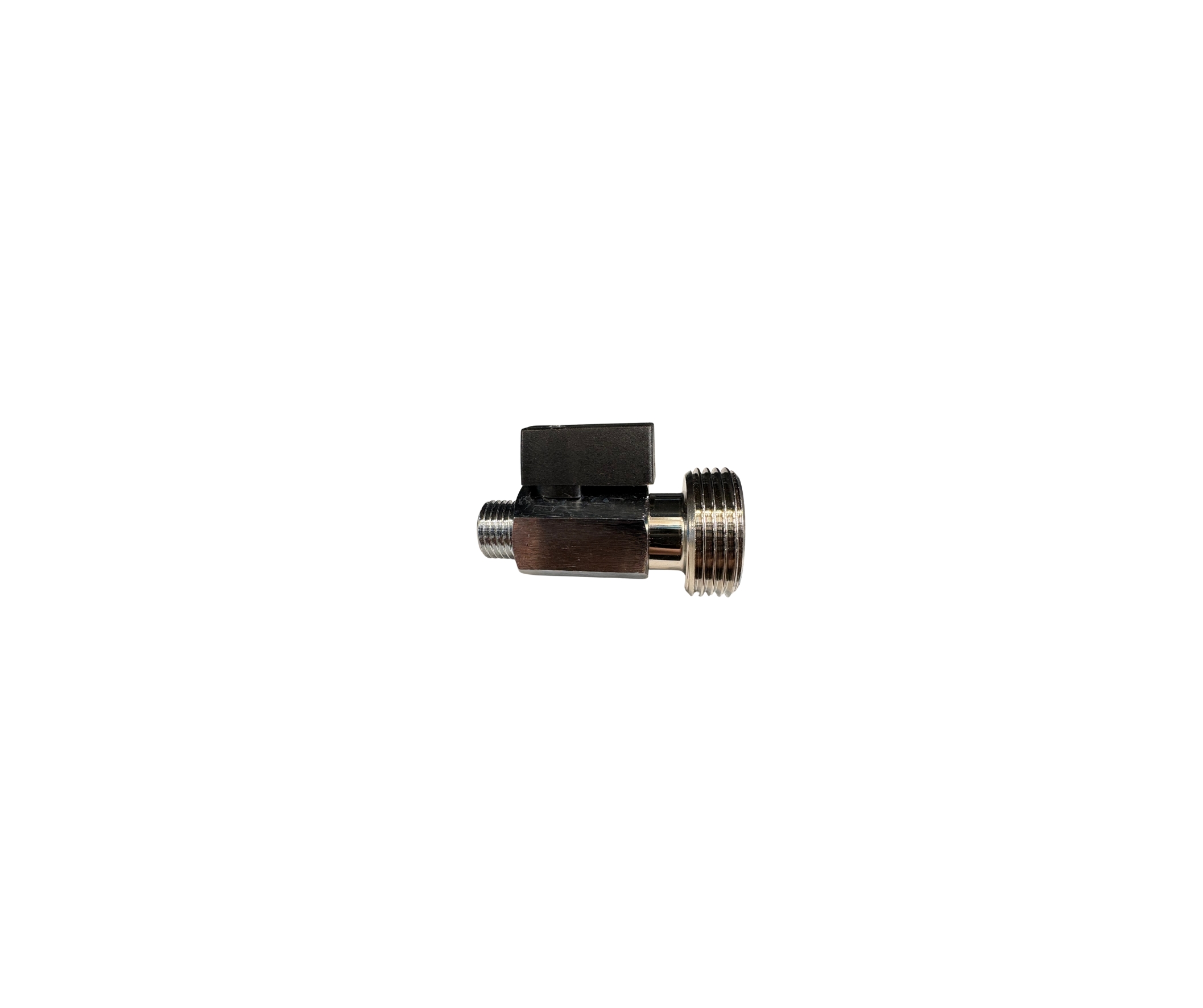

C1149002 Request information |  | Ball valve M/F with G3/4 fitting assembled | R | 1 | -- |

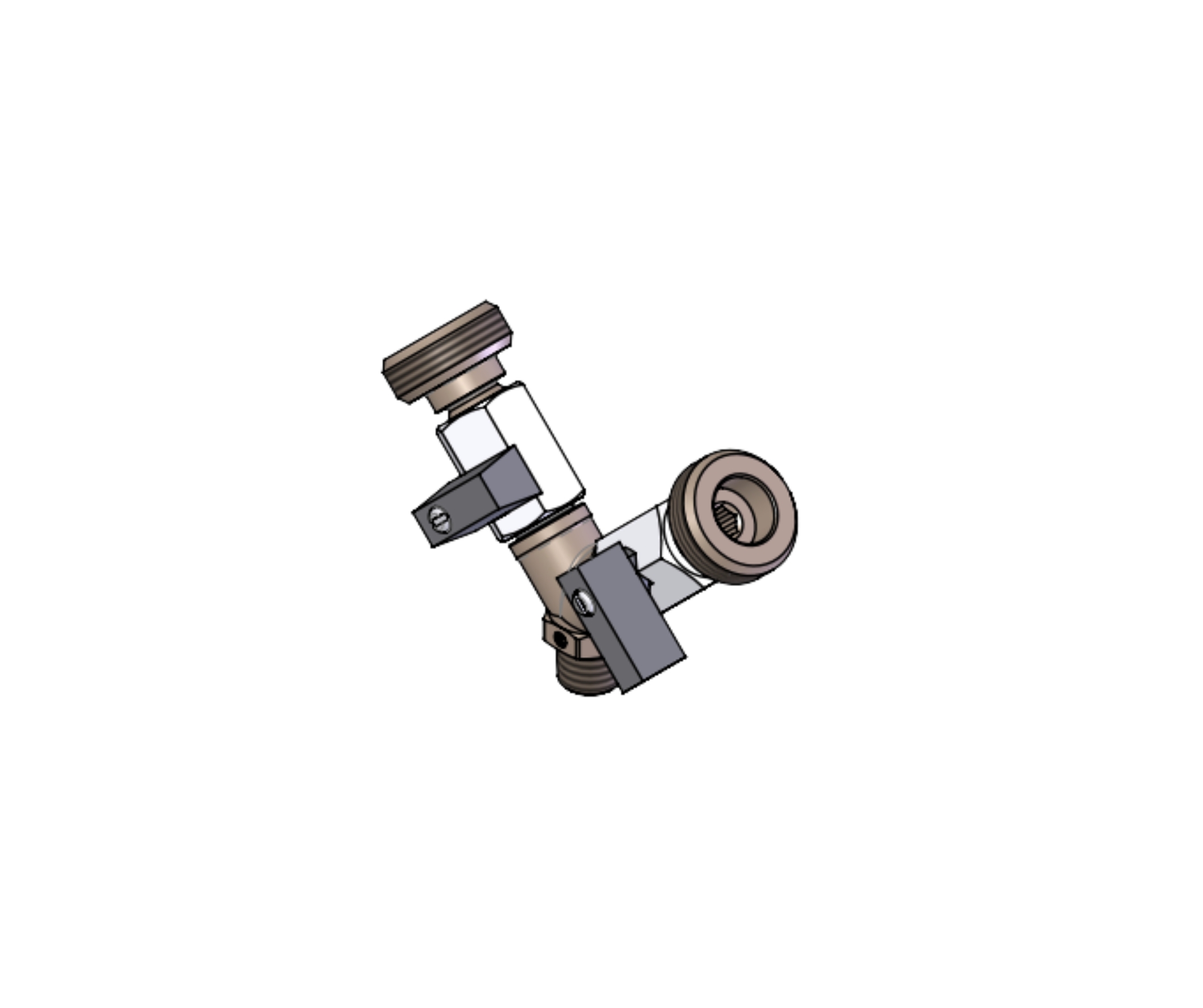

C1149003 Request information |  | Y assembly with 2 ball valves and 2 G3/4 fittings | R | 1 | -- |

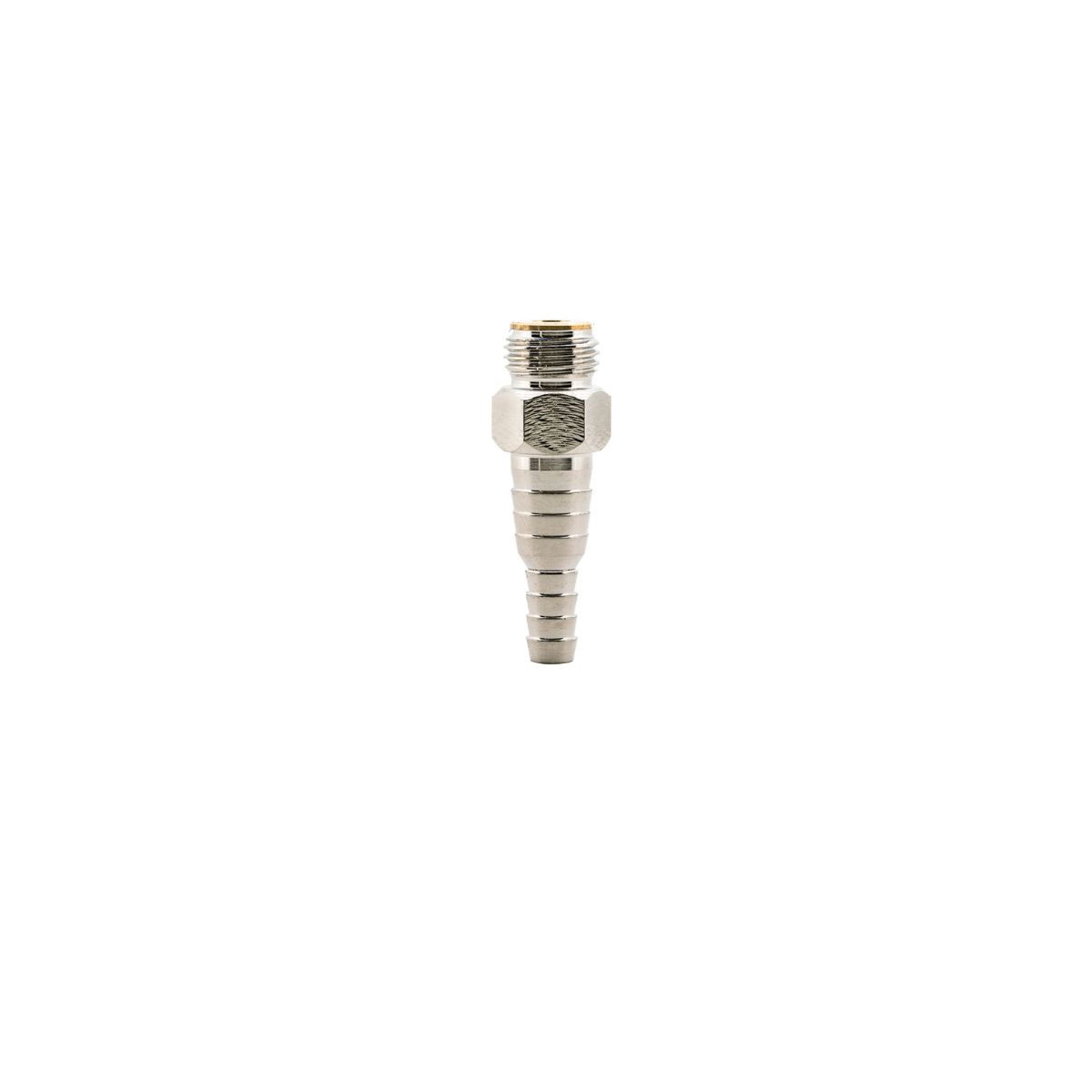

C2018402 Request information |  | Hose connection ø 7.2/11mm with duck bill* seat | D | 1 | -- |

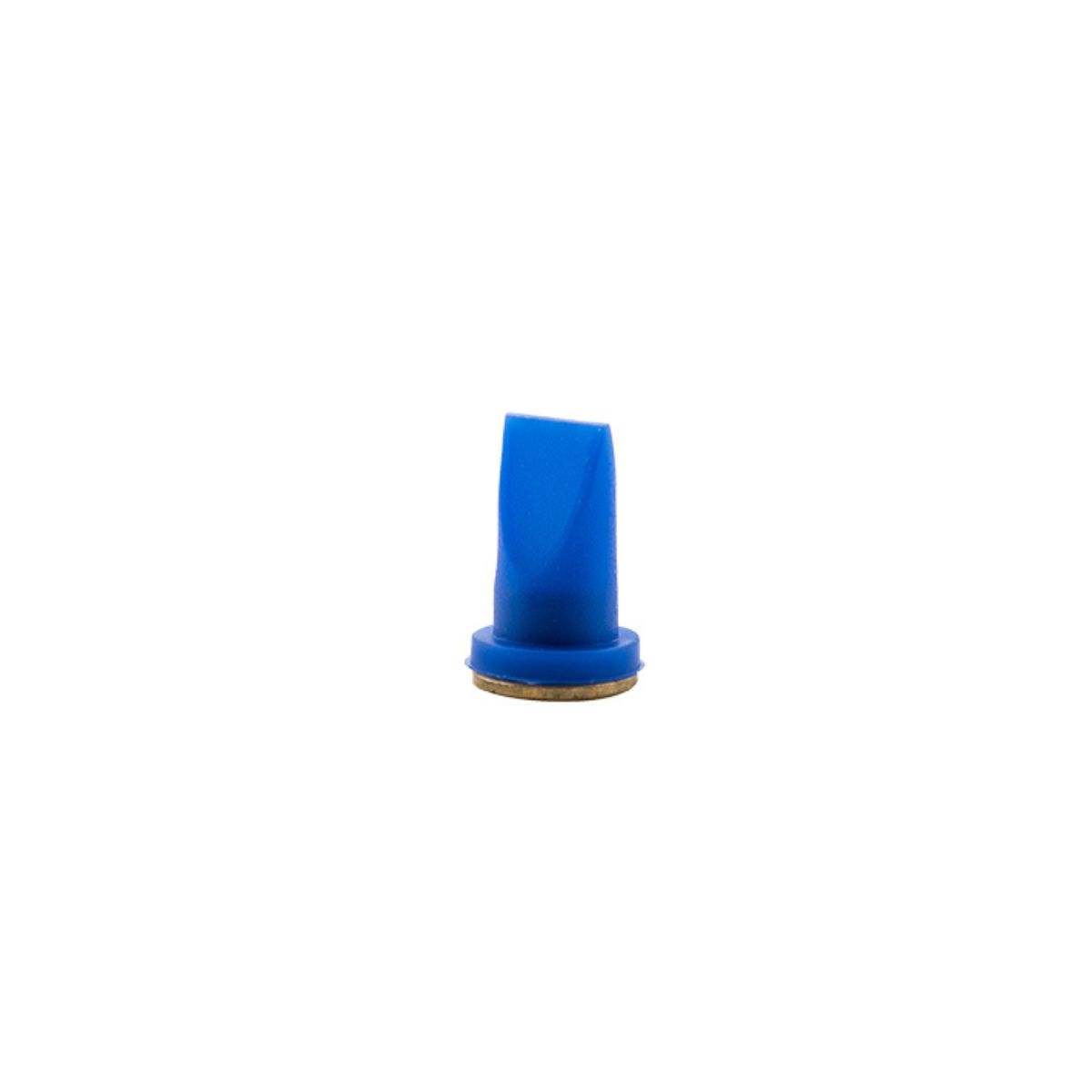

S2799000 Request information |  | Complete duck bill | D | 1 | -- |

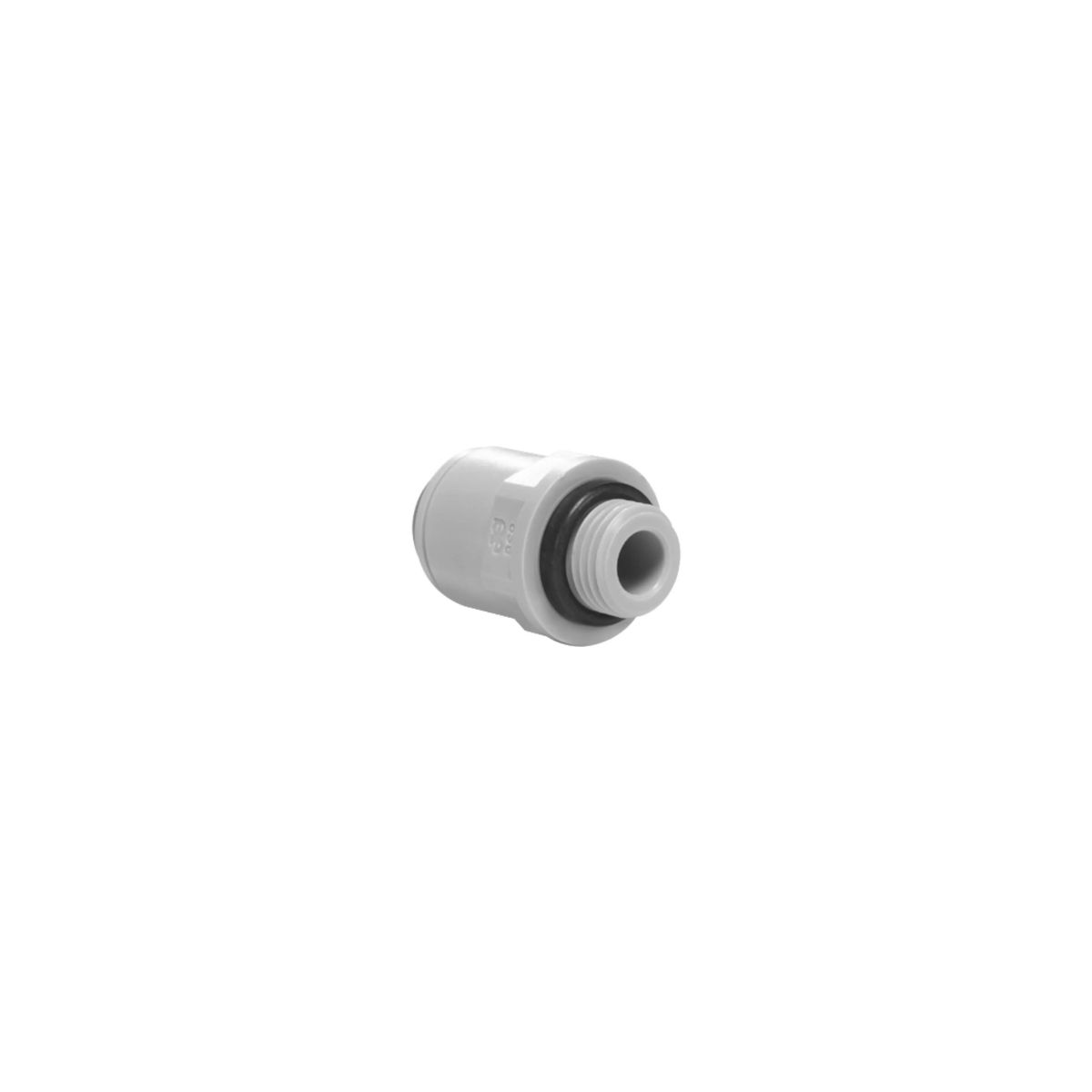

C1098003 Request information |  | Quick G1/4 connection - hose ø6mm | D | 1 | -- |
C1098009 Request information |  | Quick G1/4 connection - hose ø8mm | D | 1 | -- |
G4609000 Request information |  | BALL VALVE M/F – G1/4 | D | 1 | -- |
C1198419 Request information |  | Y fitting G1/4 | D | 1 | -- |

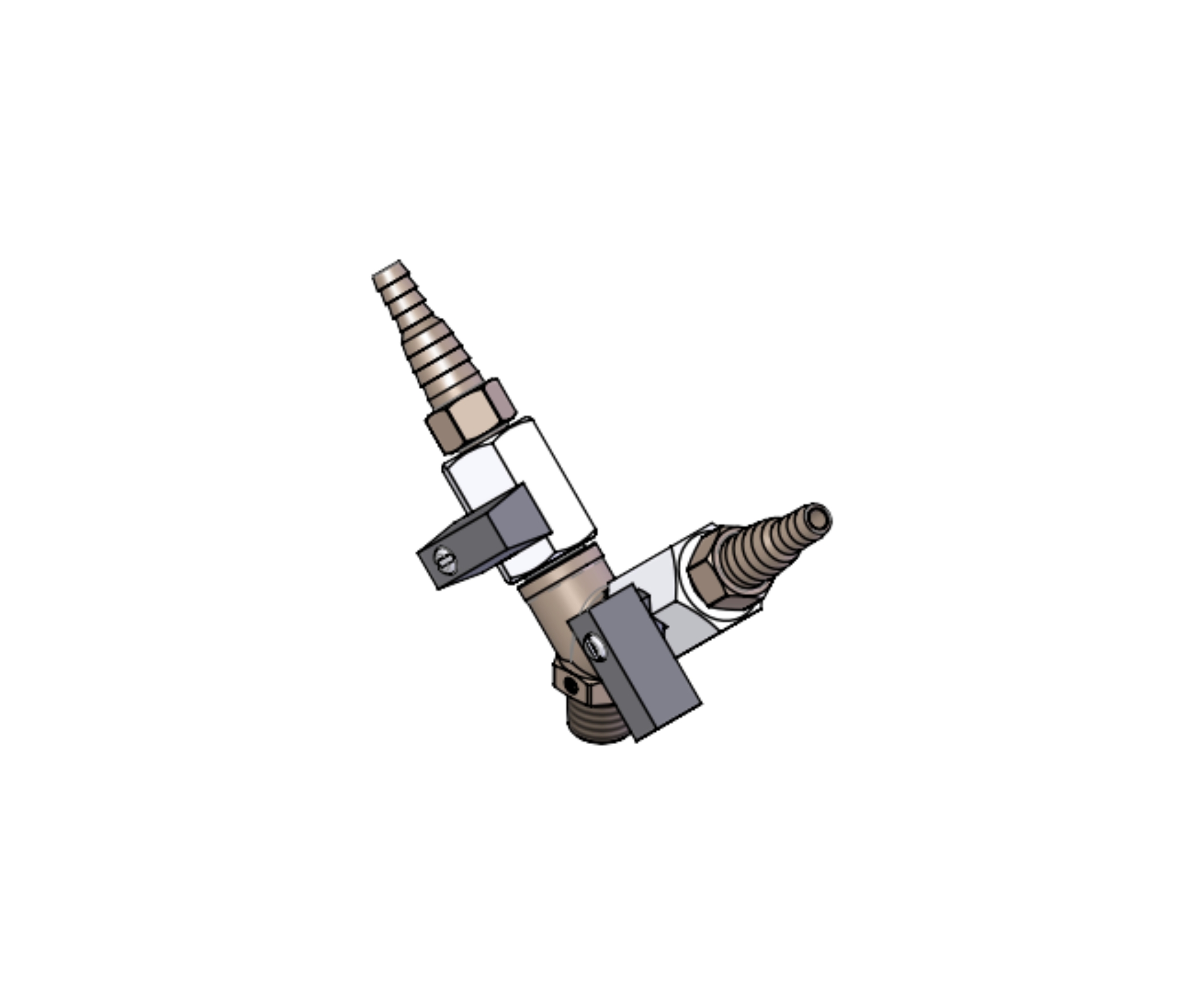

C2019001 Request information |  | Y assembly with 2 ball valves and 2 hose holders with duck bill | D | 1 | -- |
OUTLET CONNECTIONS - MAJOR - MINOR
BEVERAGE - MAJORMIX / MINORMIX - OUTLET CONNECTIONS - MAJOR - MINOR
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|

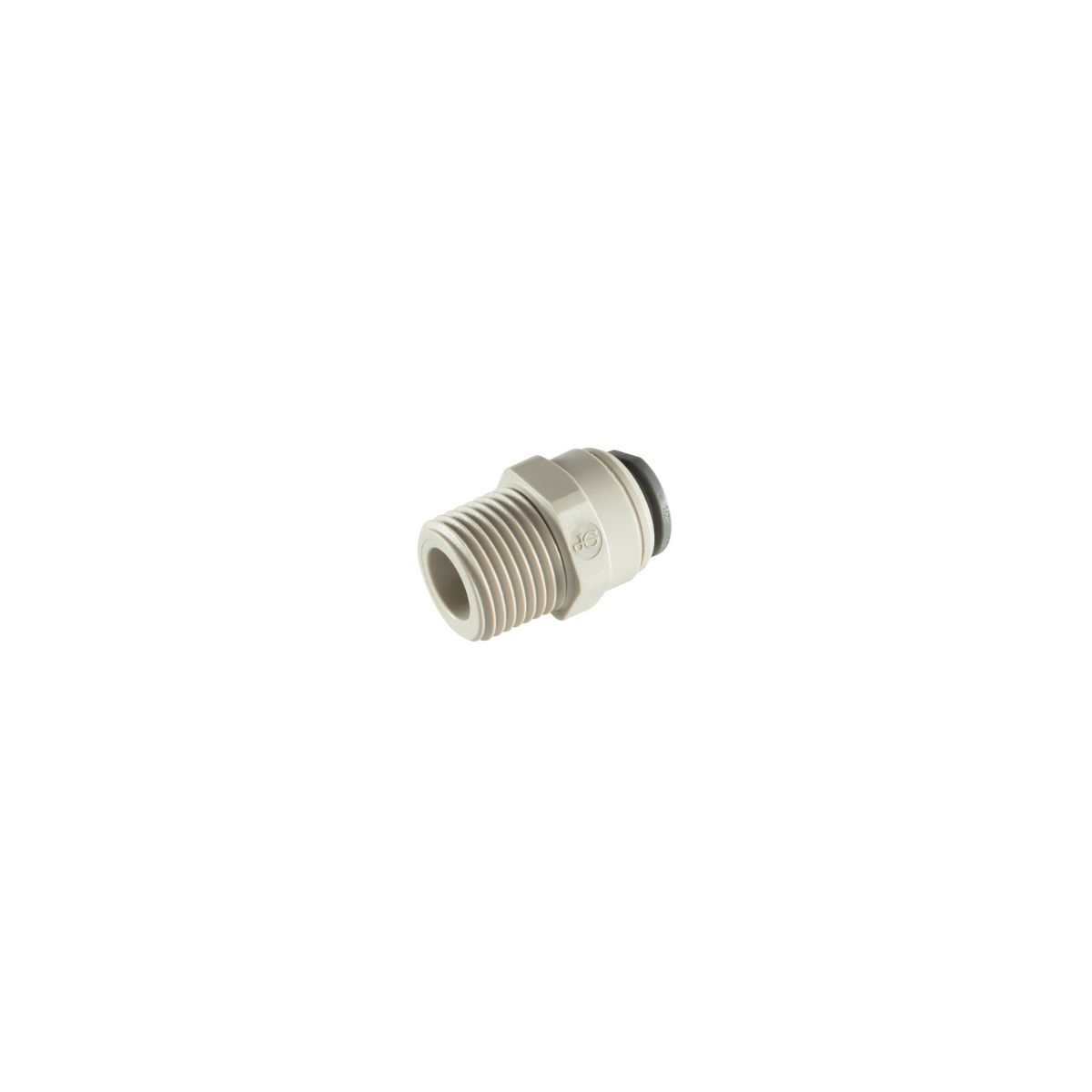

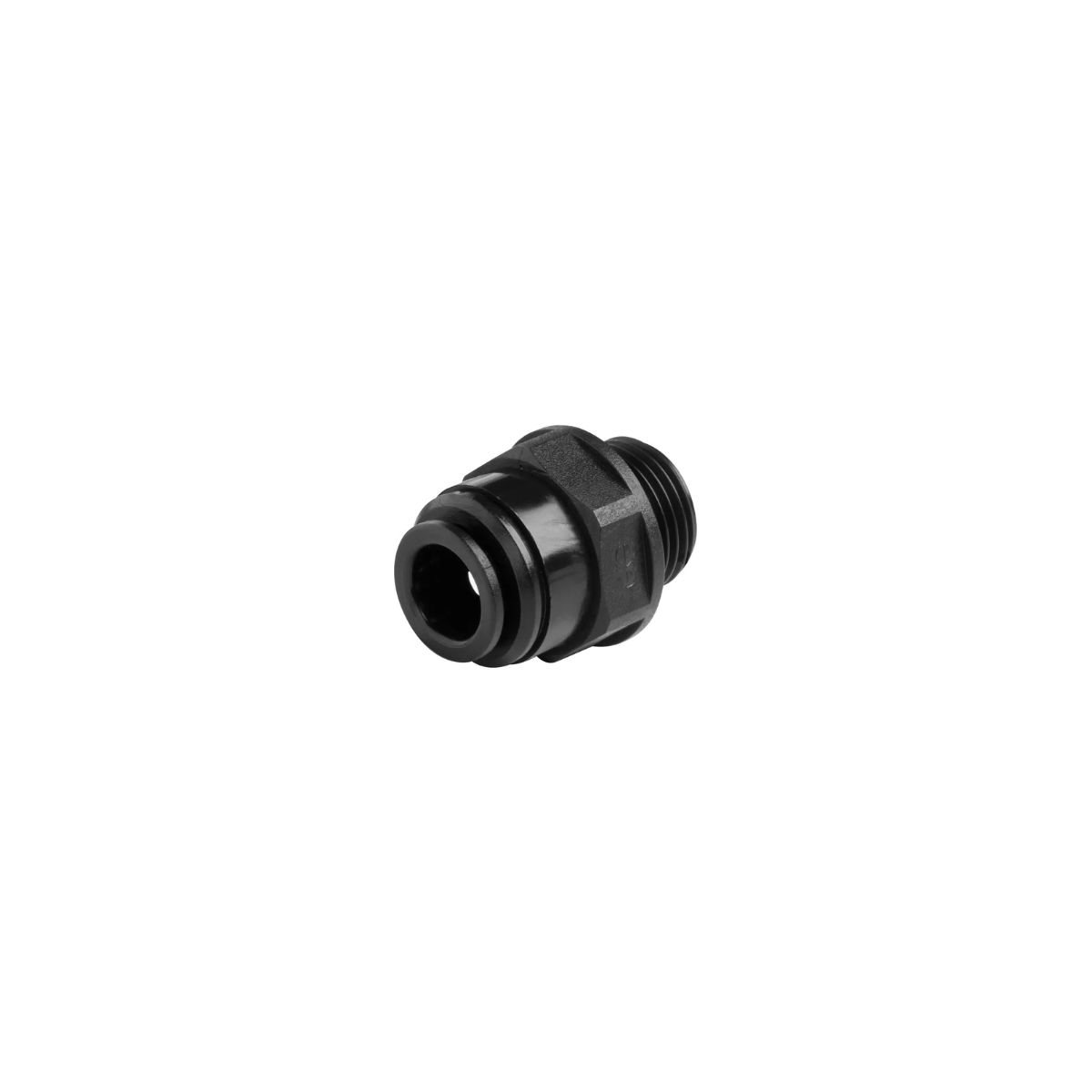

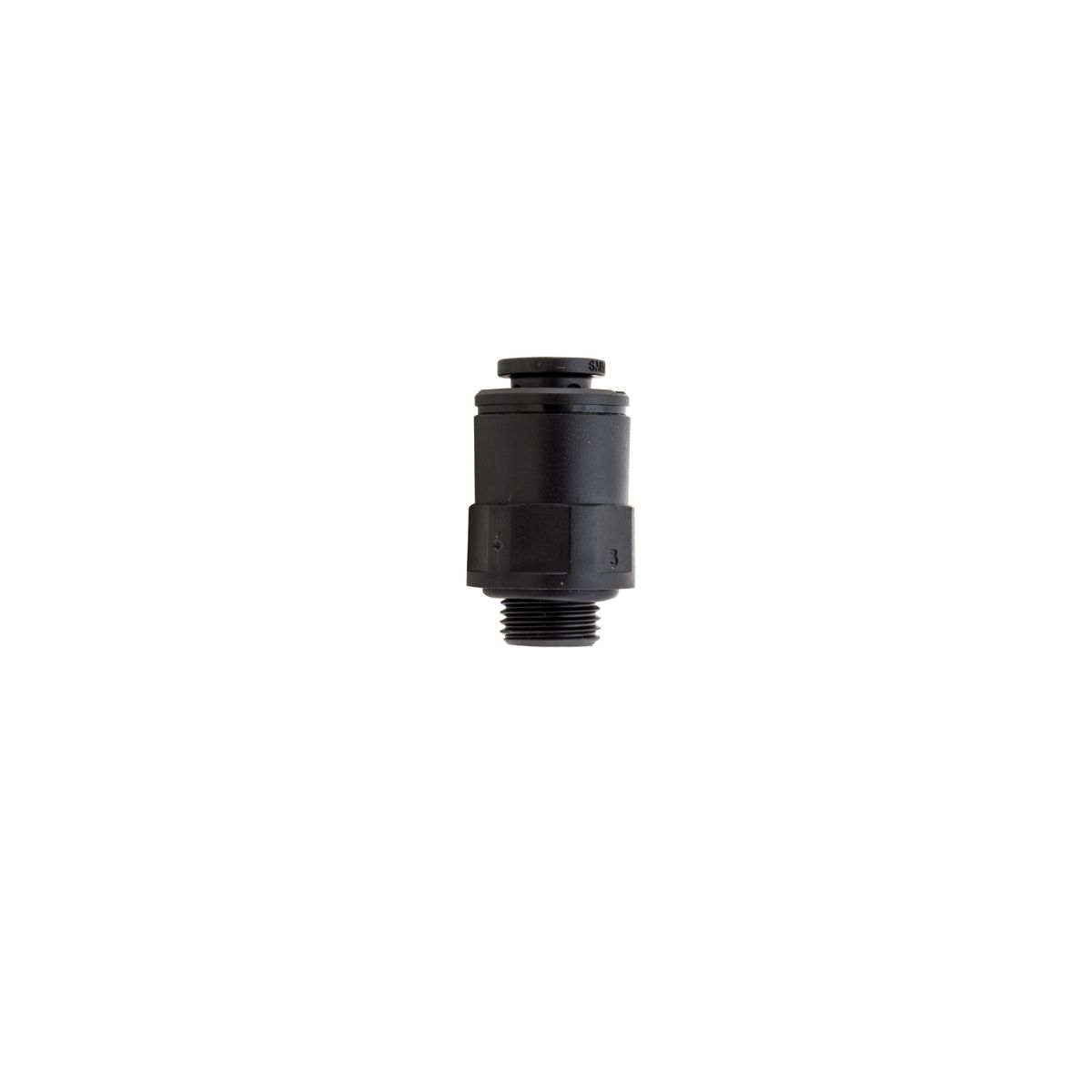

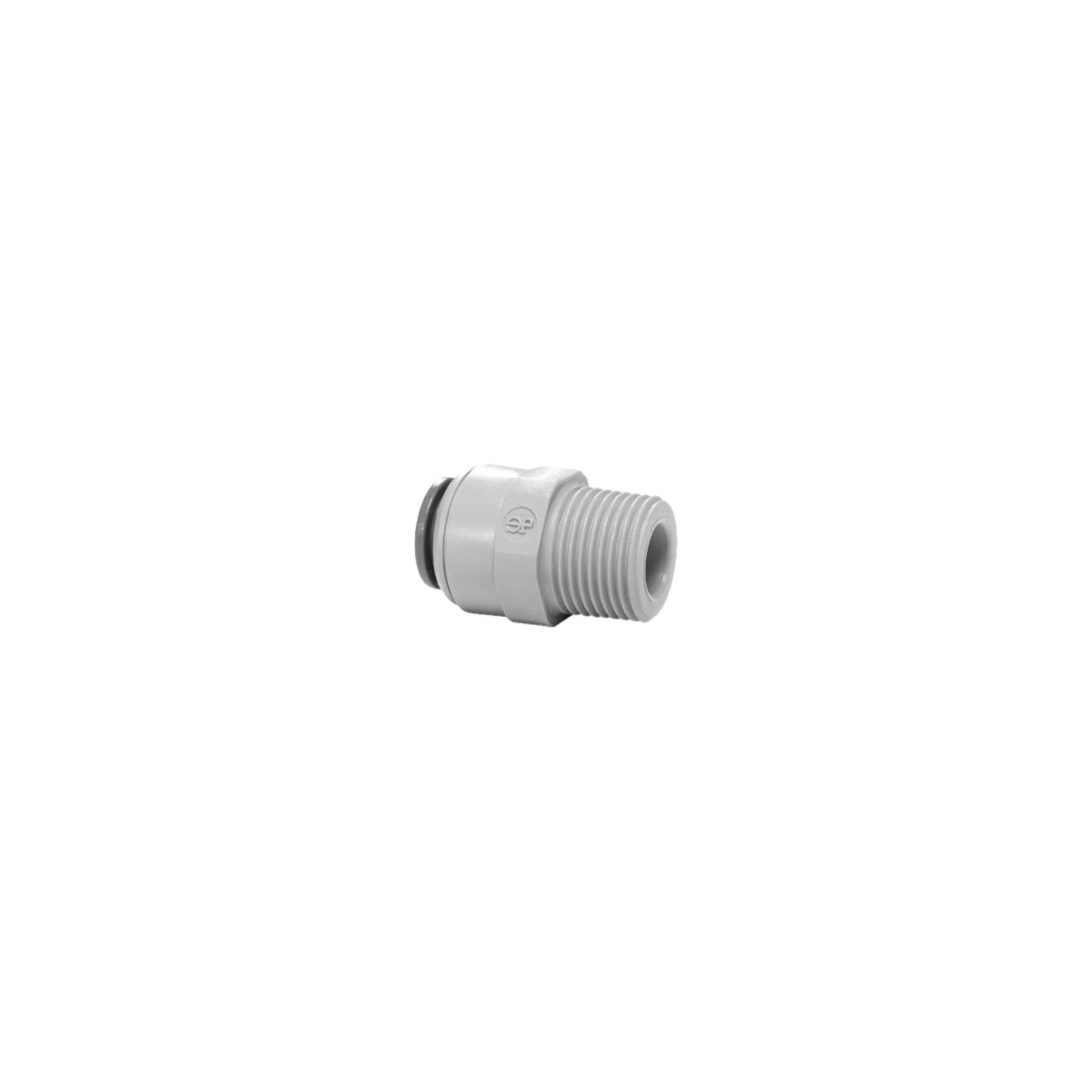

C1098004 Request information |  | Quick G1/8 - hose ø 4mm | D | 1 | -- |
C1098000 Request information |  | Quick G1/8 - hose ø 6mm | D | 1 | -- |
C1098006 Request information |  | Quick G1/8 - hose ø 8mm | D | 1 | -- |

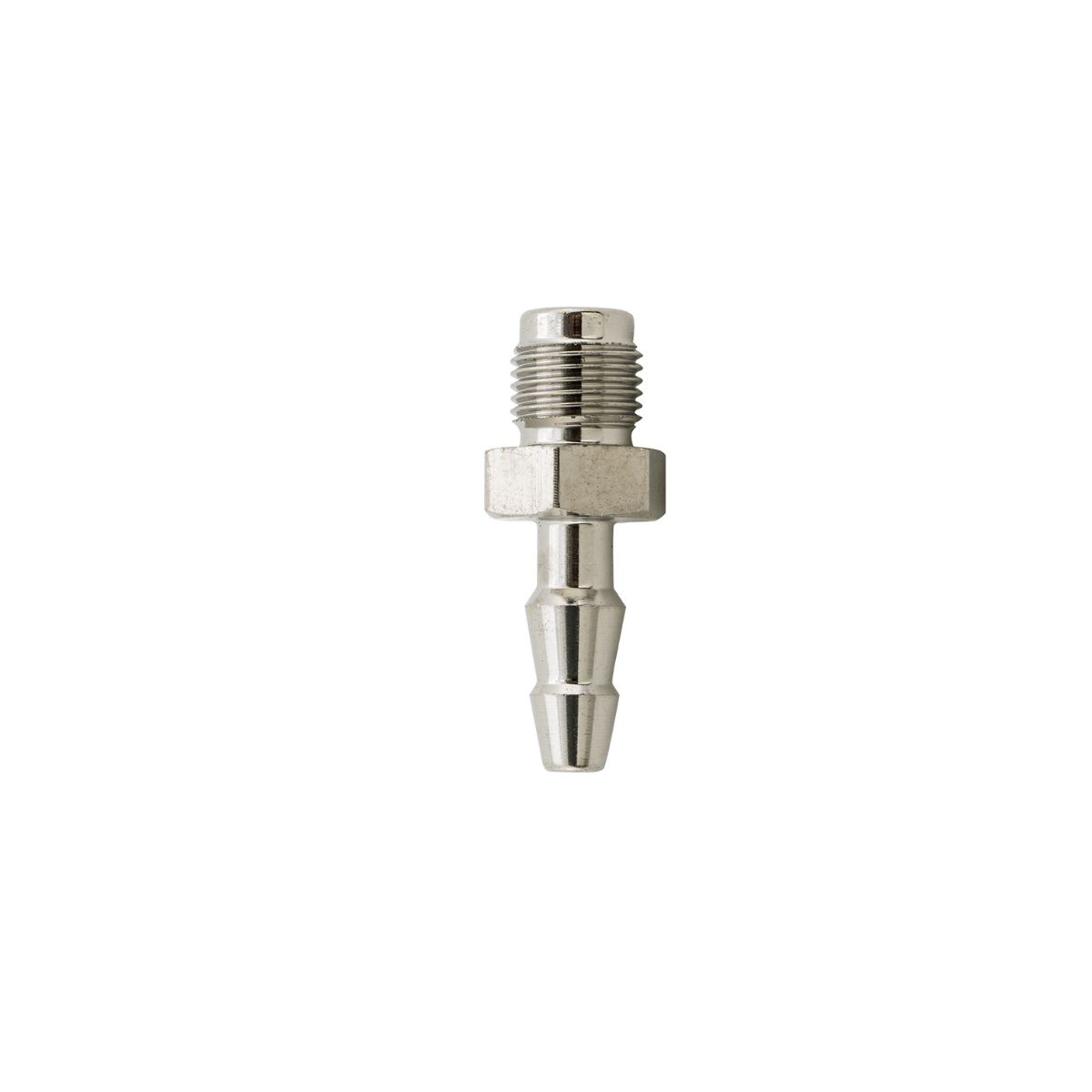

C2008403 Request information |  | Hose connection ø 6.5/7.3mm | D | 1 | -- |

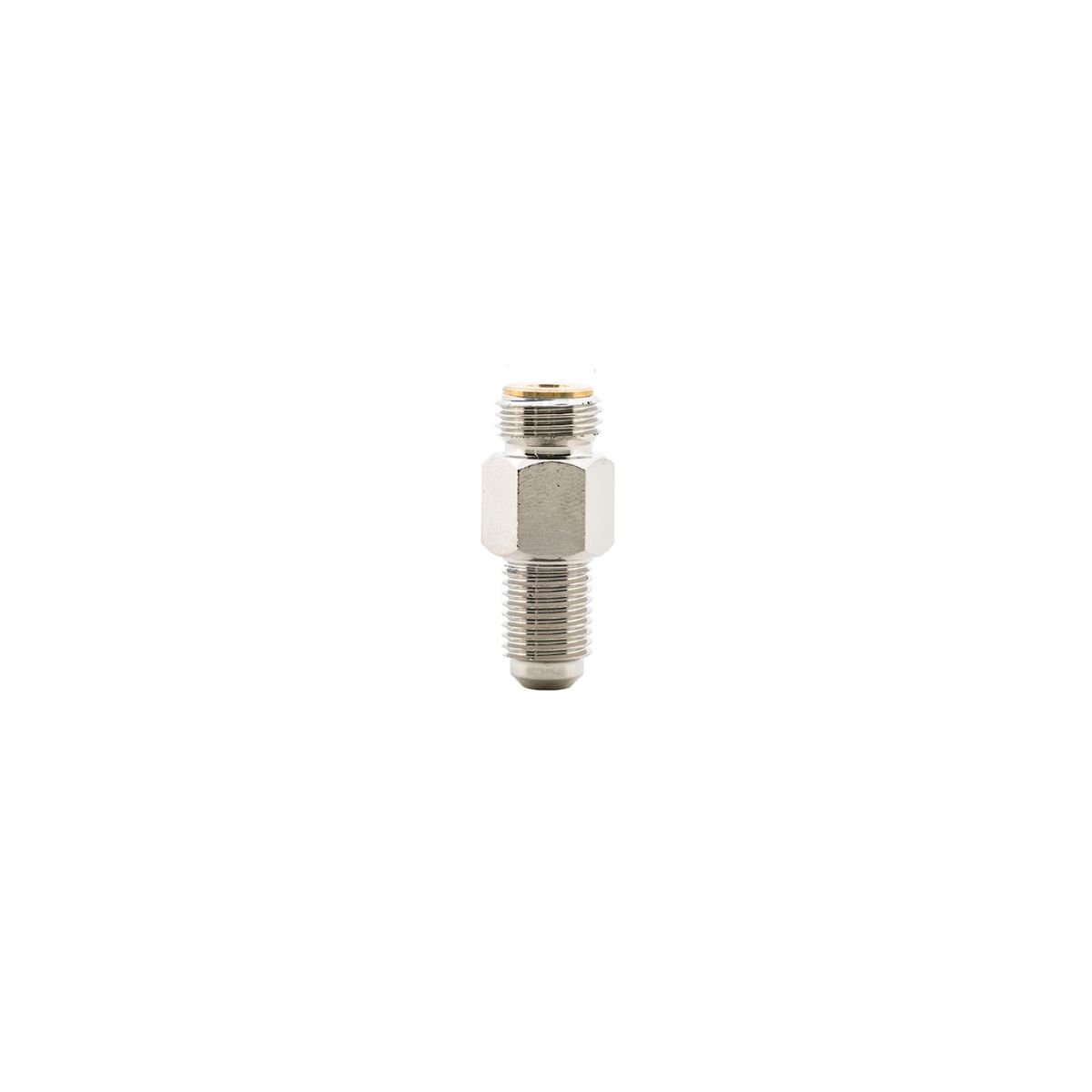

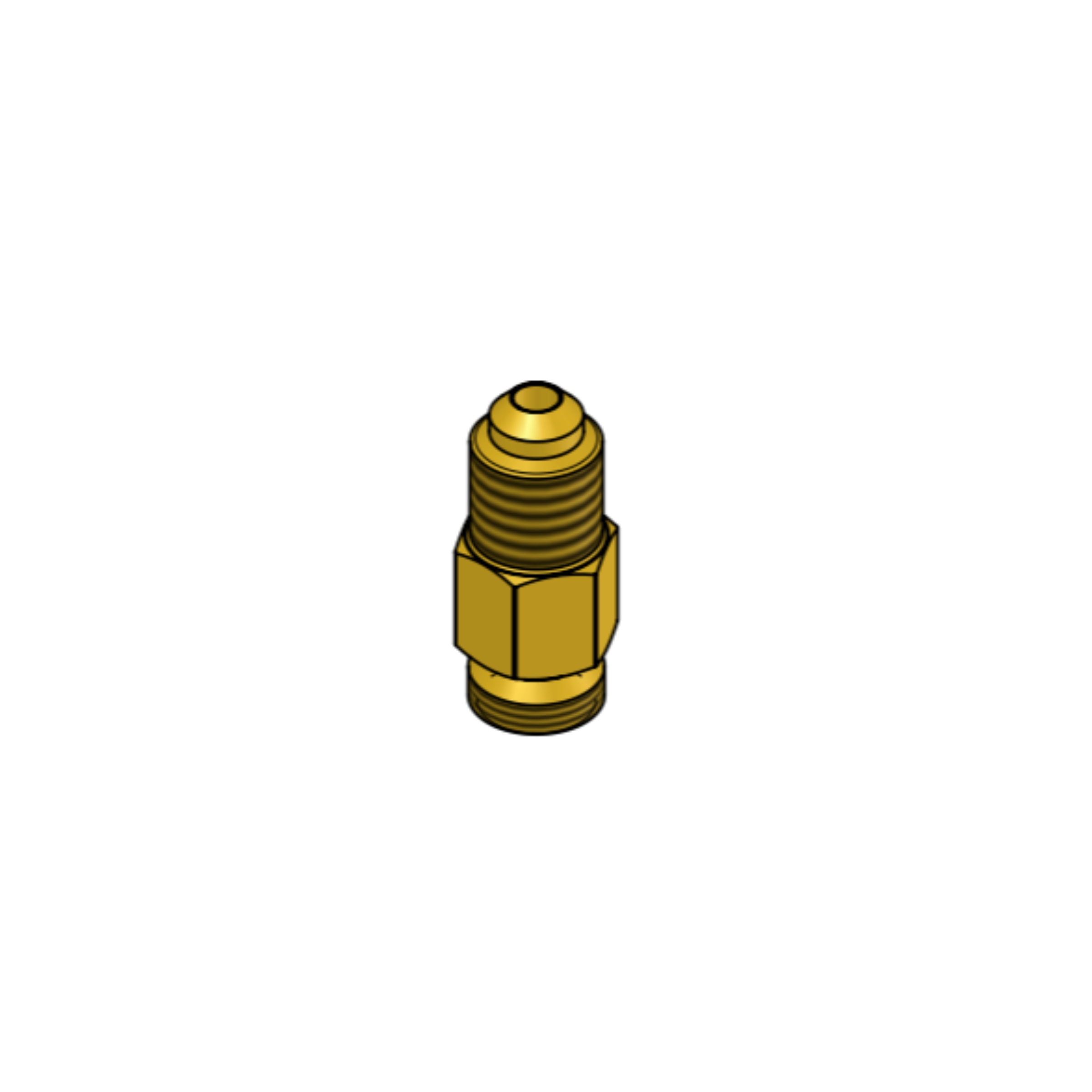

C1198408 Request information |  | Nickel-plated connection 7/16"-20UNF (1/4 SAE) - G1/8 | D | 1 | -- |
C1098001 Request information |  | Quick G1/8 - hose G1/4 inch. | R | 1 | -- |
C1098007 Request information |  | Quick G1/8 - hose G5/16 inch. | R | 1 | -- |

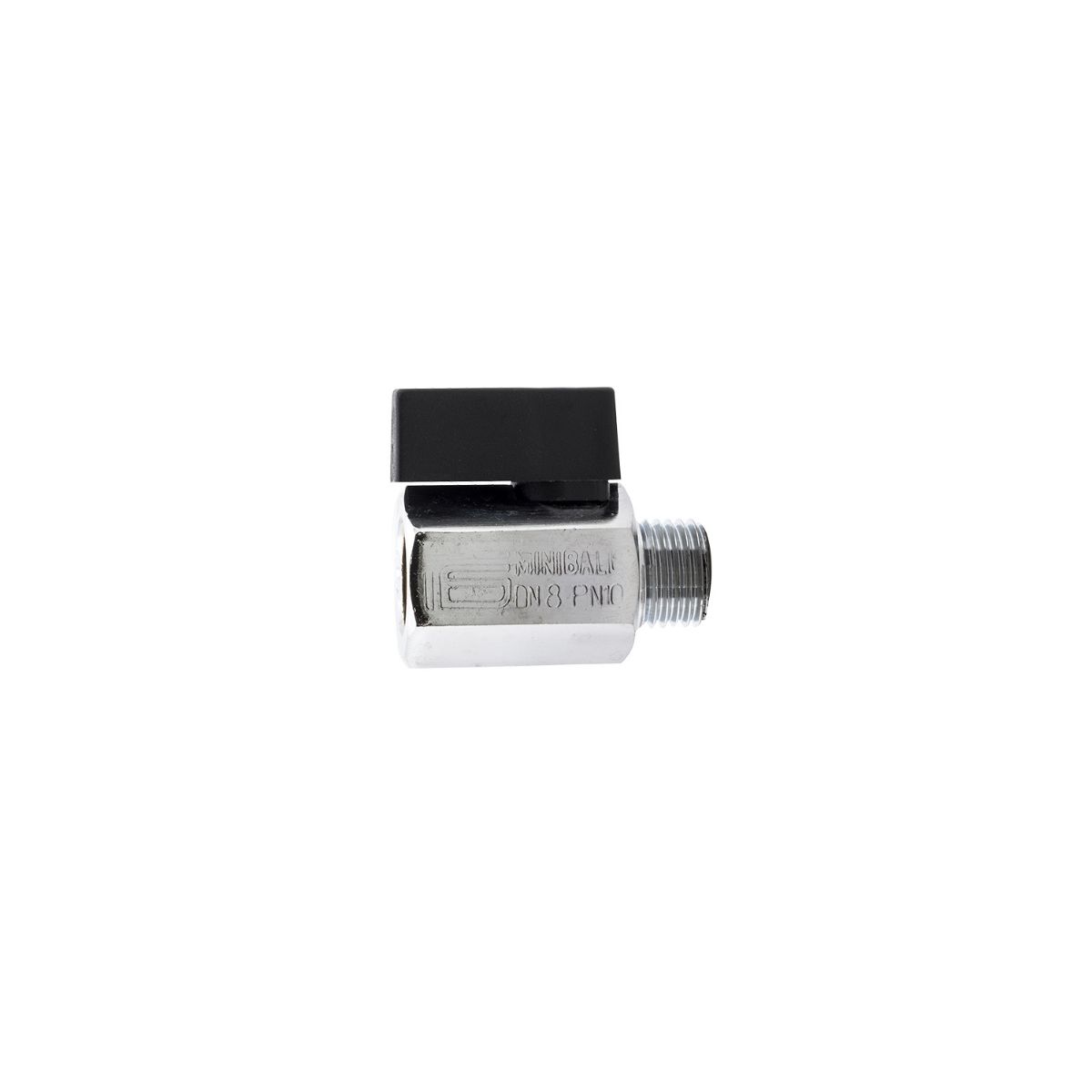

G4609002 Request information |  | Ball valve M/F – G1/8 | D | 1 | -- |
ACCESSORIES FOR MACRO AND MAJORPLUS
BEVERAGE - MAJORMIX / MINORMIX - ACCESSORIES FOR MACRO AND MAJORPLUS
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
194810 Request information |  | Double ring spanner size CH28 – CH30 | D | 1 | -- |
194812 Request information |  | Double ring spanner size CH30 – CH32 | D | 1 | -- |
194811 Request information |  | Double ring spanner size CH28 – CH32 | D | 1 | -- |

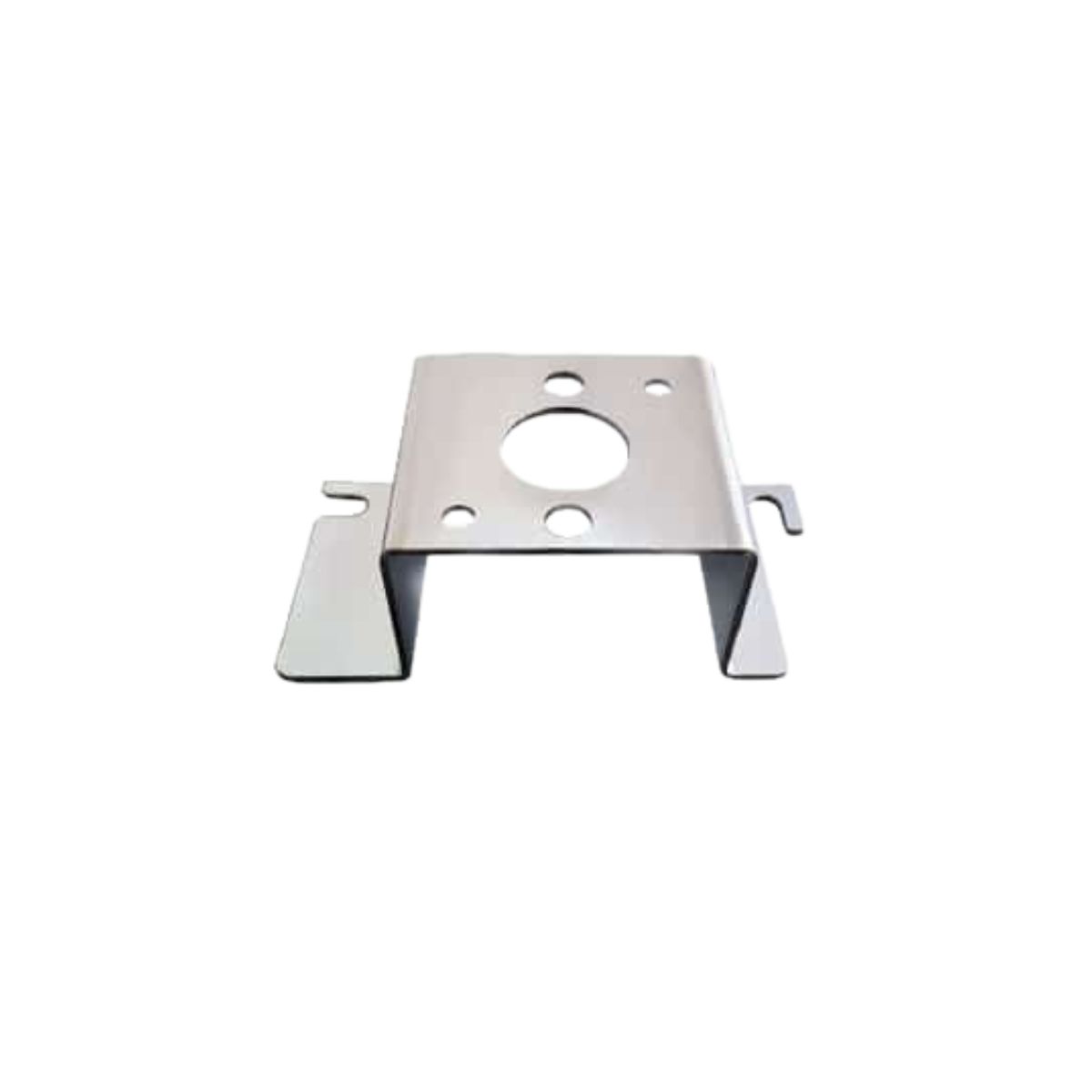

194820 Request information |  | Stainless steel bracket kit | D | 1 | -- |
194821 Request information |  | Stainless steel bracket kit for wall mounting | D | 1 | -- |
C1999471 Request information |  | 2-outlet distributor 7/16”Rhe with duck bill valve inlet 7/16”Rhi | R | 1 | -- |

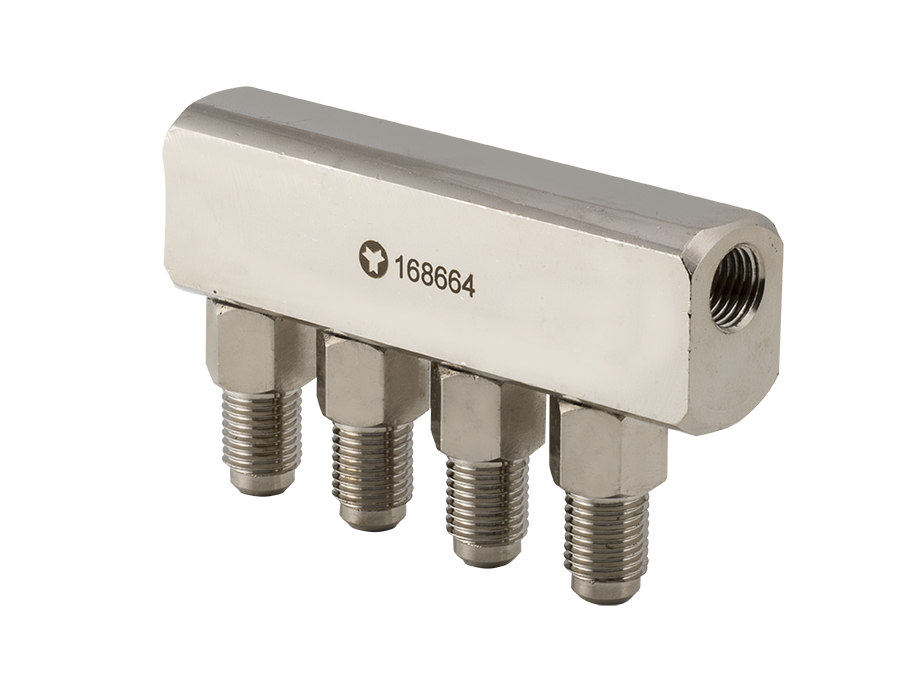

C1999472 Request information |  | 4-outlet distributor 7/16”Rhe with duck bill valve inlet 7/16”Rhi | R | 1 | -- |

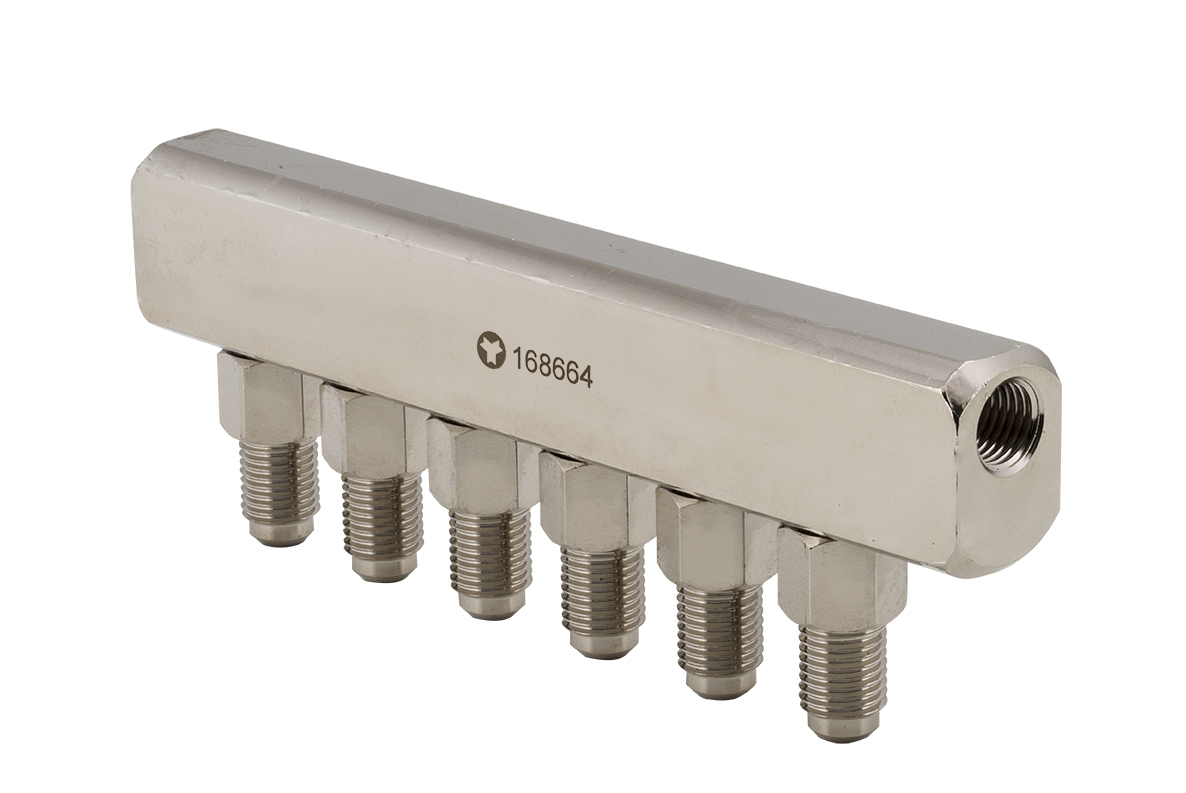

C1999470 Request information |  | 6-outlet distributor 7/16”Rhe with duck bill valve inlet 7/16”Rhi | R | 1 | -- |

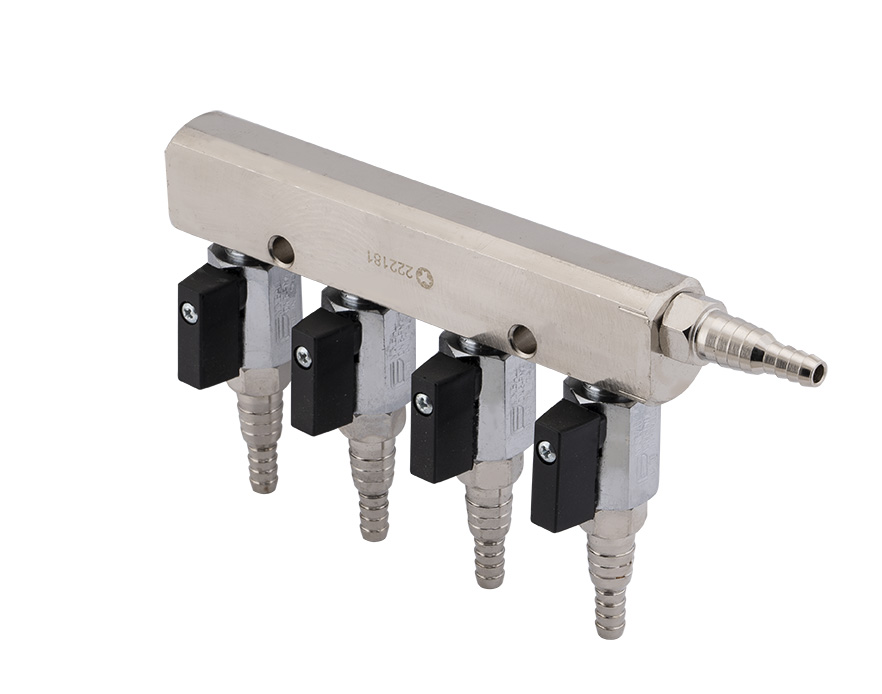

C1999954 Request information |  | 4-outlet distributor ball valve with duck bill valve | R | 1 | -- |
SAFETY VALVES
BEVERAGE - MAJORMIX / MINORMIX - SAFETY VALVES

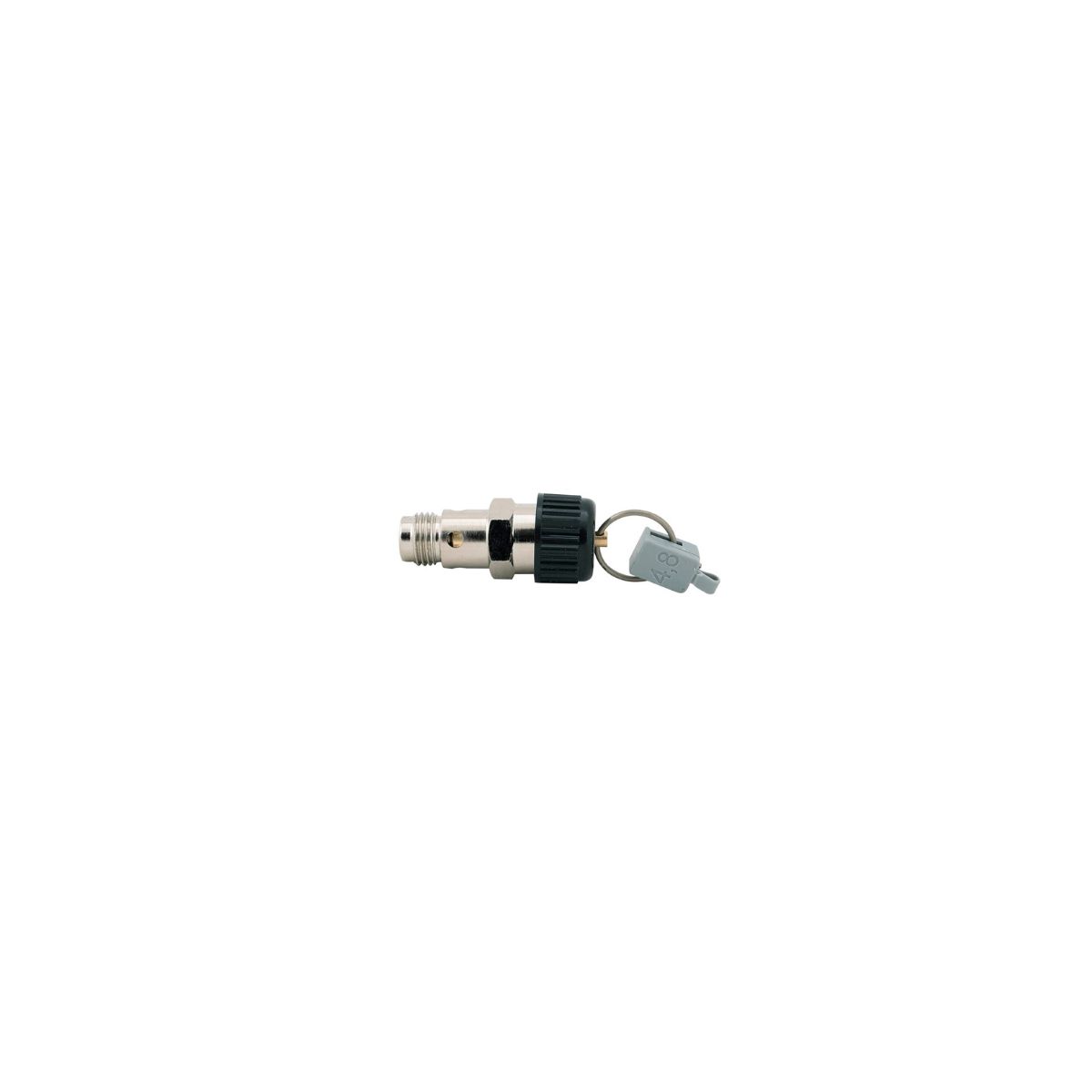

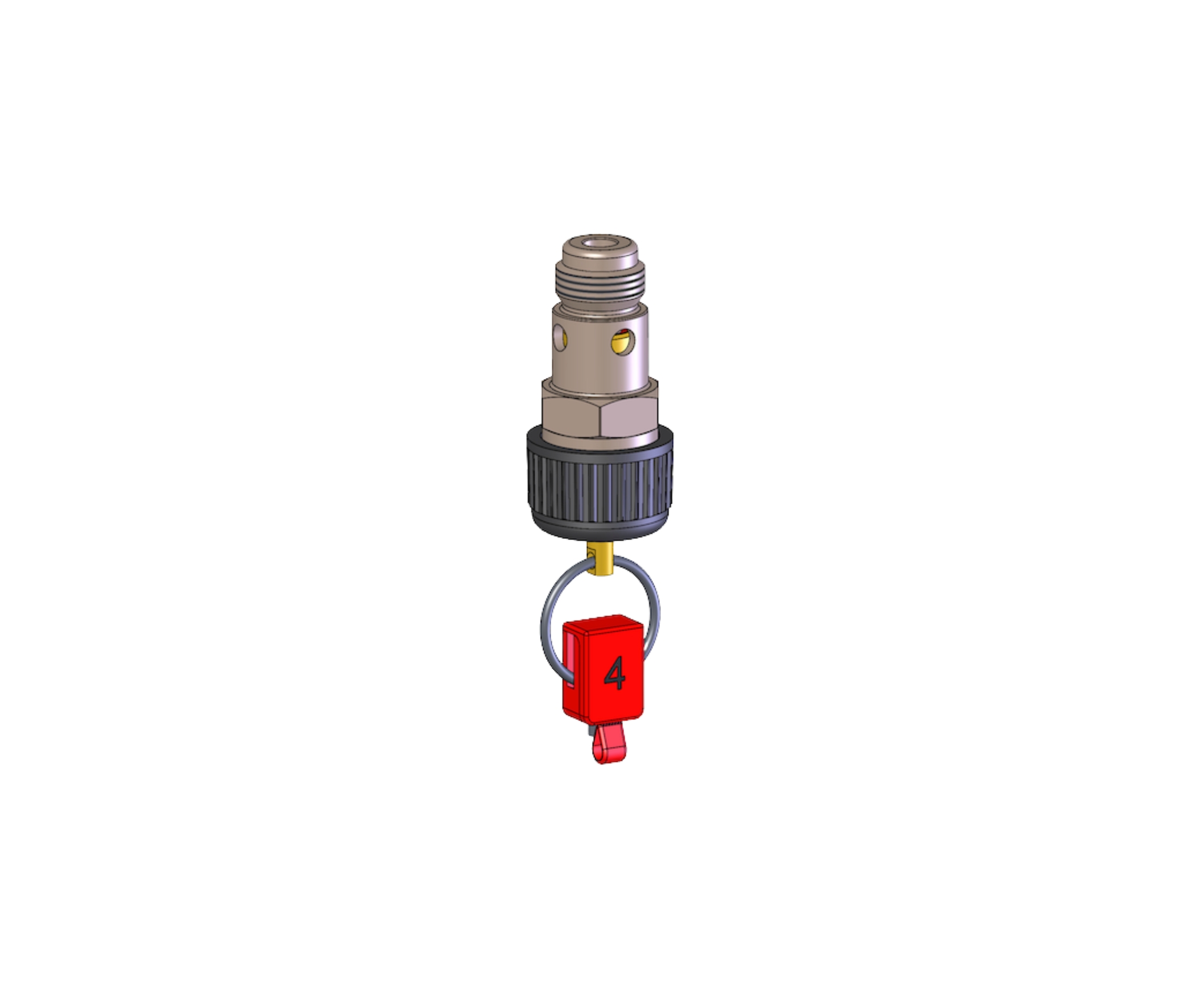

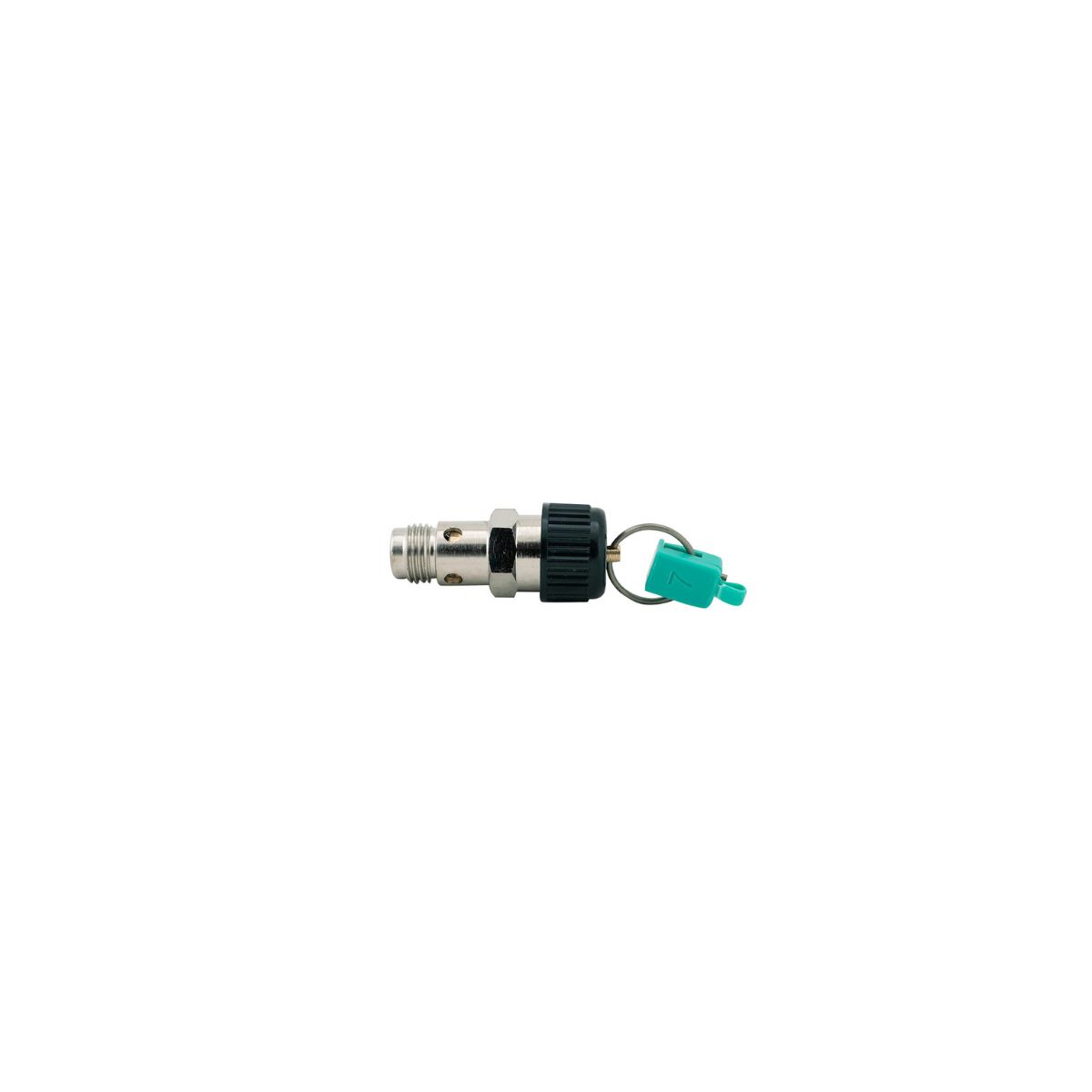

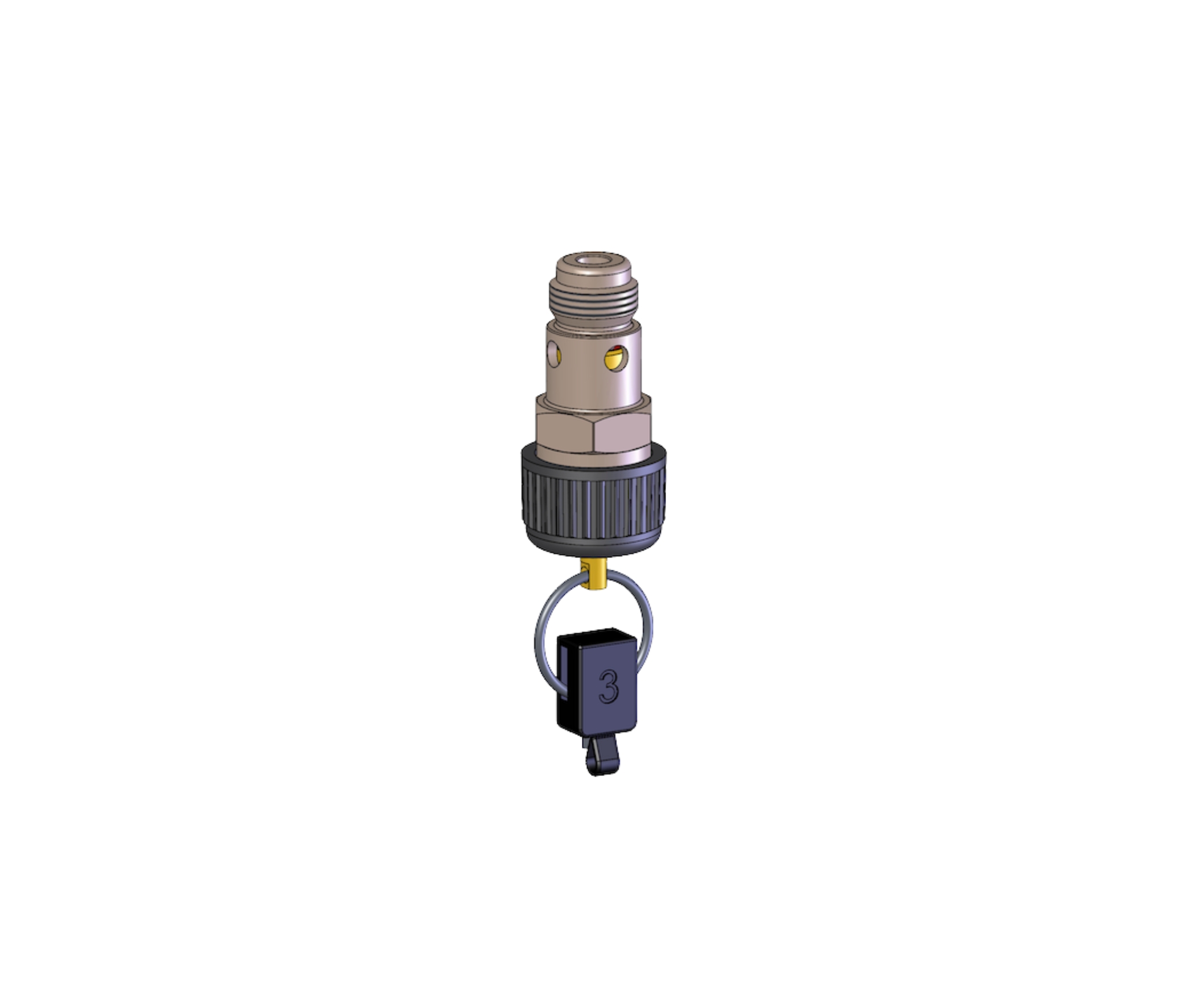

A series of pre-calibrated safety valves with G1/4 connection to be used both as spare parts for pressure regulators and installations. Available with 3 - 4 - 4.8 and 7 bar settings.
| Code | Image | Description | Connection | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
R7539975.00 Request information |  | Safety valve calibrated 3 bar | G1/4 | R | 0 | 1 | -- |
R7539976.00 Request information |  | Safety valve calibrated 4 bar | G1/4 | R | 0 | 1 | -- |
R7539977.00 Request information |  | Safety valve calibrated 4,8 bar | G1/4 | R | 0 | 1 | -- |
R7539978.00 Request information |  | Safety valve calibrated 7 bar | G1/4 | R | 0 | 1 | -- |
HIGH PRESSURE PIPING FOR MACRO AND MAJOR
BEVERAGE - MAJORMIX / MINORMIX - HIGH PRESSURE PIPING FOR MACRO AND MAJOR
Double textile braid hoses with Food Grade thermoplastic polyester interior. Microperforated abrasion-resistant extruded polyurethane cover with GCS (Glued Cover System).
- Inner diameter: 1⁄4’ - 6.6 mm;
- Outer diameter: 12.8 mm;
- Maximum working pressure: 300bar;
- Minimum burst pressure: 1000bar;
- Test pressure: 600bar.
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|

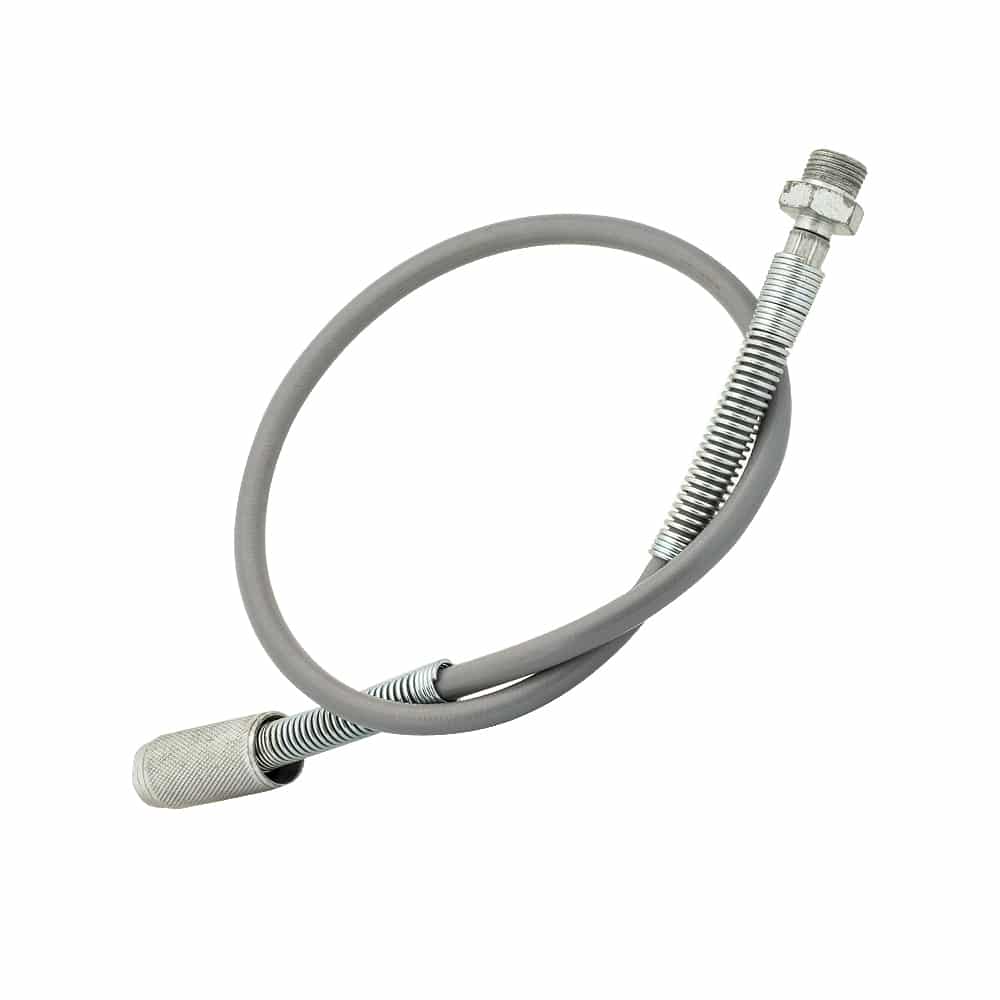

9F001000 Request information |  | High pressure food-grade piping for CO2 reducer L=100 cm (manual unscrewing) | R | 1 | -- |
9F001800 Request information |  | High pressure food-grade piping for CO2 reducer L=180 cm (manual unscrewing) | R | 1 | -- |
9F011000 Request information |  | High pressure food-grade piping for N2 reducer L=100 cm | R | 1 | -- |
9F011800 Request information |  | High pressure food-grade piping for N2 reducer L=180 cm | R | 1 | -- |
ACCESSORIES FOR FERMENTATION IN TANKS AND KEGS
BEVERAGE - MAJORMIX / MINORMIX - ACCESSORIES FOR FERMENTATION IN TANKS AND KEGS
Oxyturbo also offers a range of accessories for tanks and kegs, such as spunding valves with a 2.5 bar pressure gauge to maintain enough pressure in the fermenter to carbonate the beer, keg filling valve assemblies that also allow fermenters to ferment beer under pressure and cool it down before transferring it to a keg, or ball locks for gases and liquids. With the spunding valve, natural carbonation can be achieved in the fermenter. The valve is adjusted to the correct pressure based on the desired degree of carbonation. It is a necessary tool, for example, when pouring beer between two kegs.
| Code | Image | Description | Connection | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|

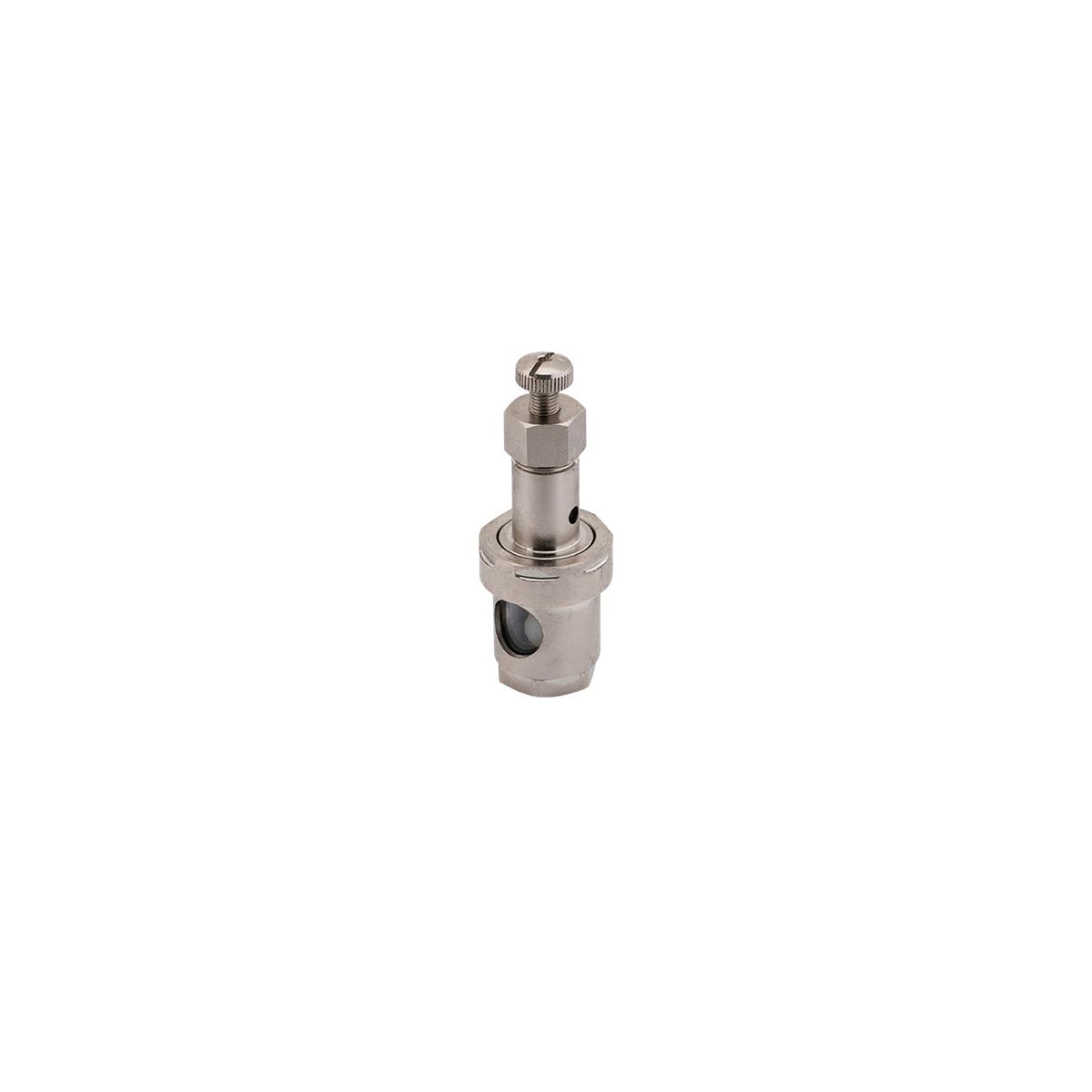

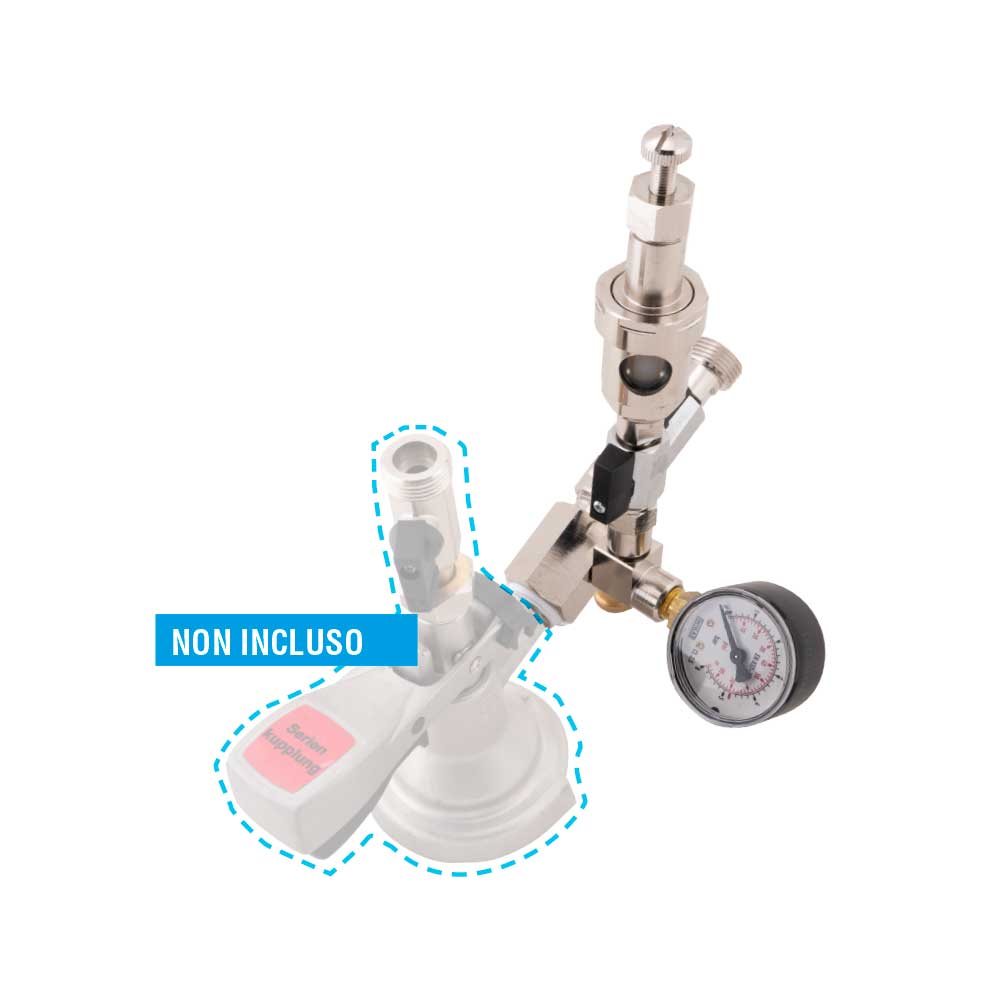

C1999478 Request information |  | Spunding valve | 7/16"-20UNF (1/4SAE) | R | 0 | 1 | -- |
C1999476.00 Request information |  | Exhaust valve group and control | G5/8 | R | 0 | 1 | -- |
479900 Request information |  | Exhaust valve and control | G5/8 | R | 0 | 1 | -- |

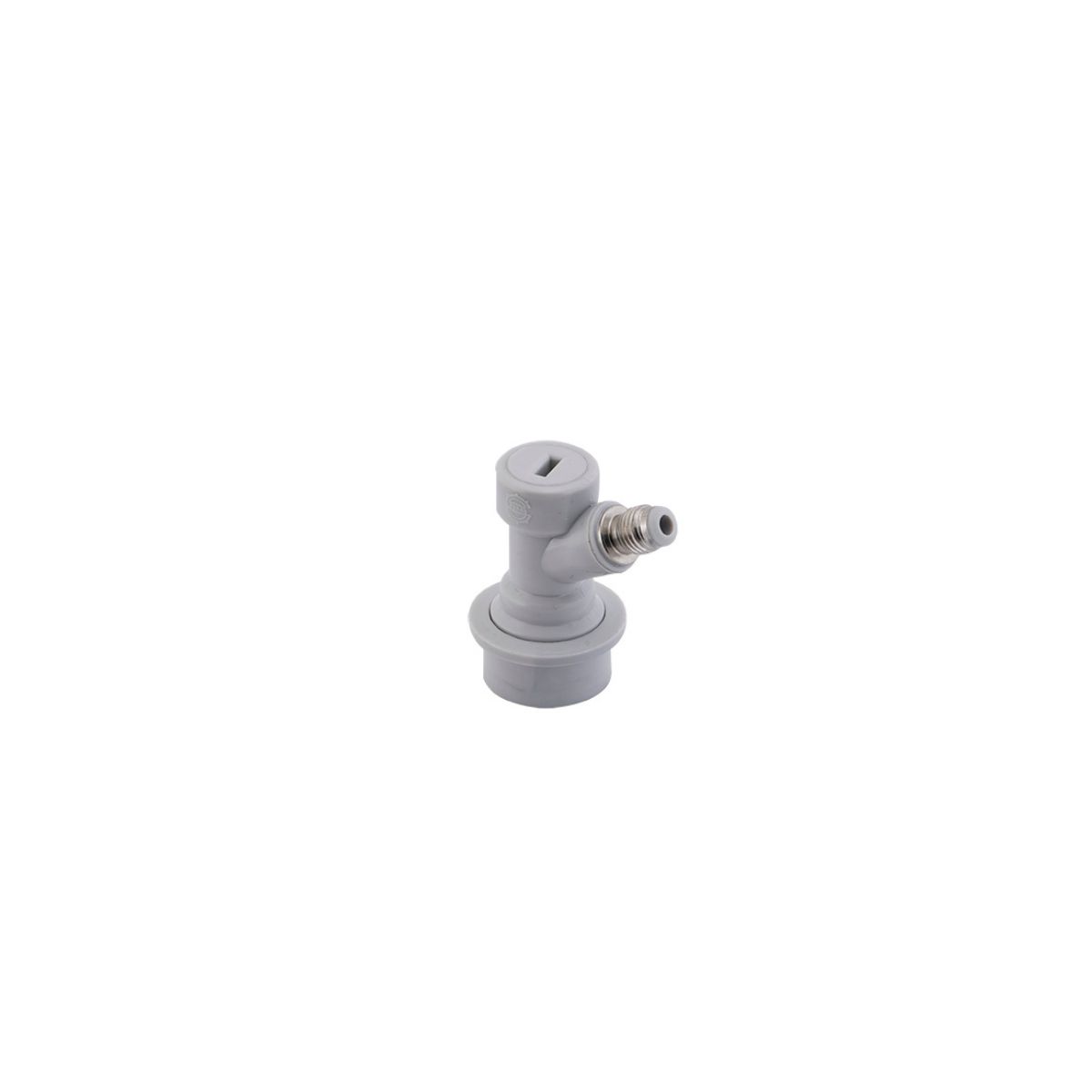

411100 Request information |  | Ball lock grey for gas | 7/16"-20UNF (1/4SAE) | R | 0 | 1 | -- |
411101 Request information |  | Black ball lock for liquids | 7/16"-20UNF (1/4SAE) | R | 0 | 1 | -- |
ACCESSORIES FOR WALL MOUNTING OF HIGH PRESSURE CONNECTIONS
BEVERAGE - MAJORMIX / MINORMIX - ACCESSORIES FOR WALL MOUNTING OF HIGH PRESSURE CONNECTIONS

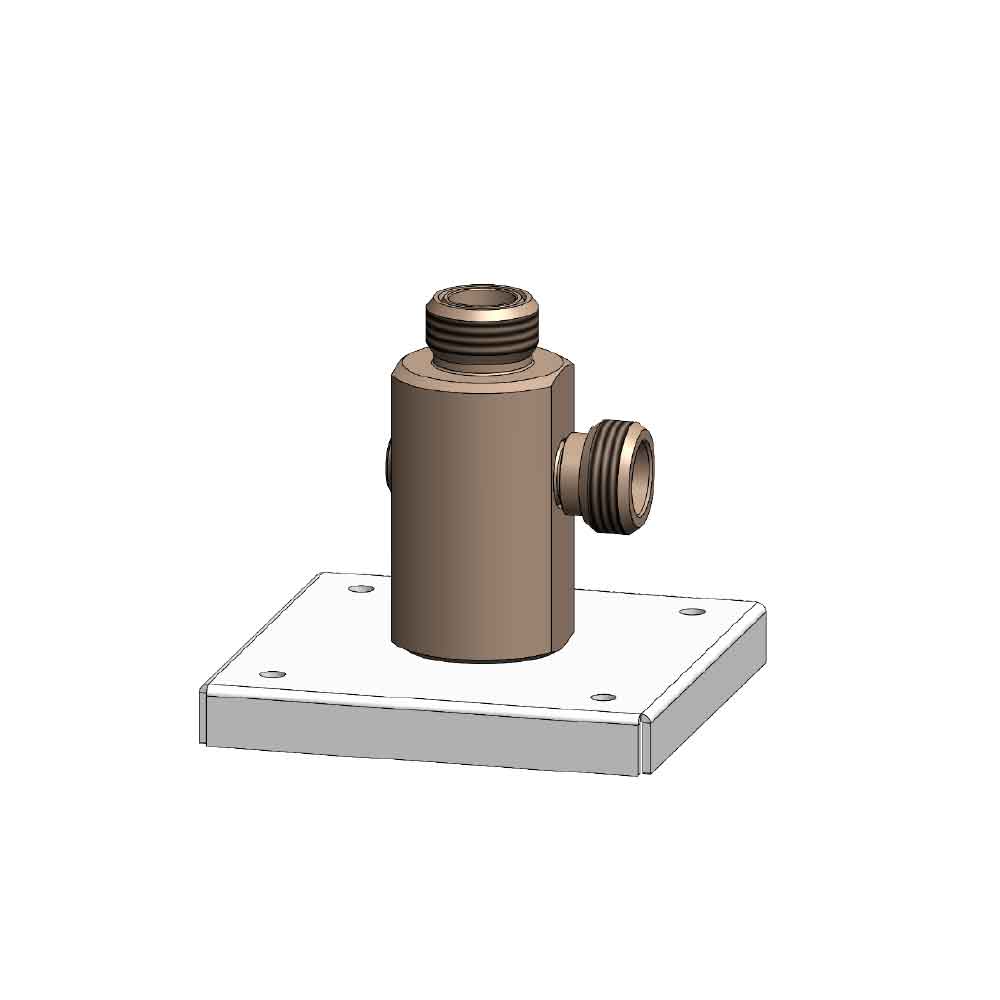

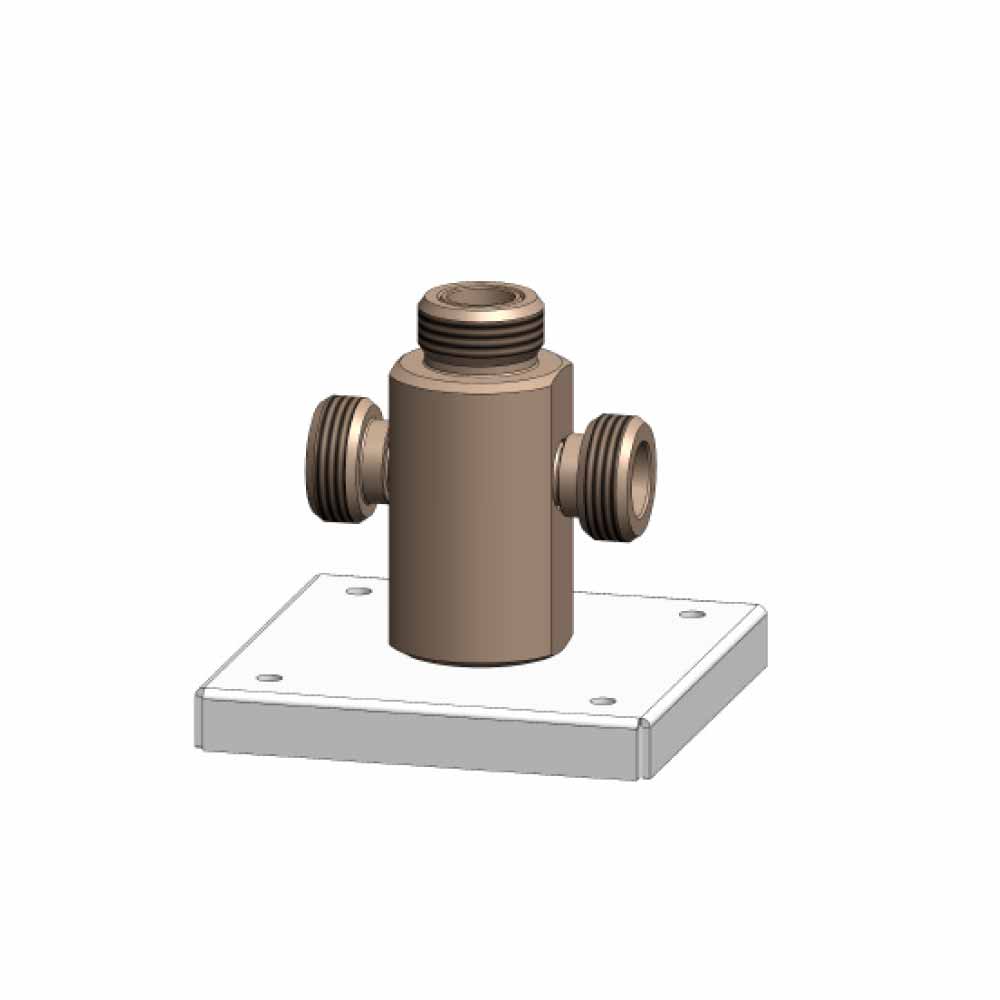

The base has dimensions 90x90 mm and is made of stainless steel. These panels must be wall-mounted and are designed for high-pressure connections.
Available with two or three connections.
| Code | Image | Description | Connection | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
C1999490.00 Request information |  | Panel for 2 connections CO2 | W21,8X1/14" | R | 0 | 1 | -- |
C1999493.00 Request information |  | Panel for 2 connections N2 | W24.32X1/14" | R | 0 | 1 | -- |
C1999491.00 Request information |  | Panel for 3 connections CO2 | W21,8X1/14" | R | 0 | 1 | -- |
C1999492.00 Request information |  | Panel for 3 connections N2 | W24.32X1/14" | R | 0 | 1 | -- |
WALL MOUNTED CONTROL KITS
BEVERAGE - MAJORMIX / MINORMIX - WALL MOUNTED CONTROL KITS

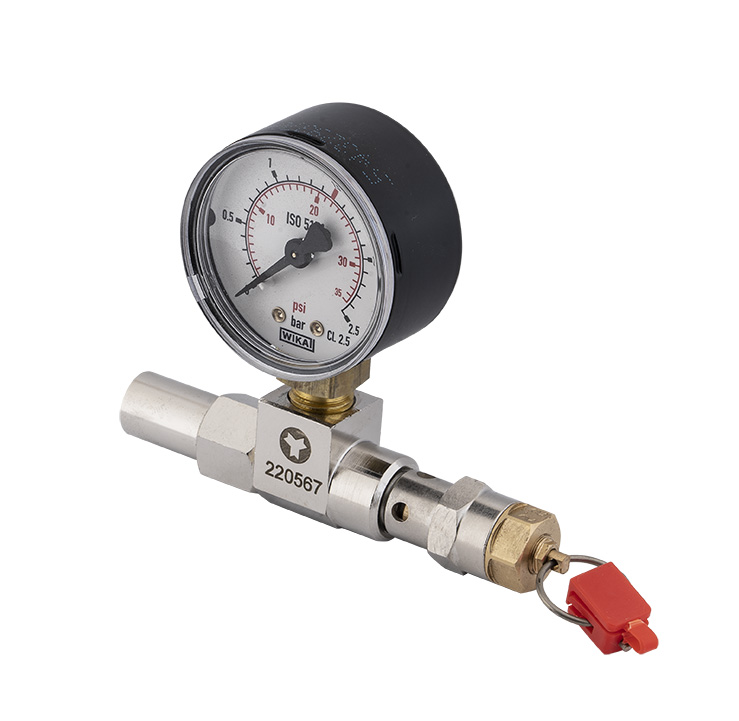

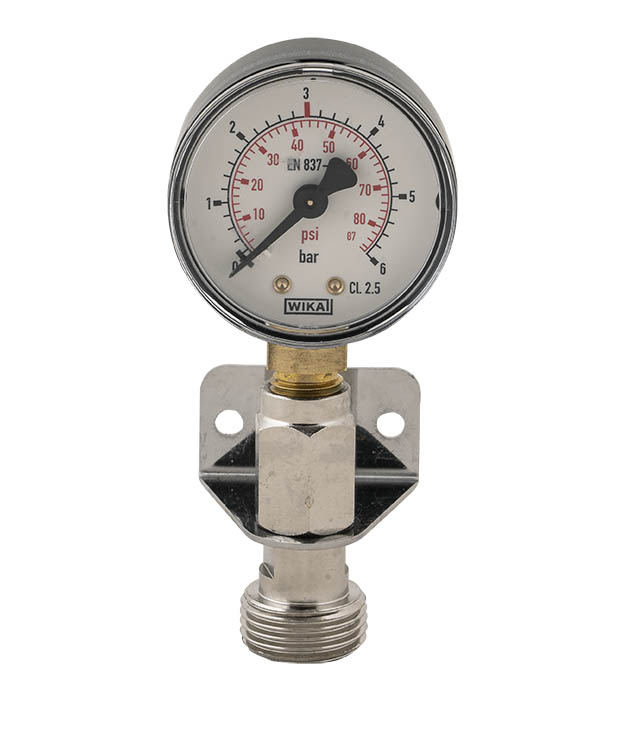

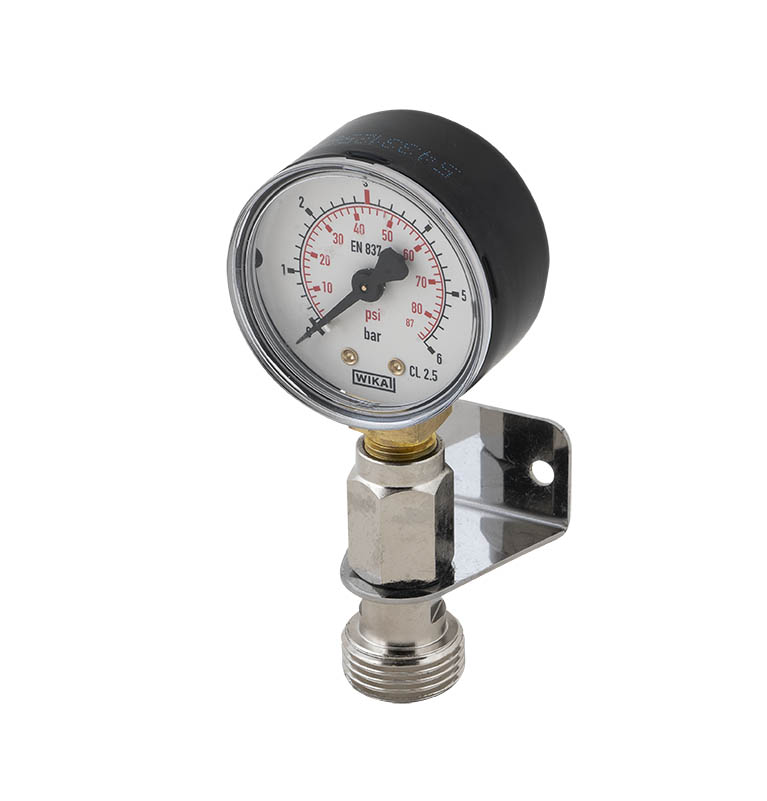

Useful instruments for checking CO2 and nitrogen pressure in the line
| Code | Image | Description | Connection | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
490100 Request information |  | 3 bar control kit | G5/8 | R | 0 | 1 | -- |
490101 Request information |  | 7 bar control kit | G5/8 | R | 0 | 1 | -- |
EXTENSIONS FOR CONNECTING INTERMEDIATE PRESSURE REGULATORS
BEVERAGE - MAJORMIX / MINORMIX - EXTENSIONS FOR CONNECTING INTERMEDIATE PRESSURE REGULATORS

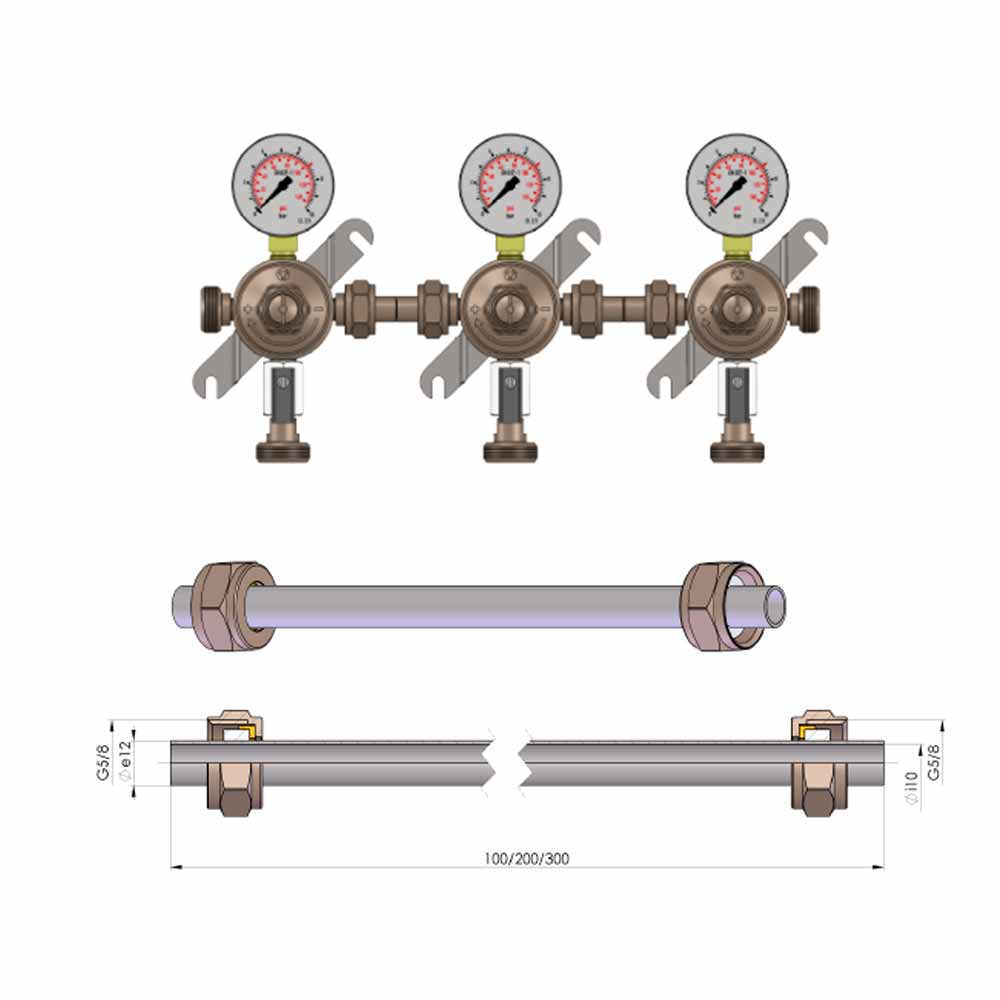

Extensions of different lengths for low and high pressure connection. They make it possible to create a set of intermediate pressure regulators.
| Code | Image | Description | Connection | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|

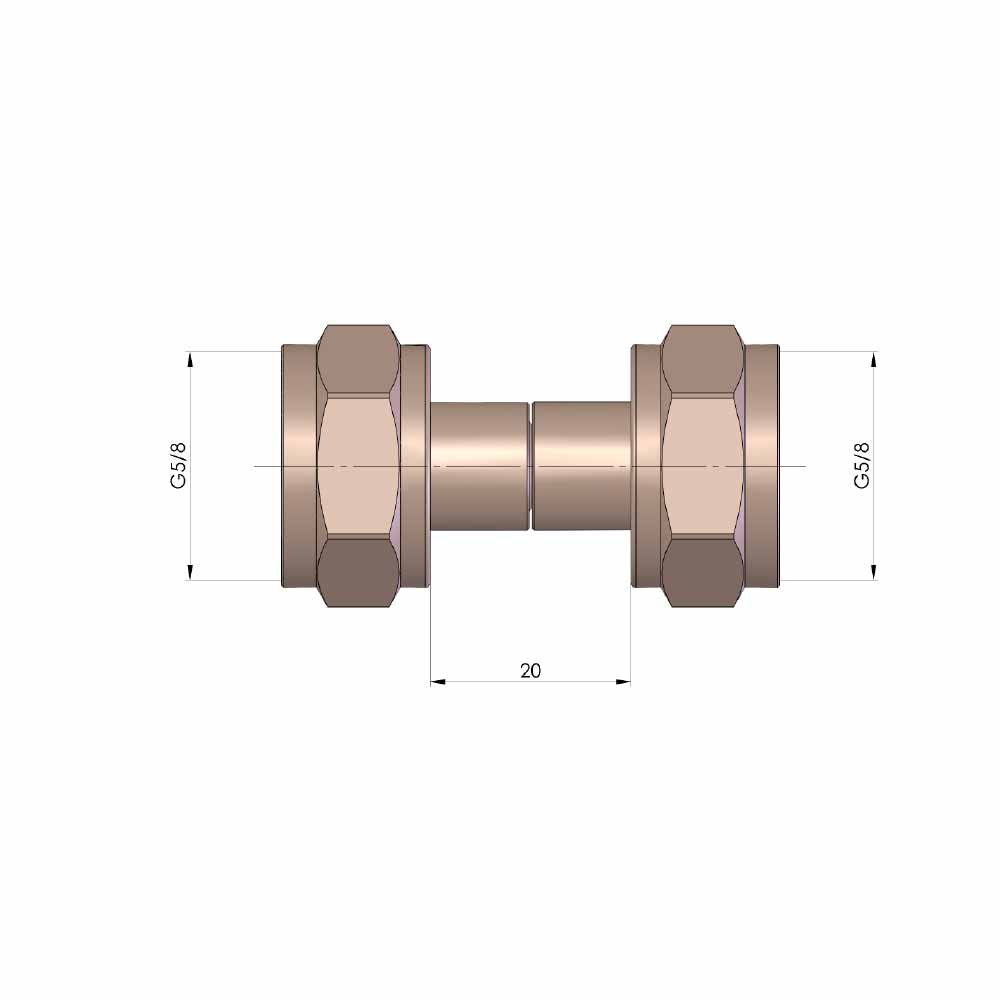

C1999463.00 Request information |  | Extension L=20mm | G5/8 | R | 0 | 1 | -- |
C1999040.00 Request information |  | Extension L=100mm | G5/8 | R | 0 | 1 | -- |
C1999041.00 Request information |  | Extension L=200mm | G5/8 | R | 0 | 1 | -- |
C1999042.00 Request information |  | Extension L=300mm | G5/8 | R | 0 | 1 | -- |
DOUBLE CYLINDER CONNECTION
BEVERAGE - MAJORMIX / MINORMIX - DOUBLE CYLINDER CONNECTION

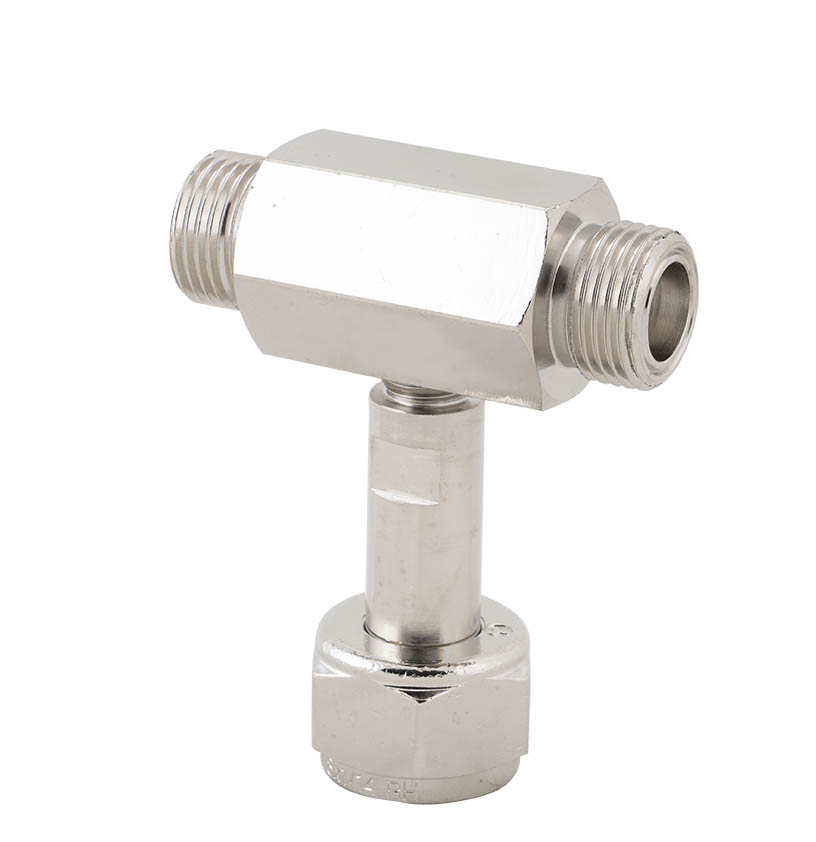

Connect two pressure regulators with one CO2 cylinder to save space in your line.
| Code | Image | Description | Connection | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|

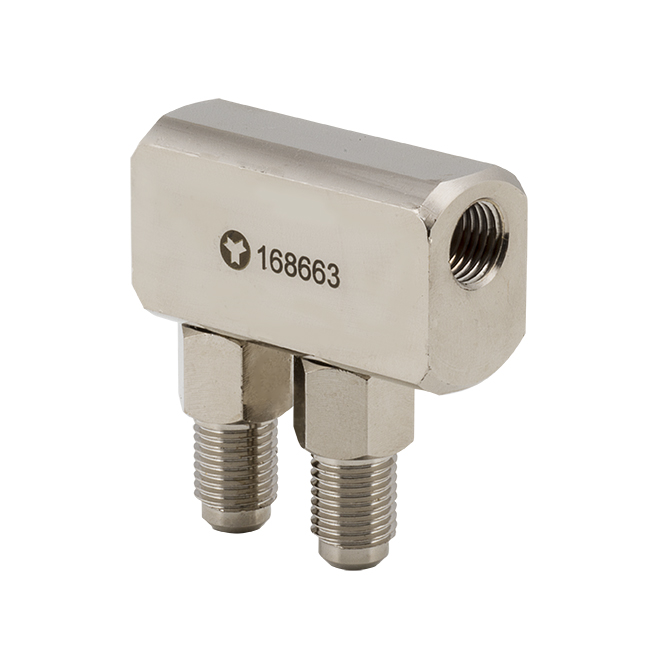

C1999441.00 Request information |  | Double connection for CO2 | W21.8X1/14" | R | 0 | 1 | -- |
STANDARD AND HIGH FLOW PREHEATERS
BEVERAGE - MAJORMIX / MINORMIX - STANDARD AND HIGH FLOW PREHEATERS
Input connection W21.8x1/14F – Output connection W21.8x1/14M. 230 Volt power supply. They eliminate the "frost effect" on CO2 – Argon/CO2 regulators
The 250 W high-capacity preheater can be used on single gas cylinders, cylinder bundles, or centralized distribution systems. It comes with a socket, 2-meter cable, and a green LED when on. It can also be used with all inert gases, oxygen, and nitrous oxide (299706) and is certified for use in the food industry.
P1 max: 200 bar
P2: 6 bar*.
Flow rate: 10 Nm3/h*.
| Code | Image | Description | P1 (bar) | P2 (bar) | Q1 (m³/h) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|
299707 Request information |  | HIGH FLOW RATES 230 VOLT 250 W | 200 | 6 | 10 NM3/H | R | 2 | 1 | -- |

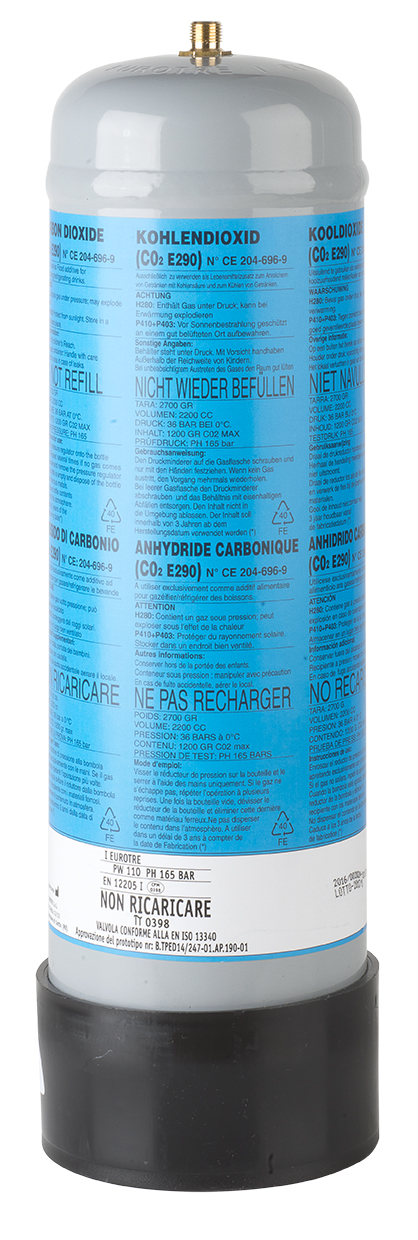

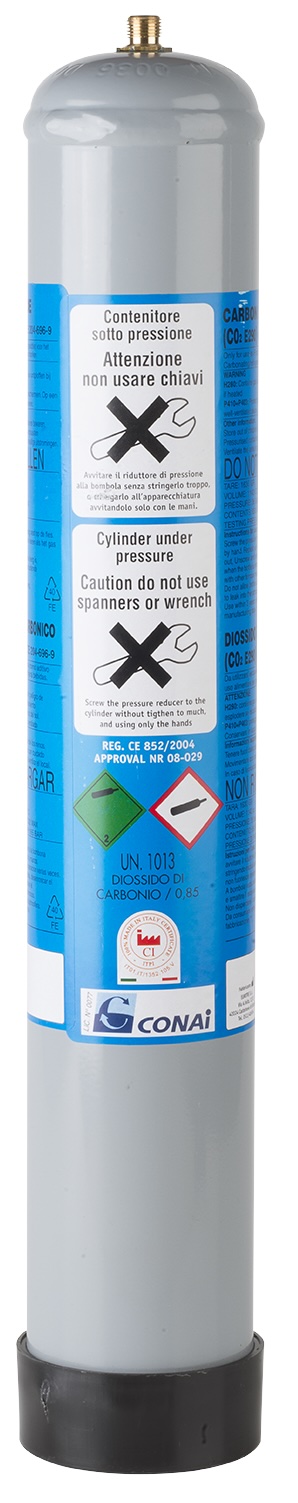

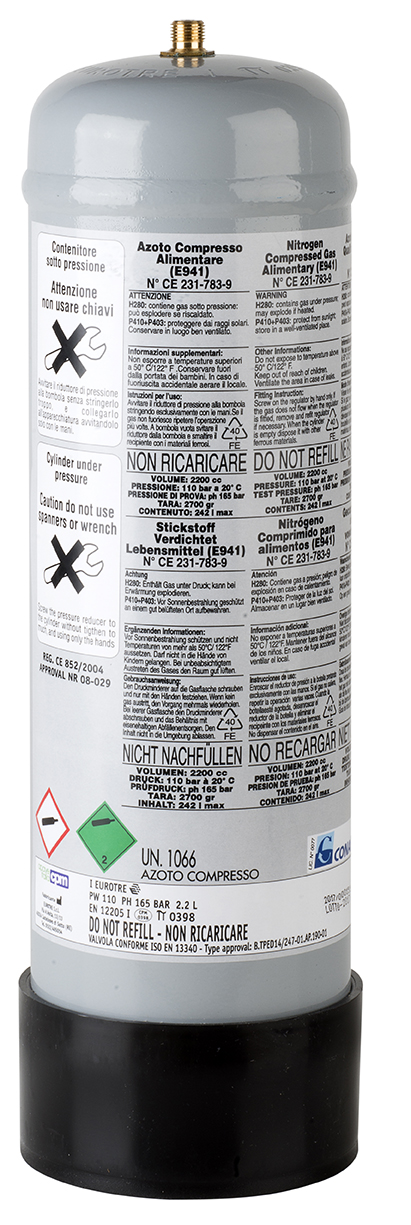

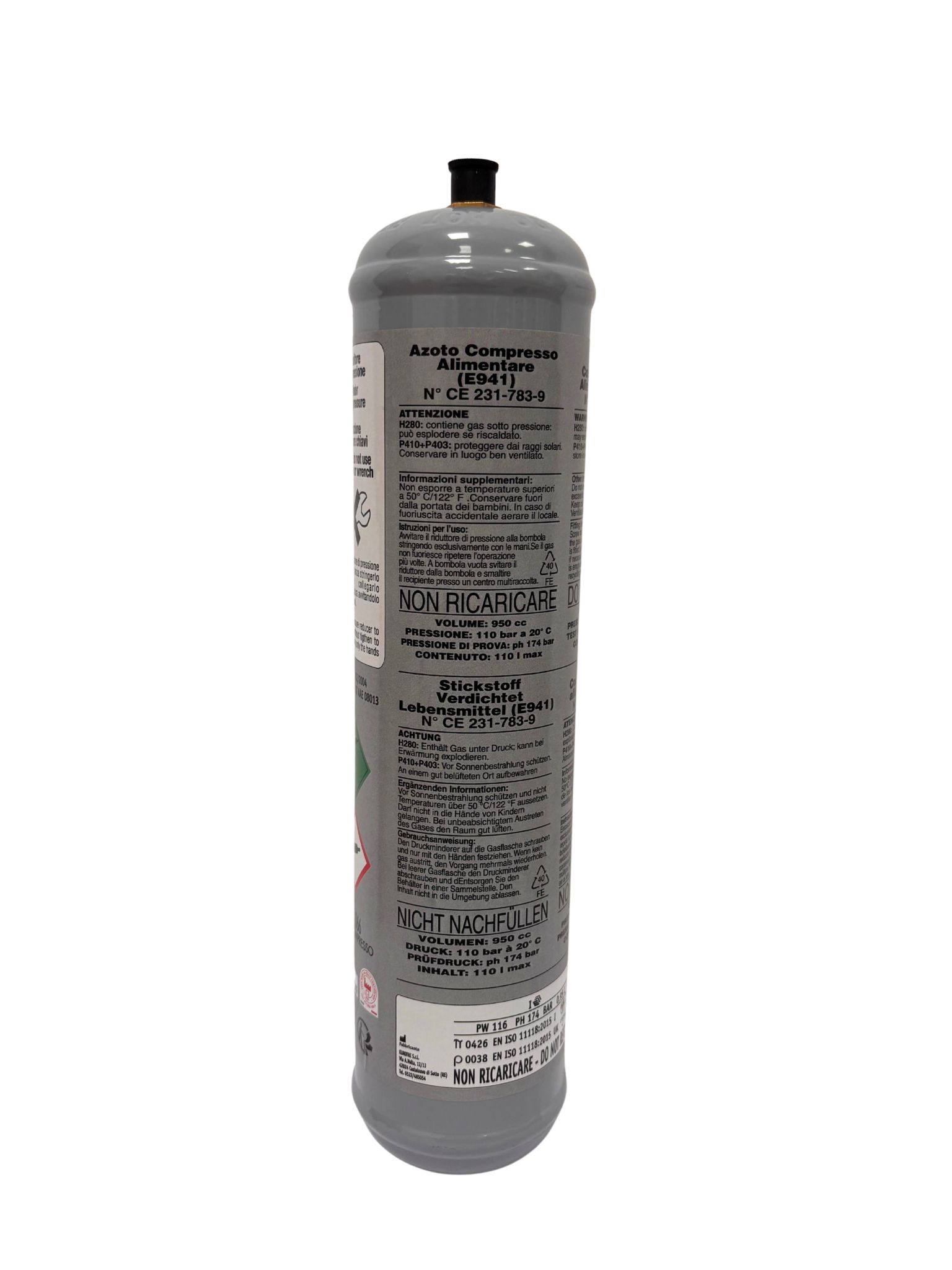

FOODGRADE GAS CYLINDERS
BEVERAGE - MAJORMIX / MINORMIX - FOODGRADE GAS CYLINDERS
| Code | Image | Description | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|
485400 Request information |  | FOOD-GRADE CO2 CYLINDER E290 600g M11X1 with foot stand | D | 12 | |
485500 Request information |  | FOOD-GRADE CO2 CYLINDER E290 850g M11X1 with foot stand | R | 12 | -- |
484360 Request information |  | FOOD GRADE N2 CYLINDER E941 110BAR M11X1 with foot stand 950 cc | R | 12 | |
485601 Request information |  | FOOD-GRADE CO2 CYLINDER E290 M11X1 2.2 L with foot stand | R | 4 | -- |
484460 Request information |  | FOOD GRADE N2 CYLINDER E941 110BAR M11X1 2,2 L | R | 4 |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
