MAJOR CO2 - CALIBRATION 3 | 4.8 | 5.5 BAR
BEVERAGE - MAJOR - MAJOR CO2 - CALIBRATION 3 | 4.8 | 5.5 BAR
| Code | Image | Description | P2 (bar) | H.P. gauge (0–250 bar) | L.P. gauge (0–6 bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|

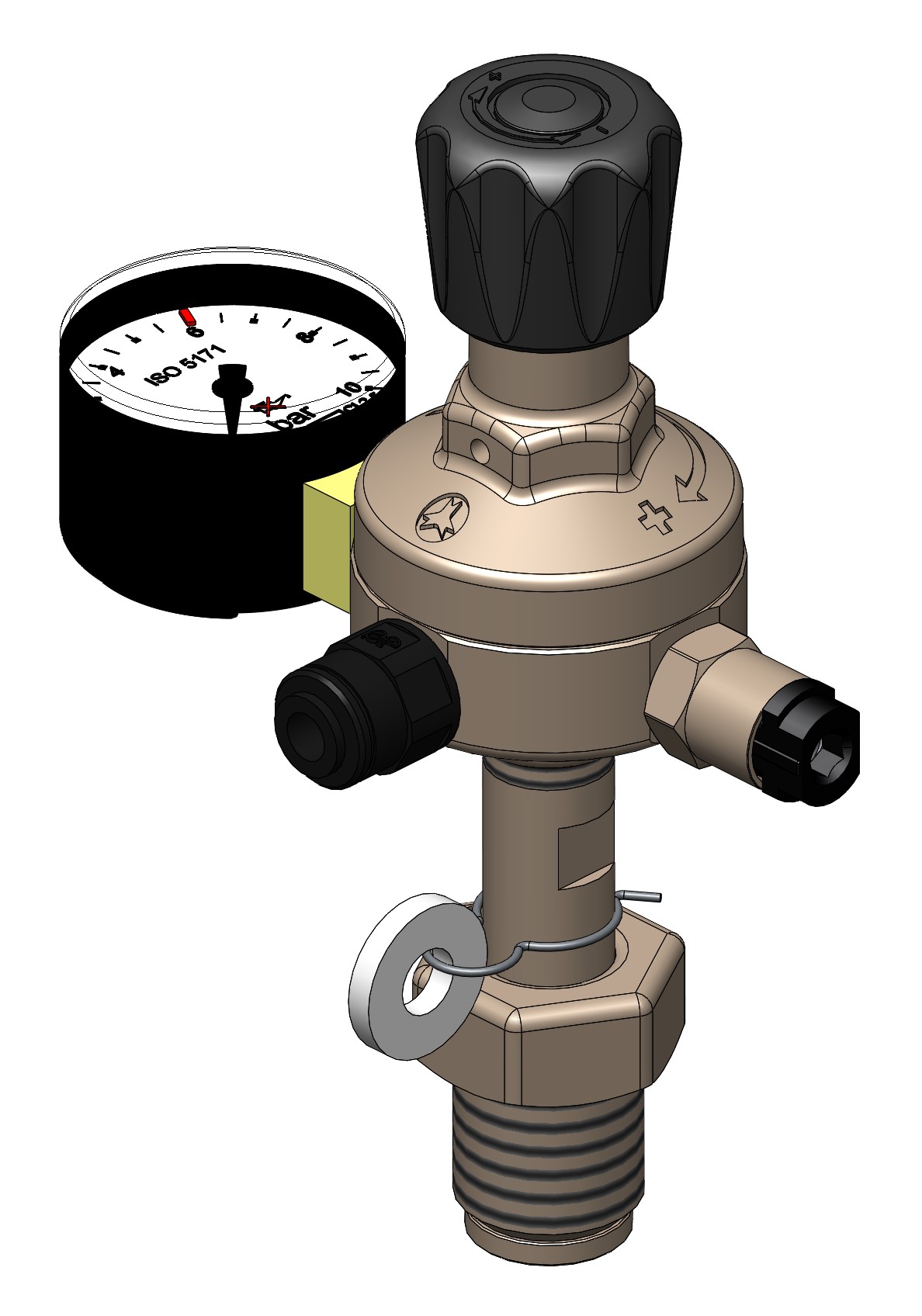

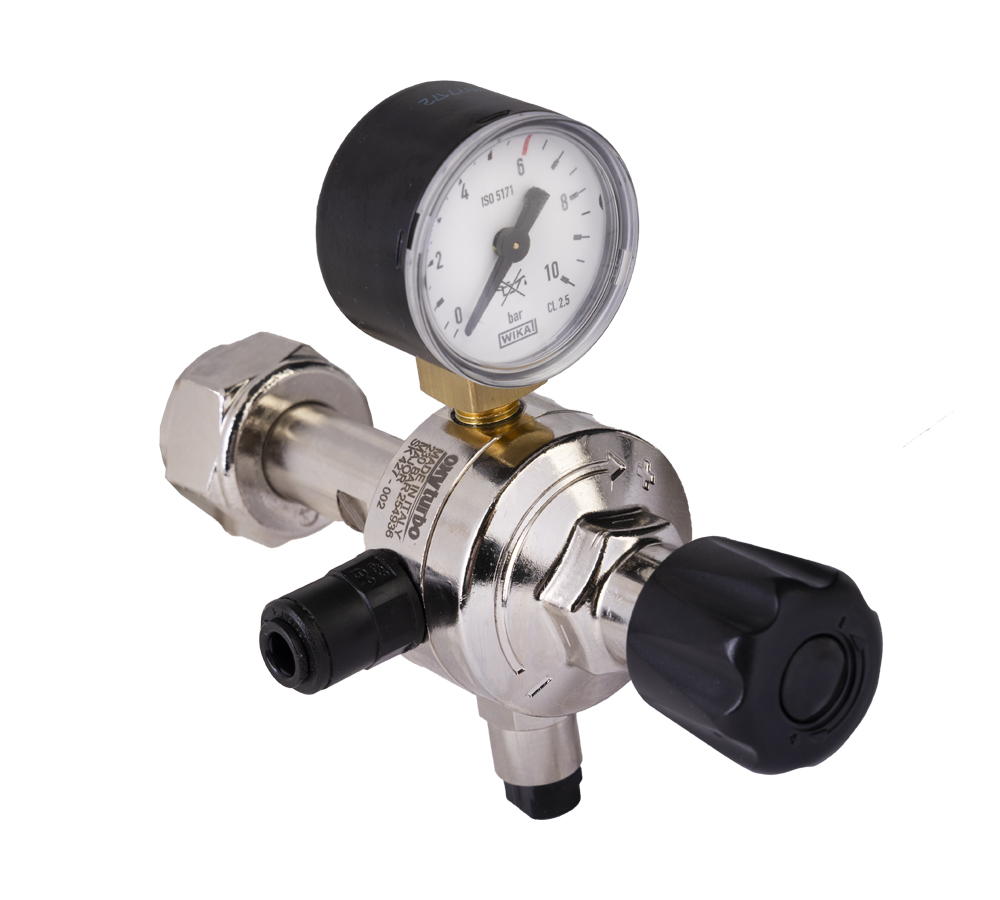

360300 Request information | | MAJOR 1GaugeLP W21,8 DIN Q1=6500nL/h p2=3,0b AR6mm J.G. | 3 | -- | 0-4 | R | 0 | 1 | -- |

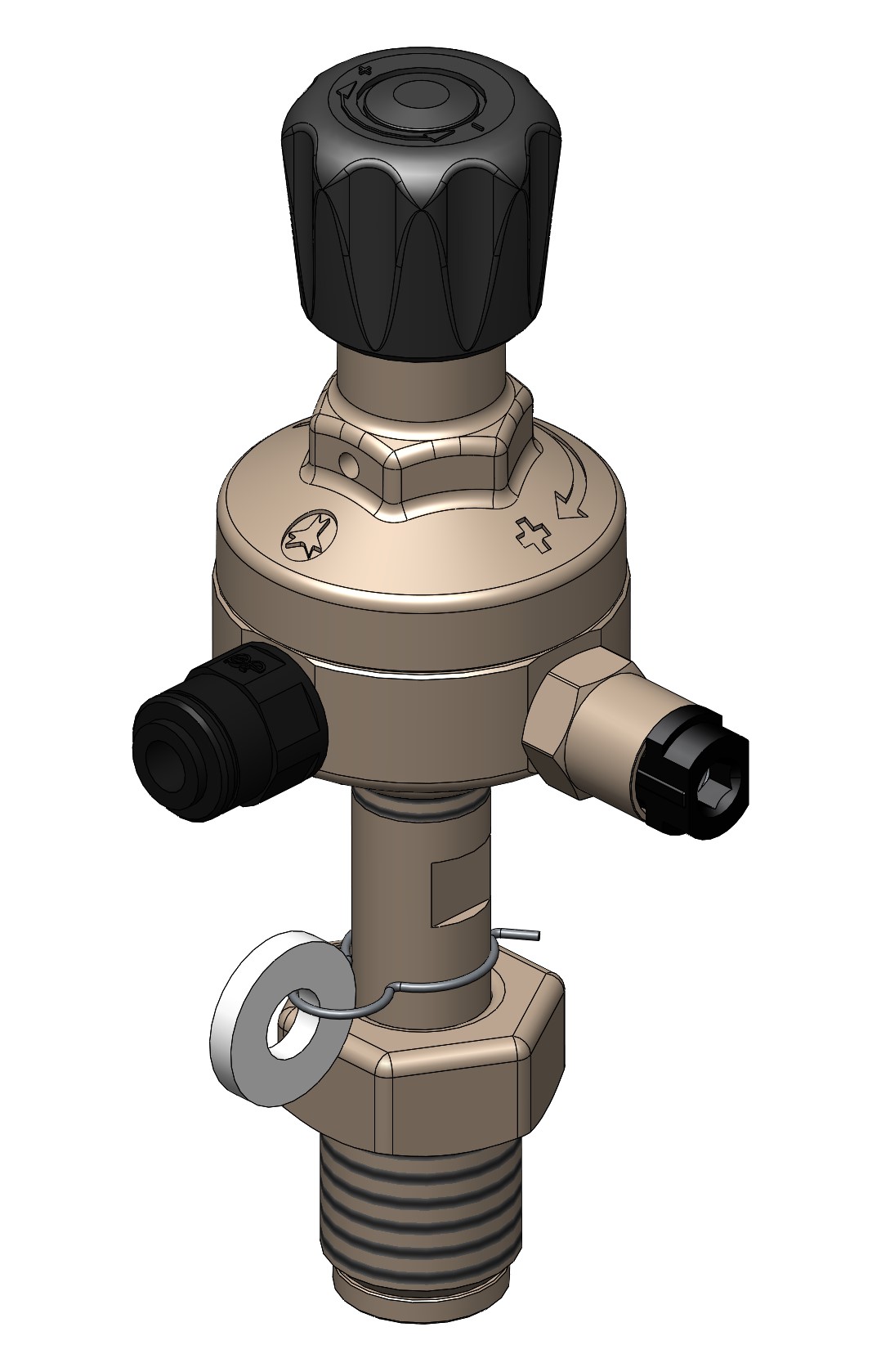

360000 Request information |  | MAJOR NoGauge. W21,8 DIN Q1=6500nL/h p2=3,0b AR6mm J.G | 3 | -- | -- | R | 0 | 1 | -- |

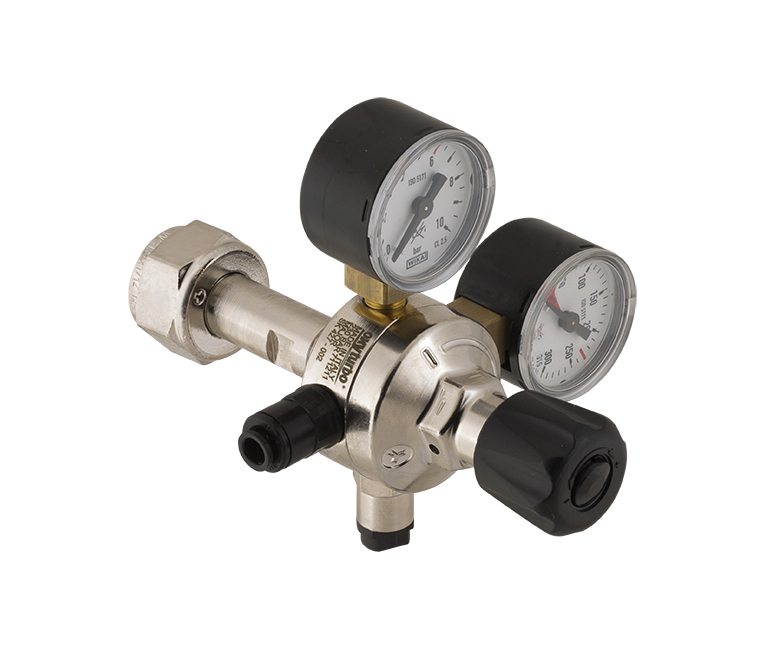

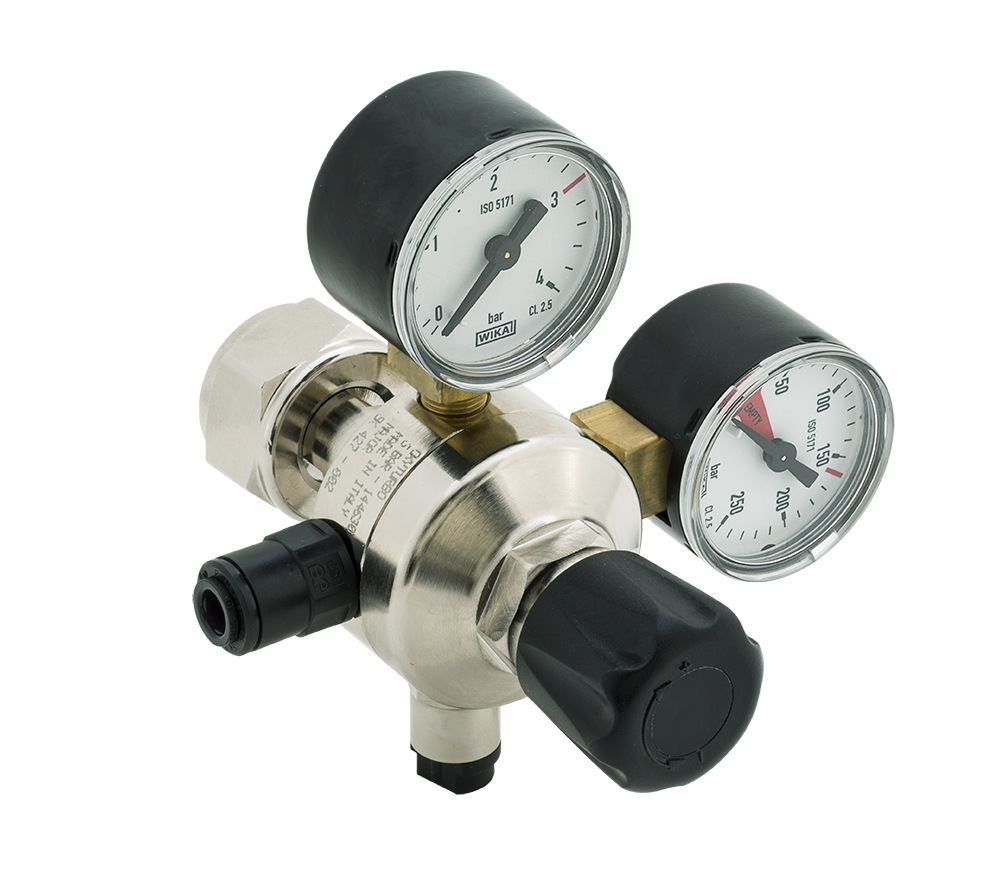

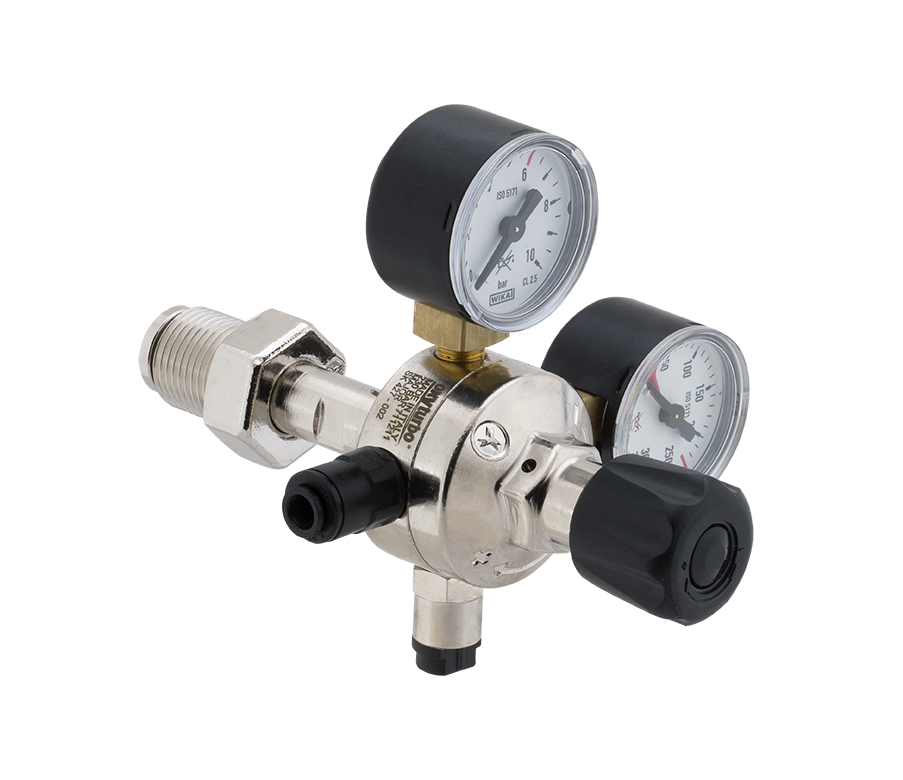

360200 Request information |  | MAJOR CO2 2Gauges W21,8DIN Q1=6500nL/h p2=3,0b AR6mm J.G. | 3 | 0-315 | 0-4 | D | 0 | 1 | -- |
361000 Request information |  | MAJOR NoGauge W21,8 DIN Q1=9500nL/h p2=4,8bar AR6mm | 4,8 | -- | -- | R | 0 | 1 | -- |

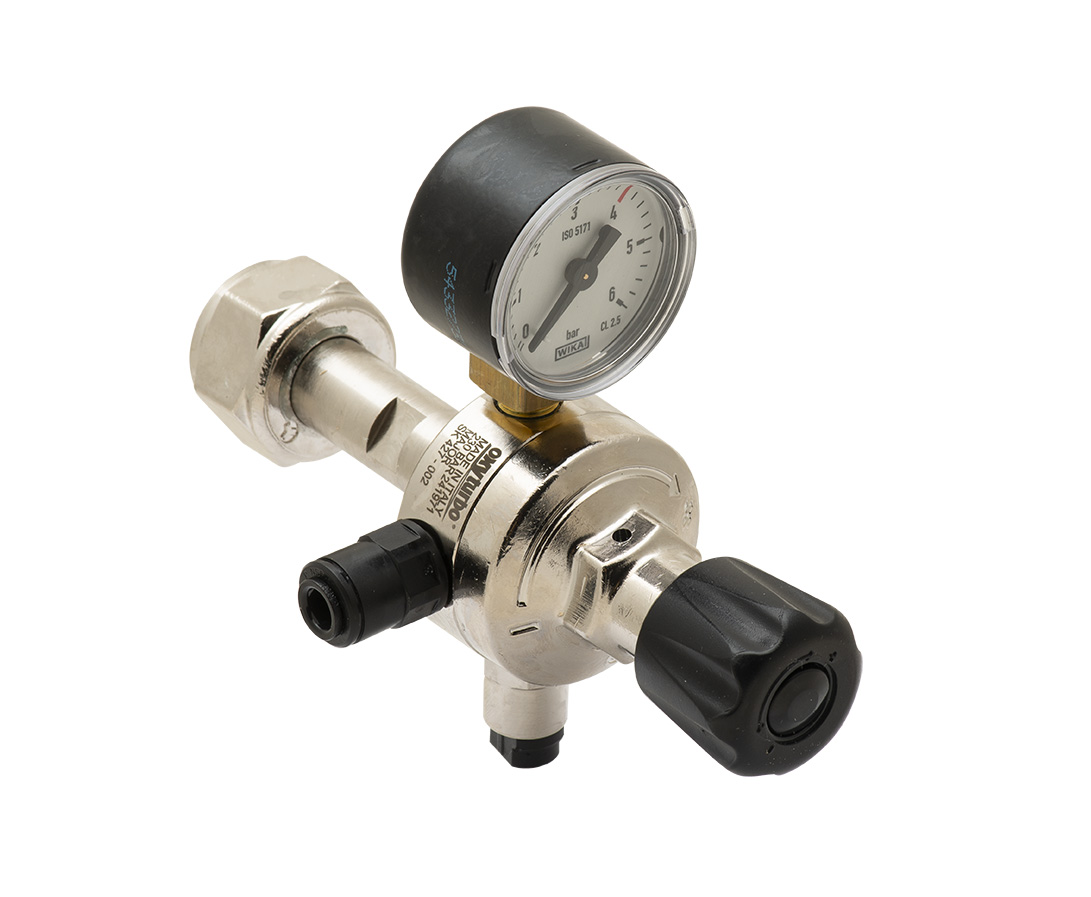

361300 Request information |  | MAJOR 1GaugeLP W21,8 DIN Q1=9500nL/h p2=4,8bar AR6 J.G. | 4,8 | -- | 0-6 | R | 0 | 1 | -- |

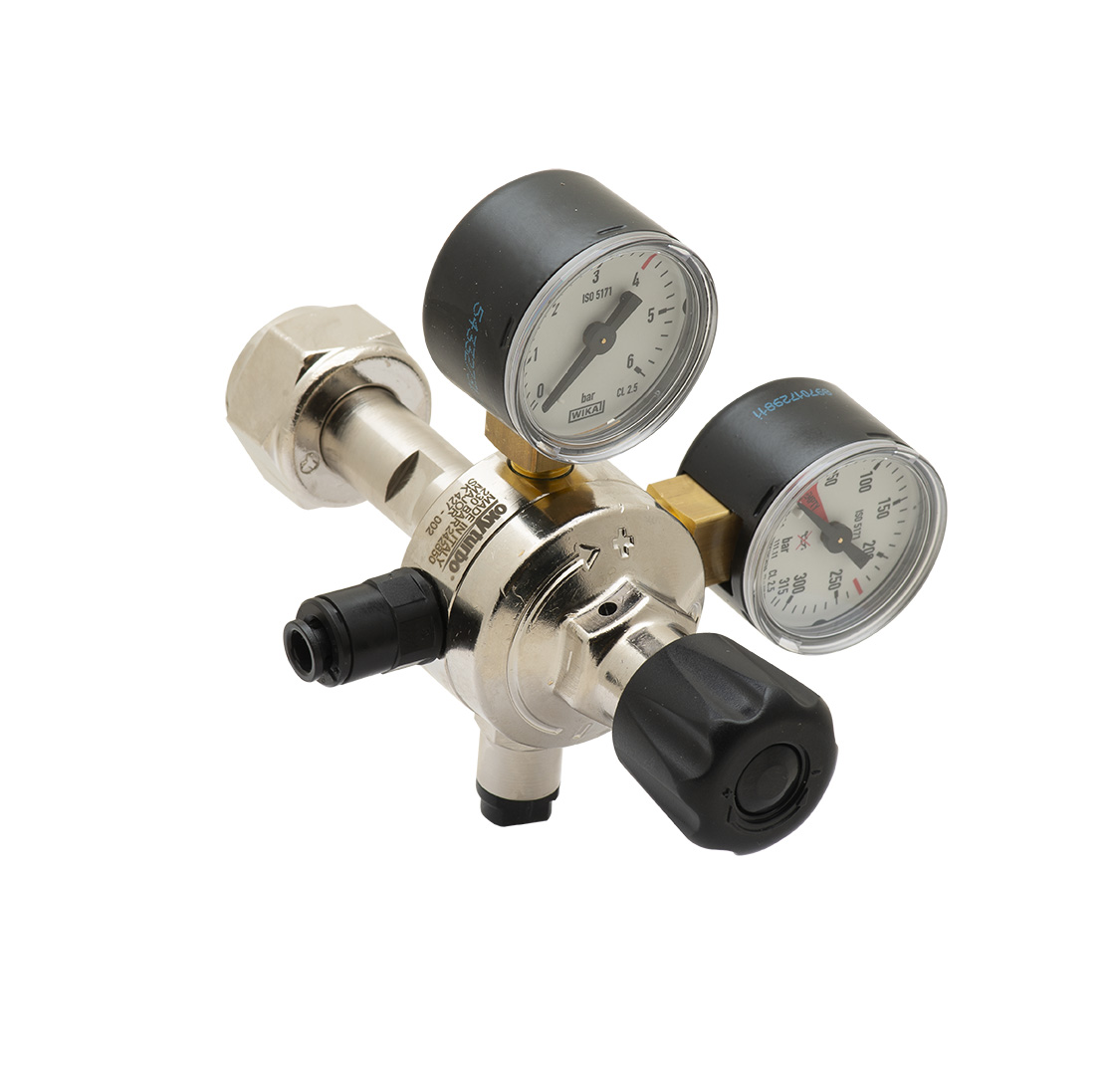

361200 Request information |  | MAJOR 2Gauge W21,8 DIN Q1=9500nL/h p2=4,8b AR6mm J.G. | 4,8 | 0-315 | 0-6 | D | 0 | 1 | -- |
362000 Request information |  | MAJOR NoGauge W21,8 DIN Q1=11000nL/h p2=5,5b AR6mm | 5,5 | -- | -- | R | 0 | 1 | -- |
362300 Request information |  | MAJOR 1GaugeLP W21,8 DIN Q1=11000nL/h p2=5,5b AR6mm | 5,5 | -- | 0-10 | R | 0 | 1 | |
362200 Request information |  | MAJOR 2 gauges W21,8 DIN Q1=11000nL/h p2=5,5b. AR6mm | 5,5 | 0-315 | 0-10 | D | 0 | 1 |
MAJOR NITROGEN - CALIBRATION 5.5 BAR
BEVERAGE - MAJOR - MAJOR NITROGEN - CALIBRATION 5.5 BAR
| Code | Image | Description | P2 (bar) | H.P. gauge (0–250 bar) | L.P. gauge (0–6 bar) | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|---|---|

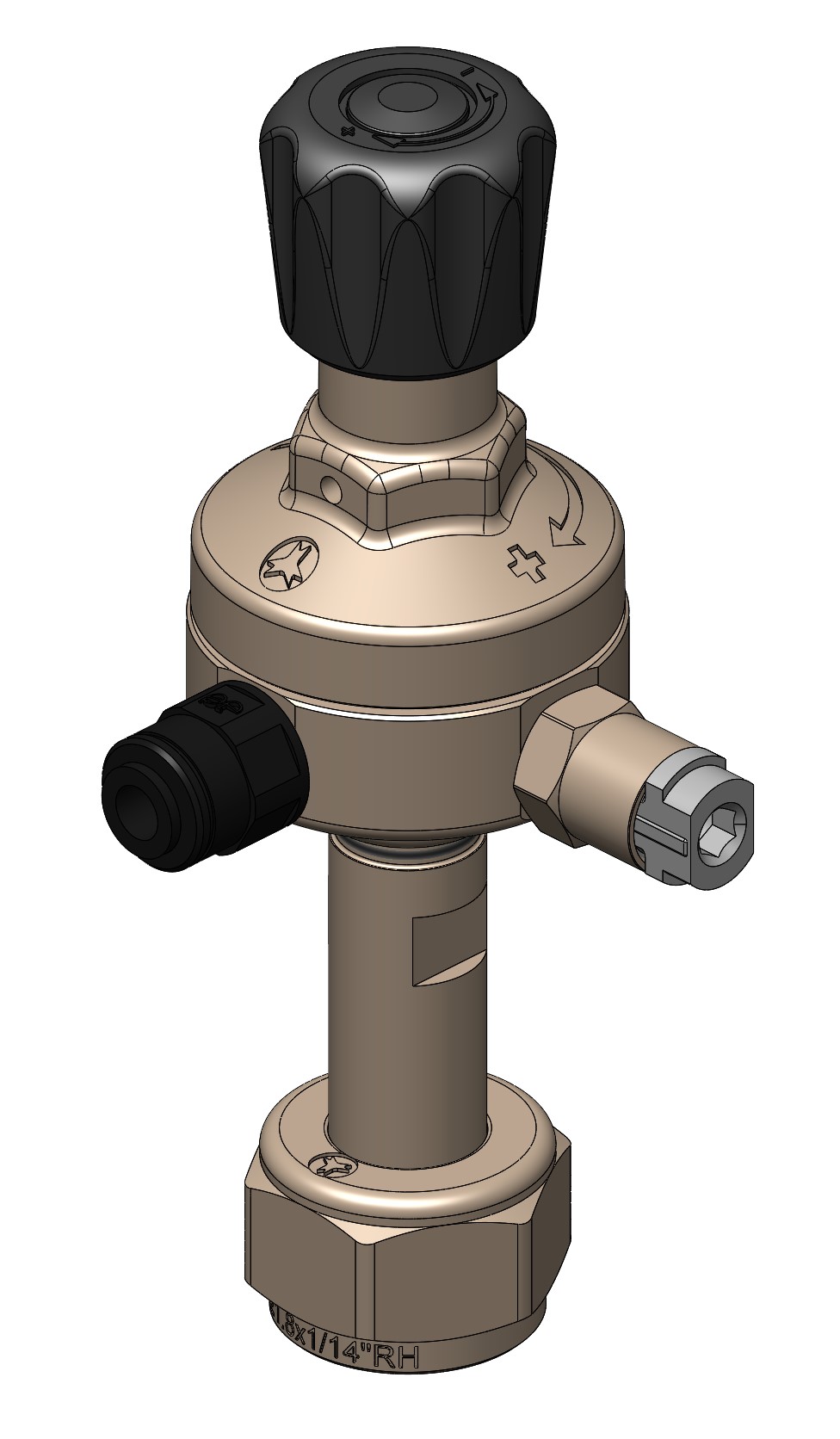

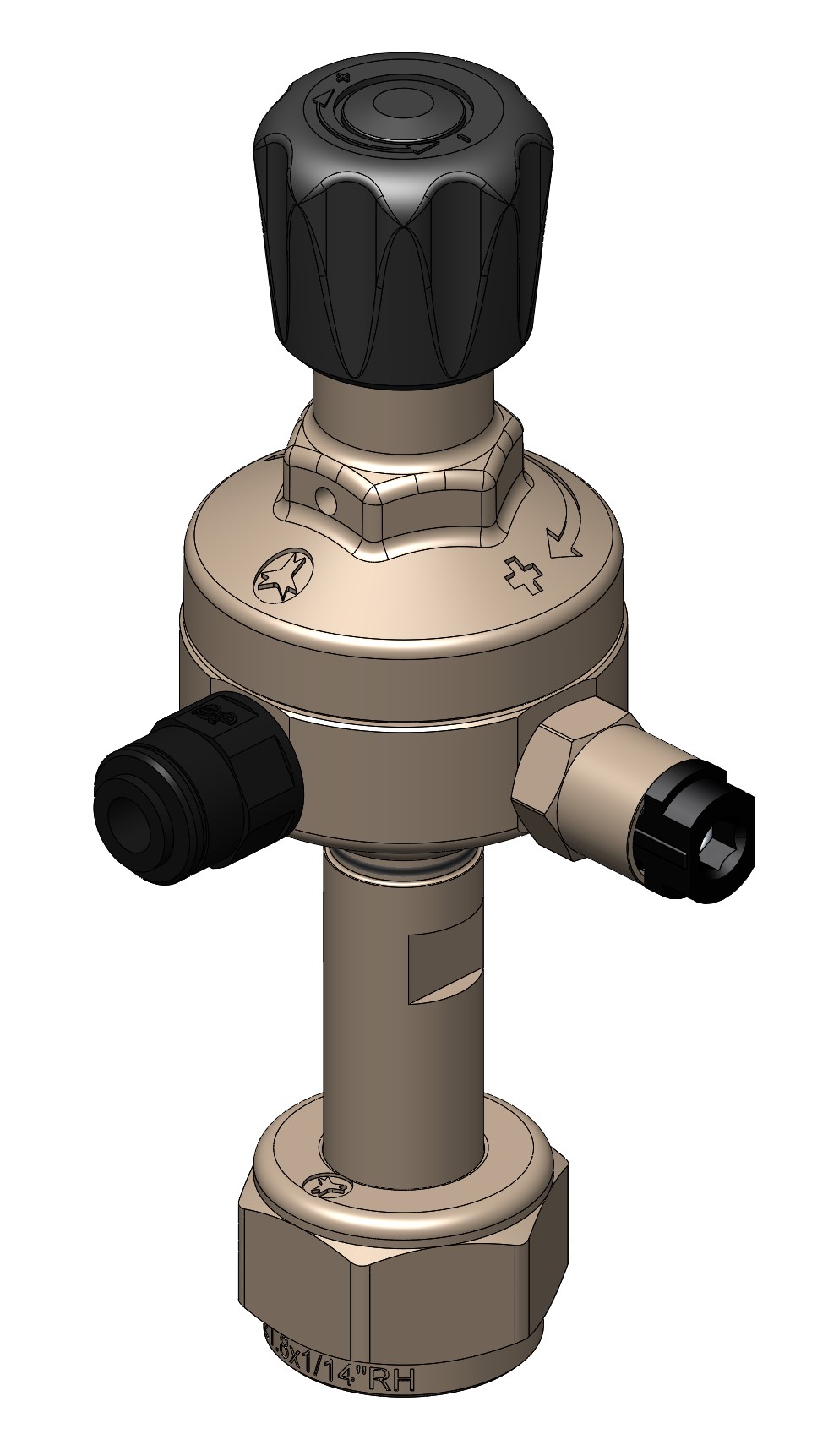

362002 Request information |  | MAJOR N2 NoGauge W21,8Rhe Q1=11000nL/h p2=5,5b AR6mm J.G | 5,5 | -- | -- | R | 0 | 1 | -- |
362302 Request information |  | MAJOR N2 GaugeLP W21,8Rhe Q1=11000nL/h p2=5,5b AR6mm J.G | 5,5 | -- | 0-10 | R | 0 | 1 | -- |
362202 Request information |  | MAJOR N2 2Gauges W21,8rhe Q1=11000nL/h p2=5,5b AR6mm J.G | 5,5 | 0-315 | 0-10 | D | 0 | 1 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
