New generation pressure regulator for M10x1 disposable cylinders

Characteristics

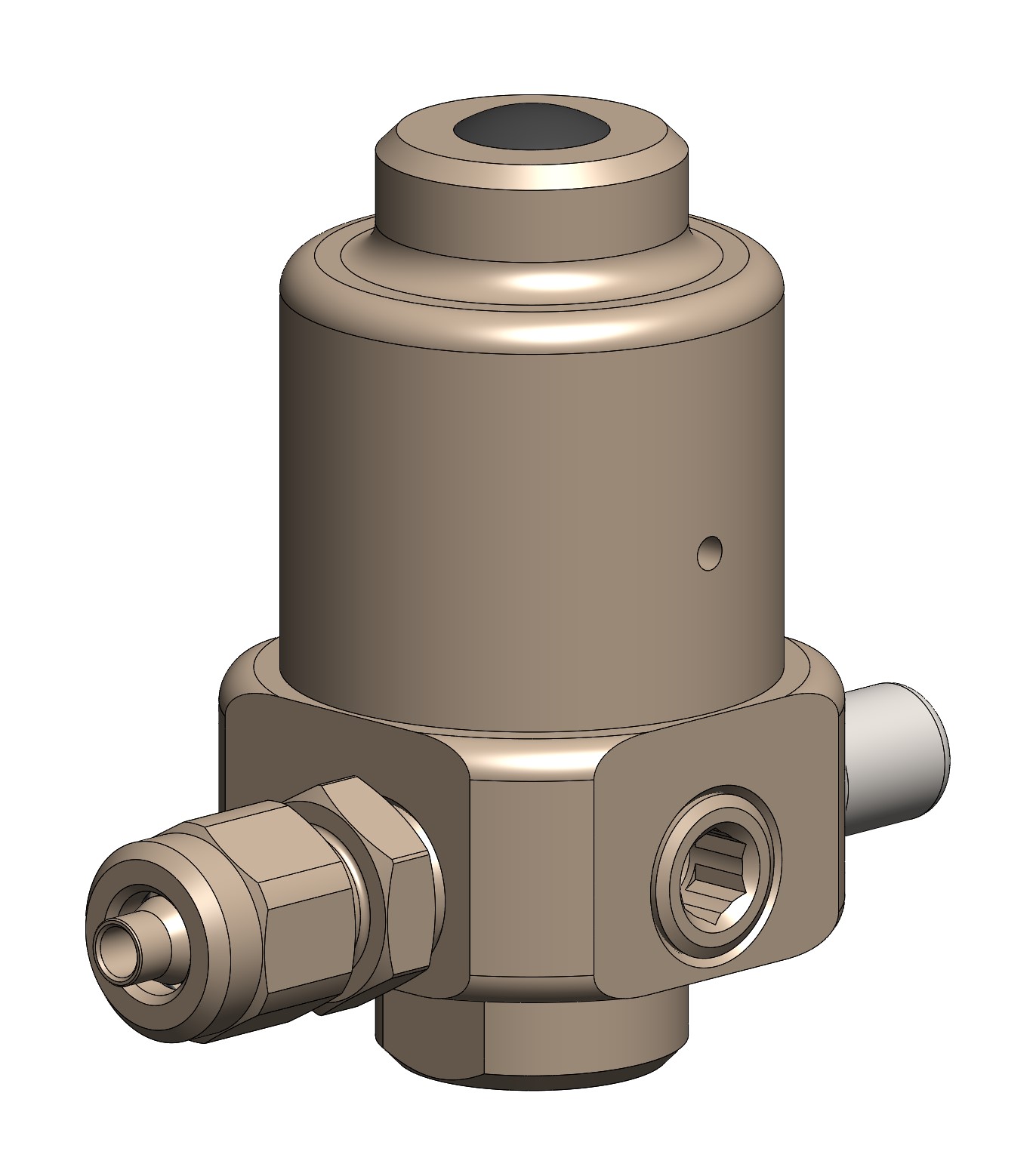

A new piston regulator without pressure gauges, complete with quick connection for 6/4mm diameter hose at the outlet and with fixed, non-adjustable operating pressure calibrated to 2 bar. This permits very precise distribution that does not change over time. All the components of the larger range regulators are concentrated in this smaller regulator. The micro-needle valve is integrated directly into the regulator body machining which allows optimal space reduction.
Also available with high pressure gauge, two pressure gauges, assembled solenoid valve and also in the M11x1 version.

Use

Suitable for self-adjusting piston technology, or rather automatically adjusts the output CO2 at the drop of the cylinder pressure while maintaining CO2 dispersion stable. All of this combined with the safety valve ensures maximum reliability and makes it particularly suitable for both freshwater and marine aquariums.

MINIMUM

AQUARIUM - MINIMUM - MINIMUM

Confronto tra codici, caratteristiche tecniche e documenti disponibili
Code Image Description P1 (bar) P2 (bar) Q1 (m³/h) Availability Weight (kg) No. of pcs Product sheet

235001

Request information
MINIMUM
 MINIMUM M10X1 60 2 6 R 0 1
--

235000

Request information
MINIMUM
 MINIMUM M11X1 60 2 6 R 0 1
--

235101

Request information
MINIMUM

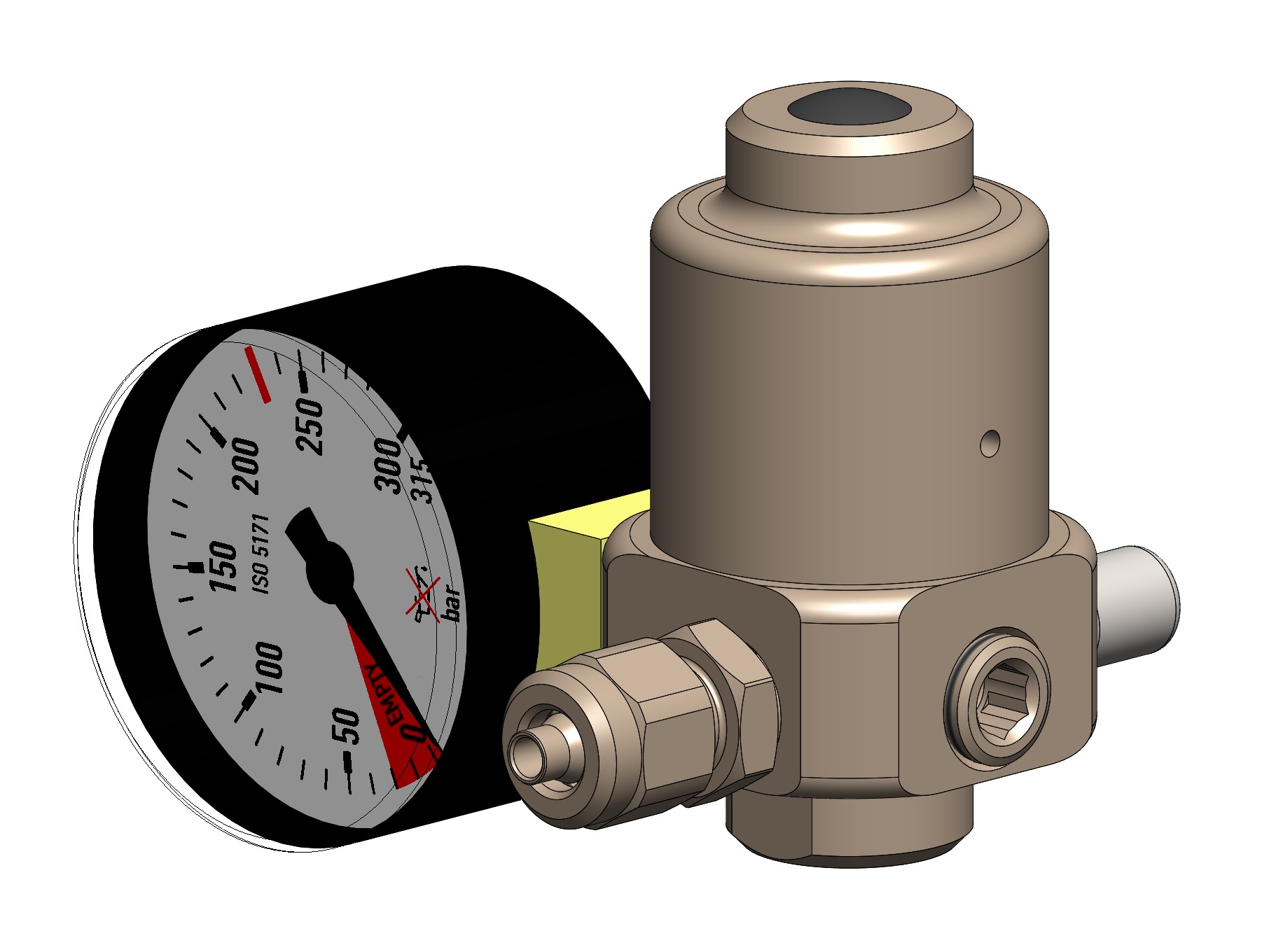

 MINIMUM M10X1 with gauge HP 60 2 6 R 0 1
--

235161.EV

Request information
MINIMUM

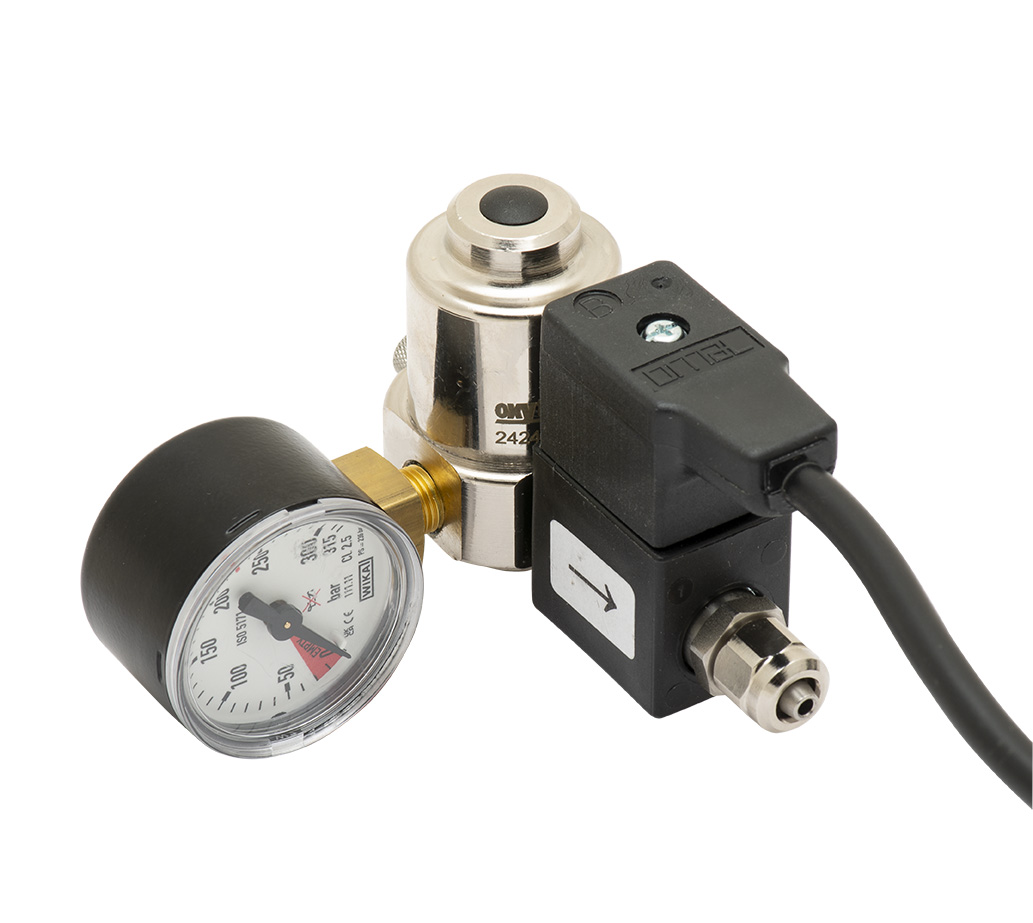

 MINIMUM M10X1 with gauge HP + solenoid valve 60 2 6 R 0 1
--

235201.EV

Request information
MINIMUM

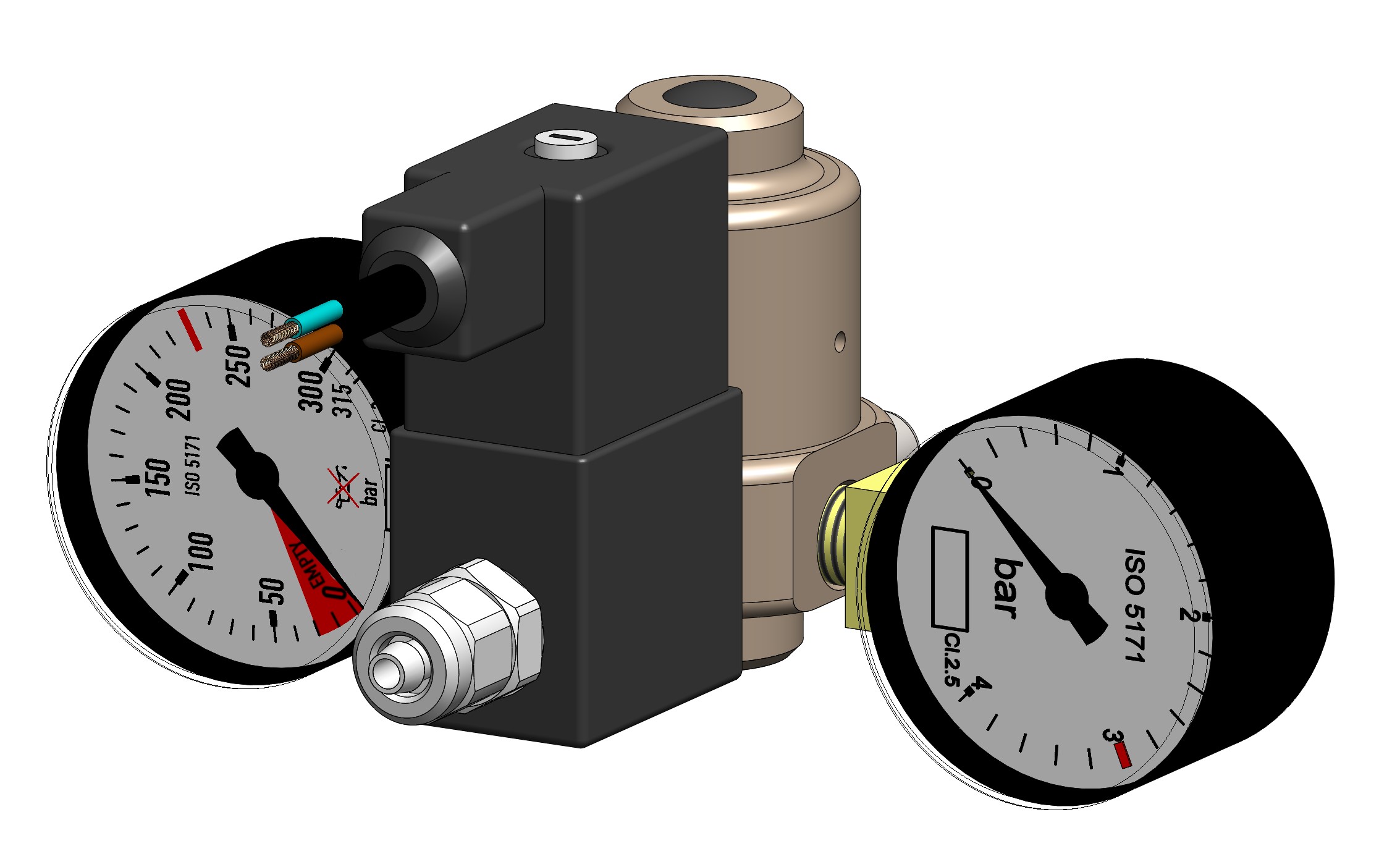

 MINIMUM M10X1 with 2 gauges + solenoid valve 60 2 6 R 0 1
--

Technical questions and evidence

How can I compare the available variants?

Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.

Which supporting documents are available?

The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.

How do I verify compatibility with my application?

Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.

The data and images contained in this catalog are purely indicative and may be subject to change without prior notice from Oxyturbo SpA. Photographs and product descriptions are not contractually binding and may only be used with the prior authorization of Oxyturbo SpA.
