AEROPROPANE WELDING
OXYWELDER KIT
OXYWELDER KIT
The ideal coordinated solution for your work needs. The kits work with LPG cylinders and are supplied with a nut and hose connection.
Oxyturbo offers a complete range of gas torches to meet increasingly sophisticated customer needs. Composable, versatile, useful for soft and hard welding and for professional works such as waterproofing, asphalting and thermoplastic forging.
Through its specialised experience in the monogas welding field, Oxyturbo has also created the Oxywelder kit which allow users to find the ideal coordinated solution for their own work needs.
HANDLES
Ergonomic, sturdy, easy to handle, available in two models: normal and with economizer for professional use.
They use different extensions and burners for various uses.
G 3/8 DX extension connection. G 3/8 SX tube connection.
EXTENSIONS
A series of extensions, each of which can be screwed onto burners of various sizes. They all have G 3/8 dx connections and range from 100 to 600 mm. The range is completed by the double-burner extension, consisting of a 600 mm extension and
terminal for 2 burners.
Characteristics
Use
Product Sectors
WELDER - OXYWELDER KIT
WELDER COMPLET - OXYWELDER KIT
WELDER KIT TURBO - OXYWELDER KIT
WELDER KIT TURBO - WELDER 100
WELDER KIT TURBO - WELDER 200
WELDER KIT TURBO - WELDER 400
WELDER KIT TURBO - WELDER 600
WELDER KIT TURBO - COPPER
WELDER KIT TURBO - COPPER COMPLET
ACCESSORIES FOR OT 22 BURNER - OXYWELDER KIT
ACCESSORIES - OXYWELDER KIT
CYLINDER HOLDER TROLLEYS - OXYWELDER KIT

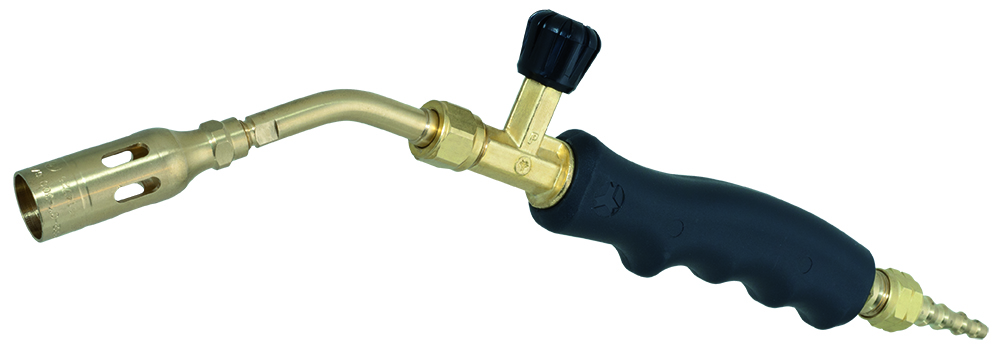

WELDER
AEROPROPANE WELDING - OXYWELDER KIT - WELDER
Composed of: Handgrip - 100mm extension pipe - OT burner
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
601050 Request information | | KIT with burners Ø 14 + 18 + 22mm | D | 0 | 1 | -- |
601200 Request information |  | KIT with burner Ø 18mm | D | 0 | 1 | -- |
601300 Request information |  | KIT with burner Ø 22mm | D | 0 | 1 | -- |
WELDER COMPLET
AEROPROPANE WELDING - OXYWELDER KIT - WELDER COMPLET

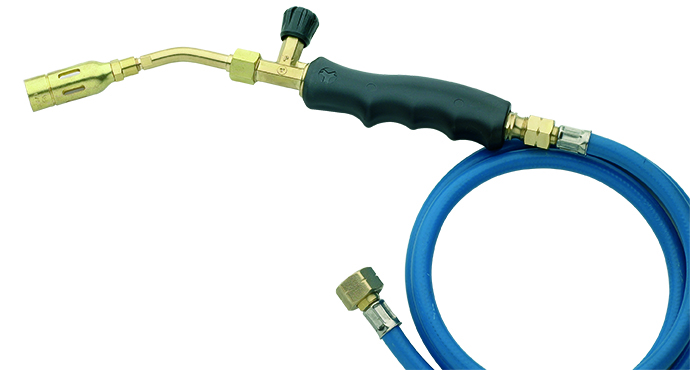

Composed of: Handgrip - 100mm extension pipe - 22mm diameter OT burner - 1.5 mm fitted hose
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
611300 Request information |  | WELDER COMPLET with 1.5 m 4 x 11 fitted hose | D | 0 | 1 | -- |
611320 Request information |  | WELDER COMPLET with 1.5 m 4 x 11 fitted hose | R | 0 | 10 | -- |
611380 Request information |  | WELDER COMPLET with 1.5 m 4 x 11 fitted hose + tap M16x1.5 | R | 0 | 10 | -- |
611310 Request information |  | WELDER COMPLET with 2.0 m 3.2 x 8.8 fitted hose | R | 0 | 10 | -- |
WELDER KIT TURBO
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.
| Code | Image | Description | Burner Ø (mm) | Weight (kg) | Availability | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|---|
601500 Request information | WELDER KIT 3 burners | 21-26-28 | 0 | D | 1 | -- | |
601550 Request information | WELDER KIT 3 burners + handgrip | 21-26-28 | 1 | D | 1 | -- | |
601550.ECO Request information | WELDER KIT 3 burners + gas saving handgrip | 21-26-28 | 1 | D | 1 | -- | |
601551 Request information | WELDER KIT burner ø21 w/handgrip | 21 | 0 | D | 1 | -- | |
601551.ECO Request information | WELDER KIT burner ø21 w/ gas saving handgrip | 21 | 0 | D | 1 | -- | |
601552 Request information | WELDER KIT burner ø26 w/handgrip | 26 | 0 | D | 1 | -- | |
601552.ECO Request information | WELDER KIT burner ø26 w/ gas saving handgrip | 26 | 0 | D | 1 | -- | |
601553 Request information | WELDER KIT burner ø28 w/handgrip | 28 | 0 | D | 1 | -- | |
601553.ECO Request information | WELDER KIT burner ø28 w/ gas saving handgrip | 28 | 0 | D | 1 | -- |
WELDER KIT TURBO - WELDER 100
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO - WELDER 100
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.

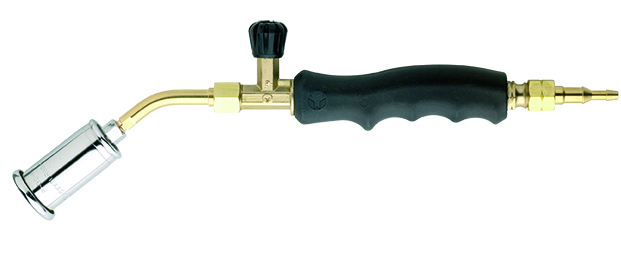

Composed of: Handgrip - 100mm extension pipe - ASP burner
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
603100 Request information |  | KIT Ø 45MM | D | 0 | 1 | -- |
603200 Request information |  | KIT Ø 60MM | D | 0 | 1 | -- |
WELDER KIT TURBO - WELDER 200
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO - WELDER 200
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.

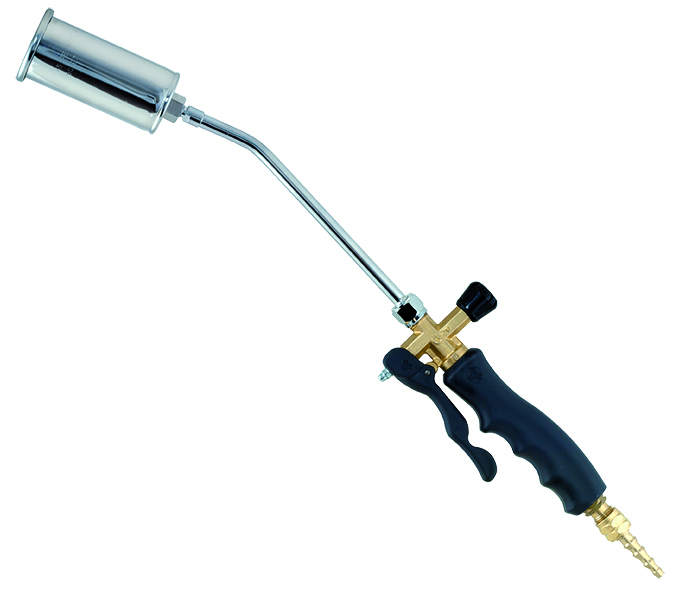

Composed of: Handgrip with gas saving lever - 200mm extension pipe - 45mm diameter FE burner
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
655600 Request information |  | KIT Ø 45MM | D | 0 | 1 | -- |
WELDER KIT TURBO - WELDER 400
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO - WELDER 400
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.

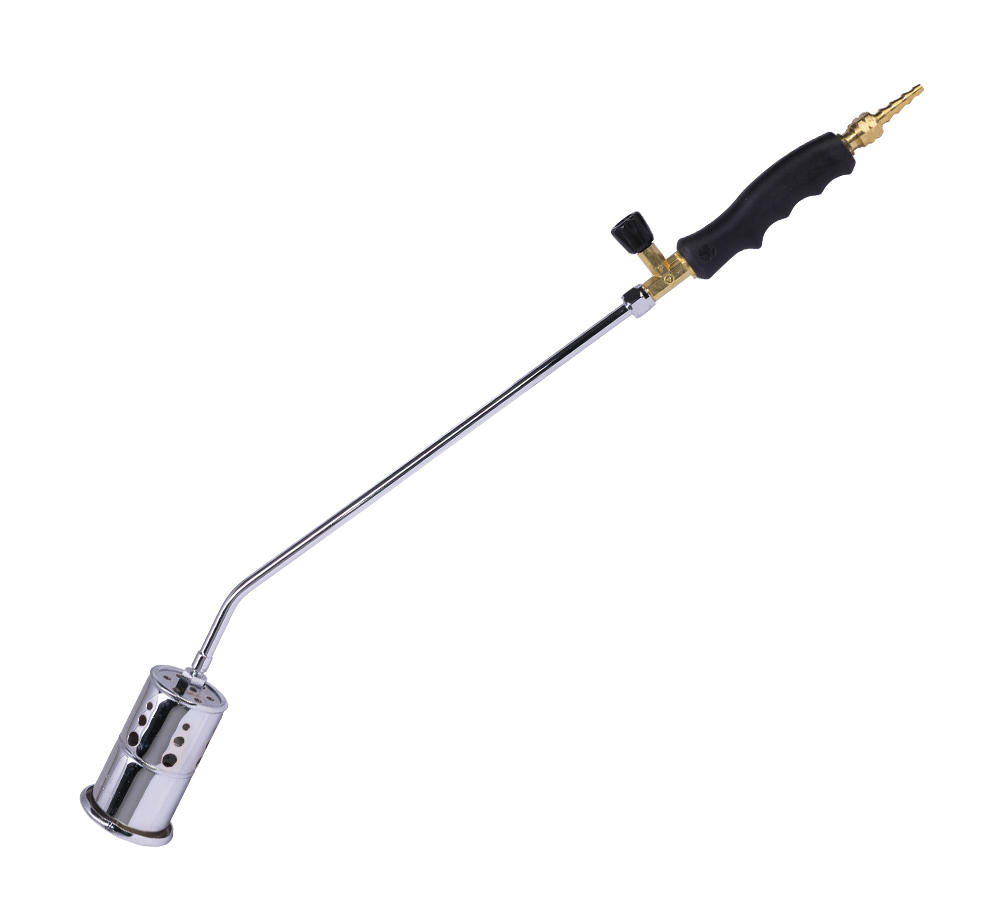

Composed of: Handgrip - 400mm extension pipe - 60mm diameter burner
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
606200 Request information |  | Handgrip + ASP burner | D | 0 | 1 | -- |
656700 Request information |  | Handgrip with gas-saving lever + ASP burner | D | 0 | 1 | -- |

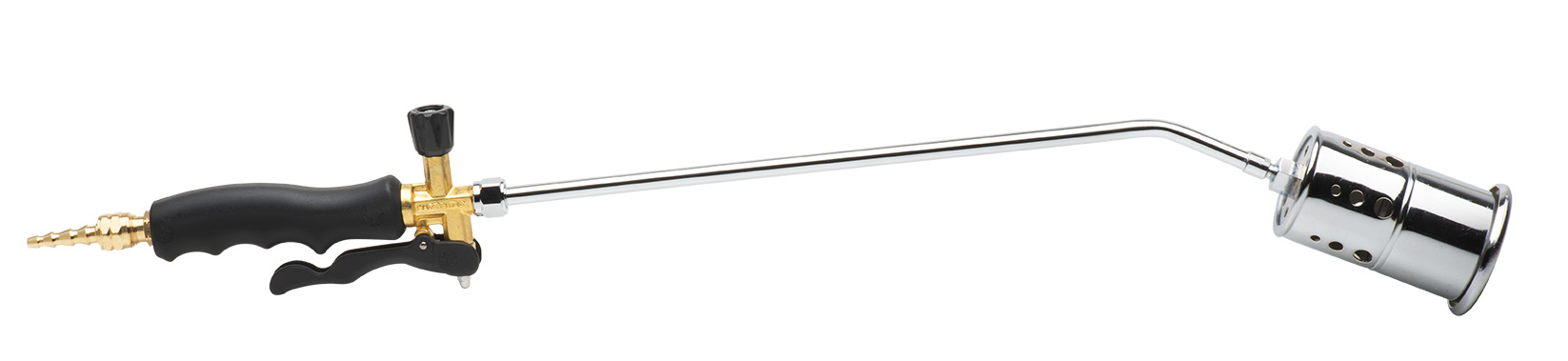

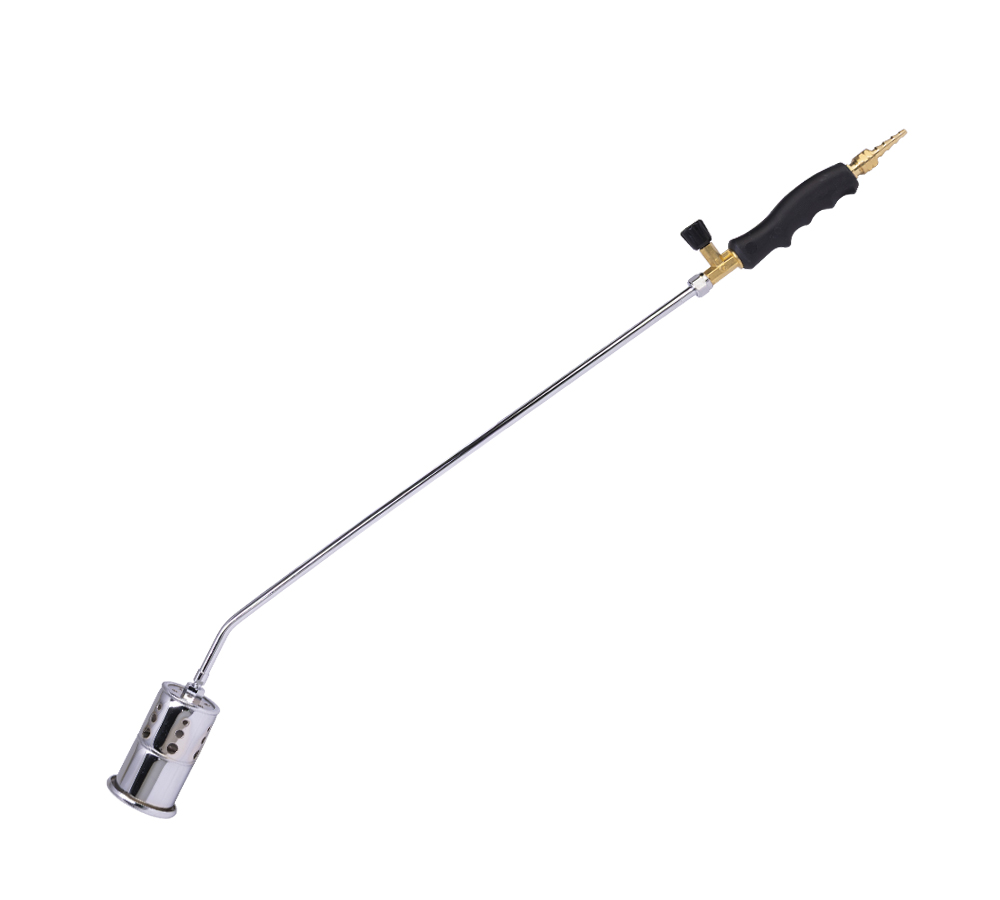

WELDER KIT TURBO - WELDER 600
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO - WELDER 600
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.
Composed of: Handgrip -600mm extension pipe - 60mm diameter burner
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
609200 Request information |  | Handgrip + ASP burner | D | 0 | 1 | -- |
659700 Request information | Handgrip with gas-saving lever + ASP burner | D | 1 | 1 | -- |

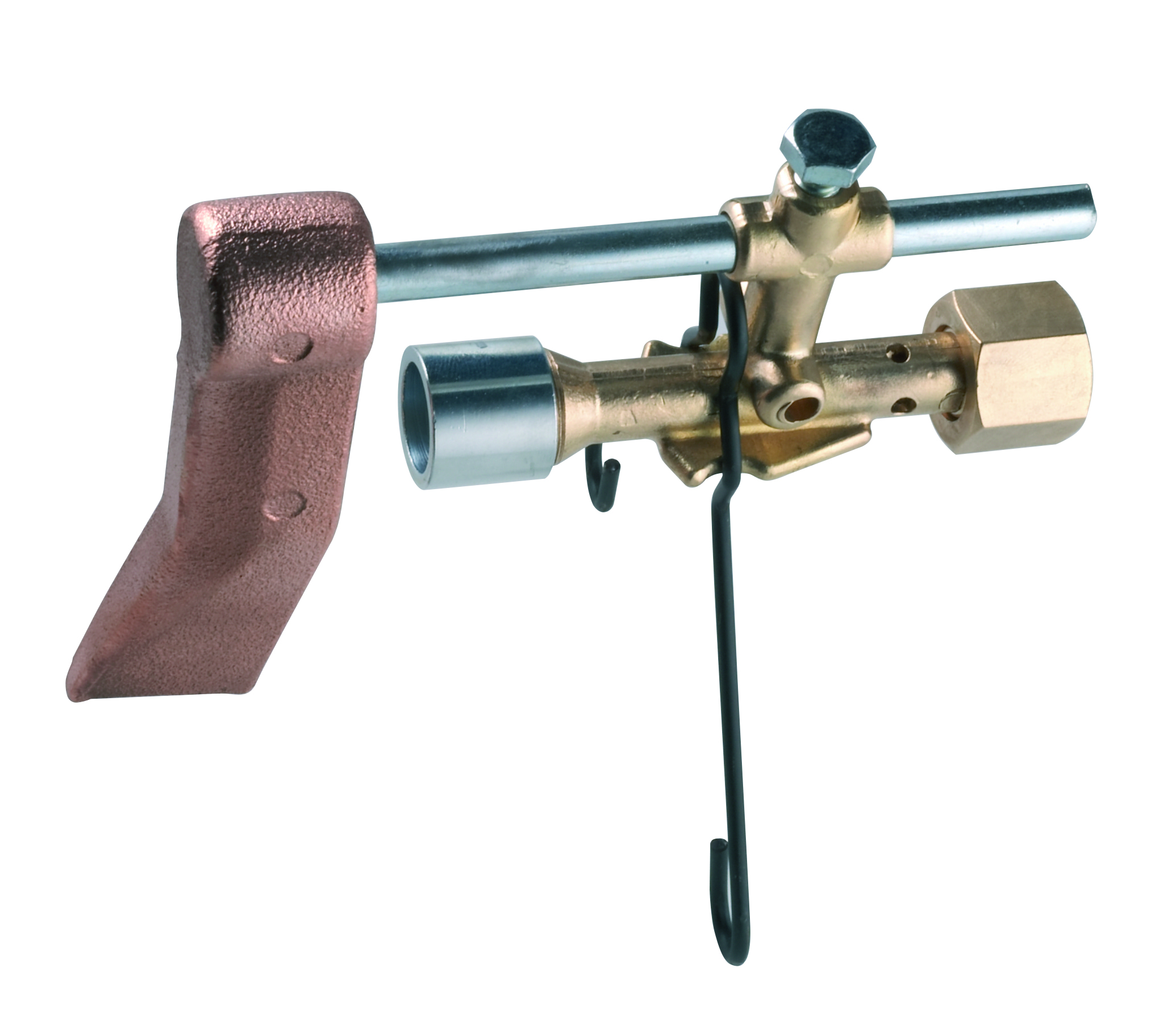

WELDER KIT TURBO - COPPER
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO - COPPER
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.

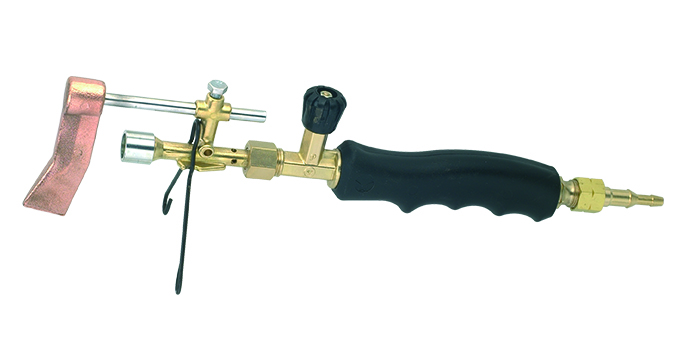

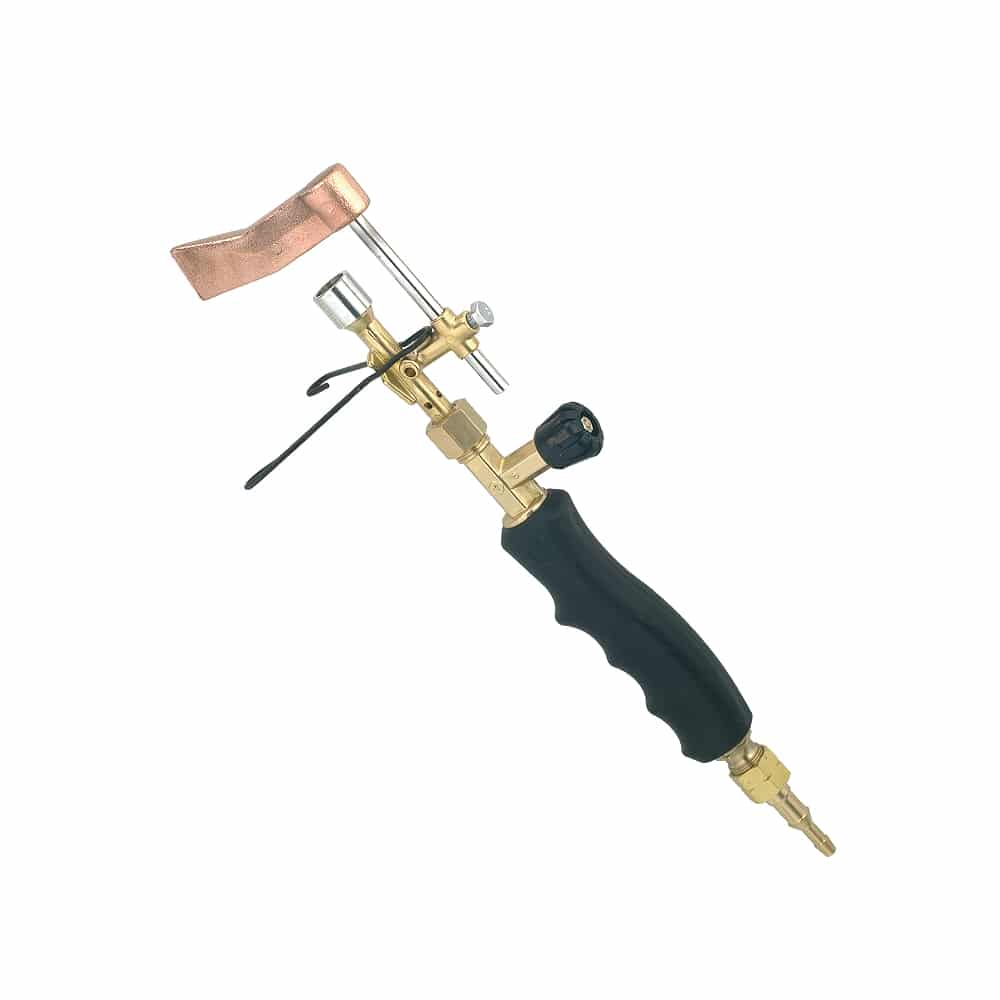

Composed of: Handgrip - lance with copper mallet - support hook
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
600000 Request information |  | COPPER | D | 0 | 1 | -- |
610000 Request information |  | COPPER COMPLET with HOSE | D | 1 | 1 | -- |
610020 Request information |  | Copper complet with 1.5 m 4x11 fitted hose | R | 1 | 10 | -- |
610010 Request information |  | Copper complet with 2.0 m 3.2X8.8 Fitted hose | R | 1 | 10 | -- |
WELDER KIT TURBO - COPPER COMPLET
AEROPROPANE WELDING - OXYWELDER KIT - WELDER KIT TURBO - COPPER COMPLET
Composed of: normal or economizer handle – one or more Turbo burners with 3 different diameters.

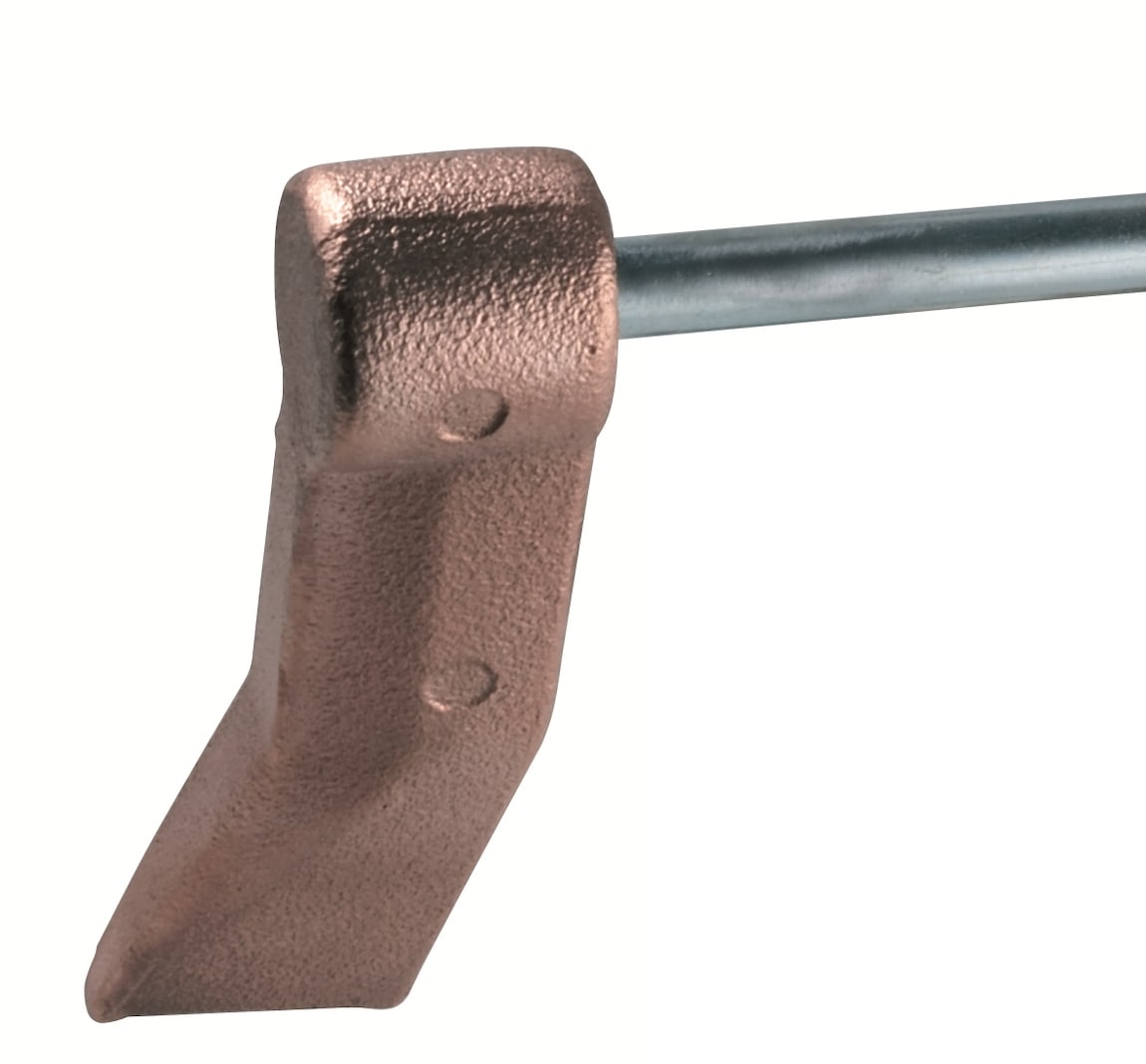

Ideal for welding fine metals such as sheet metal. Replacement 250g copper mallet available.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
584890 Request information |  | LANCE WITH COPPER MALLET | D | 0 | 1 | -- |
570750 Request information |  | COPPER MALLET 250 g | D | 0 | 1 | -- |
ACCESSORIES FOR OT 22 BURNER
AEROPROPANE WELDING - OXYWELDER KIT - ACCESSORIES FOR OT 22 BURNER
The range is completed by a series of useful accessories to facilitate soft welding work, to facilitate the transport of cylinders and to lighten the work of vertical waterproofing.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|

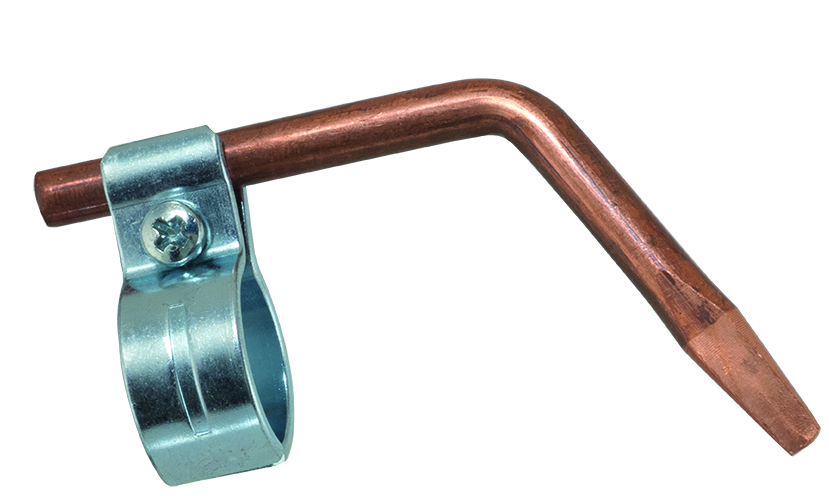

570702 Request information |  | Tinning nozzle ø 22 mm | D | 0 | 1 | -- |

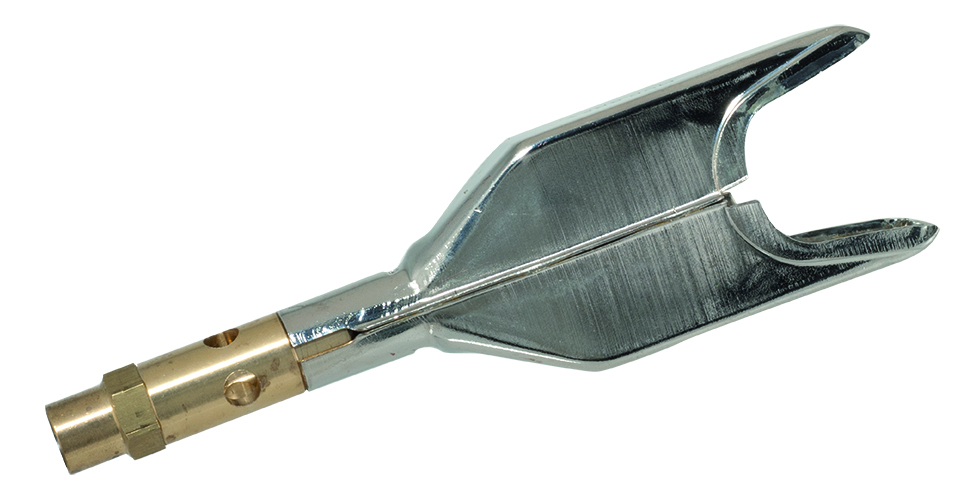

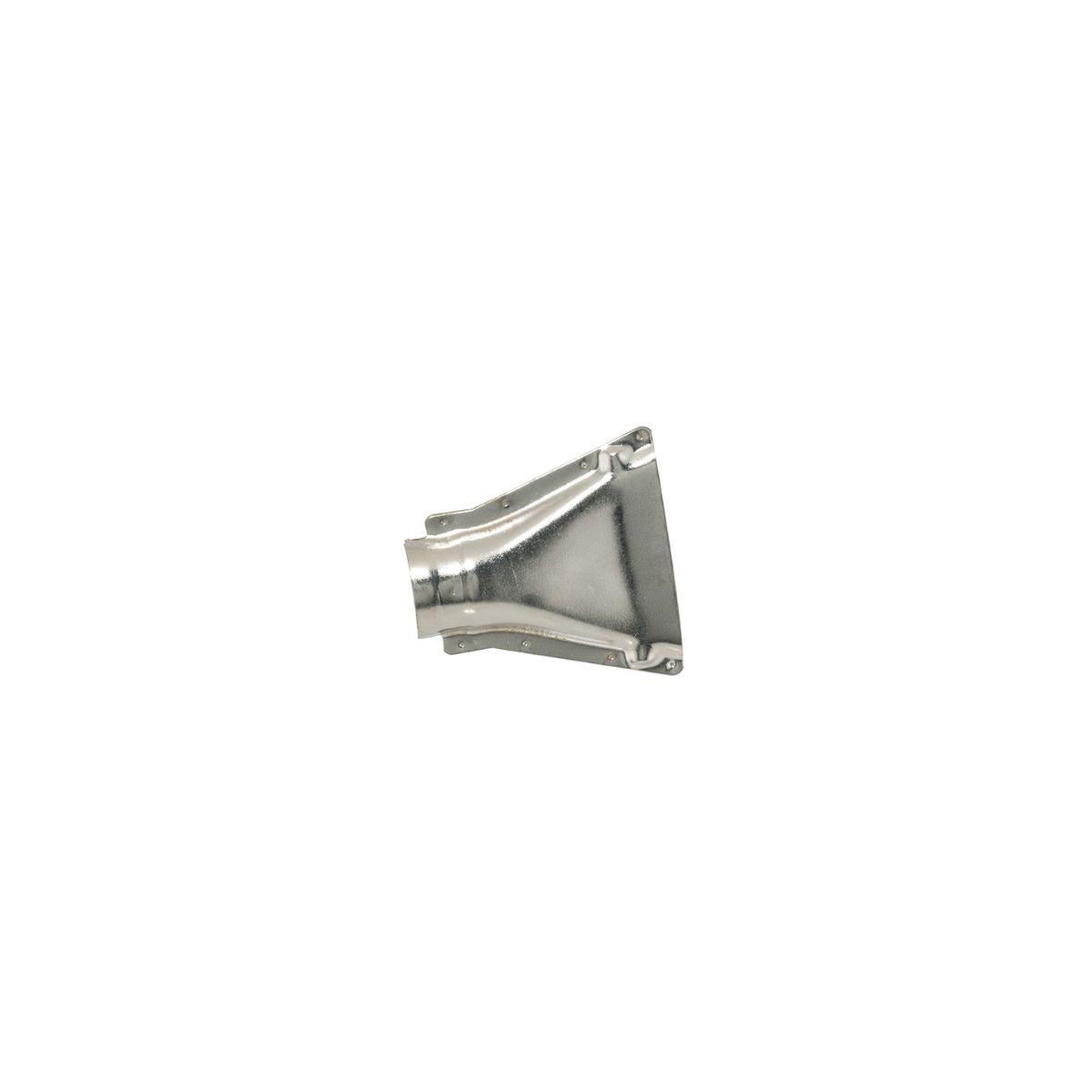

570800 Request information |  | Flat flame burner ø 22 mm | D | 0 | 1 | -- |
583805 Request information |  | CERCOFLAMME M10X1 | D | 0 | 1 | -- |
ACCESSORIES
AEROPROPANE WELDING - OXYWELDER KIT - ACCESSORIES

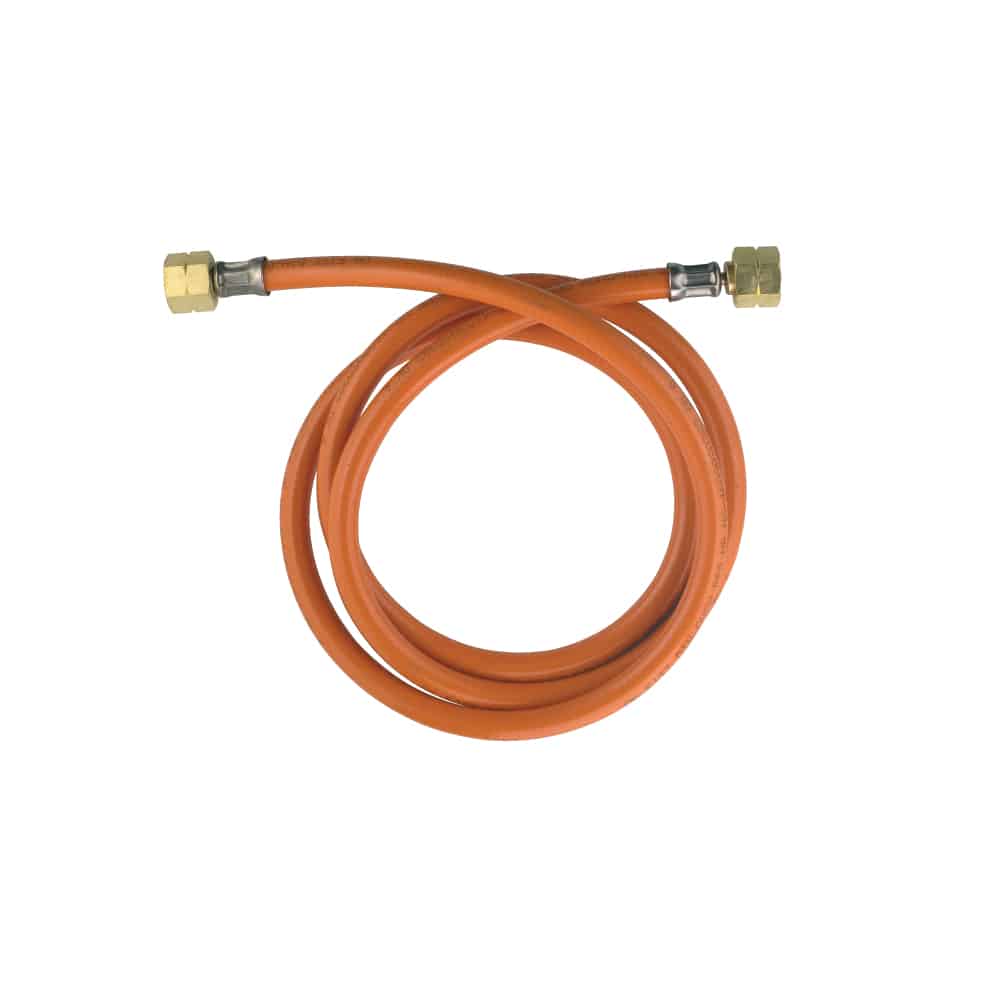

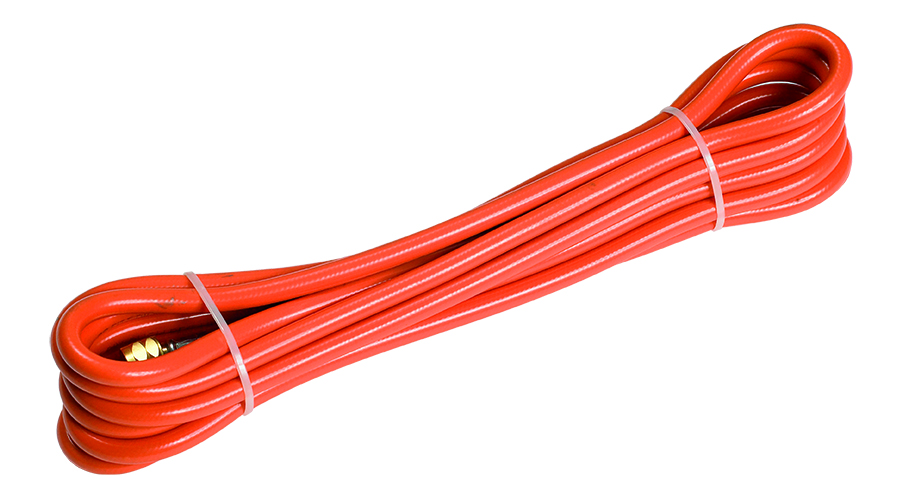

Oxyturbo supplies a series of approved pipes with connections and of different lengths and diameters to satisfy every need of the end user.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
444500 Request information |  | FITTED HOSE 1.5m 4X11DVGW-DK10- KEY 25 – G 3/8 LH | D | 0 | 1 | -- |
444502 Request information |  | FITTED HOSE 1.5m 4X11DVGW-DK10- KEY 27 – G 3/8 LH | R | 0 | 1 | -- |
441501 Request information |  | FITTED HOSE 2m 3,2X8,8 – G 3/8 LH | D | 0 | 1 | -- |
441601 Request information |  | FITTED HOSE 5m 4X11 DVGW-DK6 –G 3/8 LH | D | 0 | 1 | -- |
441602 Request information |  | FITTED HOSE 1.5m 4X11 DVGW-DK6 – G 3/8 LH | D | 0 | 1 | -- |
CYLINDER HOLDER TROLLEYS
AEROPROPANE WELDING - OXYWELDER KIT - CYLINDER HOLDER TROLLEYS

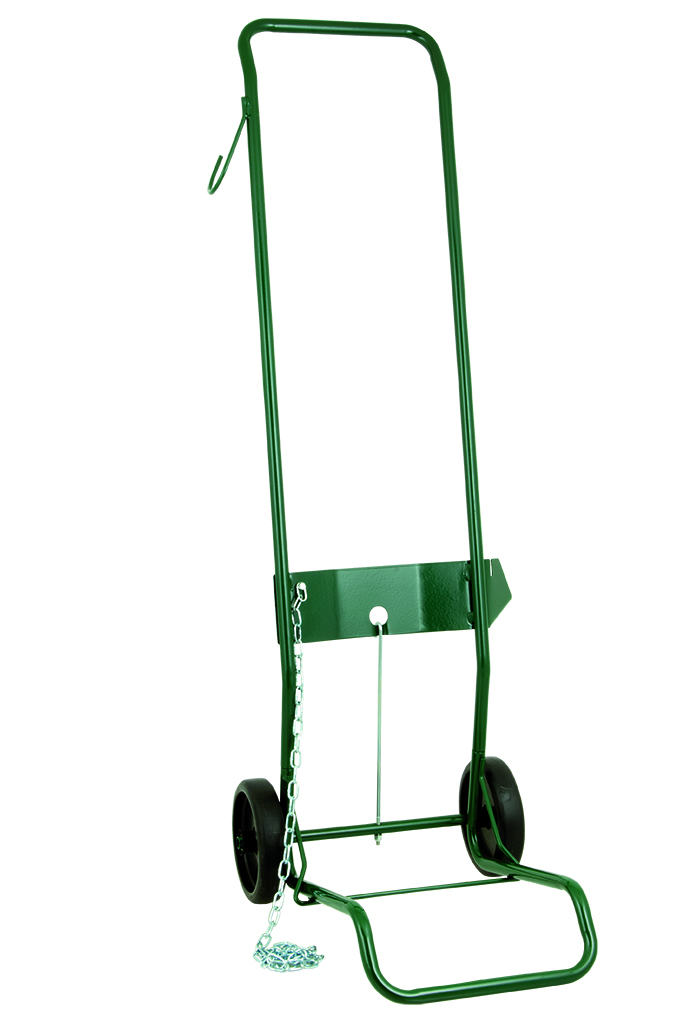

An eye-catching, designed trolley made for the transporting LPG cylinders; equipped with chain and burner support and comes with full rubber 125 mm diameter wheels. Suitable for rough terrain and can withstand weights up to 60 kg.
| Code | Image | Description | Availability | Weight (kg) | No. of pcs | Product sheet |
|---|---|---|---|---|---|---|
580000 Request information |  | CYLINDER HOLDER TROLLEY | D | 2 | 1 | -- |

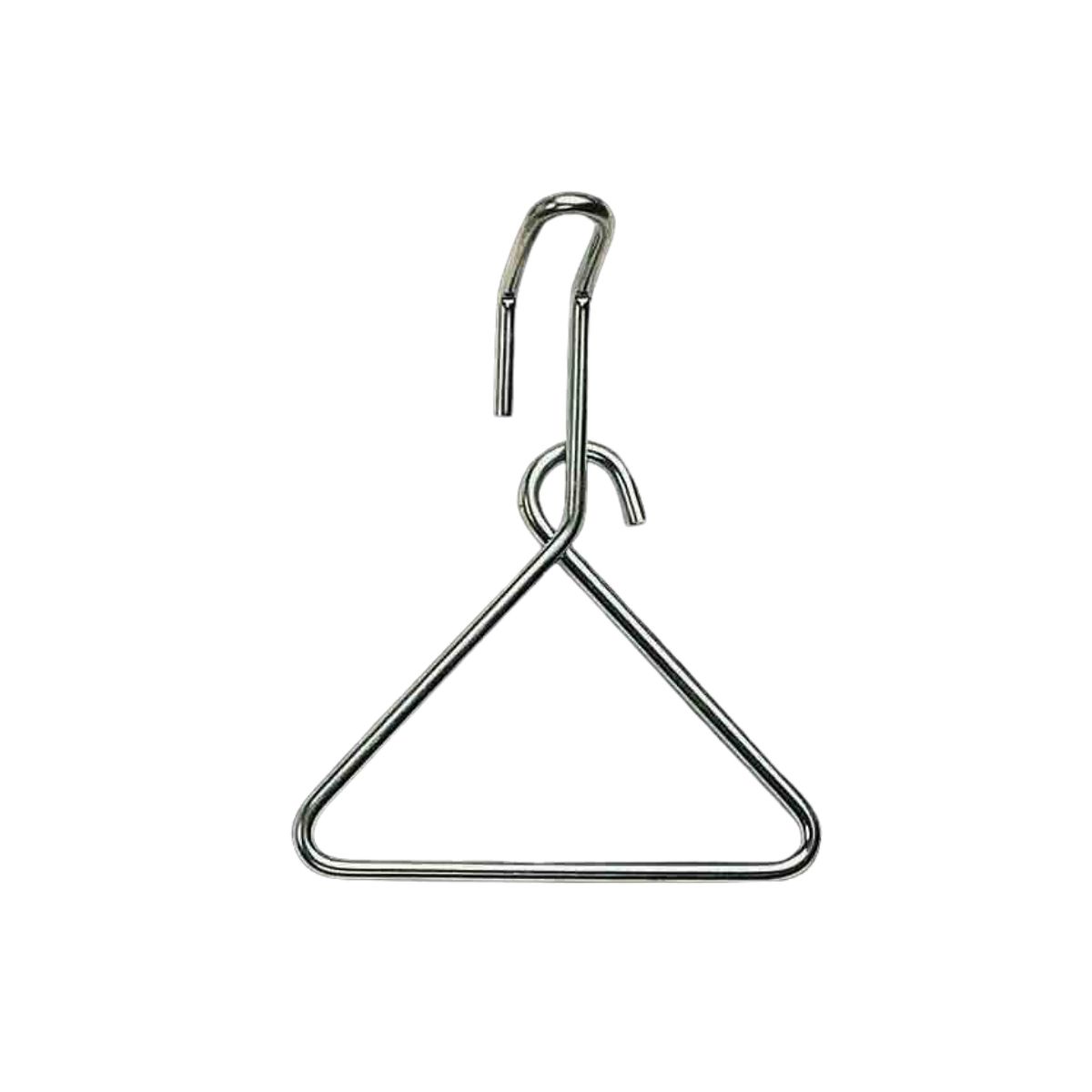

584700 Request information |  | SUPPORT HOOK Ø 12 mm | D | 0 | 1 | -- |

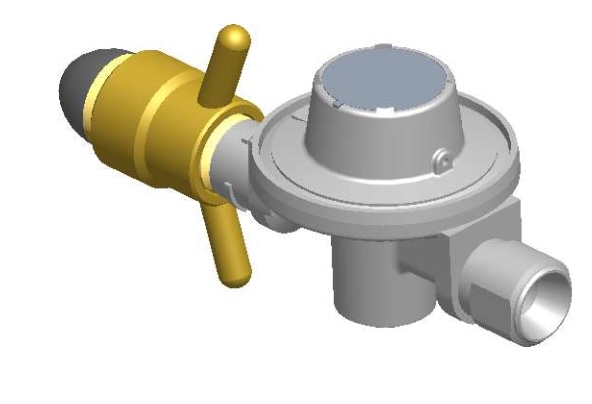

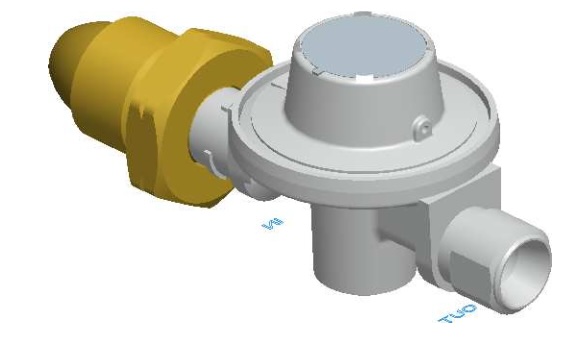

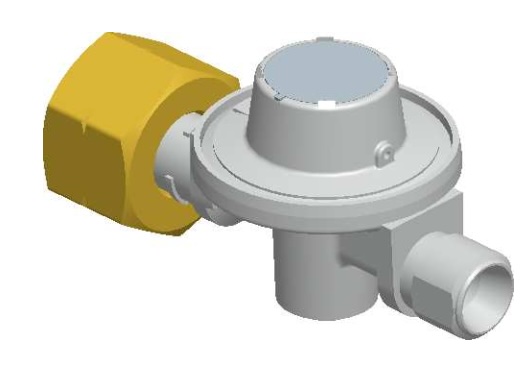

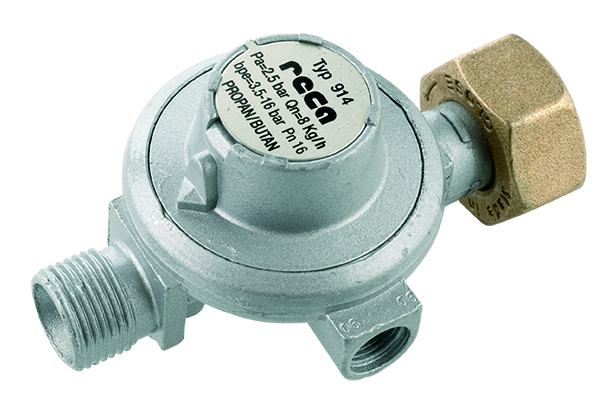

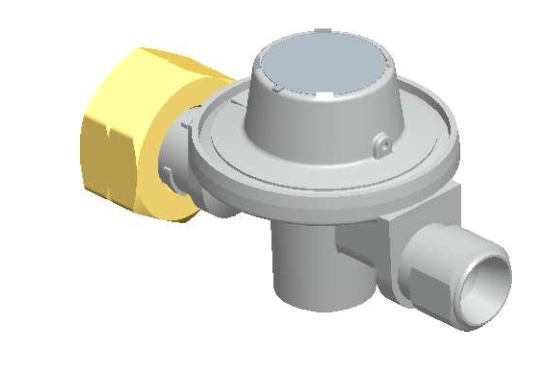

422000 Request information |  | REGULATOR IT - KEY 25 | D | 0 | 1 | -- |
422001 Request information |  | DE - KEY 30 | R | 0 | 70 | -- |
422002 Request information |  | FR - KEY 27 | R | 0 | 70 | -- |
422003 Request information |  | GB - G5/8 | R | 0 | 70 | -- |
422008 Request information |  | DK - JUMBO | R | 0 | 40 | -- |
422009 Request information |  | SE - JUMBO | R | 0 | 40 | -- |
Technical questions and evidence
How can I compare the available variants?
Use the comparison table above: codes and technical properties come directly from the Oxyturbo product database.
Which supporting documents are available?
The technical sheets, manuals and certificates shown on this page are the documents currently associated with this product family.
How do I verify compatibility with my application?
Check gas, pressure, connection and flow data for the exact code, then send that code with the application requirements to Oxyturbo for confirmation.
